Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe
Supported model
Data version 2022-12
Engine Oil Pump
8 part groups · 3 illustrations

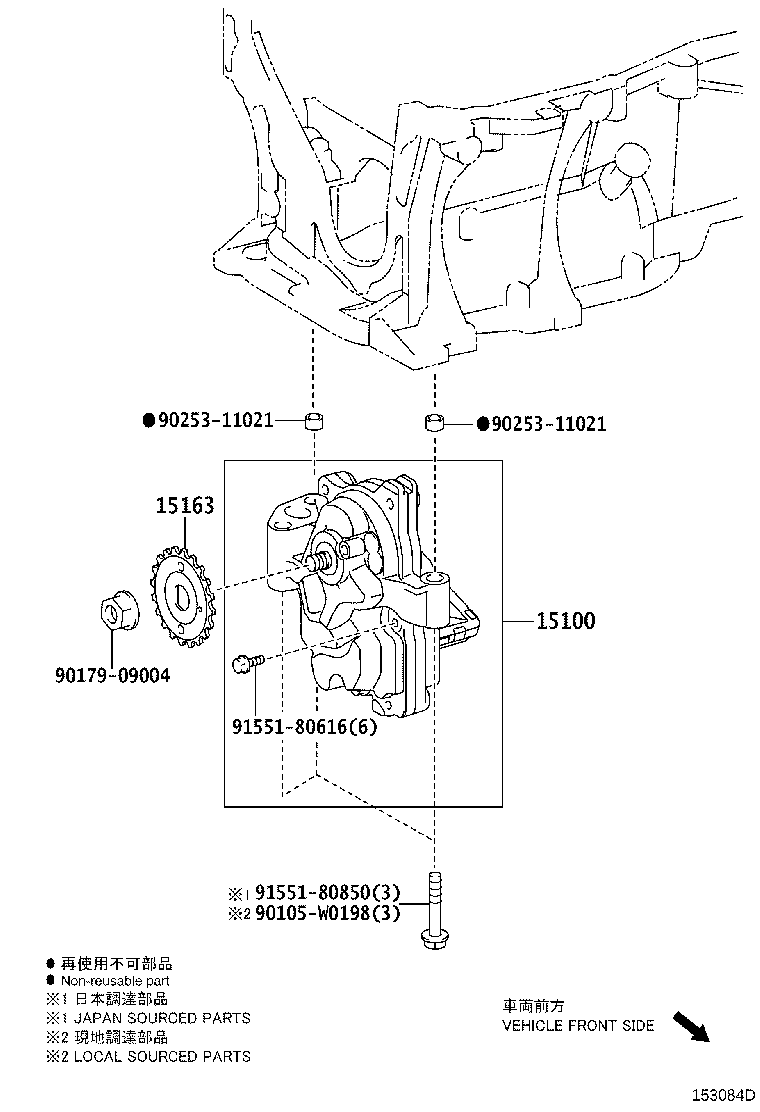

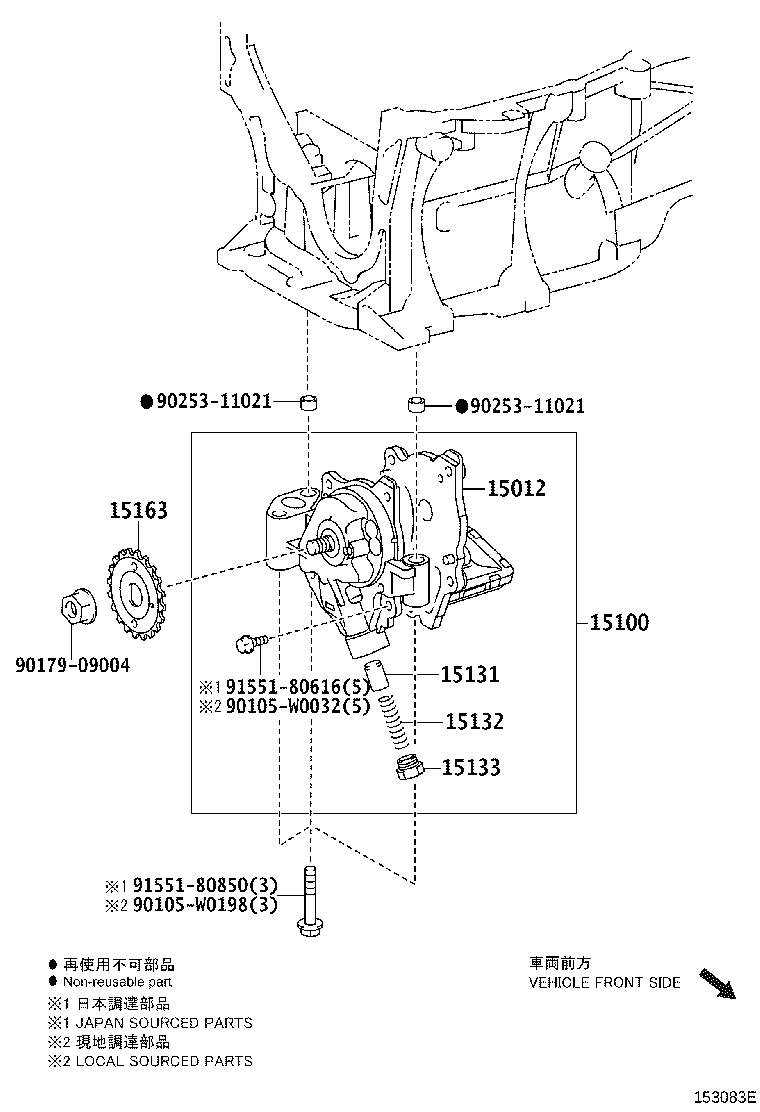

Part groups
| PNC | Description |
|---|---|
| 15012 | Cover Sub-assy, Oil Pump |
| 15100 | Pump Assy, Oil |
| 15104 | Strainer Sub-assy, Oil |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
| 15163 | Gear, Oil Pump Drive Shaft |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
