Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 3 illustrations

Illustrations

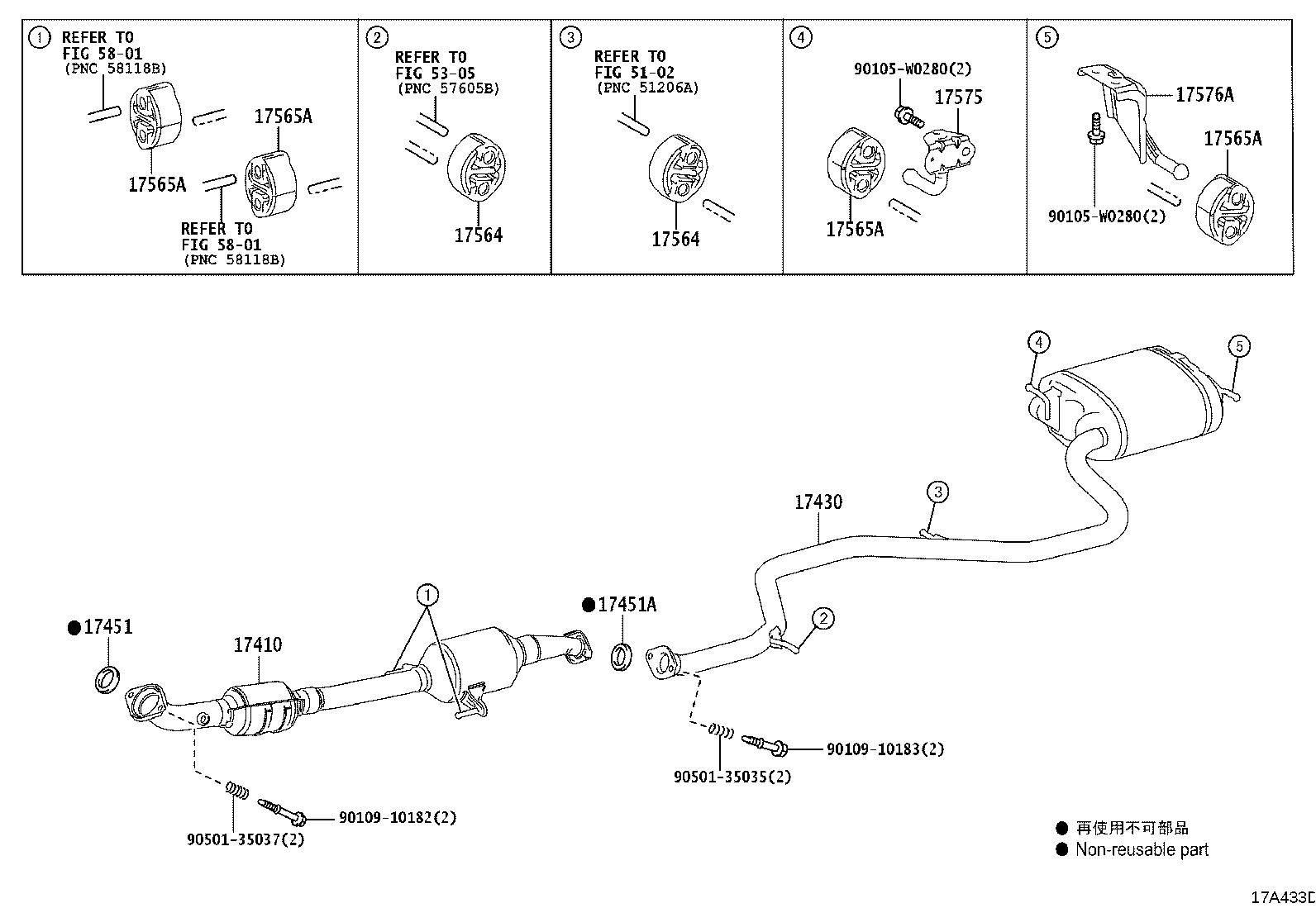

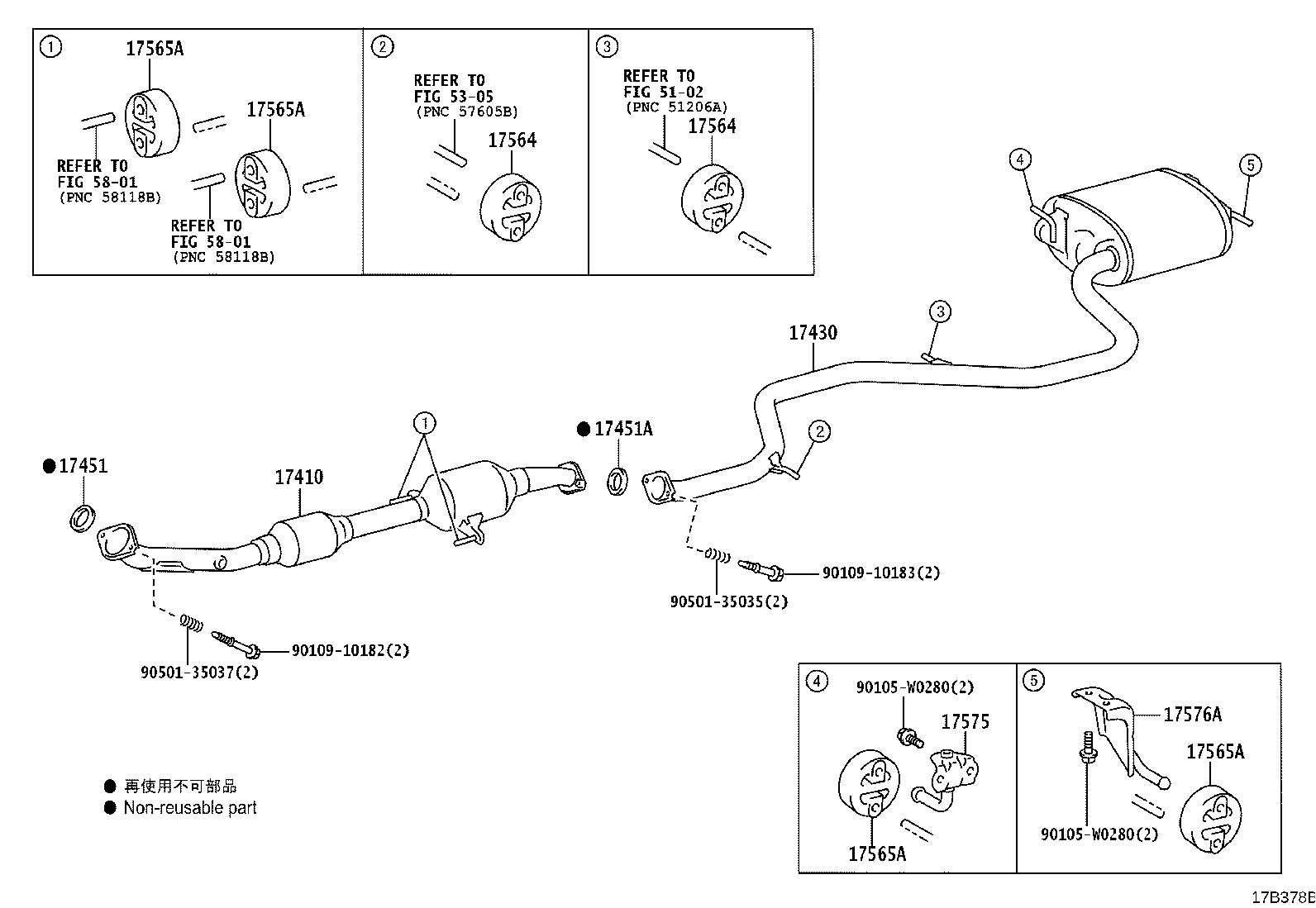

Figure 17A432B 17A432B 2019-01 → — Figure 17A433D 17A433D 2019-01 → — Figure 17B378B 17B378B 2020-11 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17564 Support,Exhaust Pipe, NO.4
17565A Support, Exhaust Pipe, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
