Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 8 illustrations

Illustrations

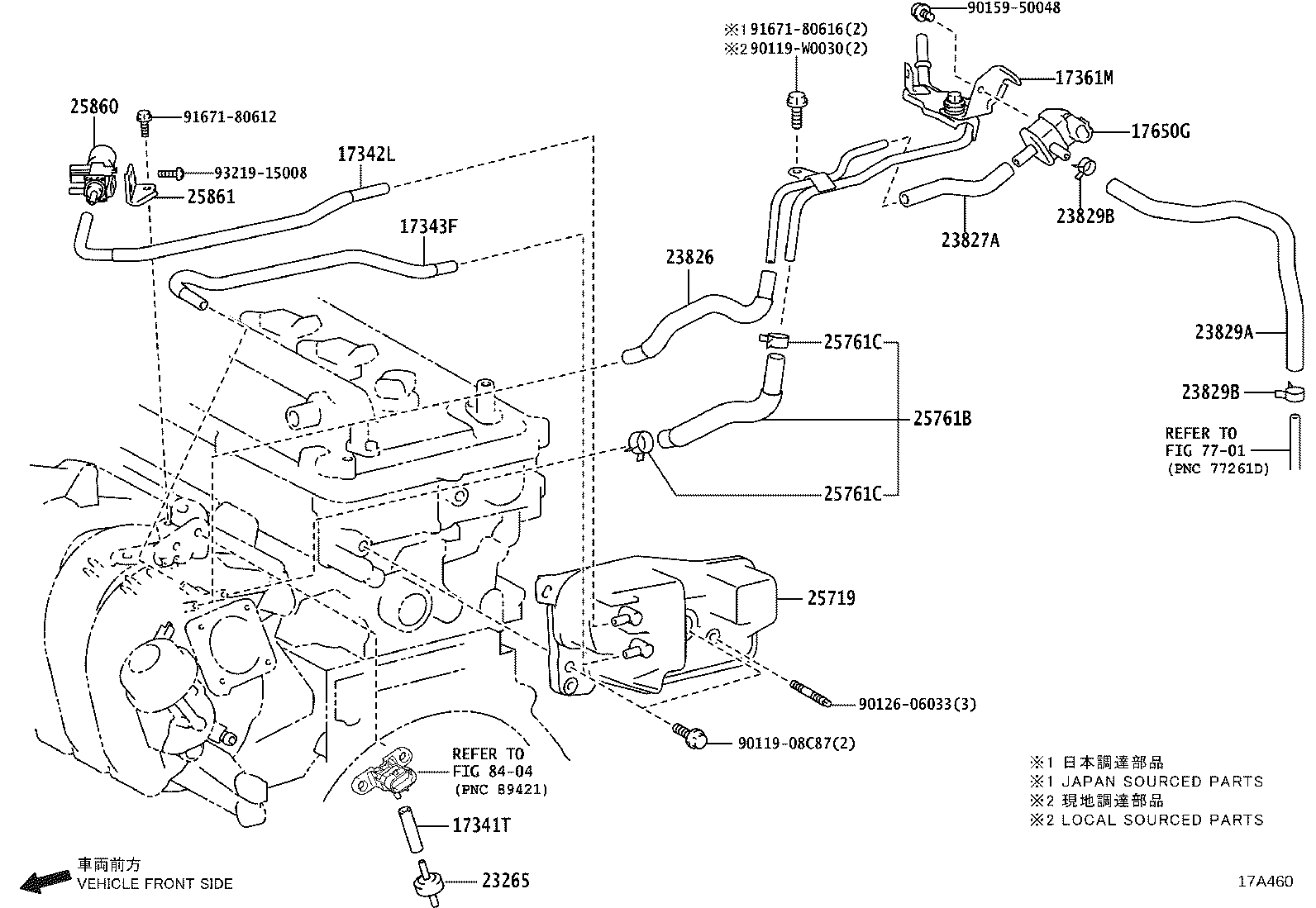

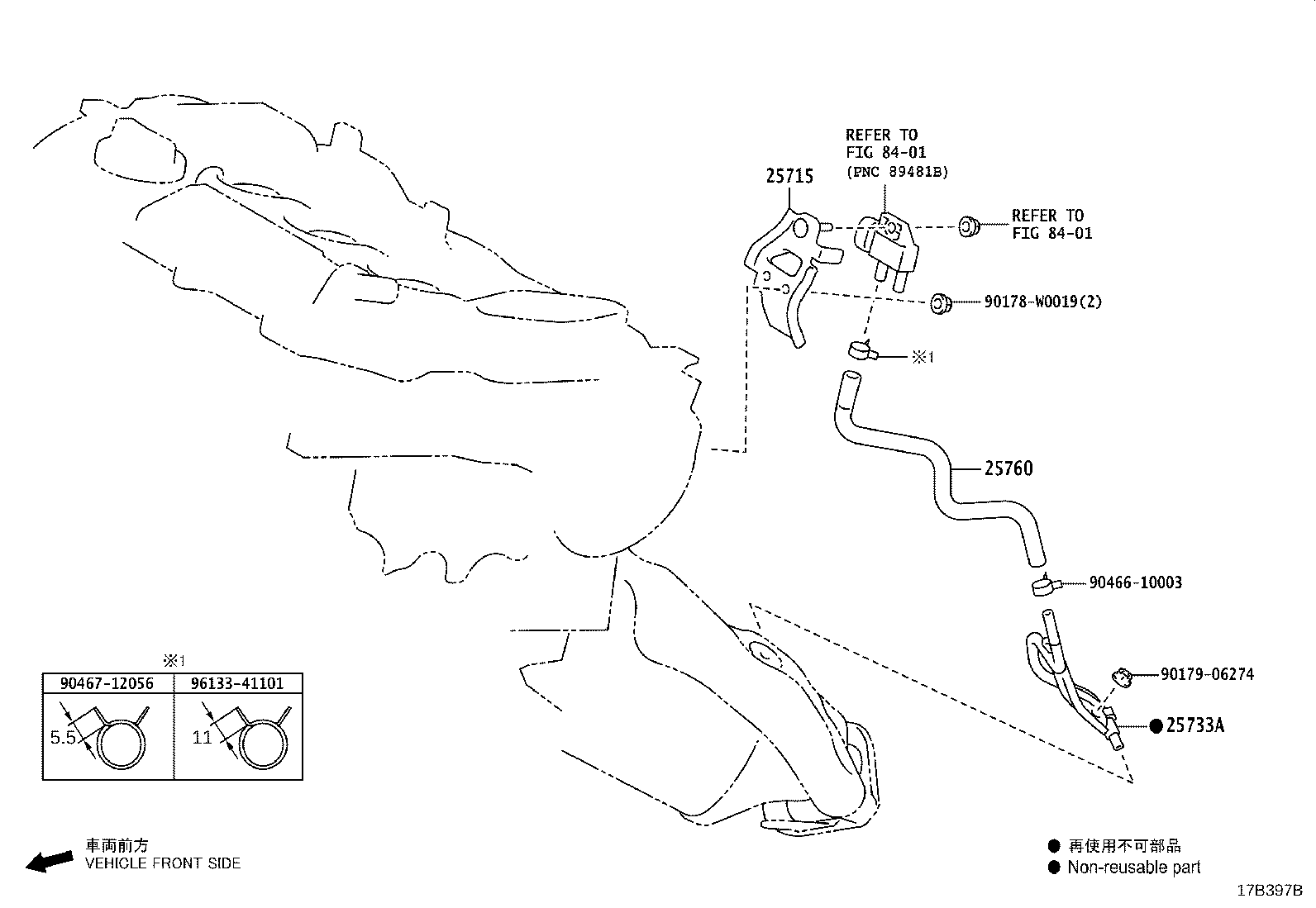

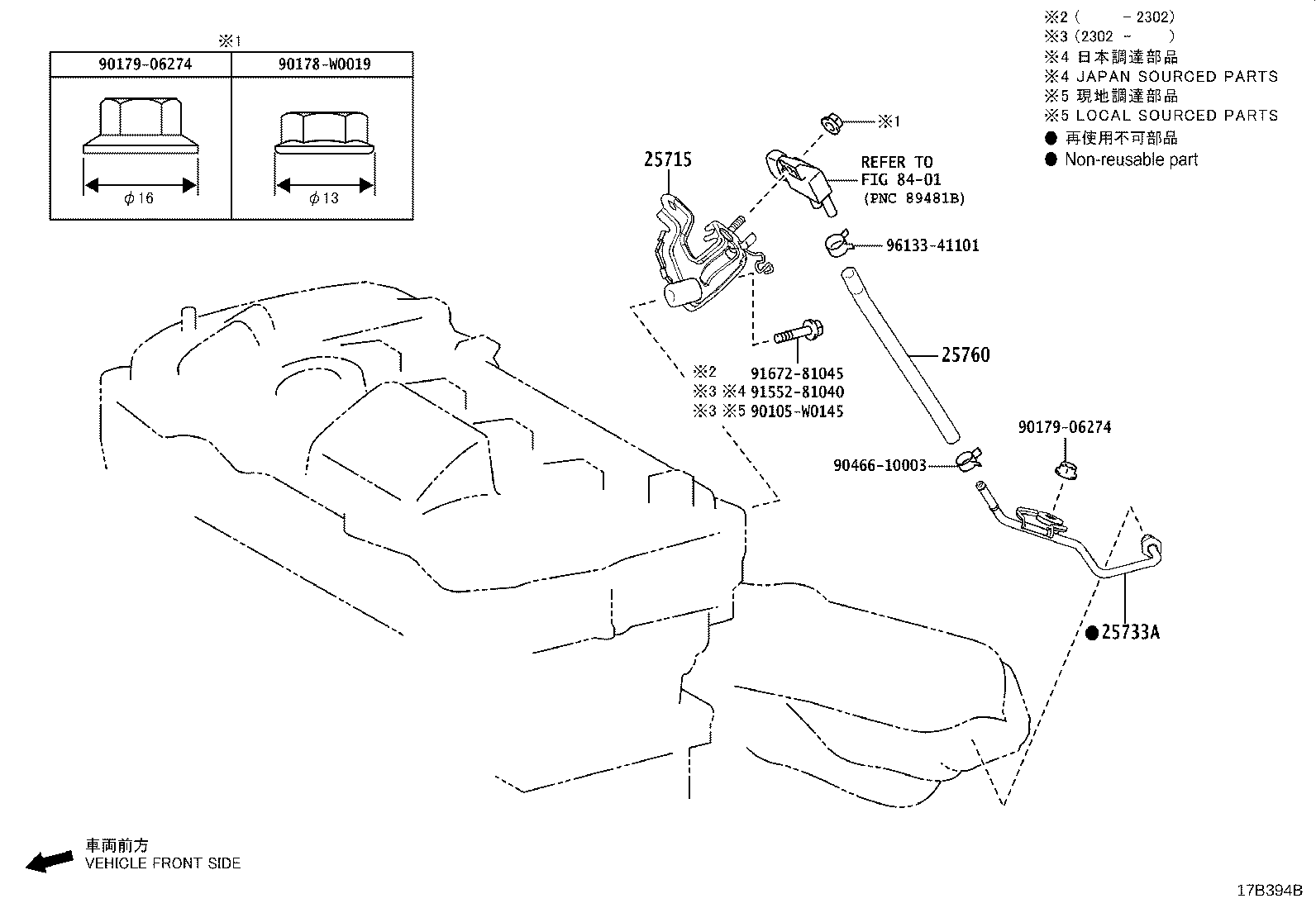

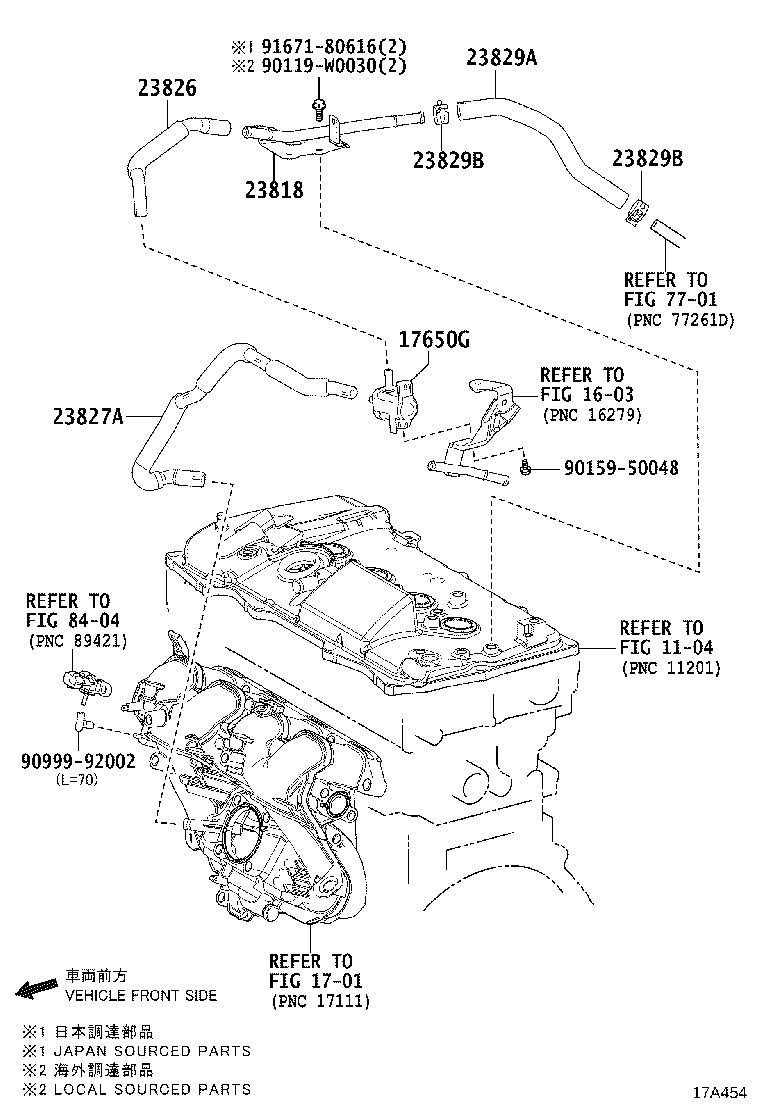

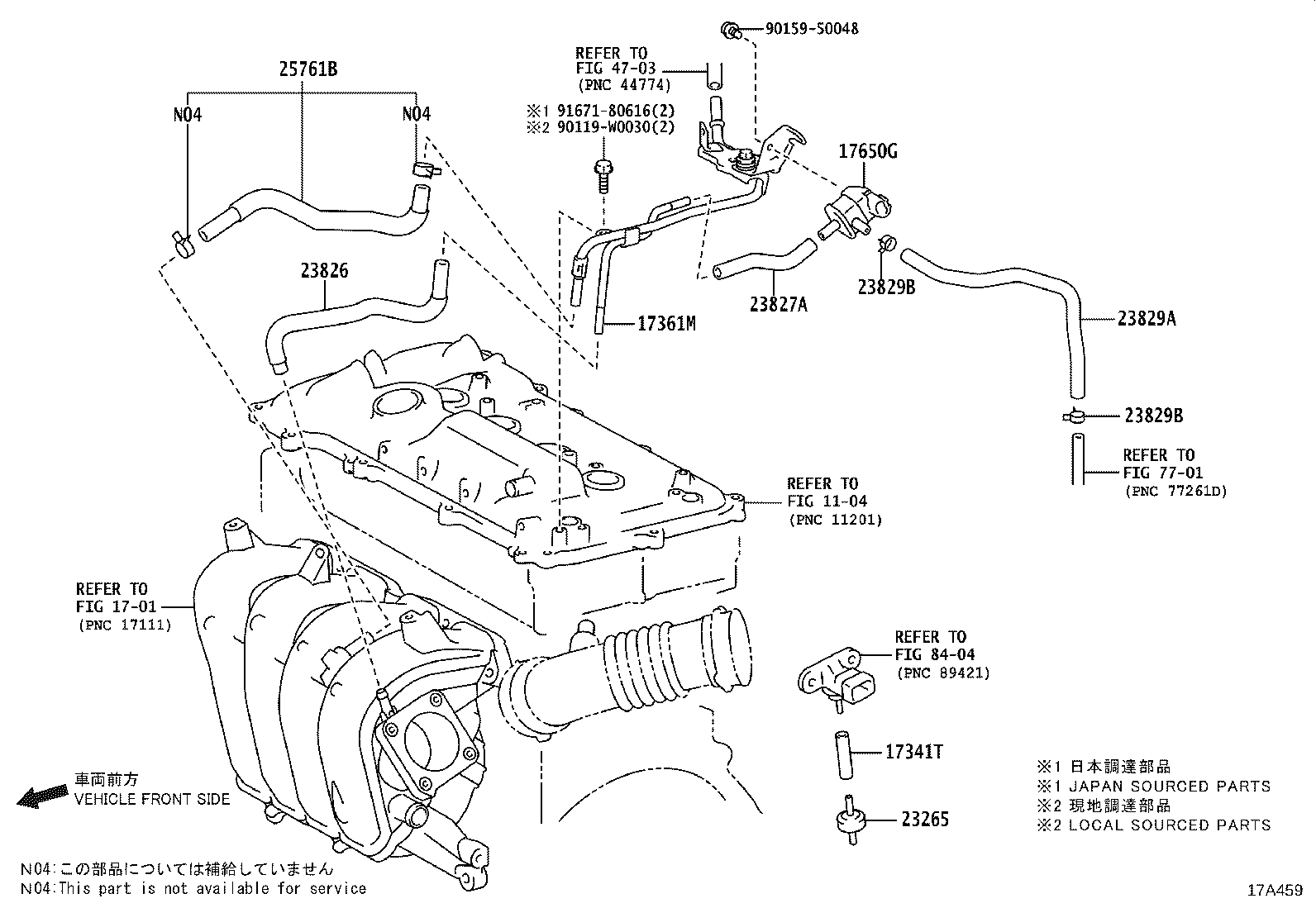

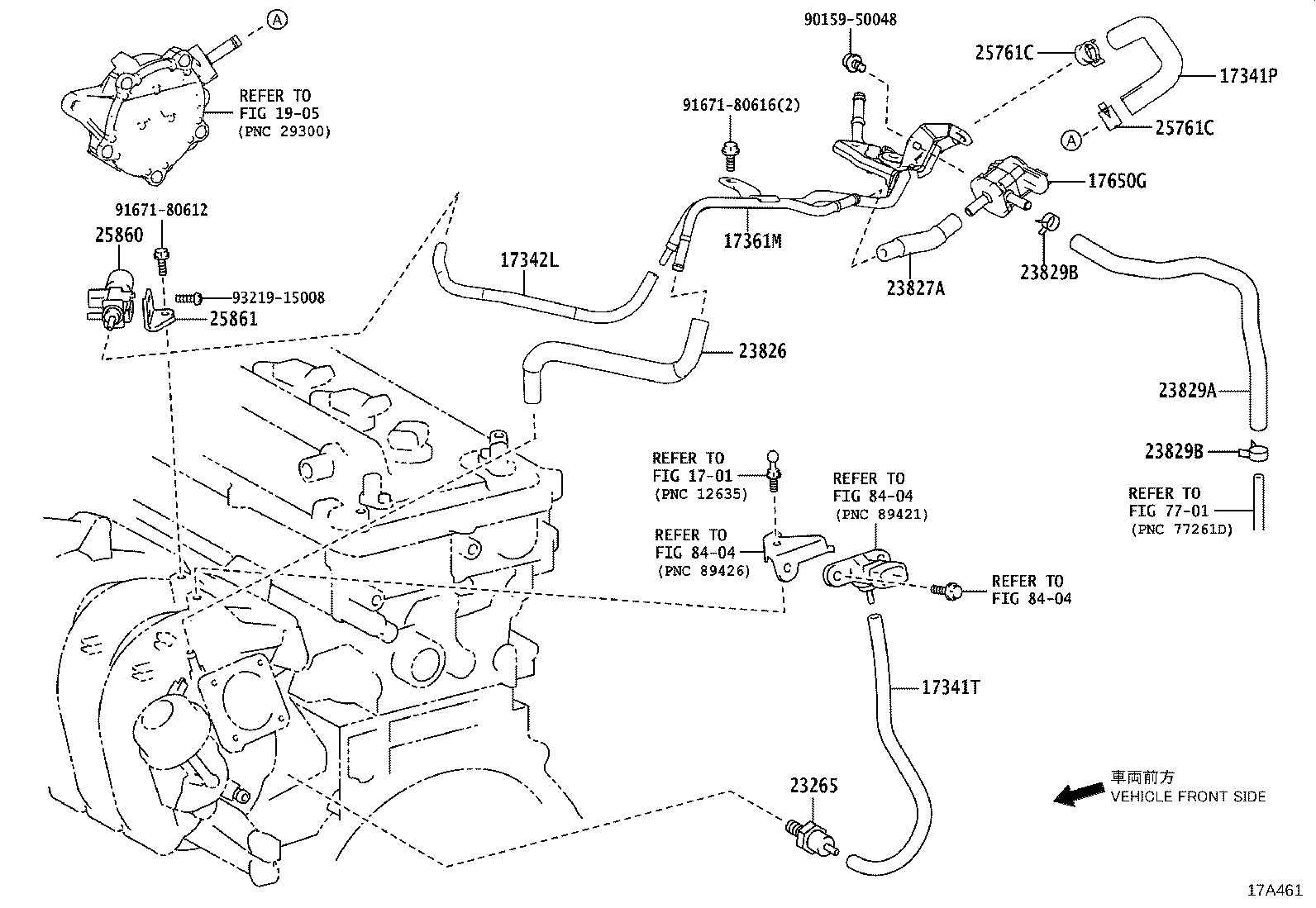

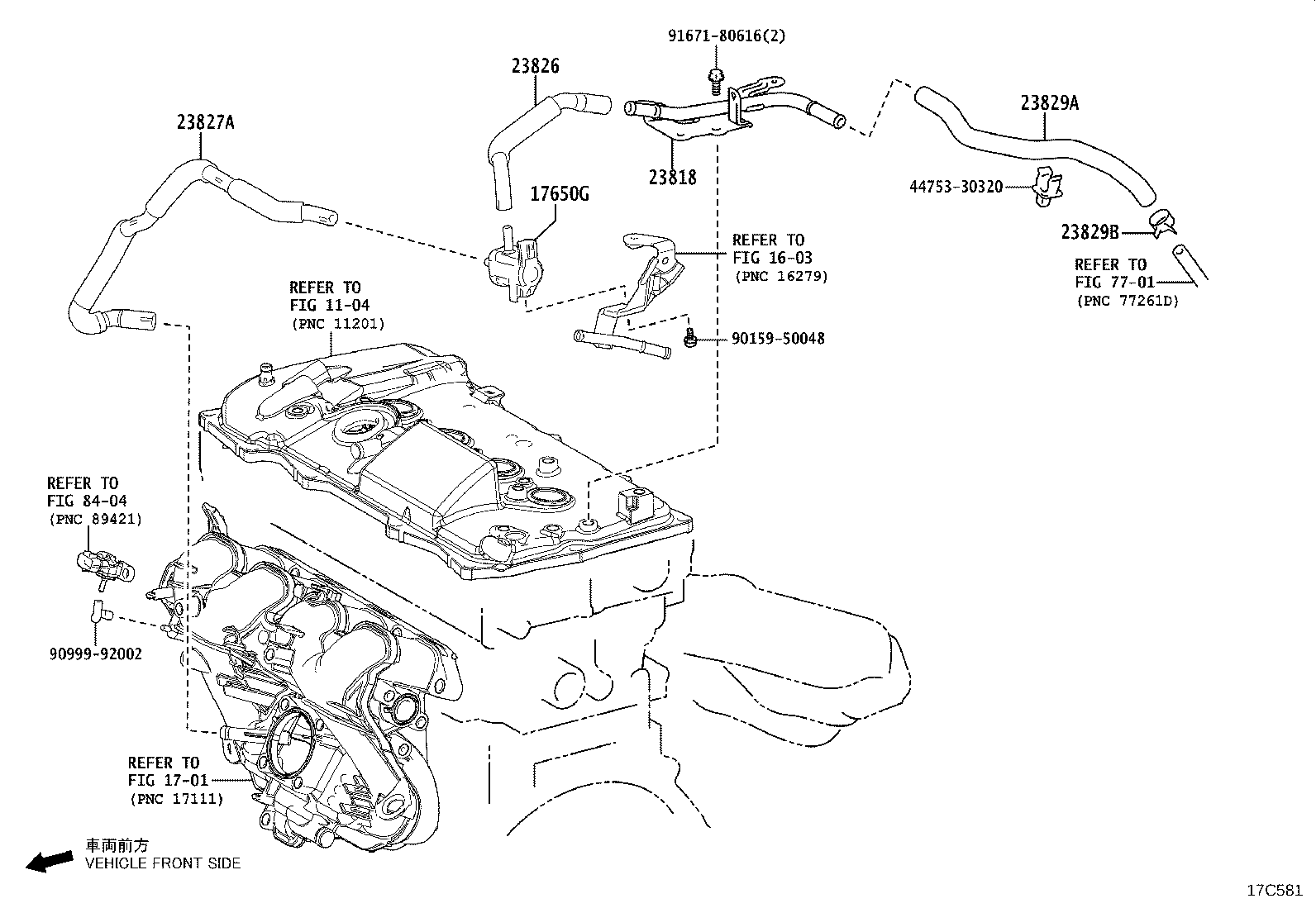

Figure 17B386 17B386 2020-11 → — Figure 17B397B 17B397B 2020-11 → — Figure 17A461 17A461 2019-01 → — Figure 17A459 17A459 2019-01 → — Figure 17A460 17A460 2019-01 → — Figure 17A454 17A454 2019-01 → — Figure 17C581 17C581 2023-01 → — Figure 17B394B 17B394B 2020-11 → —

Part groups

PNCDescription
17341P Hose, Air
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17361M Tube, Air
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23818 Pipe, Fuel Vapor Feed
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23830 Hose Assy, Fuel Vapor Feed, NO.2
23841G Clamp, Fuel Hose
25715 Bracket, Emission Control Valve
25719 Tank, Vacuum Surge
25733A Pipe, Vacuum, NO.1
25760 Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25761C Clip(VACCUM TRANSMITTING HOSE NO.1)
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
