Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

33 part groups · 8 illustrations

Illustrations

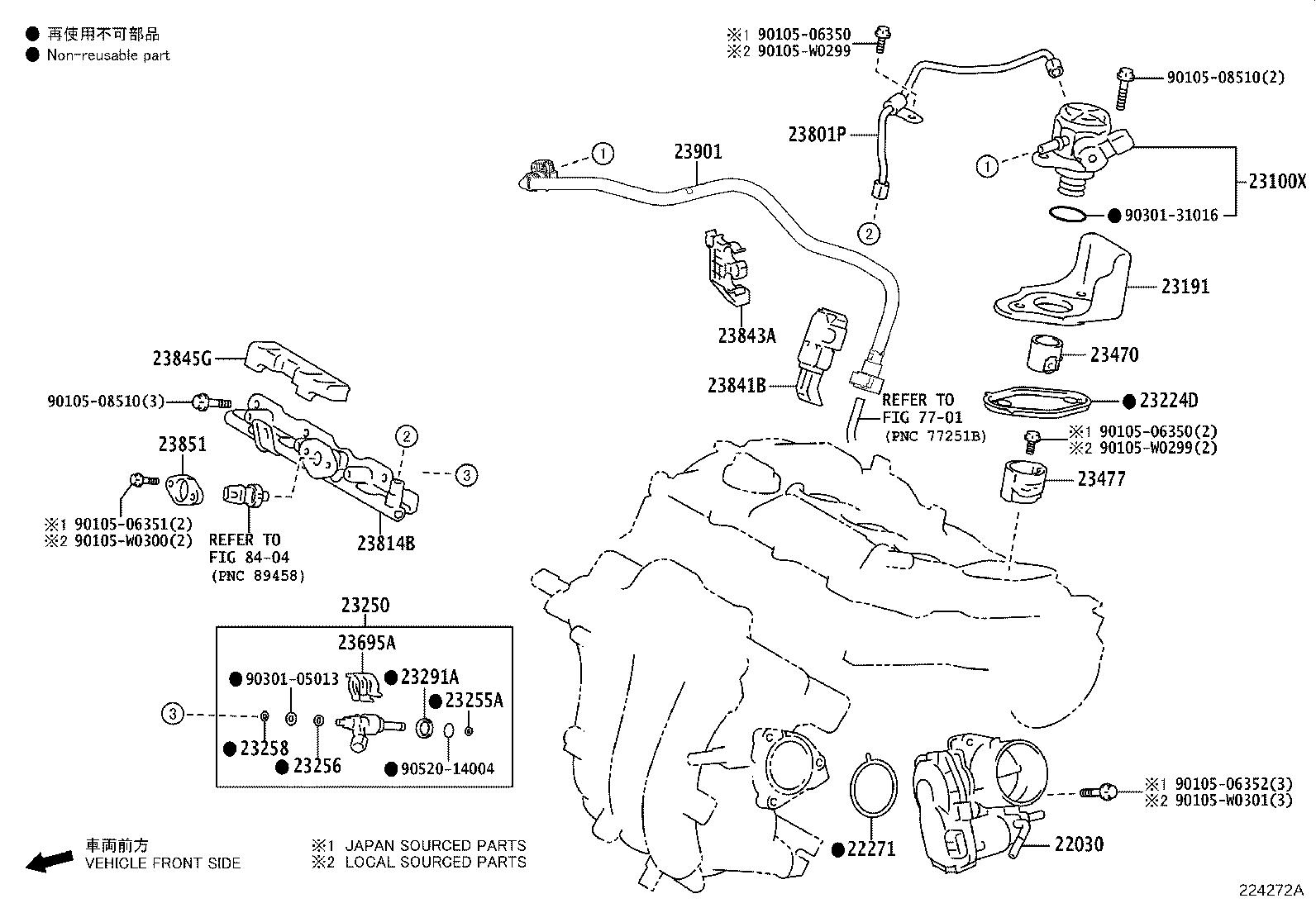

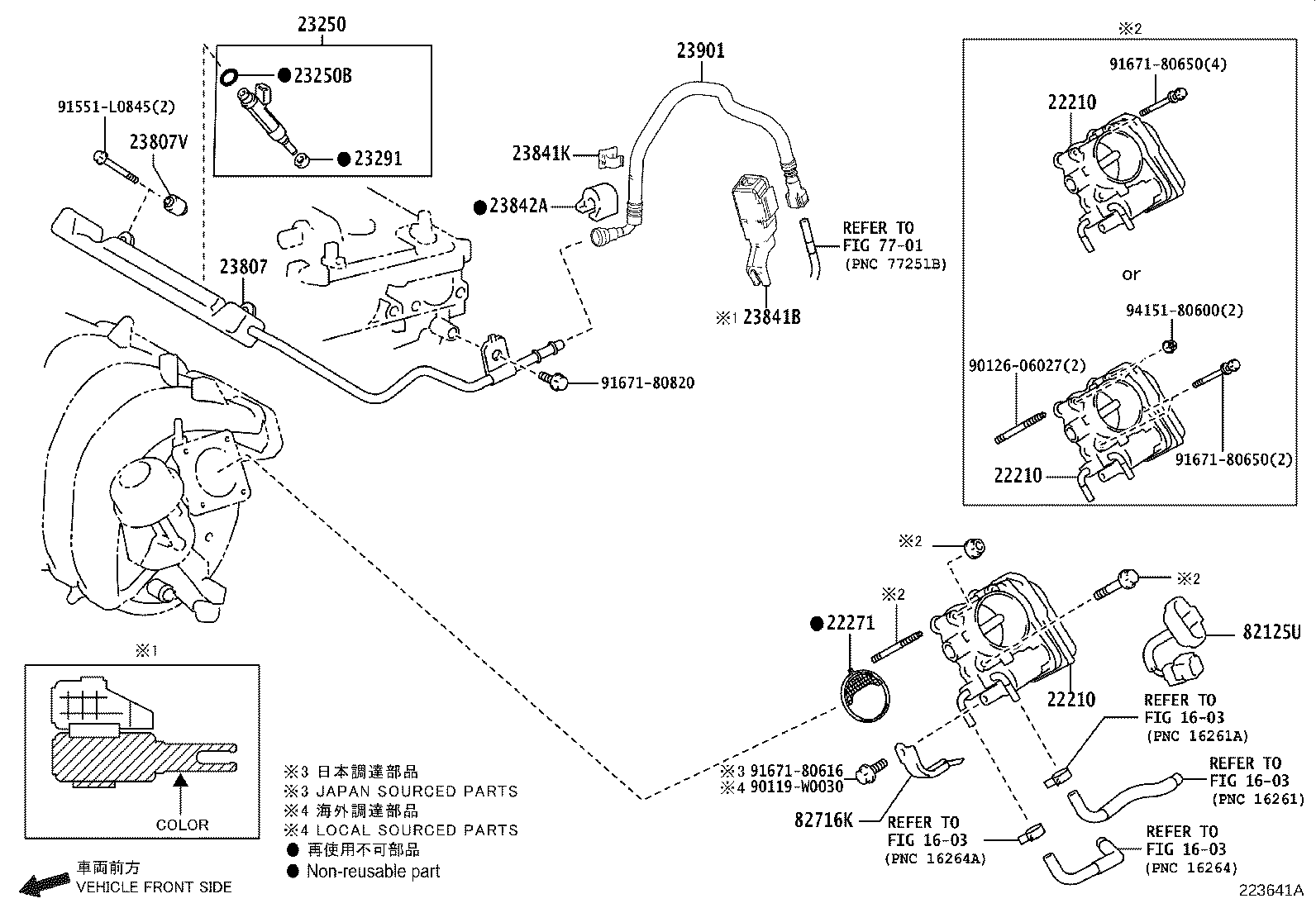

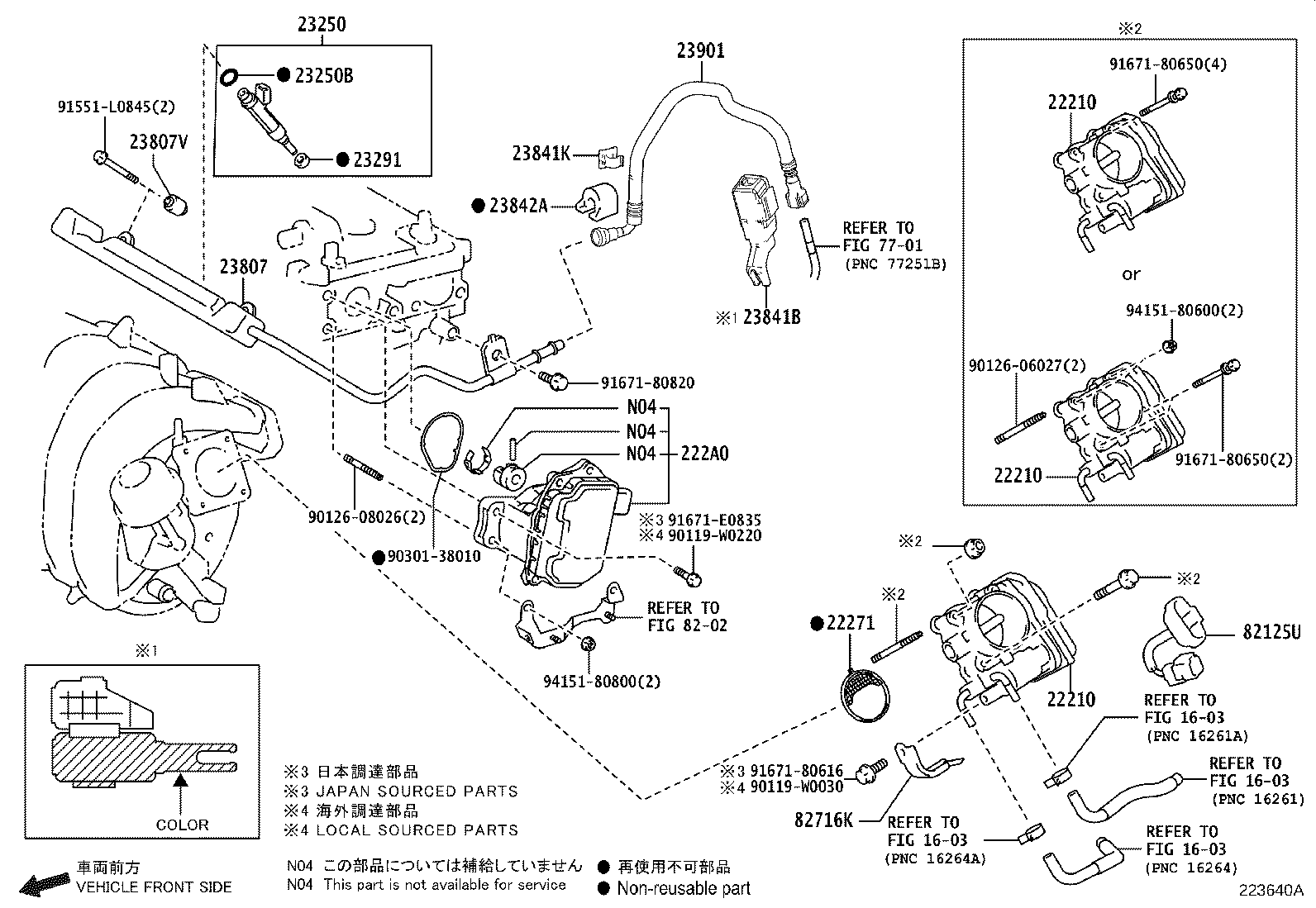

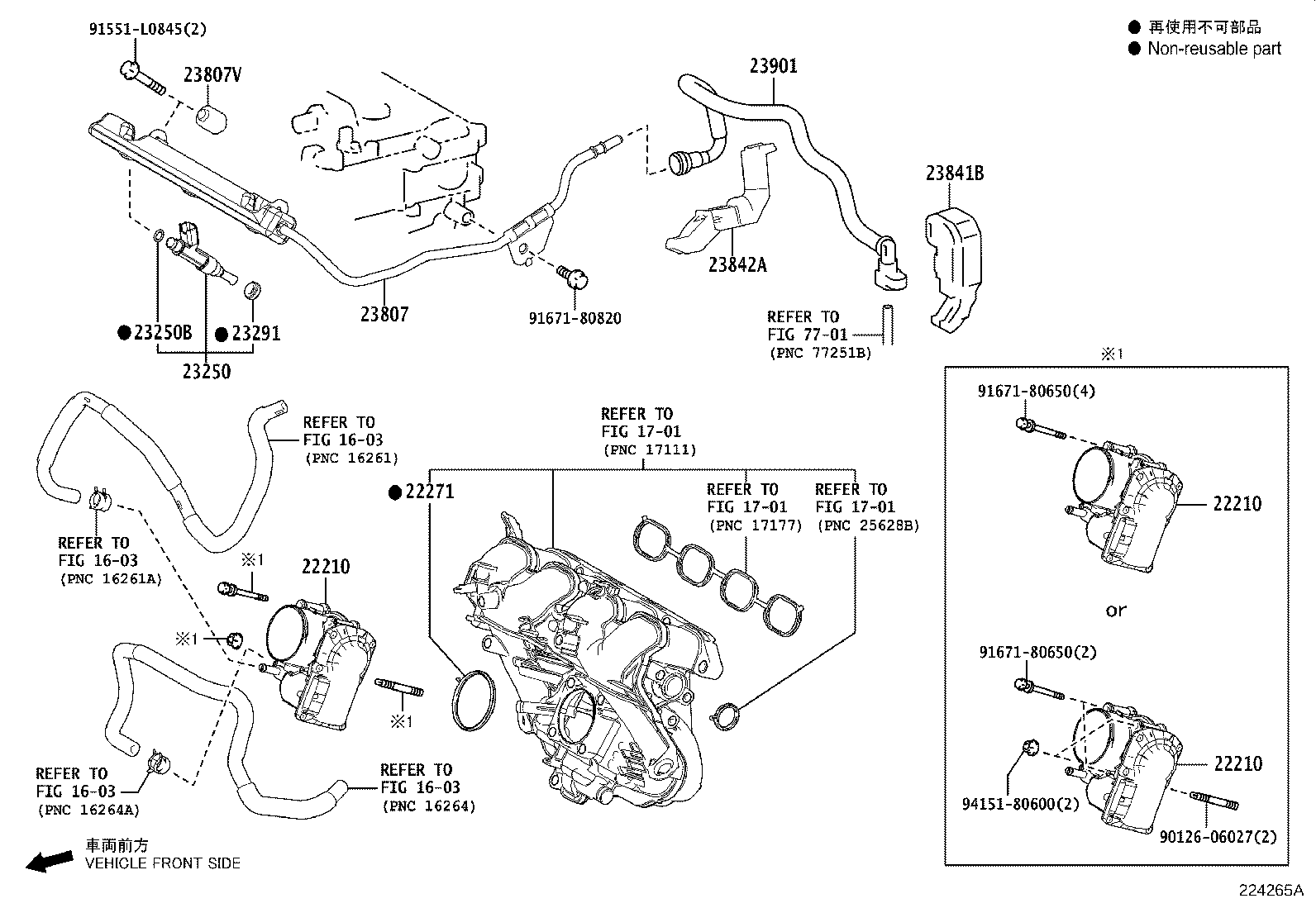

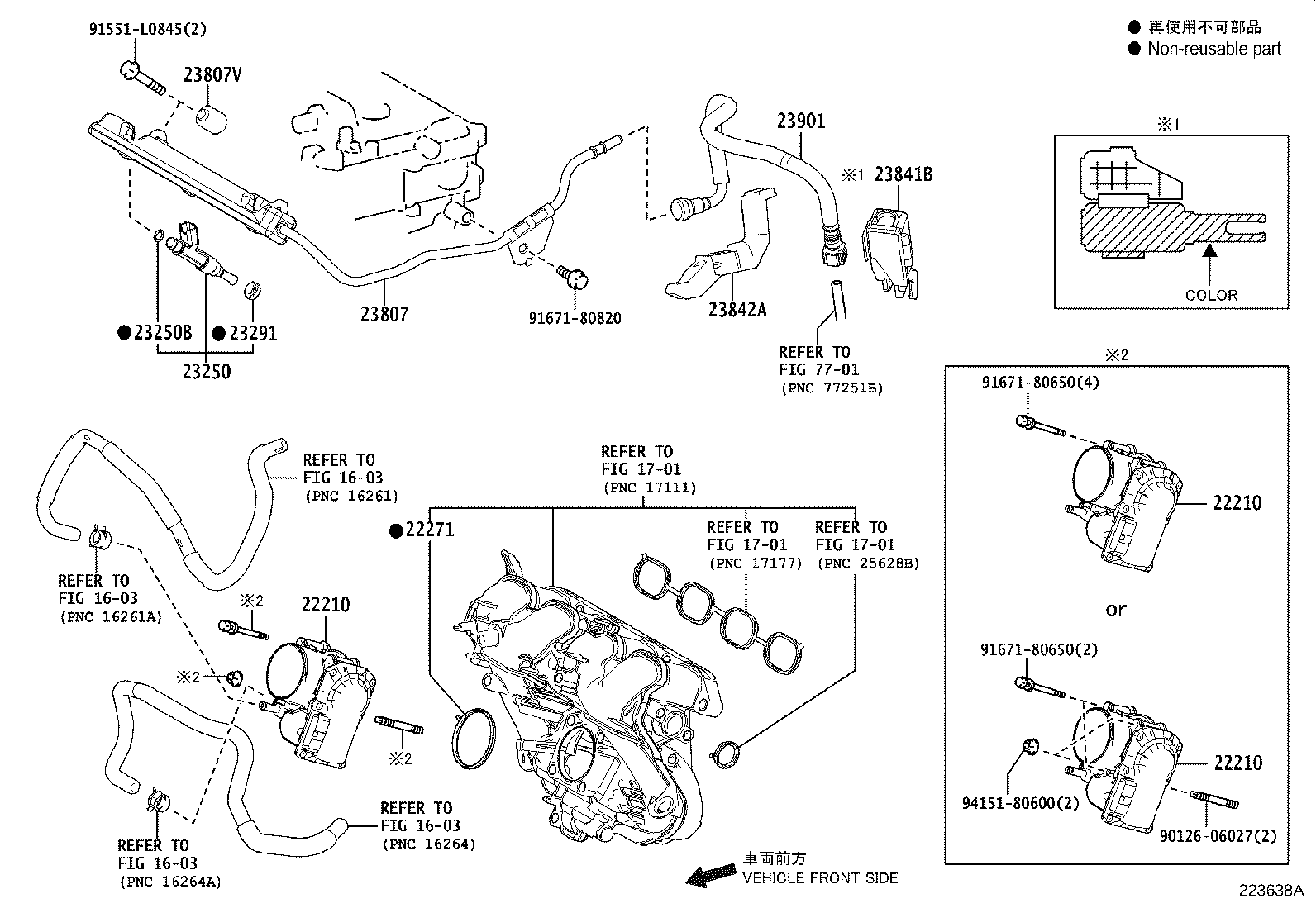

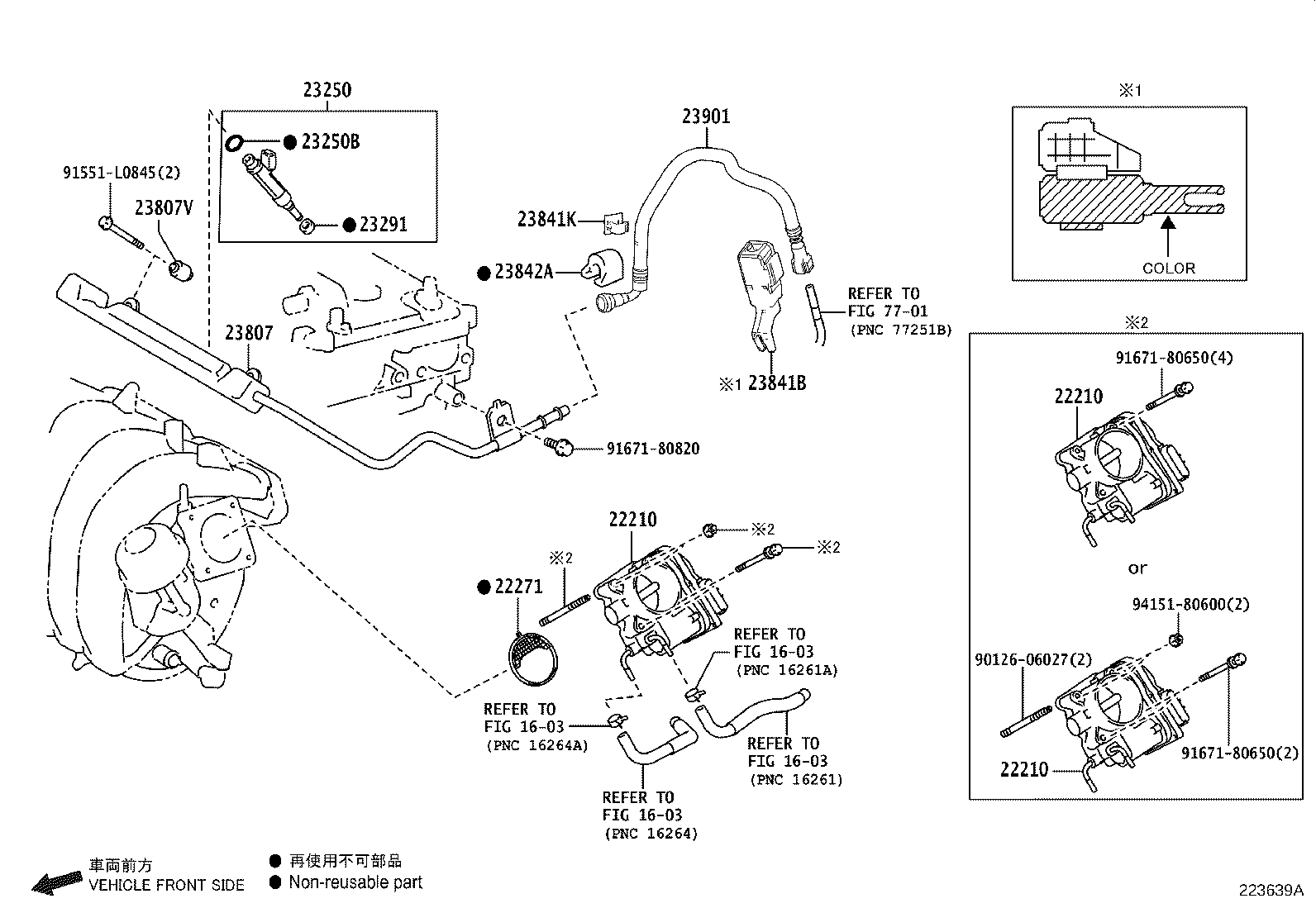

Figure 223896A 223896A 2020-11 → 2023-01 Figure 223896A 223896A 2020-11 → — Figure 224272A 224272A 2023-01 → — Figure 223639A 223639A 2019-01 → — Figure 223640A 223640A 2019-01 → — Figure 223641A 223641A 2019-01 → — Figure 223638A 223638A 2019-01 → — Figure 224265A 224265A 2023-01 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22271 Gasket, Throttle Body
222A0 Controller Assy, Continuously Variable Valve Lift
23100X Pump Assy, Fuel (ENGINE ROOM SIDE)
23191 Flange, Fuel Pump
23224D Gasket, Fuel Pump Spacer
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23255A Seal, Fuel Injector
23256 Ring, Fuel Injector Back-up, NO.1
23258 Ring, Fuel Injector Back-up, NO.3
23291 Insulator, Injector Vibration
23291A Insulator, Injector Vibration
23470 Lifter Assy, Fuel Pump
23477 Guide, Fuel Pump Lifter
23695A Clamp, Nozzle Holder
23801P Pipe Sub-assy, Fuel, NO.1
23802B Pipe Sub-assy, Fuel, NO.2
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23841K Clamp, Fuel Pipe
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23843A Clamp,Fuel Pipe, NO.3(FOR EFI)
23845G Insulator, Fuel Delivery
23851 Holder, Fuel Pressure Sensor, NO.1
23851A Holder, Fuel Pressure Sensor, NO.2
23901 Tube Sub-assy, Fuel
23902 Tube Sub-assy, Fuel
82125U Wire, Engine, NO.5
82716K Bracket, Wiring Harness Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
