Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

11 part groups · 2 illustrations

Illustrations

Figure 250809B

250809B 2020-11 → —

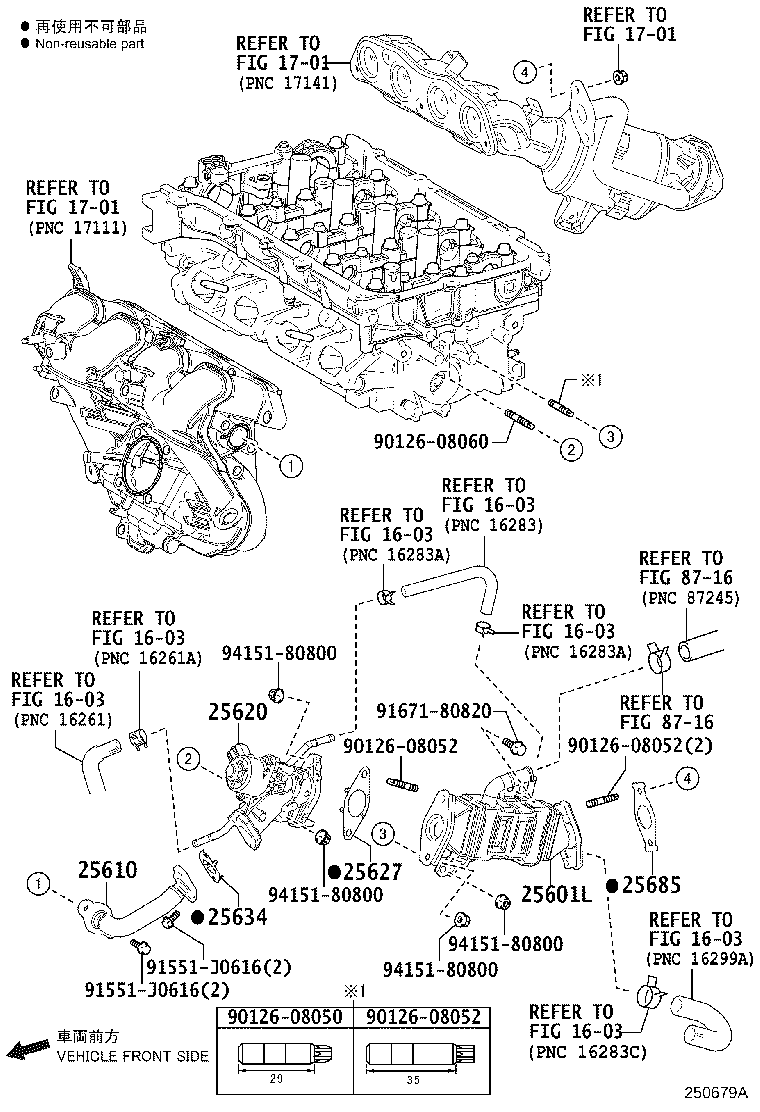

Figure 250679A

250679A 2019-01 → —

Part groups

PNC	Description
25601	Pipe Sub-assy, Egr, NO.1
25601L	Pipe Sub-assy, Egr W/Cooler
25610	Pipe Assy, Egr
25620	Valve Assy, Egr
25624	Adapter, Egr Valve
25627	Gasket, Egr Valve
25628	Gasket, Egr Inlet
25629	Gasket, Egr Valve Adapter
25634	Gasket, Egr Pipe
25680	Cooler Assy, Egr
25685	Gasket, Egr Cooler, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
