Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

20 part groups · 6 illustrations

Illustrations

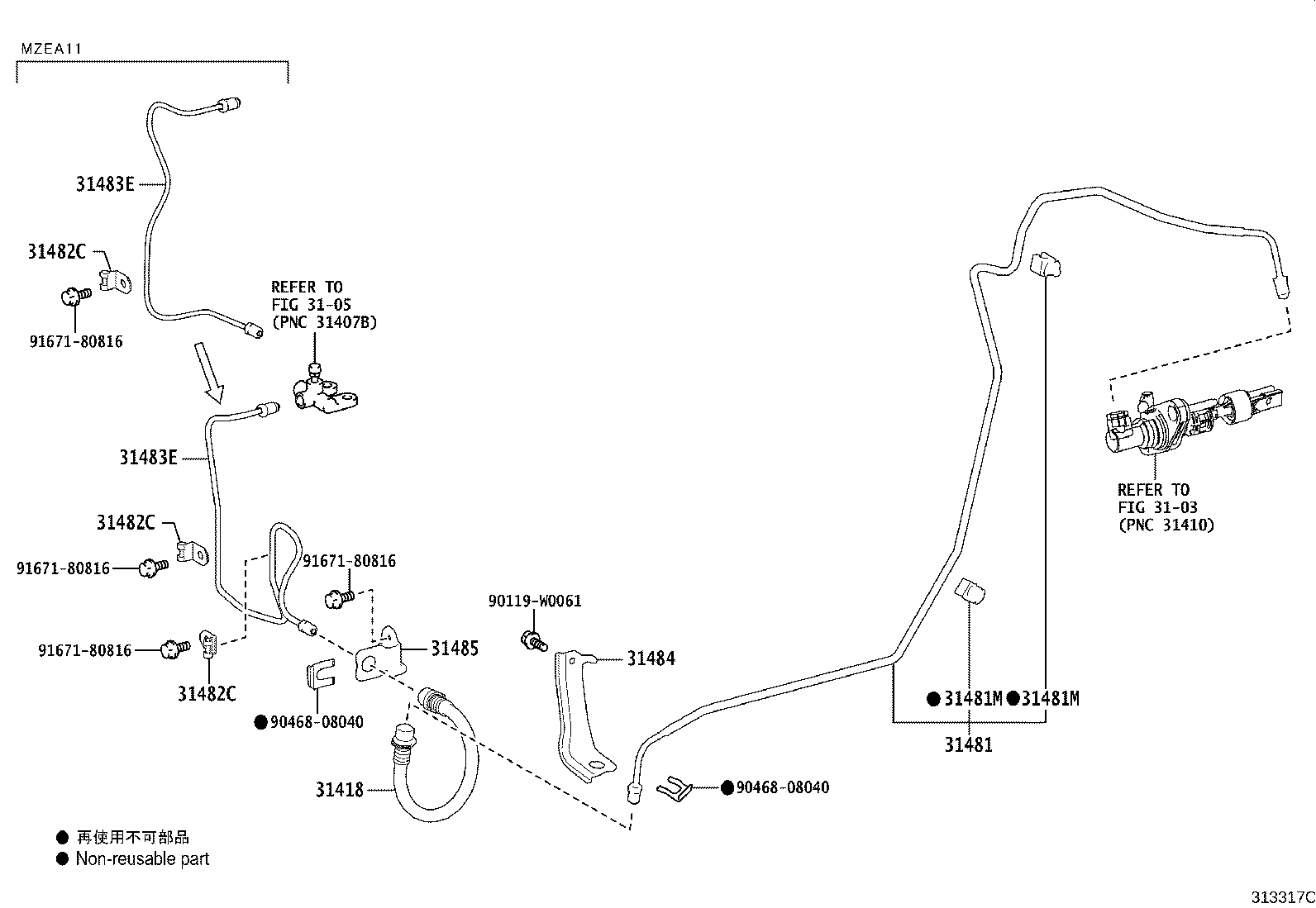

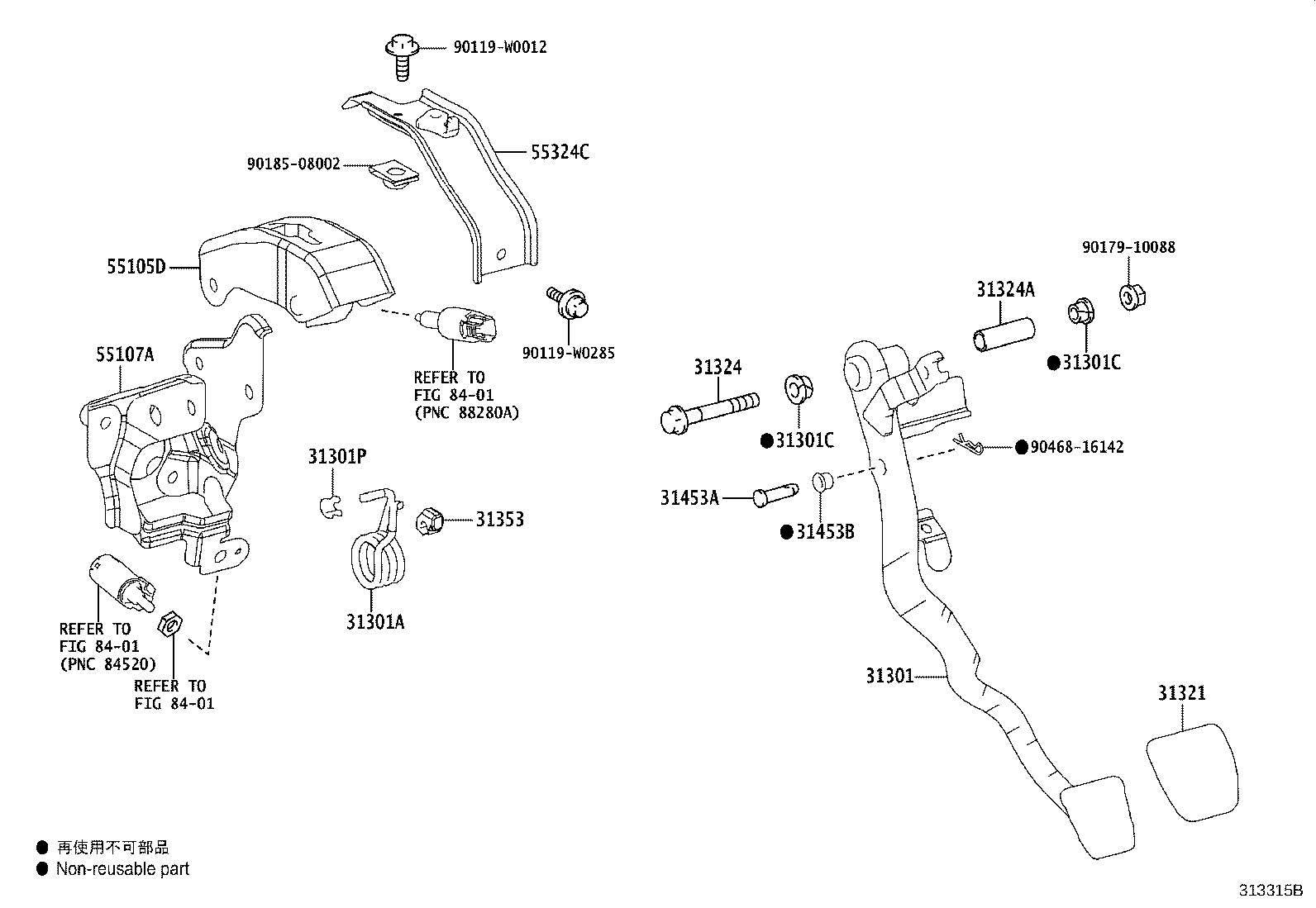

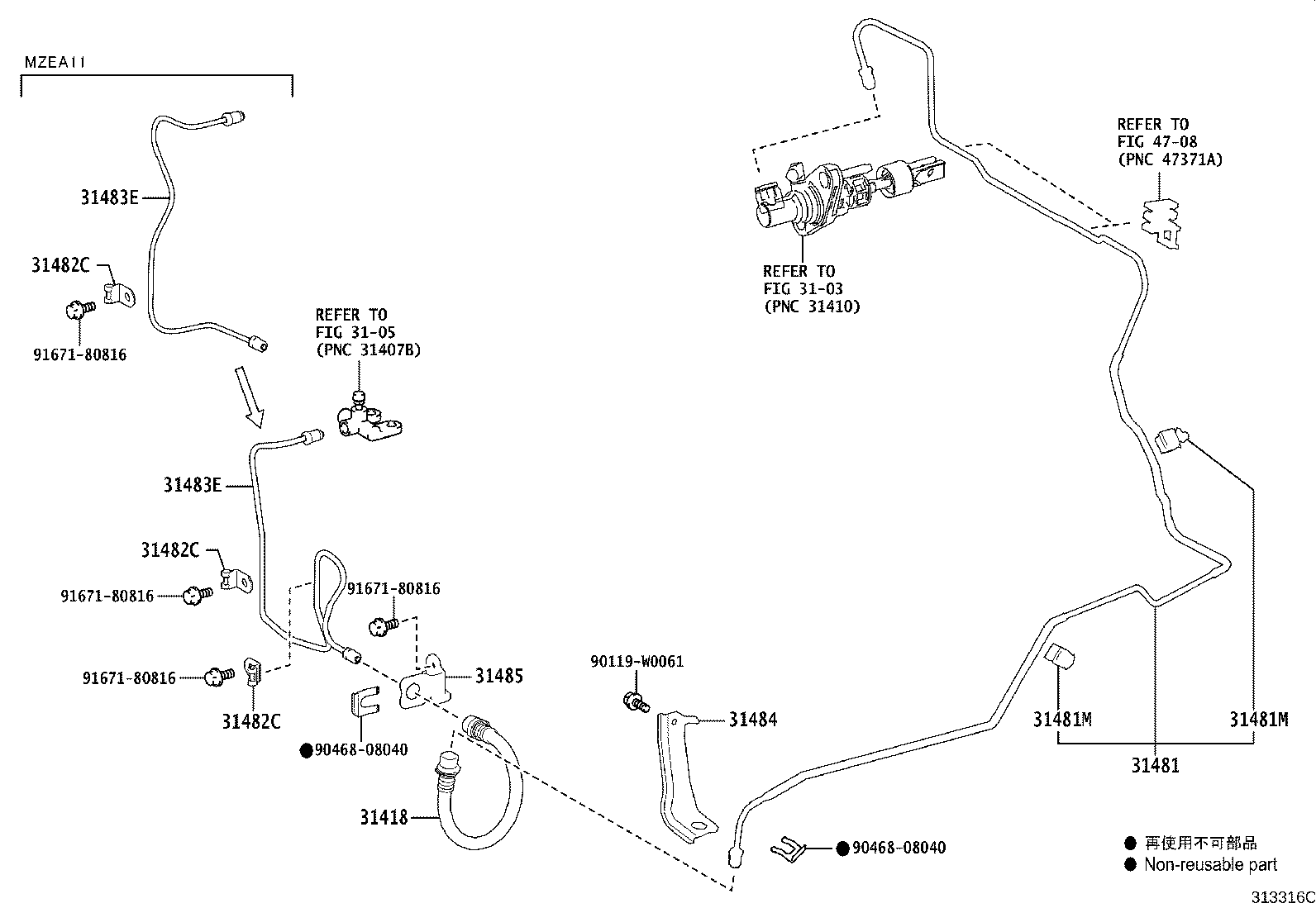

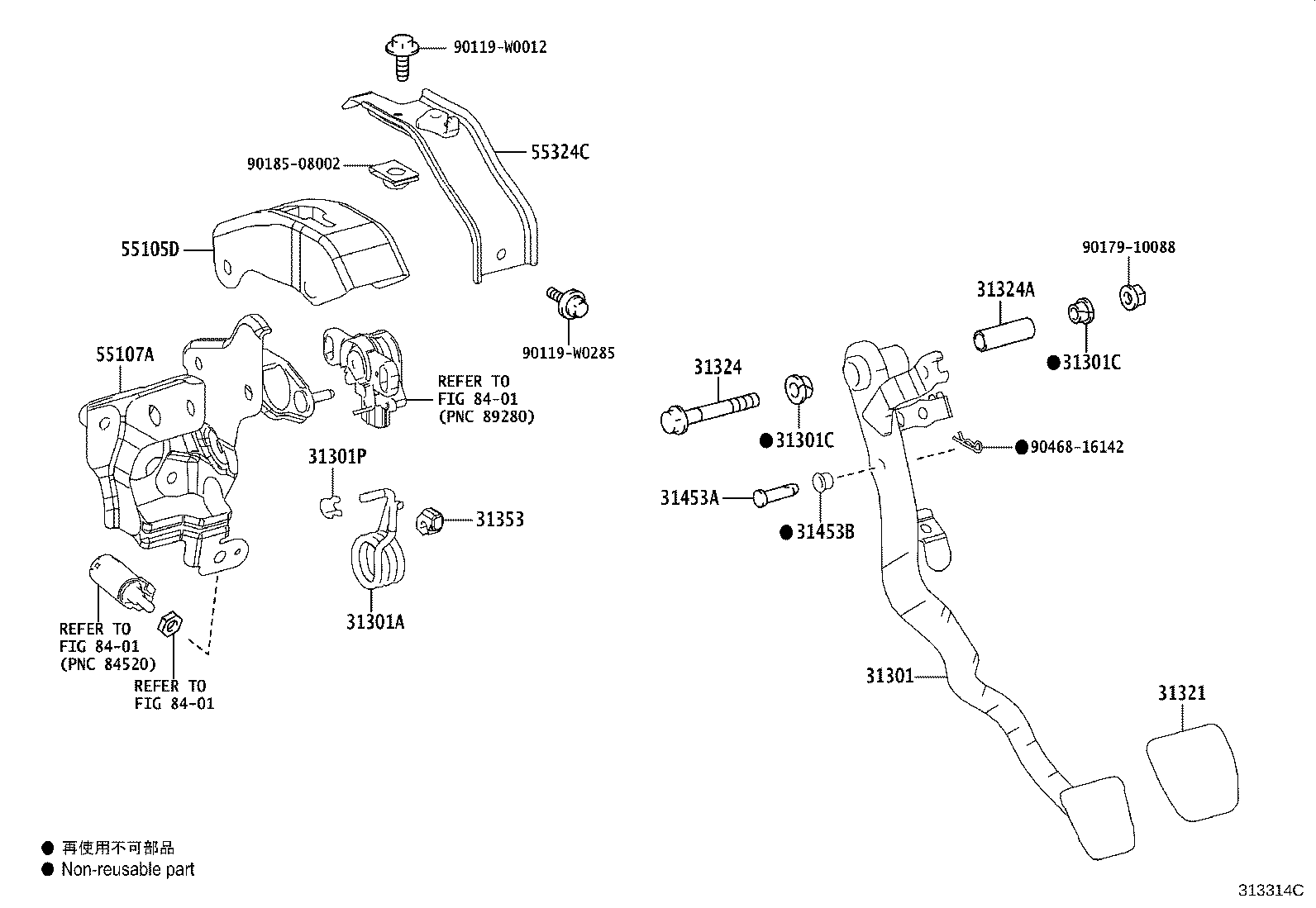

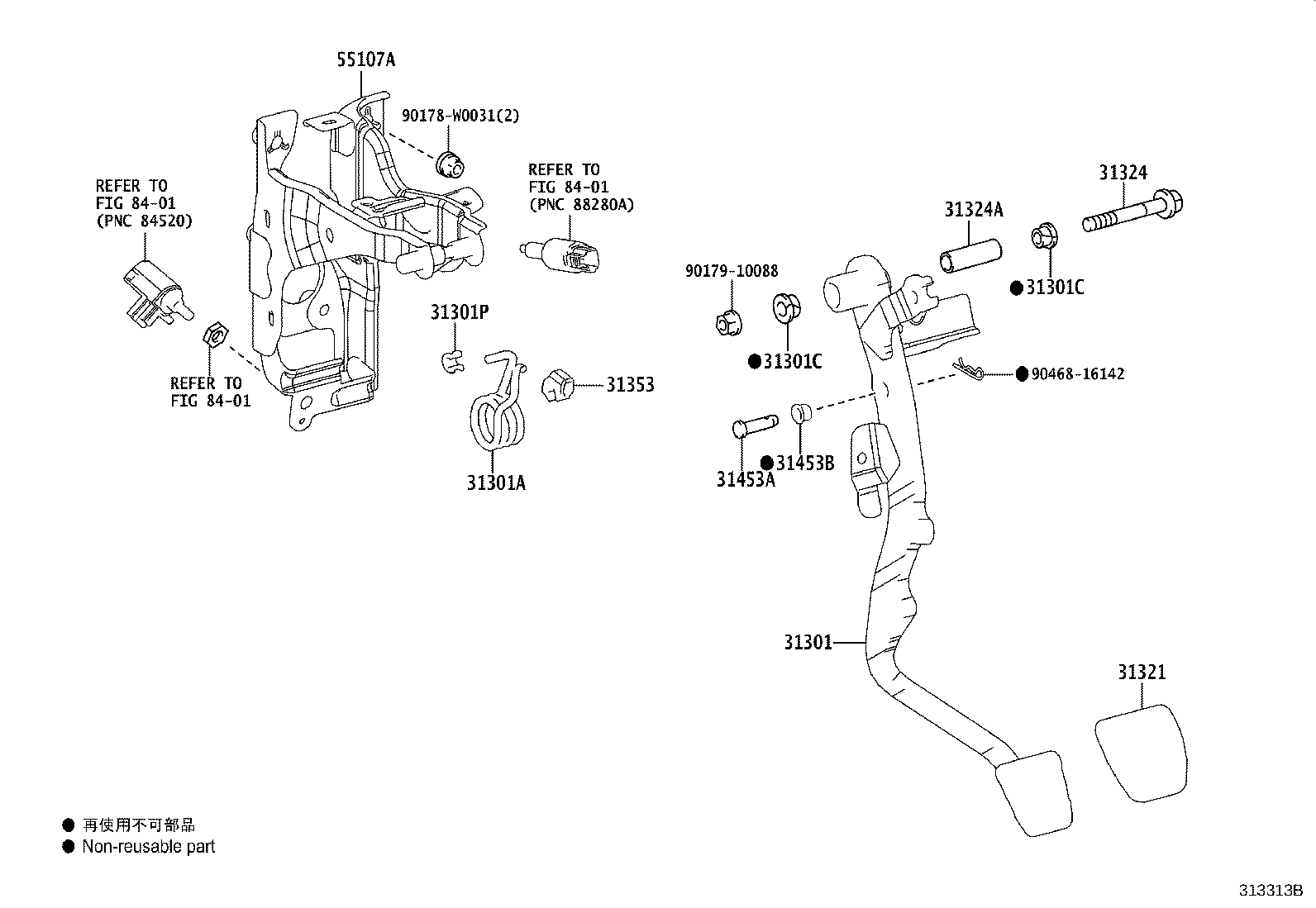

Figure 313312C 313312C 2019-01 → — Figure 313313B 313313B 2019-01 → — Figure 313314C 313314C 2019-01 → — Figure 313315B 313315B 2019-01 → — Figure 313316C 313316C 2019-01 → — Figure 313317C 313317C 2019-01 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31418 Hose, Clutch
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481M Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
31482C Clamp(FOR CLUTCH TUBE)
31483E Tube, Bleeder Clutch Release
31484 Bracket, Flexible Hose(FOR CLUTCH)
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
55105D Bracket Sub-assy, Clutch Pedal
55107A Support Sub-assy, Clutch Pedal
55324C Bracket, Instrument Panel, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
