Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

12 part groups · 7 illustrations

Illustrations

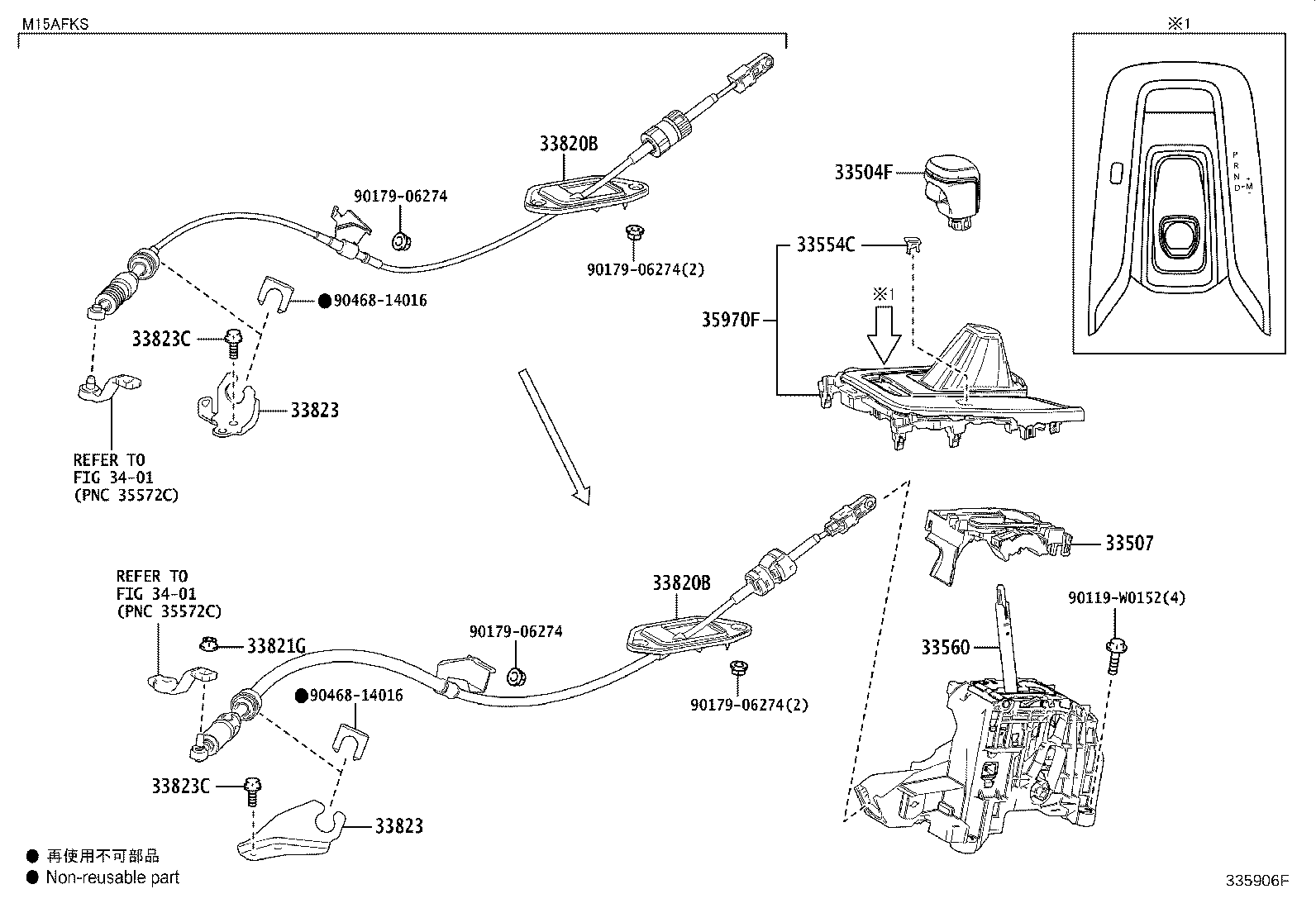

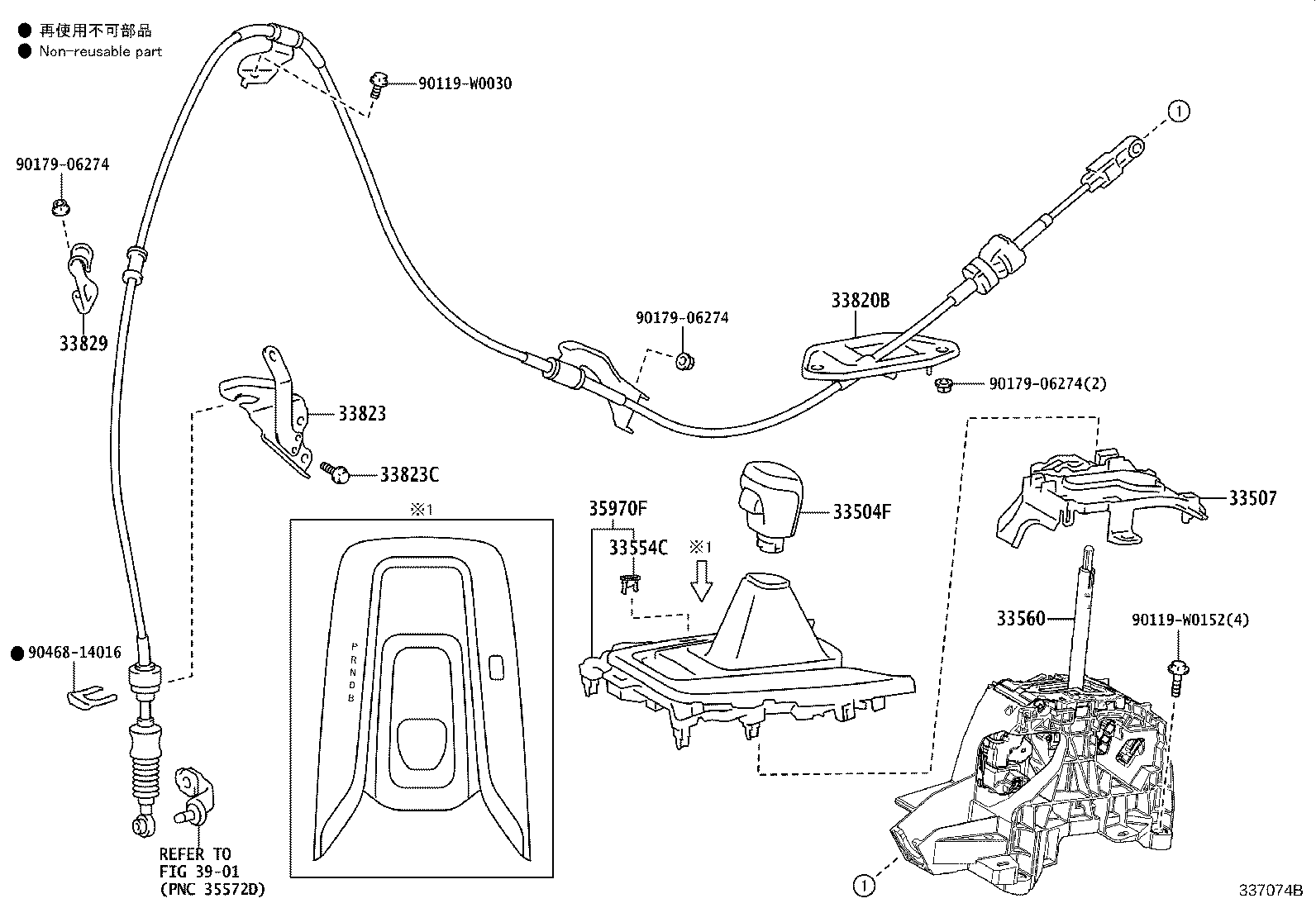

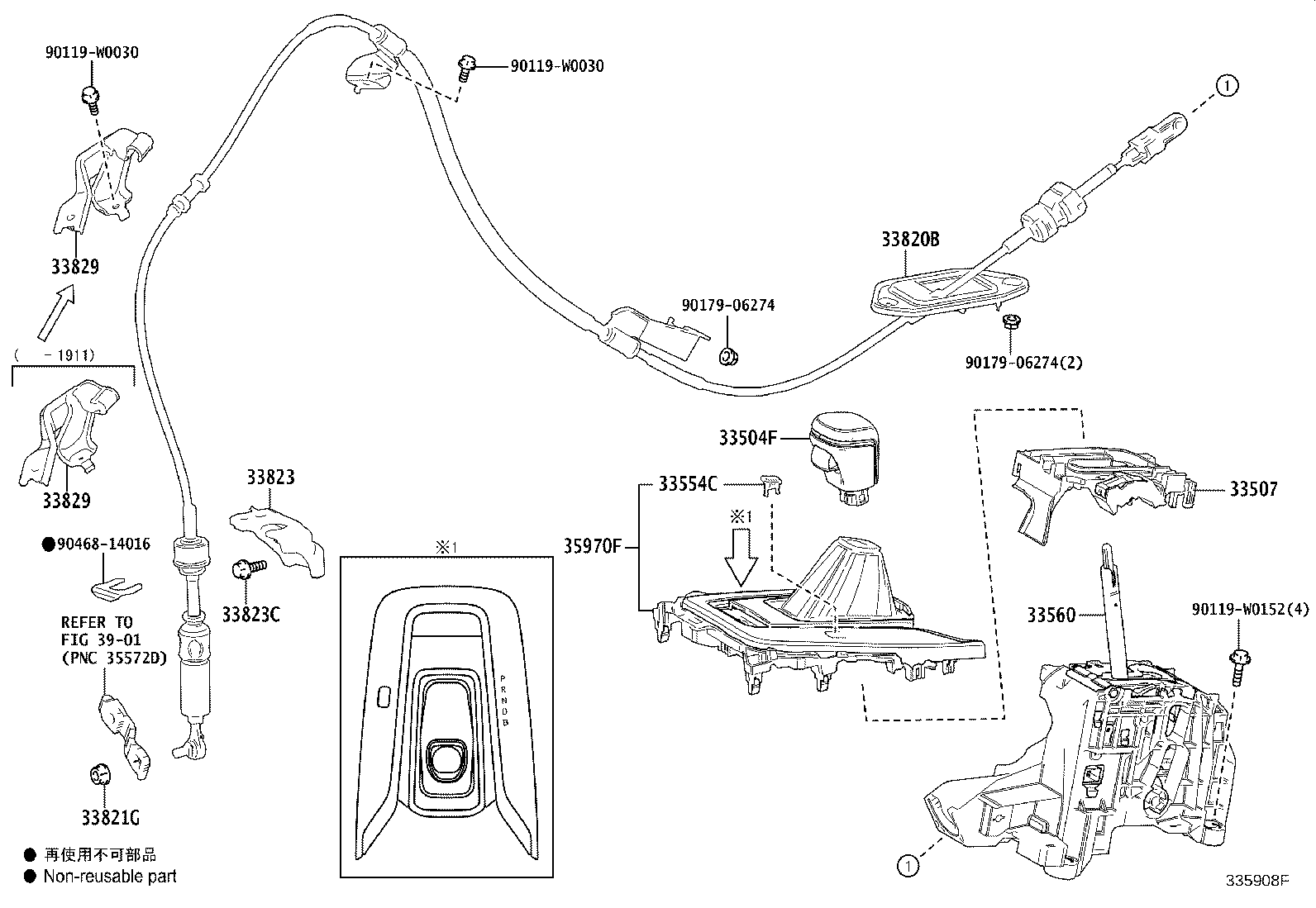

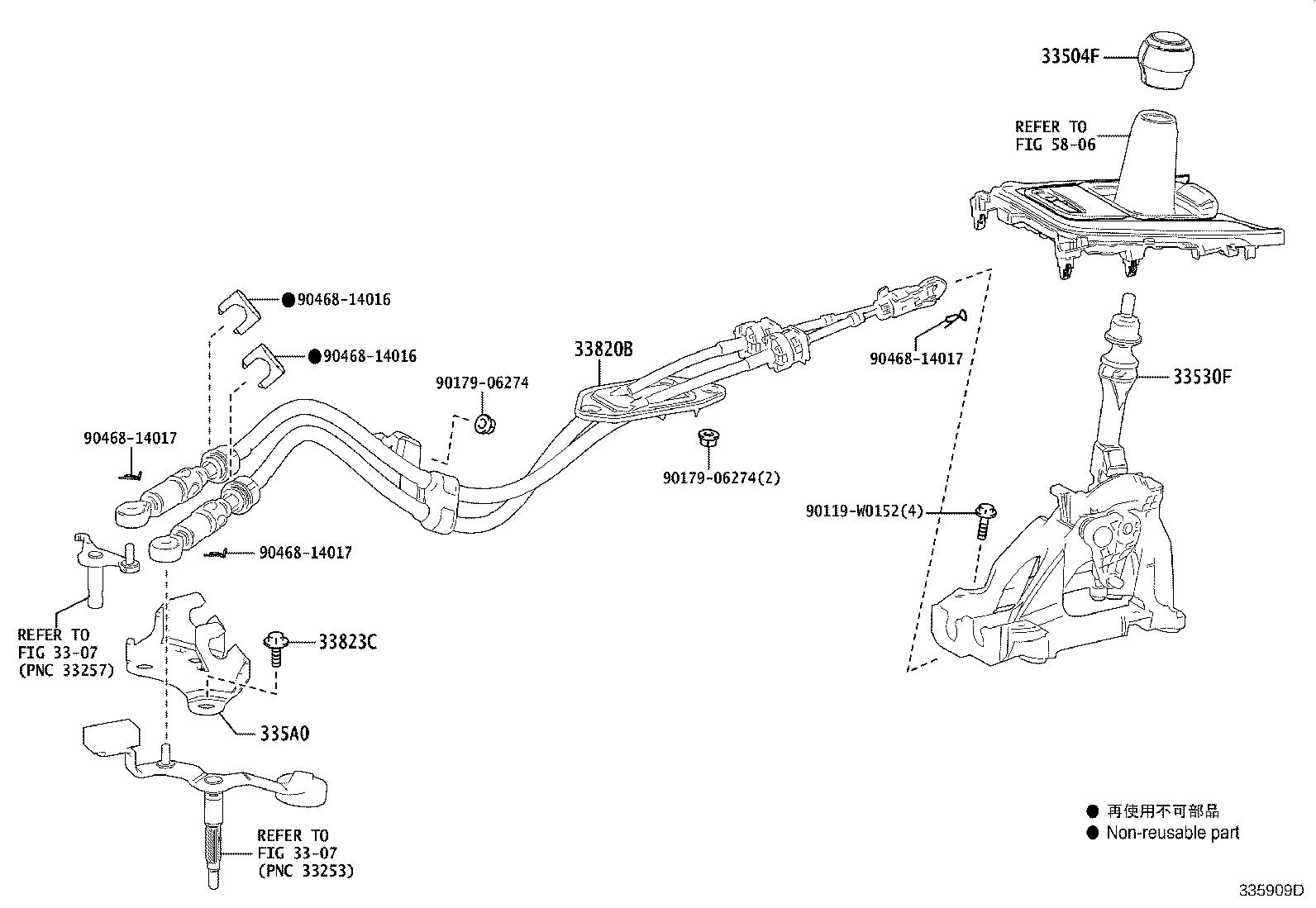

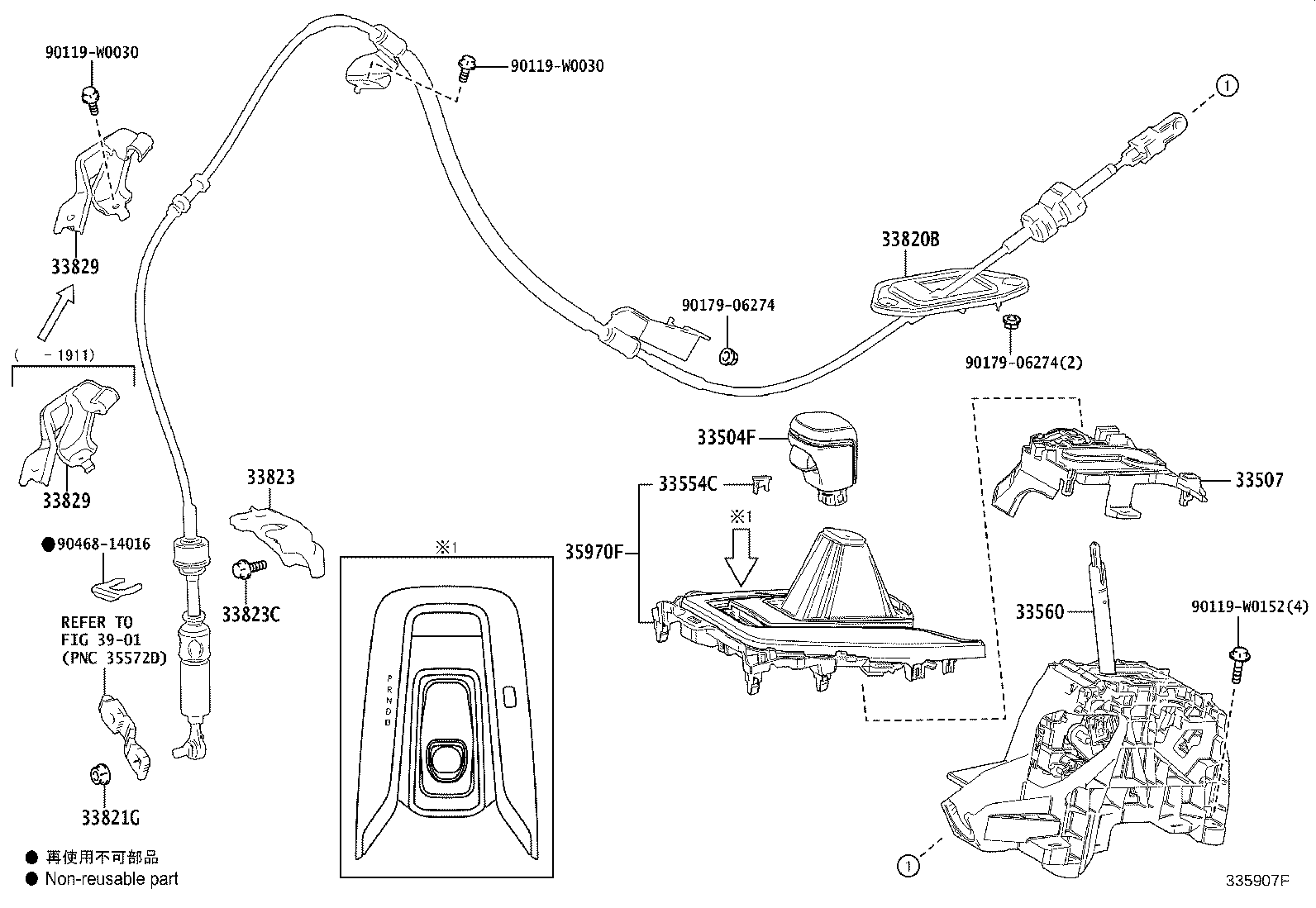

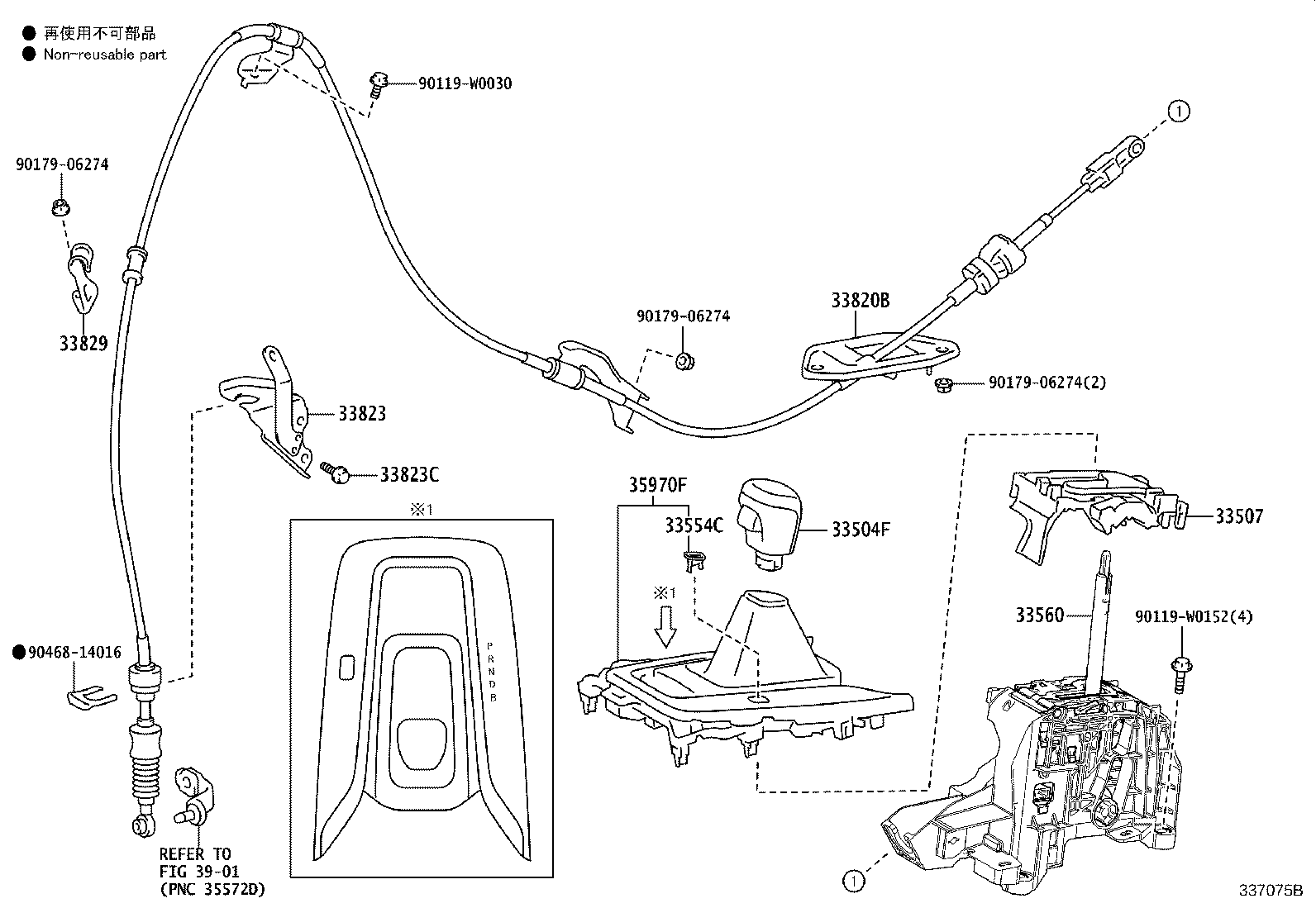

Figure 335910F 335910F 2019-01 → — Figure 335906F 335906F 2019-01 → — Figure 335907F 335907F 2019-01 → — Figure 335908F 335908F 2019-01 → — Figure 335909D 335909D 2019-01 → — Figure 337074B 337074B 2023-01 → — Figure 337075B 337075B 2023-01 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33507 Bracket Sub-assy, Shift Lever Housing
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
35970F Housing Assy, Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
