Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe
Supported model
Data version 2022-12

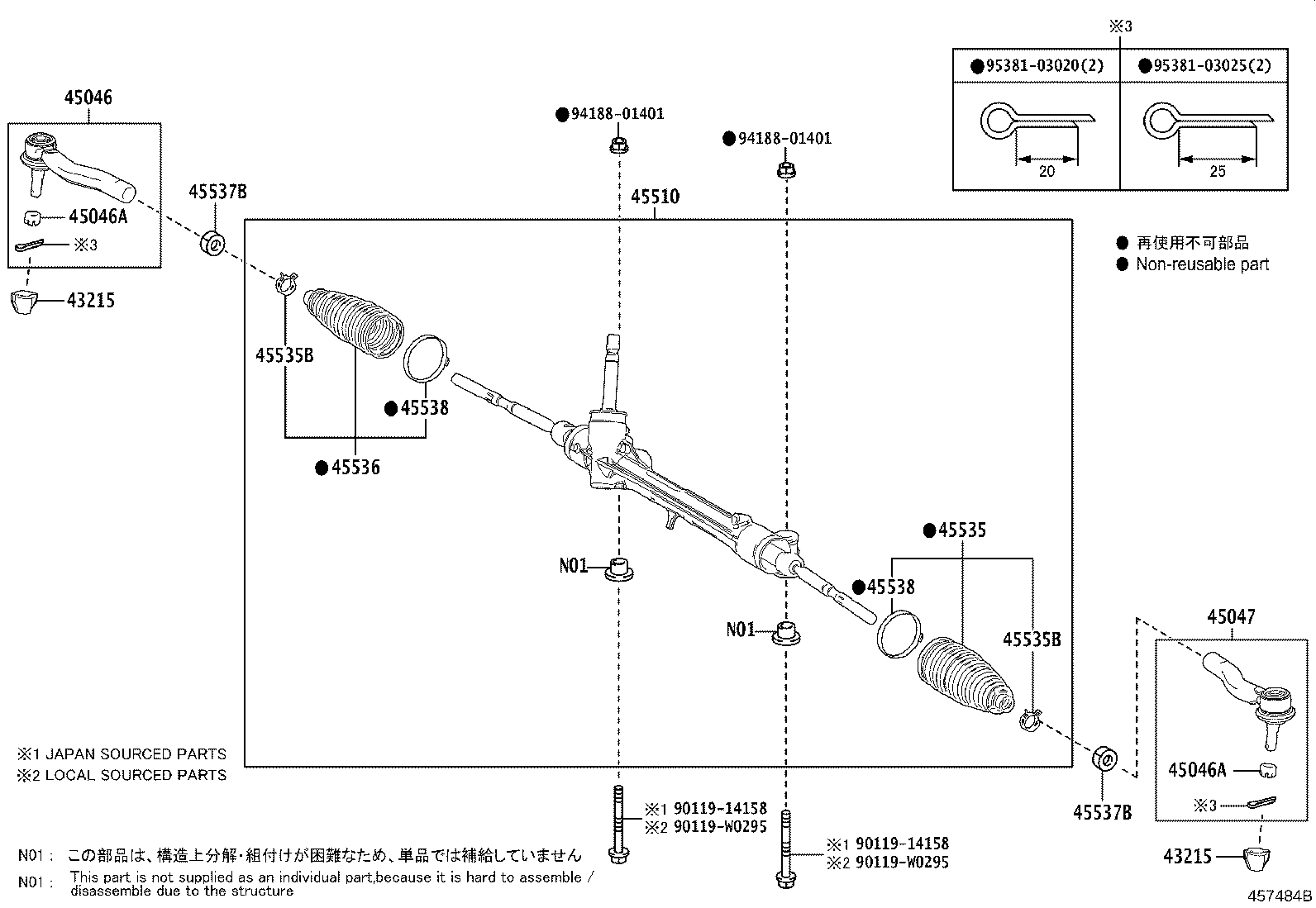

Front Steering Gear & Link
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 43215 | Seal, Steering Knuckle |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45510 | Gear Assy, Steering |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45537B | Nut, Rack End Lock |
| 45538 | Retainer, Steering Rack Boot |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
