Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe
Supported model
Data version 2022-12

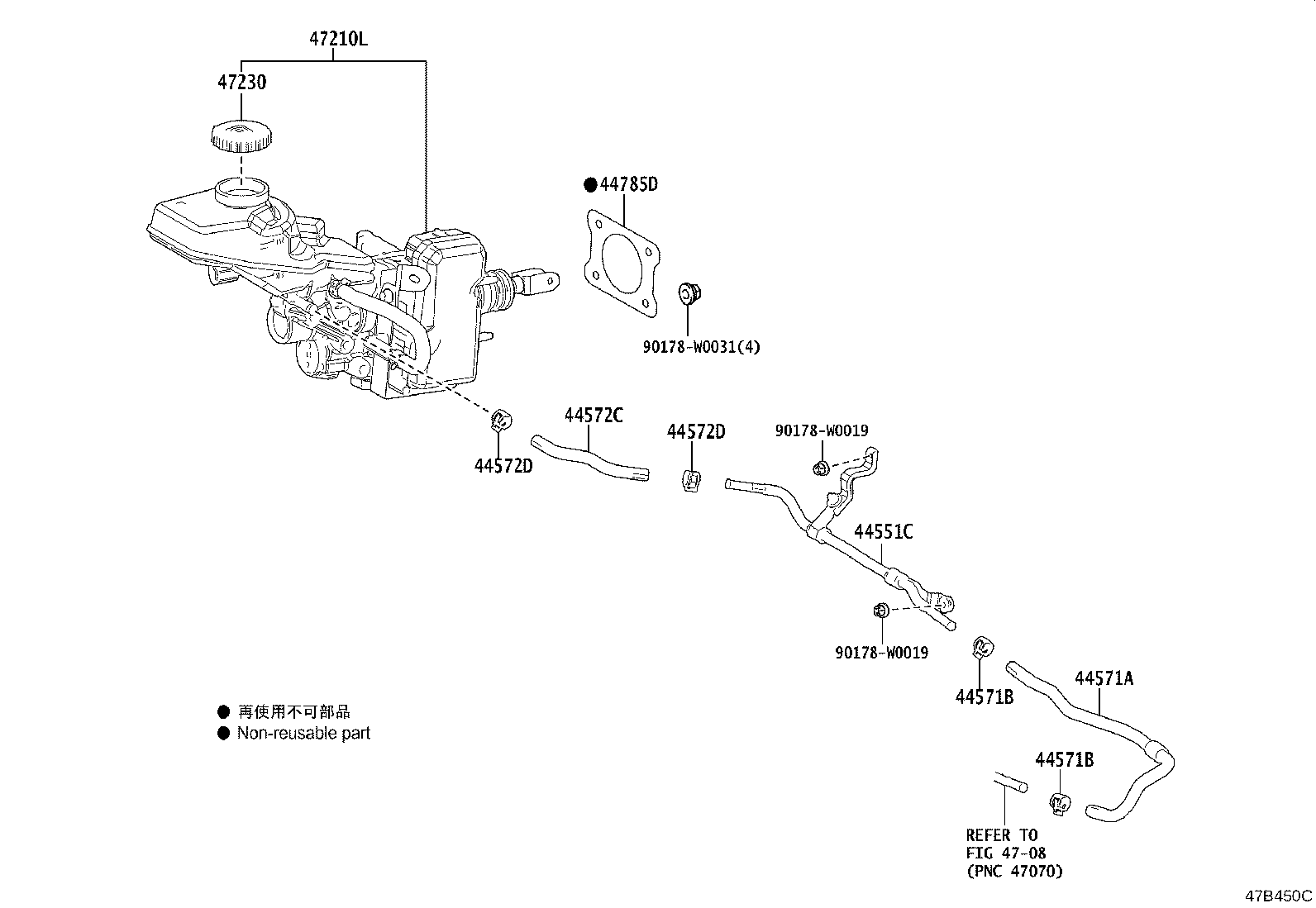

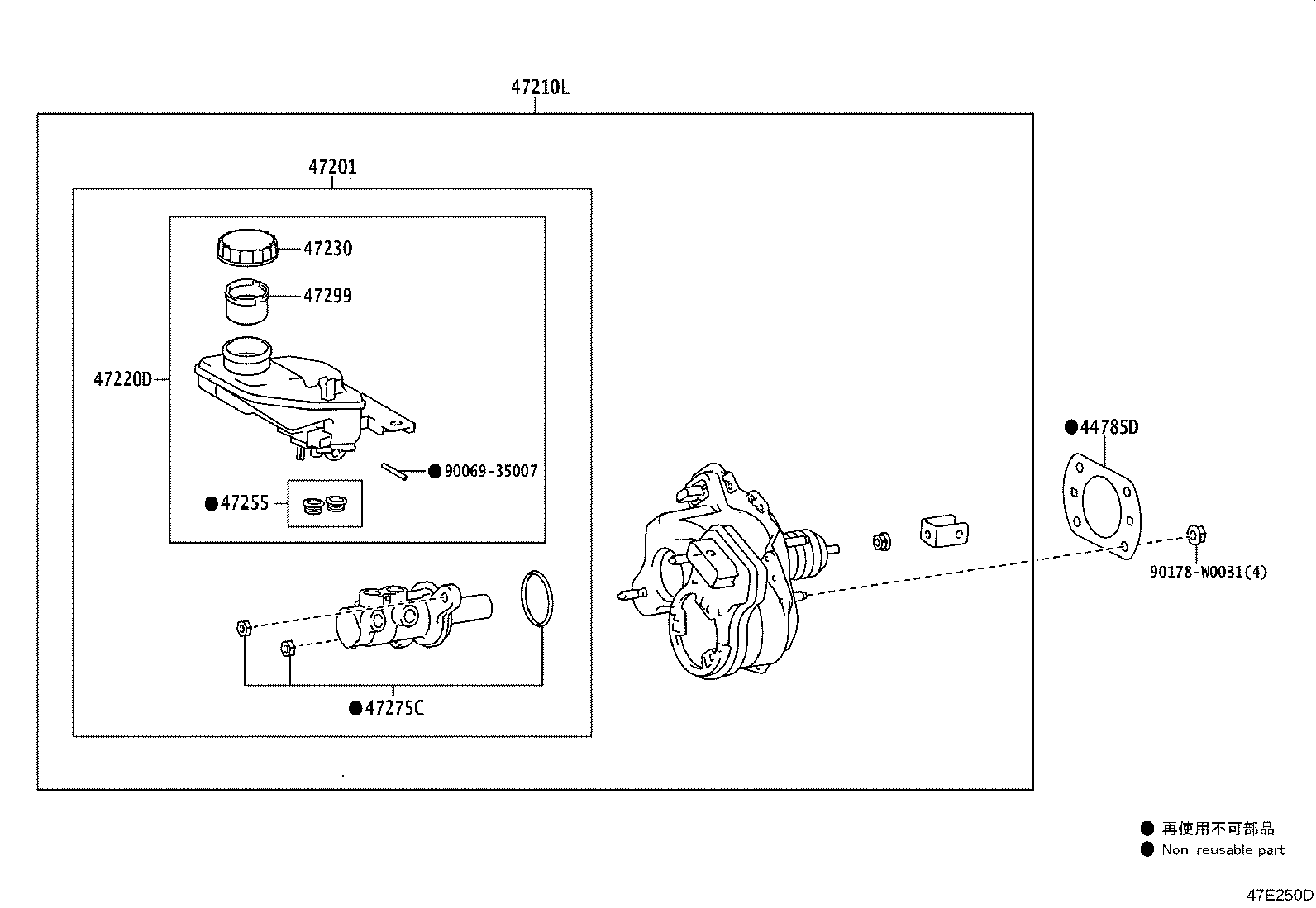

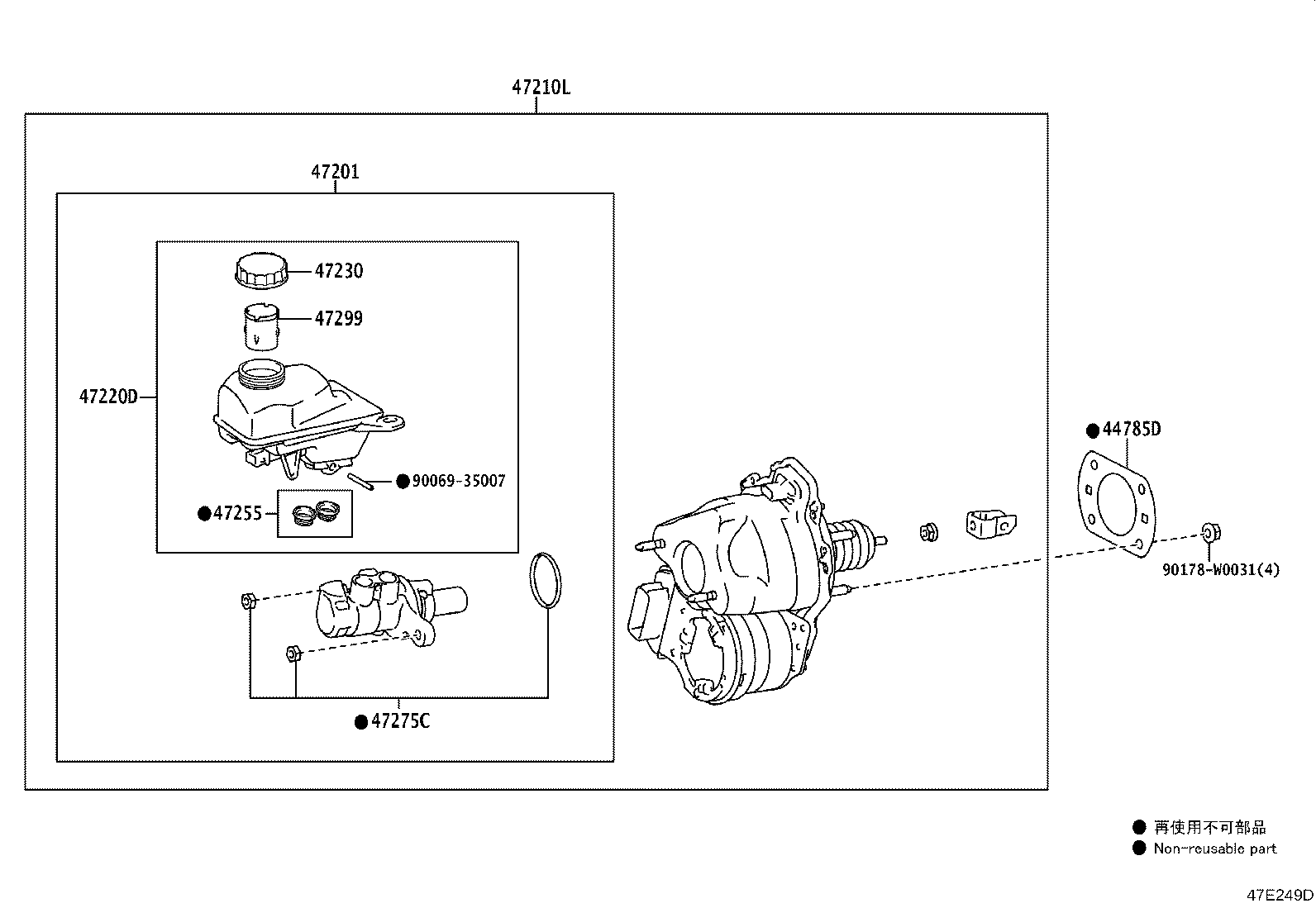

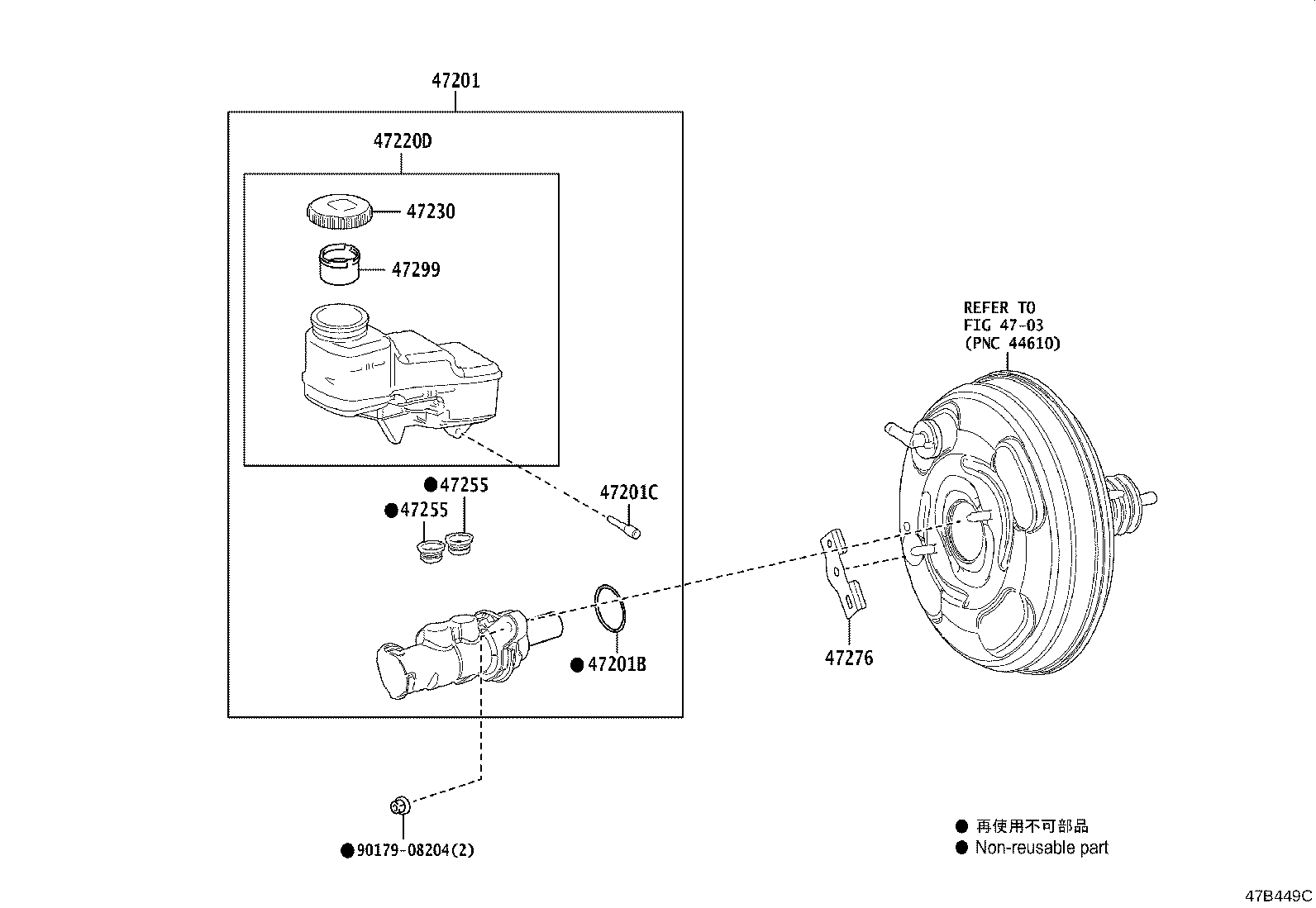

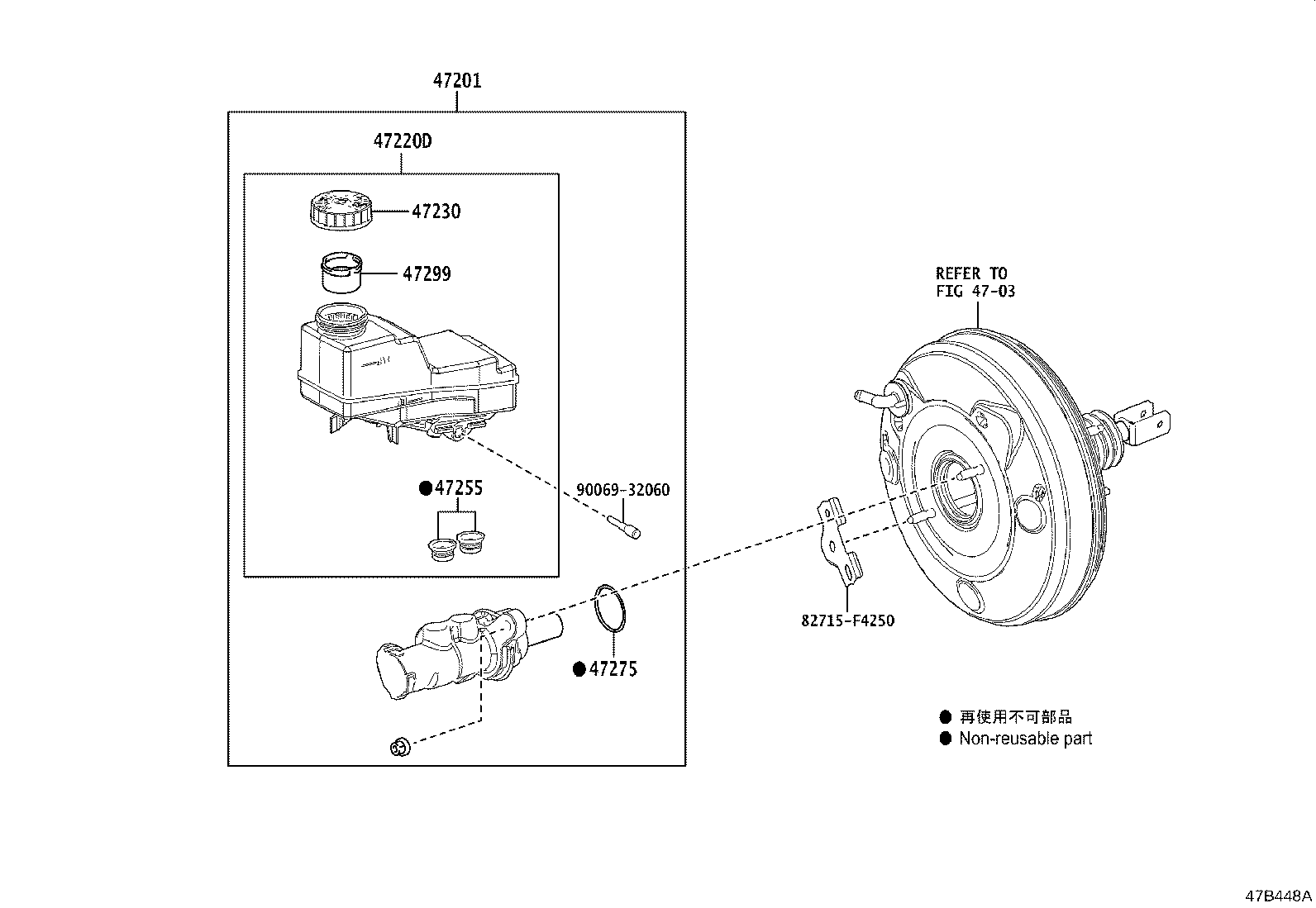

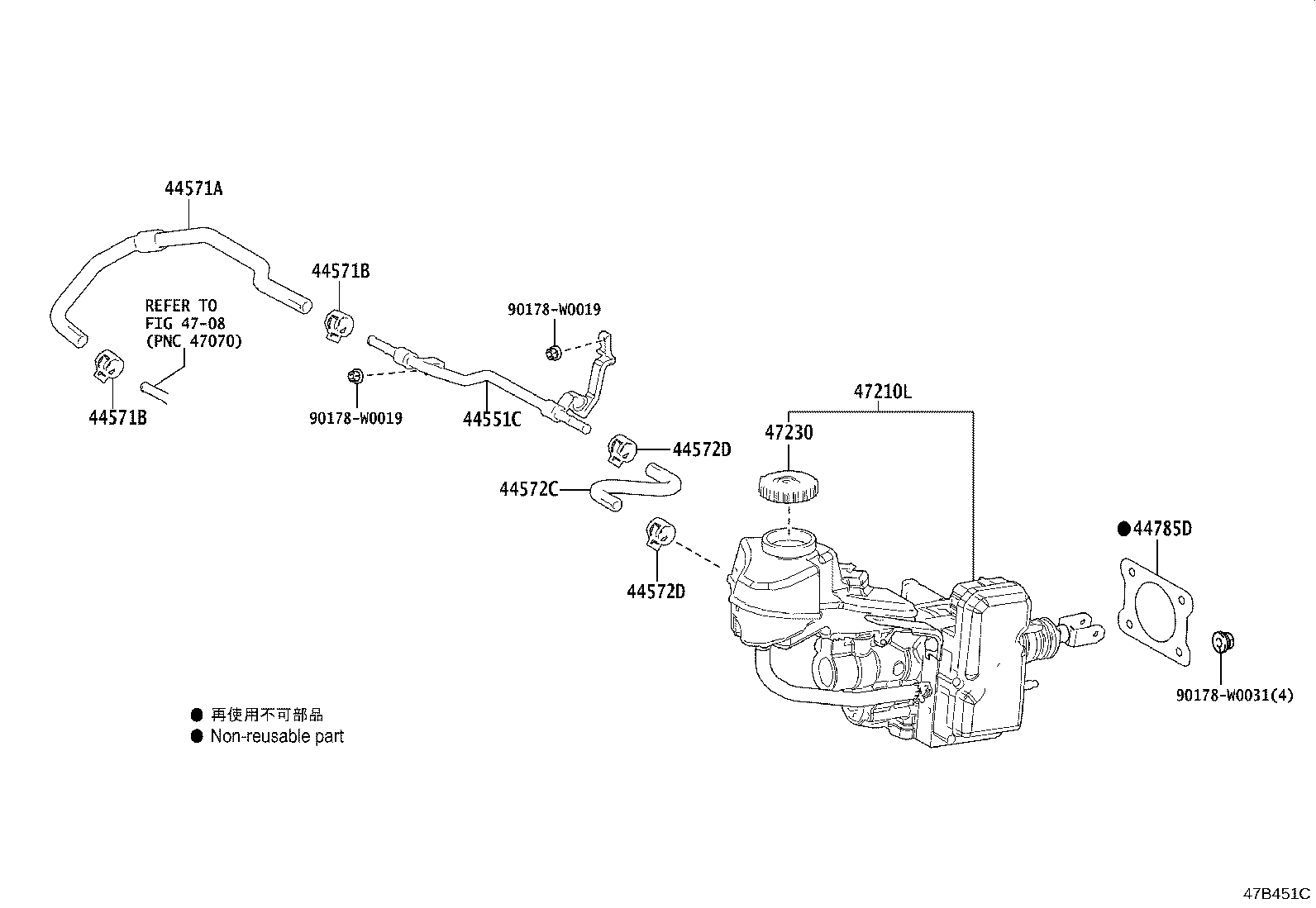

Brake Master Cylinder
17 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 44551C | Tube, Brake Actuator, NO.1 |
| 44571A | Hose, Brake Actuator, NO.1 |
| 44571B | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1) |
| 44572C | Hose, Brake Actuator, NO.2 |
| 44572D | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2) |
| 44785D | Gasket, Brake Master Cylinder |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47275 | Gasket, Brake Master Cylinder |
| 47275C | Overhaul Set, Master Cylinder |
| 47276 | Bracket, Brake Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
