Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

13 part groups · 5 illustrations

Illustrations

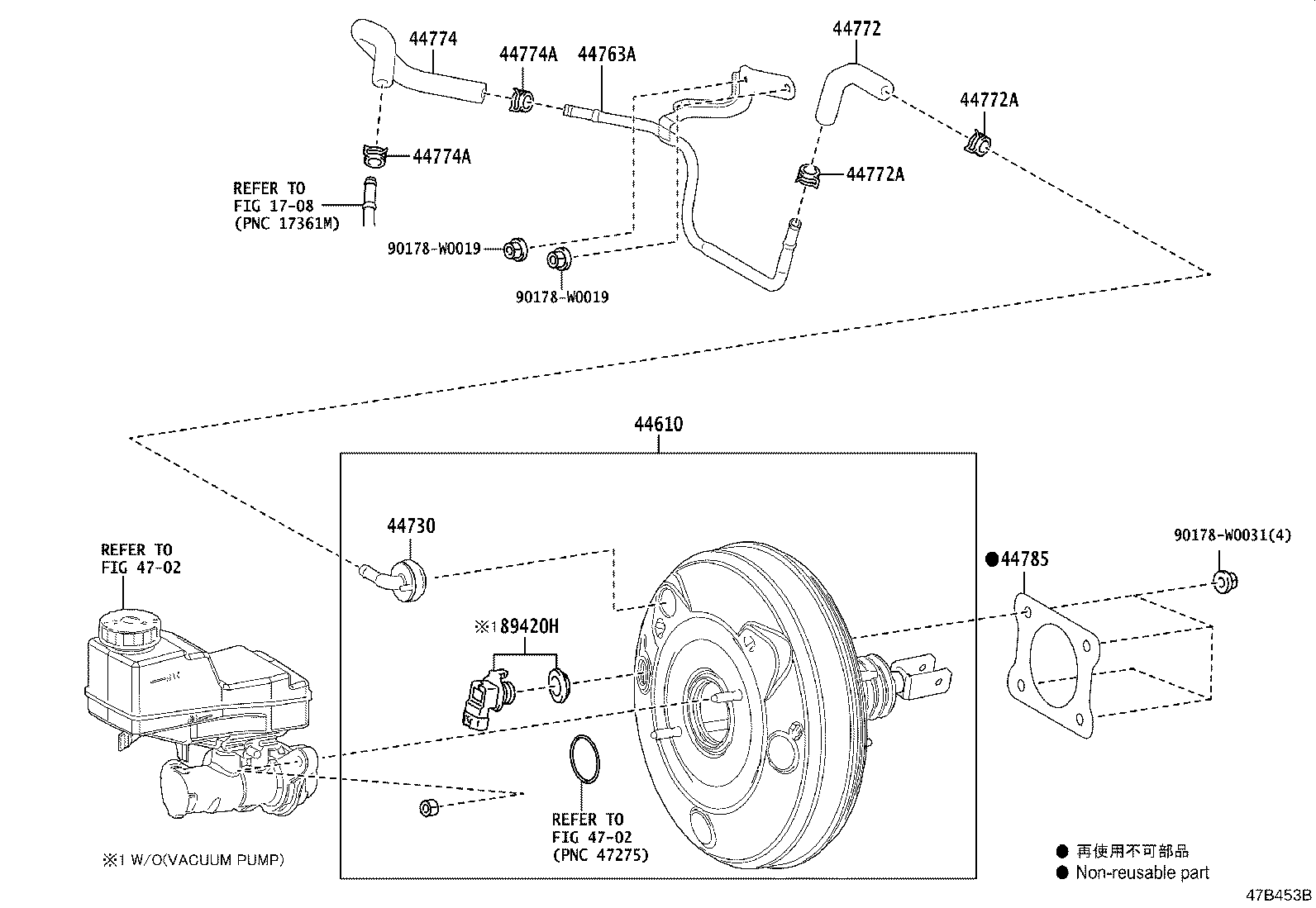

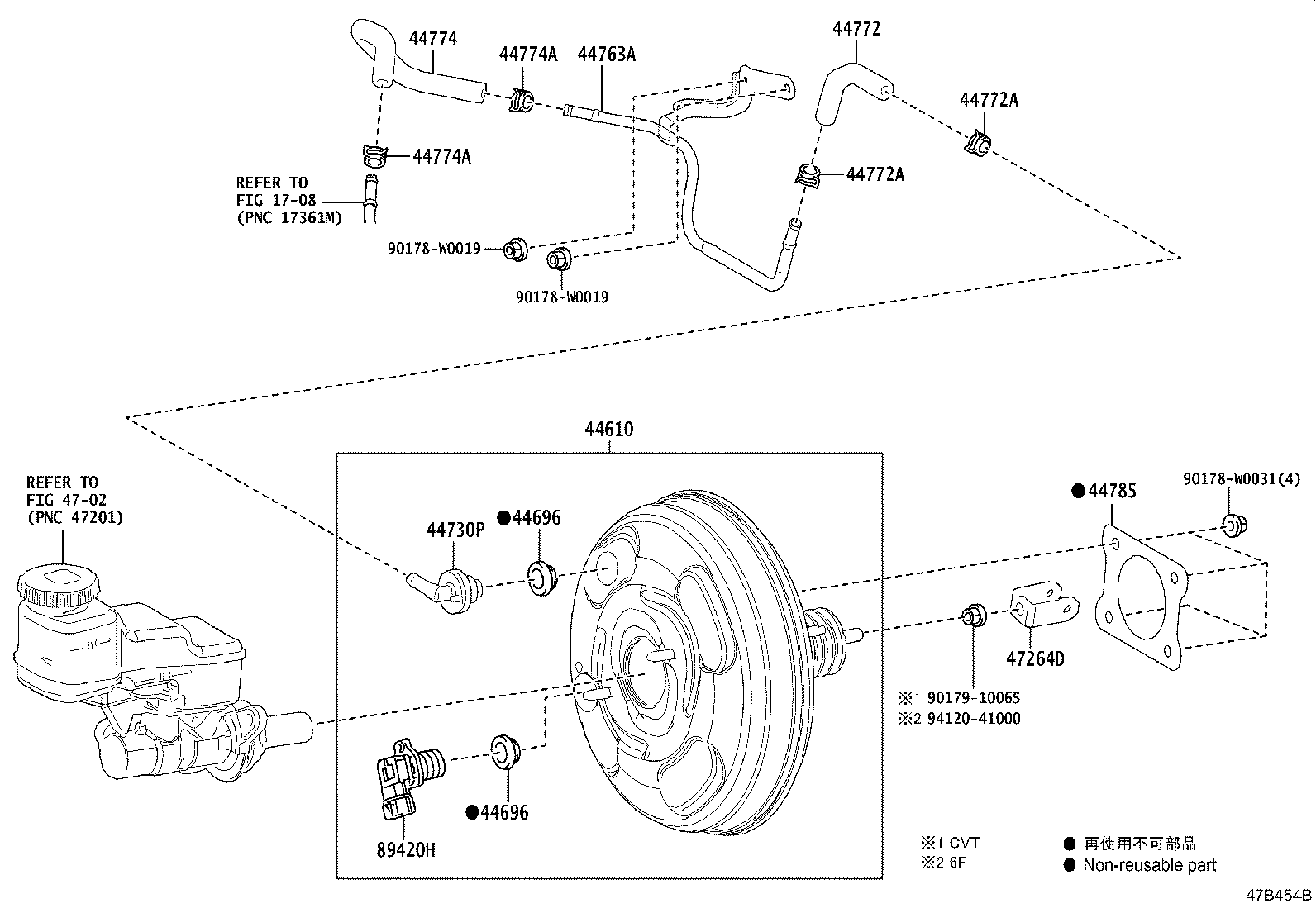

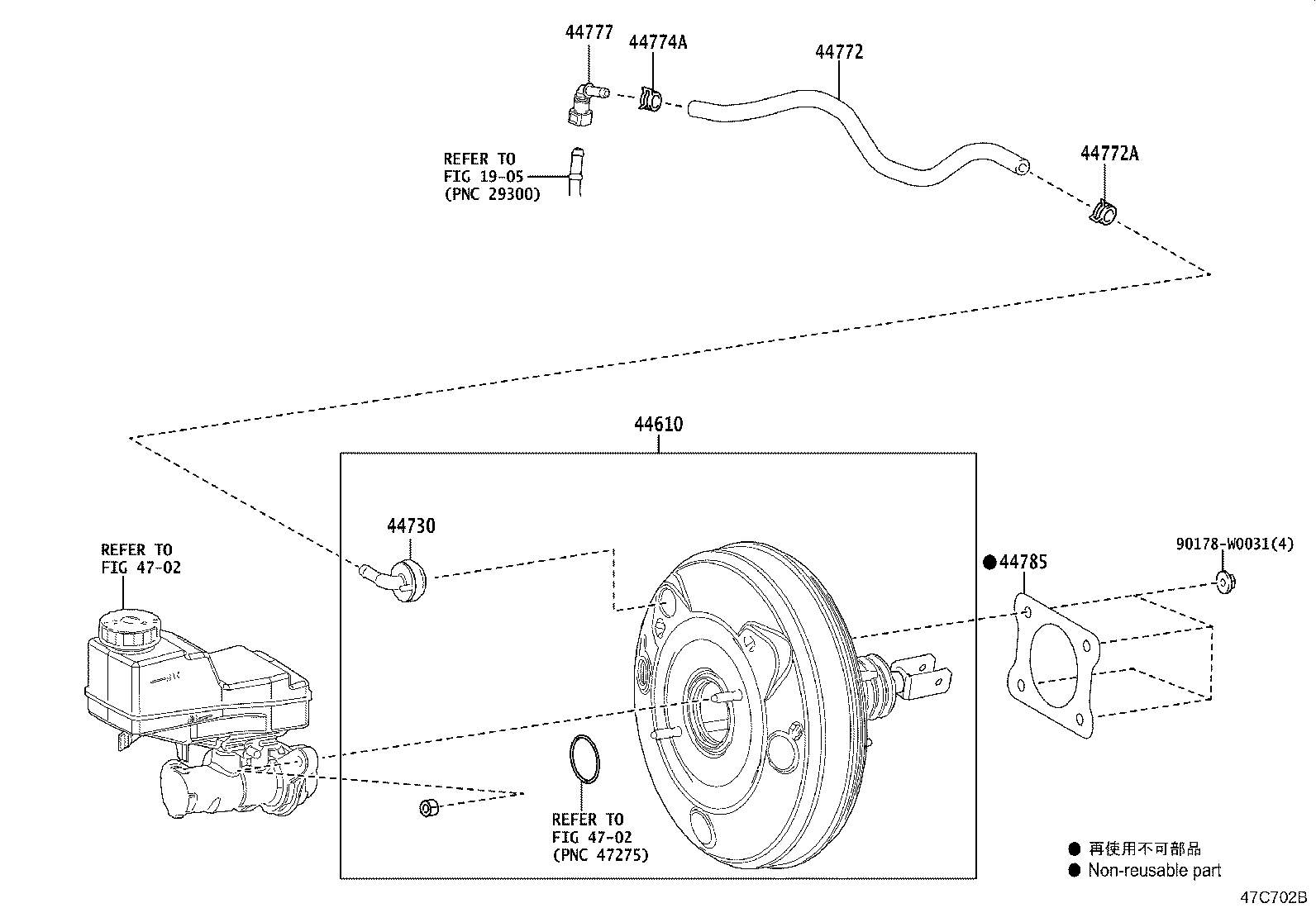

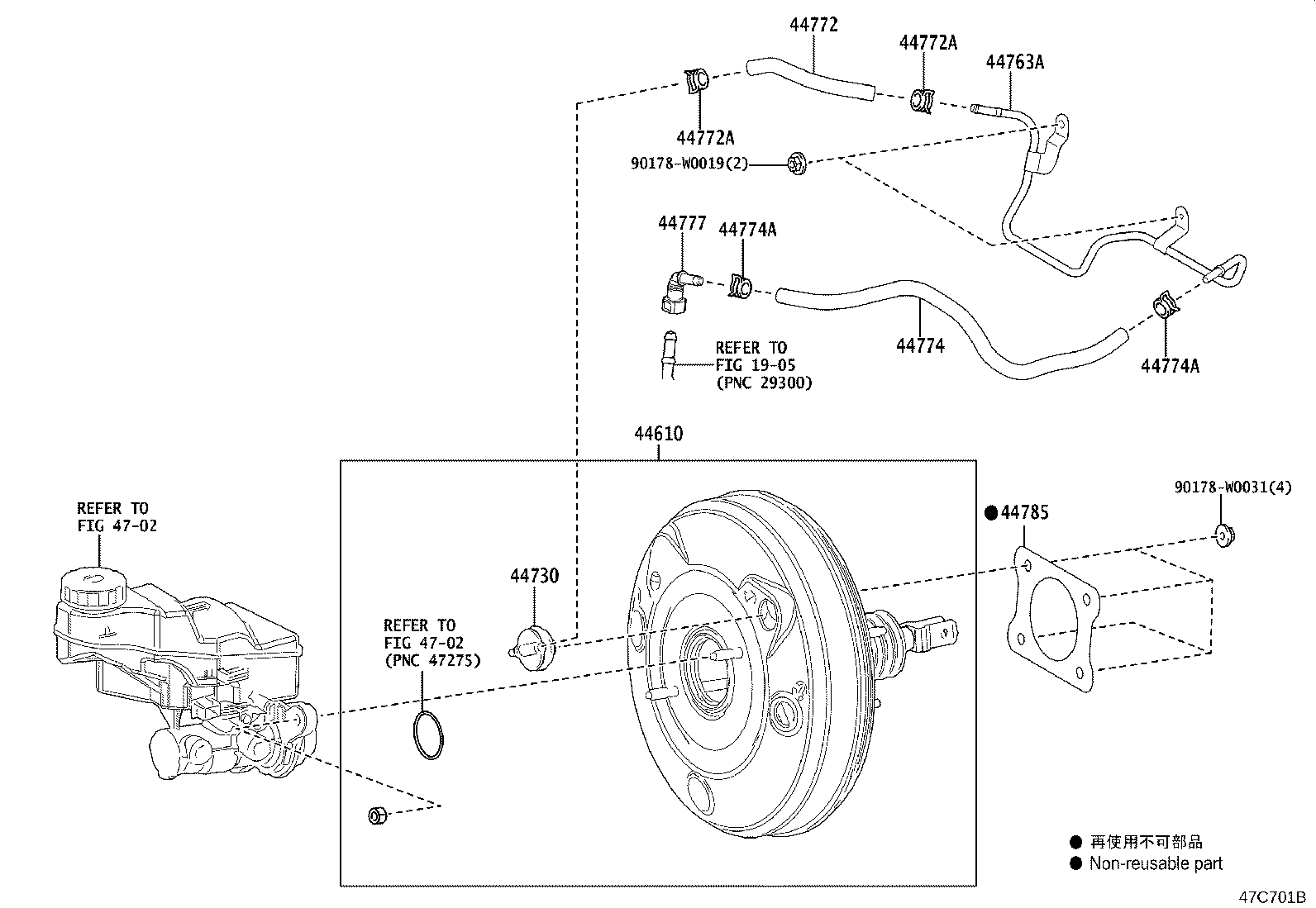

Figure 47B452B 47B452B 2019-01 → — Figure 47B453B 47B453B 2019-01 → — Figure 47B454B 47B454B 2019-01 → — Figure 47C701B 47C701B 2020-11 → — Figure 47C702B 47C702B 2020-11 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730P Valve Assy, Vacuum Check, NO.1
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44777 Connector, Vacuum Hose, NO.1
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
89420H Sensor Assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
