Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

32 part groups · 7 illustrations

Illustrations

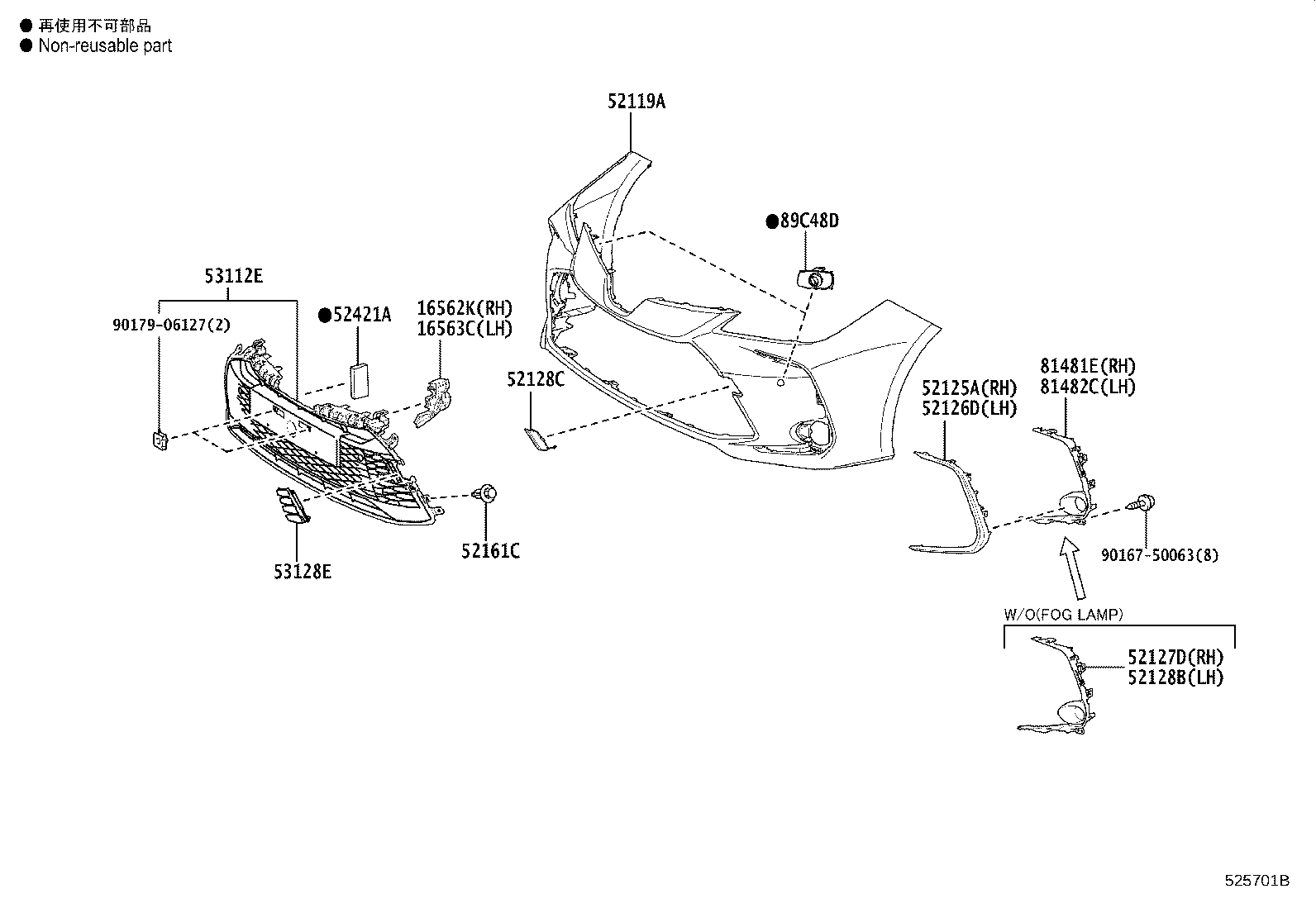

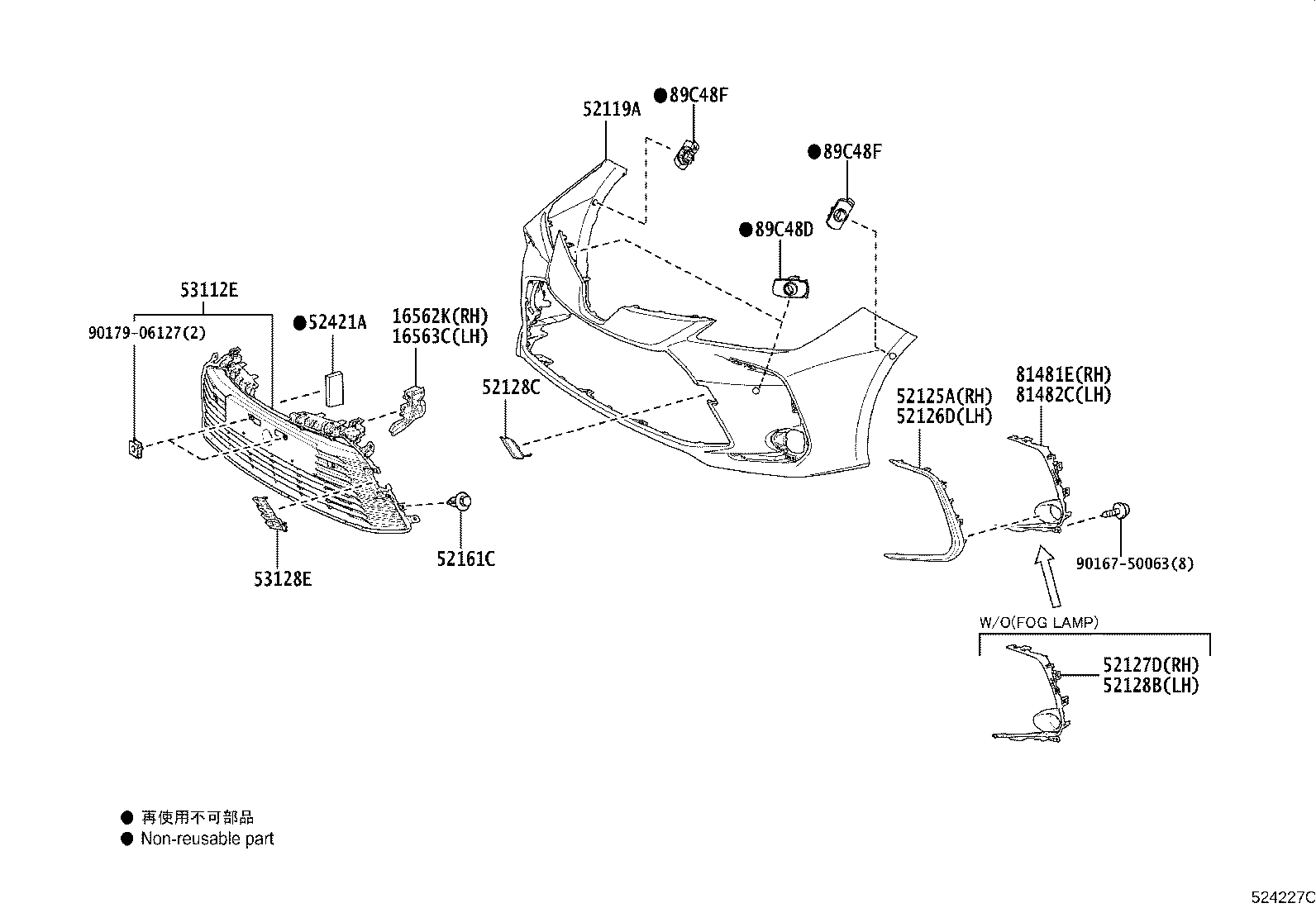

Figure 523899D 523899D 2019-01 → — Figure 524227D 524227D 2019-01 → 2023-01 Figure 524227D 524227D 2023-01 → — Figure 524227D 524227D 2023-01 → — Figure 524227D 524227D 2023-01 → — Figure 525701B 525701B 2023-01 → — Figure 525701B 525701B 2023-01 → —

Part groups

PNCDescription
16562K Seal, Radiator TO Support, NO.2
16563C Seal, Radiator TO Support, NO.3
16691C Plate, Radiator Side Air Guide, Front
47749F Clip, Pin Hold
51451F Grommet, NO.1
51451G Grommet, NO.2
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52132A Reinforcement, Front Bumper, NO.2
52133F Bracket, Front Bumper, RH
52134G Bracket, Front Bumper, LH
52161C Piece, Front Bumper
52421A Pad, Front Bumper
52521A Clip(FOR FRONT BUMPER RETAINER)
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53128E Grille, Radiator, Lower Side LH
53879H Retainer, Front Fender Liner
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
