Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

17 part groups · 7 illustrations

Illustrations

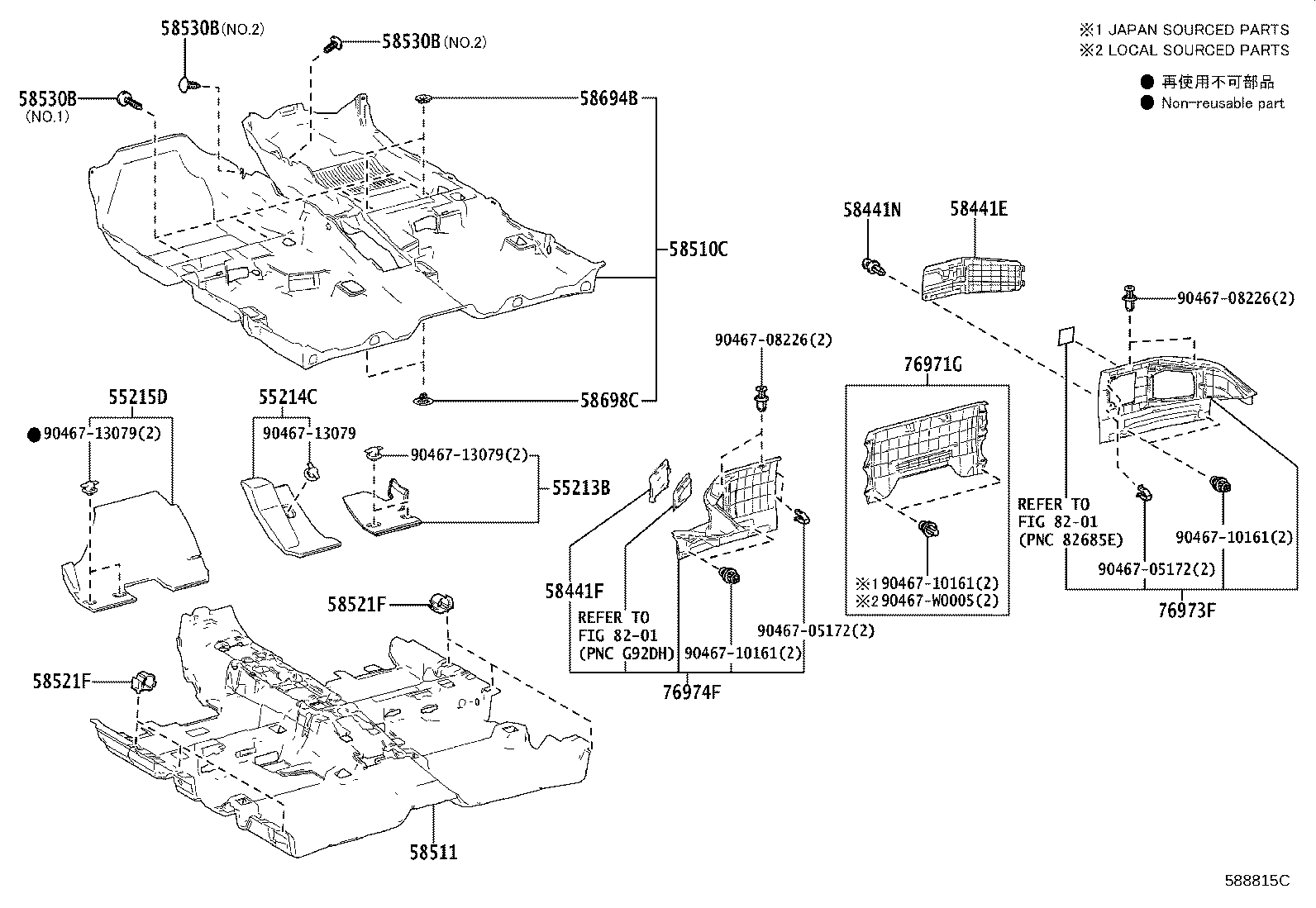

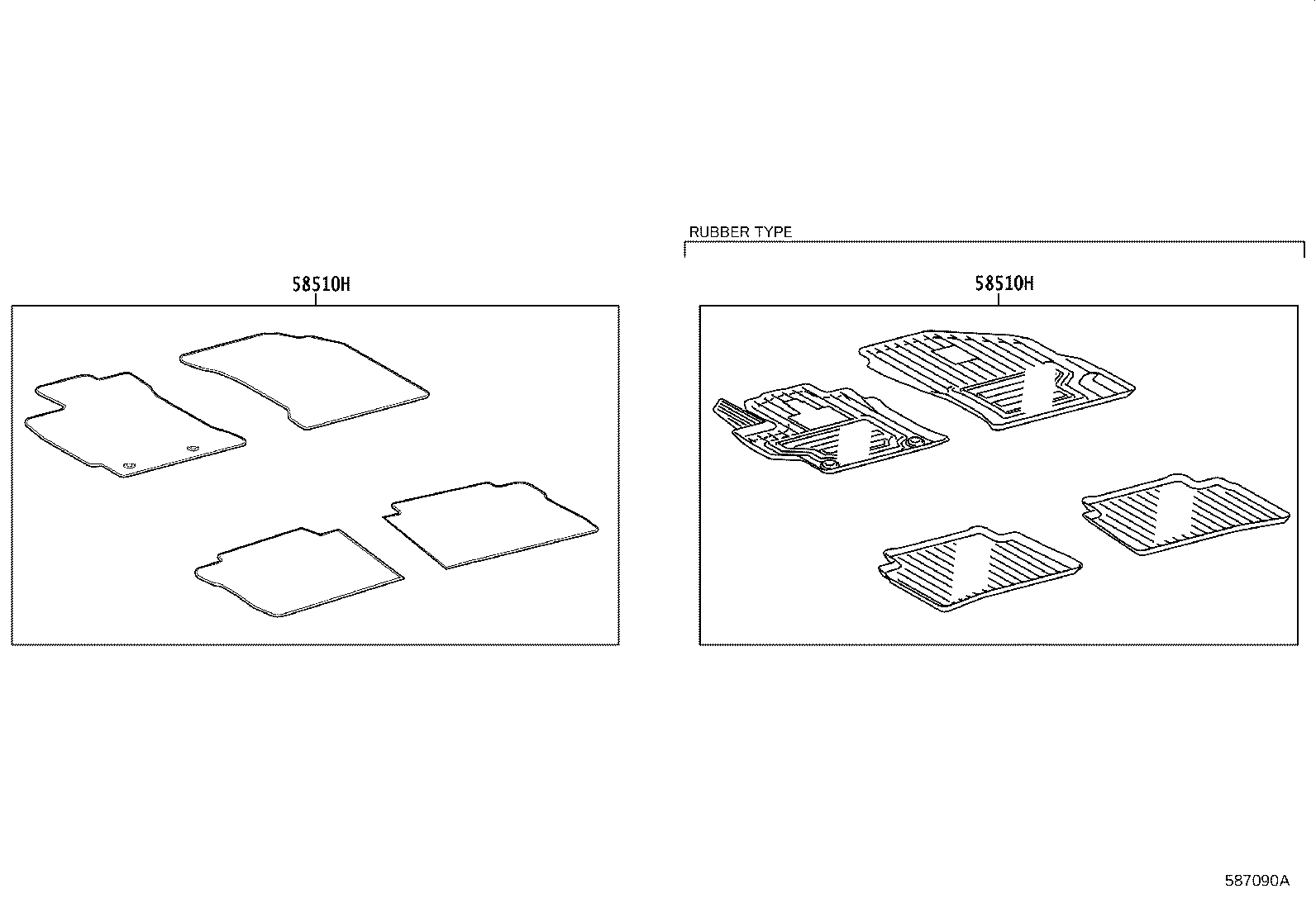

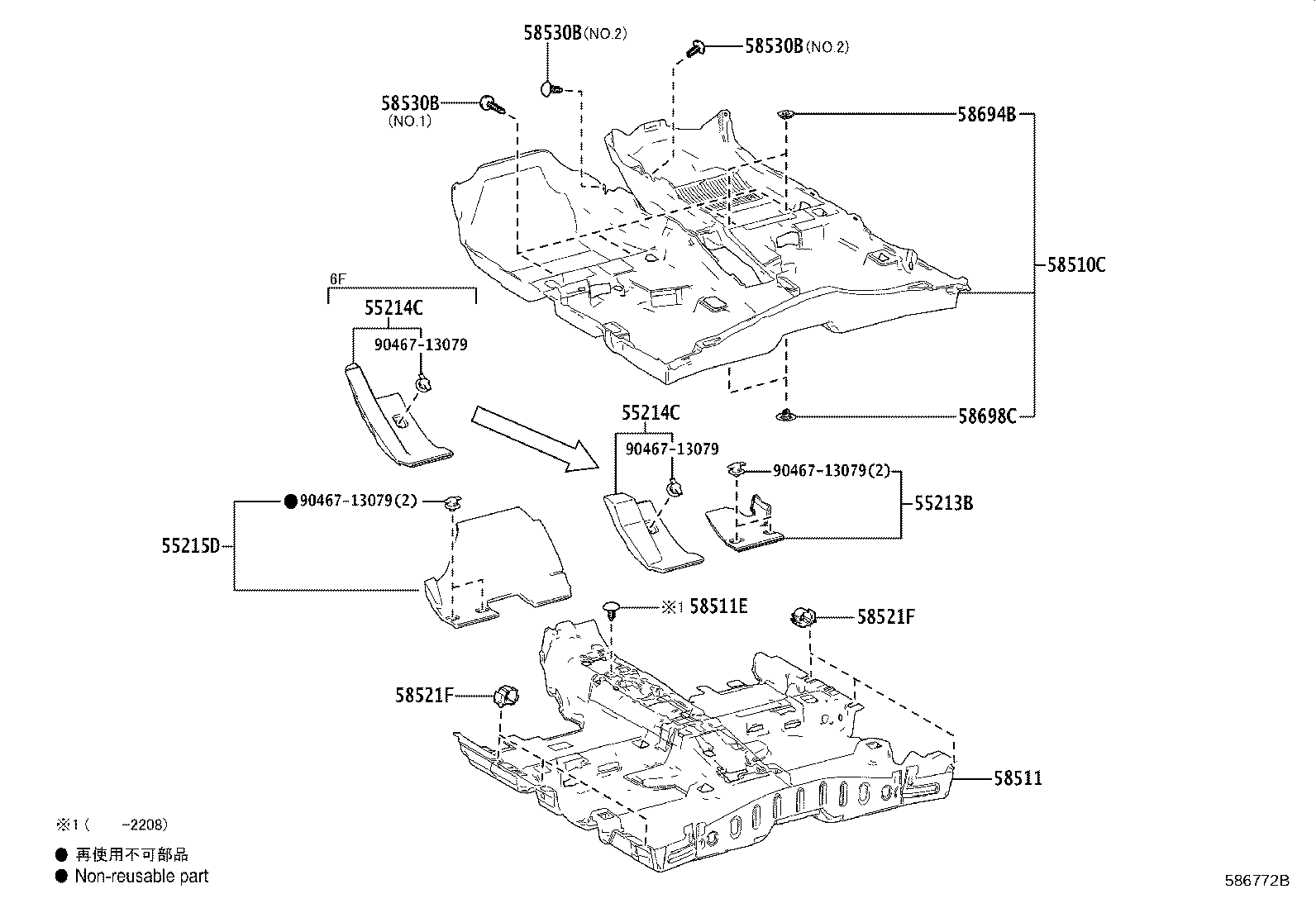

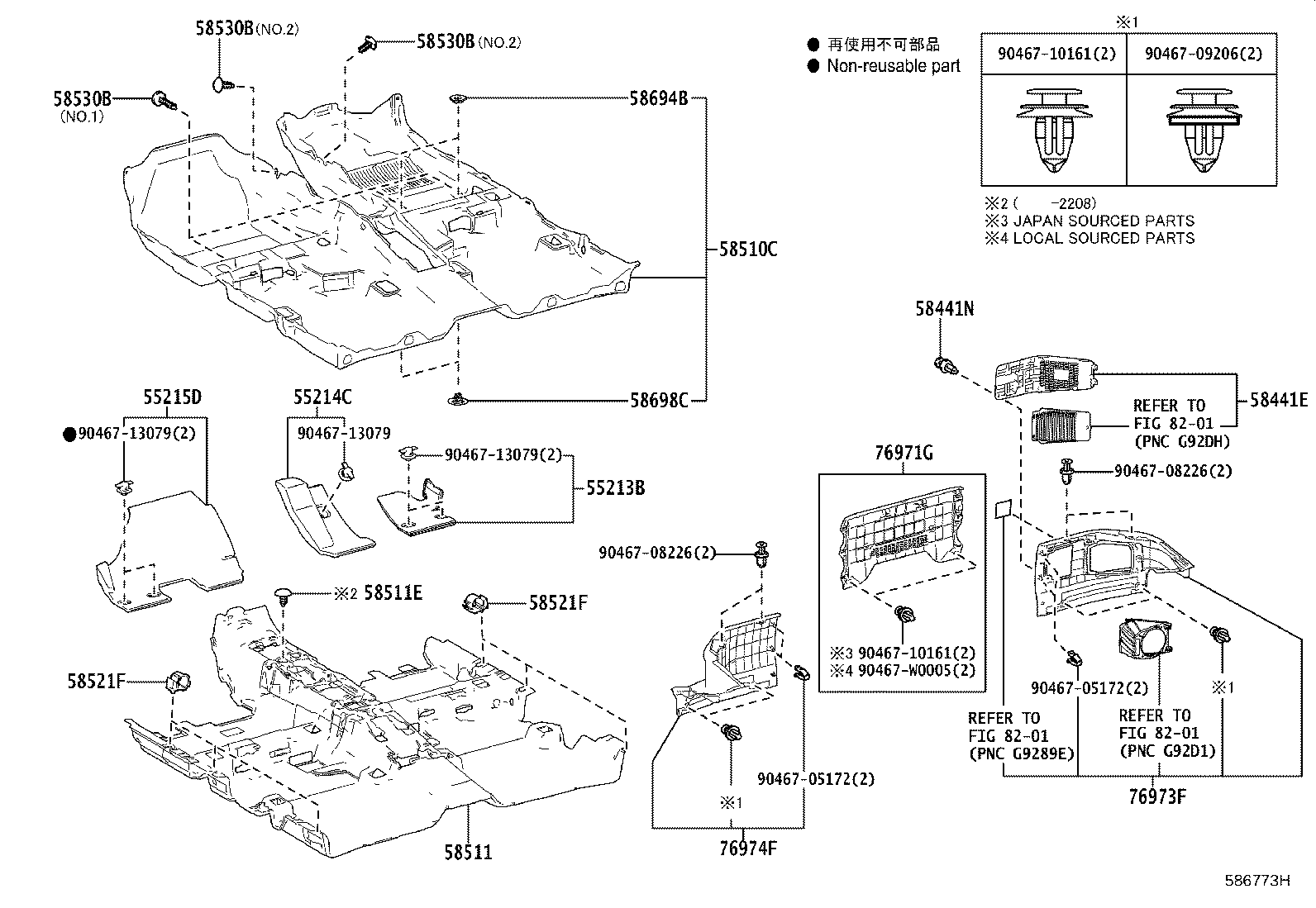

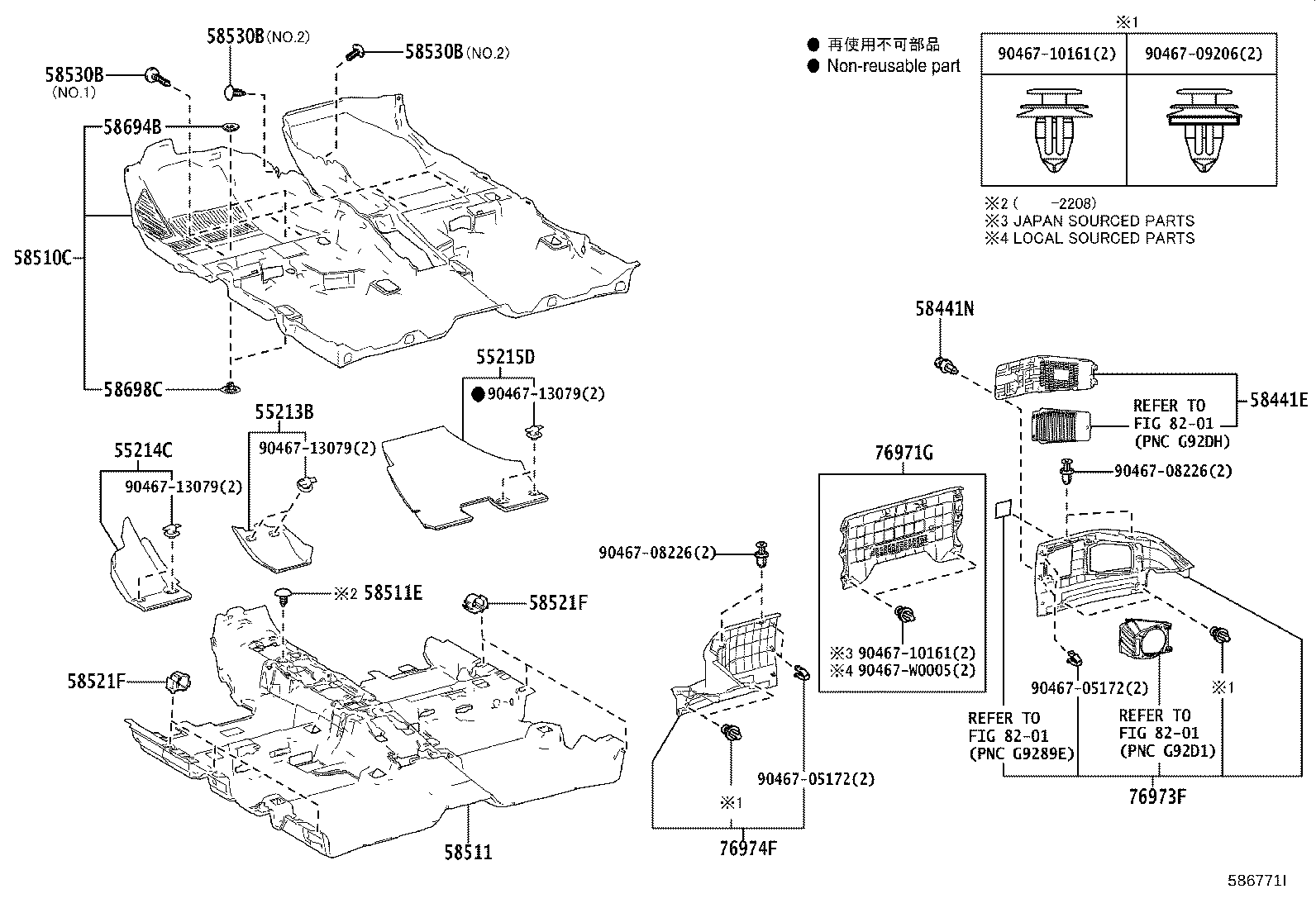

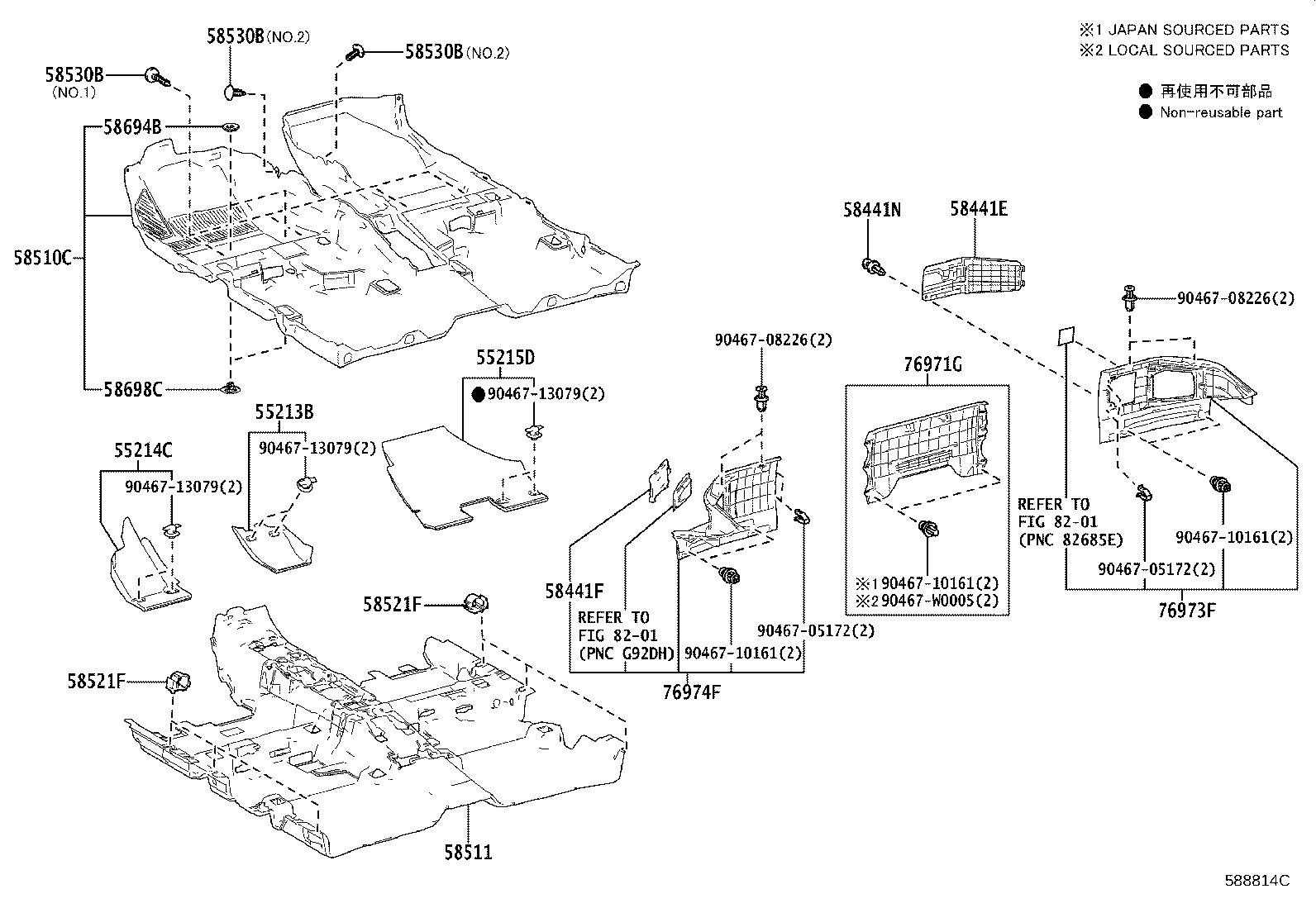

Figure 586770B 586770B 2019-01 → — Figure 586772B 586772B 2019-01 → — Figure 586771I 586771I 2019-01 → — Figure 586773H 586773H 2019-01 → — Figure 588814C 588814C 2023-01 → — Figure 588815C 588815C 2023-01 → — Figure 587090A 587090A 2019-01 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58441E Cover, Battery Service Hole
58441F Cover, Battery Service Hole
58441N Clip(FOR BATTERY SERVICE HOLE COVER)
58510C Carpet Assy, Front Floor, Front
58510H Mat Assy, Floor
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58521F Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
76971G Cover, Rear Under
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
