Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

2 part groups · 4 illustrations

Illustrations

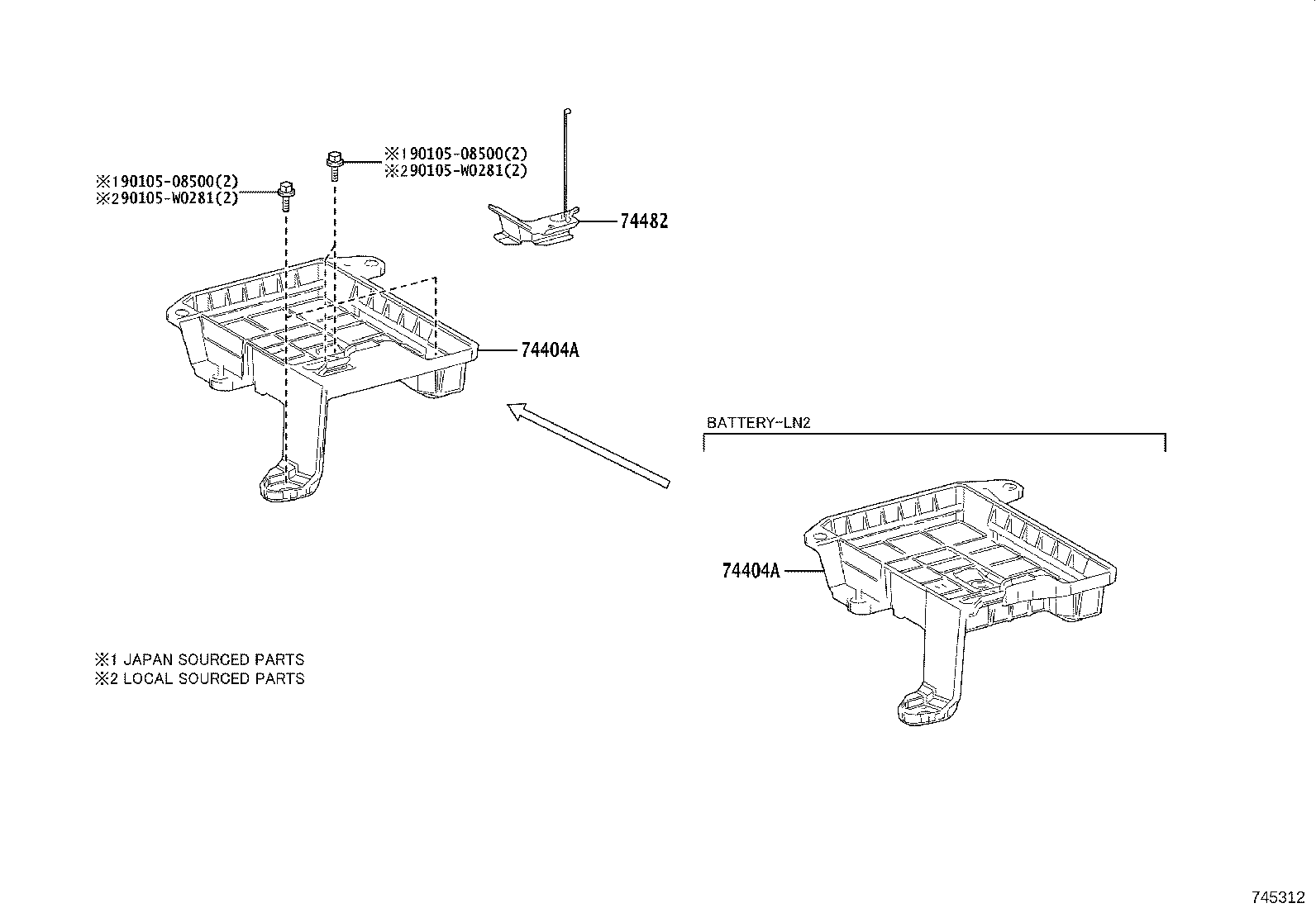

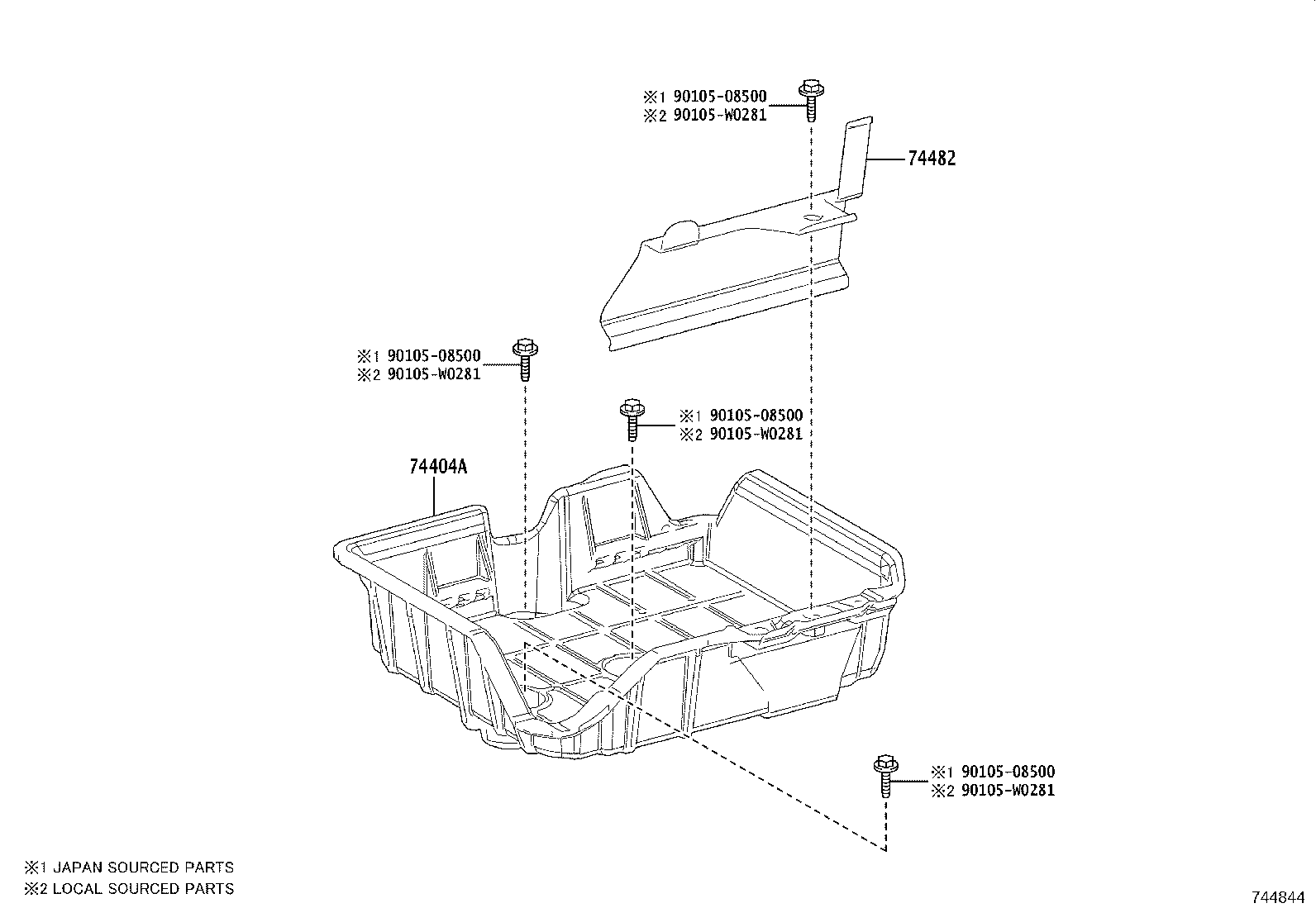

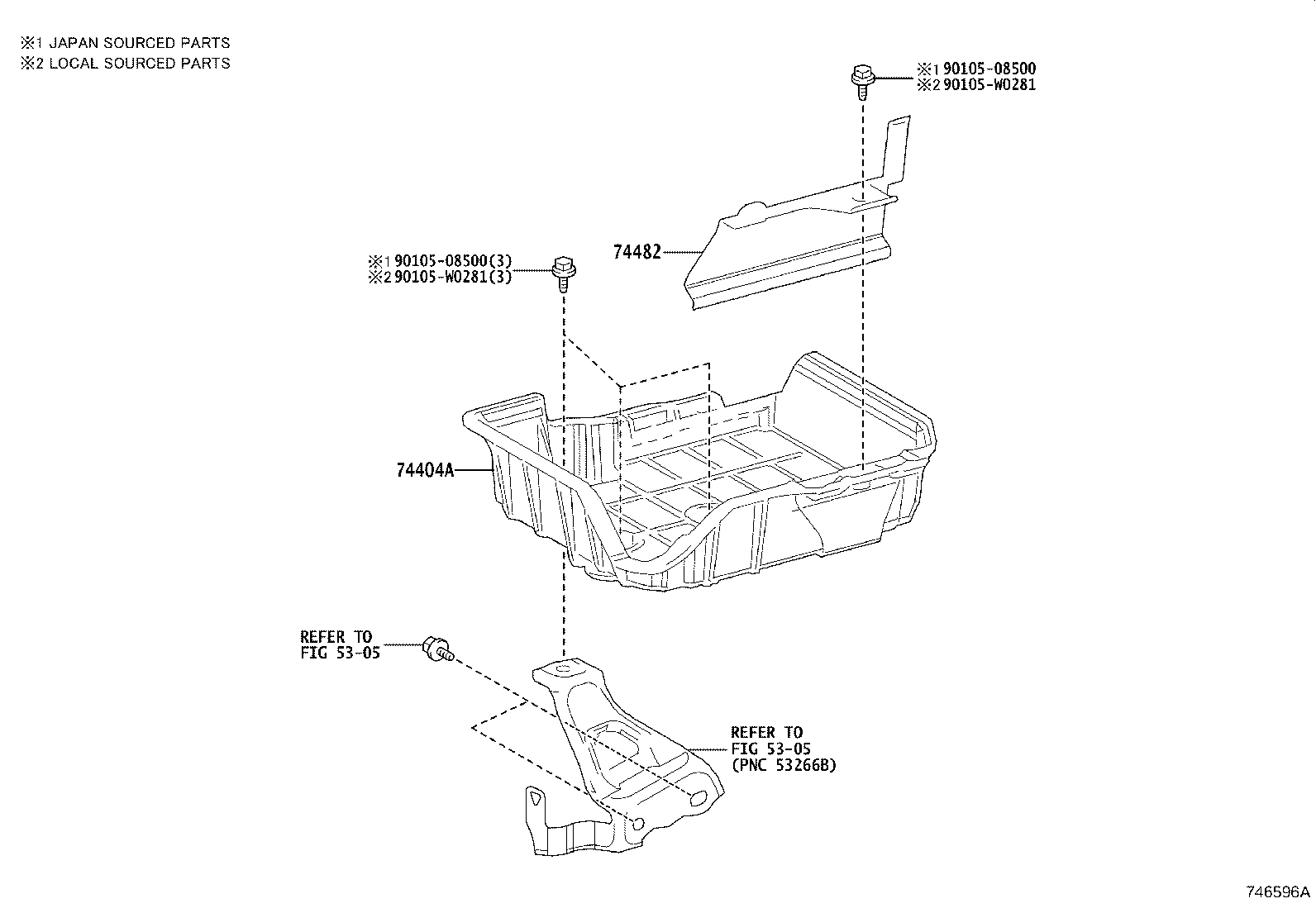

Figure 744845 744845 2019-01 → — Figure 744844 744844 2019-01 → — Figure 745312 745312 2020-10 → — Figure 746596A 746596A 2023-01 → —

Part groups

PNCDescription
74404A Clamp Sub-assy, Battery
74482 Clamp, Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
