Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

31 part groups · 2 illustrations

Illustrations

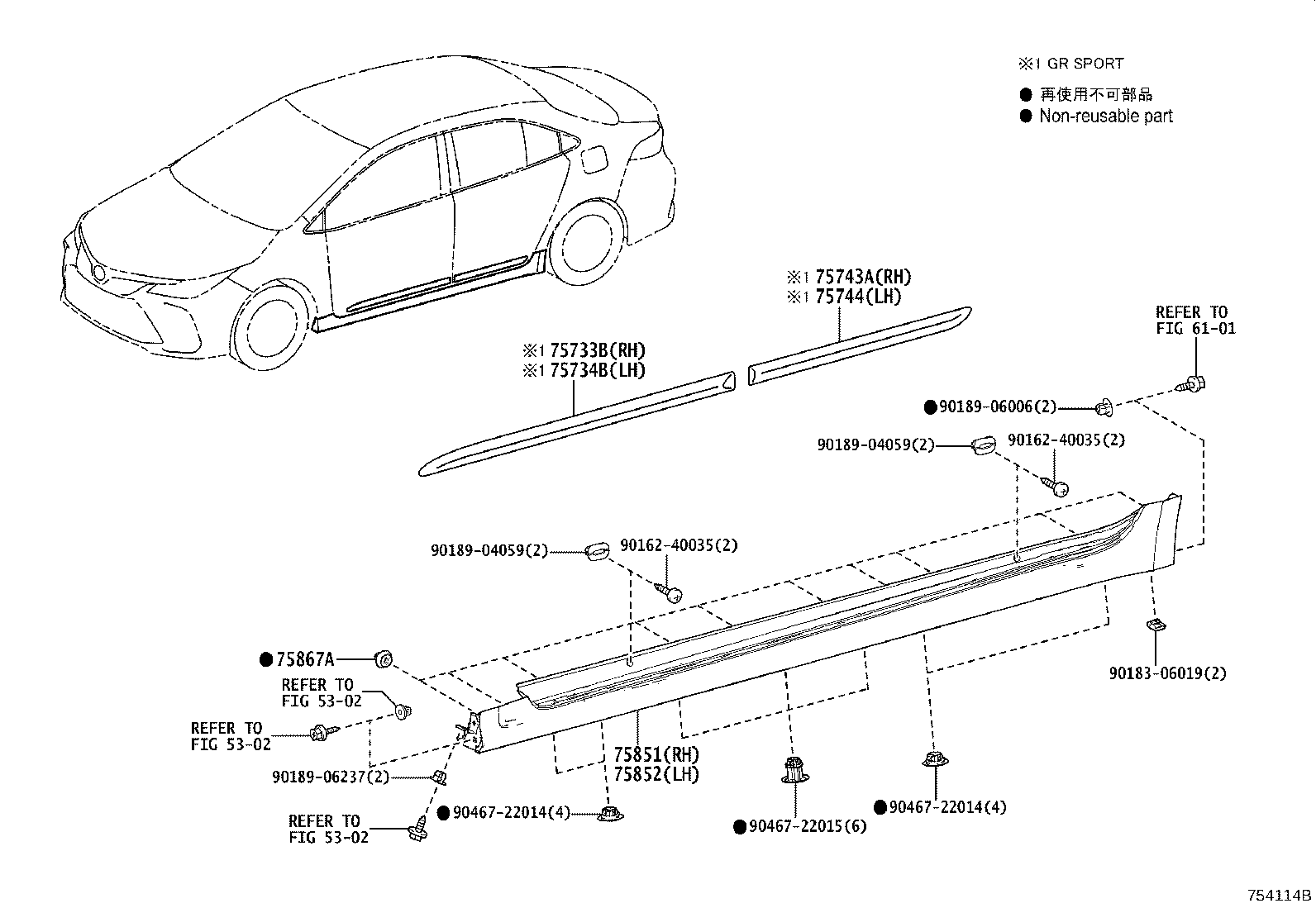

Figure 753724G 753724G 2019-01 → — Figure 754114B 754114B 2019-01 → —

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
62505E Cover Sub-assy, Quarter Pillar, RH
62506C Cover Sub-assy, Quarter Pillar, LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75733B Moulding, Front Door, Outside Upper Rear RH
75734B Moulding, Front Door, Outside Upper Rear LH
75740 Moulding Assy, Rear Door Belt, LH
75743A Moulding, Rear Door, Outside Upper Rear RH
75744 Moulding, Rear Door, Outside Upper Rear LH
75751A Moulding, Front Door Window Frame, RH(FRONT PILLAR SIDE)
75752A Moulding, Front Door Window Frame, LH(FRONT PILLAR SIDE)
75753 Moulding, Front Door Window Frame, Upper RH
75754A Moulding, Front Door Window Frame, Upper LH
75755A Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE)
75756D Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE)
75761B Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE)
75762B Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE)
75763A Moulding, Rear Door Window Frame, Upper RH
75764A Moulding, Rear Door Window Frame, Upper LH
75765B Moulding, Rear Door Window Frame, RH(REAR PILLAR SIDE)
75766B Moulding, Rear Door Window Frame, LH(REAR PILLAR SIDE)
75792 Clip, Door Window Frame Moulding
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75867A Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
