Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe
Supported model
Data version 2022-12

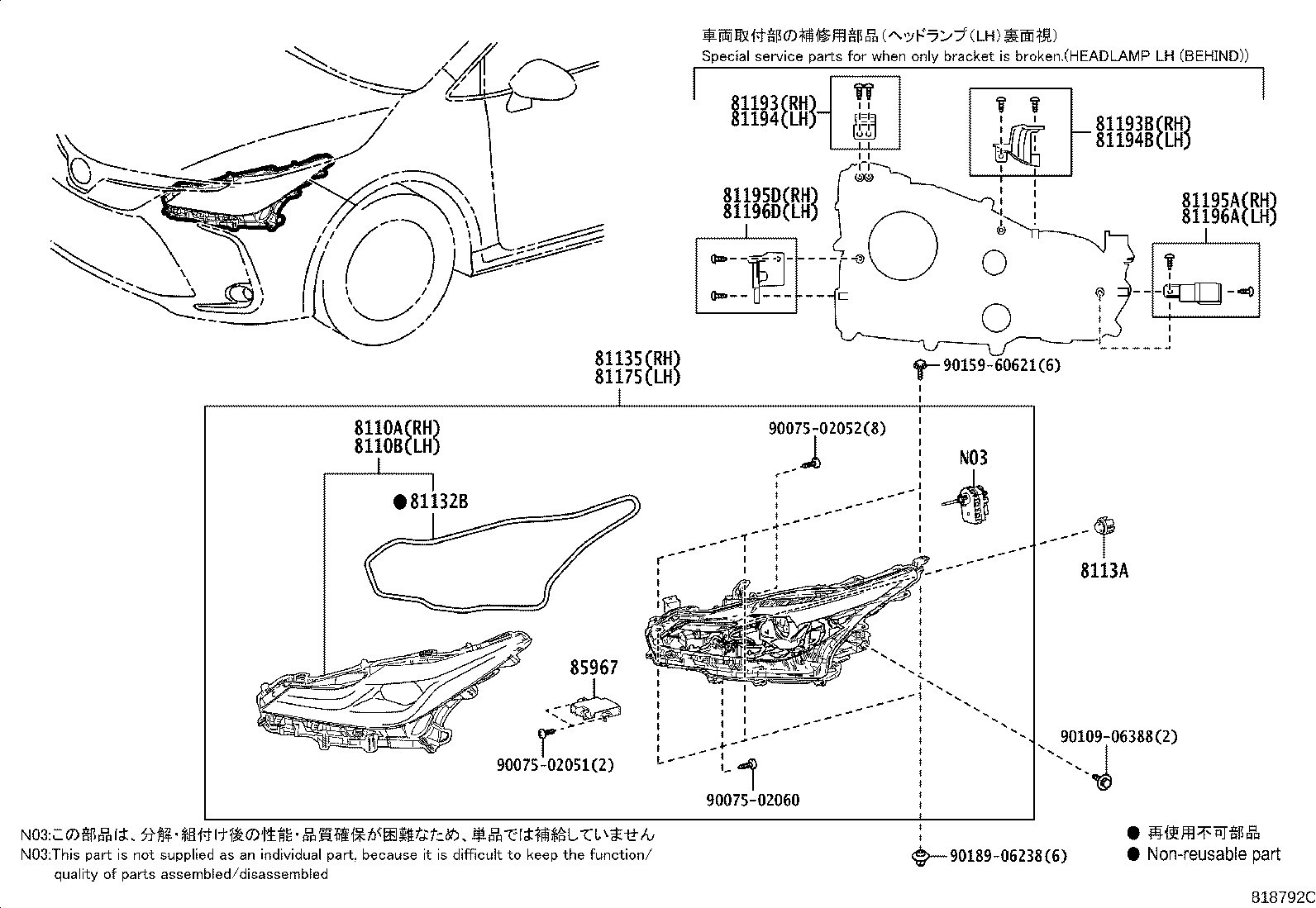

Headlamp
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81132B | Gasket, Headlamp Lens |
| 81135 | Unit Assy, Headlamp, RH |
| 8113A | Led, Headlamp Front Turn Signal |
| 81175 | Unit Assy, Headlamp, LH |
| 81179 | Cover, Headlamp Socket |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81195D | Retainer, Headlamp Protector, Lower RH NO.2 |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81196D | Retainer, Headlamp Protector, Lower LH NO.2 |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 85967 | Computer, Light Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
