Battery & Battery Cable

48 part groups · 11 illustrations

Illustrations

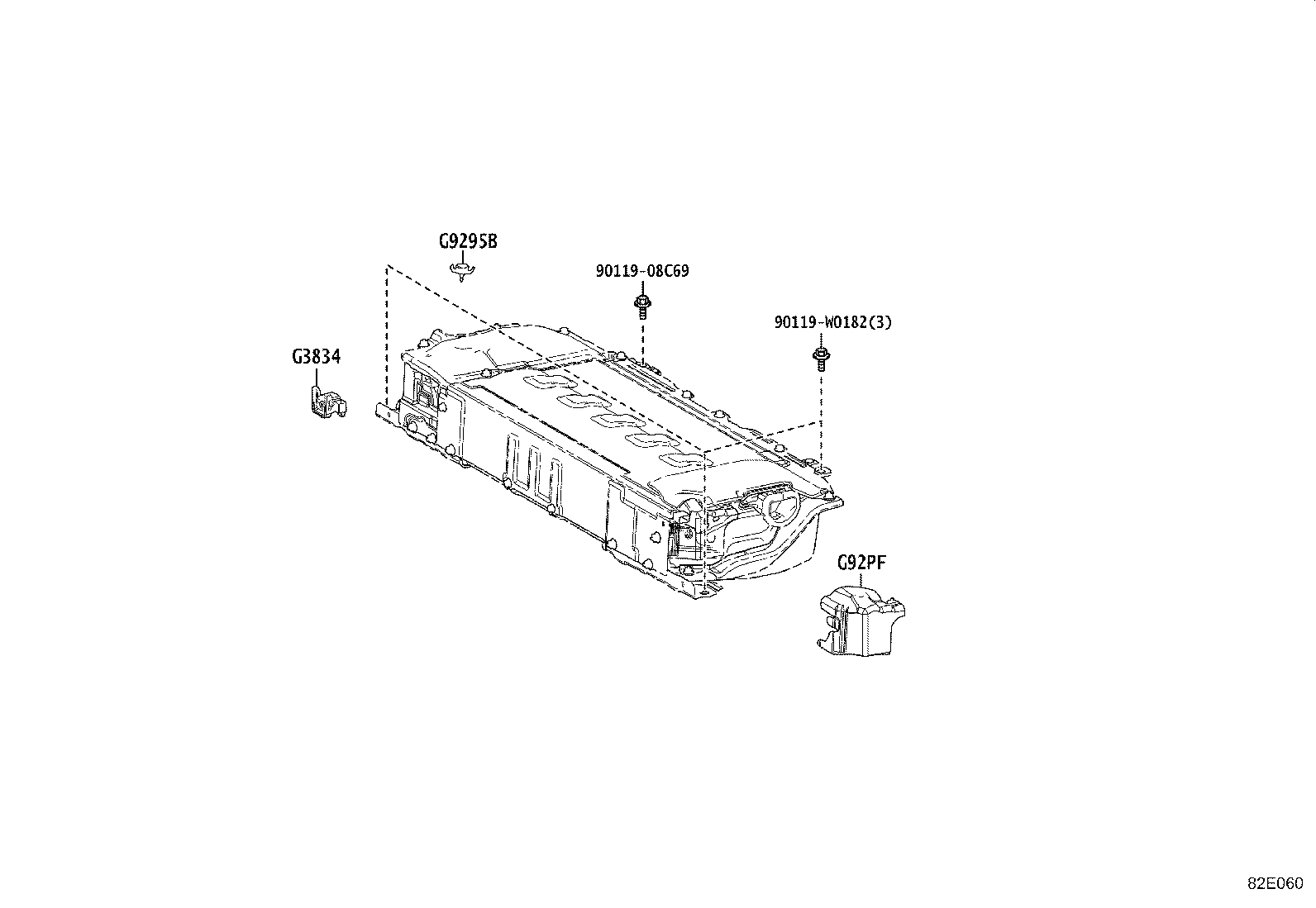

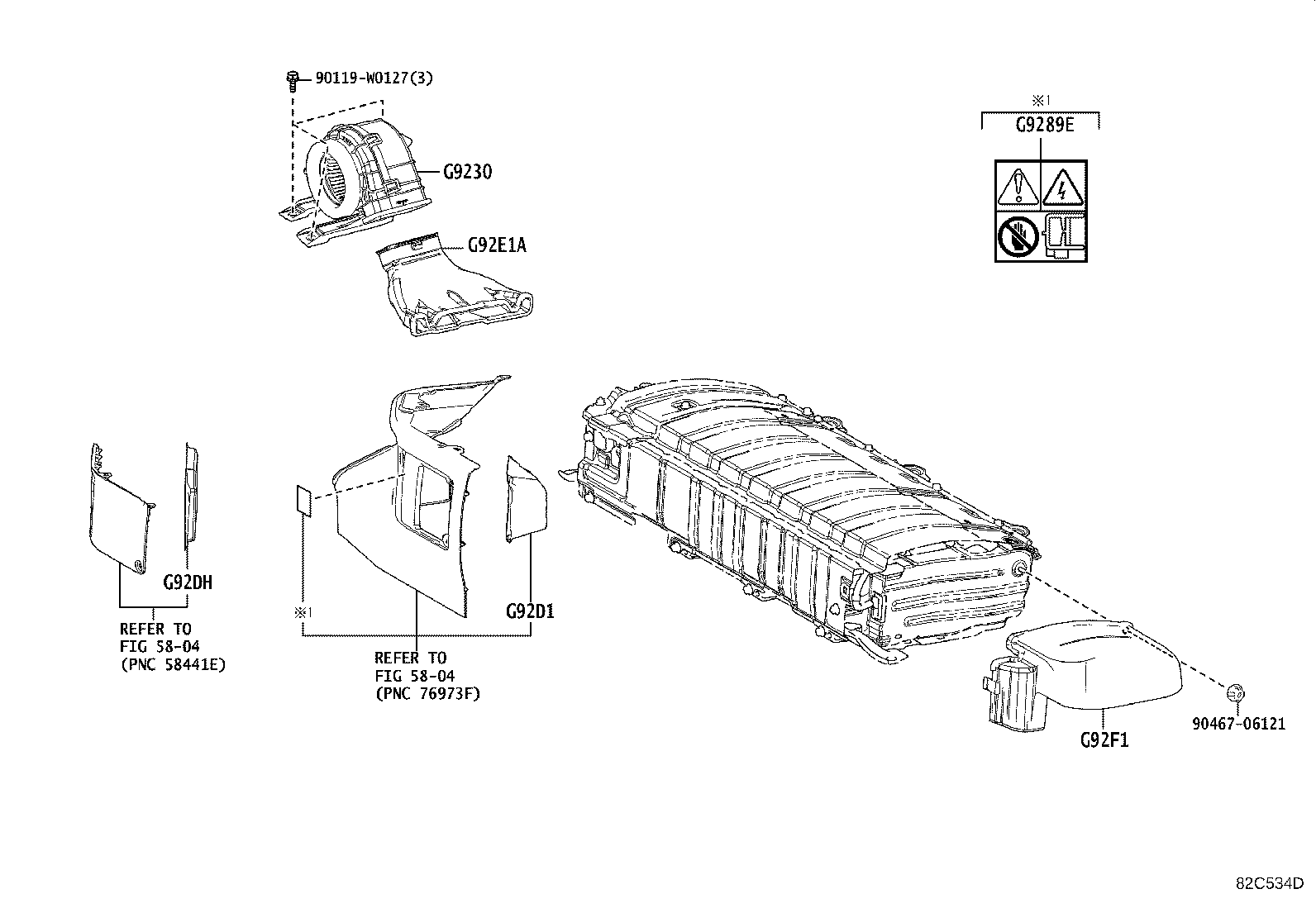

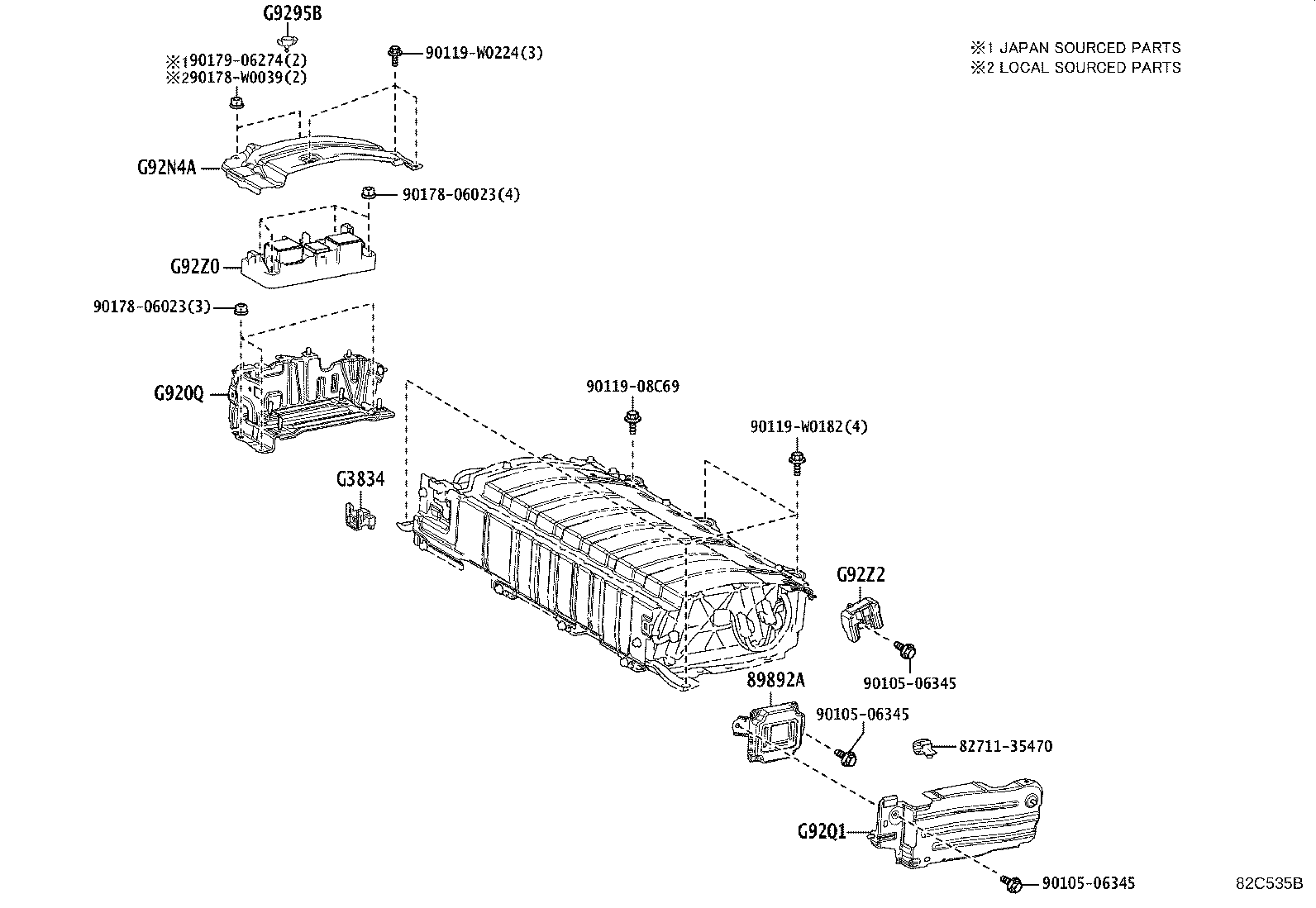

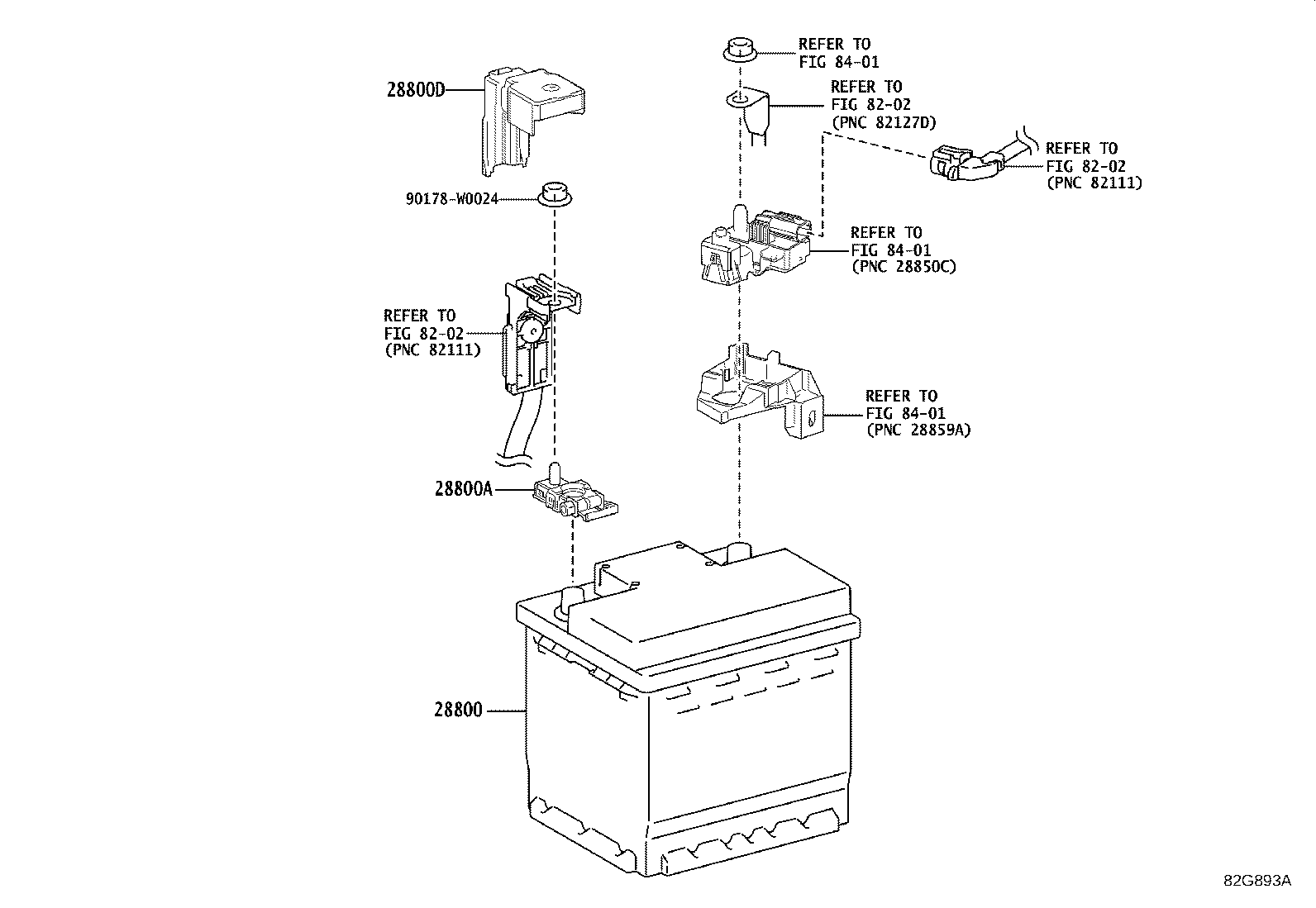

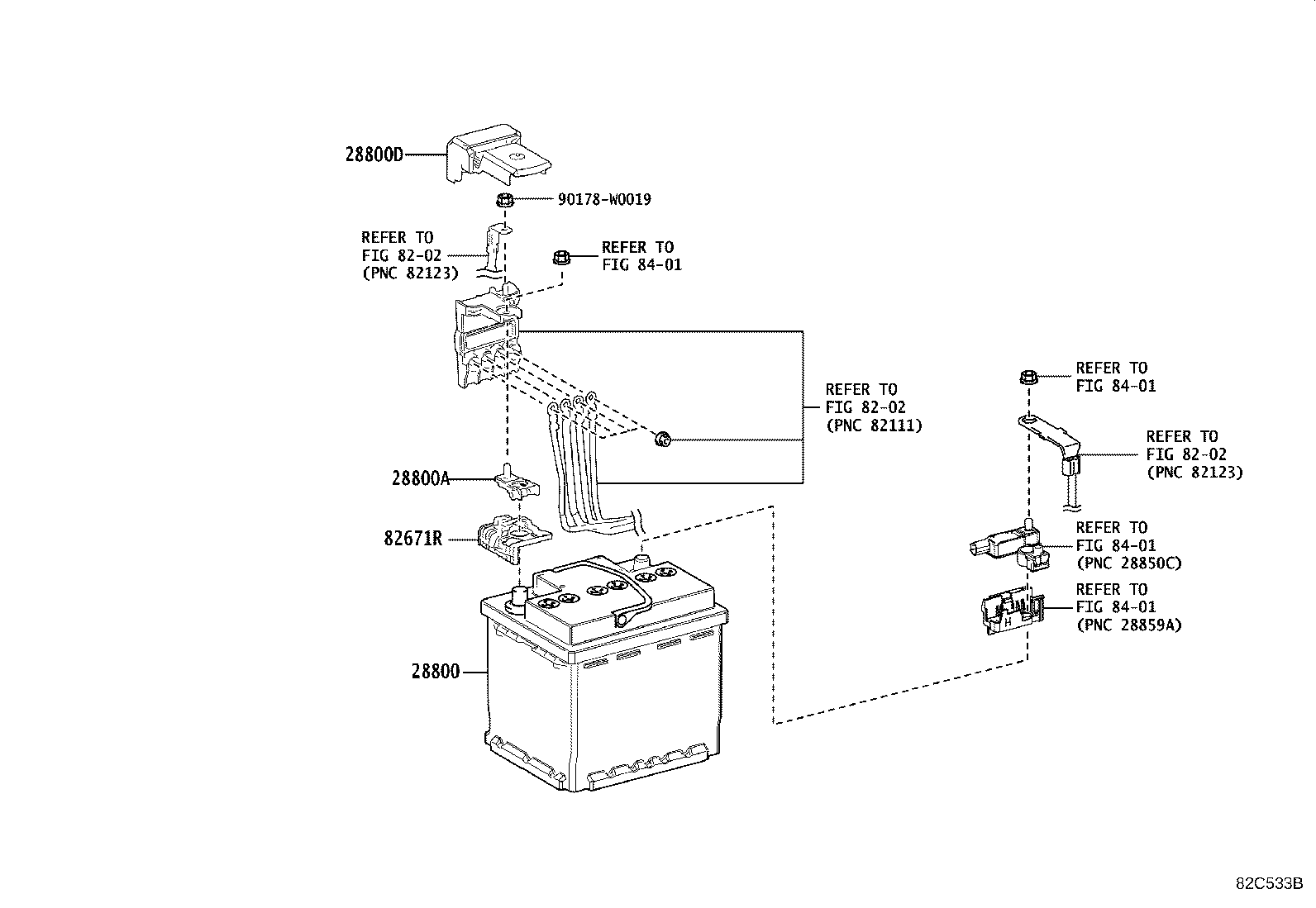

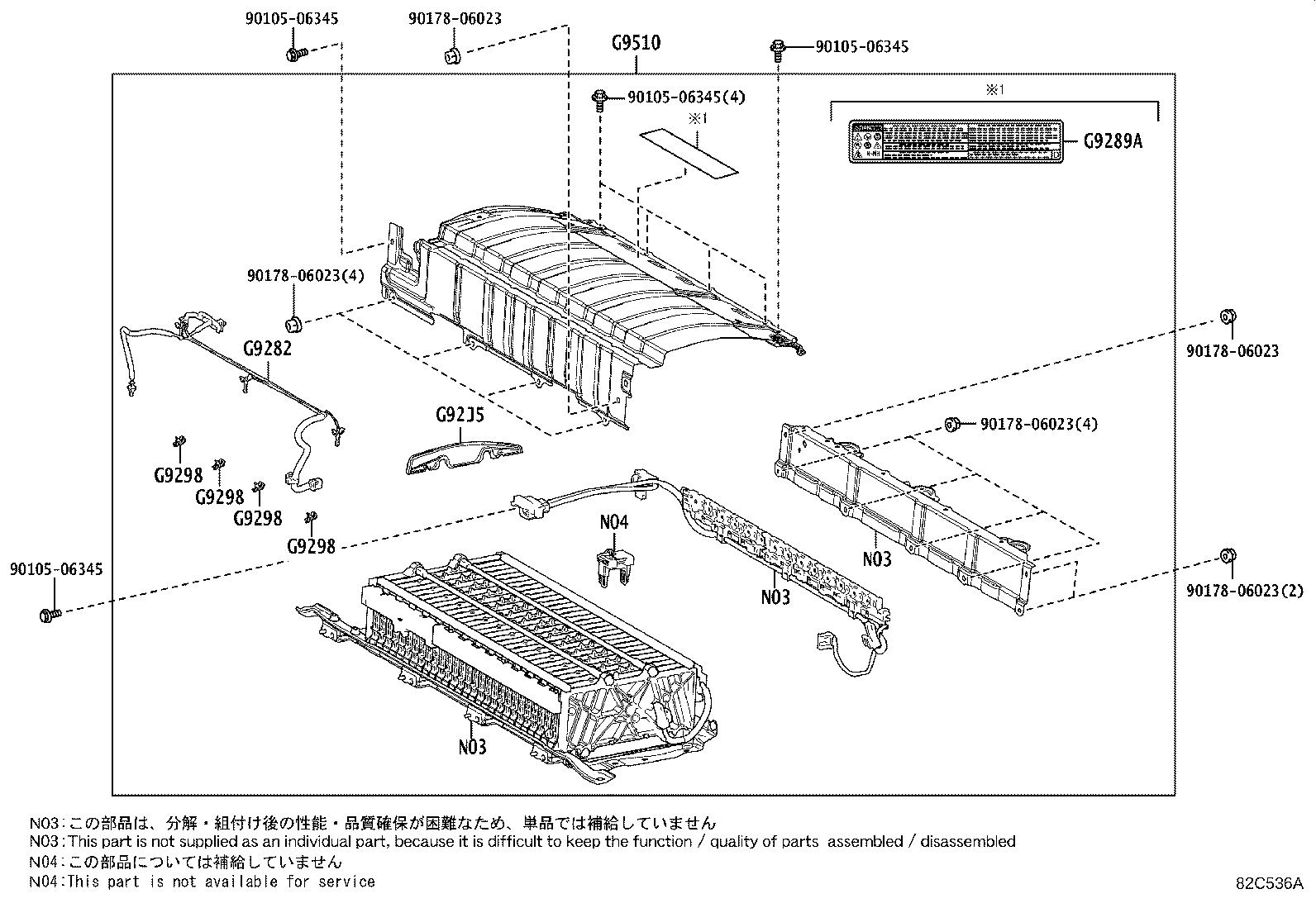

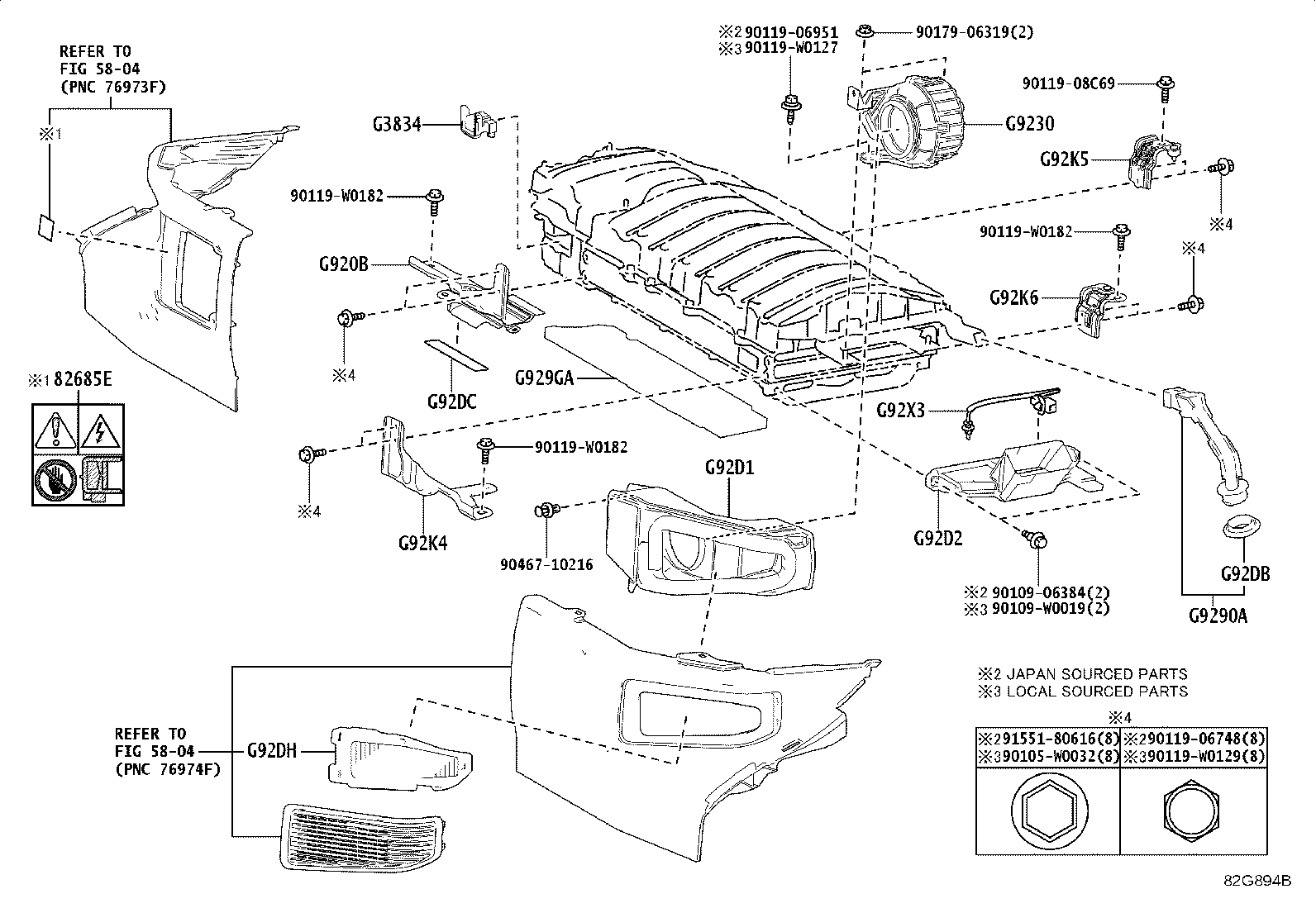

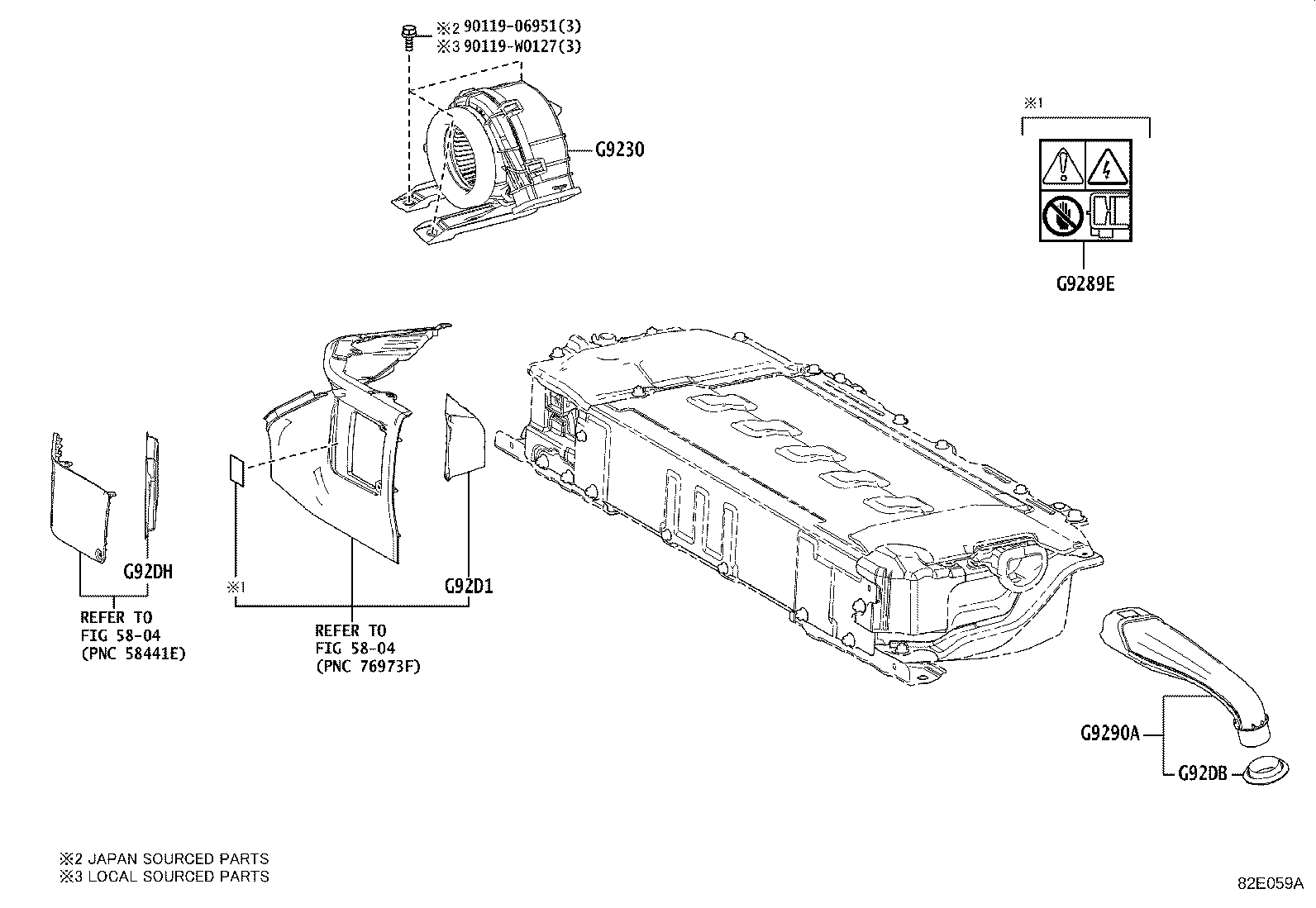

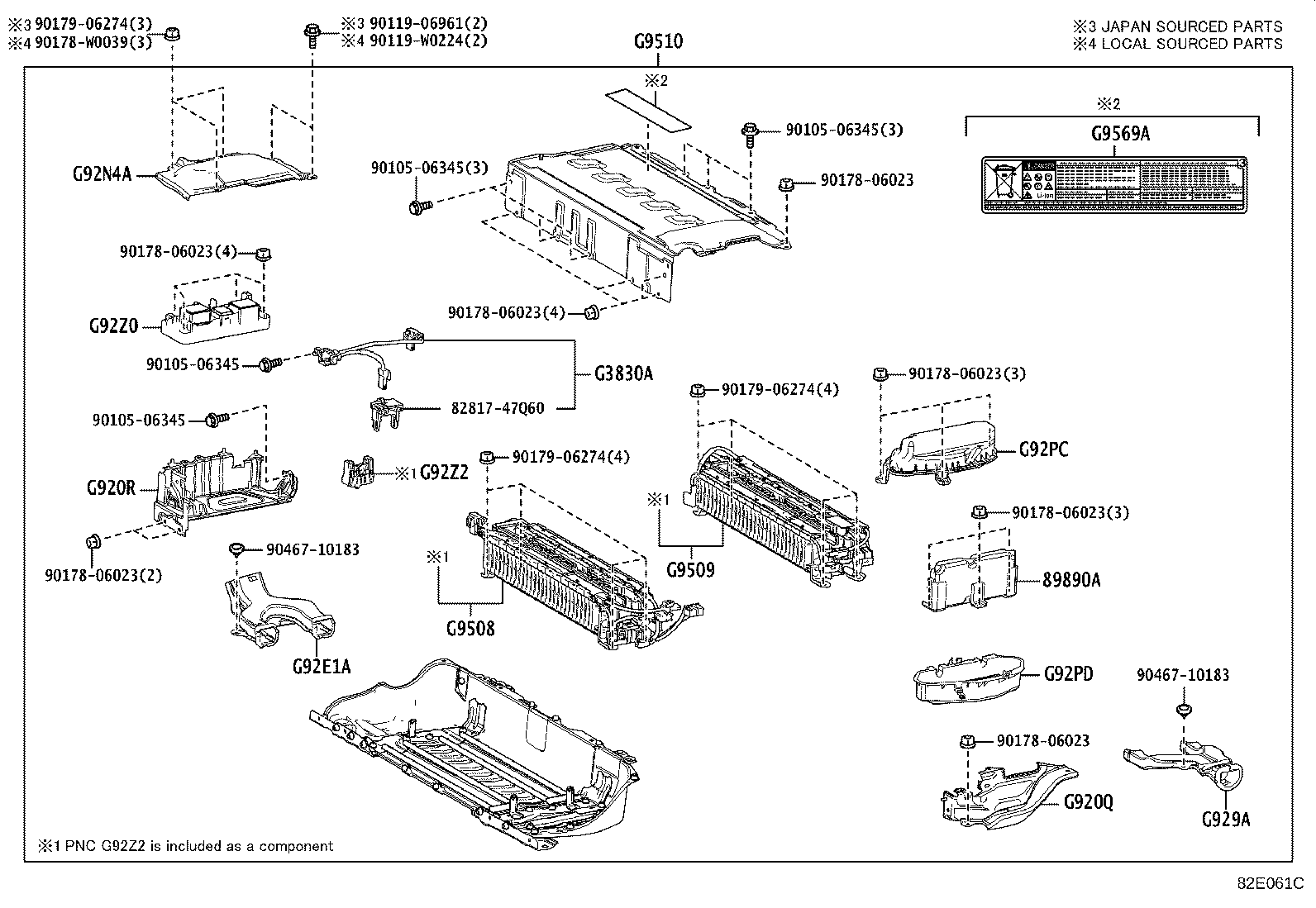

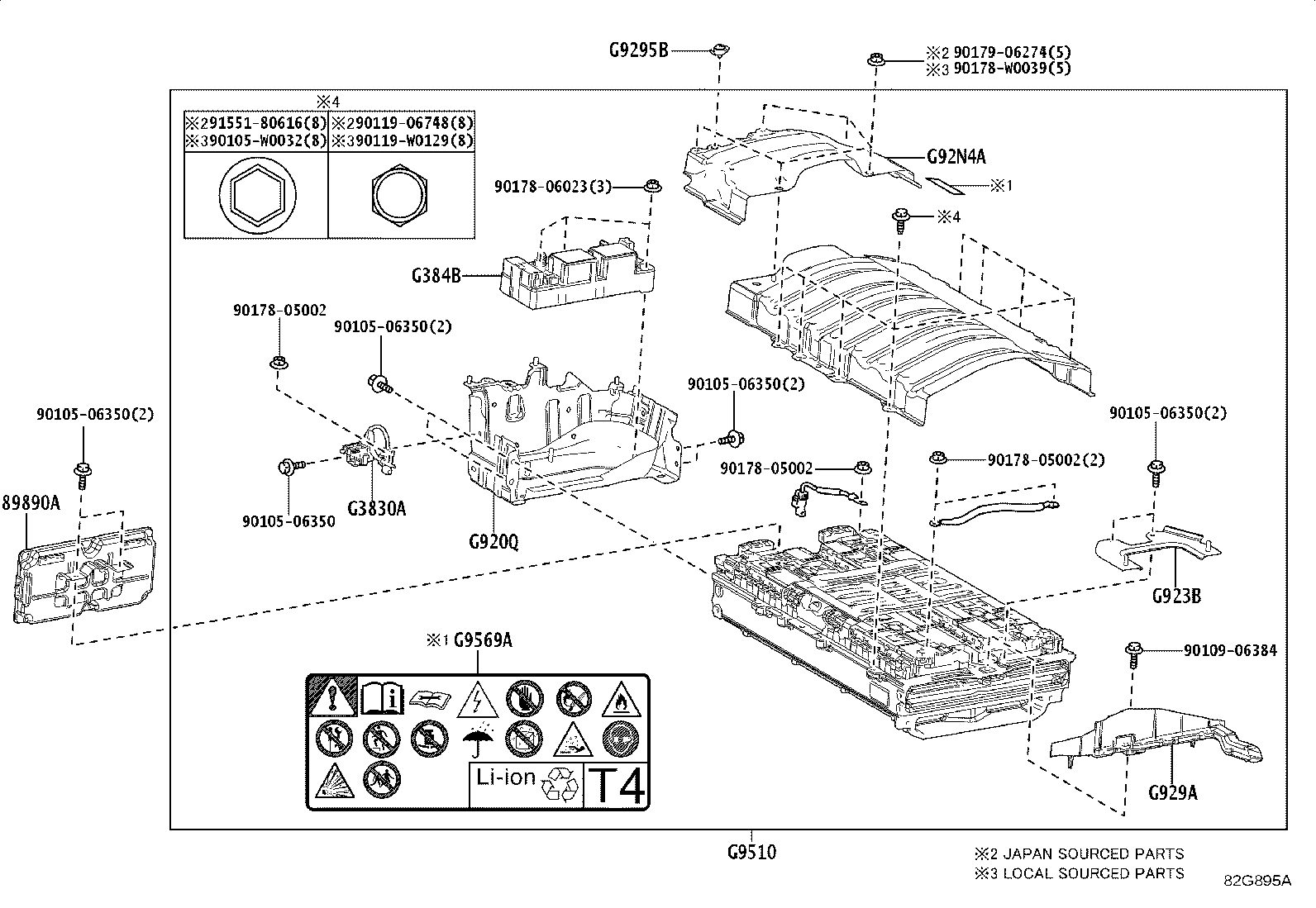

Figure 82C532B 82C532B 2019-01 → — Figure 82C533B 82C533B 2019-01 → — Figure 82C534D 82C534D 2019-01 → — Figure 82C535B 82C535B 2019-01 → — Figure 82C536A 82C536A 2019-01 → — Figure 82E059A 82E059A 2020-11 → — Figure 82E060 82E060 2020-11 → — Figure 82E061C 82E061C 2020-11 → — Figure 82G893A 82G893A 2023-01 → — Figure 82G894B 82G894B 2023-01 → — Figure 82G895A 82G895A 2023-01 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800J Terminal, Battery Negative
28897 Plate, Battery Caution
82671R Stopper, Battery Terminal
82685E Plate, Service Plug Caution
89890A Computer Assy, Battery
89892A Sensor, Battery Voltage
G3830A Plug Assy, Electric Vehicle Battery
G3834 Grip, Service Plug
G384B Box, Traction Battery Device, NO.1
G920B Bracket Sub-assy, HV Battery Carrier, NO.1
G920Q Shield Sub-assy, Hybrid Battery, NO.1
G920R Shield Sub-assy, Hybrid Battery, NO.2
G9230 Blower Assy, Battery Cooling
G923B Bracket, Battery Cooling Blower
G9282 Thermistor, Hybrid Battery
G9289A Label, Battery Caution
G9289E Label, Battery Caution, NO.2
G9290A Hose Assy, Hybrid Battery
G9295B Striker, Battery Cover Lock
G9298 Clamp, HV Battery
G929A Hose, HV Battery, NO.1
G929GA Silencer, HV Battery, NO.1
G92D1 Duct, Hybrid Battery Intake, NO.1
G92D2 Duct, Hybrid Battery Intake, NO.2
G92DB Seal, Hybrid Battery, NO.1
G92DC Seal, HV Battery, NO.2
G92DH Filter, HV Battery Intake, NO.1
G92E1A Duct, HV Battery Intake, NO.1 LH
G92F1 Duct, Hybrid Battery Exhaust, NO.1
G92J5 Packing, Hybrid Battery, NO.1
G92K4 Bracket, Hybrid Battery Carrier, NO.2
G92K5 Bracket, HV Battery Carrier, NO.3
G92K6 Bracket, HV Battery Carrier, NO.4
G92N4A Panel, HV Battery RH Cover, NO.1
G92PC Protector, HV Battery, NO.1
G92PD Protector, HV Battery, NO.2
G92PF Protector, HV Battery, NO.4
G92Q1 Panel, HV Battery Shield, NO.1
G92X3 Wire, HV Battery Pack, NO.3
G92Z0 Block Assy, HV Battery Junction
G92Z2 Block, Hybrid Battery Terminal
G9508 Stack Sub-assy, HV Supply, NO.1
G9509 Stack Sub-assy, HV Supply, NO.2
G9510 Battery Assy, HV Supply
G9569A Label, Lithium Ion Battery Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
