Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

111 part groups · 39 illustrations

Illustrations

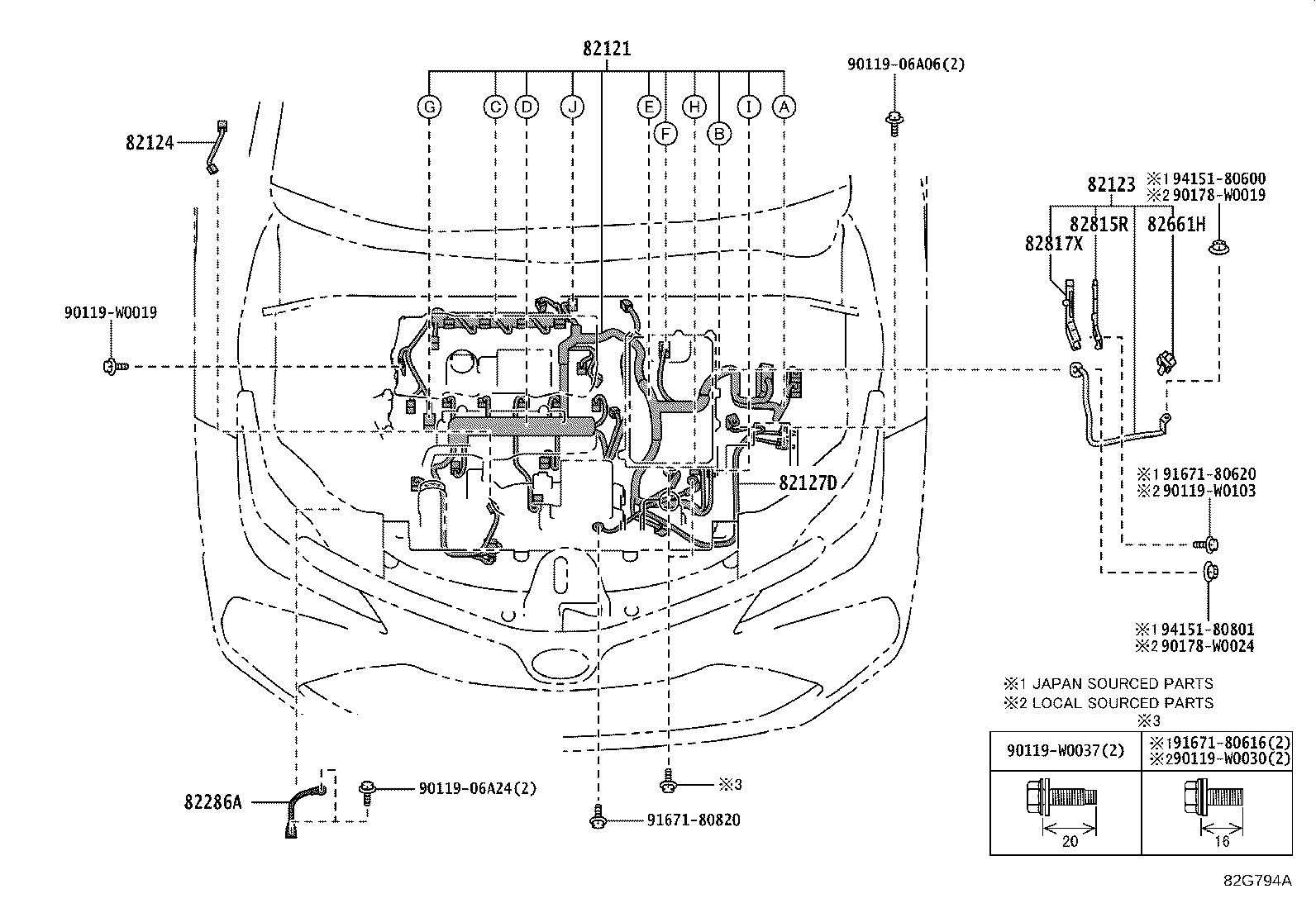

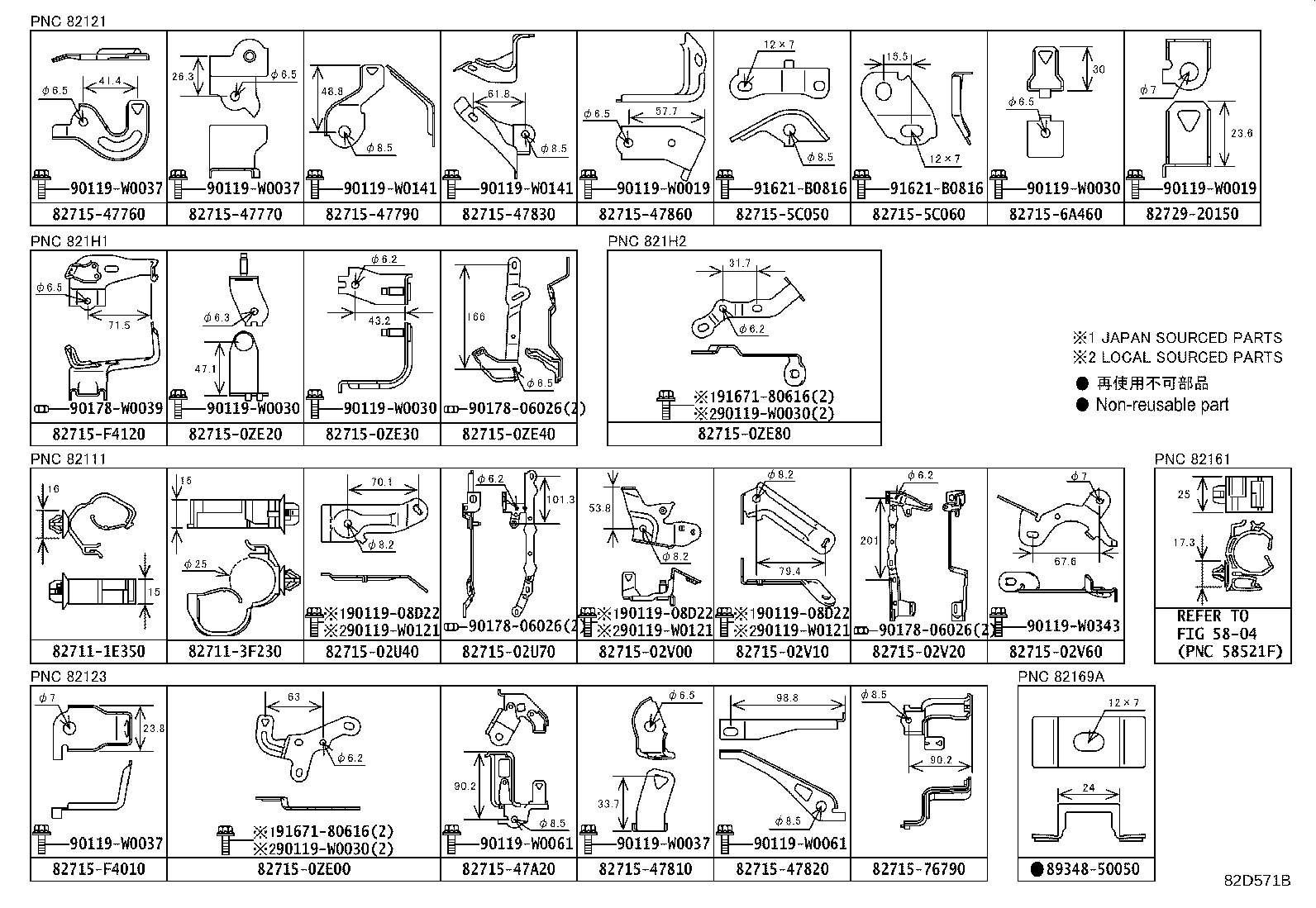

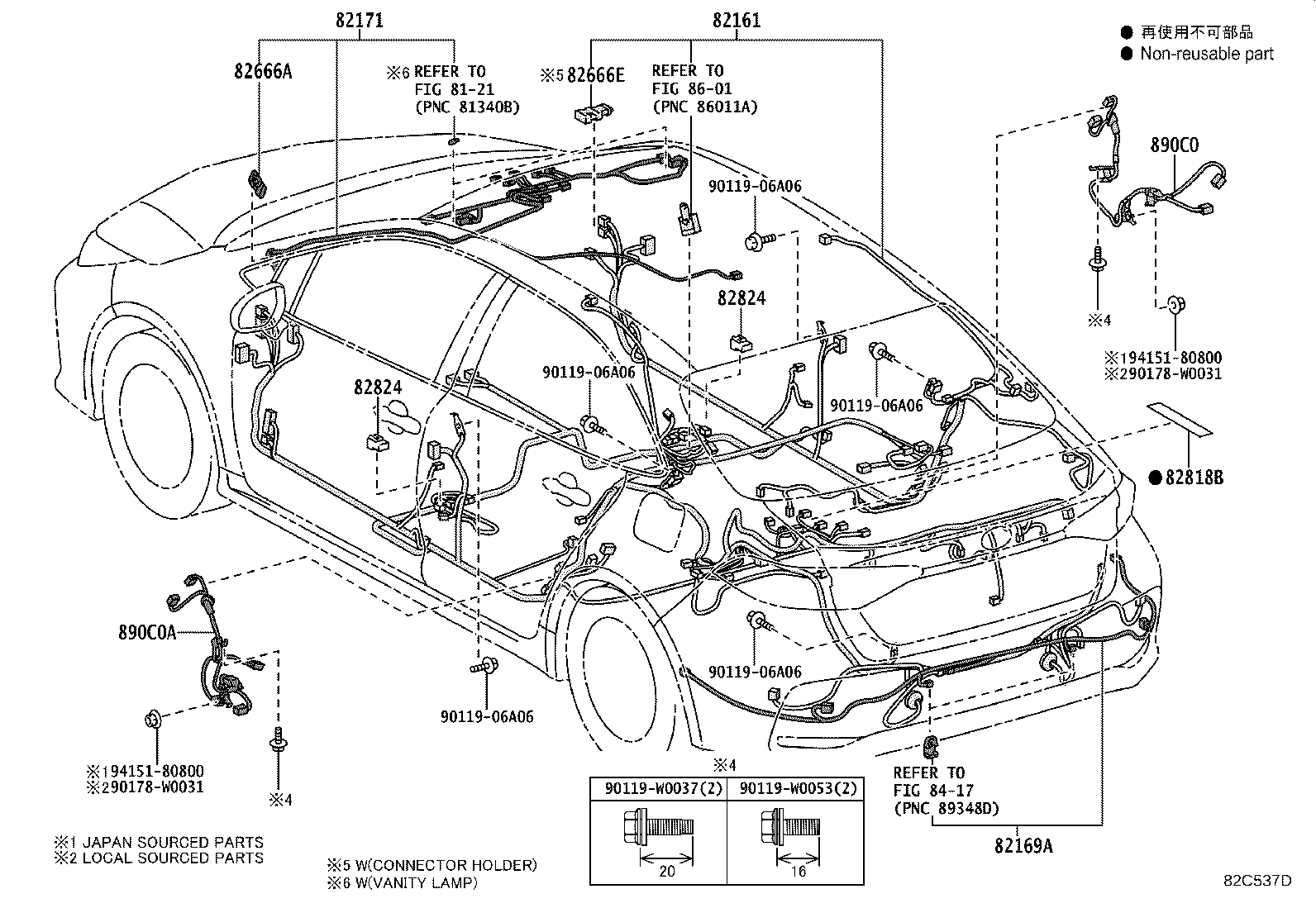

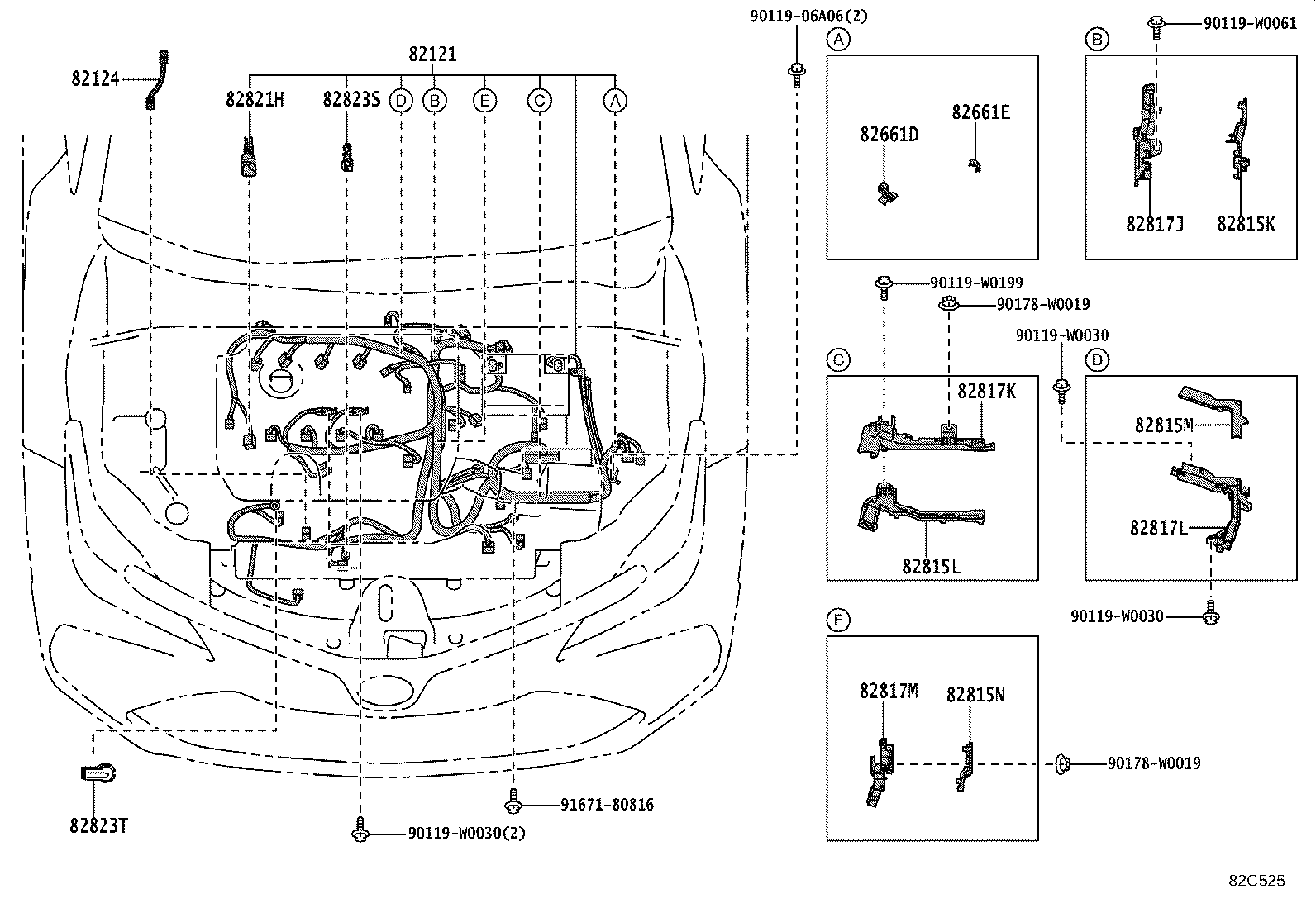

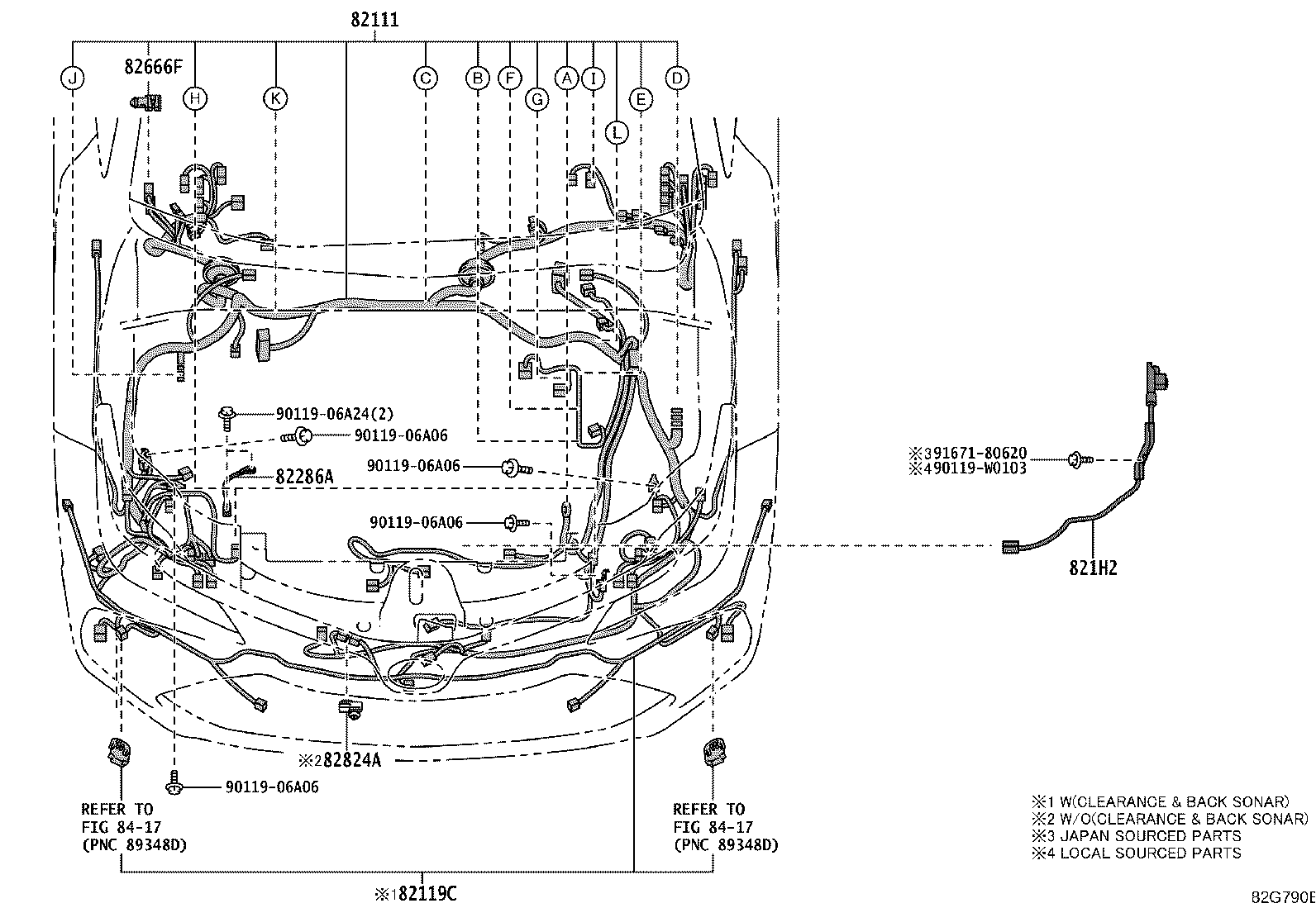

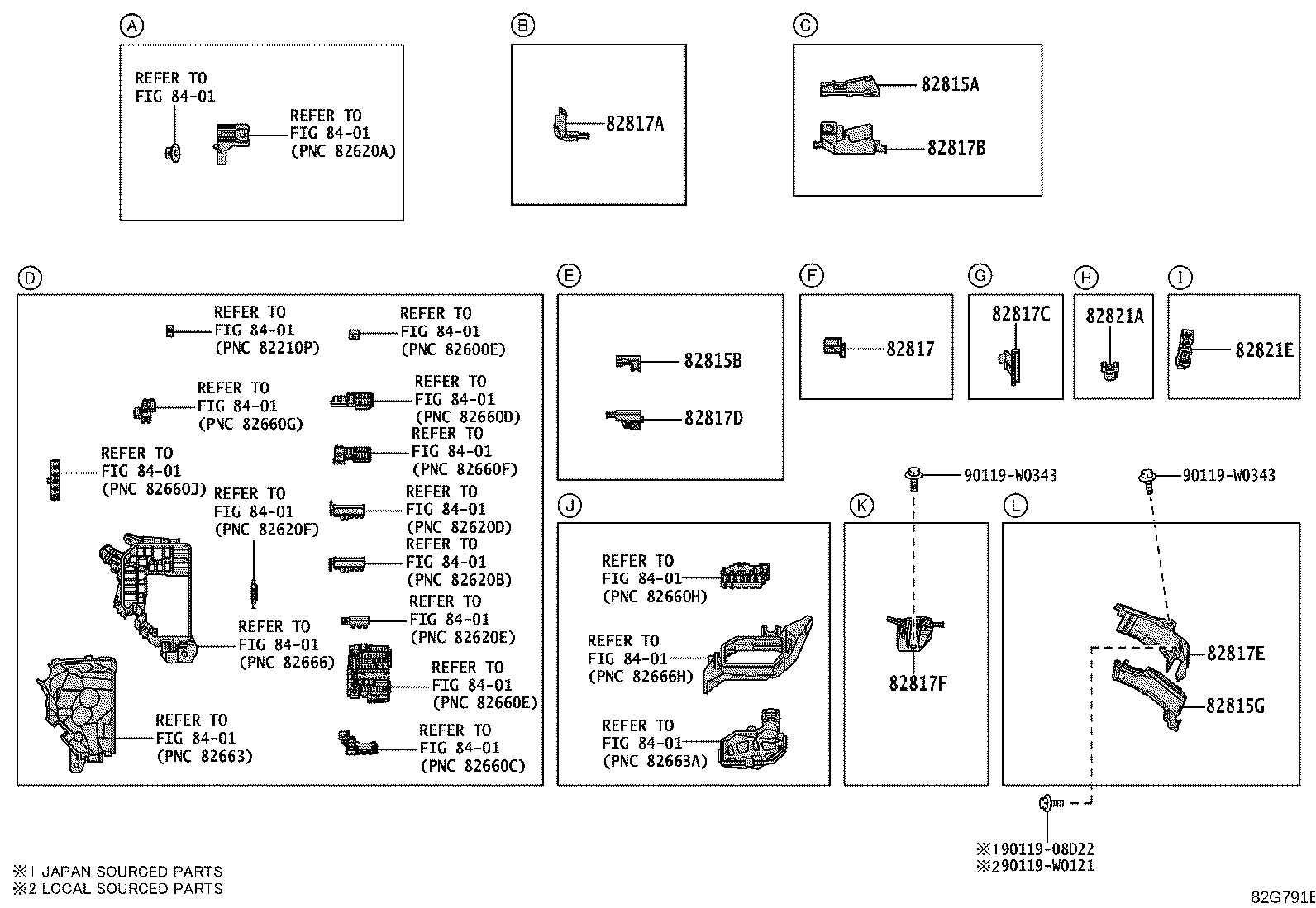

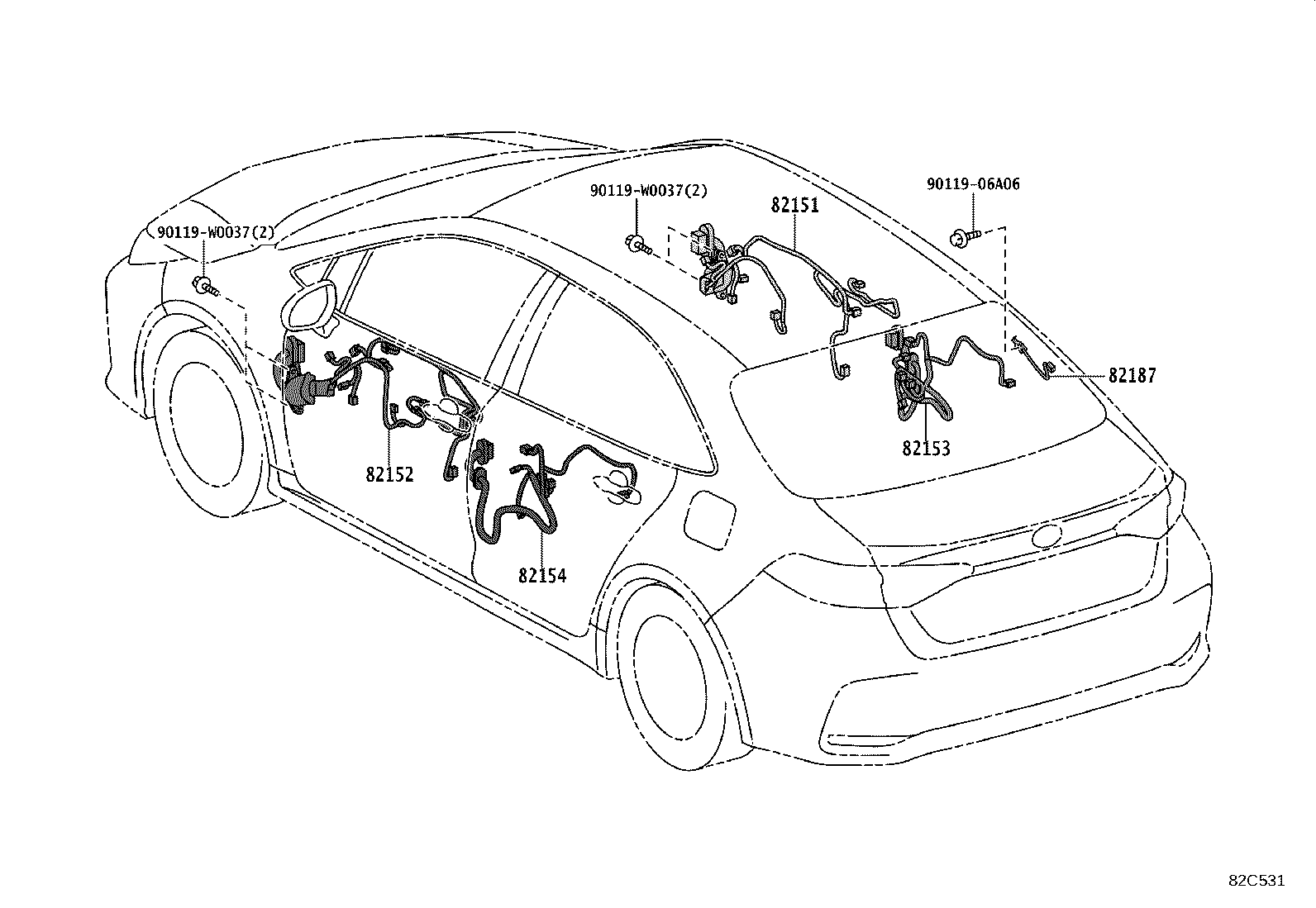

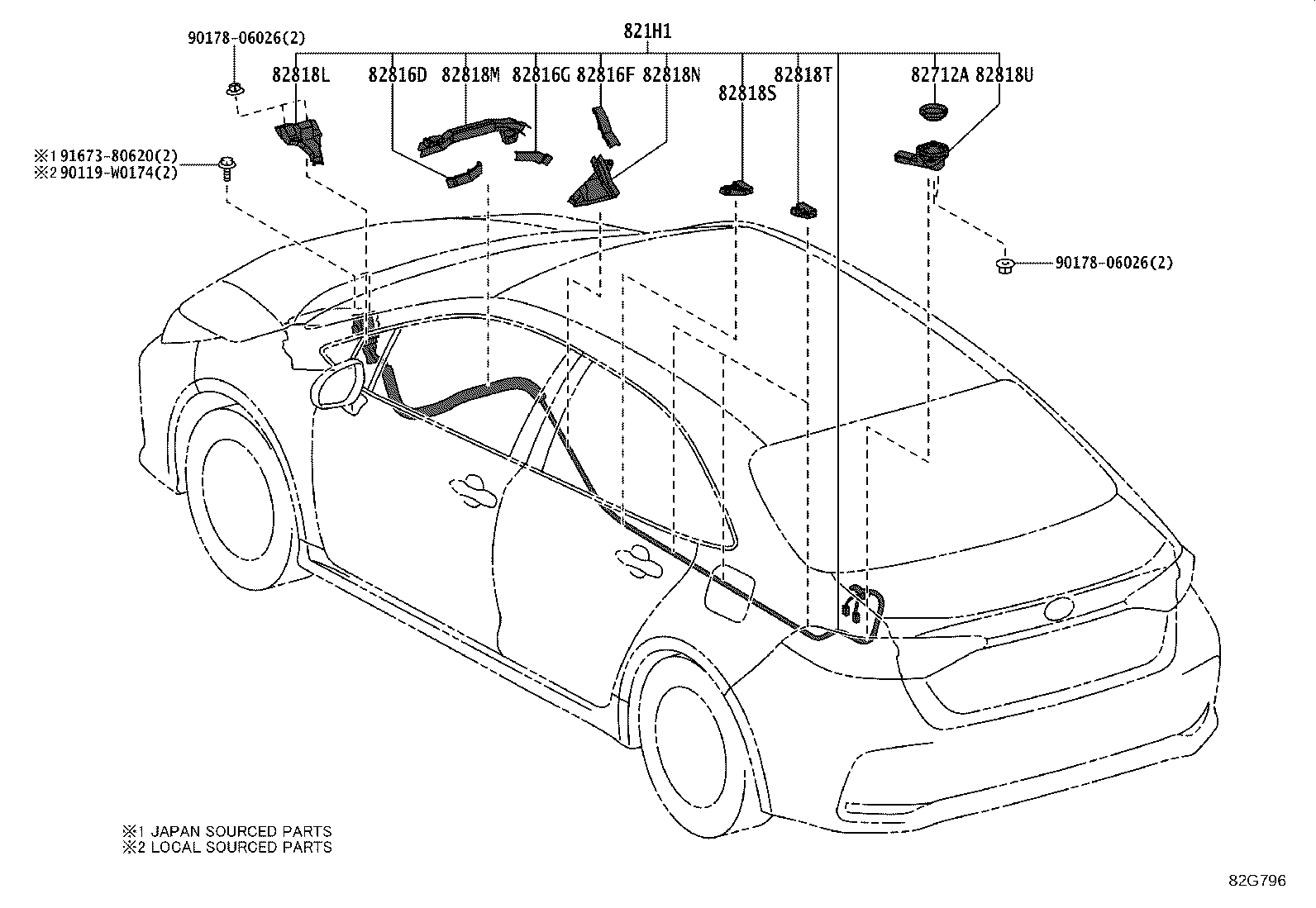

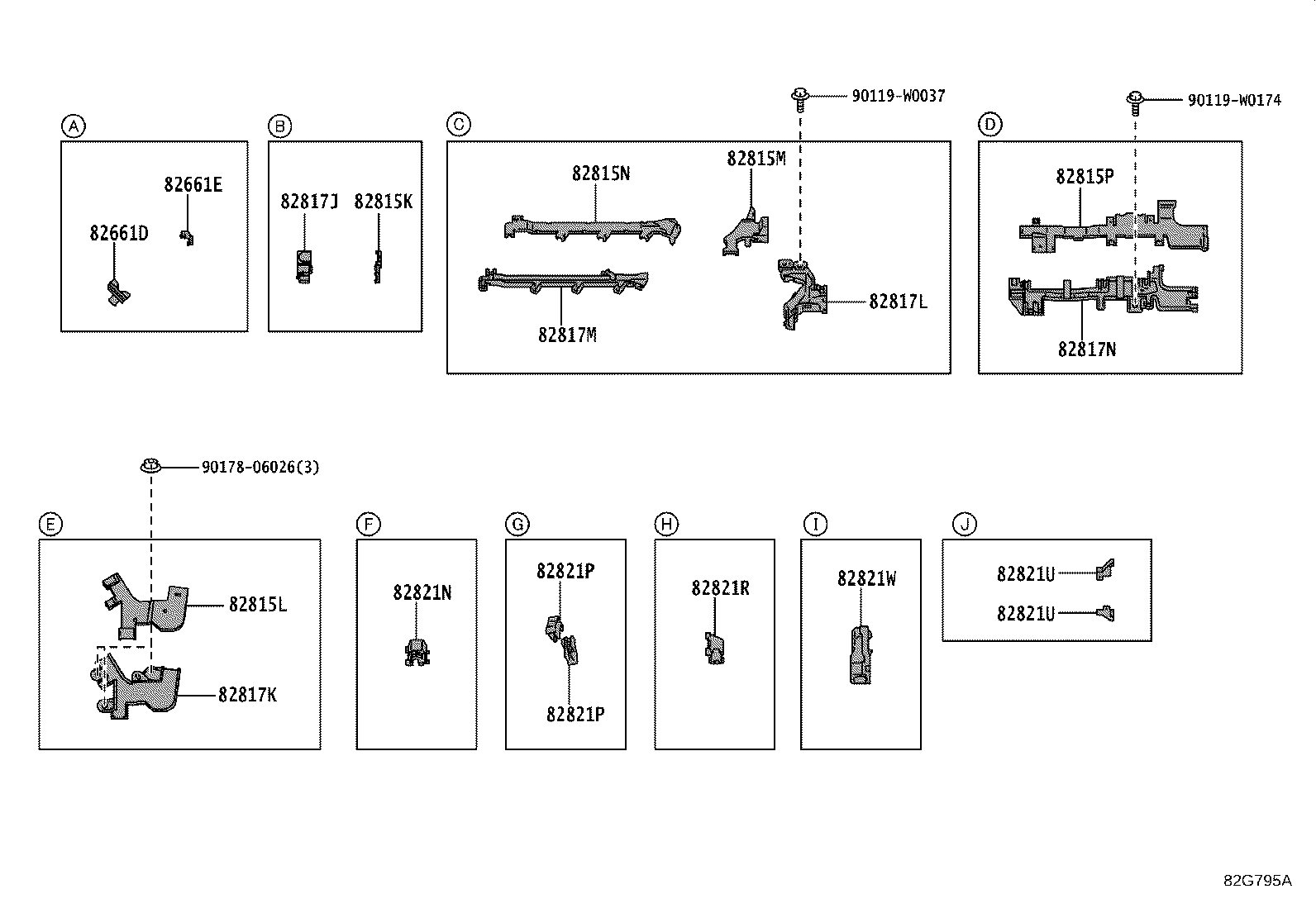

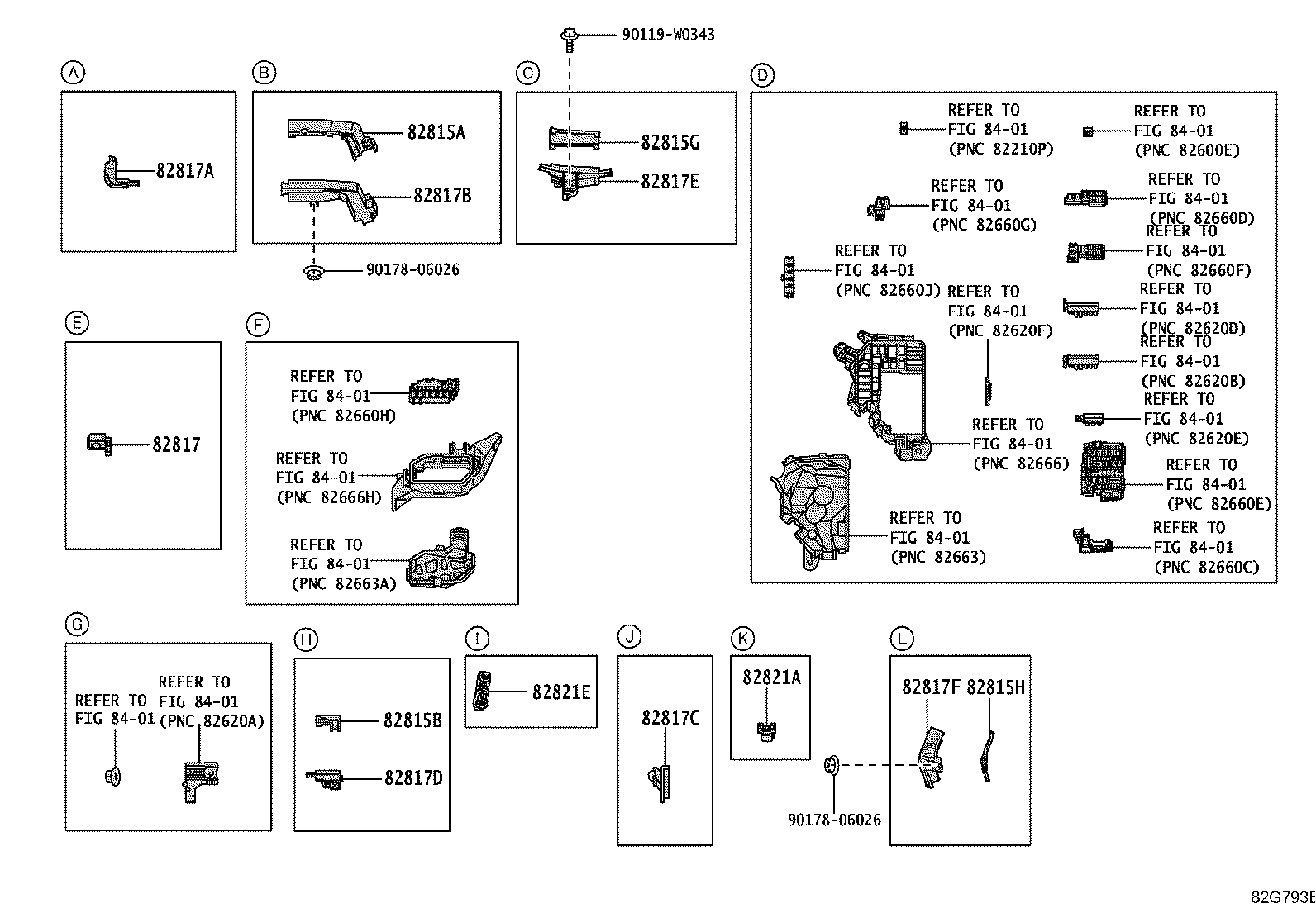

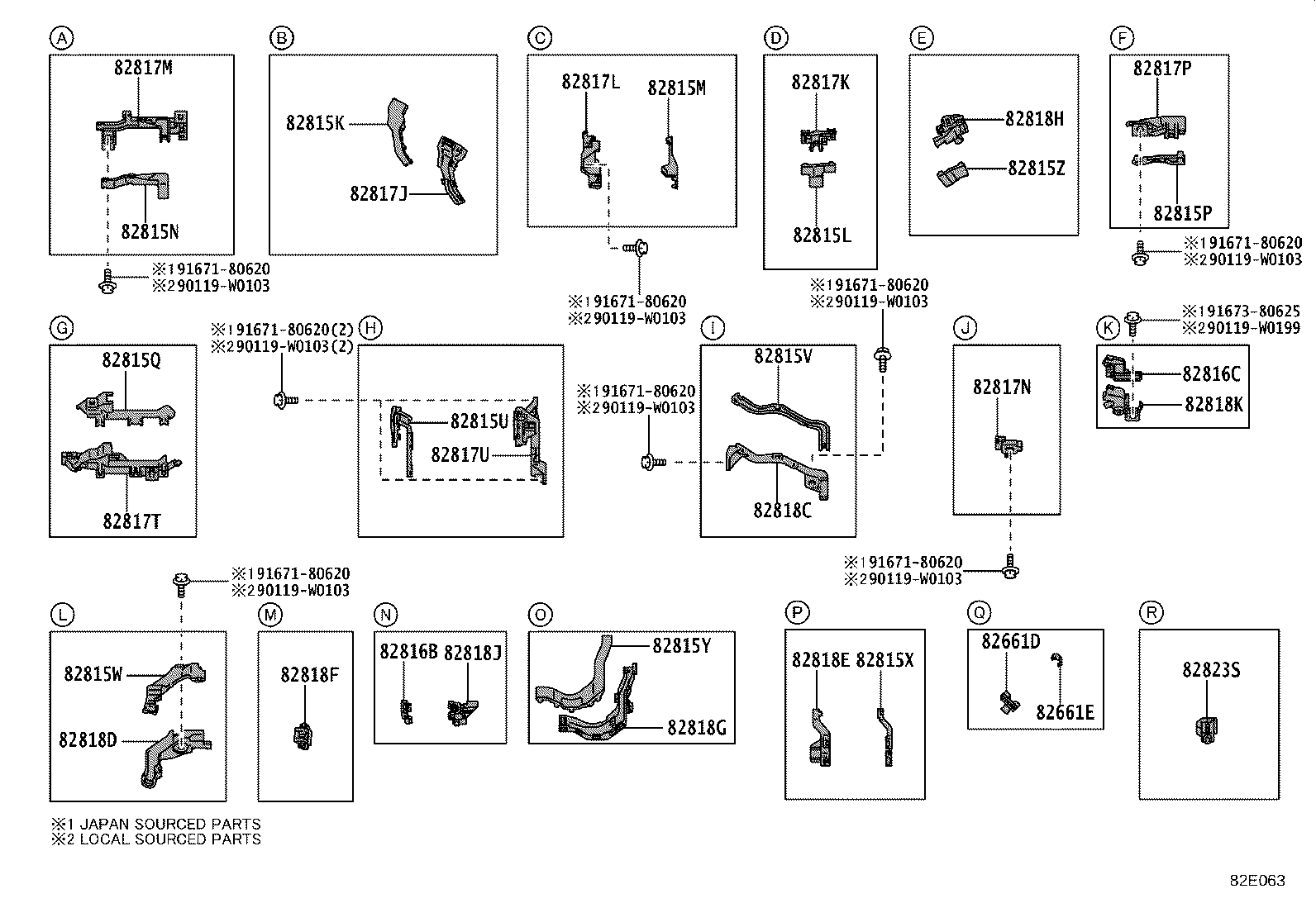

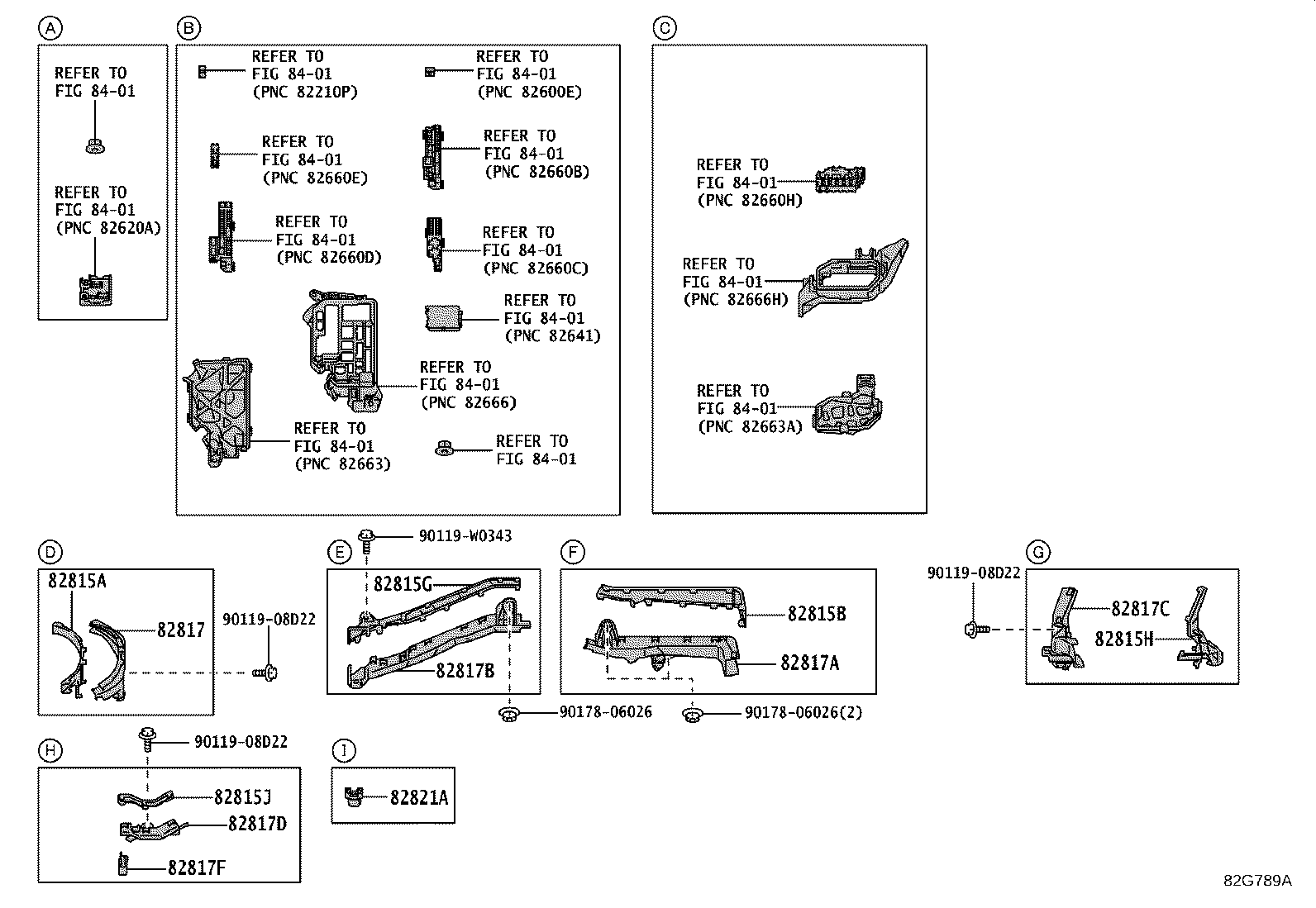

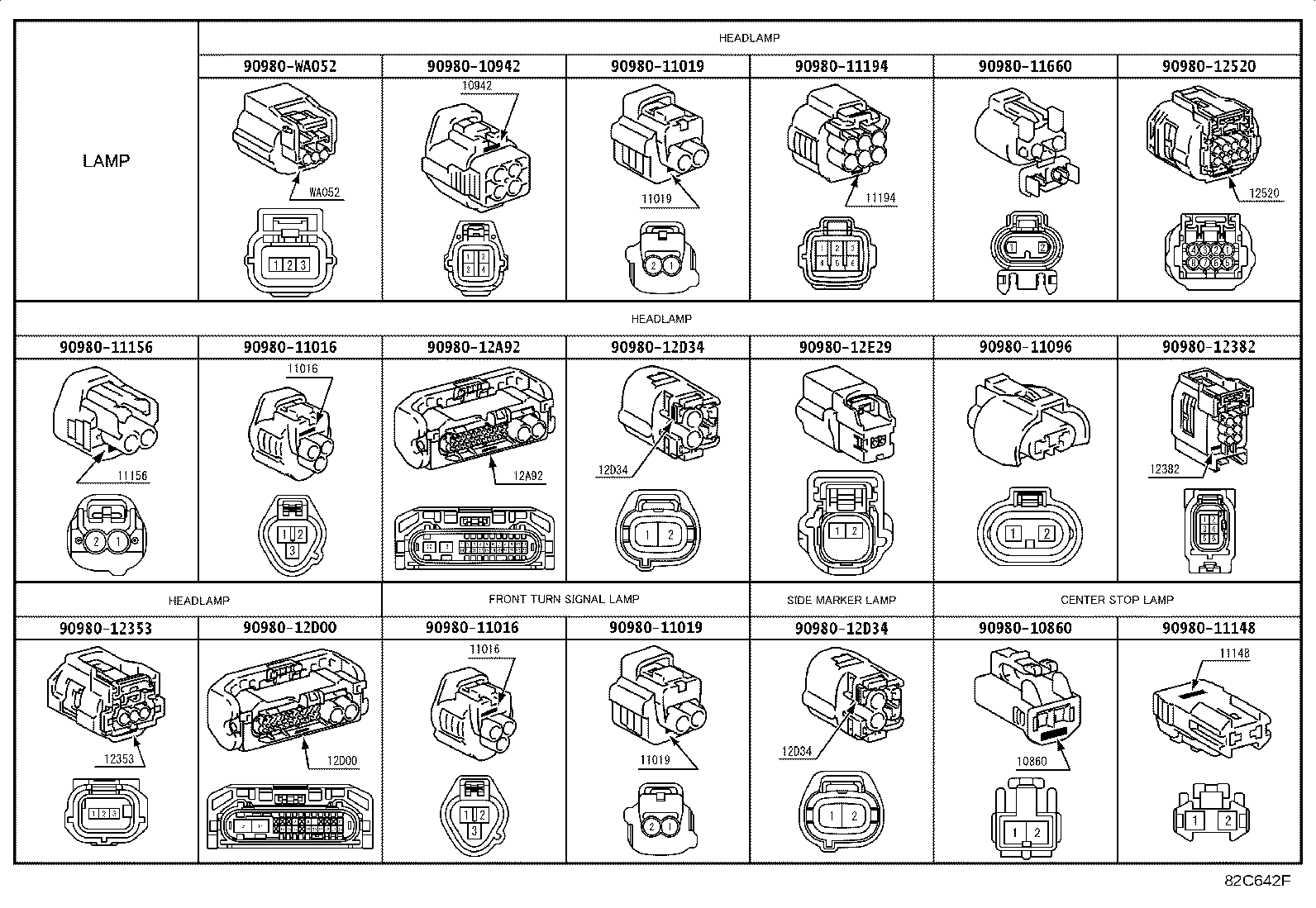

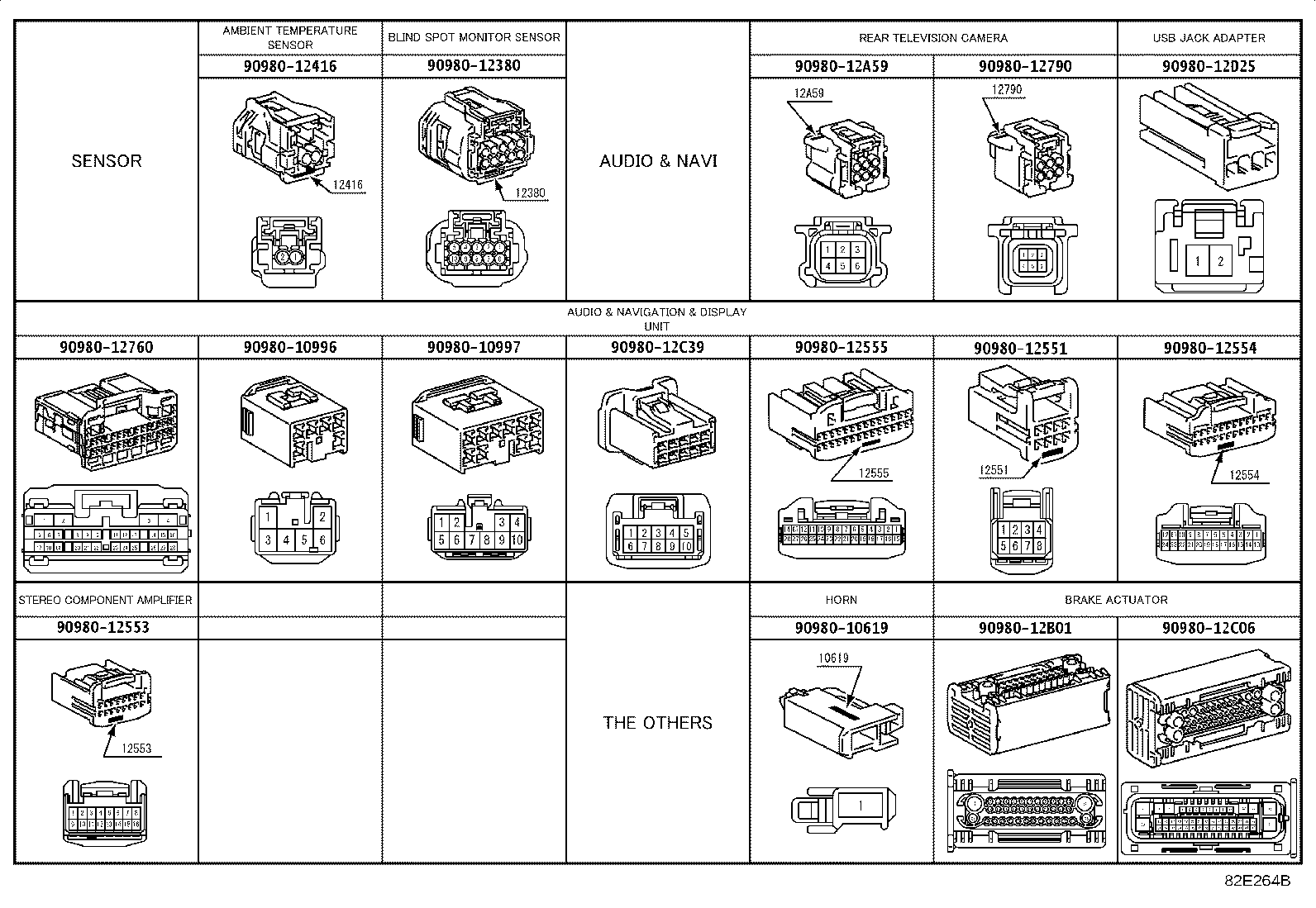

Figure 82C515C 82C515C 2019-01 → 2023-01 Figure 82C515C 82C515C 2019-01 → 2023-01 Figure 82C515C 82C515C 2019-01 → — Figure 82C515C 82C515C 2019-01 → — Figure 82C516C 82C516C 2019-01 → — Figure 82C516C 82C516C 2020-01 → 2023-01 Figure 82C521F 82C521F 2019-01 → — Figure 82C524E 82C524E 2019-01 → — Figure 82G786A 82G786A 2023-01 → — Figure 82G786A 82G786A 2023-01 → — Figure 82G787A 82G787A 2023-01 → — Figure 82G787A 82G787A 2023-01 → — Figure 82G788A 82G788A 2023-01 → — Figure 82G789A 82G789A 2023-01 → — Figure 82G790B 82G790B 2023-01 → — Figure 82G791B 82G791B 2023-01 → — Figure 82G792B 82G792B 2023-01 → — Figure 82G793B 82G793B 2023-01 → — Figure 82C525 82C525 2019-01 → — Figure 82C526 82C526 2019-01 → — Figure 82C527 82C527 2019-01 → — Figure 82C528 82C528 2019-01 → — Figure 82E062 82E062 2020-11 → — Figure 82E063 82E063 2020-11 → — Figure 82G794A 82G794A 2023-01 → — Figure 82G795A 82G795A 2023-01 → — Figure 82C529B 82C529B 2019-01 → — Figure 82C530B 82C530B 2019-01 → — Figure 82C531 82C531 2019-01 → — Figure 82C537D 82C537D 2019-01 → — Figure 82C538A 82C538A 2019-01 → — Figure 82G796 82G796 2023-01 → — Figure 82C539A 82C539A 2019-01 → — Figure 82C540A 82C540A 2019-01 → — Figure 82C541F 82C541F 2019-01 → — Figure 82D571B 82D571B 2019-01 → — Figure 82C642F 82C642F 2019-01 → — Figure 82C643F 82C643F 2019-01 → — Figure 82E264B 82E264B 2019-01 → —

Part groups

PNCDescription

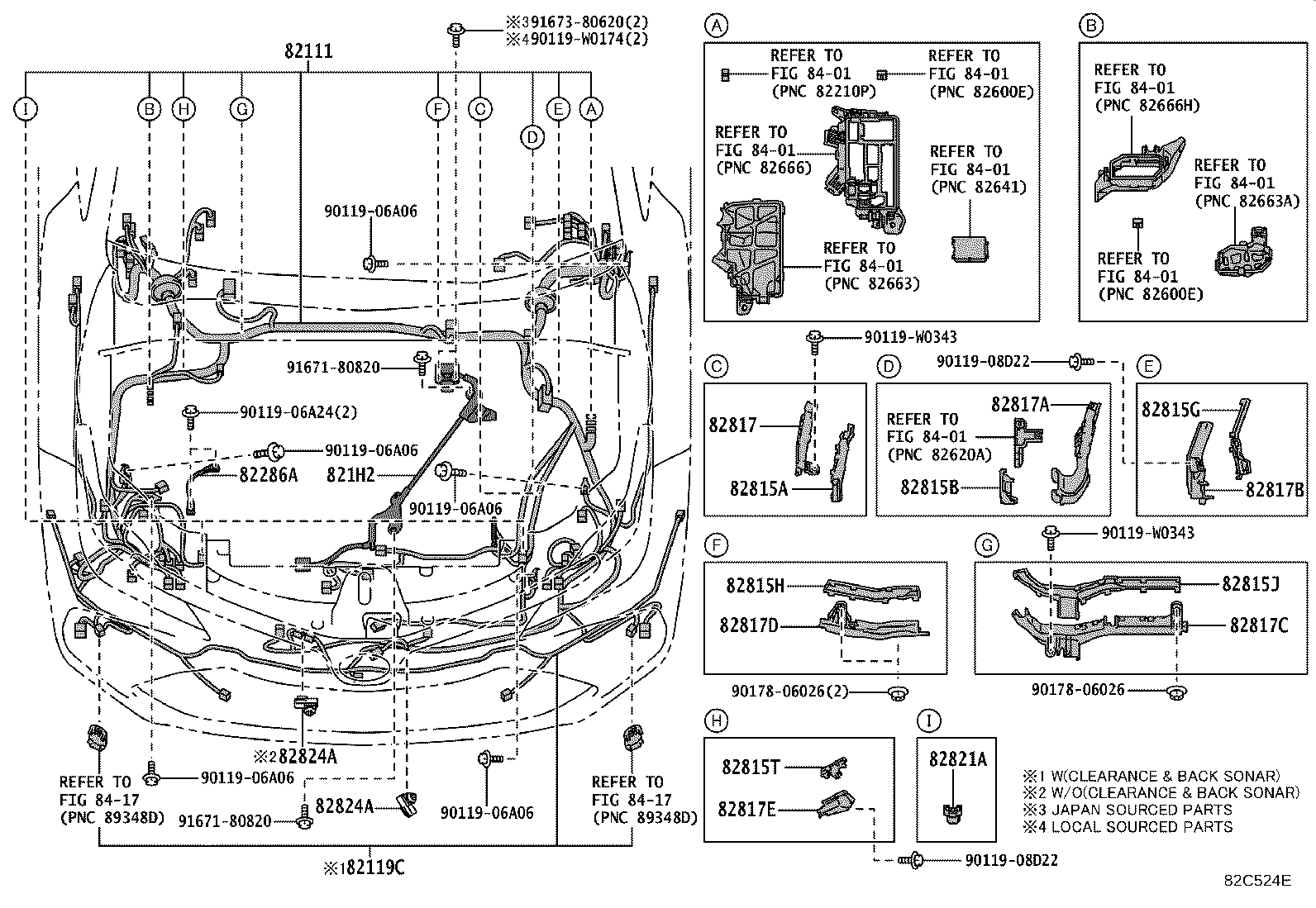

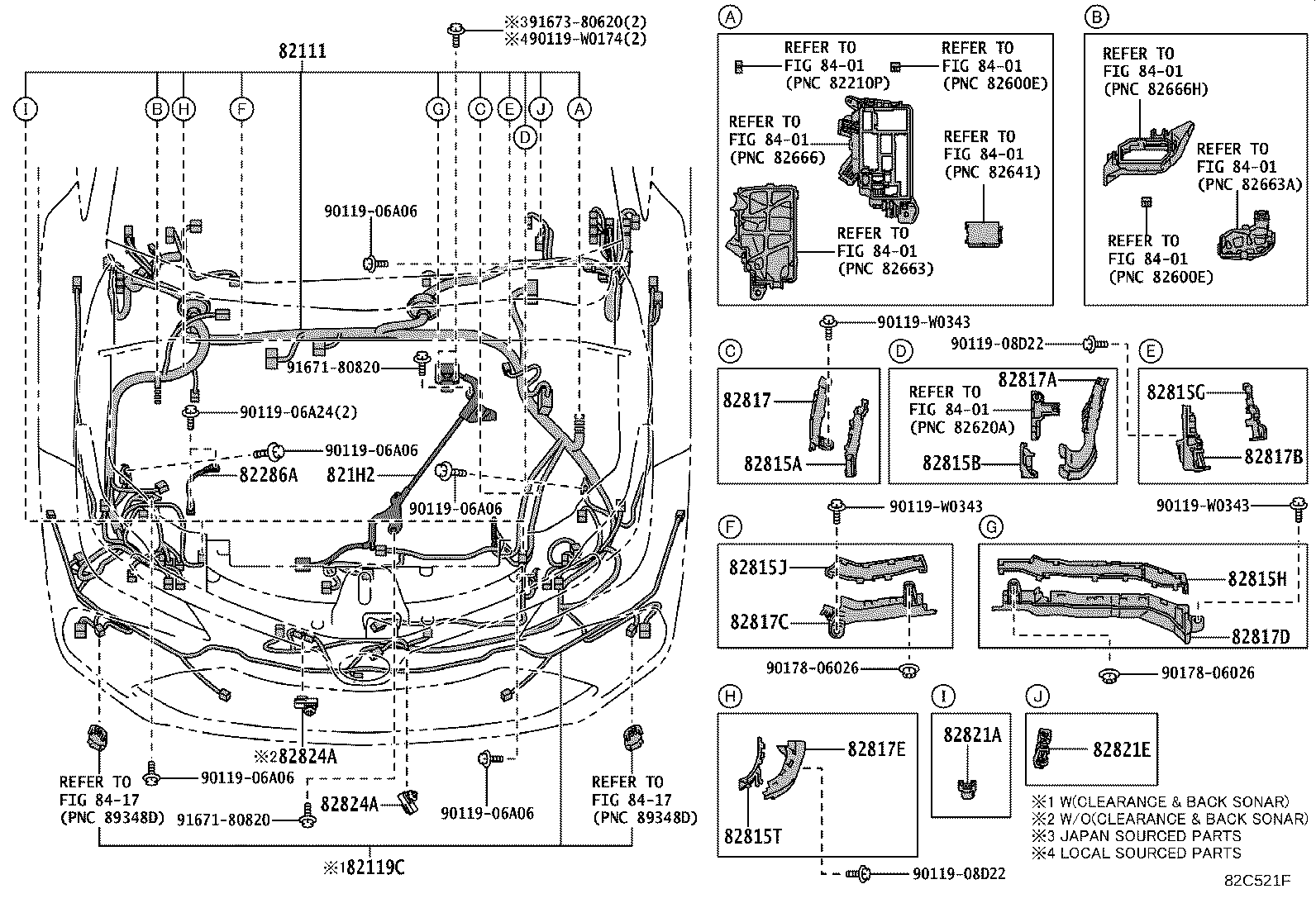

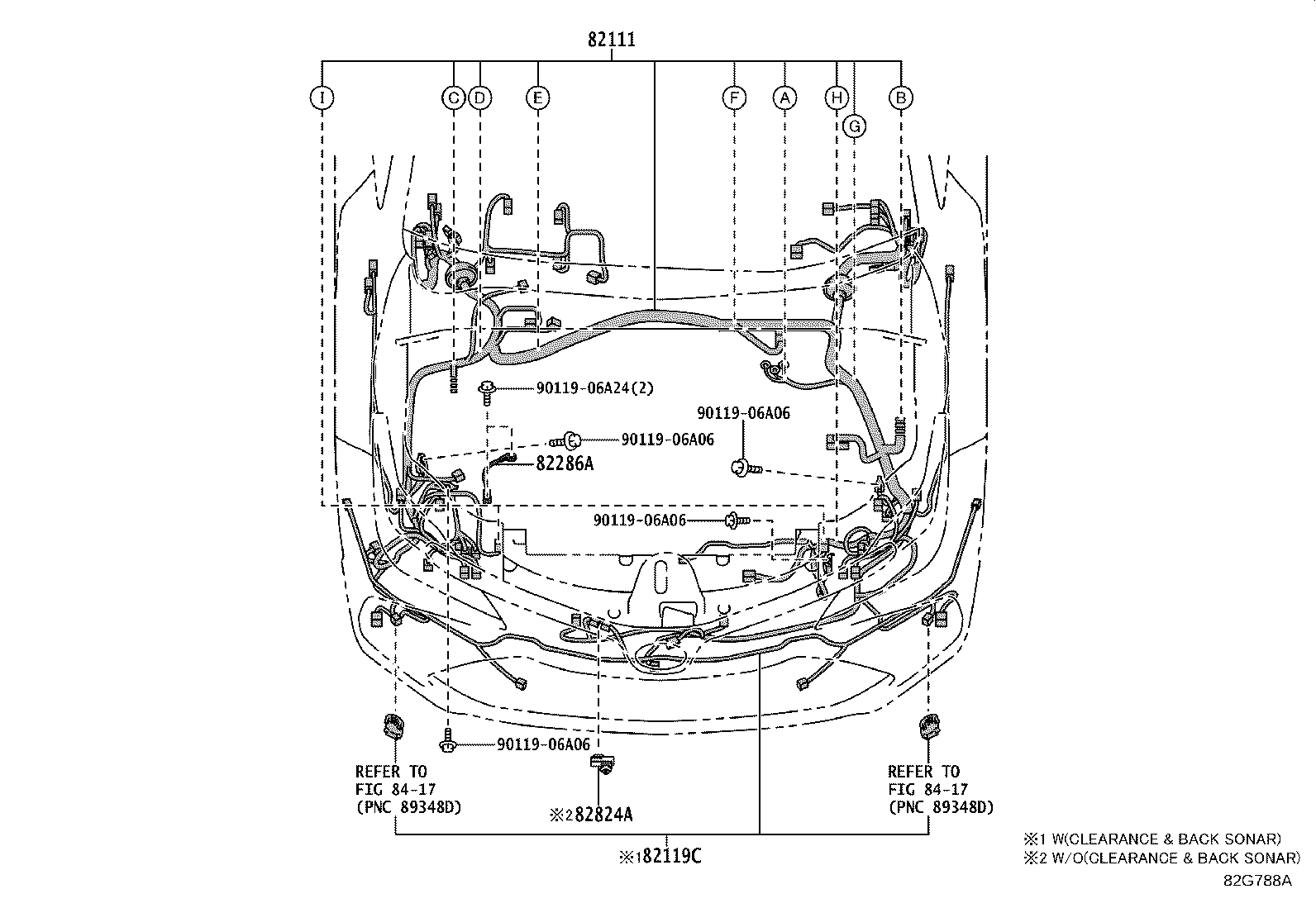

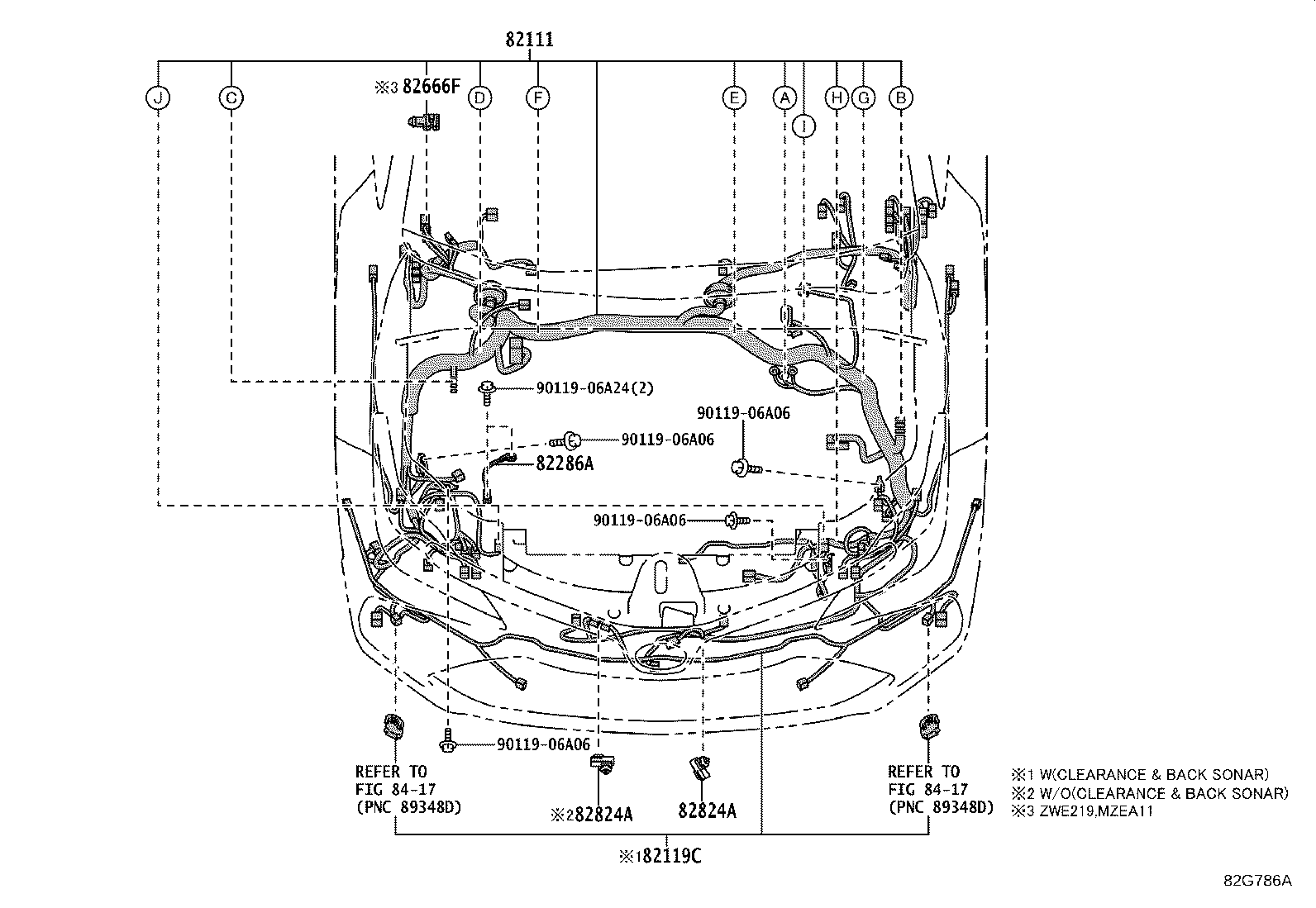

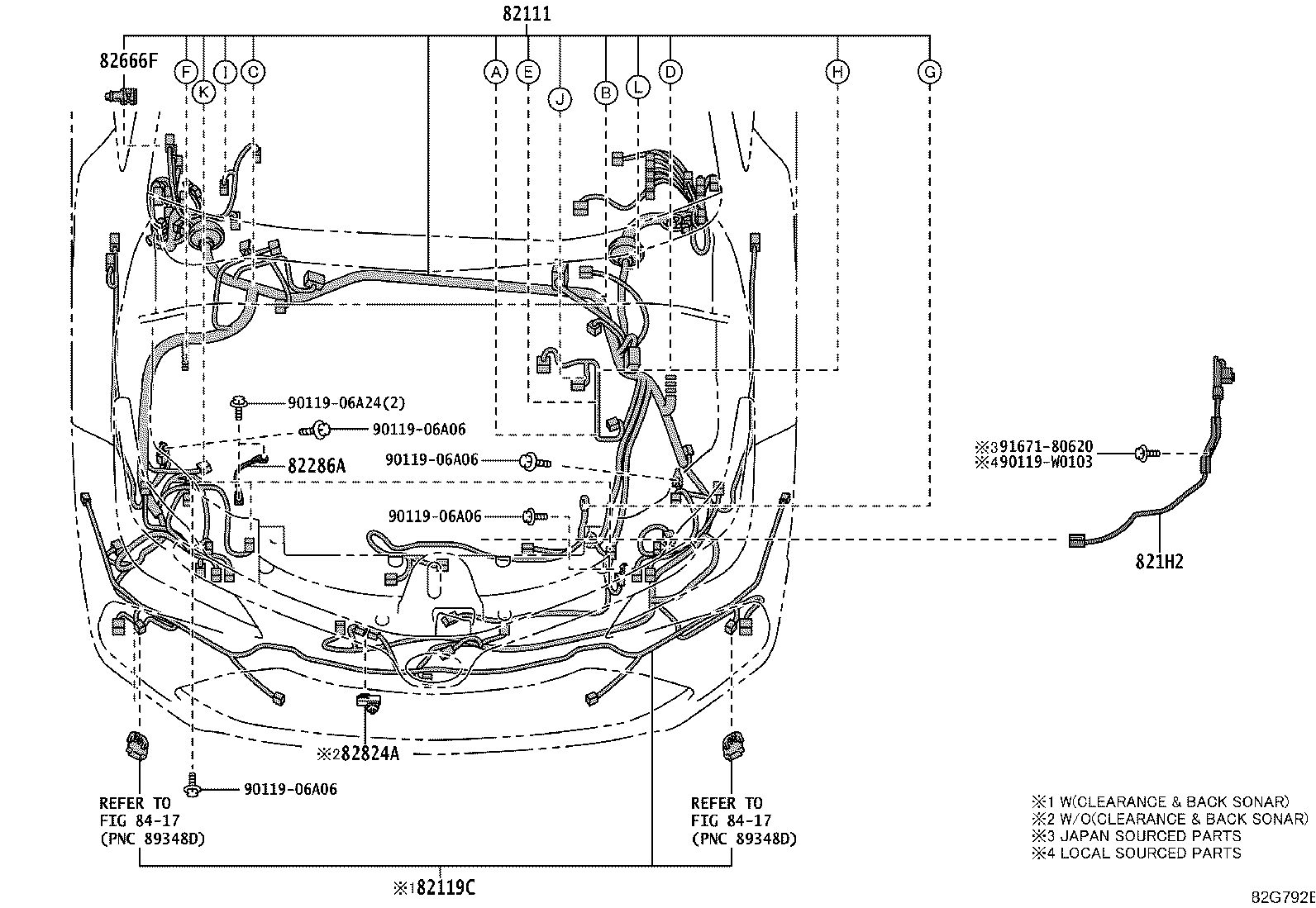

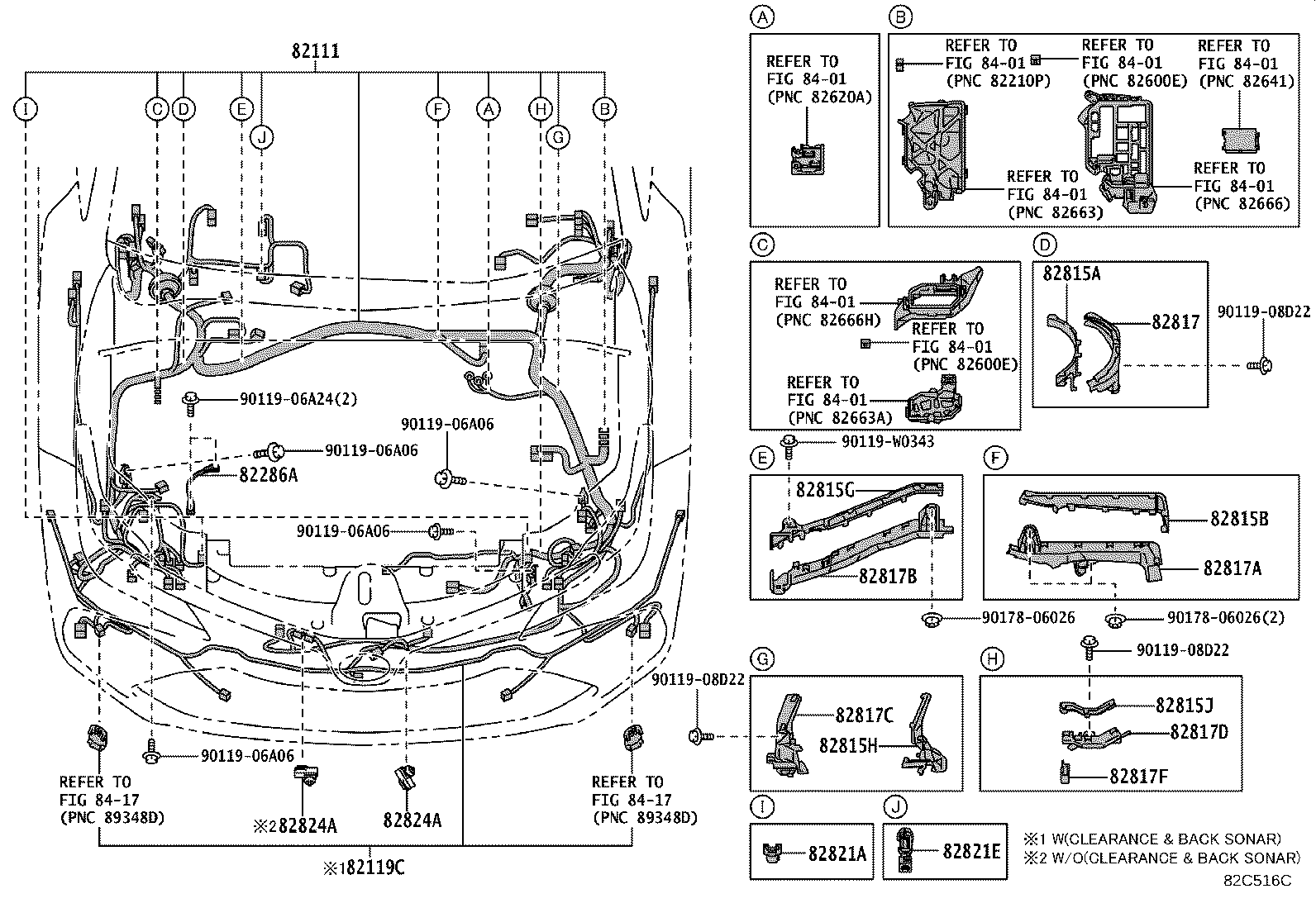

82111 Wire, Engine Room Main
82119C Wire, Engine Room, NO.5

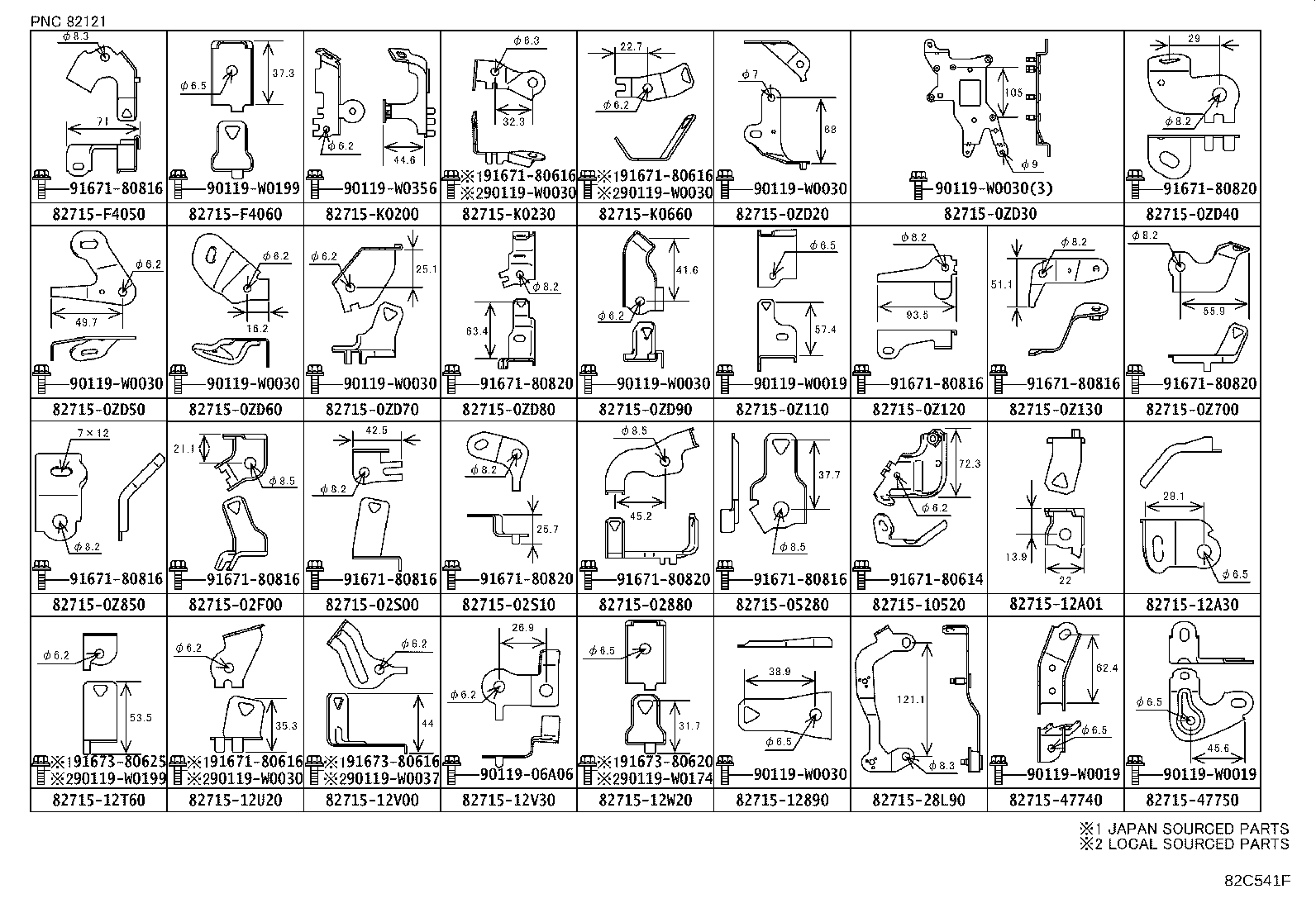

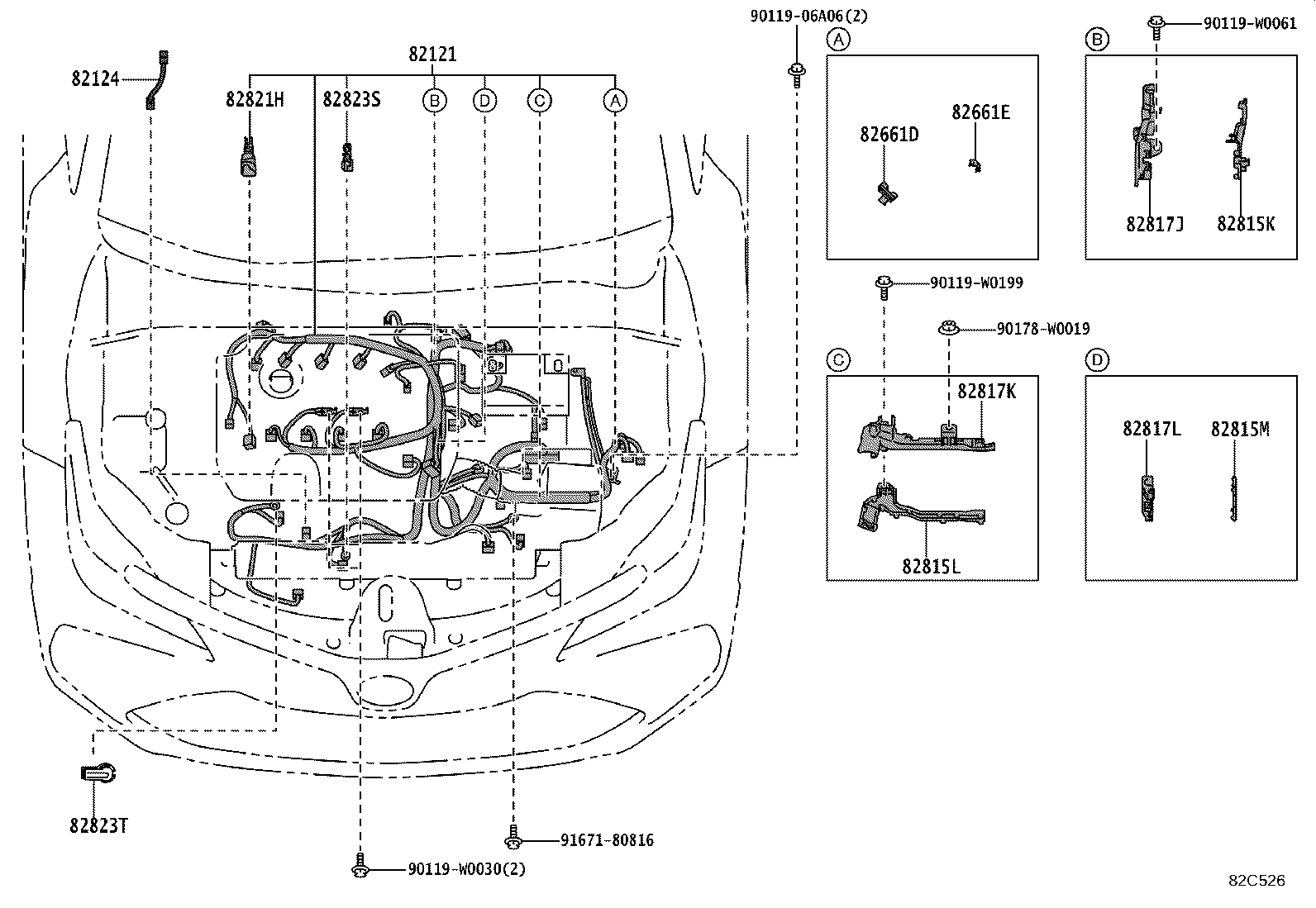

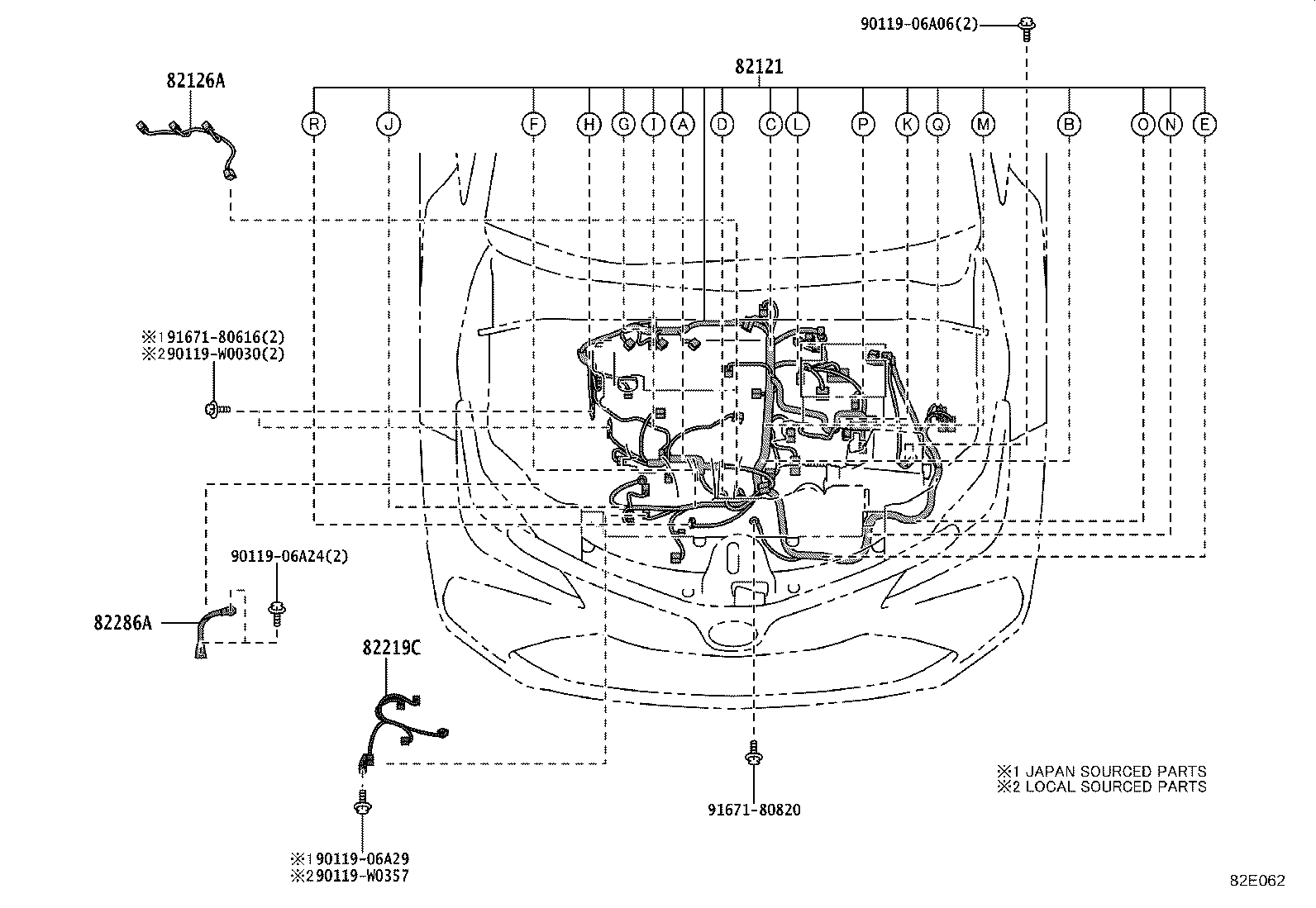

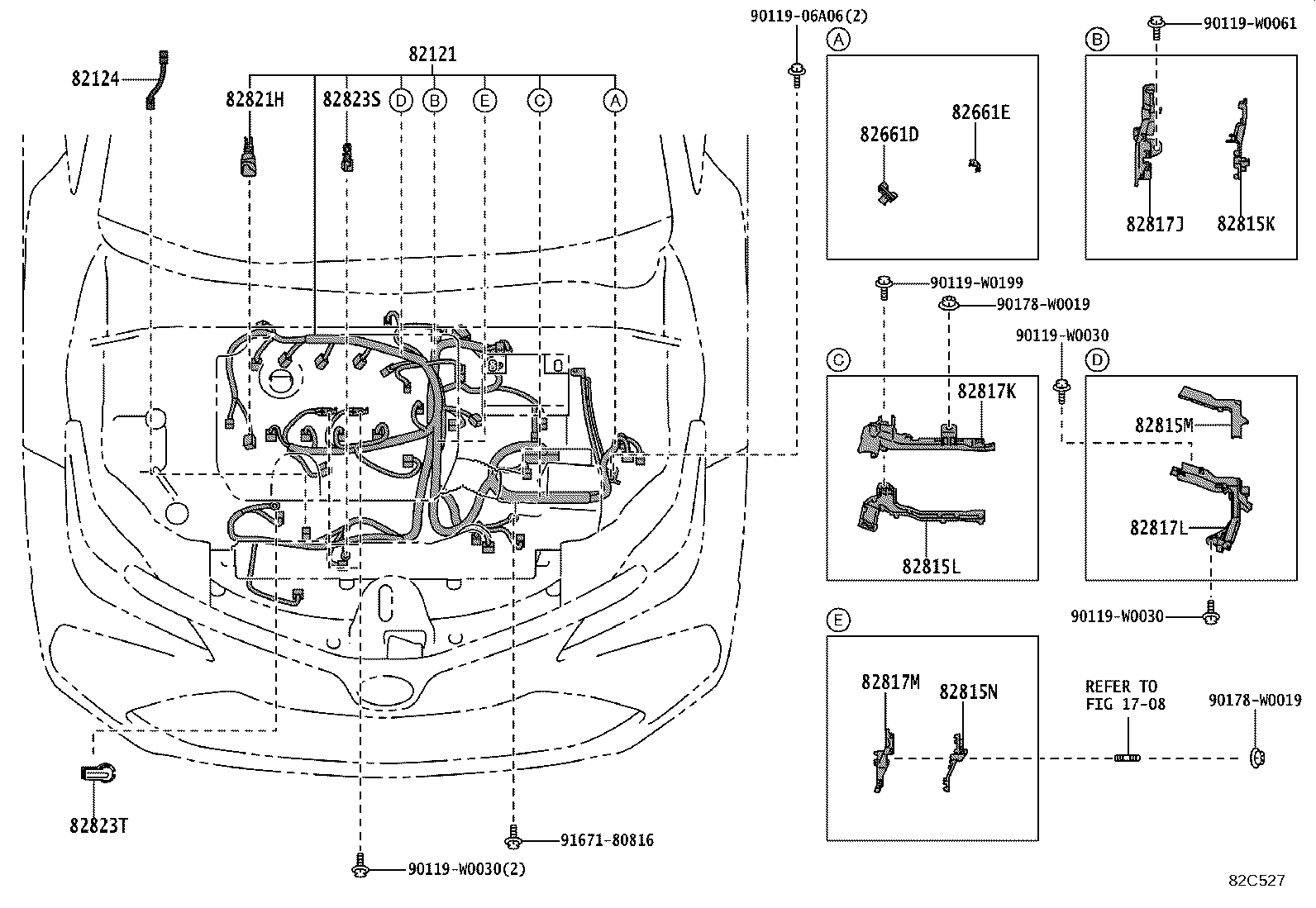

82121 Wire, Engine

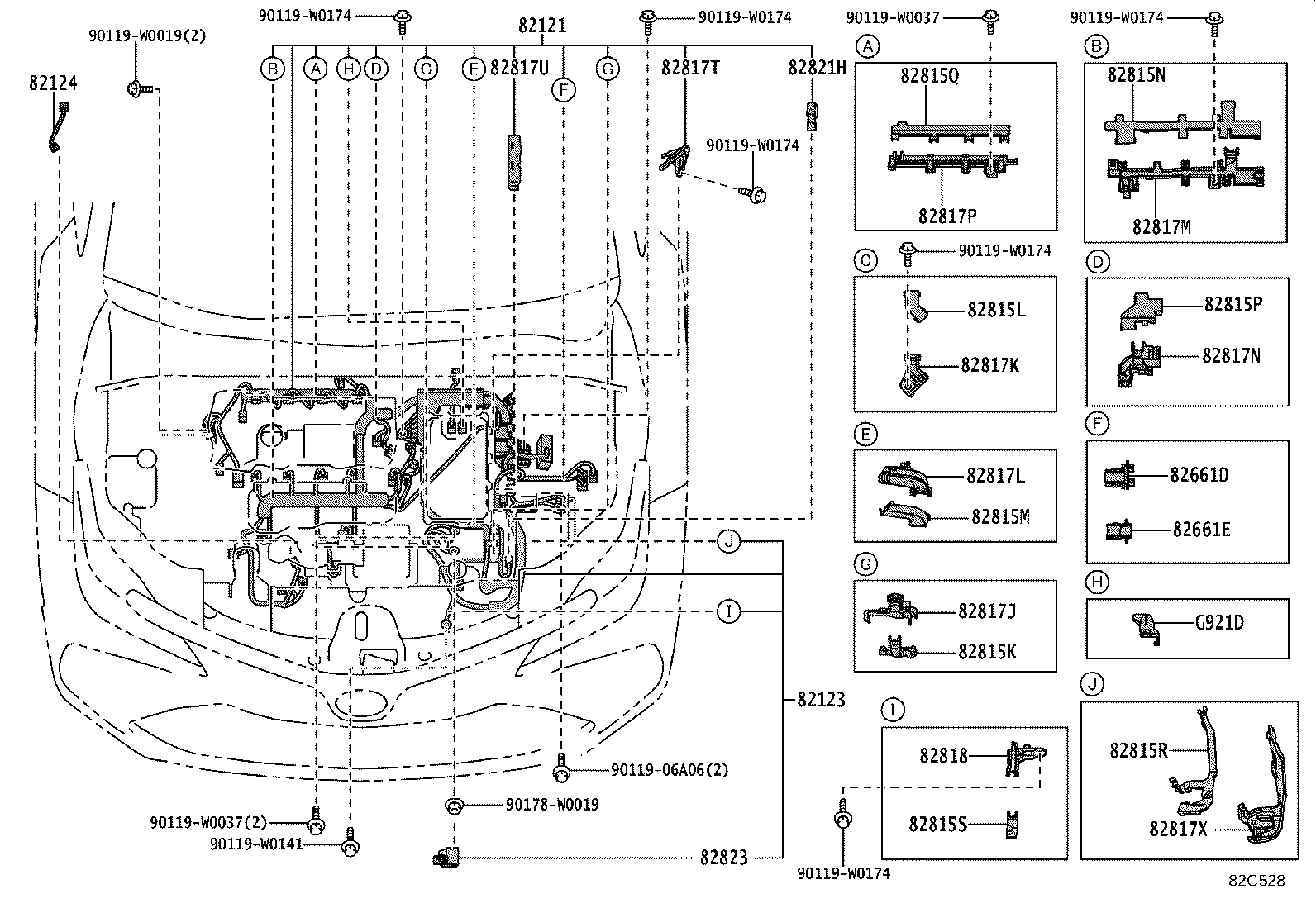

82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7

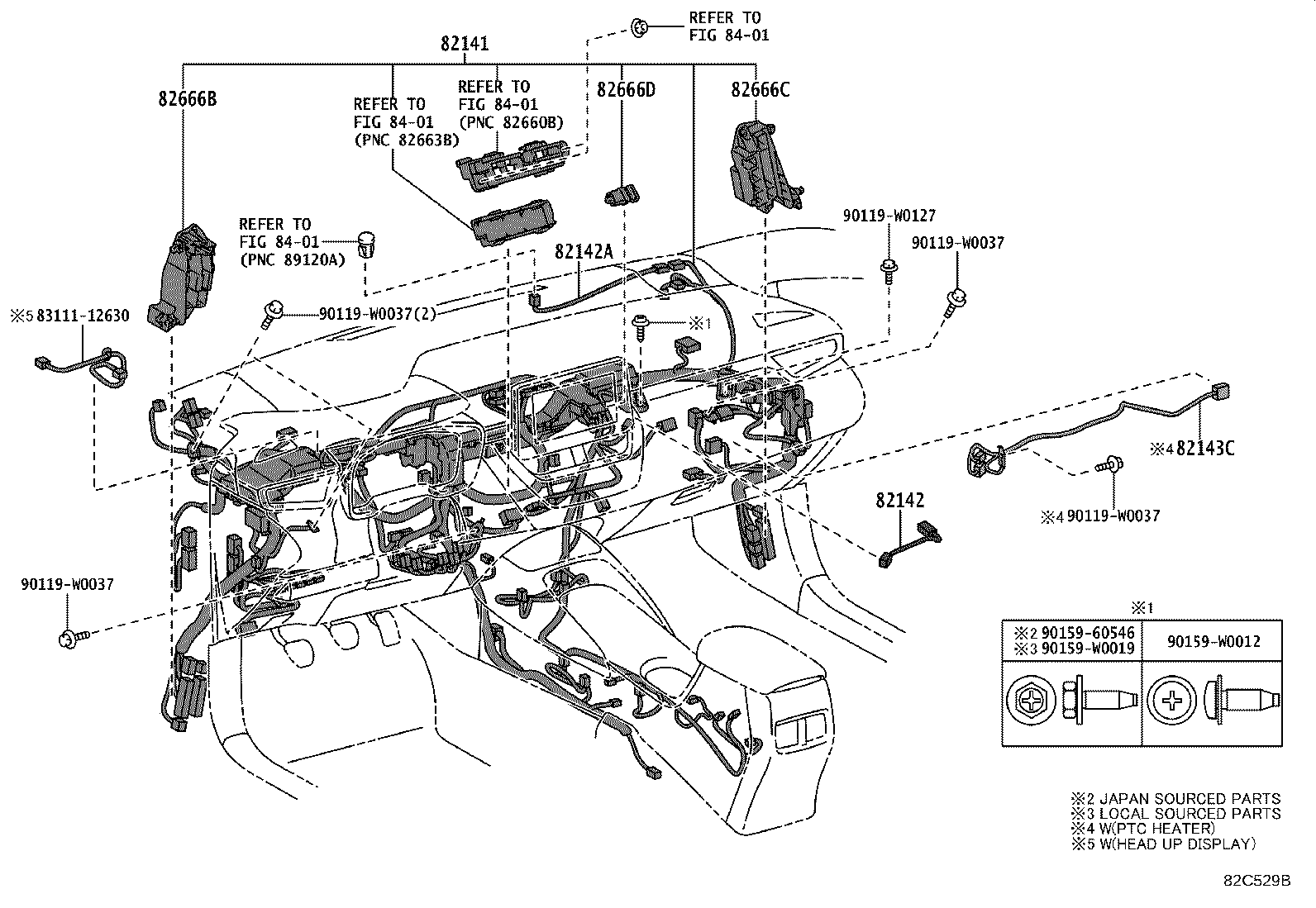

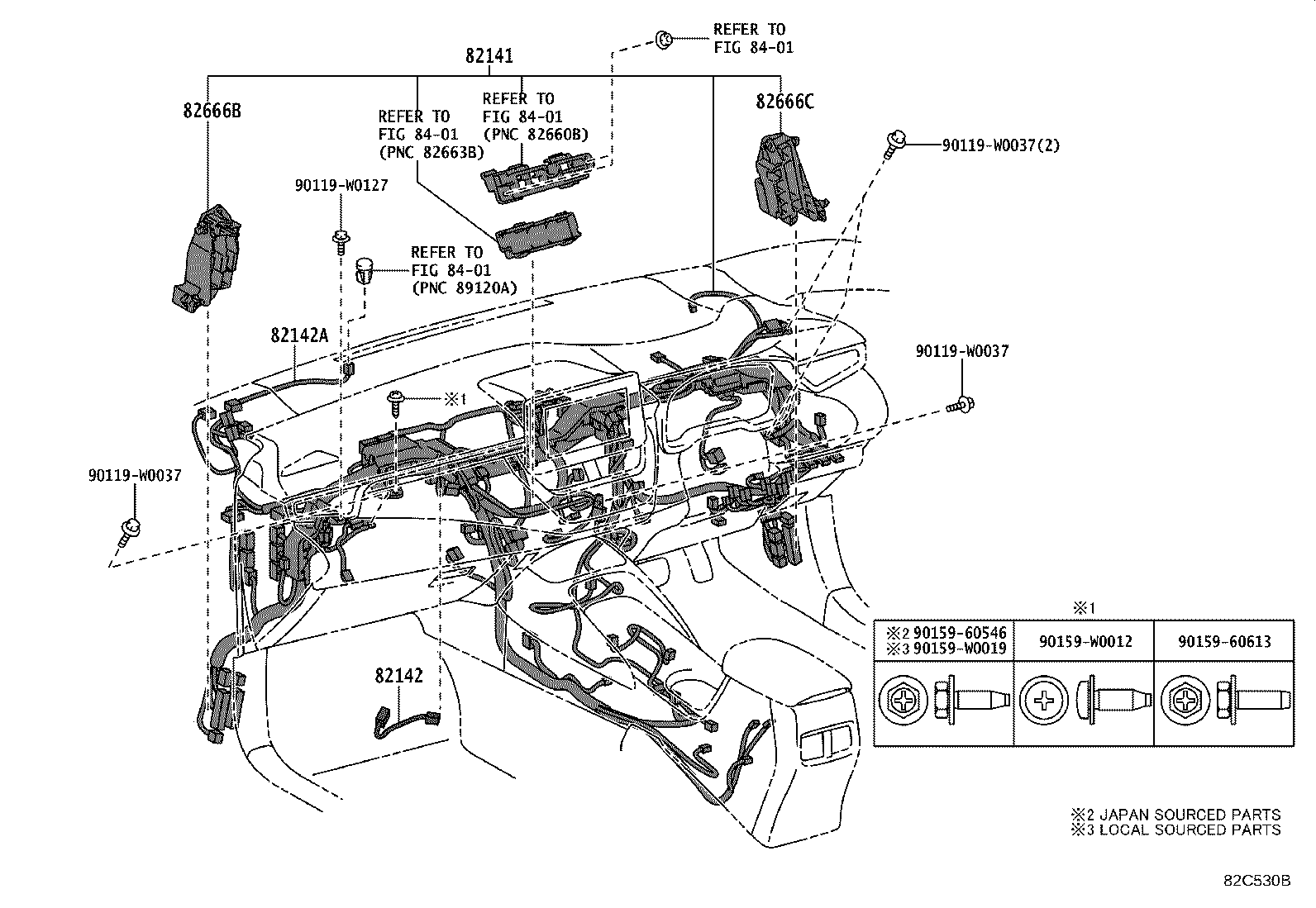

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143C Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2

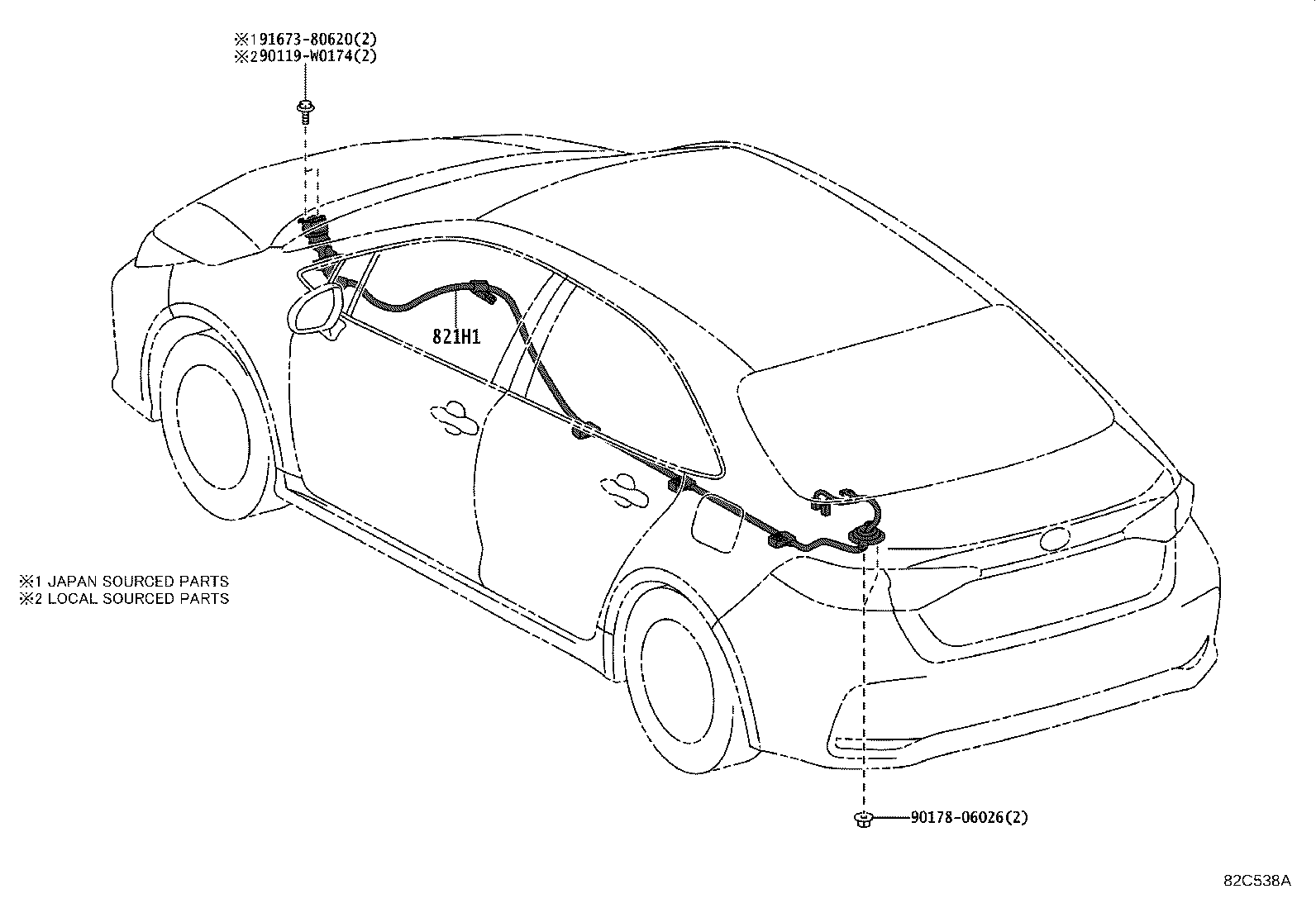

821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219C Wire, Sensor
82286A Wire, Earth, NO.2
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661H Cover, Relay Block
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7

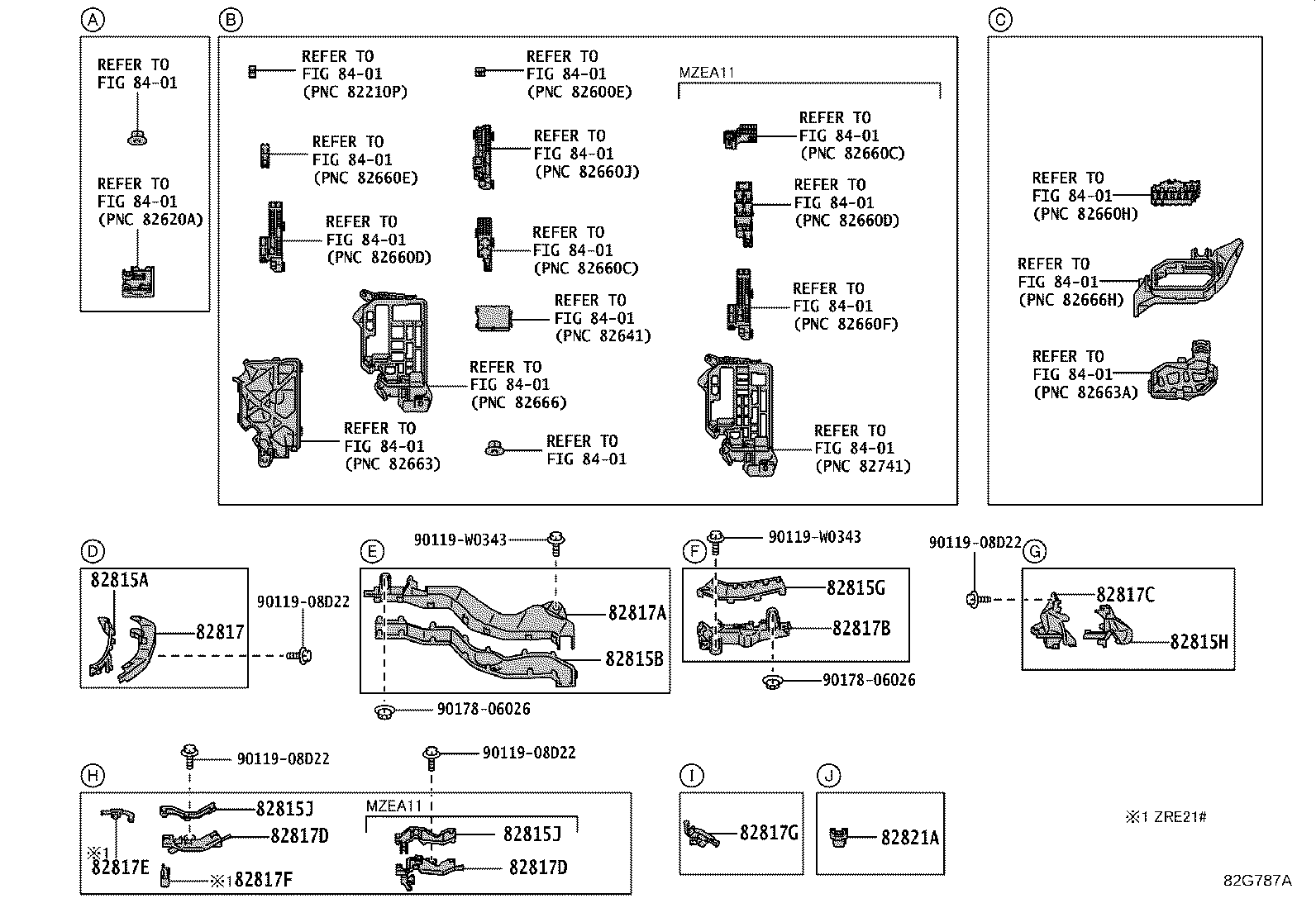

82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821W Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

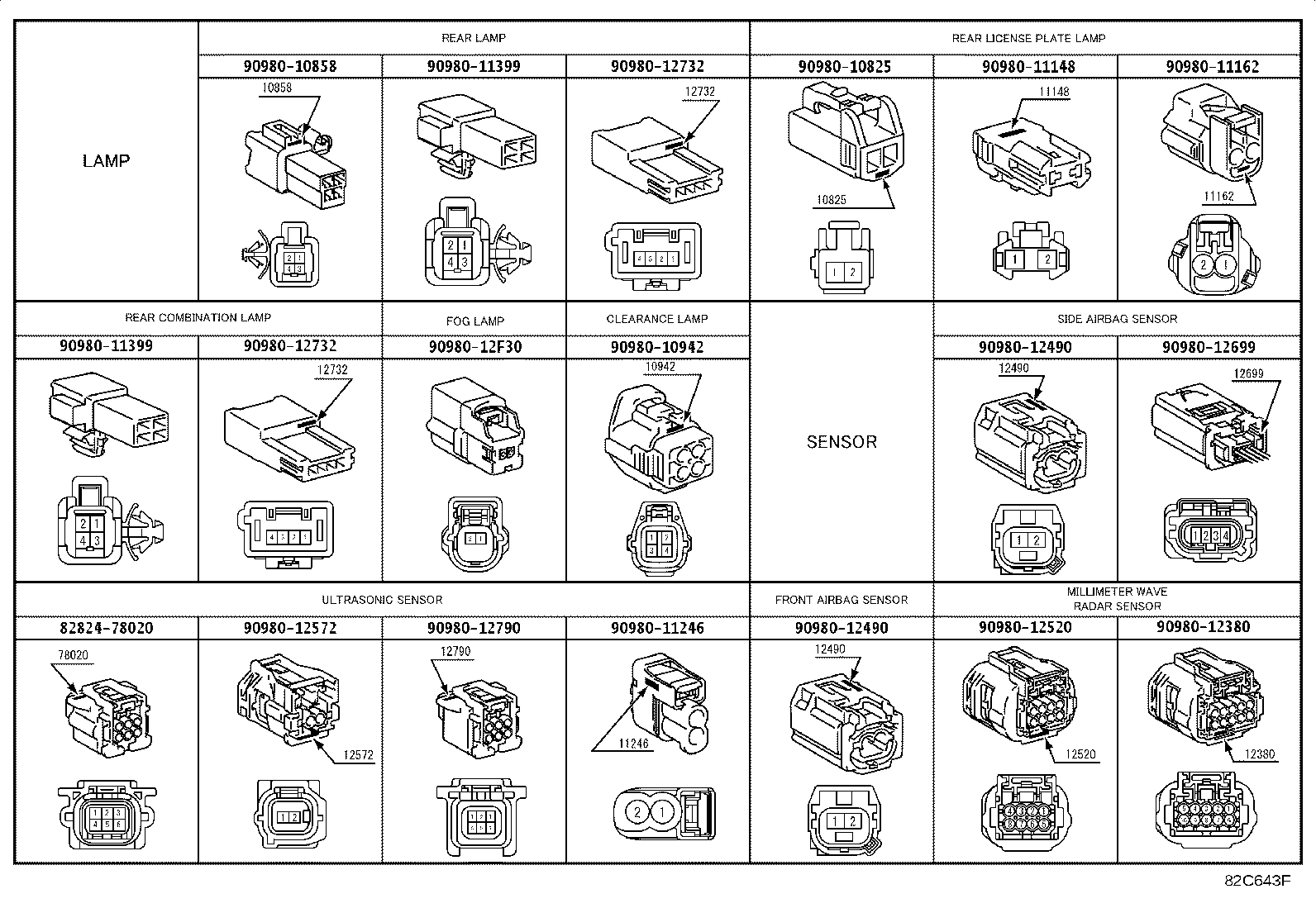

82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
