Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

140 part groups · 25 illustrations

Illustrations

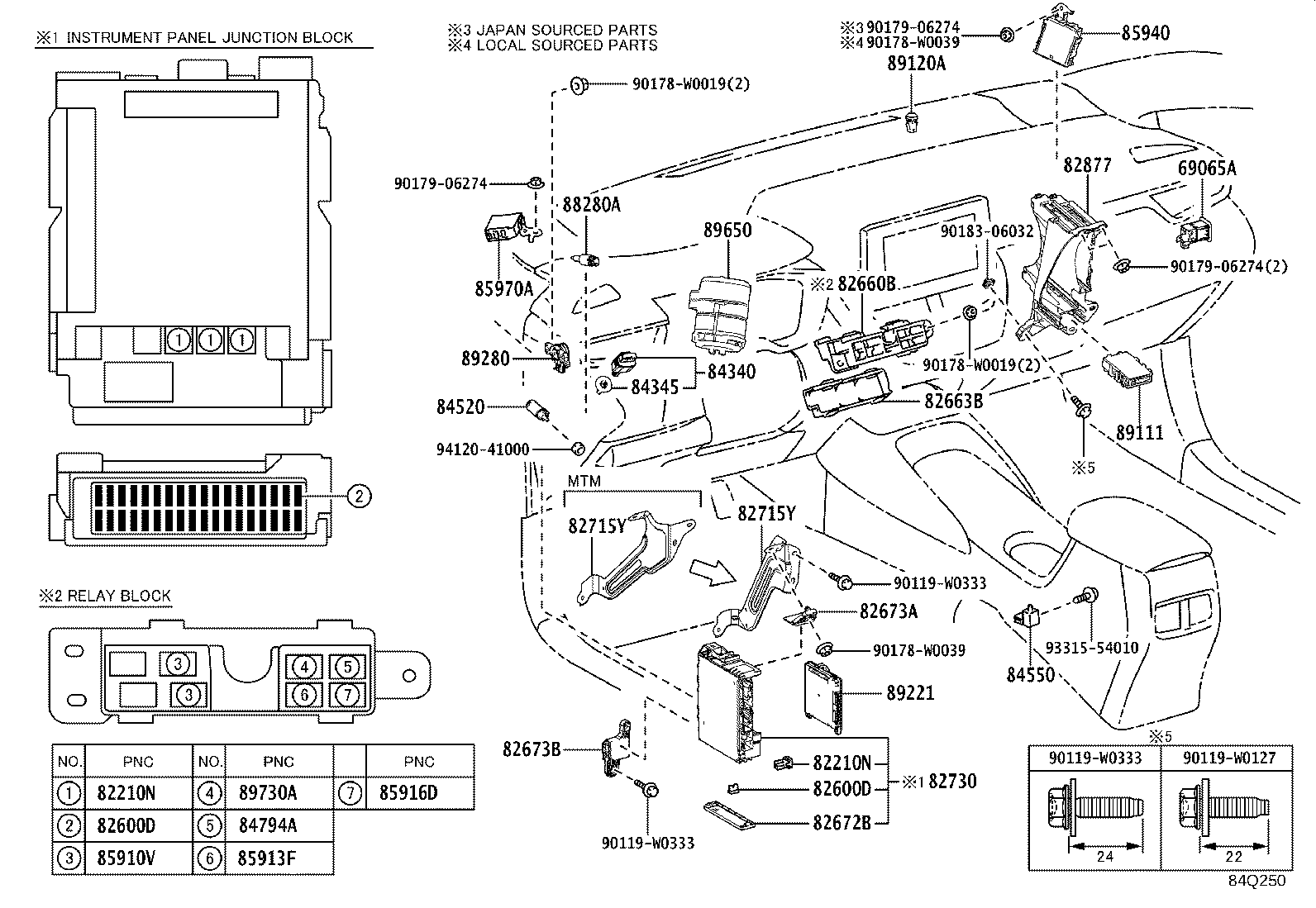

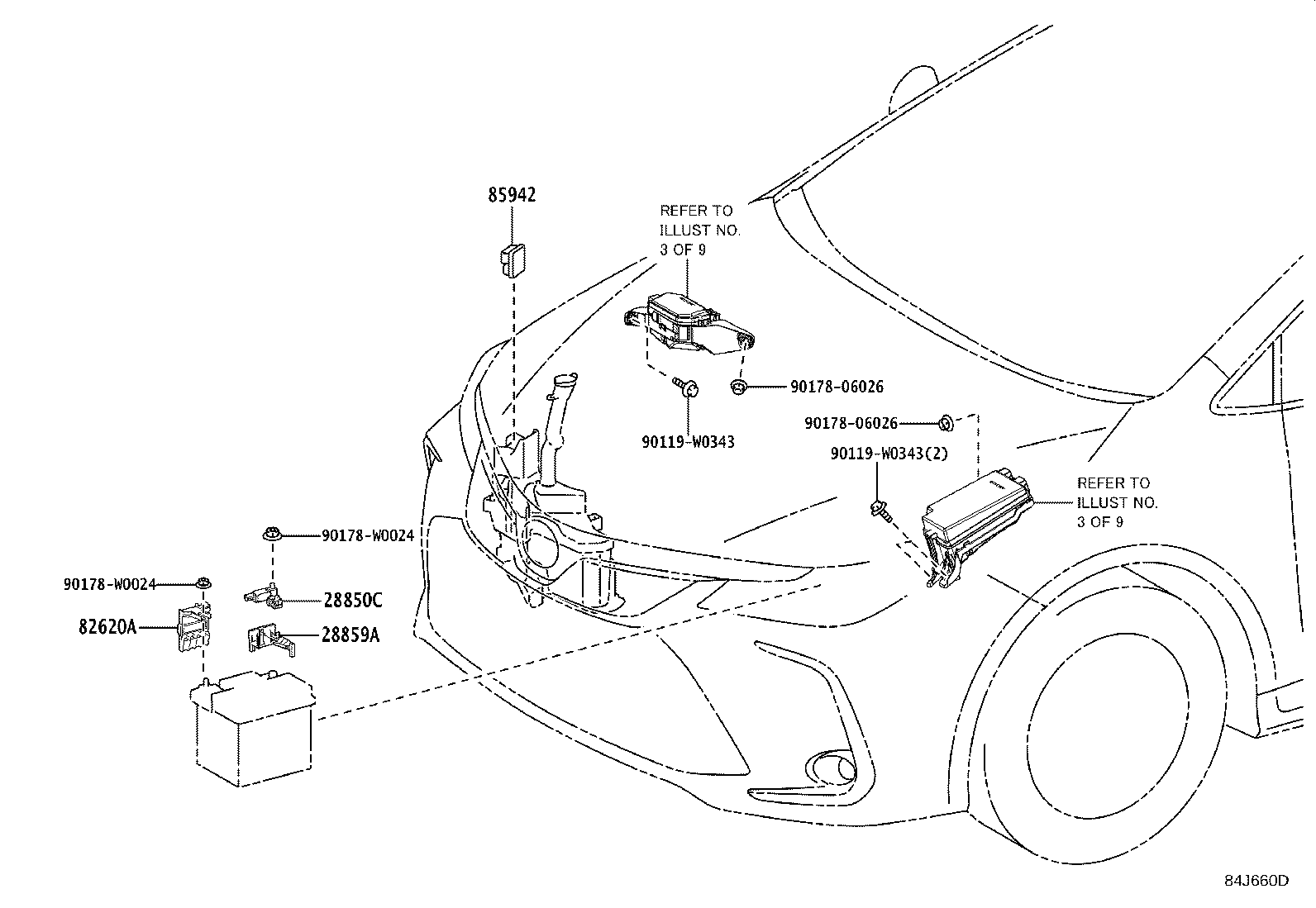

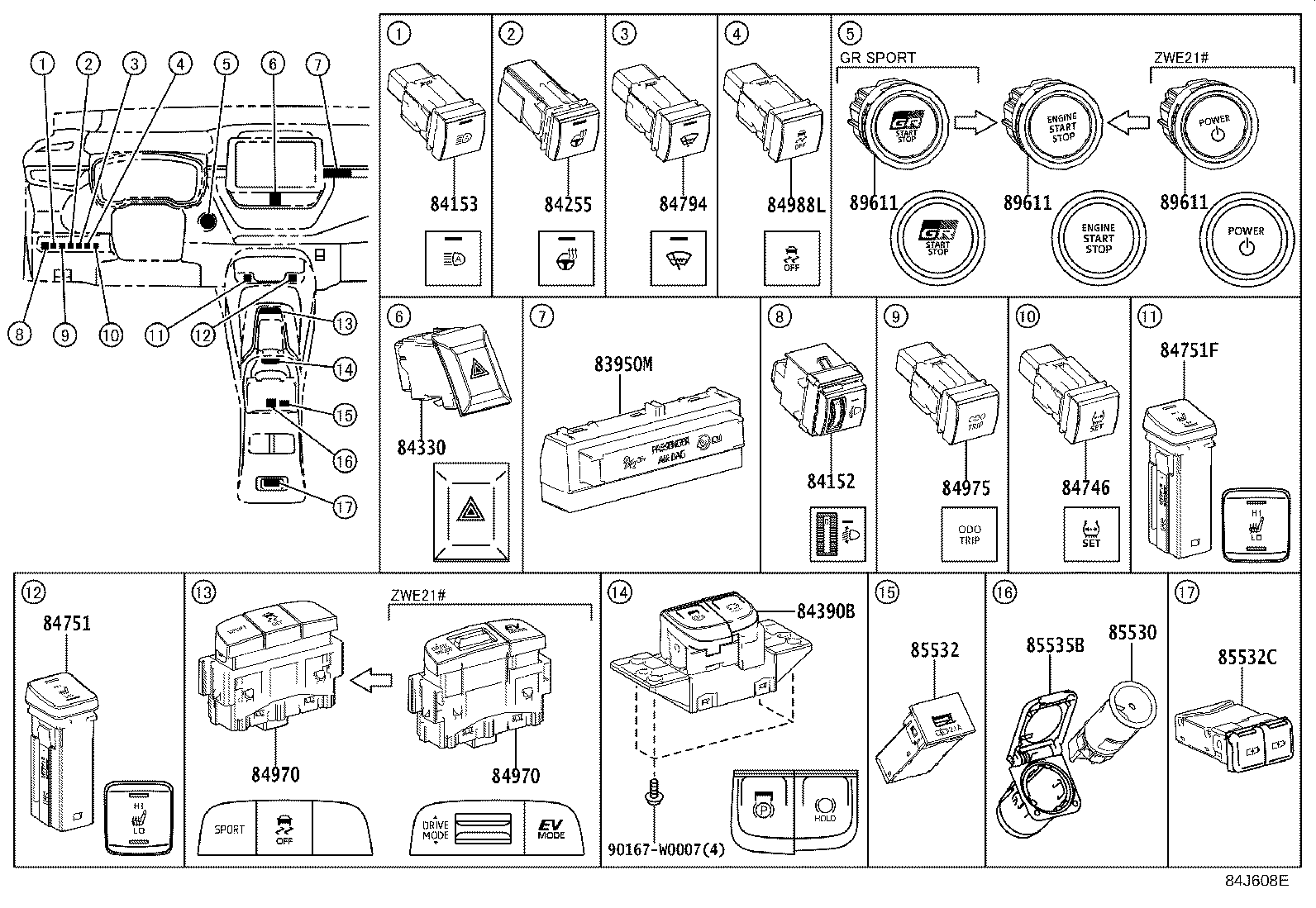

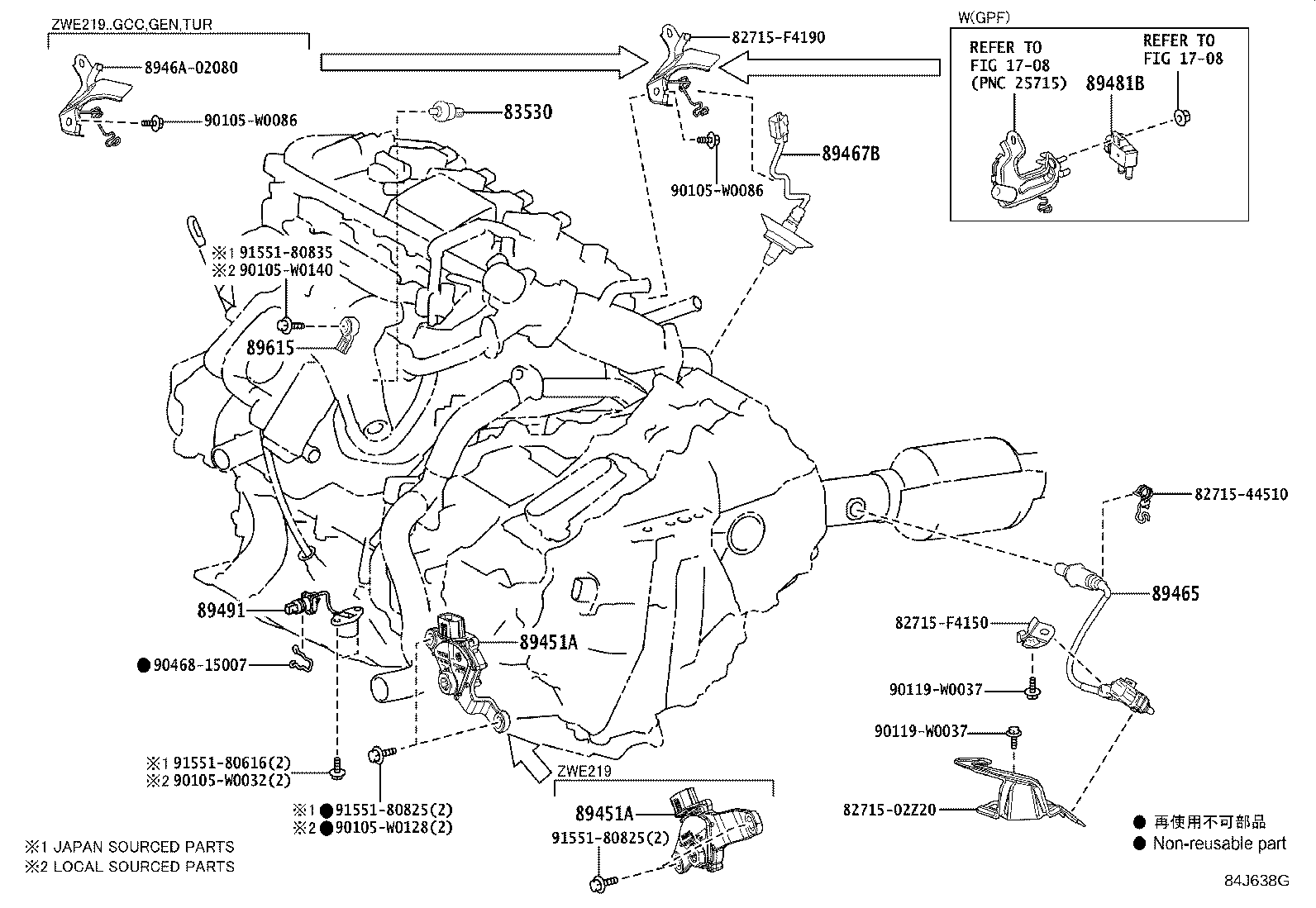

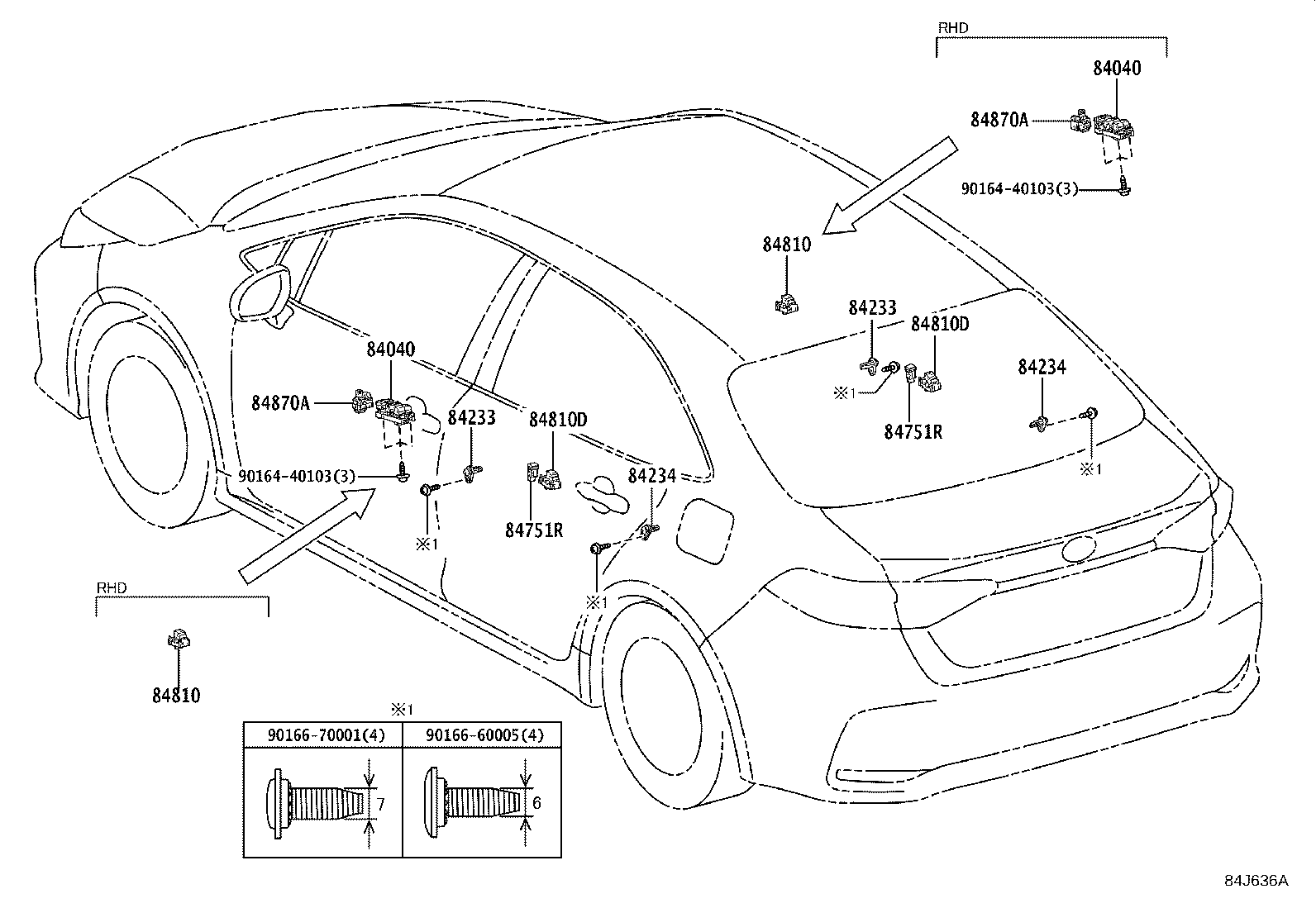

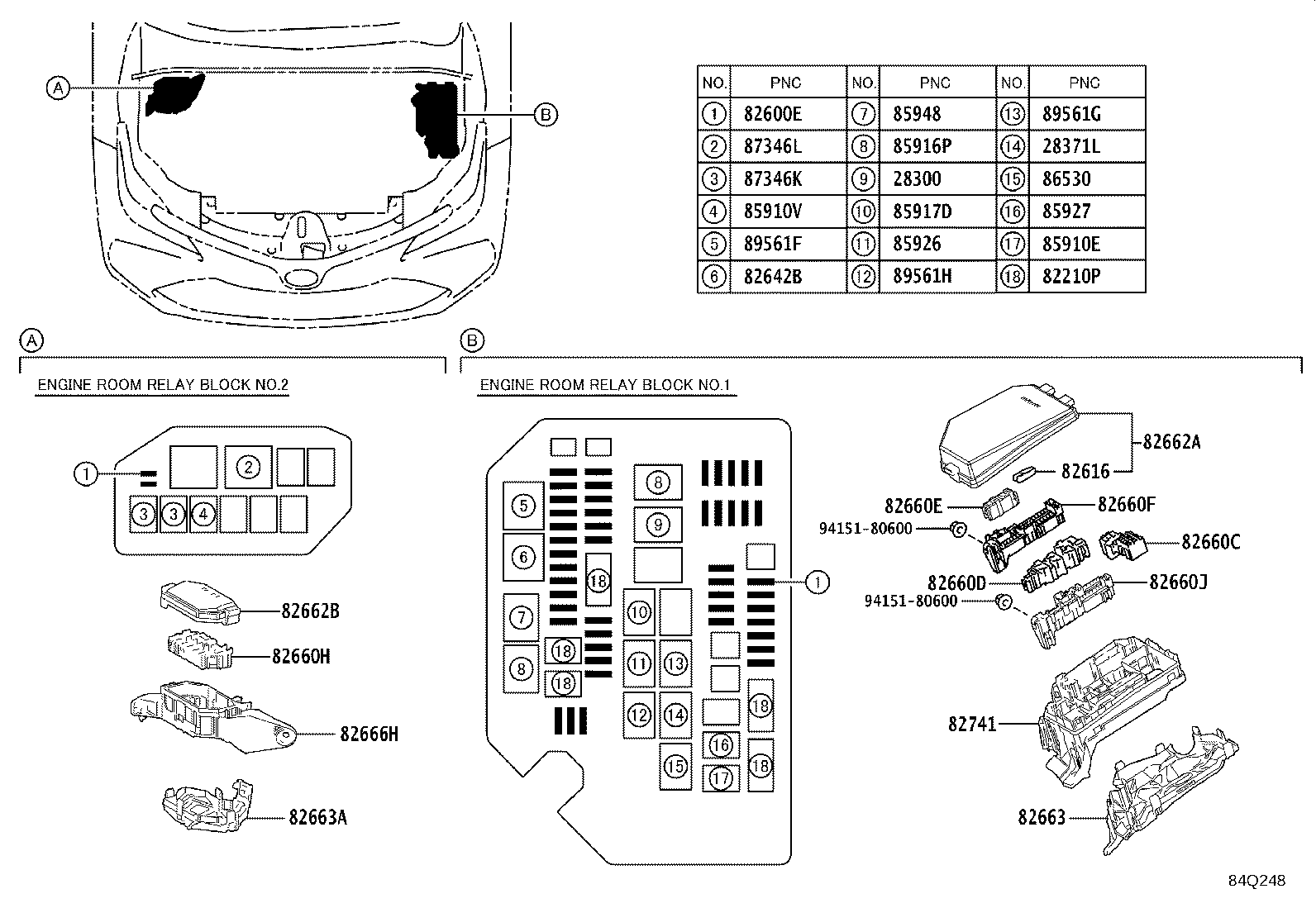

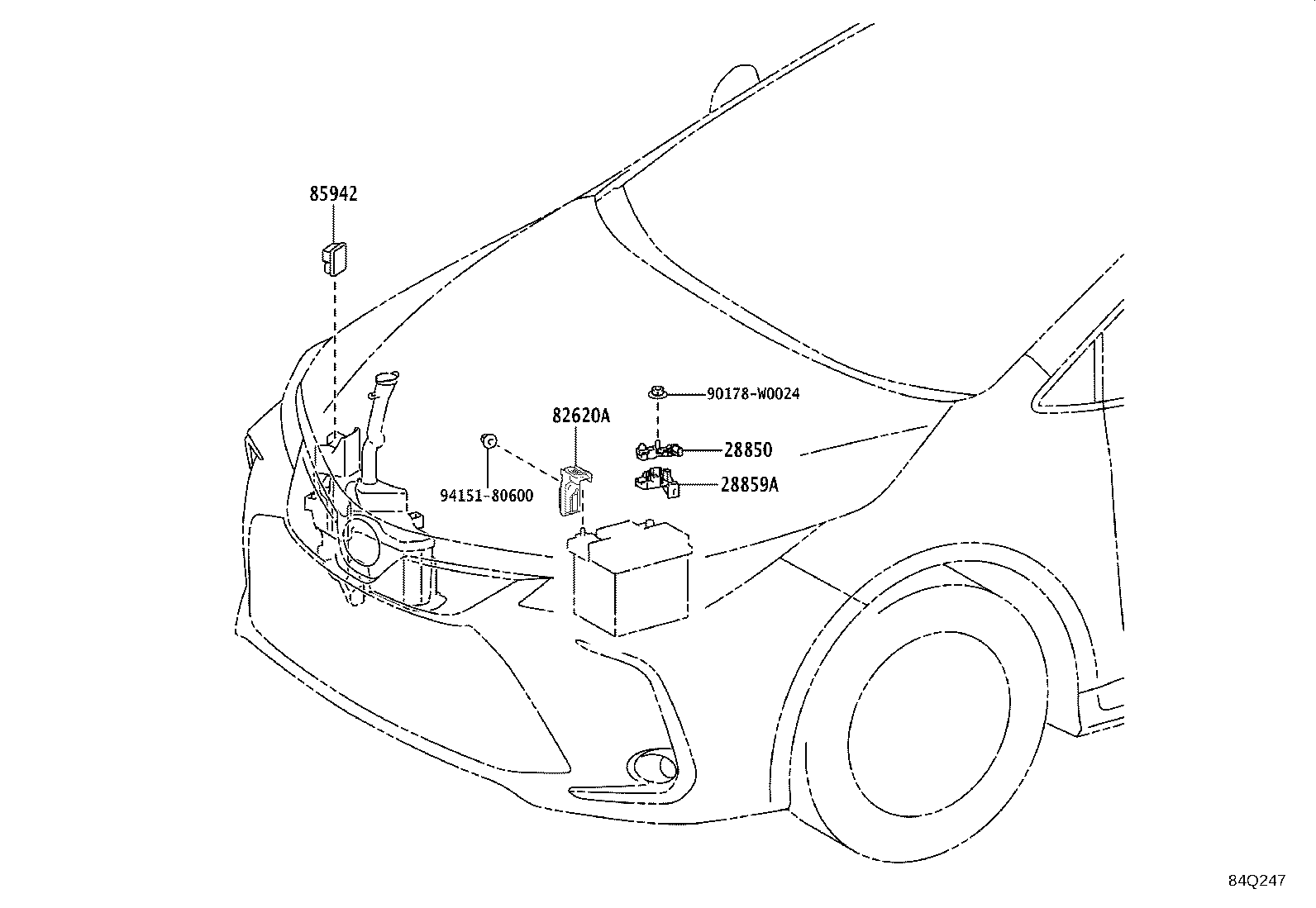

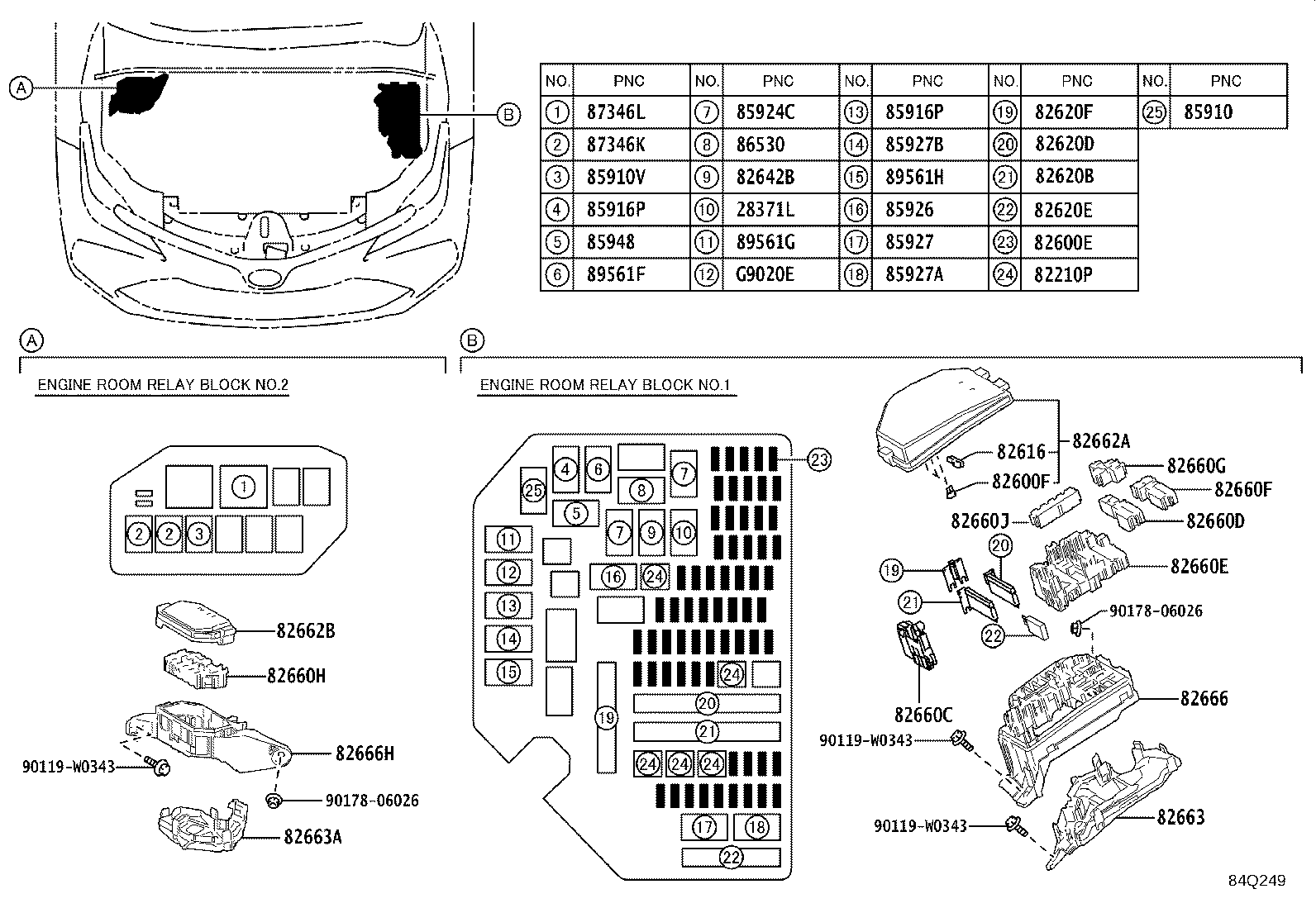

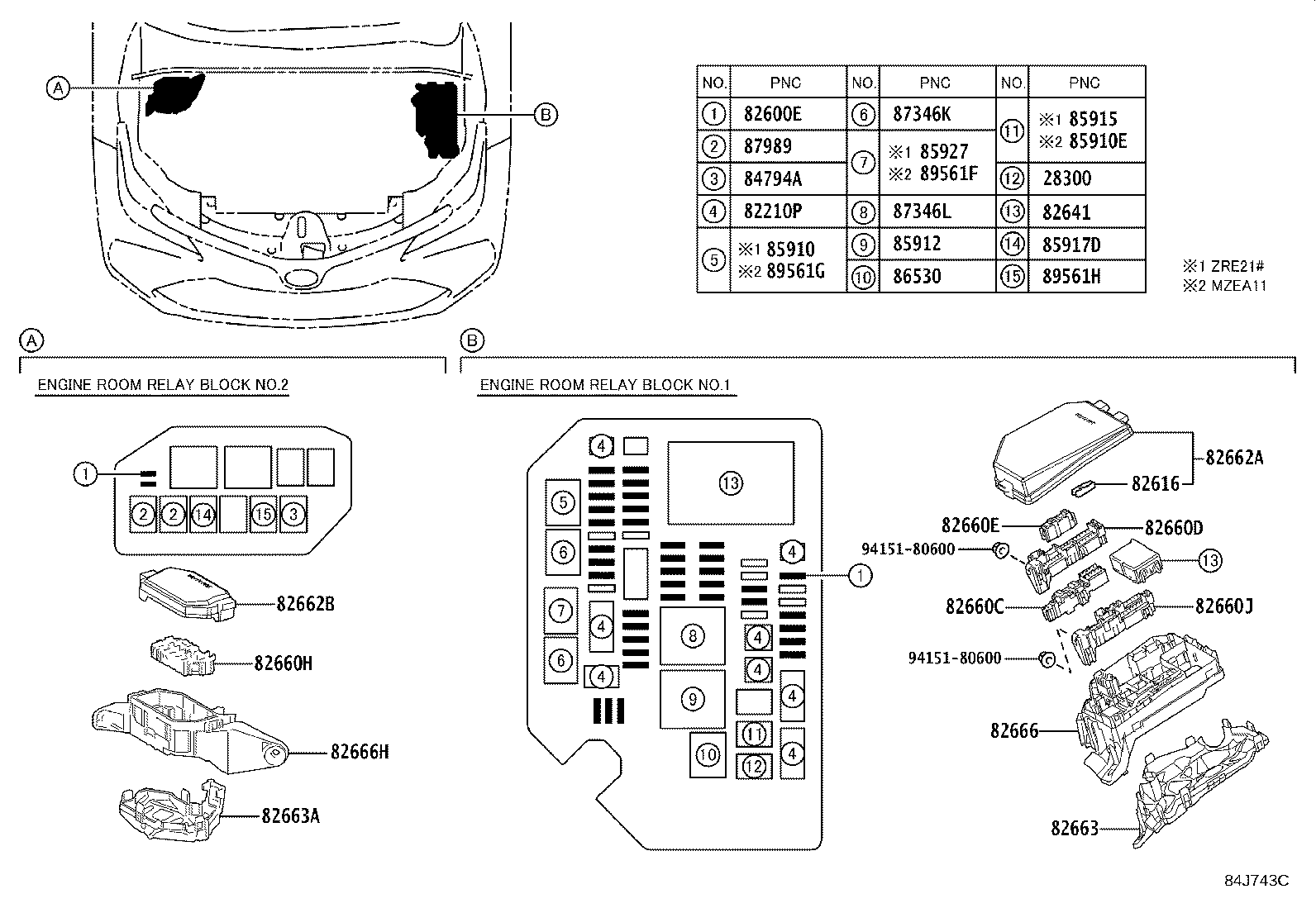

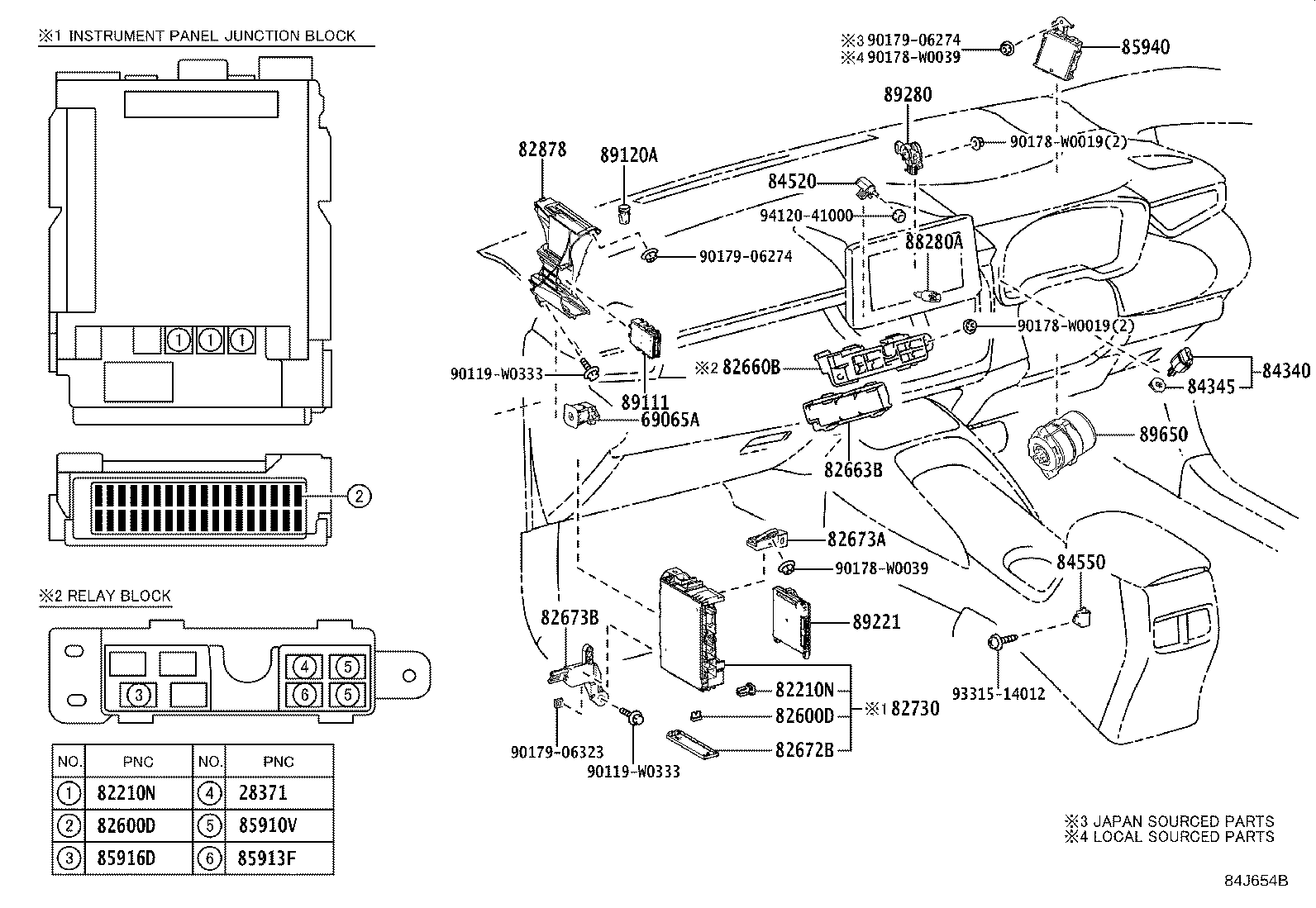

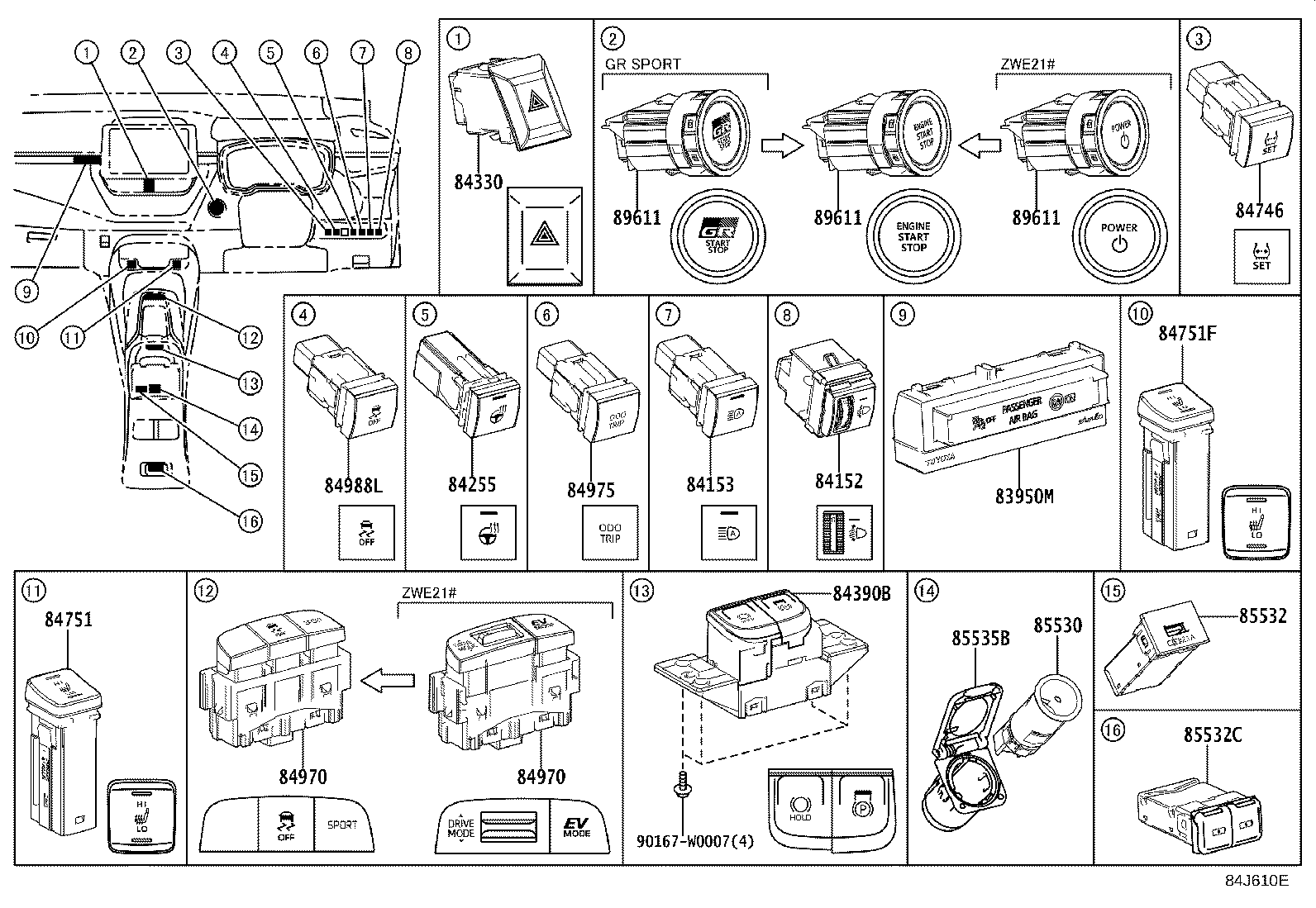

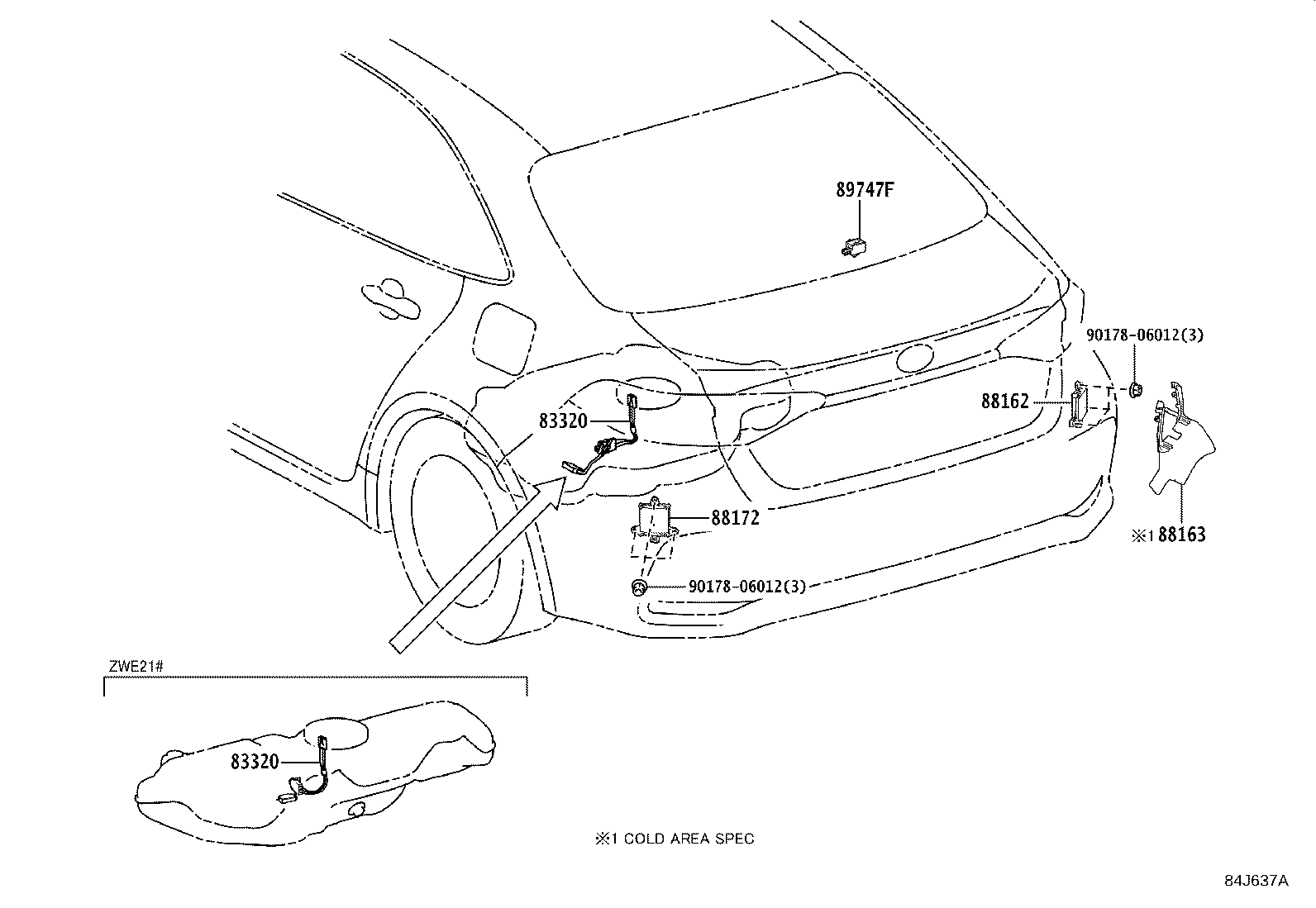

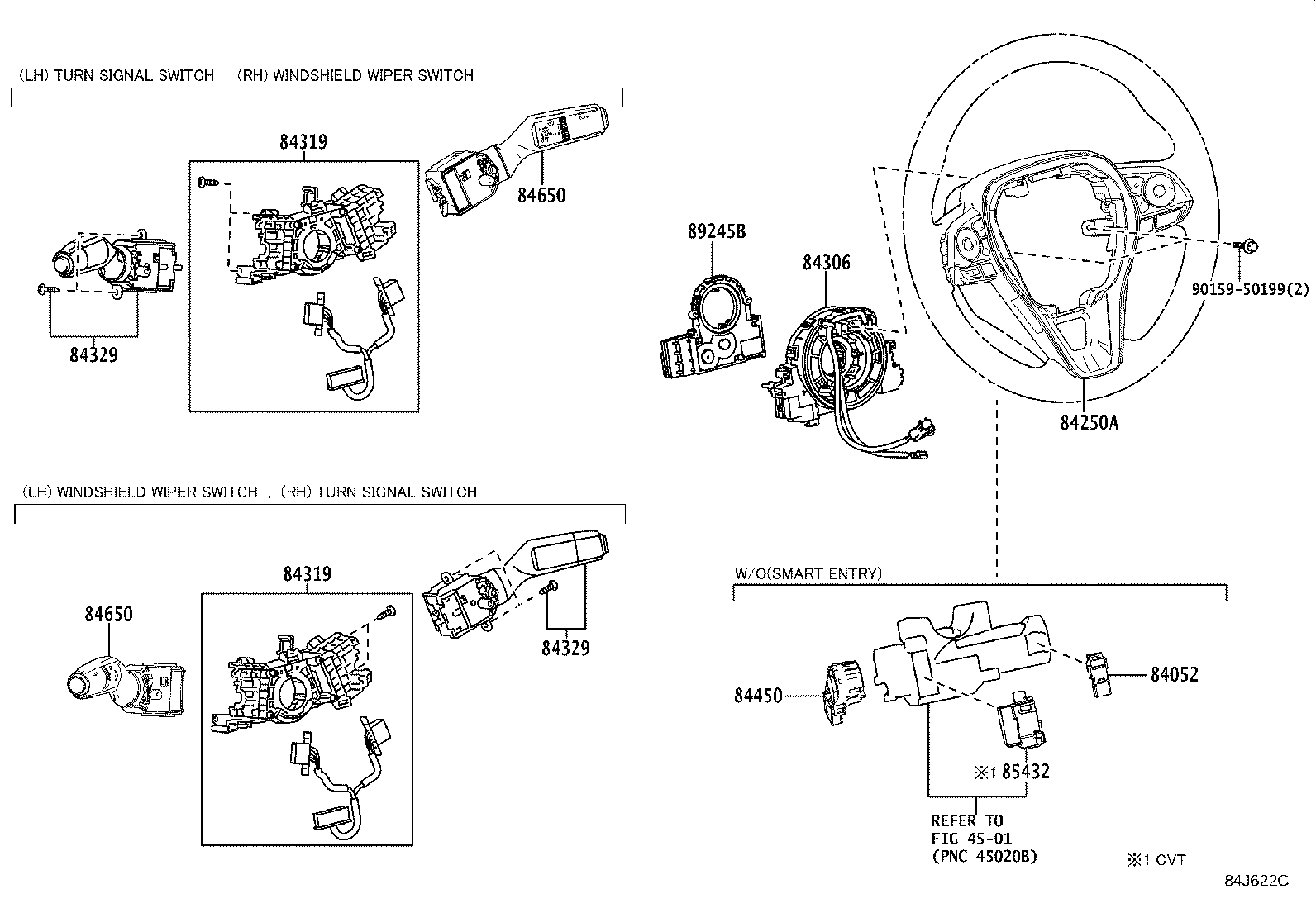

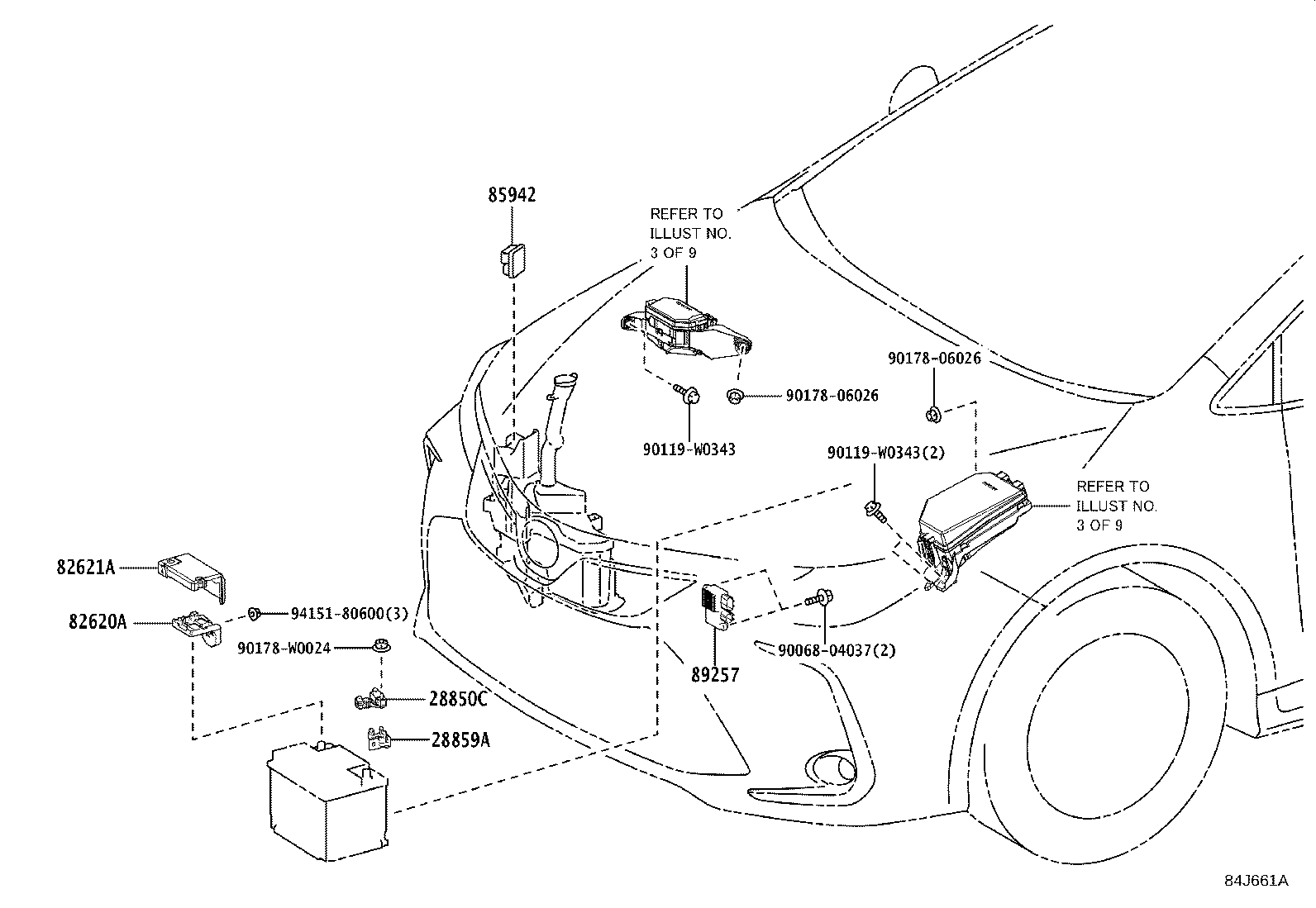

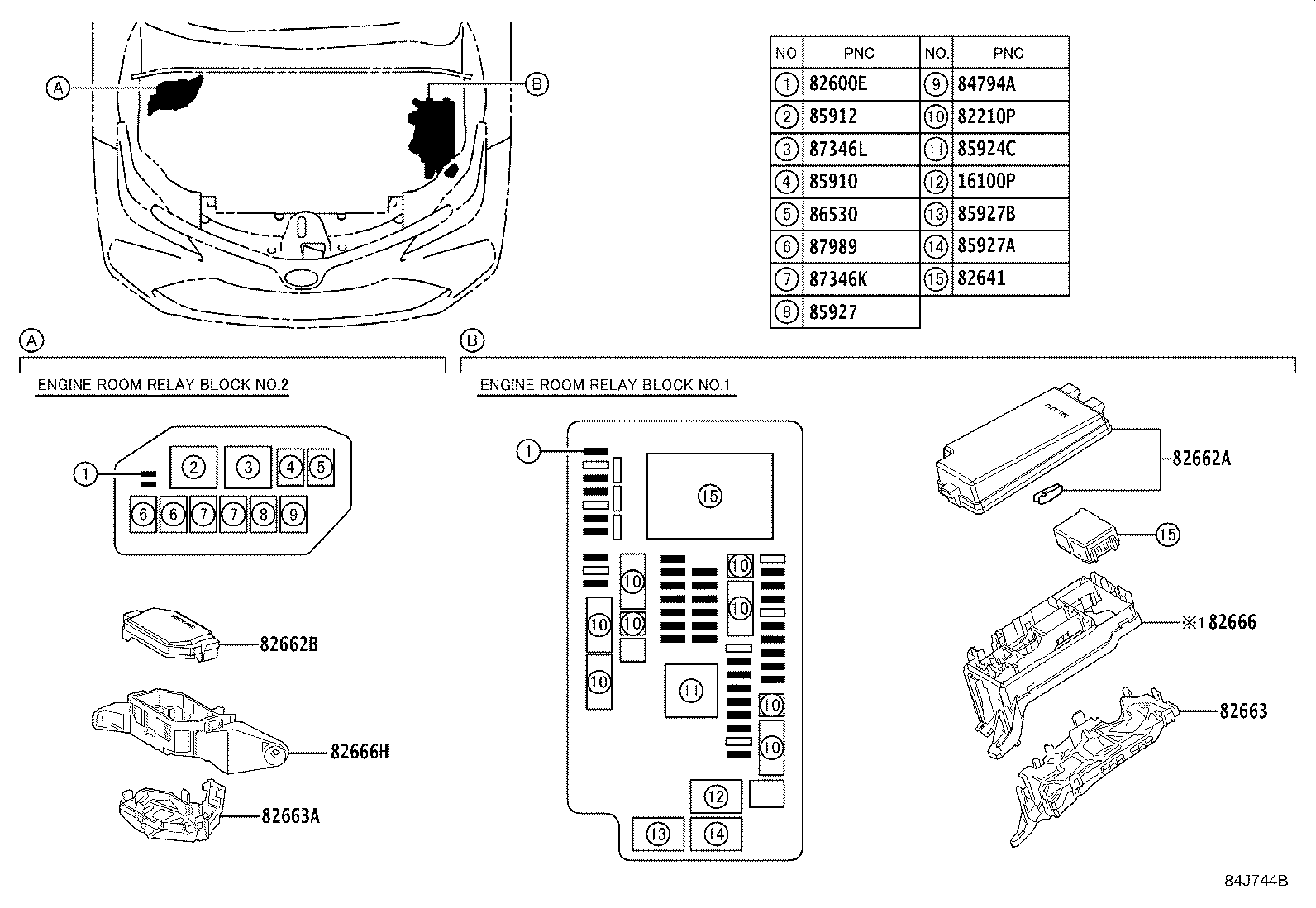

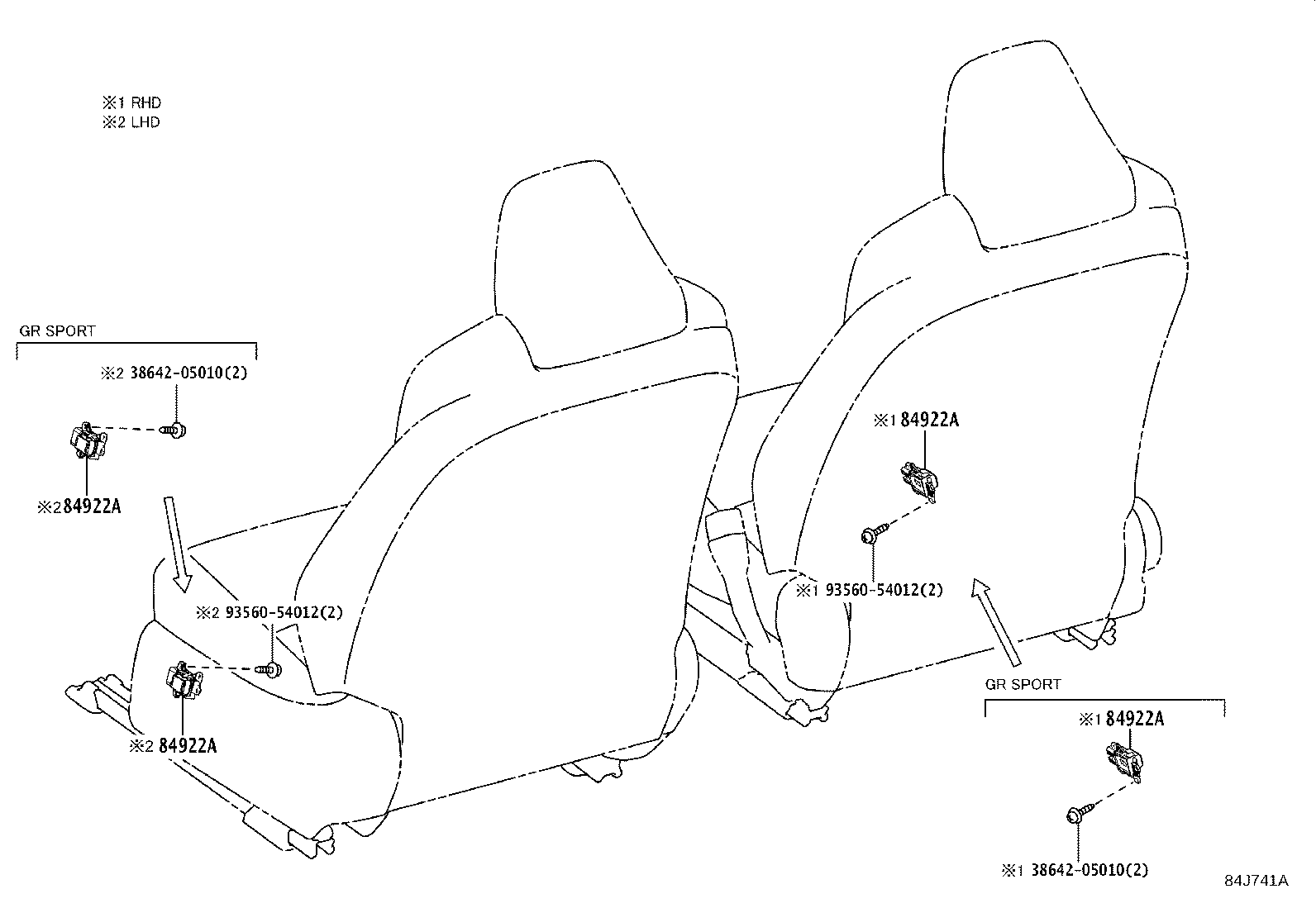

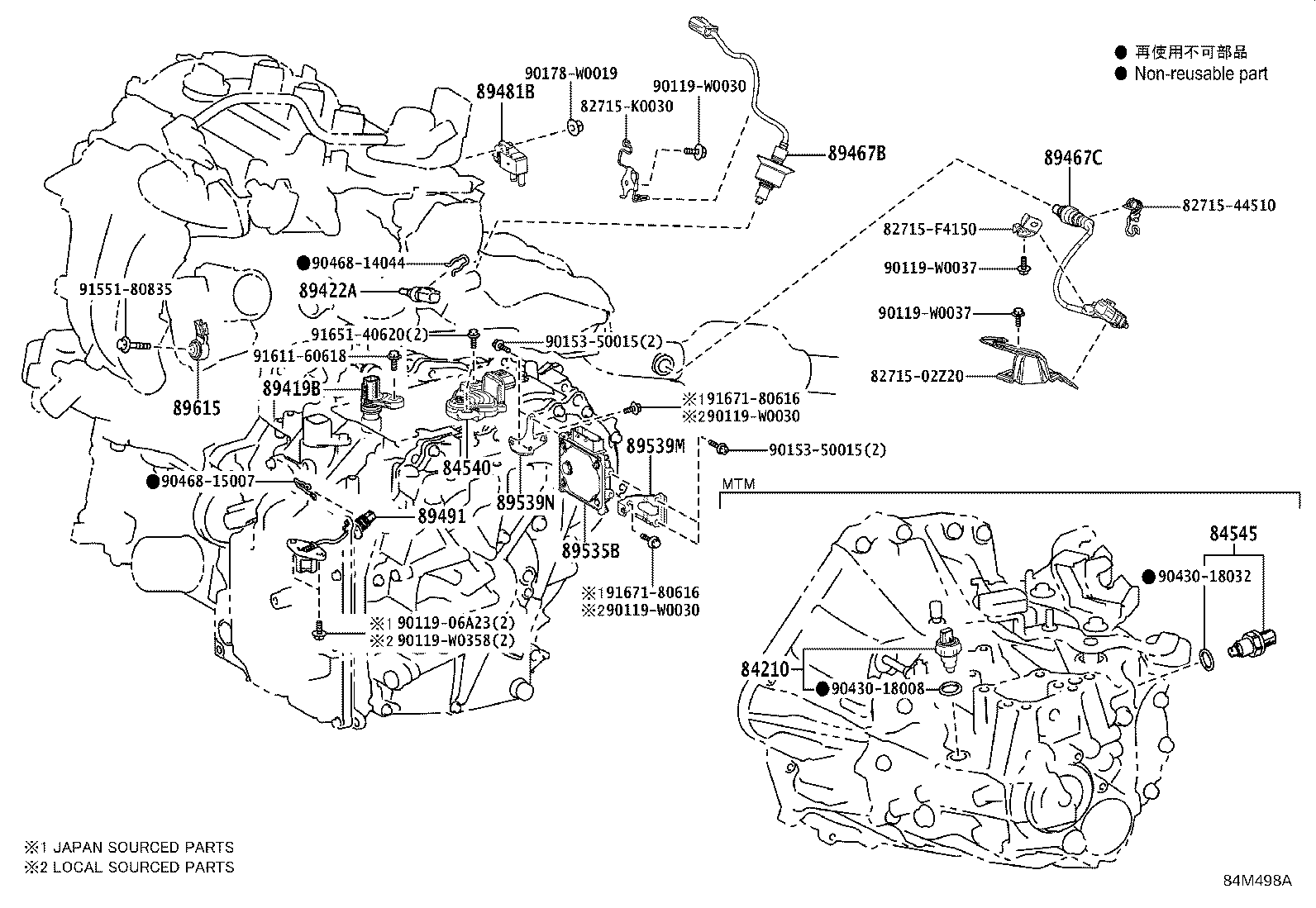

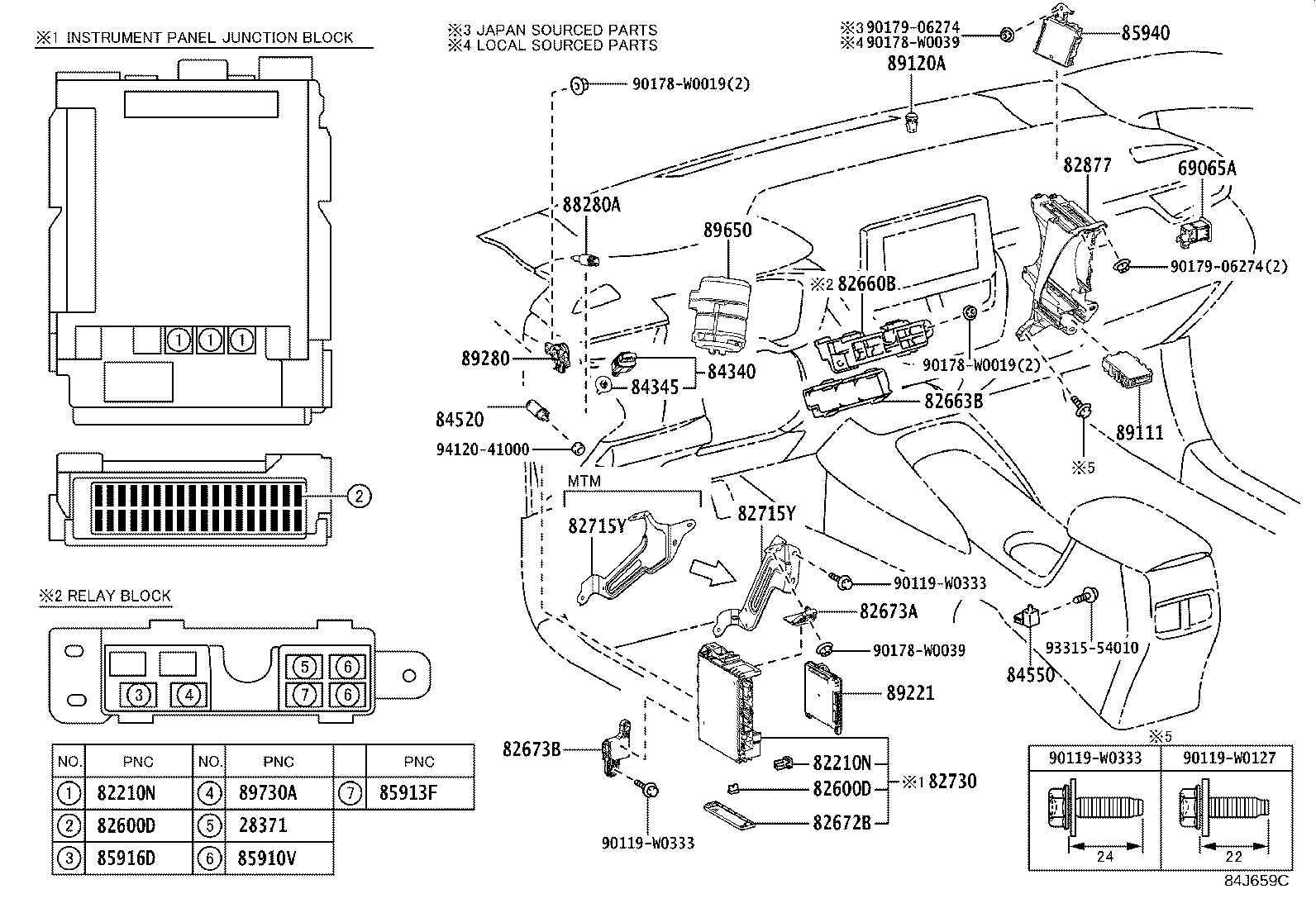

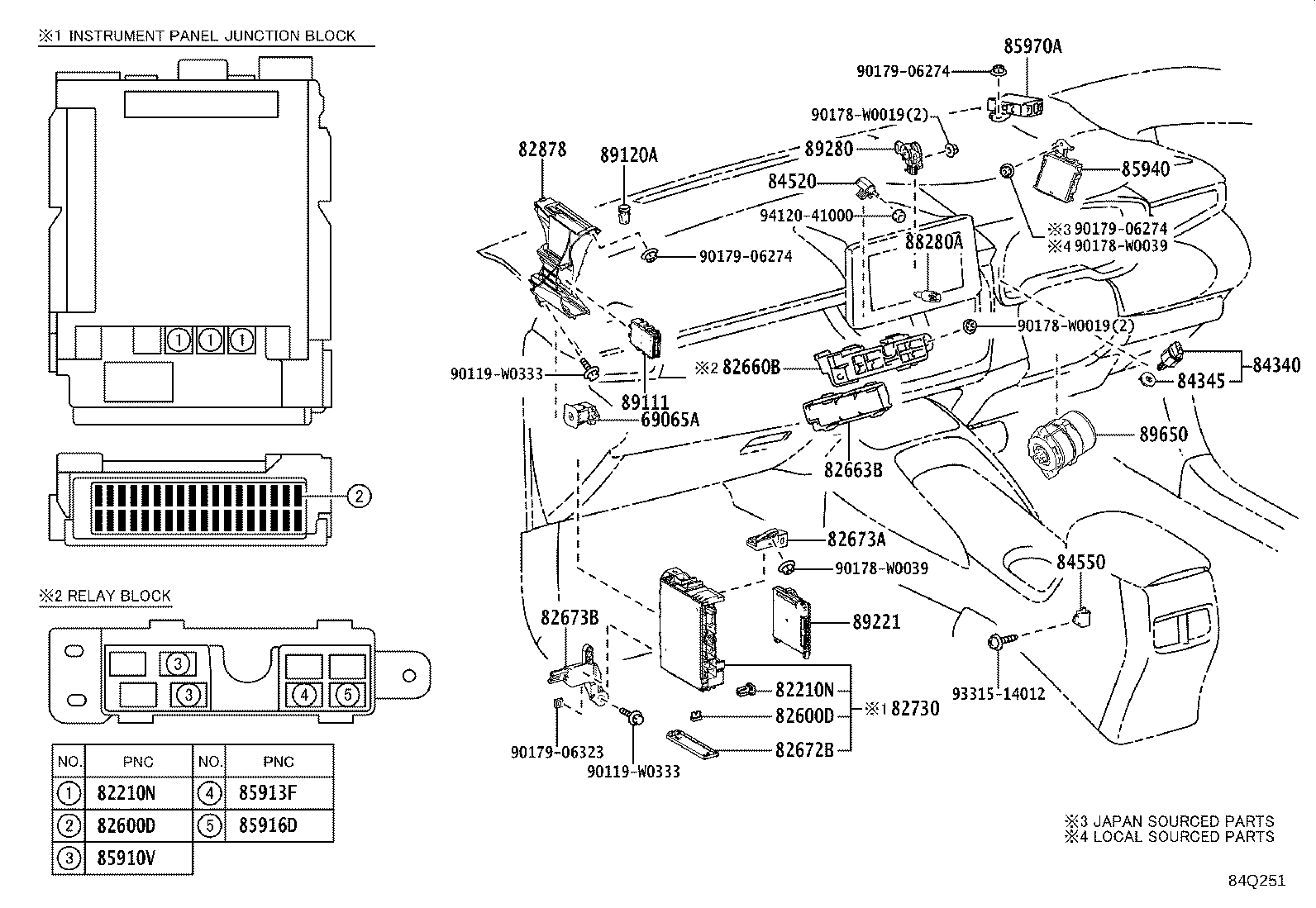

Figure 84J639B 84J639B 2019-01 → — Figure 84J638G 84J638G 2019-01 → — Figure 84M498A 84M498A 2020-11 → — Figure 84J661A 84J661A 2019-01 → — Figure 84J660D 84J660D 2019-01 → — Figure 84Q247 84Q247 2023-01 → — Figure 84J743C 84J743C 2019-01 → 2023-01 Figure 84J743C 84J743C 2023-01 → — Figure 84Q248 84Q248 2023-01 → — Figure 84J744B 84J744B 2019-01 → — Figure 84Q249 84Q249 2023-01 → — Figure 84J659C 84J659C 2019-01 → 2023-01 Figure 84J659C 84J659C 2023-01 → — Figure 84J659C 84J659C 2023-01 → — Figure 84Q250 84Q250 2023-01 → — Figure 84Q250 84Q250 2023-01 → — Figure 84J654B 84J654B 2019-01 → 2023-01 Figure 84J654B 84J654B 2023-01 → — Figure 84Q251 84Q251 2023-01 → — Figure 84J608E 84J608E 2019-01 → — Figure 84J610E 84J610E 2019-01 → — Figure 84J622C 84J622C 2019-01 → — Figure 84J741A 84J741A 2019-01 → — Figure 84J636A 84J636A 2019-01 → — Figure 84J637A 84J637A 2019-01 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371L Relay, Igp
28850 Sensor Assy, Battery Current
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82621A Cover, Fusible Link
82641 Relay, Integration NO.1
82642B Relay, Day Time Running Light, NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82660J Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82666 Holder, Connector
82666H Holder, Connector, NO.2
82672B Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715Y Bracket, Wiring Harness Clamp, NO.3
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84746 Switch, Tire Pressure Warning
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84751R Switch, Seat Heater(REAR)
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84870A Switch Assy, Outer Mirror
84922A Switch, Front Power Seat(FOR LUMBAR)
84970 Switch Assy, Combination
84975 Switch, Trip
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85535B Cover, Power Outlet Socket, NO.1
85910 Relay Assy, Circuit Opening
85910E Relay, Injector
85910V Relay, Seat Heater
85912 Relay, Defogger
85913F Relay, Steering Heater
85915 Relay, Main
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85917D Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85924C Relay, Igct
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85948 Relay, Windshield Wiper
85970A Relay Assy, Double Lock Door Control
86530 Relay Assy, Horn
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
87989 Relay, Mirror Control
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88280A Switch Assy, Clutch
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89257 Computer, Cooling Fan
89280 Sensor Assy, Clutch Pedal Stroke
89419B Sensor, Shift Stroke
89422A Sensor, Water Temperature
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89535B Computer, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
G9020E Relay, Hybrid Water Pump
