Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe
Supported model
Data version 2022-12

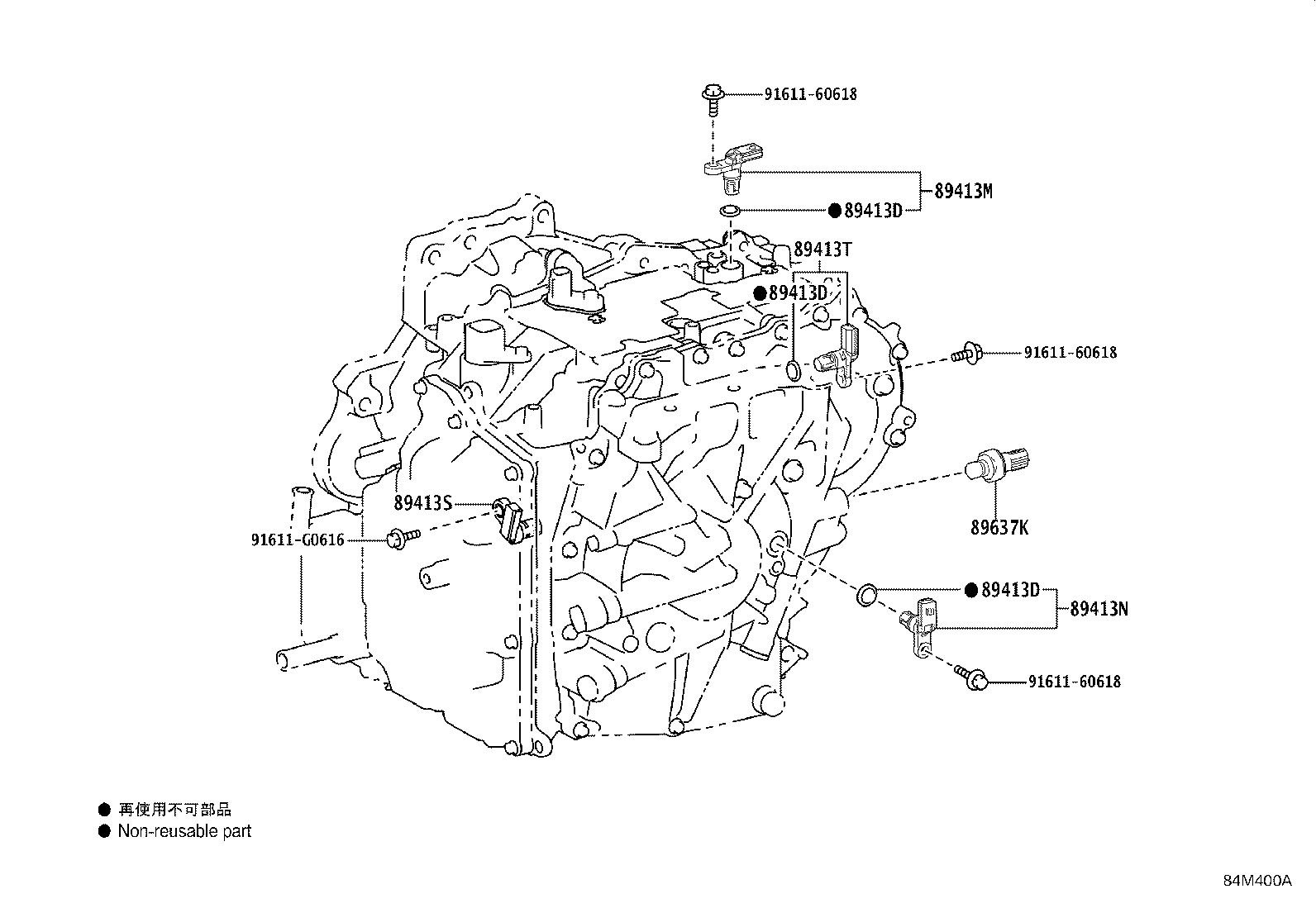

Overdrive & Electronic Controlled Transmission
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
| 89413M | Sensor, Transmission Revolution, (NOUT) |
| 89413N | Sensor, Transmission Revolution, (NT) |
| 89413P | Sensor, Transmission Revolution, (NIN) |
| 89413S | Sensor, Transmission Revolution (NC) |
| 89413T | Sensor, Transmission Revolution (NSS) |
| 89637K | Sensor, Oil Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
