Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe
Supported model
Data version 2022-12

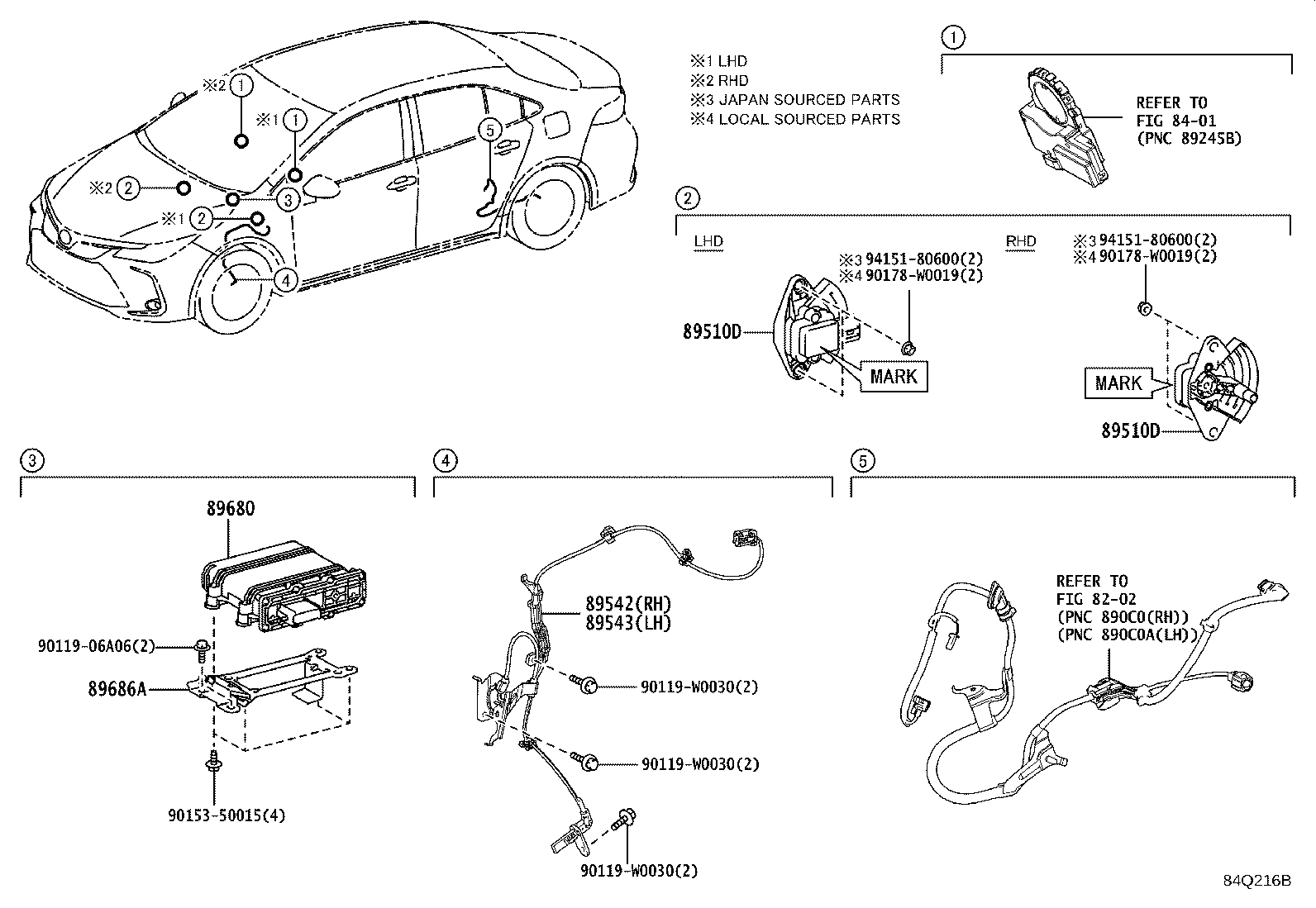

Abs & Vsc
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89516C | Wire, Skid Control Sensor, RH |
| 89516D | Wire, Skid Control Sensor, LH |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89680 | Supply Assy, Brake Control Power |
| 89686A | Bracket, Brake Control Power Supply, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
