Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

12 part groups · 2 illustrations

Illustrations

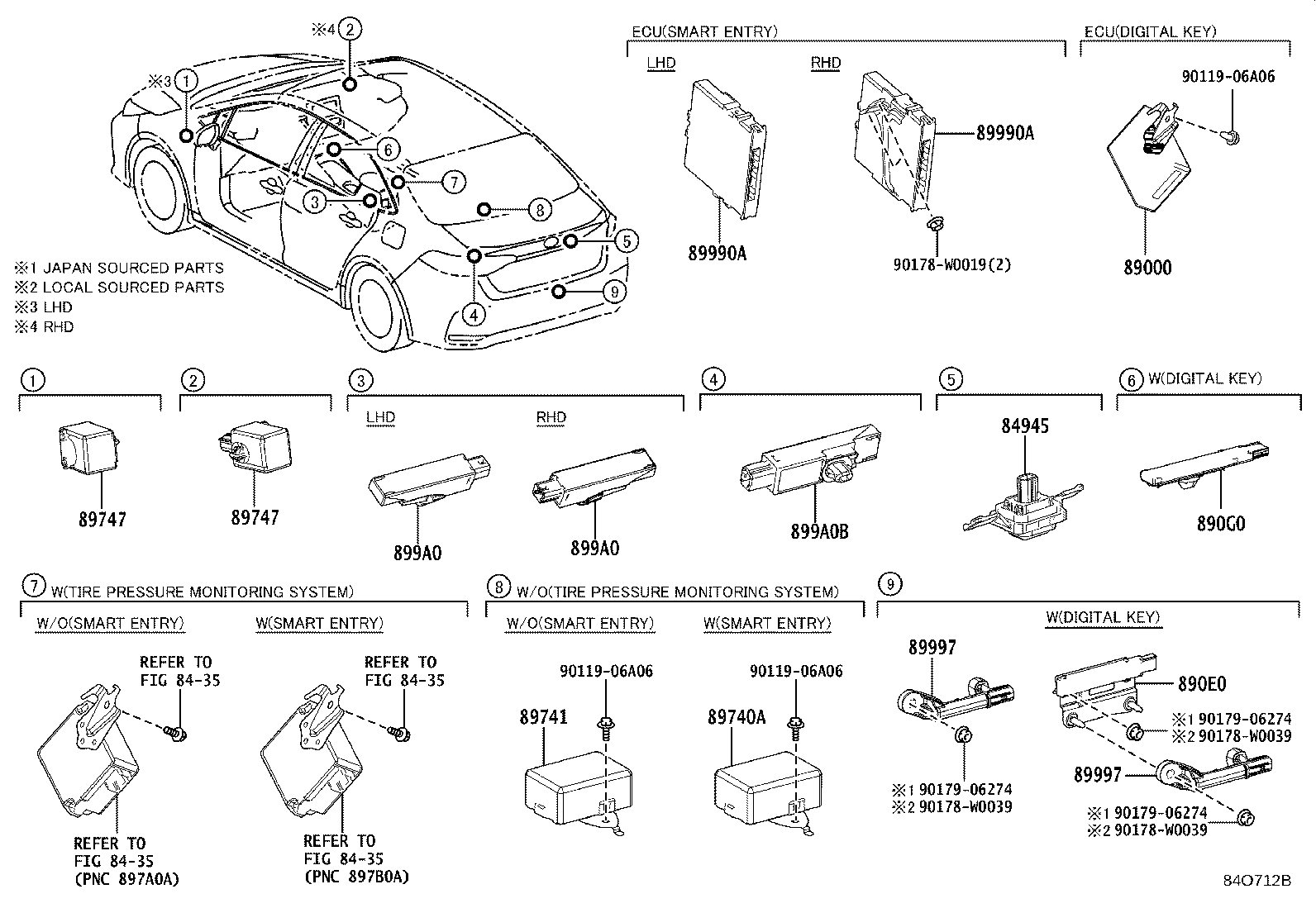

Figure 84J578B 84J578B 2019-01 → 2022-01 Figure 84O712B 84O712B 2022-01 → —

Part groups

PNCDescription
84945 Switch, Luggage Electrical Key
89000 Computer Assy, Digital Key
890E0 Receiver Assy, Ble Digital Key
890G0 Receiver Assy, Ble Indoor Digital Key
89740A Receiver Assy, Smart Door Control
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
