Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

19 part groups · 2 illustrations

Illustrations

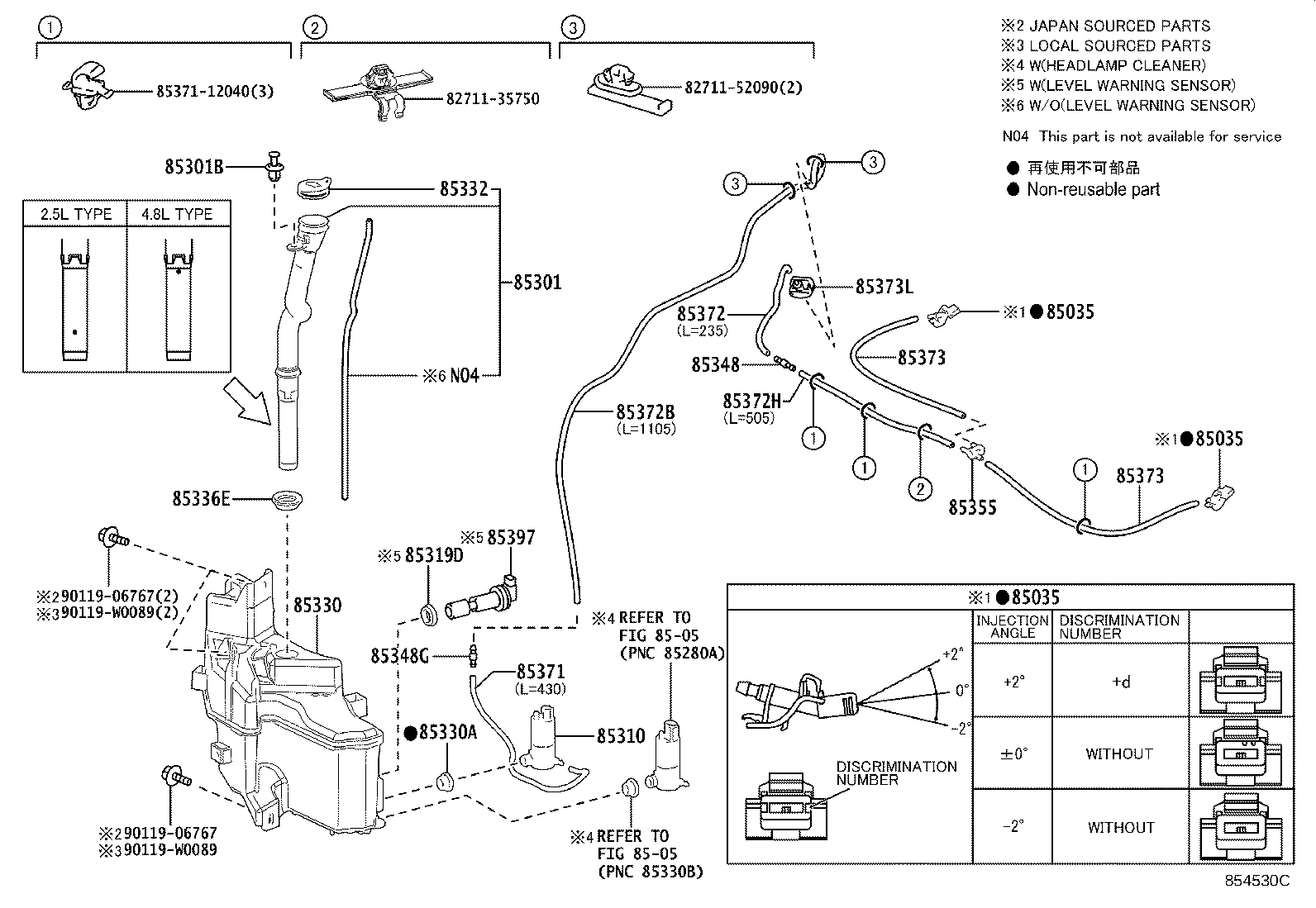

Figure 854026N 854026N 2019-01 → 2020-11 Figure 854530C 854530C 2020-11 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85301 Inlet Sub-assy, Washer
85301B Clip, Washer
85310 Motor And Pump Assy, Windshield Washer
85319D Packing, Front Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85336E Packing, Windshield Washer Inlet Hose
85348 Joint, Windshield Washer Hose, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85355 Valve, Windshield Washer Hose
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85373L Grommet, Washer
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
