Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 3 illustrations

Illustrations

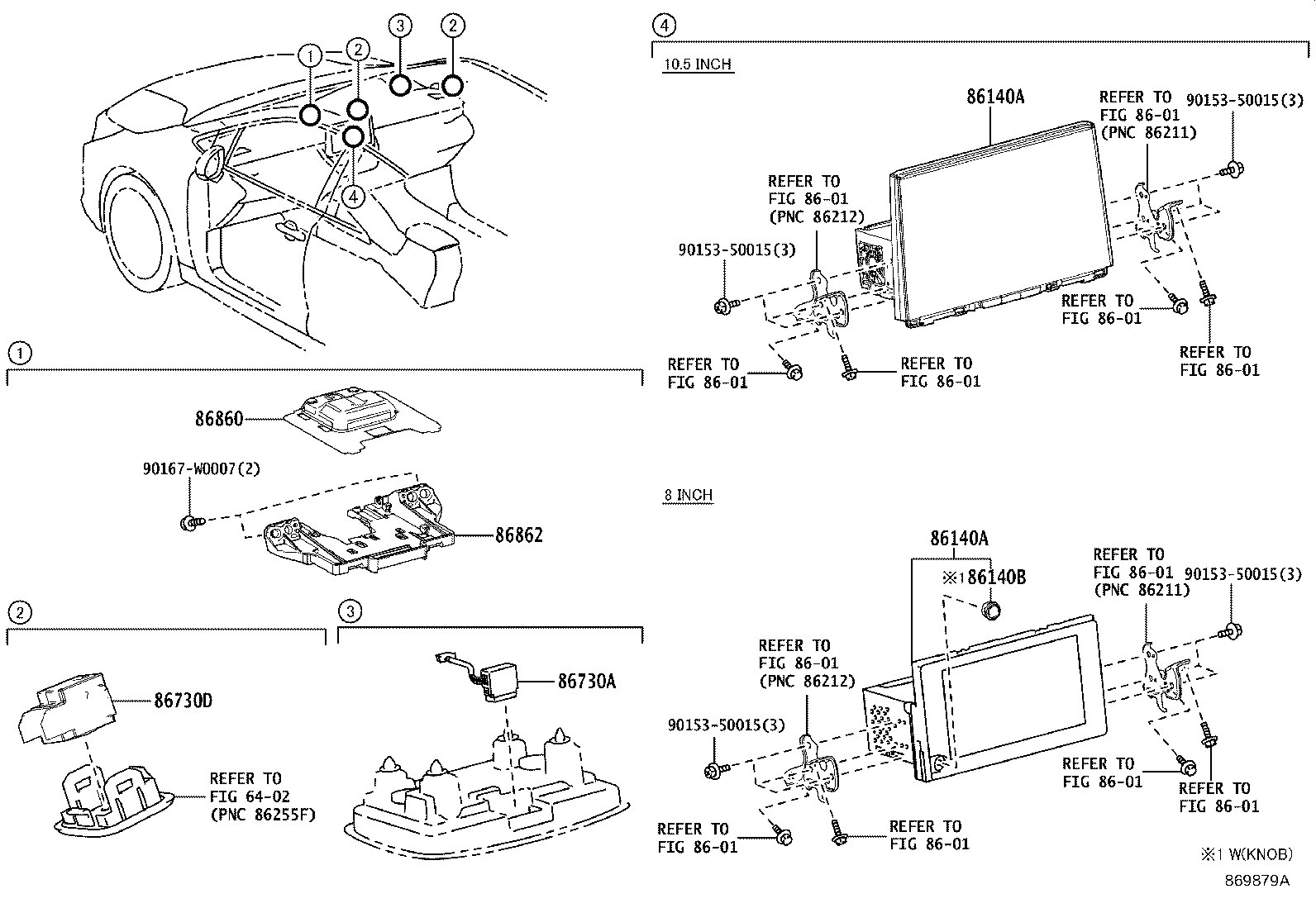

Figure 867439A 867439A 2019-01 → 2023-01 Figure 869879A 869879A 2023-01 → — Figure 869879A 869879A 2023-01 → —

Part groups

PNCDescription
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86730D Microphone Assy, Telephone, NO.2
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86843 Cover, Navigation Computer
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
