Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pre-collision System

8 part groups · 4 illustrations

Illustrations

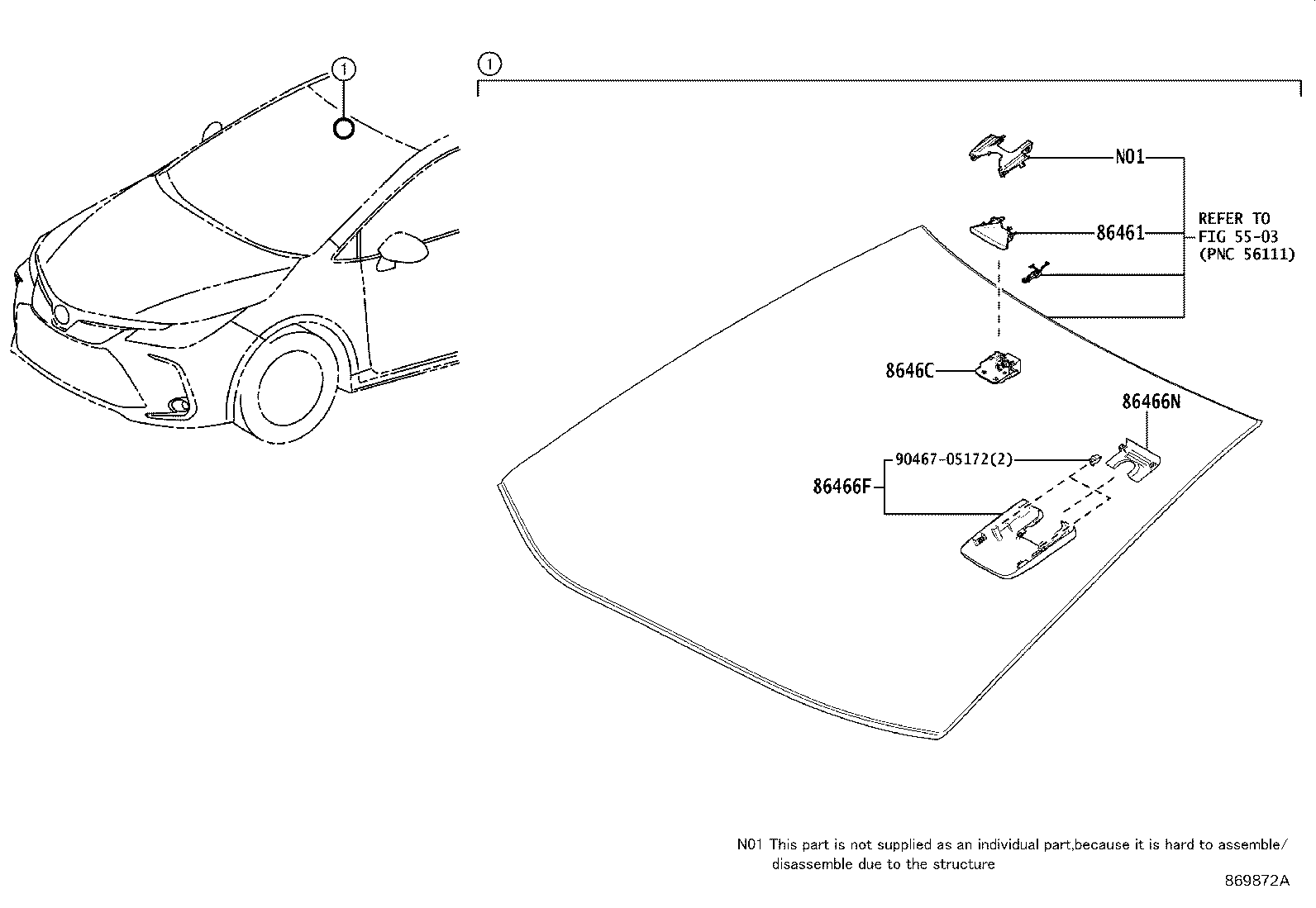

Figure 867431C 867431C 2019-01 → 2023-01 Figure 867431C 867431C 2019-01 → — Figure 867431C 867431C 2019-01 → — Figure 869872A 869872A 2023-01 → —

Part groups

PNCDescription
86401 Hood Sub-assy, Forward Recognition W/Heater
86461 Hood, Forward Recognition
86464A Latch, Forward Recognition
86466D Cover, Forward Recognition, NO.1
86466E Cover, Forward Recognition, NO.2
86466F Cover, Forward Recognition, NO.3
86466N Cover, Forward Recognition, NO.4
8646C Camera, Forward Recognition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
