Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 5 illustrations

Illustrations

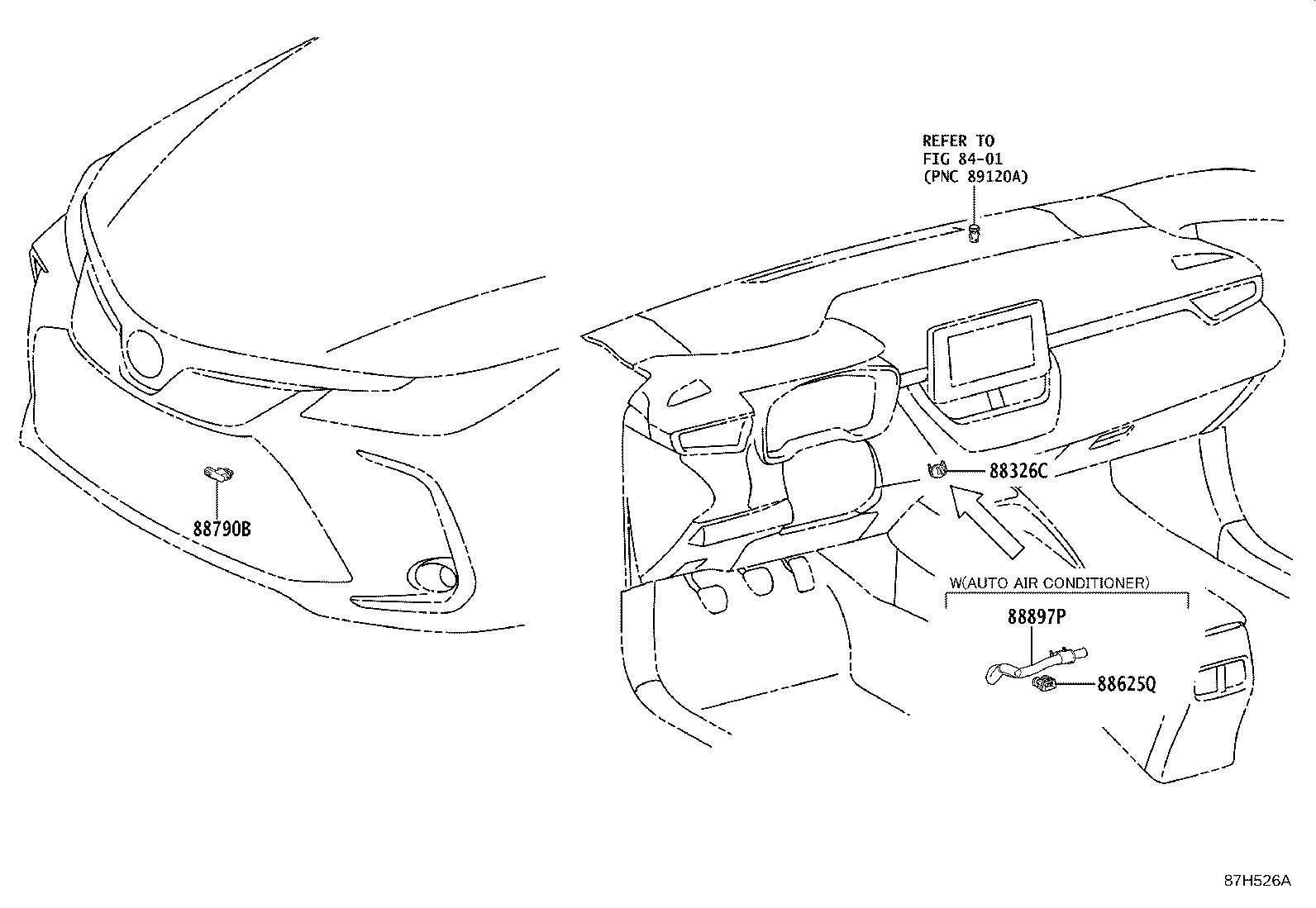

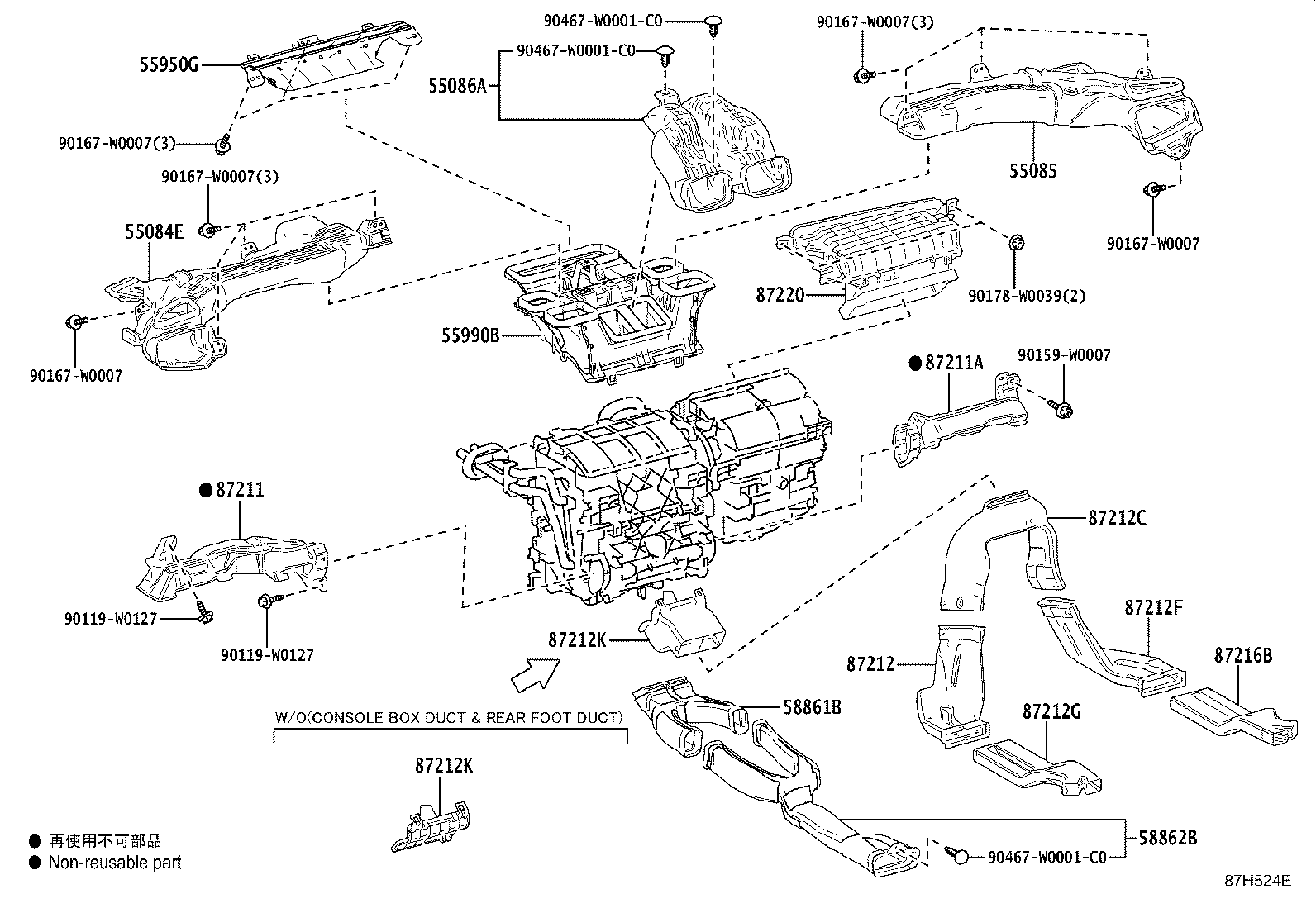

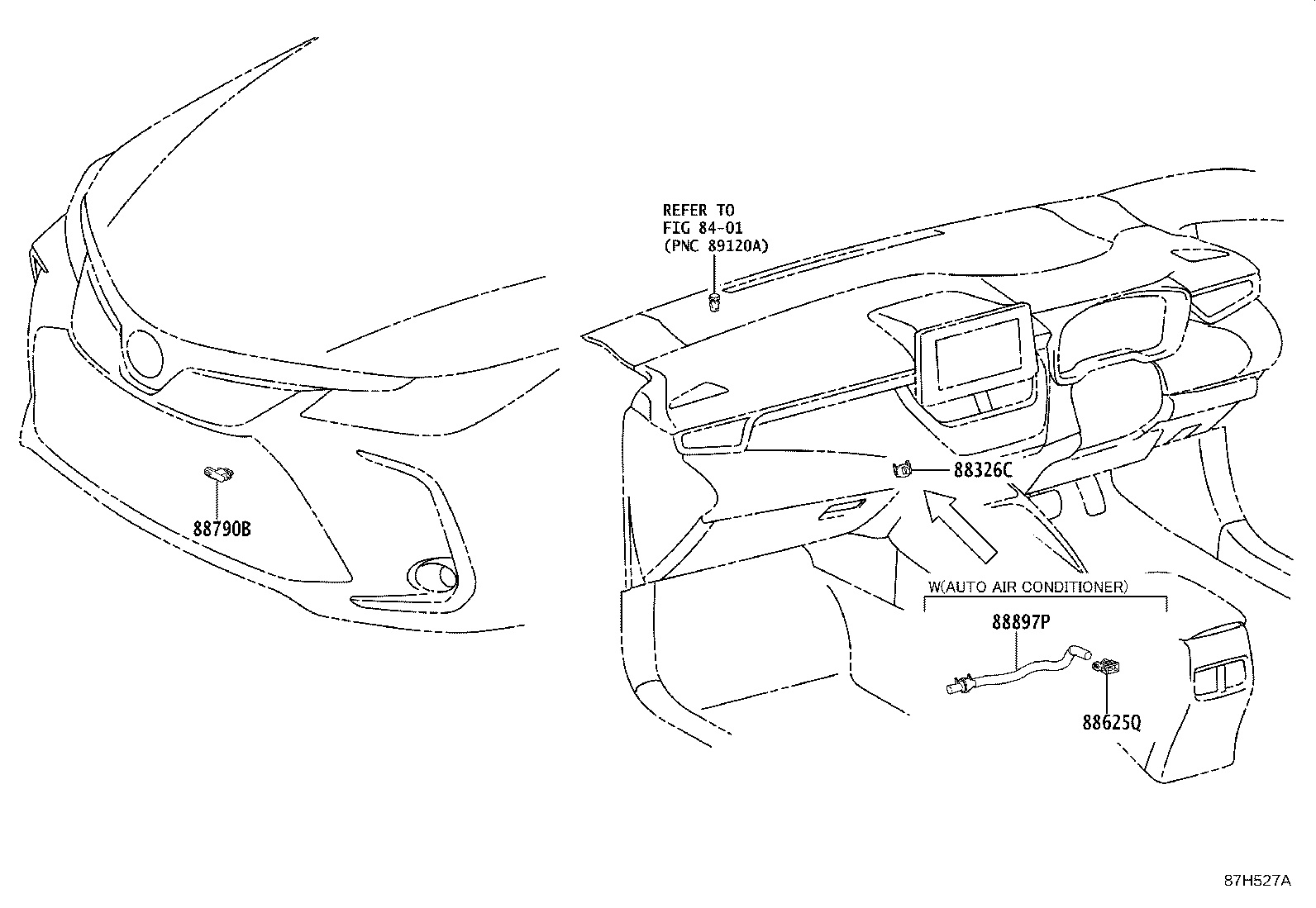

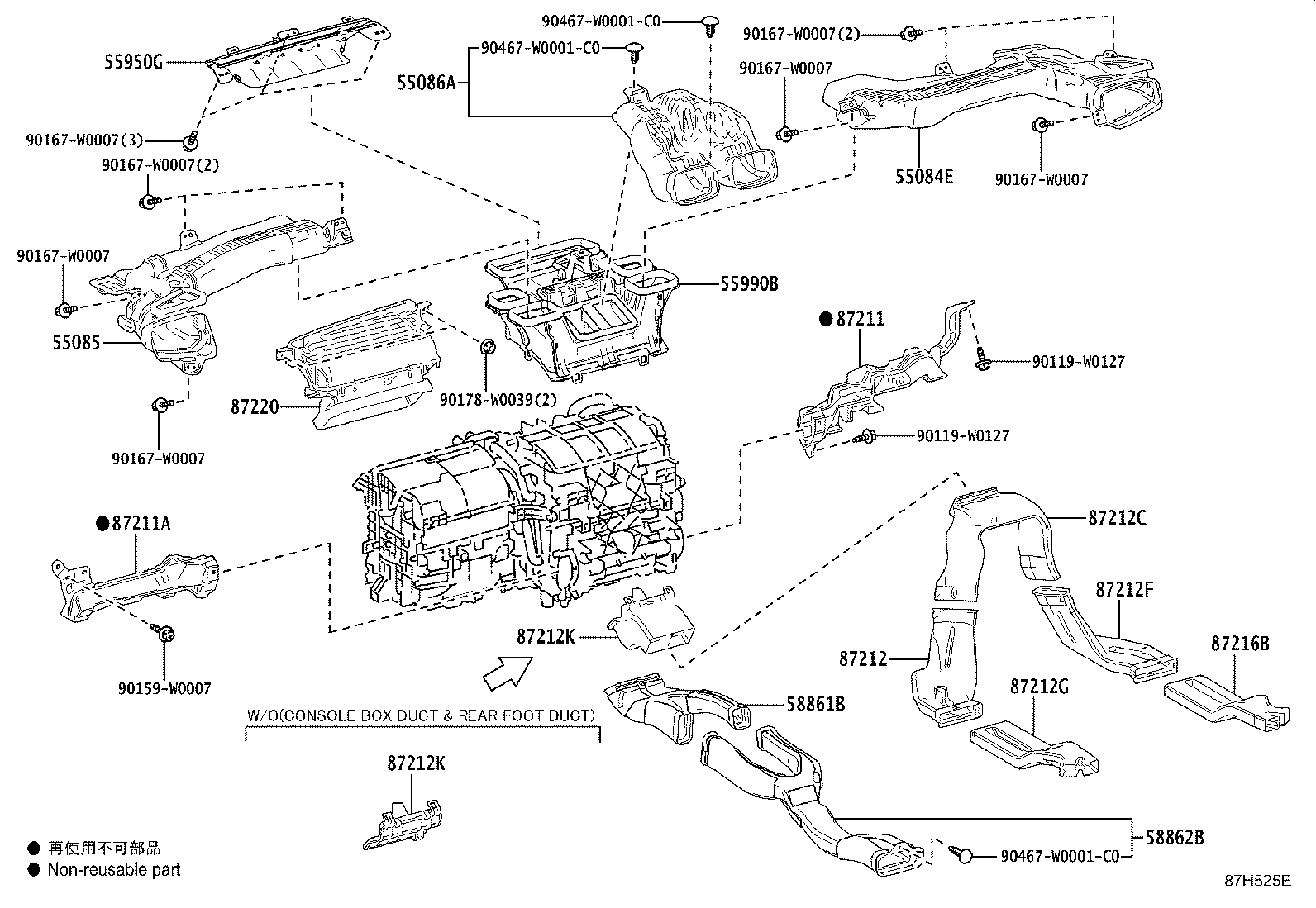

Figure 87H523A 87H523A 2019-01 → — Figure 87H524E 87H524E 2019-01 → — Figure 87H525E 87H525E 2019-01 → — Figure 87H526A 87H526A 2019-01 → — Figure 87H527A 87H527A 2019-01 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086A Duct Sub-assy, Heater TO Register, Center
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212C Duct, Air, RR
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212K Duct, Air, Rear NO.6
87216B Duct, Air, Rear NO.4
87220 Duct Assy, Air
88326C Plate, Cover
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
