Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 5 illustrations

Illustrations

Figure 87H514A

87H514A 2019-01 → —

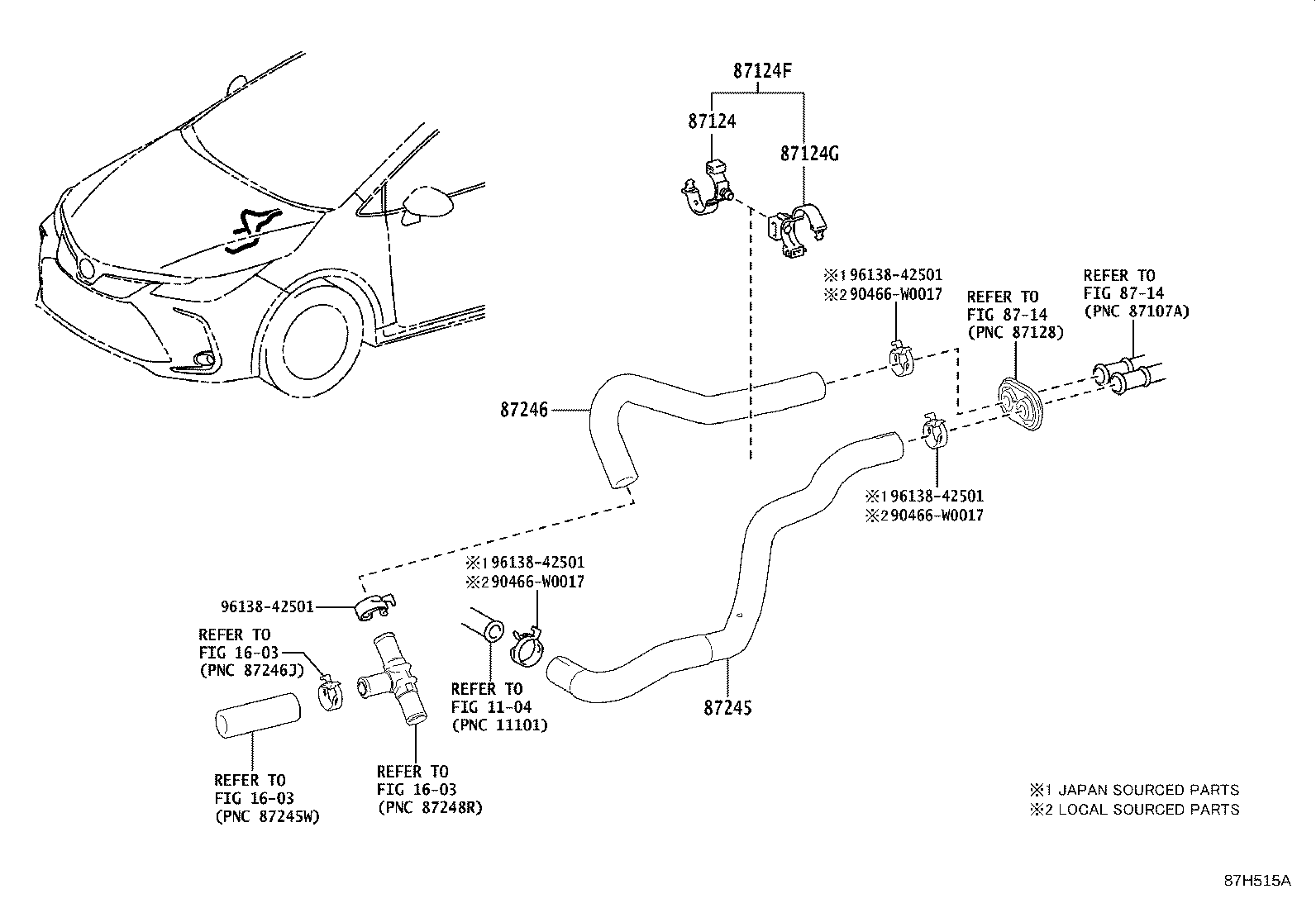

Figure 87H515A

87H515A 2019-01 → —

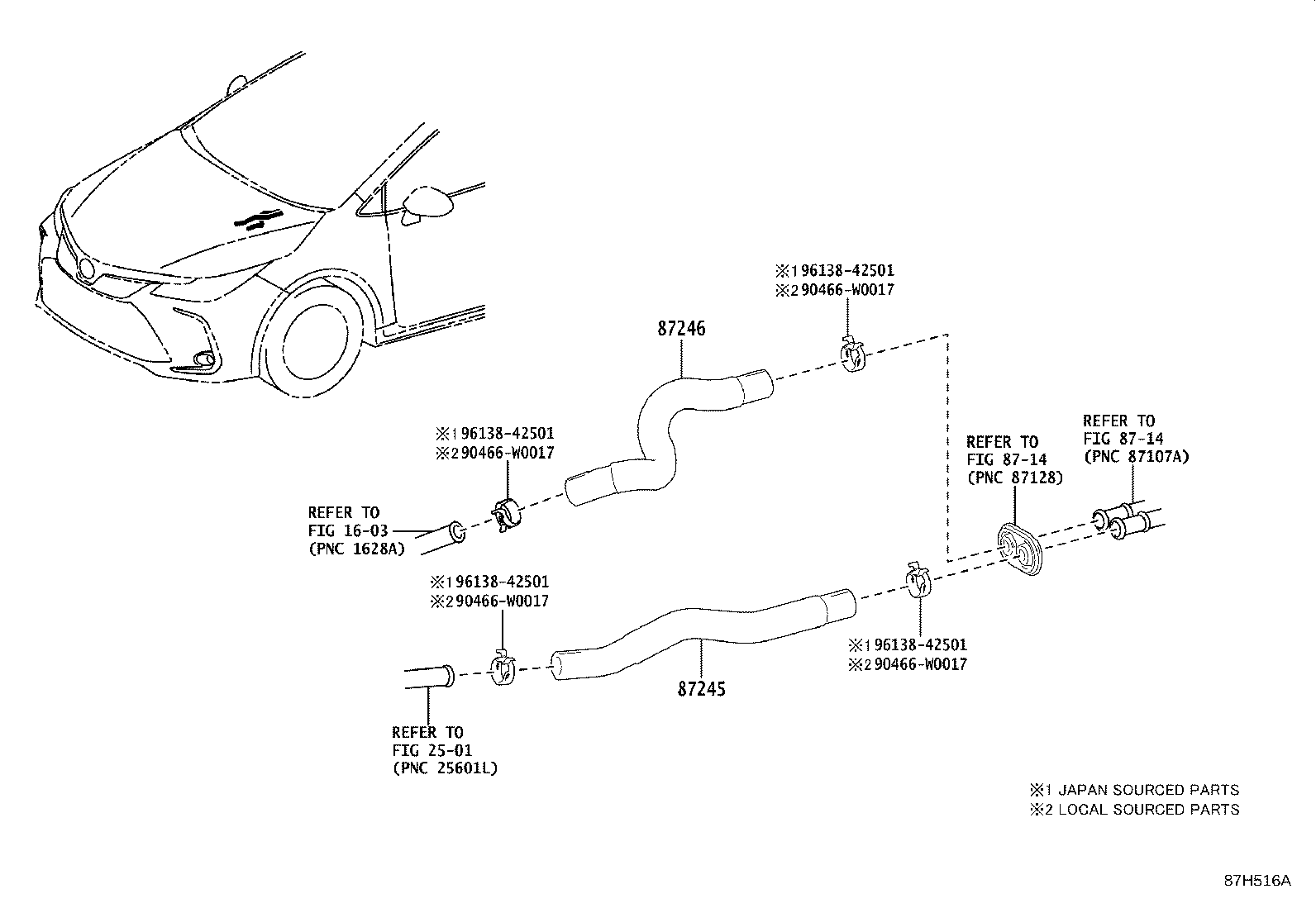

Figure 87H516A

87H516A 2019-01 → —

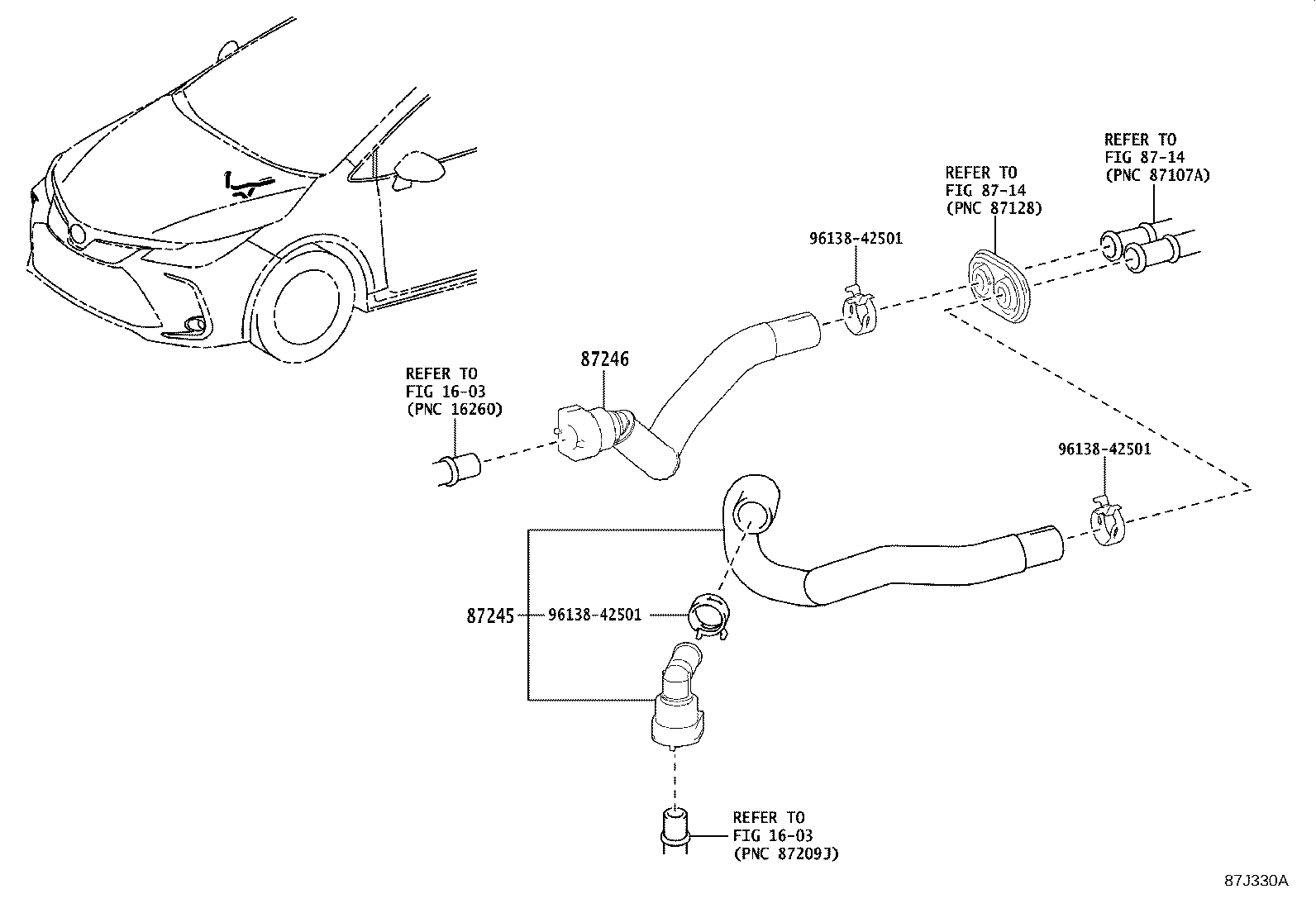

Figure 87J330A

87J330A 2020-11 → —

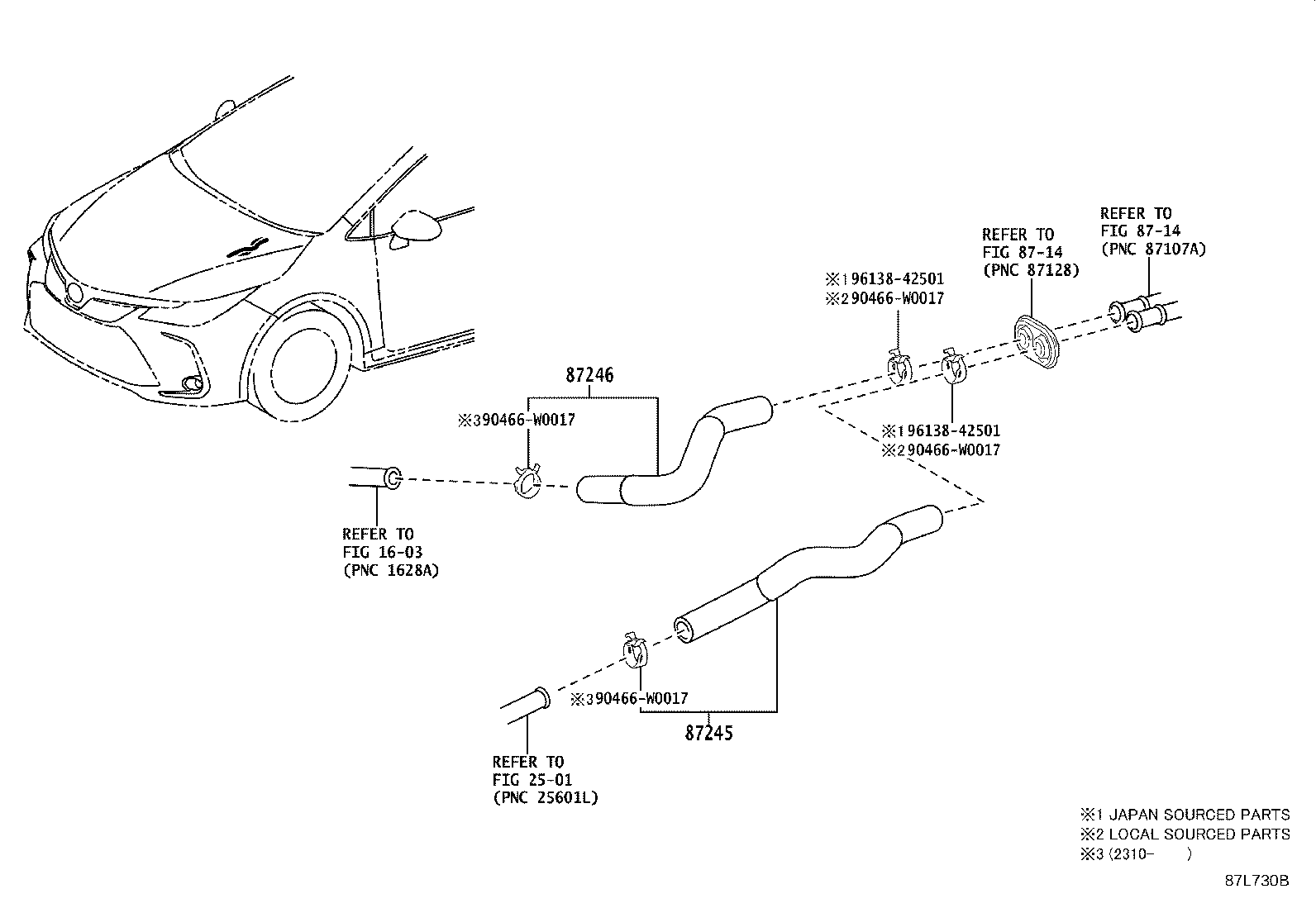

Figure 87L730B

87L730B 2023-01 → —

Part groups

PNC	Description
87124	Clamp, Heater
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
