Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

2 part groups · 3 illustrations

Illustrations

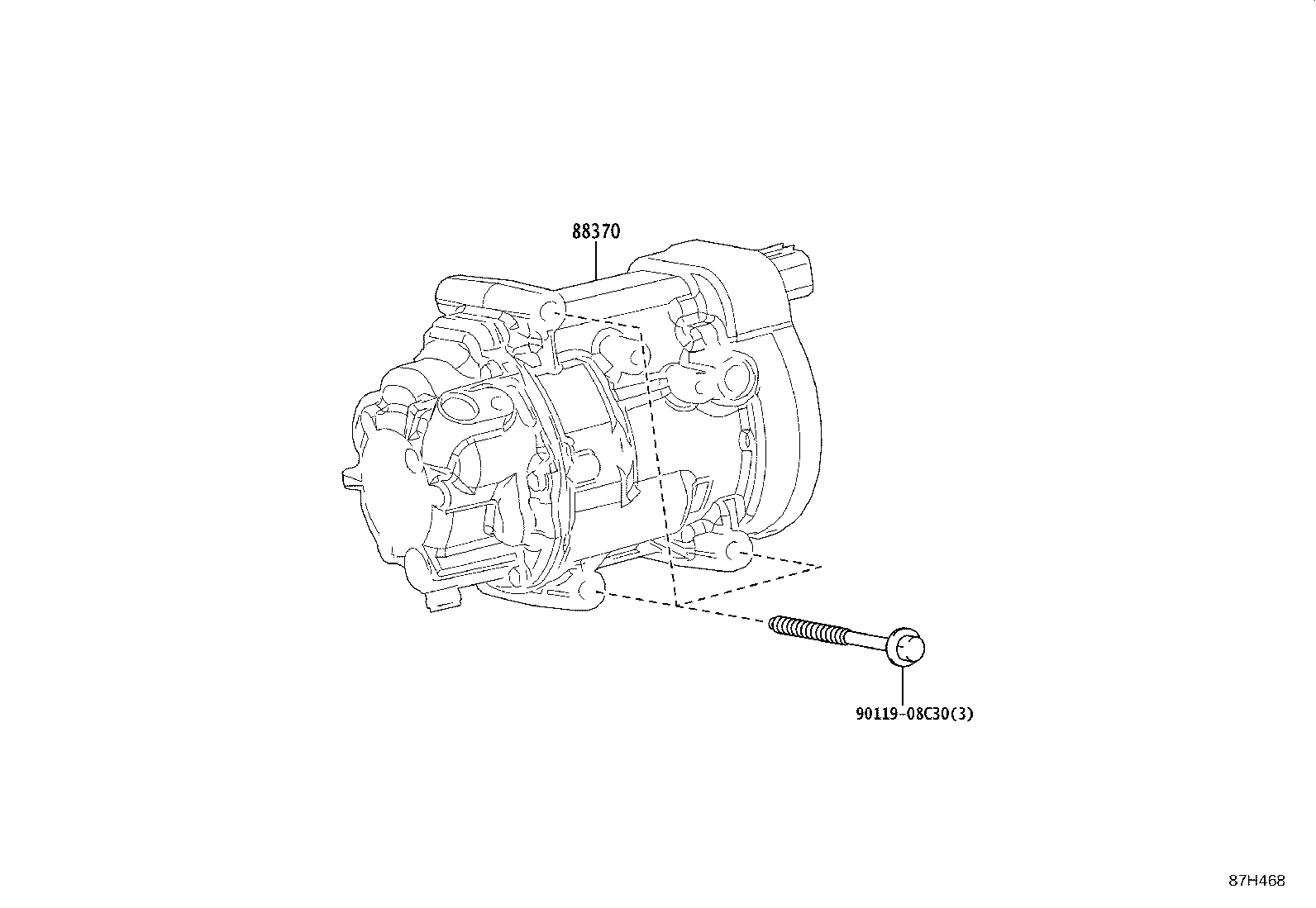

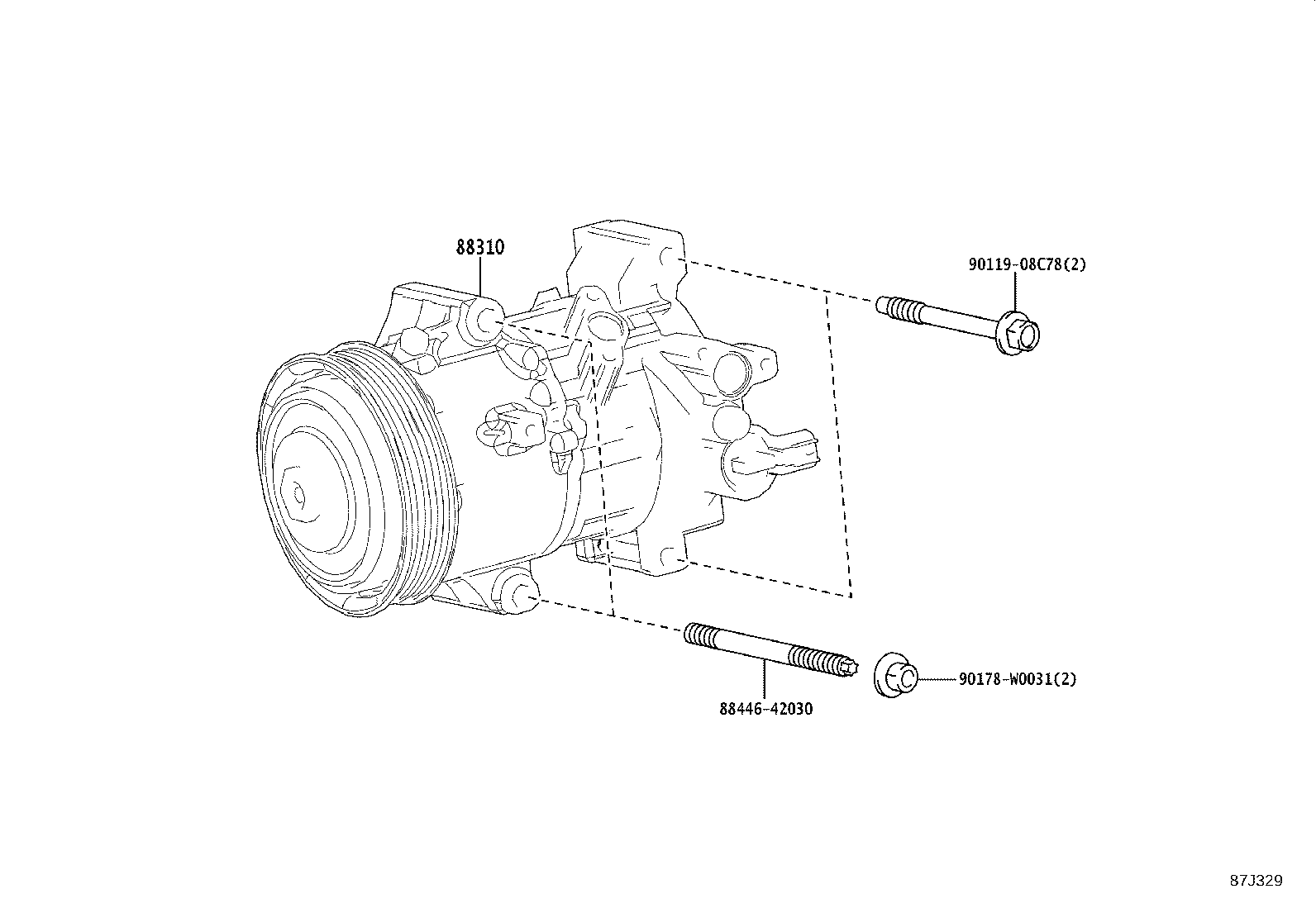

Figure 87H467 87H467 2019-01 → — Figure 87H468 87H468 2019-01 → — Figure 87J329 87J329 2020-11 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88370 Compressor Assy, W/Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
