Air Purifier OR Ion Generator

4 part groups · 2 illustrations

Illustrations

Figure 87M4UK

87M4UK 2024-02 → —

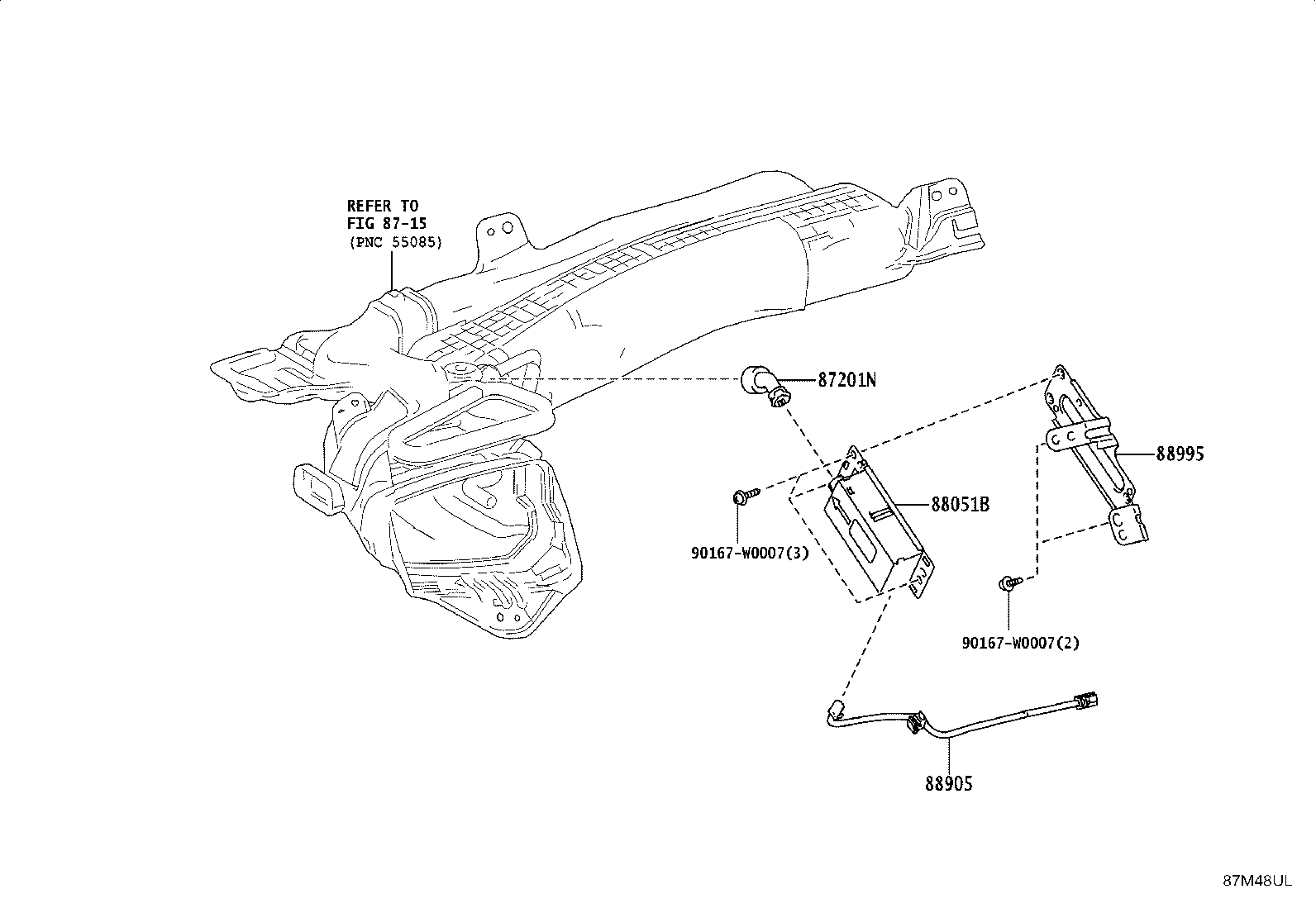

Figure 87M4UL

87M4UL 2024-02 → —

Part groups

PNC	Description
87201N	Duct Sub-assy, Air
88051B	Generator Sub-assy, Ion, NO.1
88905	Wire Sub-assy, Air Purifier, NO.1
88995	Bracket,Ion Generator, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
