Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

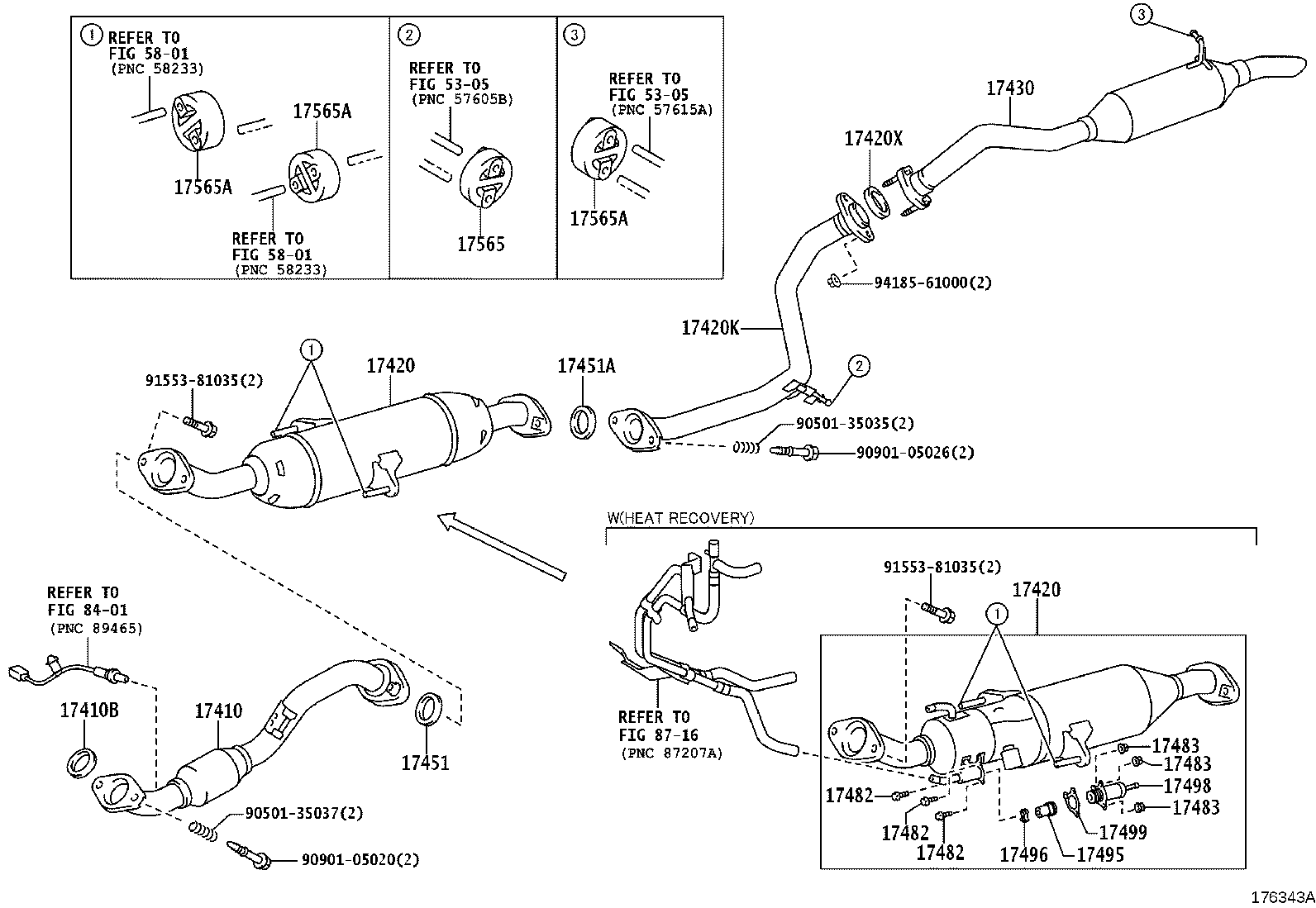

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-0D420 note |
Pipe Assy, Exhaust, Front
2008-02 → 2009-02
ended
|
4ZZFE ZZE150 | — | |
| 17410-0N060 |
Pipe Assy, Exhaust, Front
2008-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 17410-0R090 note |
Pipe Assy, Exhaust, Front
2008-02 → 2009-03
ended
|
1ADFTV ADE150 DCR | — | |
| 17410-0R100 note |
Pipe Assy, Exhaust, Front
2008-02 → 2009-03
ended
|
1ADFTV ADE150 DCRL | — | |
| 17410-0T010 note |
Pipe Assy, Exhaust, Front
2008-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 17410-0N090 |
Pipe Assy, Exhaust, Front
2009-02 → 2010-07
ended
|
1NDTV NDE150 D;1NDTV NDE150 +2 | — | |
| 17410-0R210 note |
Pipe Assy, Exhaust, Front
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 17410-0T010 note |
Pipe Assy, Exhaust, Front
2009-02 → 2010-06
ended
|
1ZRFE ZRE151 | — | |
| 17410-0T130 note |
Pipe Assy, Exhaust, Front
2009-02 → 2010-06
ended
|
1ZRFAE ZRE151 | — | |
| 17410-0Y040 note |
Pipe Assy, Exhaust, Front
2009-02 → 2010-06
ended
|
1NRFE NRE150 | — | |
| 17410-0N090 |
Pipe Assy, Exhaust, Front
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 17410-0R210 note |
Pipe Assy, Exhaust, Front
2010-06 → 2013-06
ended
|
1ADFTV ADE150 | — | |
| 17410-0T130 note |
Pipe Assy, Exhaust, Front
2010-06 → 2013-06
ended
|
1ZRFAE ZRE151 | — | |
| 17410-0Y040 note |
Pipe Assy, Exhaust, Front
2010-06 → 2013-06
ended
|
1NRFE NRE150 RHD | — | |
| 17410-0Y040 note |
Pipe Assy, Exhaust, Front
2010-06 → 2013-06
ended
|
1NRFE NRE150 | — | |
| 17410-0Y090 note |
Pipe Assy, Exhaust, Front
2010-06 → 2013-06
ended
|
1NRFE NRE150 | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-22070 |
Gasket, Exhaust Pipe
2008-02 → 2009-02
ended
|
4ZZFE ZZE150 | — | |
| 17451-28040 |
Gasket, Exhaust Pipe
2008-02 → 2009-02
ended
|
1NDTV,1ZRFE NDE150,ZRE151 | — | |
| 17451-28040 |
Gasket, Exhaust Pipe
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17451-28040 |
Gasket, Exhaust Pipe
2009-02 → 2010-06
ended
|
1NDTV NDE150 DCR;1ADFTV,1ZR# ADE150,ZRE151 +1 | — | |
| 17451-28040 |
Gasket, Exhaust Pipe
2009-02 → 2010-07
ended
|
1NDTV NDE150 DCRL | — | |
| 17451-47020 |
Gasket, Exhaust Pipe
2009-02 → 2010-06
ended
|
1NRFE NRE150 | — | |
| 17451-28040 |
Gasket, Exhaust Pipe
2010-06 → 2013-06
ended
|
1ADFTV,1NDTV,1ZRFAE ADE150,NDE150,ZRE151 | — | |
| 17451-47020 |
Gasket, Exhaust Pipe
2010-06 → 2013-06
ended
|
1NRFE NRE150 | — | |
| 17420 — Pipe Assy, Exhaust, Center | ||||
| 17420-0D140 |
Pipe Assy, Exhaust, Center
2008-02 → 2009-02
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 17420-0T010 |
Pipe Assy, Exhaust, Center
2008-02 → 2009-03
ended
|
1ADFTV ADE150;1NDTV NDE150 5F,5FS | — | |
| 17420-0D140 |
Pipe Assy, Exhaust, Center
2009-02 → 2010-06
ended
|
1ZR# ZRE151 | — | |
| 17420-0T010 |
Pipe Assy, Exhaust, Center
2009-02 → 2010-07
ended
|
1NDTV NDE150 D;1ADFTV ADE150 +4 | — | |
| 17420-0Y020 |
Pipe Assy, Exhaust, Center
2009-02 → 2010-06
ended
|
1NRFE NRE150 | — | |
| 17420-0Y020 note |
Pipe Assy, Exhaust, Center
2009-02 → 2010-06
ended
|
1NRFE NRE150 LHD | — | |
| 17420-0Y020 note |
Pipe Assy, Exhaust, Center
2009-02 → 2010-06
ended
|
1NRFE NRE150 LHD | — | |
| 17420-47080 note |
Pipe Assy, Exhaust, Center
2009-02 → 2010-06
ended
|
1NRFE NRE150 LHD | — | |
| 17420-0D140 |
Pipe Assy, Exhaust, Center
2010-06 → 2013-06
ended
|
1ZRFAE ZRE151 | — | |
| 17420-0T010 |
Pipe Assy, Exhaust, Center
2010-06 → 2013-06
ended
|
1ADFTV,1NDTV ADE150,NDE150 | — | |
| 17420-0Y020 |
Pipe Assy, Exhaust, Center
2010-06 → 2013-06
ended
|
1NRFE NRE150 | — | |
| 17420-47080 note |
Pipe Assy, Exhaust, Center
2010-06 → 2013-06
ended
|
1NRFE NRE150 LHD | — | |
| 17420K — Pipe Assy, Exhaust, Center NO.2 | ||||
| 17420-0D140 |
Pipe Assy, Exhaust, Center NO.2
2009-02 → 2010-06
ended
|
1NRFE NRE150 | — | |
| 17420-0D140 |
Pipe Assy, Exhaust, Center NO.2
2010-06 → 2013-06
ended
|
1NRFE NRE150 | — | |
| 17420X — Gasket, Exhaust Pipe, Center | ||||
| 90917-06089 |
Gasket, Exhaust Pipe, Center
2008-02 → 2009-02
ended
|
1NDTV,1ZRFE,4ZZFE NDE150,ZRE151,ZZE150 | — | |
| 90917-06089 |
Gasket, Exhaust Pipe, Center
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 90917-06089 |
Gasket, Exhaust Pipe, Center
2009-02 → 2010-06
ended
|
1NDTV NDE150 DCR;1ADFTV,1NRFE,1ZR# ADE150,NRE150,ZRE151 +1 | — | |
| 90917-06089 |
Gasket, Exhaust Pipe, Center
2009-02 → 2010-07
ended
|
1NDTV NDE150 DCRL | — | |
| 90917-06089 |
Gasket, Exhaust Pipe, Center
2010-06 → 2013-06
ended
|
1ADFTV,1N#,1ZRFAE ADE150,NDE150,NRE150,ZRE151 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-0D420 |
Pipe Assy, Exhaust, Tail
2008-02 → 2009-02
ended
|
4ZZFE ZZE150 | — | |
| 17430-0N050 |
Pipe Assy, Exhaust, Tail
2008-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 17430-0R050 |
Pipe Assy, Exhaust, Tail
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17430-0T010 |
Pipe Assy, Exhaust, Tail
2008-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 17430-0N050 |
Pipe Assy, Exhaust, Tail
2009-02 → 2010-07
ended
|
1NDTV NDE150 DCRL | — | |
| 17430-0N050 |
Pipe Assy, Exhaust, Tail
2009-02 → 2010-06
ended
|
1NDTV NDE150 DCR | — | |
| 17430-0R050 |
Pipe Assy, Exhaust, Tail
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 17430-0T010 |
Pipe Assy, Exhaust, Tail
2009-02 → 2010-06
ended
|
1NRFE,1ZR# NRE150,ZRE151 | — | |
| 17430-0N050 |
Pipe Assy, Exhaust, Tail
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 17430-0R050 |
Pipe Assy, Exhaust, Tail
2010-06 → 2010-09
ended
|
1ADFTV ADE150 | — | |
| 17430-0R051 |
Pipe Assy, Exhaust, Tail
2010-10 → 2013-06
ended
|
1ADFTV ADE150 | — | |
| 17430-0T010 |
Pipe Assy, Exhaust, Tail
2010-06 → 2010-09
ended
|
1NRFE,1ZRFAE NRE150,ZRE151 | — | |
| 17430-0T011 |
Pipe Assy, Exhaust, Tail
2010-10 → 2013-06
ended
|
1NRFE,1ZRFAE NRE150,ZRE151 | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-28031 |
Gasket, Exhaust Pipe
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17451-28031 |
Gasket, Exhaust Pipe
2008-02 → 2009-02
ended
|
1NDTV,1ZRFE,4ZZFE NDE150,ZRE151,ZZE150 | — | |
| 17451-28031 |
Gasket, Exhaust Pipe
2009-02 → 2010-07
ended
|
1NDTV NDE150 D;1NDTV NDE150 +4 | — | |
| 90917-06089 |
Gasket, Exhaust Pipe
2009-02 → 2010-06
ended
|
1NRFE NRE150 | — | |
| 17451-28031 |
Gasket, Exhaust Pipe
2010-06 → 2011-02
ended
|
1ADFTV,1NDTV,1ZRFAE ADE150,NDE150,ZRE151 | — | |
| 17451-28032 |
Gasket, Exhaust Pipe
2011-03 → 2013-06
ended
|
1ADFTV,1NDTV,1ZRFAE ADE150,NDE150,ZRE151 | — | |
| 90917-06089 |
Gasket, Exhaust Pipe
2010-06 → 2013-06
ended
|
1NRFE NRE150 | — | |
| 17451A — Gasket, Exhaust Pipe, NO.2 | ||||
| 17451-28031 |
Gasket, Exhaust Pipe, NO.2
2009-02 → 2010-06
ended
|
1NRFE NRE150 | — | |
| 17451-28031 |
Gasket, Exhaust Pipe, NO.2
2010-06 → 2011-02
ended
|
1NRFE NRE150 | — | |
| 17451-28032 |
Gasket, Exhaust Pipe, NO.2
2011-03 → 2013-06
ended
|
1NRFE NRE150 | — | |
| 17482 — Bolt, Exhaust Pipe Gas Control Actuator | ||||
| 17482-47010 note |
Bolt, Exhaust Pipe Gas Control Actuator
2009-02 → 2010-06
ended
|
1NRFE NRE150 LHD | — | |
| 17482-47010 note |
Bolt, Exhaust Pipe Gas Control Actuator
2010-06 → 2013-06
ended
|
1NRFE NRE150 LHD | — | |
| 17483 — Nut, Exhaust Pipe Gas Control Actuator | ||||
| 17483-47010 note |
Nut, Exhaust Pipe Gas Control Actuator
2009-02 → 2010-06
ended
|
1NRFE NRE150 LHD | — | |
| 17483-47010 note |
Nut, Exhaust Pipe Gas Control Actuator
2010-06 → 2013-06
ended
|
1NRFE NRE150 LHD | — | |
| 17495 — Actuator, Exhaust Pipe Gas Control | ||||
| 17495-47010 note |
Actuator, Exhaust Pipe Gas Control
2009-02 → 2010-06
ended
|
1NRFE NRE150 LHD | — | |
| 17495-47010 note |
Actuator, Exhaust Pipe Gas Control
2010-06 → 2013-06
ended
|
1NRFE NRE150 LHD | — | |
| 17496 — Stopper, Exhaust Pipe Gas Control Actuator | ||||
| 17496-47010 note |
Stopper, Exhaust Pipe Gas Control Actuator
2009-02 → 2010-06
ended
|
1NRFE NRE150 LHD | — | |
| 17496-47010 note |
Stopper, Exhaust Pipe Gas Control Actuator
2010-06 → 2013-06
ended
|
1NRFE NRE150 LHD | — | |
| 17498 — Case, Exhaust Pipe Gas Control Actuator | ||||
| 17498-47010 note |
Case, Exhaust Pipe Gas Control Actuator
2009-02 → 2010-06
ended
|
1NRFE NRE150 LHD | — | |
| 17498-47010 note |
Case, Exhaust Pipe Gas Control Actuator
2010-06 → 2013-06
ended
|
1NRFE NRE150 LHD | — | |
| 17499 — Gasket, Exhaust Pipe Gas Control Actuator | ||||
| 17499-47010 note |
Gasket, Exhaust Pipe Gas Control Actuator
2009-02 → 2010-06
ended
|
1NRFE NRE150 LHD | — | |
| 17499-47010 note |
Gasket, Exhaust Pipe Gas Control Actuator
2010-06 → 2013-06
ended
|
1NRFE NRE150 LHD | — | |
| 17565 — Support, Exhaust Pipe, NO.5 | ||||
| 17565-22030 |
Support, Exhaust Pipe, NO.5
2008-02 → 2009-02
ended
|
1NDTV,1ZRFE,4ZZFE NDE150,ZRE151,ZZE150 | — | |
| 17565-22030 |
Support, Exhaust Pipe, NO.5
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17565-22030 |
Support, Exhaust Pipe, NO.5
2009-02 → 2010-06
ended
|
1NDTV NDE150 DCR;1ADFTV,1NRFE,1ZR# ADE150,NRE150,ZRE151 +1 | — | |
| 17565-22030 |
Support, Exhaust Pipe, NO.5
2009-02 → 2010-07
ended
|
1NDTV NDE150 DCRL | — | |
| 17565-22030 |
Support, Exhaust Pipe, NO.5
2010-06 → 2013-06
ended
|
1ADFTV,1N#,1ZRFAE ADE150,NDE150,NRE150,ZRE151 | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-22040 |
Support, Exhaust Pipe, NO.4
2008-02 → 2009-02
ended
|
1NDTV,1ZRFE,4ZZFE NDE150,ZRE151,ZZE150 | — | |
| 17565-22040 |
Support, Exhaust Pipe, NO.4
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17565-22040 |
Support, Exhaust Pipe, NO.4
2009-02 → 2010-06
ended
|
1NDTV NDE150 DCR;1ADFTV,1NRFE,1ZR# ADE150,NRE150,ZRE151 +1 | — | |
| 17565-22040 |
Support, Exhaust Pipe, NO.4
2009-02 → 2010-07
ended
|
1NDTV NDE150 DCRL | — | |
| 17565-22040 |
Support, Exhaust Pipe, NO.4
2010-06 → 2013-06
ended
|
1ADFTV,1N#,1ZRFAE ADE150,NDE150,NRE150,ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
