Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

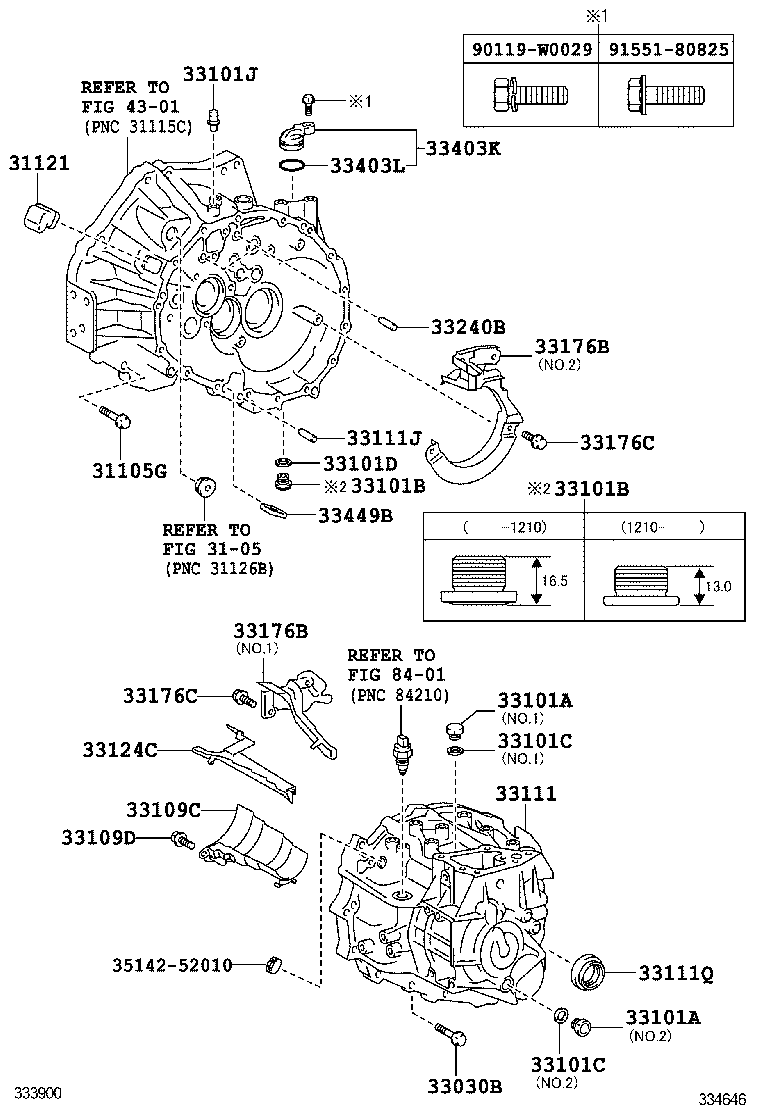

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31105G — Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-W0181 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90105-W0182 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90119-12042 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90119-12168 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-02
ended
|
ZZE150 | — | |
| 90119-12252 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90119-W0049 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-02
ended
|
ZZE150 | — | |
| 90119-W0080 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-02
ended
|
ZZE150 | — | |
| 90119-W0162 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90119-W0163 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 91512-61060 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 91512-61065 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-02
ended
|
NDE150,ZRE151 | — | |
| 91642-81055 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2008-02 → 2009-02
ended
|
ZZE150 | — | |
| 90105-W0181 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 90105-W0182 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 90119-12042 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 90119-12252 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 90119-W0097 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-02 → 2010-06
ended
|
NRE150 | — | |
| 90119-W0162 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 90119-W0163 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 91512-61060 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 91512-61065 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 91552-81045 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-02 → 2010-07
ended
|
NDE150 D;ZRE151 MTM;NDE150 LHD +1 | — | |
| 91552-81080 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-02 → 2010-07
ended
|
NDE150 D;NDE150 LHD N | — | |
| 91552-81245 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-02 → 2010-06
ended
|
NRE150 | — | |
| 91552-81280 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2009-02 → 2010-06
ended
|
NRE150 | — | |
| 90119-12042 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 90119-12252 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 91512-61060 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 91512-61065 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 91552-81045 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 | — | |
| 91552-81080 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 91552-81245 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 91552-81280 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 31121 — Cover, Clutch Housing, NO.1 | ||||
| 31121-05010 note |
Cover, Clutch Housing, NO.1
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 31121-05010 note |
Cover, Clutch Housing, NO.1
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 31121-52020 note |
Cover, Clutch Housing, NO.1
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 31121-52020 |
Cover, Clutch Housing, NO.1
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 31121-52020 |
Cover, Clutch Housing, NO.1
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 31121-52020 note |
Cover, Clutch Housing, NO.1
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 31121-05010 note |
Cover, Clutch Housing, NO.1
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 31121-05010 note |
Cover, Clutch Housing, NO.1
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 31121-52020 |
Cover, Clutch Housing, NO.1
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 31121-52020 note |
Cover, Clutch Housing, NO.1
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 31121-52020 note |
Cover, Clutch Housing, NO.1
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33030B — Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08086 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90105-08353 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 90105-08430 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 90105-08086 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 90105-08086 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 33101A — Plug(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
Plug(FOR MANUAL TRANSMISSION FILLER)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 90341-18033 |
Plug(FOR MANUAL TRANSMISSION FILLER)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90341-18033 |
Plug(FOR MANUAL TRANSMISSION FILLER)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 90341-18033 |
Plug(FOR MANUAL TRANSMISSION FILLER)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 33101B — Plug(FOR MANUAL TRANSMISSION DRAIN) | ||||
| 90341-18016 |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 90341-18016 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90341-18016 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 90341-18016 |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 90341-18016 |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2010-06 → 2012-10
ended
|
NDE150,ZRE151 6FS | — | |
| 90341-18016 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2010-06 → 2012-10
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90341-18016 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2010-06 → 2012-10
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90341-18016 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2010-06 → 2012-11
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90341-18016 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2010-06 → 2012-11
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90341-18023 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2012-10 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90341-18023 |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2012-10 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 90341-18023 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2012-10 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90341-18023 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2012-11 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90341-18023 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2012-11 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33101C — Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2008-02 → 2009-02
ended
|
NDE150,ZRE151 5FS | — | |
| 90430-W0001 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 5F | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 90430-W0001 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90430-W0001 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2012-11 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2012-11 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2012-10 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2012-10 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2012-10 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2010-06 → 2012-10
ended
|
NDE150,ZRE151 6FS | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2010-06 → 2012-10
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2010-06 → 2012-10
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90430-W0001 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2010-06 → 2012-11
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90430-W0001 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2010-06 → 2012-11
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33101D — Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG) | ||||
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 90430-W0001 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90430-W0001 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2012-11 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2012-10 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 12157-10010 |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2012-10 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2012-10 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2012-11 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2010-06 → 2012-10
ended
|
NDE150,ZRE151 6FS | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2010-06 → 2012-10
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90430-18008 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2010-06 → 2012-10
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90430-W0001 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2010-06 → 2012-11
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90430-W0001 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2010-06 → 2012-11
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33101J — Plug, Breather | ||||
| 90930-03133 |
Plug, Breather
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 90930-03133 note |
Plug, Breather
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90930-03133 note |
Plug, Breather
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 90930-03133 |
Plug, Breather
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 90930-03133 |
Plug, Breather
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 90930-03133 note |
Plug, Breather
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90930-03133 note |
Plug, Breather
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33109C — Separator Sub-assy, Manual Transmission Oil | ||||
| 33109-20020 note |
Separator Sub-assy, Manual Transmission Oil
2009-02 → 2010-07
ended
|
NDE150 D;NRE150,ZRE151 6F;NDE150 LHD +2 | — | |
| 33109-20020 |
Separator Sub-assy, Manual Transmission Oil
2009-02 → 2010-07
ended
|
NDE150,ZRE151 6FS | — | |
| 33109-0D010 note |
Separator Sub-assy, Manual Transmission Oil
2010-08 → 2013-06
ended
|
NDE150 6F | — | |
| 33109-0D010 note |
Separator Sub-assy, Manual Transmission Oil
2010-08 → 2012-10
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33109-0D010 note |
Separator Sub-assy, Manual Transmission Oil
2010-08 → 2013-06
ended
|
NRE150,ZRE151 6F | — | |
| 33109-0D010 note |
Separator Sub-assy, Manual Transmission Oil
2012-10 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33109-20020 |
Separator Sub-assy, Manual Transmission Oil
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 33109-20020 note |
Separator Sub-assy, Manual Transmission Oil
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33109-20020 note |
Separator Sub-assy, Manual Transmission Oil
2010-06 → 2010-08
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33109-20020 note |
Separator Sub-assy, Manual Transmission Oil
2010-06 → 2010-08
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33109-20020 note |
Separator Sub-assy, Manual Transmission Oil
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33109D — Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR) | ||||
| 90105-W0035 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90105-W0035 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 91551-80816 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 91551-80816 |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 91551-80816 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 91551-80816 |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 90105-W0035 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90105-W0035 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 91551-80816 |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 91551-80816 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 91551-80816 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33111 — Case, Manual Transmission | ||||
| 33111-02020 |
Case, Manual Transmission
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 5F | — | |
| 33111-42050 |
Case, Manual Transmission
2008-02 → 2008-08
ended
|
ADE150 | — | |
| 33111-42060 |
Case, Manual Transmission
2008-08 → 2009-03
ended
|
ADE150 | — | |
| 33111-64011 |
Case, Manual Transmission
2008-02 → 2009-02
ended
|
NDE150,ZRE151 5FS | — | |
| 33111-05040 note |
Case, Manual Transmission
2009-02 → 2010-03
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33111-05041 note |
Case, Manual Transmission
2010-03 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 33111-05041 note |
Case, Manual Transmission
2010-03 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 33111-20220 note |
Case, Manual Transmission
2009-02 → 2010-03
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33111-20221 note |
Case, Manual Transmission
2010-03 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 33111-20221 note |
Case, Manual Transmission
2010-03 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 33111-42060 |
Case, Manual Transmission
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 33111-52130 |
Case, Manual Transmission
2009-02 → 2010-03
ended
|
NDE150,ZRE151 6FS | — | |
| 33111-52131 |
Case, Manual Transmission
2010-03 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 33111-52131 |
Case, Manual Transmission
2010-03 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 33111-02050 note |
Case, Manual Transmission
2012-10 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33111-02050 note |
Case, Manual Transmission
2012-10 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33111-05041 note |
Case, Manual Transmission
2012-10 → 2013-06
ended
|
NRE150 | — | |
| 33111-05041 note |
Case, Manual Transmission
2010-06 → 2012-10
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33111-05041 note |
Case, Manual Transmission
2010-06 → 2012-10
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33111-20221 note |
Case, Manual Transmission
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33111-20221 note |
Case, Manual Transmission
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33111-42060 |
Case, Manual Transmission
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 33111-52131 |
Case, Manual Transmission
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 33111J — Pin, Straight(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2009-02 → 2010-07
ended
|
NDE150 D;NRE150,ZRE151 6F;NDE150 LHD +2 | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2009-02 → 2010-07
ended
|
NDE150,ZRE151 6FS | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 33111Q — Seal, Oil(FOR TRANSMISSION CASE) | ||||
| 90311-34034 |
Seal, Oil(FOR TRANSMISSION CASE)
2008-02 → 2009-02
ended
|
ZRE151 5FS | — | |
| 90311-35058 |
Seal, Oil(FOR TRANSMISSION CASE)
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 90311-W0004 |
Seal, Oil(FOR TRANSMISSION CASE)
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 5F | — | |
| 90311-34034 note |
Seal, Oil(FOR TRANSMISSION CASE)
2009-02 → 2010-06
ended
|
NRE150 | — | |
| 90311-35061 note |
Seal, Oil(FOR TRANSMISSION CASE)
2009-02 → 2010-07
ended
|
NDE150 D;ZRE151 6F;NDE150 LHD +2 | — | |
| 90311-35061 |
Seal, Oil(FOR TRANSMISSION CASE)
2009-02 → 2010-07
ended
|
NDE150,ZRE151 6FS | — | |
| 90311-W0004 note |
Seal, Oil(FOR TRANSMISSION CASE)
2009-02 → 2010-06
ended
|
NRE150 | — | |
| 90311-34034 note |
Seal, Oil(FOR TRANSMISSION CASE)
2010-06 → 2010-12
ended
|
NRE150 | — | |
| 90311-34042 note |
Seal, Oil(FOR TRANSMISSION CASE)
2010-12 → 2013-06
ended
|
NRE150 | — | |
| 90311-35061 |
Seal, Oil(FOR TRANSMISSION CASE)
2010-06 → 2010-12
ended
|
NDE150,ZRE151 6FS | — | |
| 90311-35061 note |
Seal, Oil(FOR TRANSMISSION CASE)
2010-06 → 2010-12
ended
|
NDE150,ZRE151 6F | — | |
| 90311-35061 note |
Seal, Oil(FOR TRANSMISSION CASE)
2010-06 → 2010-12
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90311-35066 |
Seal, Oil(FOR TRANSMISSION CASE)
2010-12 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 90311-35066 note |
Seal, Oil(FOR TRANSMISSION CASE)
2010-12 → 2013-06
ended
|
NDE150,ZRE151 6F | — | |
| 90311-35066 note |
Seal, Oil(FOR TRANSMISSION CASE)
2010-12 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 90311-W0004 note |
Seal, Oil(FOR TRANSMISSION CASE)
2010-06 → 2011-10
ended
|
NRE150 | — | |
| 90311-W0016 note |
Seal, Oil(FOR TRANSMISSION CASE)
2011-10 → 2013-06
ended
|
NRE150 | — | |
| 33124C — Pipe, Oil Receiver, NO.1(MTM) | ||||
| 33124-20040 |
Pipe, Oil Receiver, NO.1(MTM)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 33124-20050 |
Pipe, Oil Receiver, NO.1(MTM)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 33124-20040 |
Pipe, Oil Receiver, NO.1(MTM)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 33124-20080 note |
Pipe, Oil Receiver, NO.1(MTM)
2009-02 → 2010-07
ended
|
NDE150 D;NRE150,ZRE151 6F;NDE150 LHD +2 | — | |
| 33124-52030 |
Pipe, Oil Receiver, NO.1(MTM)
2009-02 → 2010-07
ended
|
NDE150,ZRE151 6FS | — | |
| 33124-0D050 note |
Pipe, Oil Receiver, NO.1(MTM)
2012-10 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33124-0D050 note |
Pipe, Oil Receiver, NO.1(MTM)
2011-03 → 2013-06
ended
|
NRE150,ZRE151 6F | — | |
| 33124-0D050 note |
Pipe, Oil Receiver, NO.1(MTM)
2011-03 → 2012-10
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33124-0D050 note |
Pipe, Oil Receiver, NO.1(MTM)
2011-03 → 2013-06
ended
|
NDE150 6F | — | |
| 33124-20040 |
Pipe, Oil Receiver, NO.1(MTM)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 33124-20080 note |
Pipe, Oil Receiver, NO.1(MTM)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33124-20080 note |
Pipe, Oil Receiver, NO.1(MTM)
2010-06 → 2011-03
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33124-20080 note |
Pipe, Oil Receiver, NO.1(MTM)
2010-06 → 2011-03
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33124-20080 note |
Pipe, Oil Receiver, NO.1(MTM)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33124-52030 |
Pipe, Oil Receiver, NO.1(MTM)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 33176B — Separator, Transmission Oil(MTM) | ||||
| 33176-20010 note |
Separator, Transmission Oil(MTM)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 33176-20020 note |
Separator, Transmission Oil(MTM)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 33176-20010 note |
Separator, Transmission Oil(MTM)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 33176-20020 note |
Separator, Transmission Oil(MTM)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2009-02 → 2010-07
ended
|
NDE150 D;NRE150,ZRE151 6F;NDE150 LHD +2 | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2009-02 → 2010-07
ended
|
NDE150,ZRE151 6FS | — | |
| 33176-20090 note |
Separator, Transmission Oil(MTM)
2009-02 → 2010-07
ended
|
NDE150 D;NRE150,ZRE151 6F;NDE150 LHD +2 | — | |
| 33176-20090 note |
Separator, Transmission Oil(MTM)
2009-02 → 2010-07
ended
|
NDE150,ZRE151 6FS | — | |
| 33176-0D020 note |
Separator, Transmission Oil(MTM)
2010-08 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33176-0D020 note |
Separator, Transmission Oil(MTM)
2010-08 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33176-0D030 note |
Separator, Transmission Oil(MTM)
2010-08 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33176-20010 note |
Separator, Transmission Oil(MTM)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 33176-20020 note |
Separator, Transmission Oil(MTM)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2010-06 → 2010-08
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2010-06 → 2010-08
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33176-20090 note |
Separator, Transmission Oil(MTM)
2010-06 → 2010-08
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33176-20090 note |
Separator, Transmission Oil(MTM)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33176-20090 note |
Separator, Transmission Oil(MTM)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 33176C — Bolt(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 91611-B0616 |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90105-W0035 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90105-W0035 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 91551-80816 |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 91551-80816 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 91551-80816 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 91551-80816 |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 91611-B0616 |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 90105-W0035 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90105-W0035 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 91551-80816 |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 91551-80816 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 91551-80816 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 91611-B0616 |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 33240B — Pin, Straight(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90250-08054 note |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 90250-08054 |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 90250-08054 note |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 90250-08054 |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 90250-08054 |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 90250-08054 note |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 90250-08054 note |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
| 33403K — Cover Sub-assy, Speedometer Driven Hole | ||||
| 33403-20230 |
Cover Sub-assy, Speedometer Driven Hole
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 33403-35230 |
Cover Sub-assy, Speedometer Driven Hole
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 33403-20230 |
Cover Sub-assy, Speedometer Driven Hole
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 33403-35230 |
Cover Sub-assy, Speedometer Driven Hole
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 MTM (DCR,HTWC,HTWVM) | — | |
| 33403-35230 |
Cover Sub-assy, Speedometer Driven Hole
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 33403-20230 |
Cover Sub-assy, Speedometer Driven Hole
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 33403-35230 |
Cover Sub-assy, Speedometer Driven Hole
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 | — | |
| 33403L — Ring, O | ||||
| 96711-24018 |
Ring, O
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 96711-24030 |
Ring, O
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 96711-24018 |
Ring, O
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 96711-24030 |
Ring, O
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 MTM (DCR,HTWC,HTWVM) | — | |
| 96711-24030 |
Ring, O
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 96711-24018 |
Ring, O
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 96711-24030 |
Ring, O
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 | — | |
| 33449B — Magnet, Transmission | ||||
| 33449-20010 |
Magnet, Transmission
2009-02 → 2010-06
ended
|
NDE150,ZRE151 6FS (DCR,HTWVM) | — | |
| 33449-20010 note |
Magnet, Transmission
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 6F (DCR,HTWC,HTWVM) | — | |
| 33449-20010 note |
Magnet, Transmission
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 33449-20010 |
Magnet, Transmission
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 33449-20010 |
Magnet, Transmission
2010-06 → 2013-06
ended
|
NDE150,ZRE151 6FS | — | |
| 33449-20010 note |
Magnet, Transmission
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 33449-20010 note |
Magnet, Transmission
2010-06 → 2013-06
ended
|
NDE150 D;NDE150 LHD 6F +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
