Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

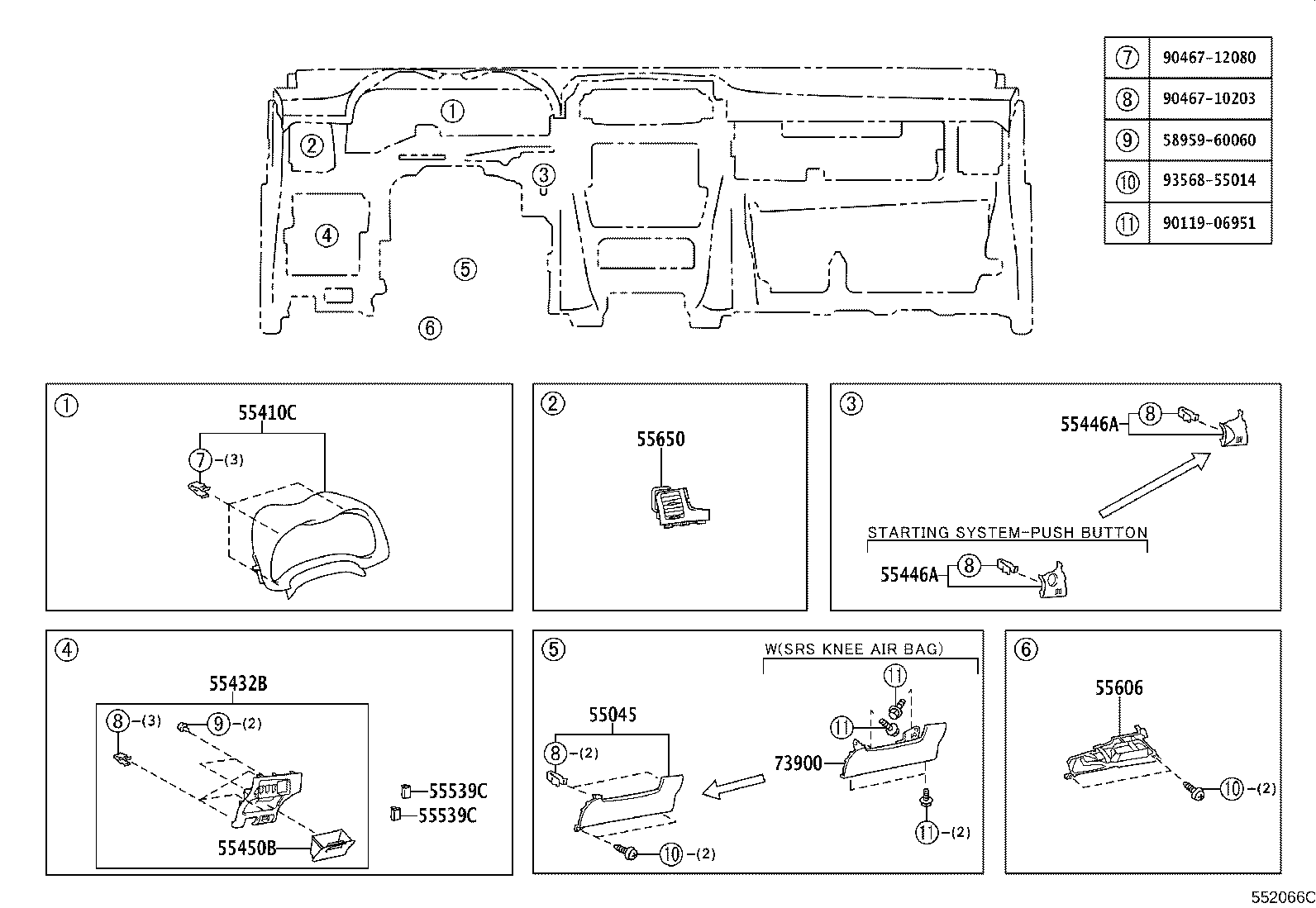

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55045 — Panel Sub-assy, Instrument Panel Finish, Lower | ||||
| 55045-02230-B0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 55045-02230-B0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55045-02230-E0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD N | — | |
| 55045-02230-E0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55045-02240-B0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 55045-02240-B0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55045-02240-E0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55045-02240-E0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 55045-02230-B0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2009-02 → 2010-07
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD | — | |
| 55045-02230-E0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 55045-02240-B0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2009-02 → 2010-07
ended
|
NDE150 RHD D;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 55045-02240-E0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 55045-02230-B0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 55045-02230-E0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55410C — Panel Assy, Instrument Cluster Finish | ||||
| 55410-02070-B0 note |
Panel Assy, Instrument Cluster Finish
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 55410-02070-B0 note |
Panel Assy, Instrument Cluster Finish
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55410-02070-E0 note |
Panel Assy, Instrument Cluster Finish
2008-02 → 2009-02
ended
|
NDE150 N;ZRE151,ZZE150 LHD | — | |
| 55410-02070-E0 note |
Panel Assy, Instrument Cluster Finish
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55410-02080-B0 note |
Panel Assy, Instrument Cluster Finish
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 55410-02080-B0 note |
Panel Assy, Instrument Cluster Finish
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55410-02080-E0 note |
Panel Assy, Instrument Cluster Finish
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD | — | |
| 55410-02080-E0 note |
Panel Assy, Instrument Cluster Finish
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55410-02070-B0 note |
Panel Assy, Instrument Cluster Finish
2009-02 → 2010-07
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD | — | |
| 55410-02070-E0 note |
Panel Assy, Instrument Cluster Finish
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 55410-02080-B0 note |
Panel Assy, Instrument Cluster Finish
2009-02 → 2010-07
ended
|
NDE150 RHD D;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 55410-02080-E0 note |
Panel Assy, Instrument Cluster Finish
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 55410-02070-B0 note |
Panel Assy, Instrument Cluster Finish
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55410-02070-B0 note |
Panel Assy, Instrument Cluster Finish
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 LHD D | — | |
| 55410-02080 |
Panel Assy, Instrument Cluster Finish
2011-09 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 55410-02080-B0 note |
Panel Assy, Instrument Cluster Finish
2010-06 → 2011-09
ended
|
NDE150,NRE150,ZRE151 RHD D | — | |
| 55410-02080-B0 note |
Panel Assy, Instrument Cluster Finish
2010-06 → 2011-09
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 55410-12A30-B0 note |
Panel Assy, Instrument Cluster Finish
2011-09 → 2013-06
ended
|
NDE150,NRE150,ZRE151 RHD D | — | |
| 55410-12A30-B0 note |
Panel Assy, Instrument Cluster Finish
2011-09 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 55432B — Panel, Instrument Panel Finish, Lower | ||||
| 55480-02010-B0 note |
Panel, Instrument Panel Finish, Lower
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 55480-02010-B0 note |
Panel, Instrument Panel Finish, Lower
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55480-02010-E0 note |
Panel, Instrument Panel Finish, Lower
2008-02 → 2009-02
ended
|
NDE150 N;ZRE151,ZZE150 LHD | — | |
| 55480-02010-E0 note |
Panel, Instrument Panel Finish, Lower
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55480-02020-B0 note |
Panel, Instrument Panel Finish, Lower
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55480-02020-B0 note |
Panel, Instrument Panel Finish, Lower
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 55480-02020-E0 note |
Panel, Instrument Panel Finish, Lower
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD | — | |
| 55480-02020-E0 note |
Panel, Instrument Panel Finish, Lower
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55480-02010-B0 note |
Panel, Instrument Panel Finish, Lower
2009-02 → 2010-07
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD | — | |
| 55480-02010-E0 note |
Panel, Instrument Panel Finish, Lower
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 55480-02020-B0 note |
Panel, Instrument Panel Finish, Lower
2009-02 → 2010-07
ended
|
NDE150 RHD D;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 55480-02020-E0 note |
Panel, Instrument Panel Finish, Lower
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 55480-02010-B0 note |
Panel, Instrument Panel Finish, Lower
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 55480-02010-E0 note |
Panel, Instrument Panel Finish, Lower
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55480-02020-B0 note |
Panel, Instrument Panel Finish, Lower
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 55480-02020-E0 note |
Panel, Instrument Panel Finish, Lower
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 55446A — Base, Switch Hole, NO.1 | ||||
| 55446-02090-B0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-02
ended
|
ZRE151 LHD N | — | |
| 55446-02090-B0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55446-02090-E0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-02
ended
|
ZRE151 LHD N | — | |
| 55446-02090-E0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55446-02100-B0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 55446-02100-B0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55446-02100-E0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-02
ended
|
NDE150 N;ZRE151,ZZE150 LHD | — | |
| 55446-02100-E0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55446-02110-B0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-02
ended
|
ZRE151 RHD N | — | |
| 55446-02110-B0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55446-02110-E0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-02
ended
|
ZRE151 RHD N | — | |
| 55446-02110-E0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55446-02130-B0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55446-02130-B0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 55446-02130-E0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD | — | |
| 55446-02130-E0 note |
Base, Switch Hole, NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55446-02090-B0 note |
Base, Switch Hole, NO.1
2009-02 → 2010-06
ended
|
ADE150,ZRE151 LHD N (DCRL,HTWC,HTWVM) | — | |
| 55446-02090-E0 note |
Base, Switch Hole, NO.1
2009-02 → 2010-06
ended
|
ADE150,ZRE151 LHD N (DCRL,HTWC,HTWVM) | — | |
| 55446-02100-B0 note |
Base, Switch Hole, NO.1
2009-02 → 2010-07
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD | — | |
| 55446-02100-E0 note |
Base, Switch Hole, NO.1
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 55446-02110-B0 note |
Base, Switch Hole, NO.1
2009-02 → 2010-06
ended
|
ADE150,ZRE151 RHD N (DCRL,HTWVM) | — | |
| 55446-02110-E0 note |
Base, Switch Hole, NO.1
2009-02 → 2010-06
ended
|
ADE150,ZRE151 RHD N (DCRL,HTWVM) | — | |
| 55446-02130-B0 note |
Base, Switch Hole, NO.1
2009-02 → 2010-07
ended
|
NDE150 RHD D;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 55446-02130-E0 note |
Base, Switch Hole, NO.1
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 55446-02090-B0 note |
Base, Switch Hole, NO.1
2010-06 → 2013-06
ended
|
ADE150,ZRE151 LHD N | — | |
| 55446-02090-E0 note |
Base, Switch Hole, NO.1
2010-06 → 2013-06
ended
|
ADE150,ZRE151 LHD N | — | |
| 55446-02100-B0 note |
Base, Switch Hole, NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 55446-02100-E0 note |
Base, Switch Hole, NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55446-02110-B0 note |
Base, Switch Hole, NO.1
2010-06 → 2013-06
ended
|
ADE150,ZRE151 RHD N | — | |
| 55446-02110-E0 note |
Base, Switch Hole, NO.1
2010-06 → 2013-06
ended
|
ADE150,ZRE151 RHD N | — | |
| 55446-02130-B0 note |
Base, Switch Hole, NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 55446-02130-E0 note |
Base, Switch Hole, NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 55450B — Box Assy, Coin | ||||
| 55450-02010-B0 note |
Box Assy, Coin
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 55450-02010-B0 note |
Box Assy, Coin
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55450-02010-E0 note |
Box Assy, Coin
2008-02 → 2009-02
ended
|
NDE150 N;ZRE151,ZZE150 | — | |
| 55450-02010-E0 note |
Box Assy, Coin
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55450-02010-B0 note |
Box Assy, Coin
2009-02 → 2010-07
ended
|
NDE150 D;NDE150 LHD N;ADE150,NRE150,ZRE151 +1 | — | |
| 55450-02010-E0 note |
Box Assy, Coin
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 N +1 | — | |
| 55450-02010-B0 note |
Box Assy, Coin
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 55450-02010-E0 note |
Box Assy, Coin
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55539C — Cover, Spare Switch Hole | ||||
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
ZRE151 N;ZRE151 LHD D;NDE150,ZZE150 +1 | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 DCRL | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
NDE150 LHD | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
NDE150 LHD | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
NDE150 LHD D | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 LHD | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
ZZE150 LHD;ZRE151 LHD D;NDE150,ZRE151 +1 | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
NDE150 N | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 DCRL | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
NDE150 N;ZRE151,ZZE150 | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-02
ended
|
NDE150 N | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2009-02 → 2010-06
ended
|
NRE150 N | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2009-02 → 2010-07
ended
|
NDE150 D;NDE150 LHD N;ADE150,NRE150,ZRE151 +1 | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2009-02 → 2010-07
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 N +1 | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2010-06 → 2013-06
ended
|
ZRE151 LHD N | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2010-06 → 2013-06
ended
|
NRE150 N | — | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55539-52060-E0 note |
Cover, Spare Switch Hole
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55606-02080 note |
Cover Sub-assy, Instrument Panel Under, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 55606-02080 note |
Cover Sub-assy, Instrument Panel Under, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55606-02090 |
Cover Sub-assy, Instrument Panel Under, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 55606-02090 |
Cover Sub-assy, Instrument Panel Under, NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55606-02080 note |
Cover Sub-assy, Instrument Panel Under, NO.1
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 55606-02080 note |
Cover Sub-assy, Instrument Panel Under, NO.1
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 55606-02090 |
Cover Sub-assy, Instrument Panel Under, NO.1
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 55606-02090 |
Cover Sub-assy, Instrument Panel Under, NO.1
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 55606-02080 note |
Cover Sub-assy, Instrument Panel Under, NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 55606-02090 |
Cover Sub-assy, Instrument Panel Under, NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 55650 — Register Assy, Instrument Panel, NO.1 | ||||
| 55650-12300-B0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55650-12300-B0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD N | — | |
| 55650-12300-E0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55650-12300-E0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD N | — | |
| 55650-12310-B0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD D | — | |
| 55650-12340-B0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 55650-12340-B0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55650-12340-E0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 55650-12340-E0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55650-12350-B0 note |
Register Assy, Instrument Panel, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD D | — | |
| 55650-12300-B0 note |
Register Assy, Instrument Panel, NO.1
2009-02 → 2009-10
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD +1 | — | |
| 55650-12300-E0 note |
Register Assy, Instrument Panel, NO.1
2009-02 → 2009-10
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD +1 | — | |
| 55650-12310-B0 note |
Register Assy, Instrument Panel, NO.1
2009-02 → 2009-10
ended
|
NDE150,NRE150,ZRE151 LHD D | — | |
| 55650-12340-B0 note |
Register Assy, Instrument Panel, NO.1
2009-02 → 2009-10
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 55650-12340-E0 note |
Register Assy, Instrument Panel, NO.1
2009-02 → 2009-10
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 55650-12350-B0 note |
Register Assy, Instrument Panel, NO.1
2009-02 → 2009-10
ended
|
NDE150,NRE150,ZRE151 RHD D | — | |
| 55650-12380-B0 note |
Register Assy, Instrument Panel, NO.1
2009-11 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N | — | |
| 55650-12380-E0 note |
Register Assy, Instrument Panel, NO.1
2009-11 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N | — | |
| 55650-12390-B0 note |
Register Assy, Instrument Panel, NO.1
2009-11 → 2010-07
ended
|
NDE150,NRE150,ZRE151 RHD D | — | |
| 55650-12411-B0 note |
Register Assy, Instrument Panel, NO.1
2009-11 → 2010-07
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55650-12411-E0 note |
Register Assy, Instrument Panel, NO.1
2009-11 → 2010-07
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55650-12421-B0 note |
Register Assy, Instrument Panel, NO.1
2009-11 → 2010-07
ended
|
NDE150,NRE150,ZRE151 LHD D | — | |
| 55650-12380-B0 note |
Register Assy, Instrument Panel, NO.1
2010-06 → 2010-11
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 55650-12380-E0 note |
Register Assy, Instrument Panel, NO.1
2010-06 → 2010-11
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 55650-12381-B0 note |
Register Assy, Instrument Panel, NO.1
2010-12 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 55650-12381-E0 note |
Register Assy, Instrument Panel, NO.1
2010-12 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 55650-12390-B0 note |
Register Assy, Instrument Panel, NO.1
2010-06 → 2010-11
ended
|
NDE150,NRE150,ZRE151 RHD D | — | |
| 55650-12391-B0 note |
Register Assy, Instrument Panel, NO.1
2010-12 → 2013-06
ended
|
NDE150,NRE150,ZRE151 RHD D | — | |
| 55650-12411-B0 note |
Register Assy, Instrument Panel, NO.1
2010-06 → 2010-11
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55650-12411-E0 note |
Register Assy, Instrument Panel, NO.1
2010-06 → 2010-11
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55650-12413-B0 note |
Register Assy, Instrument Panel, NO.1
2010-12 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55650-12413-E0 note |
Register Assy, Instrument Panel, NO.1
2010-12 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 55650-12421-B0 note |
Register Assy, Instrument Panel, NO.1
2010-06 → 2010-11
ended
|
NDE150,NRE150,ZRE151 LHD D | — | |
| 55650-12423-B0 note |
Register Assy, Instrument Panel, NO.1
2010-12 → 2013-06
ended
|
NDE150,NRE150,ZRE151 LHD D | — | |
| 73900 — Airbag Assy, Instrument Panel, Lower NO.1 | ||||
| 73900-02030-B0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 73900-02030-B0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 73900-02030-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2008-02 → 2009-02
ended
|
NDE150 N;ZRE151,ZZE150 LHD | — | |
| 73900-02030-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 73900-02040-B0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 73900-02040-B0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 73900-02040-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 73900-02040-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD | — | |
| 73900-02030-B0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2009-02 → 2010-07
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD | — | |
| 73900-02030-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 73900-02040-B0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2009-02 → 2010-07
ended
|
NDE150 RHD D;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 73900-02040-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 73900-02030-B0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2010-06 → 2013-01
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 73900-02030-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2010-06 → 2013-01
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 73900-02031 note |
Airbag Assy, Instrument Panel, Lower NO.1
2013-02 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 73900-02040-B0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2010-06 → 2013-01
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 73900-02040-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2010-06 → 2013-01
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 73900-02041 |
Airbag Assy, Instrument Panel, Lower NO.1
2013-02 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
