Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

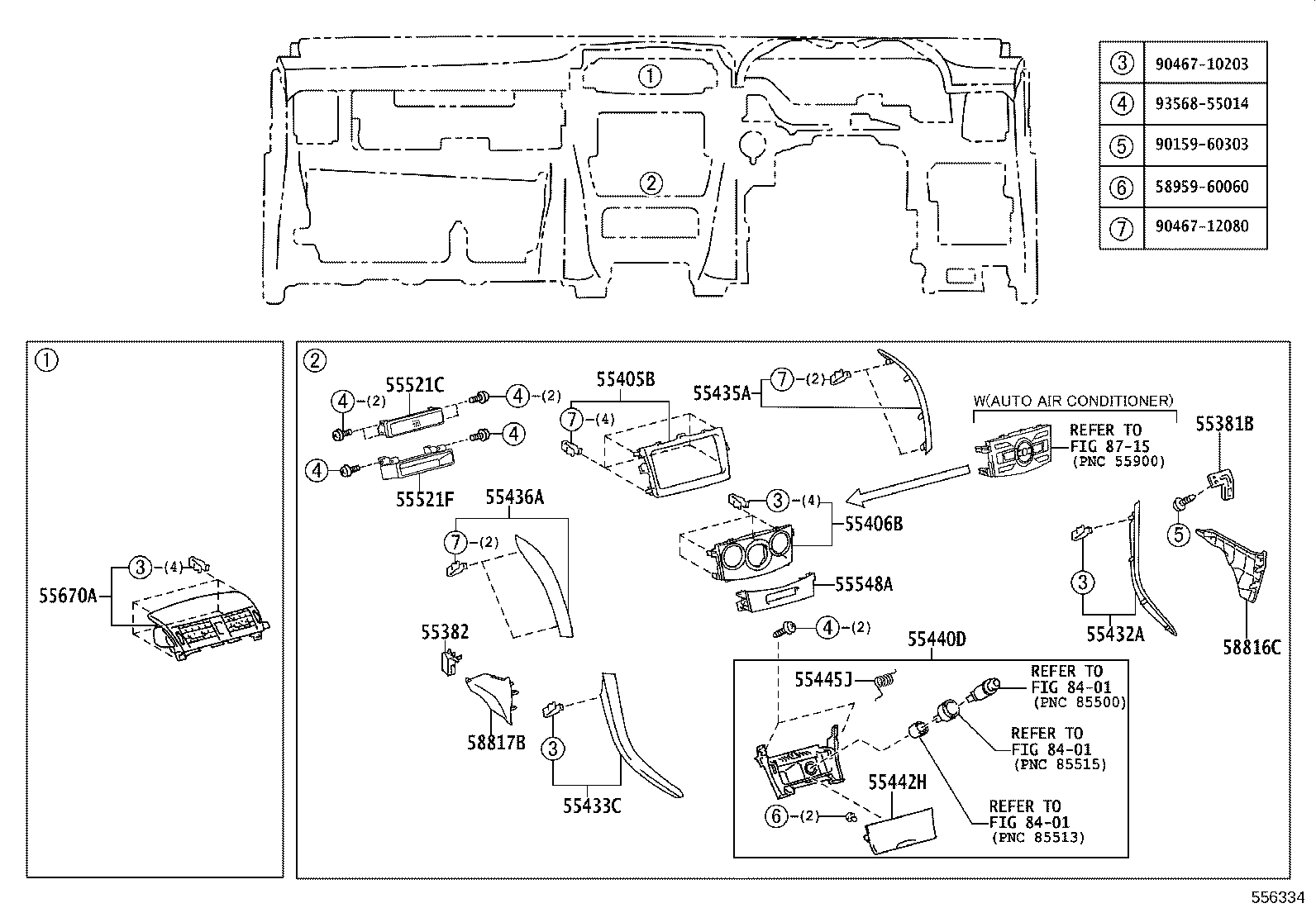

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55381B — Bracket, Finish Panel Mounting, NO.1 | ||||
| 55381-02130 |
Bracket, Finish Panel Mounting, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 55381-02130 |
Bracket, Finish Panel Mounting, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55381-02140 |
Bracket, Finish Panel Mounting, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 55381-02140 |
Bracket, Finish Panel Mounting, NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55381-02130 |
Bracket, Finish Panel Mounting, NO.1
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 55381-02130 |
Bracket, Finish Panel Mounting, NO.1
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 55381-02140 |
Bracket, Finish Panel Mounting, NO.1
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 55381-02140 |
Bracket, Finish Panel Mounting, NO.1
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 55381-02130 |
Bracket, Finish Panel Mounting, NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 55381-02140 |
Bracket, Finish Panel Mounting, NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 55382 — Bracket, Finish Panel Mounting, NO.2 | ||||
| 55382-02100 |
Bracket, Finish Panel Mounting, NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 55382-02100 |
Bracket, Finish Panel Mounting, NO.2
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55382-02110 |
Bracket, Finish Panel Mounting, NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 55382-02110 |
Bracket, Finish Panel Mounting, NO.2
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55382-02100 |
Bracket, Finish Panel Mounting, NO.2
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 55382-02100 |
Bracket, Finish Panel Mounting, NO.2
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 55382-02110 |
Bracket, Finish Panel Mounting, NO.2
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 55382-02110 |
Bracket, Finish Panel Mounting, NO.2
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 55382-02100 |
Bracket, Finish Panel Mounting, NO.2
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 55382-02110 |
Bracket, Finish Panel Mounting, NO.2
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 55405B — Panel Sub-assy, Instrument Cluster Finish, Center | ||||
| 55405-02210 |
Panel Sub-assy, Instrument Cluster Finish, Center
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55405-02210 |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55405-02210 |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55405-02160 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55405-02210 |
Panel Sub-assy, Instrument Cluster Finish, Center
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55405-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center | ||||
| 55406-02210 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2008-02 → 2009-03
ended
|
ADE150,ZZE150 N;NDE150,ZRE151 (5F,5FS) N | — | |
| 55406-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2008-02 → 2009-03
ended
|
ADE150,ZZE150 N;NDE150,ZRE151 (5F,5FS) N | — | |
| 55406-02280 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55406-02210 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 N +1 | — | |
| 55406-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 N +1 | — | |
| 55406-02280 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2009-02 → 2010-07
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55406-02210 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55406-02210 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55406-02280 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55432A — Panel, Instrument Panel Finish, Lower RH | ||||
| 55432-02110 |
Panel, Instrument Panel Finish, Lower RH
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 55432-02110 |
Panel, Instrument Panel Finish, Lower RH
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55432-02110 |
Panel, Instrument Panel Finish, Lower RH
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 55432-02110 |
Panel, Instrument Panel Finish, Lower RH
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 55432-02380 |
Panel, Instrument Panel Finish, Lower RH
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 55433C — Panel, Instrument Panel Finish, Lower LH | ||||
| 55433-02110 |
Panel, Instrument Panel Finish, Lower LH
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 55433-02110 |
Panel, Instrument Panel Finish, Lower LH
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55433-02110 |
Panel, Instrument Panel Finish, Lower LH
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 55433-02110 |
Panel, Instrument Panel Finish, Lower LH
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 55433-02250 |
Panel, Instrument Panel Finish, Lower LH
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 55435A — Panel, Instrument Panel Finish, End RH | ||||
| 55435-02180 |
Panel, Instrument Panel Finish, End RH
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 55435-02180 |
Panel, Instrument Panel Finish, End RH
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55435-02180 |
Panel, Instrument Panel Finish, End RH
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 55435-02180 |
Panel, Instrument Panel Finish, End RH
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 55435-02310 |
Panel, Instrument Panel Finish, End RH
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 55436A — Panel, Instrument Panel Finish, End LH | ||||
| 55436-02140 |
Panel, Instrument Panel Finish, End LH
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 55436-02140 |
Panel, Instrument Panel Finish, End LH
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55436-02140 |
Panel, Instrument Panel Finish, End LH
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 55436-02140 |
Panel, Instrument Panel Finish, End LH
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 55436-02270 |
Panel, Instrument Panel Finish, End LH
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 55440D — Box Assy, Instrument Panel | ||||
| 55440-02040 |
Box Assy, Instrument Panel
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55440-02040 |
Box Assy, Instrument Panel
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD N | — | |
| 55440-02050 |
Box Assy, Instrument Panel
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55440-02050 |
Box Assy, Instrument Panel
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 55440-02090 |
Box Assy, Instrument Panel
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD D | — | |
| 55440-02100 |
Box Assy, Instrument Panel
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD D | — | |
| 55440-02040 |
Box Assy, Instrument Panel
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 55440-02040 |
Box Assy, Instrument Panel
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 55440-02050 |
Box Assy, Instrument Panel
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 55440-02090 |
Box Assy, Instrument Panel
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 LHD D (DCR,HTWC,HTWVM) | — | |
| 55440-02090 |
Box Assy, Instrument Panel
2009-02 → 2010-07
ended
|
NDE150 LHD D DCRL | — | |
| 55440-02100 |
Box Assy, Instrument Panel
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 RHD D (DCR,HTWC,HTWVM) | — | |
| 55440-02100 |
Box Assy, Instrument Panel
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 55440-12260 |
Box Assy, Instrument Panel
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55440-12270 |
Box Assy, Instrument Panel
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55442H — Door, Instrument Panel | ||||
| 55442-02120 |
Door, Instrument Panel
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD N | — | |
| 55442-02120 |
Door, Instrument Panel
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55442-02130 |
Door, Instrument Panel
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD D | — | |
| 55442-02140 |
Door, Instrument Panel
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 55442-02140 |
Door, Instrument Panel
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55442-02150 |
Door, Instrument Panel
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD D | — | |
| 55442-02120 |
Door, Instrument Panel
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 55442-02120 |
Door, Instrument Panel
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 55442-02130 |
Door, Instrument Panel
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 LHD D (DCR,HTWC,HTWVM) | — | |
| 55442-02130 |
Door, Instrument Panel
2009-02 → 2010-07
ended
|
NDE150 LHD D DCRL | — | |
| 55442-02140 |
Door, Instrument Panel
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 55442-02150 |
Door, Instrument Panel
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 RHD D (DCR,HTWC,HTWVM) | — | |
| 55442-02150 |
Door, Instrument Panel
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 55442-12380 |
Door, Instrument Panel
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55442-12390 |
Door, Instrument Panel
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55445J — Spring, Instrument Panel Box | ||||
| 55445-12100 |
Spring, Instrument Panel Box
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 55445-12100 |
Spring, Instrument Panel Box
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 55445-12130 |
Spring, Instrument Panel Box
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 55445-12130 |
Spring, Instrument Panel Box
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55445-12100 |
Spring, Instrument Panel Box
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 55445-12100 |
Spring, Instrument Panel Box
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 55445-12130 |
Spring, Instrument Panel Box
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 55445-12130 |
Spring, Instrument Panel Box
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 55445-12130 |
Spring, Instrument Panel Box
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 55521C — Cover, Stereo Opening | ||||
| 55521-02110 note |
Cover, Stereo Opening
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02110 note |
Cover, Stereo Opening
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02110 note |
Cover, Stereo Opening
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02110 note |
Cover, Stereo Opening
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02110 note |
Cover, Stereo Opening
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02110 |
Cover, Stereo Opening
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02110 |
Cover, Stereo Opening
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55521-02110 note |
Cover, Stereo Opening
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55521-02110 note |
Cover, Stereo Opening
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55521-02110 |
Cover, Stereo Opening
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55521-02110 note |
Cover, Stereo Opening
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55521-02110 note |
Cover, Stereo Opening
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55521-02110 |
Cover, Stereo Opening
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55521-02110 note |
Cover, Stereo Opening
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55521-02110 note |
Cover, Stereo Opening
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55521-02110 note |
Cover, Stereo Opening
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55521F — Cover, Stereo Opening, NO.2 | ||||
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02120 |
Cover, Stereo Opening, NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55521-02120 |
Cover, Stereo Opening, NO.2
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55521-02120 |
Cover, Stereo Opening, NO.2
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55521-02120 |
Cover, Stereo Opening, NO.2
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55521-02120 note |
Cover, Stereo Opening, NO.2
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55548A — Cover, Instrument Panel Hole | ||||
| 55548-02050 note |
Cover, Instrument Panel Hole
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD N | — | |
| 55548-02050 note |
Cover, Instrument Panel Hole
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD D | — | |
| 55548-02120 |
Cover, Instrument Panel Hole
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 N | — | |
| 55548-02120 |
Cover, Instrument Panel Hole
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55548-02130 |
Cover, Instrument Panel Hole
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55548-02050 note |
Cover, Instrument Panel Hole
2009-02 → 2010-06
ended
|
NRE150 N | — | |
| 55548-02050 note |
Cover, Instrument Panel Hole
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 55548-02050 note |
Cover, Instrument Panel Hole
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 55548-02050 note |
Cover, Instrument Panel Hole
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 LHD D (DCR,HTWC,HTWVM) | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2009-02 → 2010-07
ended
|
NDE150 LHD D DCRL | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2009-02 → 2010-06
ended
|
NRE150 D | — | |
| 55548-02120 |
Cover, Instrument Panel Hole
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 N +1 | — | |
| 55548-02120 |
Cover, Instrument Panel Hole
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 55548-02130 |
Cover, Instrument Panel Hole
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55548-02130 |
Cover, Instrument Panel Hole
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 D | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NDE150,ZRE151 LHD D | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 55548-02060 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 55548-02130 |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55548-02340 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 55548-02340 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 55548-02340 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
ADE150,NDE150,ZRE151 LHD N | — | |
| 55548-02340 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 55548-02340 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 55548-02340 note |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
NRE150 N | — | |
| 55548-02350 |
Cover, Instrument Panel Hole
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55670A — Register Assy, Instrument Panel, Center | ||||
| 55670-12370 |
Register Assy, Instrument Panel, Center
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 N | — | |
| 55670-12370 |
Register Assy, Instrument Panel, Center
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 55670-12380 |
Register Assy, Instrument Panel, Center
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 55670-12370 |
Register Assy, Instrument Panel, Center
2009-02 → 2009-10
ended
|
NDE150 N;ADE150,NRE150,ZRE151 N (DCRL,HTWC,HTWVM) | — | |
| 55670-12380 |
Register Assy, Instrument Panel, Center
2009-02 → 2009-10
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55670-12590 |
Register Assy, Instrument Panel, Center
2009-11 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 N | — | |
| 55670-12590 |
Register Assy, Instrument Panel, Center
2009-11 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 55670-12600 |
Register Assy, Instrument Panel, Center
2009-11 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 55670-12600 |
Register Assy, Instrument Panel, Center
2009-11 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 55670-12590 |
Register Assy, Instrument Panel, Center
2010-06 → 2010-09
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55670-12591 |
Register Assy, Instrument Panel, Center
2010-10 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 55670-12600 |
Register Assy, Instrument Panel, Center
2010-06 → 2010-09
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 55670-12601 |
Register Assy, Instrument Panel, Center
2010-10 → 2013-06
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 58816C — Insert, Console Box, Front NO.1 | ||||
| 58816-02060-B0 note |
Insert, Console Box, Front NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 58816-02060-B0 note |
Insert, Console Box, Front NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 58816-02060-E0 note |
Insert, Console Box, Front NO.1
2008-02 → 2009-02
ended
|
NDE150 N;ZRE151,ZZE150 LHD | — | |
| 58816-02060-E0 note |
Insert, Console Box, Front NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 58816-02070-B0 note |
Insert, Console Box, Front NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 58816-02070-B0 note |
Insert, Console Box, Front NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 58816-02070-E0 note |
Insert, Console Box, Front NO.1
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 58816-02070-E0 note |
Insert, Console Box, Front NO.1
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD | — | |
| 58816-02060-B0 note |
Insert, Console Box, Front NO.1
2009-02 → 2010-07
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD | — | |
| 58816-02060-E0 note |
Insert, Console Box, Front NO.1
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 58816-02070-B0 note |
Insert, Console Box, Front NO.1
2009-02 → 2010-07
ended
|
NDE150 RHD D;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 58816-02070-E0 note |
Insert, Console Box, Front NO.1
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 58816-02060-B0 note |
Insert, Console Box, Front NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 58816-02060-E0 note |
Insert, Console Box, Front NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 58816-02070-B0 note |
Insert, Console Box, Front NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 58816-02070-E0 note |
Insert, Console Box, Front NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 58817B — Insert, Console Box, Front NO.2 | ||||
| 58817-02060-B0 note |
Insert, Console Box, Front NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 58817-02060-B0 note |
Insert, Console Box, Front NO.2
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 58817-02060-E0 note |
Insert, Console Box, Front NO.2
2008-02 → 2009-02
ended
|
NDE150 N;ZRE151,ZZE150 LHD | — | |
| 58817-02060-E0 note |
Insert, Console Box, Front NO.2
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 58817-02070-B0 note |
Insert, Console Box, Front NO.2
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 58817-02070-B0 note |
Insert, Console Box, Front NO.2
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 58817-02070-E0 note |
Insert, Console Box, Front NO.2
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD | — | |
| 58817-02070-E0 note |
Insert, Console Box, Front NO.2
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 58817-02060-B0 note |
Insert, Console Box, Front NO.2
2009-02 → 2010-07
ended
|
ADE150 LHD DCRL;NDE150,NRE150,ZRE151 LHD | — | |
| 58817-02060-E0 note |
Insert, Console Box, Front NO.2
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 58817-02070-B0 note |
Insert, Console Box, Front NO.2
2009-02 → 2010-07
ended
|
NDE150 RHD D;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 58817-02070-E0 note |
Insert, Console Box, Front NO.2
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 58817-02060-B0 note |
Insert, Console Box, Front NO.2
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 58817-02060-E0 note |
Insert, Console Box, Front NO.2
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 58817-02070-B0 note |
Insert, Console Box, Front NO.2
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 58817-02070-E0 note |
Insert, Console Box, Front NO.2
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
