Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

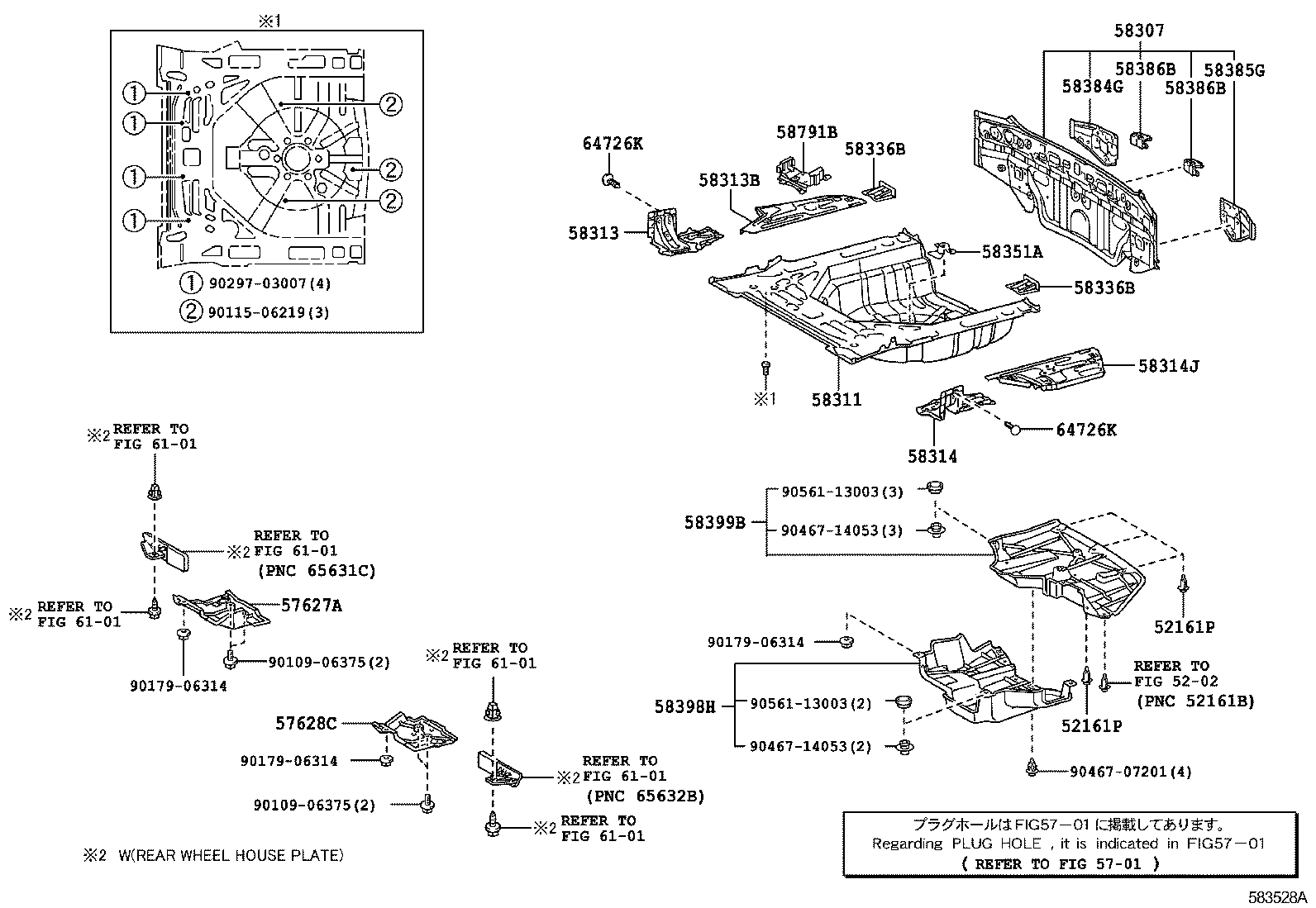

Exploded illustration 583528A 58307 — PANEL SUB-ASSY, BODY LOWER BACK (5 parts) 58311 — PAN, REAR FLOOR (5 parts) 58313 — PANEL, REAR FLOOR SIDE, RH (5 parts) 58313B — PANEL, REAR FLOOR SIDE, RH (3 parts) 58791B — CARRIER, JACK (5 parts) 58314 — PANEL, REAR FLOOR SIDE, LH (5 parts) 58314J — PANEL, REAR FLOOR SIDE, LH (3 parts) 58336B — REINFORCEMENT, REAR FLOOR PAN (5 parts) 58336B — REINFORCEMENT, REAR FLOOR PAN (5 parts) 58351A — BRACKET, SPARE WHEEL CARRIER (5 parts) 58384G — GUSSET, LOWER BACK, UPPER RH (5 parts) 58385G — GUSSET, LOWER BACK, UPPER LH (5 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (5 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (5 parts) 9029703007 — not listed in this catalogue 9011506219 — not listed in this catalogue 64726K — CLIP, LUGGAGE TRIM, REAR (5 parts) 64726K — CLIP, LUGGAGE TRIM, REAR (5 parts) 5701 — not listed in this catalogue 9017906314 — not listed in this catalogue 58398H — COVER, FLOOR UNDER, NO.1 (5 parts) 58399B — COVER, FLOOR UNDER, NO.2 (5 parts) 9046707201 — not listed in this catalogue 52161P — PIECE, REAR BUMPER (3 parts) 52161P — PIECE, REAR BUMPER (3 parts) 9056113003 — not listed in this catalogue 9046714053 — not listed in this catalogue 9056113003 — not listed in this catalogue 9046714053 — not listed in this catalogue 9017906314 — not listed in this catalogue 9017906314 — not listed in this catalogue 57627A — COVER, REAR FLOOR SIDE MEMBER, RH (5 parts) 57628C — COVER, REAR FLOOR SIDE MEMBER, LH (5 parts) 9010906375 — not listed in this catalogue 9010906375 — not listed in this catalogue 6101 — not listed in this catalogue 6101 — not listed in this catalogue 6101 — not listed in this catalogue 6101 — not listed in this catalogue 6101 — not listed in this catalogue 6101 — not listed in this catalogue 5202 — not listed in this catalogue
583528A · 22 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
84 parts on this figure
Part number Description Fitment Price
52161P — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2008-02 → 2009-03 ended
ADE150;NDE150 5F,5FS —
52161-02030 Piece, Rear Bumper
2009-02 → 2010-07 ended
NDE150 D;NDE150 LHD N;ADE150,NRE150,ZRE151 +1 —
52161-02030 Piece, Rear Bumper
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
57627A — Cover, Rear Floor Side Member, RH
57627-02030 Cover, Rear Floor Side Member, RH
2008-02 → 2009-02 ended
NDE150 —
57627-02030 Cover, Rear Floor Side Member, RH
2008-02 → 2009-03 ended
ADE150 —
57627-02060 Cover, Rear Floor Side Member, RH
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
57627-02060 Cover, Rear Floor Side Member, RH
2009-02 → 2010-07 ended
NDE150 DCRL —
57627-02060 Cover, Rear Floor Side Member, RH
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
57628C — Cover, Rear Floor Side Member, LH
57628-02040 Cover, Rear Floor Side Member, LH
2008-02 → 2009-02 ended
NDE150 —
57628-02040 Cover, Rear Floor Side Member, LH
2008-02 → 2009-03 ended
ADE150 —
57628-02070 Cover, Rear Floor Side Member, LH
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
57628-02070 Cover, Rear Floor Side Member, LH
2009-02 → 2010-07 ended
NDE150 DCRL —
57628-02070 Cover, Rear Floor Side Member, LH
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58307 — Panel Sub-assy, Body Lower Back
58307-02140 Panel Sub-assy, Body Lower Back
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58307-02140 Panel Sub-assy, Body Lower Back
2008-02 → 2009-03 ended
ADE150 —
58307-02140 Panel Sub-assy, Body Lower Back
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58307-02140 Panel Sub-assy, Body Lower Back
2009-02 → 2010-07 ended
NDE150 DCRL —
58307-02140 Panel Sub-assy, Body Lower Back
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58311 — Pan, Rear Floor
58311-02150 Pan, Rear Floor
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58311-02150 Pan, Rear Floor
2008-02 → 2009-03 ended
ADE150 —
58311-02150 Pan, Rear Floor
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58311-02150 Pan, Rear Floor
2009-02 → 2010-07 ended
NDE150 DCRL —
58311-02150 Pan, Rear Floor
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58313 — Panel, Rear Floor Side, RH
58305-12040 Panel, Rear Floor Side, RH
2008-02 → 2009-03 ended
ADE150 —
58305-12040 Panel, Rear Floor Side, RH
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58305-12040 Panel, Rear Floor Side, RH
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58305-12040 Panel, Rear Floor Side, RH
2009-02 → 2010-07 ended
NDE150 DCRL —
58305-12040 Panel, Rear Floor Side, RH
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58313B — Panel, Rear Floor Side, RH
58313-02100 Panel, Rear Floor Side, RH
2008-02 → 2009-03 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
58313-02100 Panel, Rear Floor Side, RH
2009-02 → 2010-07 ended
NDE150 D;NDE150 LHD N;ADE150,NRE150,ZRE151 +1 —
58313-02100 Panel, Rear Floor Side, RH
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58314 — Panel, Rear Floor Side, LH
58306-12030 Panel, Rear Floor Side, LH
2008-02 → 2009-03 ended
ADE150 —
58306-12030 Panel, Rear Floor Side, LH
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58306-12030 Panel, Rear Floor Side, LH
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58306-12030 Panel, Rear Floor Side, LH
2009-02 → 2010-07 ended
NDE150 DCRL —
58306-12030 Panel, Rear Floor Side, LH
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58314J — Panel, Rear Floor Side, LH
58314-02100 Panel, Rear Floor Side, LH
2008-02 → 2009-03 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
58314-02100 Panel, Rear Floor Side, LH
2009-02 → 2010-07 ended
NDE150 D;NDE150 LHD N;ADE150,NRE150,ZRE151 +1 —
58314-02100 Panel, Rear Floor Side, LH
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58336B — Reinforcement, Rear Floor Pan
58336-12090 Reinforcement, Rear Floor Pan
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58336-12090 Reinforcement, Rear Floor Pan
2008-02 → 2009-03 ended
ADE150 —
58336-12090 Reinforcement, Rear Floor Pan
2009-02 → 2010-07 ended
NDE150 DCRL —
58336-12090 Reinforcement, Rear Floor Pan
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58336-12090 Reinforcement, Rear Floor Pan
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58351A — Bracket, Spare Wheel Carrier
58351-12060 Bracket, Spare Wheel Carrier
2008-02 → 2009-03 ended
ADE150 —
58351-12060 Bracket, Spare Wheel Carrier
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58351-12060 Bracket, Spare Wheel Carrier
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58351-12060 Bracket, Spare Wheel Carrier
2009-02 → 2010-07 ended
NDE150 DCRL —
58351-12060 Bracket, Spare Wheel Carrier
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58384G — Gusset, Lower Back, Upper RH
58384-12170 Gusset, Lower Back, Upper RH
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58384-12170 Gusset, Lower Back, Upper RH
2008-02 → 2009-03 ended
ADE150 —
58384-12170 Gusset, Lower Back, Upper RH
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58384-12170 Gusset, Lower Back, Upper RH
2009-02 → 2010-07 ended
NDE150 DCRL —
58384-12170 Gusset, Lower Back, Upper RH
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58385G — Gusset, Lower Back, Upper LH
58385-12150 Gusset, Lower Back, Upper LH
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58385-12150 Gusset, Lower Back, Upper LH
2008-02 → 2009-03 ended
ADE150 —
58385-12150 Gusset, Lower Back, Upper LH
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58385-12150 Gusset, Lower Back, Upper LH
2009-02 → 2010-07 ended
NDE150 DCRL —
58385-12150 Gusset, Lower Back, Upper LH
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58386B — Bracket, Rear Bumper Cover, NO.2
58386-12020 Bracket, Rear Bumper Cover, NO.2
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58386-12020 Bracket, Rear Bumper Cover, NO.2
2008-02 → 2009-03 ended
ADE150 —
58386-12020 Bracket, Rear Bumper Cover, NO.2
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58386-12020 Bracket, Rear Bumper Cover, NO.2
2009-02 → 2010-07 ended
NDE150 DCRL —
58386-12020 Bracket, Rear Bumper Cover, NO.2
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58398H — Cover, Floor Under, NO.1
58398-02040 Cover, Floor Under, NO.1
2008-02 → 2009-03 ended
ADE150 —
58398-02040 Cover, Floor Under, NO.1
2008-02 → 2009-02 ended
NDE150 —
58398-02040 Cover, Floor Under, NO.1
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58398-02040 Cover, Floor Under, NO.1
2009-02 → 2010-07 ended
NDE150 DCRL —
58398-02040 Cover, Floor Under, NO.1
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58399B — Cover, Floor Under, NO.2
58399-02020 Cover, Floor Under, NO.2
2008-02 → 2009-02 ended
NDE150 —
58399-02020 Cover, Floor Under, NO.2
2008-02 → 2009-03 ended
ADE150 —
58399-02020 Cover, Floor Under, NO.2
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58399-02020 Cover, Floor Under, NO.2
2009-02 → 2010-07 ended
NDE150 DCRL —
58399-02020 Cover, Floor Under, NO.2
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
58791B — Carrier, Jack
58791-12230 Carrier, Jack
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
58791-12230 Carrier, Jack
2008-02 → 2009-03 ended
ADE150 —
58791-12230 Carrier, Jack
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
58791-12230 Carrier, Jack
2009-02 → 2010-07 ended
NDE150 DCRL —
58791-12230 Carrier, Jack
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
64726K — Clip, Luggage Trim, Rear
64726-12040 Clip, Luggage Trim, Rear
2008-02 → 2009-02 ended
NDE150,ZRE151,ZZE150 —
64726-12040 Clip, Luggage Trim, Rear
2008-02 → 2009-03 ended
ADE150 —
64726-12040 Clip, Luggage Trim, Rear
2009-02 → 2010-06 ended
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM —
64726-12040 Clip, Luggage Trim, Rear
2009-02 → 2010-07 ended
NDE150 DCRL —
64726-12040 Clip, Luggage Trim, Rear
2010-06 → 2013-06 ended
ADE150,NDE150,NRE150,ZRE151 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
