Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

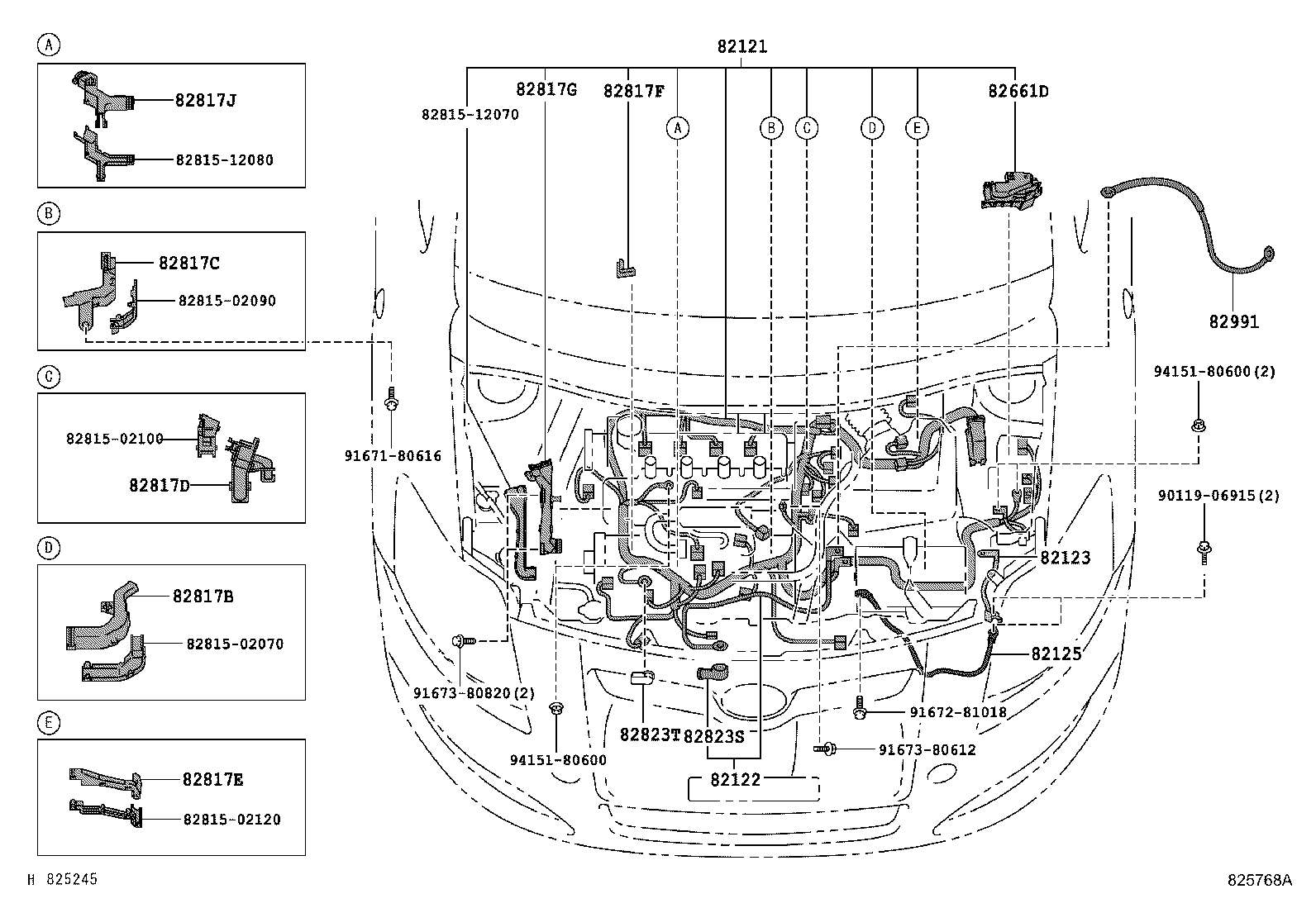

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-02J90 |
Wire, Engine
2008-02 → 2009-02
ended
|
ZZE150 | — | |
| 82121-02K00 |
Wire, Engine
2008-02 → 2009-02
ended
|
NDE150 5F | — | |
| 82121-02K20 |
Wire, Engine
2008-02 → 2009-02
ended
|
NDE150 5FS | — | |
| 82121-02K31 |
Wire, Engine
2008-02 → 2009-03
ended
|
ADE150 DCR | — | |
| 82121-02K51 |
Wire, Engine
2008-02 → 2009-03
ended
|
ADE150 DCRL | — | |
| 82121-02K60 |
Wire, Engine
2008-02 → 2009-02
ended
|
ZRE151 5F | — | |
| 82121-02K70 |
Wire, Engine
2008-02 → 2009-02
ended
|
ZRE151 5FS | — | |
| 82121-02S20 |
Wire, Engine
2009-02 → 2010-06
ended
|
NDE150 6F DCR | — | |
| 82121-02S30 |
Wire, Engine
2009-02 → 2010-06
ended
|
NDE150 6FS DCR | — | |
| 82121-02S50 |
Wire, Engine
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 82121-02S60 |
Wire, Engine
2009-02 → 2010-06
ended
|
ZRE151 6F HTWVM | — | |
| 82121-02S70 |
Wire, Engine
2009-02 → 2010-06
ended
|
ZRE151 6FS | — | |
| 82121-02T00 |
Wire, Engine
2009-02 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 82121-02T10 |
Wire, Engine
2009-02 → 2010-07
ended
|
NDE150 6FS DCRL | — | |
| 82121-02T20 |
Wire, Engine
2009-02 → 2010-06
ended
|
ZRE151 6F HTWC | — | |
| 82121-02T30 |
Wire, Engine
2009-02 → 2010-06
ended
|
ZRE151 4FC | — | |
| 82121-02T40 |
Wire, Engine
2009-02 → 2009-11
ended
|
NRE150 | — | |
| 82121-02T41 |
Wire, Engine
2009-11 → 2009-12
ended
|
NRE150 | — | |
| 82121-02T60 note |
Wire, Engine
2009-02 → 2009-11
ended
|
NRE150 D | — | |
| 82121-02T60 note |
Wire, Engine
2009-02 → 2009-11
ended
|
NRE150 | — | |
| 82121-02T61 note |
Wire, Engine
2009-11 → 2009-12
ended
|
NRE150 | — | |
| 82121-02T61 note |
Wire, Engine
2009-11 → 2009-12
ended
|
NRE150 D | — | |
| 82121-0Z140 |
Wire, Engine
2009-12 → 2010-06
ended
|
NRE150 | — | |
| 82121-0Z150 note |
Wire, Engine
2009-12 → 2010-06
ended
|
NRE150 | — | |
| 82121-0Z150 note |
Wire, Engine
2009-12 → 2010-06
ended
|
NRE150 D | — | |
| 82121-02S20 |
Wire, Engine
2010-06 → 2012-11
ended
|
NDE150 6F DCR | — | |
| 82121-02S21 |
Wire, Engine
2012-11 → 2013-06
ended
|
NDE150 DCR | — | |
| 82121-02S30 |
Wire, Engine
2010-06 → 2012-08
ended
|
NDE150 6FS DCR | — | |
| 82121-02S50 |
Wire, Engine
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 82121-02S60 |
Wire, Engine
2010-06 → 2013-06
ended
|
ZRE151 6F | — | |
| 82121-02S70 |
Wire, Engine
2010-06 → 2013-06
ended
|
ZRE151 6FS | — | |
| 82121-02V50 note |
Wire, Engine
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 82121-02V50 note |
Wire, Engine
2010-06 → 2013-06
ended
|
NRE150 D | — | |
| 82121-02V50 note |
Wire, Engine
2010-06 → 2013-06
ended
|
NRE150 RHD | — | |
| 82121-02V50 note |
Wire, Engine
2010-06 → 2013-06
ended
|
NRE150 RHD D | — | |
| 82121-02V60 note |
Wire, Engine
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 82121-02V60 note |
Wire, Engine
2010-06 → 2013-06
ended
|
NRE150 D | — | |
| 82121-02Y90 |
Wire, Engine
2010-07 → 2012-11
ended
|
NDE150 6F DCRL | — | |
| 82121-02Y91 |
Wire, Engine
2012-11 → 2013-06
ended
|
NDE150 6F DCRL | — | |
| 82121-02Z00 |
Wire, Engine
2010-07 → 2012-11
ended
|
NDE150 6FS DCRL | — | |
| 82121-02Z01 |
Wire, Engine
2012-11 → 2013-06
ended
|
NDE150 6FS | — | |
| 82121-02Z10 |
Wire, Engine
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-02060 |
Wire, Engine, NO.2
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82122-02070 note |
Wire, Engine, NO.2
2008-02 → 2009-02
ended
|
NDE150 LHD | — | |
| 82122-02070 note |
Wire, Engine, NO.2
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82122-02080 |
Wire, Engine, NO.2
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82122-02120 |
Wire, Engine, NO.2
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 82122-02130 note |
Wire, Engine, NO.2
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82122-02130 note |
Wire, Engine, NO.2
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 82122-02130 note |
Wire, Engine, NO.2
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82122-02130 note |
Wire, Engine, NO.2
2009-02 → 2010-06
ended
|
NDE150 LHD DCR | — | |
| 82122-02140 |
Wire, Engine, NO.2
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82122-02140 |
Wire, Engine, NO.2
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82122-02120 |
Wire, Engine, NO.2
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 82122-02130 note |
Wire, Engine, NO.2
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82122-02130 note |
Wire, Engine, NO.2
2010-06 → 2013-06
ended
|
NDE150 LHD | — | |
| 82122-02140 |
Wire, Engine, NO.2
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-02290 |
Wire, Engine, NO.3
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82123-02290 |
Wire, Engine, NO.3
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82123-02300 |
Wire, Engine, NO.3
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 | — | |
| 82123-02300 |
Wire, Engine, NO.3
2009-02 → 2010-06
ended
|
NRE150,ZRE151 HTWC | — | |
| 82123-02430 |
Wire, Engine, NO.3
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150 DCRL | — | |
| 82123-02430 |
Wire, Engine, NO.3
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82123-02440 note |
Wire, Engine, NO.3
2009-02 → 2010-06
ended
|
NRE150 | — | |
| 82123-02440 |
Wire, Engine, NO.3
2009-02 → 2010-06
ended
|
ZRE151 HTWVM | — | |
| 82123-02300 |
Wire, Engine, NO.3
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 82123-02430 |
Wire, Engine, NO.3
2010-06 → 2013-06
ended
|
ADE150,NDE150 | — | |
| 82123-02440 |
Wire, Engine, NO.3
2010-06 → 2013-06
ended
|
ZRE151 | — | |
| 82123-02440 note |
Wire, Engine, NO.3
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 82125 — Wire, Transmission | ||||
| 82125-02070 |
Wire, Transmission
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82125-02080 |
Wire, Transmission
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82125-02100 |
Wire, Transmission
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 | — | |
| 82125-02070 |
Wire, Transmission
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 82125-02110 |
Wire, Transmission
2009-02 → 2010-06
ended
|
ZRE151 4FC | — | |
| 82125-02330 |
Wire, Transmission
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82125-02330 |
Wire, Transmission
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82125-02340 |
Wire, Transmission
2009-02 → 2010-06
ended
|
NRE150,ZRE151 MTM | — | |
| 82125-02070 |
Wire, Transmission
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 82125-02330 |
Wire, Transmission
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82125-02340 |
Wire, Transmission
2010-06 → 2013-06
ended
|
NRE150,ZRE151 | — | |
| 82661D — Cover, Relay Block, Side NO.1 | ||||
| 82661-12280 |
Cover, Relay Block, Side NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-02360 |
Protector, Wiring Harness, NO.3
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.3
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.3
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.3
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82817-05490 |
Protector, Wiring Harness, NO.3
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.3
2009-02 → 2010-06
ended
|
NRE150,ZRE151 | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.3
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82817-05490 |
Protector, Wiring Harness, NO.3
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.3
2010-06 → 2013-06
ended
|
NRE150,ZRE151 | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-02370 |
Protector, Wiring Harness, NO.4
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82817-02400 |
Protector, Wiring Harness, NO.4
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02790 |
Protector, Wiring Harness, NO.4
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82817-02790 |
Protector, Wiring Harness, NO.4
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82817-02790 |
Protector, Wiring Harness, NO.4
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-02380 |
Protector, Wiring Harness, NO.5
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82817-02410 |
Protector, Wiring Harness, NO.5
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.5
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 82817-02800 |
Protector, Wiring Harness, NO.5
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82817-02800 |
Protector, Wiring Harness, NO.5
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.5
2009-02 → 2010-06
ended
|
NRE150,ZRE151 | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.5
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 82817-02800 |
Protector, Wiring Harness, NO.5
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.5
2010-06 → 2013-06
ended
|
NRE150,ZRE151 | — | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-02390 |
Protector, Wiring Harness, NO.6
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82817-02430 |
Protector, Wiring Harness, NO.6
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02390 |
Protector, Wiring Harness, NO.6
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 82817-02430 |
Protector, Wiring Harness, NO.6
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82817-02430 |
Protector, Wiring Harness, NO.6
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82817-02760 |
Protector, Wiring Harness, NO.6
2009-02 → 2010-06
ended
|
ZRE151 HTWVM | — | |
| 82817-12J60 |
Protector, Wiring Harness, NO.6
2009-02 → 2010-06
ended
|
NRE150 | — | |
| 82817-02390 |
Protector, Wiring Harness, NO.6
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 82817-02430 |
Protector, Wiring Harness, NO.6
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82817-02760 |
Protector, Wiring Harness, NO.6
2010-06 → 2013-06
ended
|
ZRE151 | — | |
| 82817-12J60 |
Protector, Wiring Harness, NO.6
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 82817F — Protector, Wiring Harness, NO.7 | ||||
| 82817-02420 |
Protector, Wiring Harness, NO.7
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.7
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02420 |
Protector, Wiring Harness, NO.7
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 82817-02770 |
Protector, Wiring Harness, NO.7
2009-02 → 2010-06
ended
|
ZRE151 HTWVM | — | |
| 82817-0D170 |
Protector, Wiring Harness, NO.7
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82817-0D170 |
Protector, Wiring Harness, NO.7
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82817-12J70 |
Protector, Wiring Harness, NO.7
2009-02 → 2010-06
ended
|
NRE150 | — | |
| 82817-02420 |
Protector, Wiring Harness, NO.7
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 82817-02770 |
Protector, Wiring Harness, NO.7
2010-06 → 2013-06
ended
|
ZRE151 | — | |
| 82817-0D170 |
Protector, Wiring Harness, NO.7
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82817-12J70 |
Protector, Wiring Harness, NO.7
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 82817G — Protector, Wiring Harness, NO.8 | ||||
| 82817-02440 |
Protector, Wiring Harness, NO.8
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82817-12A10 |
Protector, Wiring Harness, NO.8
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02440 |
Protector, Wiring Harness, NO.8
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 82817-02780 |
Protector, Wiring Harness, NO.8
2009-02 → 2010-06
ended
|
ZRE151 HTWVM | — | |
| 82817-0D180 |
Protector, Wiring Harness, NO.8
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82817-0D180 |
Protector, Wiring Harness, NO.8
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82817-12J90 |
Protector, Wiring Harness, NO.8
2009-02 → 2010-06
ended
|
NRE150 | — | |
| 82817-02440 |
Protector, Wiring Harness, NO.8
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 82817-02780 |
Protector, Wiring Harness, NO.8
2010-06 → 2013-06
ended
|
ZRE151 | — | |
| 82817-0D180 |
Protector, Wiring Harness, NO.8
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82817-12J90 |
Protector, Wiring Harness, NO.8
2010-06 → 2013-06
ended
|
NRE150 | — | |
| 82817J — Protector, Wiring Harness, NO.9 | ||||
| 82817-05410 |
Protector, Wiring Harness, NO.9
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82817-12A20 |
Protector, Wiring Harness, NO.9
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-0D190 |
Protector, Wiring Harness, NO.9
2009-02 → 2010-06
ended
|
NDE150 DCR | — | |
| 82817-0D190 |
Protector, Wiring Harness, NO.9
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82817-0D190 |
Protector, Wiring Harness, NO.9
2010-06 → 2013-06
ended
|
NDE150 | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-20080 |
Cap, Starter Terminal
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82823-20090 |
Cap, Starter Terminal
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82823-30120 |
Cap, Starter Terminal
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 | — | |
| 82823-12090 |
Cap, Starter Terminal
2009-02 → 2010-06
ended
|
ZRE151 HTWC | — | |
| 82823-20100 |
Cap, Starter Terminal
2009-03 → 2010-06
ended
|
ADE150 | — | |
| 82823-12110 |
Cap, Starter Terminal
2010-06 → 2013-06
ended
|
ZRE151 | — | |
| 82823-20100 |
Cap, Starter Terminal
2010-06 → 2013-06
ended
|
ADE150 | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2008-02 → 2009-03
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 82823-22050 |
Cap, Alternator Terminal
2009-02 → 2010-07
ended
|
NDE150 D;NDE150 LHD N;ADE150,NRE150,ZRE151 +1 | — | |
| 82823-22050 |
Cap, Alternator Terminal
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 82991 — Wire, Fusible Link Repair | ||||
| 82991-12110 |
Wire, Fusible Link Repair
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 82991-12110 |
Wire, Fusible Link Repair
2009-02 → 2010-06
ended
|
NRE150,ZRE151 | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150 DCRL | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 82991-12110 |
Wire, Fusible Link Repair
2010-06 → 2013-06
ended
|
NRE150,ZRE151 | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2010-06 → 2013-06
ended
|
ADE150,NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
