Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

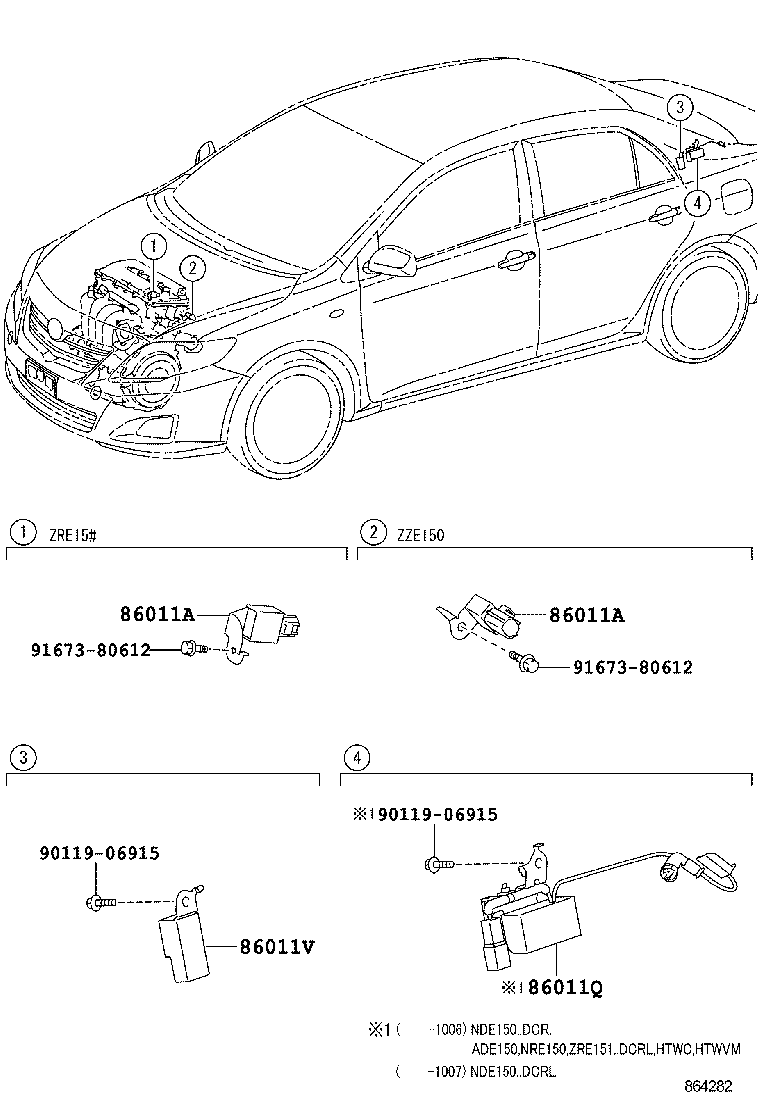

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90080-88003 |
Condenser, Radio Setting
2008-02 → 2009-02
ended
|
ZZE150 | — | |
| 90980-04196 |
Condenser, Radio Setting
2008-02 → 2009-02
ended
|
ZRE151 | — | |
| 90980-04194 |
Condenser, Radio Setting
2009-10 → 2010-06
ended
|
ZRE151 | — | |
| 90980-04196 |
Condenser, Radio Setting
2009-02 → 2009-10
ended
|
ZRE151 | — | |
| 90980-04196 |
Condenser, Radio Setting
2009-02 → 2009-11
ended
|
NRE150 | — | |
| 90980-04194 |
Condenser, Radio Setting
2010-06 → 2013-06
ended
|
ZRE151 | — | |
| 86011Q — Condenser, Radio Setting | ||||
| 90980-04199 |
Condenser, Radio Setting
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 90980-04199 |
Condenser, Radio Setting
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90980-04199 |
Condenser, Radio Setting
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 90980-04199 |
Condenser, Radio Setting
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 86011V — Condenser, Radio Setting | ||||
| 90980-04179 |
Condenser, Radio Setting
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 90980-04179 |
Condenser, Radio Setting
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 90980-04179 |
Condenser, Radio Setting
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 90980-04179 |
Condenser, Radio Setting
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 90980-04179 |
Condenser, Radio Setting
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
