Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

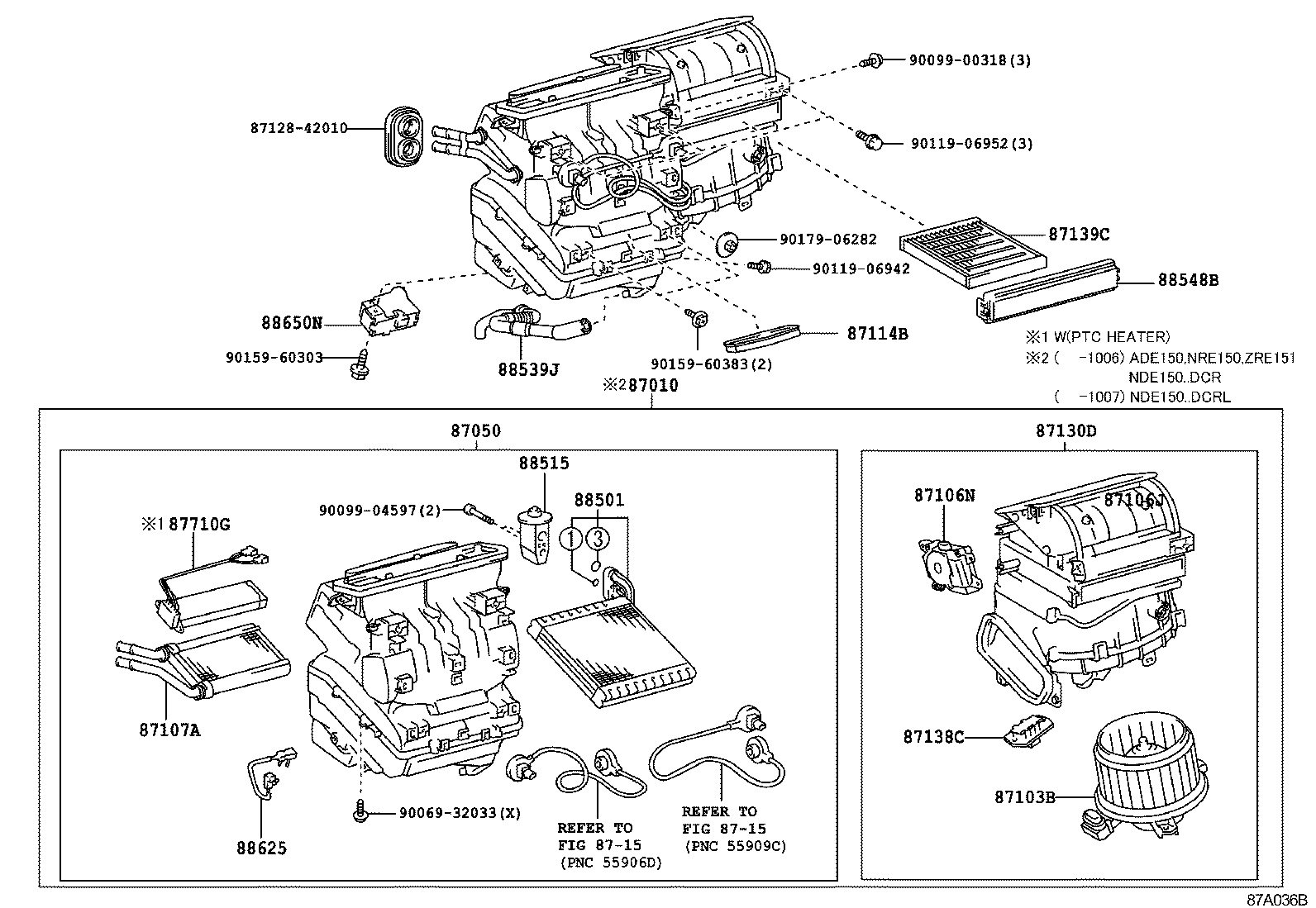

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87010 — Unit Assy, Air Conditioner | ||||
| 87010-02C90 note |
Unit Assy, Air Conditioner
2008-02 → 2008-03
ended
|
ZRE151,ZZE150 RHD D | — | |
| 87010-02C90 |
Unit Assy, Air Conditioner
2008-02 → 2008-03
ended
|
ZRE151,ZZE150 RHD N | — | |
| 87010-02C91 |
Unit Assy, Air Conditioner
2008-04 → 2008-10
ended
|
ZRE151,ZZE150 RHD N | — | |
| 87010-02C91 note |
Unit Assy, Air Conditioner
2008-04 → 2008-10
ended
|
ZRE151,ZZE150 RHD D | — | |
| 87010-02C92 |
Unit Assy, Air Conditioner
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 87010-02C92 note |
Unit Assy, Air Conditioner
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 RHD D | — | |
| 87010-02D50 note |
Unit Assy, Air Conditioner
2008-02 → 2008-03
ended
|
ZRE151,ZZE150 LHD D | — | |
| 87010-02D50 note |
Unit Assy, Air Conditioner
2008-02 → 2008-03
ended
|
ADE150,NDE150 LHD N | — | |
| 87010-02D50 note |
Unit Assy, Air Conditioner
2008-02 → 2008-03
ended
|
NDE150 LHD D | — | |
| 87010-02D50 |
Unit Assy, Air Conditioner
2008-02 → 2008-03
ended
|
ZRE151,ZZE150 LHD N | — | |
| 87010-02D51 |
Unit Assy, Air Conditioner
2008-04 → 2008-10
ended
|
ZRE151,ZZE150 LHD N | — | |
| 87010-02D51 note |
Unit Assy, Air Conditioner
2008-04 → 2008-10
ended
|
ZRE151,ZZE150 LHD D | — | |
| 87010-02D51 note |
Unit Assy, Air Conditioner
2008-04 → 2008-10
ended
|
ADE150,NDE150 LHD N | — | |
| 87010-02D51 note |
Unit Assy, Air Conditioner
2008-04 → 2008-10
ended
|
NDE150 LHD D | — | |
| 87010-02D52 note |
Unit Assy, Air Conditioner
2008-11 → 2009-02
ended
|
NDE150 N | — | |
| 87010-02D52 note |
Unit Assy, Air Conditioner
2008-11 → 2009-03
ended
|
ADE150 LHD | — | |
| 87010-02D52 note |
Unit Assy, Air Conditioner
2008-11 → 2009-02
ended
|
NDE150 LHD D | — | |
| 87010-02D52 note |
Unit Assy, Air Conditioner
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 LHD D | — | |
| 87010-02D52 |
Unit Assy, Air Conditioner
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 LHD N | — | |
| 87010-02C92 |
Unit Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 RHD N | — | |
| 87010-02C92 note |
Unit Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 RHD D | — | |
| 87010-02D52 |
Unit Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87010-02D52 note |
Unit Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150 LHD +1 | — | |
| 87010-02D52 note |
Unit Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NDE150 LHD D DCR | — | |
| 87010-02D52 note |
Unit Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87010-02D52 note |
Unit Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 87010-02D52 note |
Unit Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD D DCRL | — | |
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-02A30 |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 87050-02A30 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD D | — | |
| 87050-02A40 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 RHD | — | |
| 87050-02A40 |
Radiator Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 87050-02A50 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 87050-02A60 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 87050-02A70 |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD D | — | |
| 87050-02A80 |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 RHD | — | |
| 87050-02A90 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD;NDE150 (5F,5FS) N | — | |
| 87050-02A90 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 LHD D | — | |
| 87050-02A90 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 LHD D | — | |
| 87050-02A90 |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 LHD N | — | |
| 87050-02B00 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 LHD D | — | |
| 87050-02B00 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151 LHD N | — | |
| 87050-02B00 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151 LHD D | — | |
| 87050-02B00 |
Radiator Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD;NDE150 (5F,5FS) N | — | |
| 87050-02B10 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 LHD N | — | |
| 87050-02B10 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD;NDE150 (5F,5FS) N | — | |
| 87050-02B20 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151 LHD N | — | |
| 87050-02B20 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD;NDE150 (5F,5FS) N | — | |
| 87050-02B30 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87050-02B30 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 LHD D | — | |
| 87050-02B30 |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 LHD D | — | |
| 87050-02B40 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87050-02B40 |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 LHD D | — | |
| 87050-02B40 note |
Radiator Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151 LHD D | — | |
| 87050-02A30 |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 RHD N | — | |
| 87050-02A30 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 RHD D | — | |
| 87050-02A40 |
Radiator Assy, Air Conditioner
2009-03 → 2010-06
ended
|
ADE150 RHD | — | |
| 87050-02A50 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 RHD N | — | |
| 87050-02A60 note |
Radiator Assy, Air Conditioner
2009-03 → 2010-06
ended
|
ADE150 RHD | — | |
| 87050-02A70 |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 RHD D | — | |
| 87050-02A90 |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87050-02A90 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87050-02A90 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD D | — | |
| 87050-02A90 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150 LHD +1 | — | |
| 87050-02B00 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87050-02B00 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87050-02B00 |
Radiator Assy, Air Conditioner
2009-03 → 2010-06
ended
|
ADE150 LHD | — | |
| 87050-02B10 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87050-02B10 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD N;ADE150 LHD +1 | — | |
| 87050-02B20 note |
Radiator Assy, Air Conditioner
2009-03 → 2010-06
ended
|
ADE150 LHD | — | |
| 87050-02B20 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87050-02B30 |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87050-02B30 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD D | — | |
| 87050-02B40 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87050-02E00 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 RHD D | — | |
| 87050-02E10 |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 RHD D | — | |
| 87050-02E20 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD D | — | |
| 87050-02E20 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 87050-02E20 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87050-02E20 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 87050-02E20 |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD N | — | |
| 87050-02E20 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87050-02E30 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87050-02E30 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD N | — | |
| 87050-02E30 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87050-02E40 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 87050-02E40 note |
Radiator Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 87050-02E40 |
Radiator Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD D | — | |
| 87050-02A30 |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150,ZRE151 RHD N | — | |
| 87050-02A30 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150,ZRE151 RHD D | — | |
| 87050-02A40 |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150 RHD | — | |
| 87050-02A50 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150,ZRE151 RHD N | — | |
| 87050-02A60 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150 RHD | — | |
| 87050-02A70 |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150,ZRE151 RHD D | — | |
| 87050-02A90 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NDE150 LHD D | — | |
| 87050-02A90 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87050-02A90 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150,NDE150 LHD N | — | |
| 87050-02A90 |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87050-02B00 |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150 LHD | — | |
| 87050-02B00 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ZRE151 LHD N | — | |
| 87050-02B00 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ZRE151 LHD D | — | |
| 87050-02B00 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87050-02B00 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 87050-02B10 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150,NDE150 LHD N | — | |
| 87050-02B10 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87050-02B20 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ZRE151 LHD N | — | |
| 87050-02B20 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87050-02B20 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150 LHD | — | |
| 87050-02B30 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NDE150 LHD D | — | |
| 87050-02B30 |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87050-02B40 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 87050-02B40 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ZRE151 LHD D | — | |
| 87050-02E00 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NDE150 RHD D | — | |
| 87050-02E00 |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NDE150 RHD N | — | |
| 87050-02E10 |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NDE150 RHD D | — | |
| 87050-02E20 |
Radiator Assy, Air Conditioner
2010-06 → 2013-05
ended
|
NDE150 LHD N | — | |
| 87050-02E20 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-05
ended
|
NRE150 LHD N | — | |
| 87050-02E20 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-05
ended
|
NRE150 LHD D | — | |
| 87050-02E20 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-05
ended
|
NDE150 LHD D | — | |
| 87050-02E30 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87050-02E30 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NDE150 LHD N | — | |
| 87050-02E40 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-05
ended
|
NRE150 LHD D | — | |
| 87050-02E40 |
Radiator Assy, Air Conditioner
2010-06 → 2013-05
ended
|
NDE150 LHD D | — | |
| 87050-02G70 note |
Radiator Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NDE150 RHD N | — | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-02160 note |
Motor Sub-assy, Blower W/Fan
2008-02 → 2008-03
ended
|
NDE150,ZRE151,ZZE150 RHD D | — | |
| 87103-02160 |
Motor Sub-assy, Blower W/Fan
2008-02 → 2008-03
ended
|
ADE150,NDE150,ZRE151,ZZE150 RHD | — | |
| 87103-02170 |
Motor Sub-assy, Blower W/Fan
2008-02 → 2008-03
ended
|
ADE150,NDE150,ZRE151,ZZE150 LHD | — | |
| 87103-02170 note |
Motor Sub-assy, Blower W/Fan
2008-02 → 2008-03
ended
|
ADE150 LHD DCR;NDE150,ZRE151 LHD +1 | — | |
| 87103-02170 note |
Motor Sub-assy, Blower W/Fan
2008-02 → 2008-03
ended
|
ADE150 LHD DCR;NDE150,ZRE151,ZZE150 LHD +1 | — | |
| 87103-02300 note |
Motor Sub-assy, Blower W/Fan
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 87103-02300 note |
Motor Sub-assy, Blower W/Fan
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD N | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2008-02 → 2009-02
ended
|
NDE150,ZRE151 LHD N | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 87103-02460 |
Motor Sub-assy, Blower W/Fan
2008-04 → 2009-03
ended
|
ADE150 RHD | — | |
| 87103-02460 note |
Motor Sub-assy, Blower W/Fan
2008-04 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD D | — | |
| 87103-02460 |
Motor Sub-assy, Blower W/Fan
2008-04 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 87103-02470 note |
Motor Sub-assy, Blower W/Fan
2008-04 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87103-02470 note |
Motor Sub-assy, Blower W/Fan
2008-04 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87103-02470 note |
Motor Sub-assy, Blower W/Fan
2008-04 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD D | — | |
| 87103-02470 |
Motor Sub-assy, Blower W/Fan
2008-04 → 2009-03
ended
|
ADE150 LHD | — | |
| 87103-02470 note |
Motor Sub-assy, Blower W/Fan
2008-04 → 2009-02
ended
|
NDE150,ZRE151 LHD D | — | |
| 87103-02470 |
Motor Sub-assy, Blower W/Fan
2008-04 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 87103-02300 note |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 87103-02460 |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 87103-02460 |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 87103-02470 |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 87103-02470 |
Motor Sub-assy, Blower W/Fan
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 87103-02300 note |
Motor Sub-assy, Blower W/Fan
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2010-06 → 2013-06
ended
|
ADE150,NDE150,ZRE151 LHD N | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87103-02460 |
Motor Sub-assy, Blower W/Fan
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 87103-02470 |
Motor Sub-assy, Blower W/Fan
2010-06 → 2013-06
ended
|
NDE150 6FS DCR;ADE150,NRE150,ZRE151 LHD | — | |
| 87103-02470 note |
Motor Sub-assy, Blower W/Fan
2013-05 → 2013-06
ended
|
NDE150 LHD | — | |
| 87103-02470 note |
Motor Sub-assy, Blower W/Fan
2013-05 → 2013-06
ended
|
NDE150 LHD D | — | |
| 87103-02470 |
Motor Sub-assy, Blower W/Fan
2010-06 → 2013-05
ended
|
NDE150 LHD 6F;NDE150 6FS +1 | — | |
| 87106J — Servo Sub-assy, Damper(FOR MODE) | ||||
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 N | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2008-02 → 2009-02
ended
|
NDE150,ZRE151 LHD N | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 N +1 | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2010-06 → 2013-06
ended
|
ADE150,NDE150,ZRE151 LHD N | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 87106N — Servo Sub-assy, Damper(FOR RECIRCULATION) | ||||
| 87106-02350 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 87106-02350 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD D | — | |
| 87106-02350 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 87106-02380 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 87106-02380 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 87106-02390 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD D | — | |
| 87106-02390 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-02
ended
|
NDE150,ZRE151 LHD D | — | |
| 87106-02390 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87106-02390 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87106-02390 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 87106-02390 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-02
ended
|
NDE150,ZRE151 LHD N | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD N | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 87106-02350 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150,NRE150,ZRE151 RHD +2 | — | |
| 87106-02350 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-06
ended
|
NRE150,ZRE151 RHD D | — | |
| 87106-02350 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 87106-02380 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-06
ended
|
ADE150,NRE150,ZRE151 RHD N (DCRL,HTWC,HTWVM) | — | |
| 87106-02390 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 87106-02390 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 LHD +2 | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 87106-02350 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 87106-02380 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD N | — | |
| 87106-02390 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2010-06 → 2013-05
ended
|
NDE150 LHD 6F;NDE150 6FS +1 | — | |
| 87106-02390 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2013-05 → 2013-06
ended
|
NDE150 LHD D | — | |
| 87106-02390 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2013-05 → 2013-06
ended
|
NDE150 LHD | — | |
| 87106-02390 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2010-06 → 2013-06
ended
|
NDE150 6FS DCR;ADE150,NRE150,ZRE151 LHD | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD N | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2010-06 → 2013-06
ended
|
ADE150,NDE150,ZRE151 LHD N | — | |
| 87106-02400 note |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-02210 |
Unit Sub-assy, Heater Radiator
2008-02 → 2009-03
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 87107-02210 note |
Unit Sub-assy, Heater Radiator
2008-02 → 2009-03
ended
|
ADE150 LHD DCR;NDE150,ZRE151 LHD +2 | — | |
| 87107-02210 note |
Unit Sub-assy, Heater Radiator
2008-02 → 2009-03
ended
|
ADE150 LHD DCR;NDE150,ZRE151,ZZE150 (5F,5FS) +1 | — | |
| 87107-02210 |
Unit Sub-assy, Heater Radiator
2009-02 → 2010-07
ended
|
NDE150 D;NDE150 LHD N;ADE150,NRE150,ZRE151 +1 | — | |
| 87107-02210 |
Unit Sub-assy, Heater Radiator
2010-06 → 2013-05
ended
|
NDE150 LHD 6F;NDE150 6FS +1 | — | |
| 87107-02210 note |
Unit Sub-assy, Heater Radiator
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 87107-02210 note |
Unit Sub-assy, Heater Radiator
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 87107-02210 note |
Unit Sub-assy, Heater Radiator
2013-05 → 2013-06
ended
|
NDE150 LHD D | — | |
| 87107-02210 note |
Unit Sub-assy, Heater Radiator
2013-05 → 2013-06
ended
|
NDE150 LHD | — | |
| 87107-02210 |
Unit Sub-assy, Heater Radiator
2010-06 → 2013-06
ended
|
NDE150 RHD;NDE150 6FS DCR;ADE150,NRE150,ZRE151 | — | |
| 87114B — Cover, Heater | ||||
| 87114-0K010 |
Cover, Heater
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 87114-0K010 note |
Cover, Heater
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 87114-0K010 note |
Cover, Heater
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 87114-0K010 note |
Cover, Heater
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 87114-0K010 note |
Cover, Heater
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 87114-0K010 |
Cover, Heater
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 87114-0K010 |
Cover, Heater
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 87114-0K010 note |
Cover, Heater
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 87114-0K010 note |
Cover, Heater
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 87114-0K010 |
Cover, Heater
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 87114-0K010 note |
Cover, Heater
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 87114-0K010 note |
Cover, Heater
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 87114-0K010 |
Cover, Heater
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 87114-0K010 note |
Cover, Heater
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 | — | |
| 87114-0K010 note |
Cover, Heater
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 87130D — Blower Assy | ||||
| 87130-02390 |
Blower Assy
2008-02 → 2008-03
ended
|
ZRE151,ZZE150 RHD | — | |
| 87130-02390 note |
Blower Assy
2008-02 → 2008-03
ended
|
ZRE151,ZZE150 RHD D | — | |
| 87130-02391 |
Blower Assy
2008-04 → 2008-10
ended
|
ZRE151,ZZE150 RHD | — | |
| 87130-02391 note |
Blower Assy
2008-04 → 2008-10
ended
|
ZRE151,ZZE150 RHD D | — | |
| 87130-02392 |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 RHD | — | |
| 87130-02392 note |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 RHD D | — | |
| 87130-02400 note |
Blower Assy
2008-02 → 2008-03
ended
|
NDE150 RHD | — | |
| 87130-02400 |
Blower Assy
2008-02 → 2008-03
ended
|
ADE150,NDE150 RHD | — | |
| 87130-02401 |
Blower Assy
2008-04 → 2008-10
ended
|
ADE150,NDE150 RHD | — | |
| 87130-02401 note |
Blower Assy
2008-04 → 2008-10
ended
|
NDE150 RHD | — | |
| 87130-02402 |
Blower Assy
2008-11 → 2009-03
ended
|
ADE150 RHD | — | |
| 87130-02402 note |
Blower Assy
2008-11 → 2009-02
ended
|
NDE150 RHD | — | |
| 87130-02402 |
Blower Assy
2008-11 → 2009-02
ended
|
NDE150 RHD | — | |
| 87130-02410 note |
Blower Assy
2008-02 → 2008-10
ended
|
ZRE151,ZZE150 RHD N | — | |
| 87130-02411 note |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 RHD N | — | |
| 87130-02420 note |
Blower Assy
2008-02 → 2008-10
ended
|
ADE150 RHD | — | |
| 87130-02421 note |
Blower Assy
2008-11 → 2009-03
ended
|
ADE150 RHD | — | |
| 87130-02430 note |
Blower Assy
2008-02 → 2008-03
ended
|
ZRE151 LHD D | — | |
| 87130-02430 note |
Blower Assy
2008-02 → 2008-03
ended
|
ZRE151,ZZE150 LHD D | — | |
| 87130-02430 note |
Blower Assy
2008-02 → 2008-03
ended
|
ADE150 LHD DCR | — | |
| 87130-02430 note |
Blower Assy
2008-02 → 2008-03
ended
|
NDE150 LHD D | — | |
| 87130-02430 note |
Blower Assy
2008-02 → 2008-03
ended
|
ADE150,NDE150 LHD | — | |
| 87130-02430 |
Blower Assy
2008-02 → 2008-03
ended
|
ZRE151,ZZE150 LHD | — | |
| 87130-02431 note |
Blower Assy
2008-04 → 2008-10
ended
|
ZRE151,ZZE150 LHD D | — | |
| 87130-02431 note |
Blower Assy
2008-04 → 2008-10
ended
|
ADE150 LHD DCR | — | |
| 87130-02431 |
Blower Assy
2008-04 → 2008-10
ended
|
ZRE151,ZZE150 LHD | — | |
| 87130-02431 note |
Blower Assy
2008-04 → 2008-10
ended
|
ZRE151 LHD D | — | |
| 87130-02431 note |
Blower Assy
2008-04 → 2008-10
ended
|
ADE150,NDE150 LHD | — | |
| 87130-02431 note |
Blower Assy
2008-04 → 2008-10
ended
|
NDE150 LHD D | — | |
| 87130-02432 note |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 LHD D | — | |
| 87130-02432 note |
Blower Assy
2008-11 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87130-02432 note |
Blower Assy
2008-11 → 2009-03
ended
|
ADE150 LHD | — | |
| 87130-02432 note |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151 LHD D | — | |
| 87130-02432 note |
Blower Assy
2008-11 → 2009-02
ended
|
NDE150 LHD D | — | |
| 87130-02432 note |
Blower Assy
2008-11 → 2009-02
ended
|
NDE150 LHD | — | |
| 87130-02432 |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 LHD | — | |
| 87130-02440 note |
Blower Assy
2008-02 → 2008-03
ended
|
ZRE151 LHD | — | |
| 87130-02440 note |
Blower Assy
2008-02 → 2008-03
ended
|
NDE150 LHD D;ADE150 LHD +1 | — | |
| 87130-02440 note |
Blower Assy
2008-02 → 2008-03
ended
|
NDE150 LHD D;ADE150 LHD +1 | — | |
| 87130-02440 note |
Blower Assy
2008-02 → 2008-03
ended
|
ZRE151 LHD D | — | |
| 87130-02440 |
Blower Assy
2008-02 → 2008-03
ended
|
ADE150,NDE150 LHD | — | |
| 87130-02441 |
Blower Assy
2008-04 → 2008-10
ended
|
ADE150,NDE150 LHD | — | |
| 87130-02441 note |
Blower Assy
2008-04 → 2008-10
ended
|
ZRE151 LHD | — | |
| 87130-02441 note |
Blower Assy
2008-04 → 2008-10
ended
|
ZRE151 LHD D | — | |
| 87130-02441 note |
Blower Assy
2008-04 → 2008-10
ended
|
NDE150 LHD D;ADE150 LHD +1 | — | |
| 87130-02441 note |
Blower Assy
2008-04 → 2008-10
ended
|
NDE150 LHD D;ADE150 LHD +1 | — | |
| 87130-02442 |
Blower Assy
2008-11 → 2009-02
ended
|
NDE150 LHD | — | |
| 87130-02442 note |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151 LHD | — | |
| 87130-02442 note |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151 LHD D | — | |
| 87130-02442 note |
Blower Assy
2008-11 → 2009-02
ended
|
NDE150 LHD D | — | |
| 87130-02442 note |
Blower Assy
2008-11 → 2009-02
ended
|
NDE150 LHD D | — | |
| 87130-02442 note |
Blower Assy
2008-11 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87130-02442 |
Blower Assy
2008-11 → 2009-03
ended
|
ADE150 LHD | — | |
| 87130-02442 note |
Blower Assy
2008-11 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87130-02450 note |
Blower Assy
2008-02 → 2008-10
ended
|
ZRE151,ZZE150 LHD N | — | |
| 87130-02450 note |
Blower Assy
2008-02 → 2008-10
ended
|
ADE150,NDE150 LHD N | — | |
| 87130-02451 note |
Blower Assy
2008-11 → 2009-02
ended
|
NDE150 N | — | |
| 87130-02451 note |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151,ZZE150 LHD N | — | |
| 87130-02451 note |
Blower Assy
2008-11 → 2009-03
ended
|
ADE150 LHD | — | |
| 87130-02460 note |
Blower Assy
2008-02 → 2008-10
ended
|
ADE150,NDE150 LHD N | — | |
| 87130-02460 note |
Blower Assy
2008-02 → 2008-10
ended
|
ZRE151 LHD N | — | |
| 87130-02461 note |
Blower Assy
2008-11 → 2009-02
ended
|
ZRE151 LHD N | — | |
| 87130-02461 note |
Blower Assy
2008-11 → 2009-03
ended
|
ADE150 LHD | — | |
| 87130-02461 note |
Blower Assy
2008-11 → 2009-02
ended
|
NDE150 N | — | |
| 87130-02392 |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 RHD | — | |
| 87130-02402 |
Blower Assy
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150 RHD +1 | — | |
| 87130-02402 |
Blower Assy
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 87130-02411 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 RHD N | — | |
| 87130-02421 note |
Blower Assy
2009-03 → 2010-06
ended
|
ADE150 RHD | — | |
| 87130-02432 note |
Blower Assy
2009-02 → 2010-07
ended
|
NDE150 LHD D DCRL | — | |
| 87130-02432 note |
Blower Assy
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 87130-02432 note |
Blower Assy
2009-02 → 2010-06
ended
|
NDE150 LHD D DCR | — | |
| 87130-02432 note |
Blower Assy
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150 LHD +1 | — | |
| 87130-02432 |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD | — | |
| 87130-02442 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150 LHD | — | |
| 87130-02442 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 87130-02442 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150 LHD | — | |
| 87130-02442 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 87130-02442 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD | — | |
| 87130-02442 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87130-02442 |
Blower Assy
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150 LHD +1 | — | |
| 87130-02442 |
Blower Assy
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 87130-02451 note |
Blower Assy
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150 LHD +1 | — | |
| 87130-02451 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87130-02451 note |
Blower Assy
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 87130-02461 note |
Blower Assy
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 87130-02461 note |
Blower Assy
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150 LHD +1 | — | |
| 87130-02461 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87130-02461 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87130-02461 note |
Blower Assy
2009-02 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87130-02392 |
Blower Assy
2010-06 → 2013-06
ended
|
NRE150,ZRE151 RHD | — | |
| 87130-02402 |
Blower Assy
2010-06 → 2013-06
ended
|
ADE150,NDE150 RHD | — | |
| 87130-02411 note |
Blower Assy
2010-06 → 2013-06
ended
|
NRE150,ZRE151 RHD N | — | |
| 87130-02421 note |
Blower Assy
2010-06 → 2013-06
ended
|
ADE150,NDE150 RHD N | — | |
| 87130-02432 |
Blower Assy
2010-06 → 2013-06
ended
|
NRE150,ZRE151 LHD | — | |
| 87130-02432 note |
Blower Assy
2010-06 → 2013-06
ended
|
ADE150,NDE150 LHD | — | |
| 87130-02432 note |
Blower Assy
2010-06 → 2013-06
ended
|
NDE150 LHD D | — | |
| 87130-02442 note |
Blower Assy
2010-06 → 2013-06
ended
|
ZRE151 LHD D | — | |
| 87130-02442 note |
Blower Assy
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 87130-02442 note |
Blower Assy
2010-06 → 2013-06
ended
|
NRE150 LHD | — | |
| 87130-02442 note |
Blower Assy
2010-06 → 2013-06
ended
|
ZRE151 LHD | — | |
| 87130-02442 |
Blower Assy
2010-06 → 2013-06
ended
|
ADE150 LHD;NDE150 6FS DCR | — | |
| 87130-02442 |
Blower Assy
2010-06 → 2013-05
ended
|
NDE150 LHD 6F;NDE150 6FS +1 | — | |
| 87130-02442 note |
Blower Assy
2010-06 → 2013-05
ended
|
NRE150 LHD | — | |
| 87130-02442 note |
Blower Assy
2010-06 → 2013-05
ended
|
NRE150 LHD D | — | |
| 87130-02451 note |
Blower Assy
2010-06 → 2013-06
ended
|
ADE150,NDE150 LHD N | — | |
| 87130-02451 note |
Blower Assy
2010-06 → 2013-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87130-02461 note |
Blower Assy
2010-06 → 2013-06
ended
|
ZRE151 LHD N | — | |
| 87130-02461 note |
Blower Assy
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87130-02461 note |
Blower Assy
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87130-02461 note |
Blower Assy
2010-06 → 2013-06
ended
|
ADE150,NDE150 LHD N | — | |
| 87138C — Resistor, Blower | ||||
| 87138-0K090 |
Resistor, Blower
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 87138-0K090 note |
Resistor, Blower
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD D | — | |
| 87138-0K090 |
Resistor, Blower
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 87138-0K110 |
Resistor, Blower
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 87138-0K110 note |
Resistor, Blower
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87138-0K110 note |
Resistor, Blower
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 87138-0K110 |
Resistor, Blower
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 87138-0K110 note |
Resistor, Blower
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD D | — | |
| 87138-0K110 note |
Resistor, Blower
2008-02 → 2009-02
ended
|
NDE150,ZRE151 LHD D | — | |
| 87138-0K090 |
Resistor, Blower
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 87138-0K090 |
Resistor, Blower
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 87138-0K110 |
Resistor, Blower
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 87138-0K110 |
Resistor, Blower
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 87138-0K090 |
Resistor, Blower
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 87138-0K110 |
Resistor, Blower
2010-06 → 2013-05
ended
|
NDE150 LHD 6F;NDE150 6FS +1 | — | |
| 87138-0K110 |
Resistor, Blower
2010-06 → 2013-06
ended
|
NDE150 6FS DCR;ADE150,NRE150,ZRE151 LHD | — | |
| 87138-0K110 note |
Resistor, Blower
2013-05 → 2013-06
ended
|
NDE150 LHD | — | |
| 87138-0K110 note |
Resistor, Blower
2013-05 → 2013-06
ended
|
NDE150 LHD D | — | |
| 87139C — Filter, Clean Air | ||||
| 87139-30040 |
Filter, Clean Air
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 87139-30040 |
Filter, Clean Air
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 87139-30040 |
Filter, Clean Air
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM | — | |
| 87139-30040 |
Filter, Clean Air
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 87139-30040 note |
Filter, Clean Air
2010-06 → 2013-06
ended
|
NDE150 6F;NDE150 6FS DCRL;ADE150,NRE150,ZRE151 | — | |
| 87139-50100 note |
Filter, Clean Air
2010-06 → 2013-06
ended
|
NDE150 6F;NDE150 6FS DCRL;ADE150,NRE150,ZRE151 | — | |
| 87710G — Quick Heater Assy | ||||
| 87710-02050 |
Quick Heater Assy
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 87710-02050 note |
Quick Heater Assy
2008-02 → 2009-02
ended
|
NDE150 RHD | — | |
| 87710-02060 note |
Quick Heater Assy
2008-02 → 2009-03
ended
|
ADE150 LHD DCR;NDE150 LHD +2 | — | |
| 87710-02060 note |
Quick Heater Assy
2008-02 → 2009-03
ended
|
ADE150 LHD DCR;NDE150 LHD +2 | — | |
| 87710-02060 |
Quick Heater Assy
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 87710-02060 |
Quick Heater Assy
2008-02 → 2009-02
ended
|
NDE150 LHD | — | |
| 87710-02060 note |
Quick Heater Assy
2008-02 → 2009-02
ended
|
ZRE151 LHD N | — | |
| 87710-02060 note |
Quick Heater Assy
2008-02 → 2009-02
ended
|
ZRE151 LHD D | — | |
| 87710-02060 note |
Quick Heater Assy
2008-02 → 2009-02
ended
|
ZRE151 LHD | — | |
| 87710-12010 |
Quick Heater Assy
2008-02 → 2009-02
ended
|
NDE150 RHD | — | |
| 87710-12010 note |
Quick Heater Assy
2008-02 → 2009-02
ended
|
NDE150 RHD | — | |
| 87710-02050 |
Quick Heater Assy
2009-03 → 2010-06
ended
|
ADE150 RHD | — | |
| 87710-02060 note |
Quick Heater Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 87710-02060 note |
Quick Heater Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87710-02060 |
Quick Heater Assy
2009-03 → 2010-06
ended
|
ADE150 LHD | — | |
| 87710-02080 |
Quick Heater Assy
2009-02 → 2010-03
ended
|
NDE150 RHD | — | |
| 87710-02090 note |
Quick Heater Assy
2009-02 → 2010-03
ended
|
NRE150 LHD | — | |
| 87710-02090 note |
Quick Heater Assy
2009-02 → 2010-03
ended
|
NRE150 LHD D | — | |
| 87710-02090 note |
Quick Heater Assy
2009-02 → 2010-03
ended
|
NRE150 LHD N | — | |
| 87710-02090 note |
Quick Heater Assy
2009-02 → 2010-03
ended
|
NRE150 LHD | — | |
| 87710-02090 note |
Quick Heater Assy
2009-02 → 2010-03
ended
|
NRE150 LHD D | — | |
| 87710-02090 note |
Quick Heater Assy
2009-02 → 2010-03
ended
|
NRE150 LHD N | — | |
| 87710-02090 |
Quick Heater Assy
2009-02 → 2010-03
ended
|
NDE150 LHD | — | |
| 87710-0K030 note |
Quick Heater Assy
2010-04 → 2010-06
ended
|
NRE150 LHD D | — | |
| 87710-0K030 |
Quick Heater Assy
2010-04 → 2010-07
ended
|
NDE150 LHD | — | |
| 87710-0K030 note |
Quick Heater Assy
2010-04 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87710-0K030 note |
Quick Heater Assy
2010-04 → 2010-06
ended
|
NRE150 LHD D | — | |
| 87710-0K030 note |
Quick Heater Assy
2010-04 → 2010-06
ended
|
NRE150 LHD | — | |
| 87710-0K030 note |
Quick Heater Assy
2010-04 → 2010-06
ended
|
NRE150 LHD N | — | |
| 87710-0K030 note |
Quick Heater Assy
2010-04 → 2010-06
ended
|
NRE150 LHD | — | |
| 87710-0K040 |
Quick Heater Assy
2010-04 → 2010-07
ended
|
NDE150 RHD D | — | |
| 87710-12020 note |
Quick Heater Assy
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD D | — | |
| 87710-02050 |
Quick Heater Assy
2010-06 → 2013-06
ended
|
ADE150 RHD | — | |
| 87710-02060 note |
Quick Heater Assy
2010-06 → 2013-06
ended
|
NRE150 LHD | — | |
| 87710-02060 note |
Quick Heater Assy
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87710-02060 note |
Quick Heater Assy
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 87710-02060 note |
Quick Heater Assy
2010-06 → 2013-06
ended
|
ZRE151 LHD N | — | |
| 87710-02060 note |
Quick Heater Assy
2010-06 → 2013-06
ended
|
ZRE151 LHD D | — | |
| 87710-02060 |
Quick Heater Assy
2010-06 → 2013-06
ended
|
ADE150 LHD | — | |
| 87710-02060 note |
Quick Heater Assy
2010-06 → 2013-06
ended
|
ZRE151 LHD | — | |
| 87710-0K030 note |
Quick Heater Assy
2010-06 → 2013-05
ended
|
NRE150 LHD D | — | |
| 87710-0K030 note |
Quick Heater Assy
2010-06 → 2013-05
ended
|
NRE150 LHD | — | |
| 87710-0K030 |
Quick Heater Assy
2010-06 → 2013-05
ended
|
NDE150 LHD | — | |
| 87710-0K030 note |
Quick Heater Assy
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 87710-0K030 note |
Quick Heater Assy
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 87710-0K040 |
Quick Heater Assy
2010-06 → 2013-06
ended
|
NDE150 RHD | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-0K120 |
Evaporator Sub-assy, Cooler, NO.1
2008-02 → 2008-10
ended
|
ADE150,NDE150,ZRE151,ZZE150 N | — | |
| 88501-0K120 note |
Evaporator Sub-assy, Cooler, NO.1
2008-02 → 2008-10
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 88501-0K120 note |
Evaporator Sub-assy, Cooler, NO.1
2008-02 → 2008-10
ended
|
NDE150,ZRE151 LHD D | — | |
| 88501-0K120 note |
Evaporator Sub-assy, Cooler, NO.1
2008-02 → 2008-10
ended
|
ADE150 LHD DCR | — | |
| 88501-0K120 note |
Evaporator Sub-assy, Cooler, NO.1
2008-02 → 2008-10
ended
|
ADE150 LHD DCR | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2008-11 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2008-11 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88501-0K121 |
Evaporator Sub-assy, Cooler, NO.1
2008-11 → 2009-03
ended
|
ADE150 | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2008-11 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 88501-0K121 |
Evaporator Sub-assy, Cooler, NO.1
2008-11 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 N | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2008-11 → 2009-02
ended
|
NDE150,ZRE151 LHD D | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2009-02 → 2010-07
ended
|
NDE150 LHD D DCRL | — | |
| 88501-0K121 |
Evaporator Sub-assy, Cooler, NO.1
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 LHD D (DCR,HTWC,HTWVM) | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 88501-0K121 |
Evaporator Sub-assy, Cooler, NO.1
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 N +1 | — | |
| 88501-0K121 |
Evaporator Sub-assy, Cooler, NO.1
2010-06 → 2013-01
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2010-06 → 2013-01
ended
|
NDE150,ZRE151 LHD D | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2010-06 → 2013-01
ended
|
NRE150 LHD D | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2010-06 → 2013-01
ended
|
NRE150 LHD D | — | |
| 88501-0K121 note |
Evaporator Sub-assy, Cooler, NO.1
2010-06 → 2013-01
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 88501-12510 note |
Evaporator Sub-assy, Cooler, NO.1
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 88501-12510 note |
Evaporator Sub-assy, Cooler, NO.1
2013-01 → 2013-05
ended
|
NRE150 LHD D | — | |
| 88501-12510 note |
Evaporator Sub-assy, Cooler, NO.1
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 88501-12510 note |
Evaporator Sub-assy, Cooler, NO.1
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 88501-12510 note |
Evaporator Sub-assy, Cooler, NO.1
2013-01 → 2013-06
ended
|
NDE150 RHD D;NRE150,ZRE151 D | — | |
| 88501-12510 note |
Evaporator Sub-assy, Cooler, NO.1
2013-01 → 2013-06
ended
|
NDE150,ZRE151 LHD D | — | |
| 88501-12510 note |
Evaporator Sub-assy, Cooler, NO.1
2013-01 → 2013-06
ended
|
NRE150 LHD D | — | |
| 88501-12510 |
Evaporator Sub-assy, Cooler, NO.1
2013-01 → 2013-05
ended
|
NDE150 LHD N | — | |
| 88501-12510 |
Evaporator Sub-assy, Cooler, NO.1
2013-01 → 2013-06
ended
|
NDE150 RHD N;ADE150,NRE150,ZRE151 N | — | |
| 88501-12510 note |
Evaporator Sub-assy, Cooler, NO.1
2013-01 → 2013-05
ended
|
NDE150 LHD D | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-02160 note |
Valve, Cooler Expansion
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2008-02 → 2009-02
ended
|
NDE150,ZRE151 LHD D | — | |
| 88515-02160 |
Valve, Cooler Expansion
2008-02 → 2009-03
ended
|
ADE150,ZZE150 N;NDE150,ZRE151 (5F,5FS) N | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2009-07 → 2010-06
ended
|
NRE150 LHD D | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2009-07 → 2010-07
ended
|
NDE150 D | — | |
| 88515-02160 |
Valve, Cooler Expansion
2009-07 → 2010-07
ended
|
NDE150 LHD N | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2009-02 → 2010-07
ended
|
NRE150,ZRE151 D | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2009-02 → 2010-07
ended
|
NDE150,NRE150,ZRE151 LHD D | — | |
| 88515-02160 |
Valve, Cooler Expansion
2009-02 → 2010-07
ended
|
ADE150,NRE150,ZRE151 N (DCRL,HTWC,HTWVM) | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2009-07 → 2010-06
ended
|
NRE150 LHD D | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2009-02 → 2009-07
ended
|
NDE150 N | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2009-02 → 2009-07
ended
|
NDE150 N | — | |
| 88515-02160 |
Valve, Cooler Expansion
2010-06 → 2012-09
ended
|
ADE150,NDE150,NRE150,ZRE151 N | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2010-06 → 2012-09
ended
|
NDE150,NRE150,ZRE151 D | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2010-06 → 2012-09
ended
|
NRE150 LHD D | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2010-06 → 2012-09
ended
|
NRE150 LHD D | — | |
| 88515-02160 note |
Valve, Cooler Expansion
2010-06 → 2012-09
ended
|
NDE150,ZRE151 LHD D | — | |
| 88515-02600 |
Valve, Cooler Expansion
2012-09 → 2013-05
ended
|
NDE150 LHD N | — | |
| 88515-02600 note |
Valve, Cooler Expansion
2012-09 → 2013-05
ended
|
NRE150 LHD D | — | |
| 88515-02600 note |
Valve, Cooler Expansion
2012-09 → 2013-05
ended
|
NDE150 LHD D | — | |
| 88515-02600 |
Valve, Cooler Expansion
2012-09 → 2013-06
ended
|
NDE150 RHD N;ADE150,NRE150,ZRE151 N | — | |
| 88515-02600 note |
Valve, Cooler Expansion
2012-09 → 2013-06
ended
|
NDE150,ZRE151 LHD D | — | |
| 88515-02600 note |
Valve, Cooler Expansion
2012-09 → 2013-06
ended
|
NRE150 LHD D | — | |
| 88515-02600 note |
Valve, Cooler Expansion
2012-09 → 2013-06
ended
|
NDE150 RHD D;NRE150,ZRE151 D | — | |
| 88515-02600 note |
Valve, Cooler Expansion
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 88515-02600 note |
Valve, Cooler Expansion
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 88515-02600 note |
Valve, Cooler Expansion
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 88539J — Hose, Drain Cooler | ||||
| 88539-02130 |
Hose, Drain Cooler
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 88539-02130 |
Hose, Drain Cooler
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 88539-02140 |
Hose, Drain Cooler
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 88539-02140 |
Hose, Drain Cooler
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 88539-02130 |
Hose, Drain Cooler
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 88539-02130 |
Hose, Drain Cooler
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 88539-02140 |
Hose, Drain Cooler
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 88539-02140 |
Hose, Drain Cooler
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 88539-02130 |
Hose, Drain Cooler
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 88539-02140 |
Hose, Drain Cooler
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 LHD | — | |
| 88548B — Case, Air Filter | ||||
| 88548-02080 |
Case, Air Filter
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 RHD | — | |
| 88548-02080 |
Case, Air Filter
2008-02 → 2009-03
ended
|
ADE150 RHD | — | |
| 88548-02090 |
Case, Air Filter
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 LHD | — | |
| 88548-02090 |
Case, Air Filter
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 88548-02080 |
Case, Air Filter
2009-02 → 2010-06
ended
|
NDE150 RHD DCR;ADE150,NRE150,ZRE151 RHD +1 | — | |
| 88548-02080 |
Case, Air Filter
2009-02 → 2010-07
ended
|
NDE150 RHD DCRL | — | |
| 88548-02090 |
Case, Air Filter
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150,NRE150,ZRE151 LHD +1 | — | |
| 88548-02090 |
Case, Air Filter
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 88548-02080 |
Case, Air Filter
2010-06 → 2013-06
ended
|
ADE150,NDE150,NRE150,ZRE151 RHD | — | |
| 88548-02090 |
Case, Air Filter
2010-06 → 2013-06
ended
|
NDE150 LHD 6F;NDE150 6FS +2 | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-02110 |
Thermistor, Cooler, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 N | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151,ZZE150 D | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2008-02 → 2009-02
ended
|
NDE150,ZRE151 LHD D | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150,NRE150,ZRE151 N +1 | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 LHD D (DCR,HTWC,HTWVM) | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2009-02 → 2010-06
ended
|
NDE150,NRE150,ZRE151 D (DCR,HTWC,HTWVM) | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2009-02 → 2010-07
ended
|
NDE150 LHD D DCRL | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2009-02 → 2010-07
ended
|
NDE150 D DCRL | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2010-06 → 2013-06
ended
|
NDE150 RHD D;NRE150,ZRE151 D | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2013-05 → 2013-06
ended
|
NDE150 LHD N | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2010-06 → 2013-05
ended
|
NRE150 LHD D | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2010-06 → 2013-06
ended
|
NDE150,ZRE151 LHD D | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2010-06 → 2013-05
ended
|
NDE150 6FS DCRL;NDE150 LHD +2 | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2010-06 → 2013-06
ended
|
NDE150 RHD N;NDE150 6FS +2 | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2010-06 → 2013-05
ended
|
NDE150 LHD D | — | |
| 88650N — Amplifier Assy, Air Conditioner | ||||
| 88650-02400 |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 N | — | |
| 88650-02400 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 D | — | |
| 88650-02400 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 N | — | |
| 88650-02400 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 LHD D | — | |
| 88650-02400 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 88650-02410 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88650-02410 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88650-02410 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88650-02410 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD DCR | — | |
| 88650-02410 |
Amplifier Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 88650-02410 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151 LHD D | — | |
| 88650-02410 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151 LHD;NDE150 LHD D | — | |
| 88650-02410 |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 | — | |
| 88650-02450 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 N | — | |
| 88650-02450 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151,ZZE150 N | — | |
| 88650-02450 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 LHD | — | |
| 88650-02460 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
NDE150 N | — | |
| 88650-02460 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-03
ended
|
ADE150 | — | |
| 88650-02460 note |
Amplifier Assy, Air Conditioner
2008-02 → 2009-02
ended
|
ZRE151 LHD N | — | |
| 88650-02630 |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
ZRE151 HTWVM;NRE150,ZRE151 N HTWC | — | |
| 88650-02630 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD DCRL | — | |
| 88650-02630 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 D HTWC | — | |
| 88650-02630 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NDE150 LHD DCR;ADE150 LHD +1 | — | |
| 88650-02630 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 D | — | |
| 88650-02630 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 D | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 LHD D DCRL | — | |
| 88650-02640 |
Amplifier Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 DCRL | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NDE150 LHD D DCR | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NDE150 LHD D DCR | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD;NDE150 LHD D +1 | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150 LHD D | — | |
| 88650-02640 |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NDE150 DCR;ADE150 DCRL | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD D HTWC | — | |
| 88650-02670 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NDE150 N DCR;ADE150 LHD +1 | — | |
| 88650-02670 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 N | — | |
| 88650-02670 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 88650-02680 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
NRE150,ZRE151 LHD N | — | |
| 88650-02680 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-06
ended
|
ADE150 DCRL;NDE150 N DCR | — | |
| 88650-02680 note |
Amplifier Assy, Air Conditioner
2009-02 → 2010-07
ended
|
NDE150 N DCRL | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ZRE151 LHD | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 88650-02640 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD D | — | |
| 88650-02640 |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150,NDE150 | — | |
| 88650-02680 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 88650-02680 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 LHD N | — | |
| 88650-02680 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ZRE151 LHD N | — | |
| 88650-02680 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150,NDE150 N | — | |
| 88650-02890 |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ZRE151;NRE150 N | — | |
| 88650-02890 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 D | — | |
| 88650-02890 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 D | — | |
| 88650-02890 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150,NDE150 LHD | — | |
| 88650-02890 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150 D | — | |
| 88650-02A00 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
ADE150,NDE150 LHD N | — | |
| 88650-02A00 note |
Amplifier Assy, Air Conditioner
2010-06 → 2013-06
ended
|
NRE150,ZRE151 N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
