Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

47 part groups · 15 illustrations

Illustrations

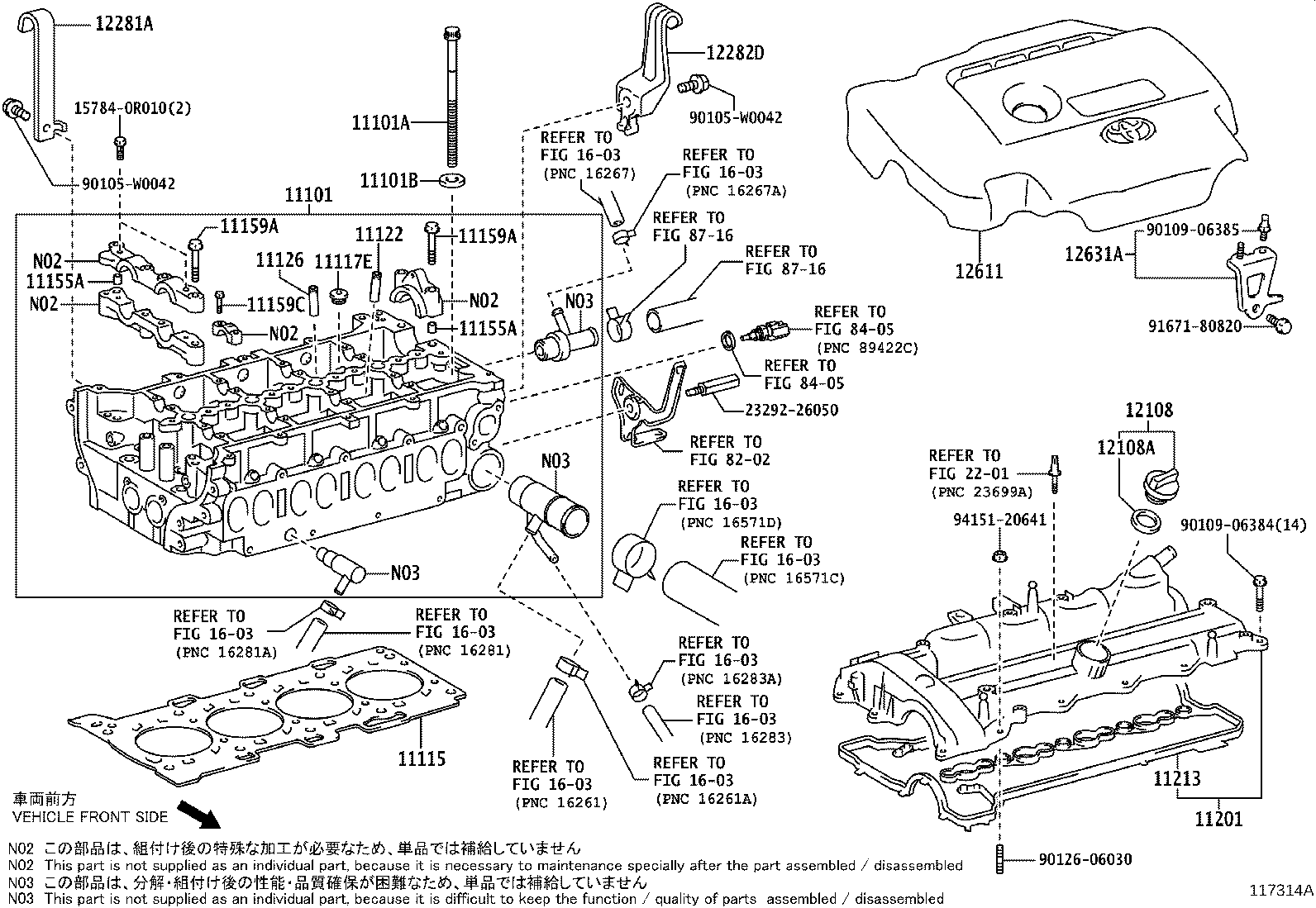

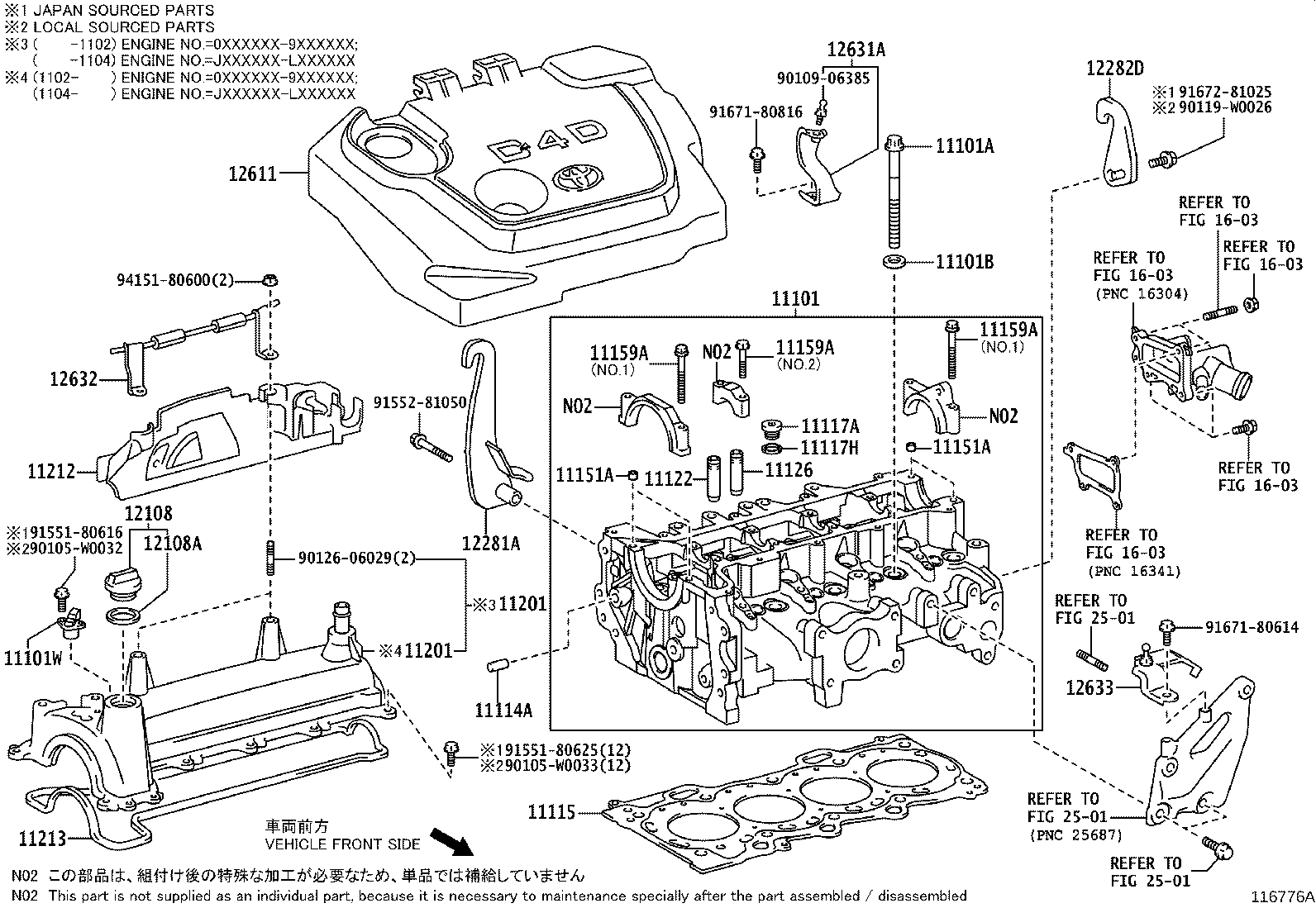

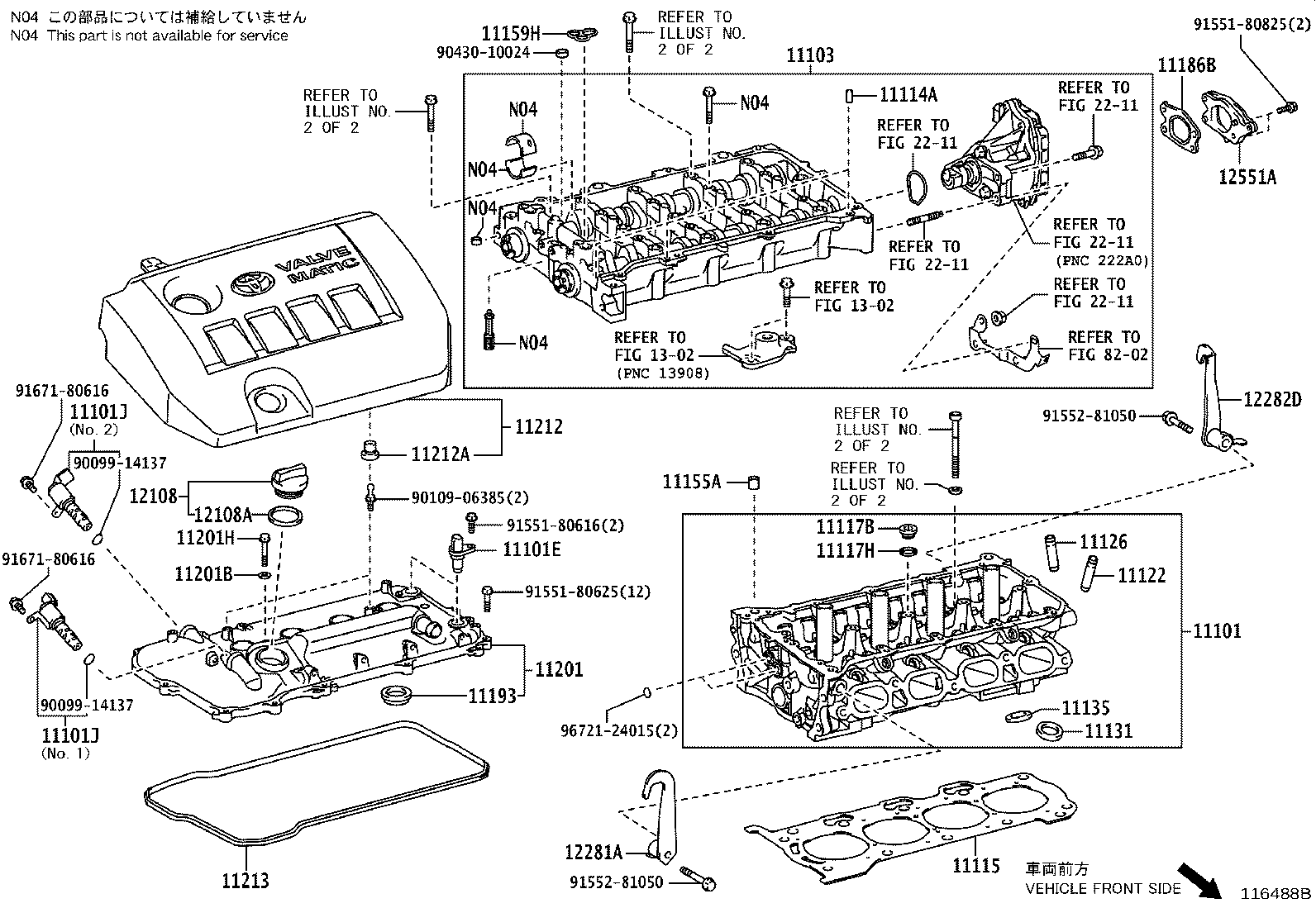

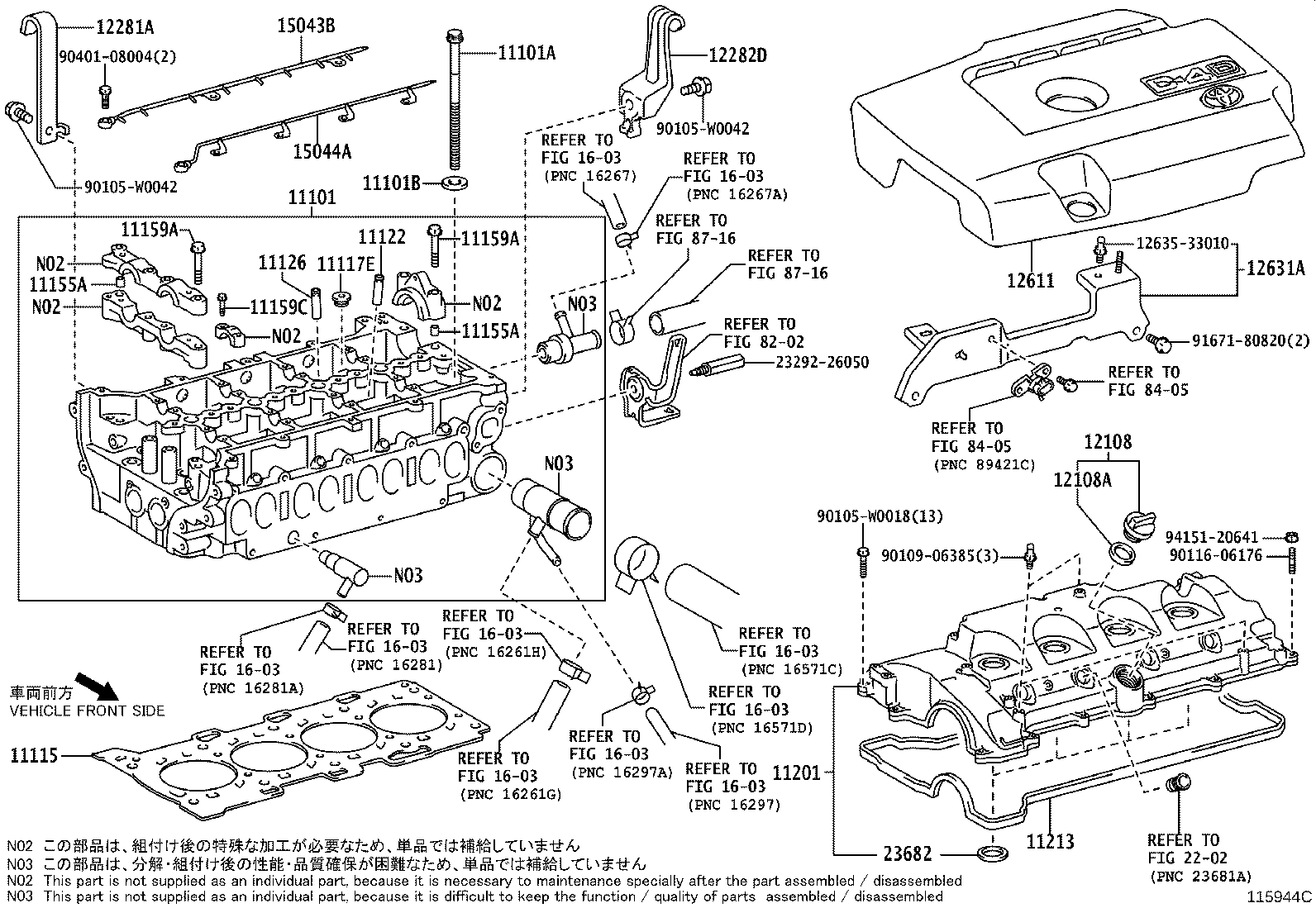

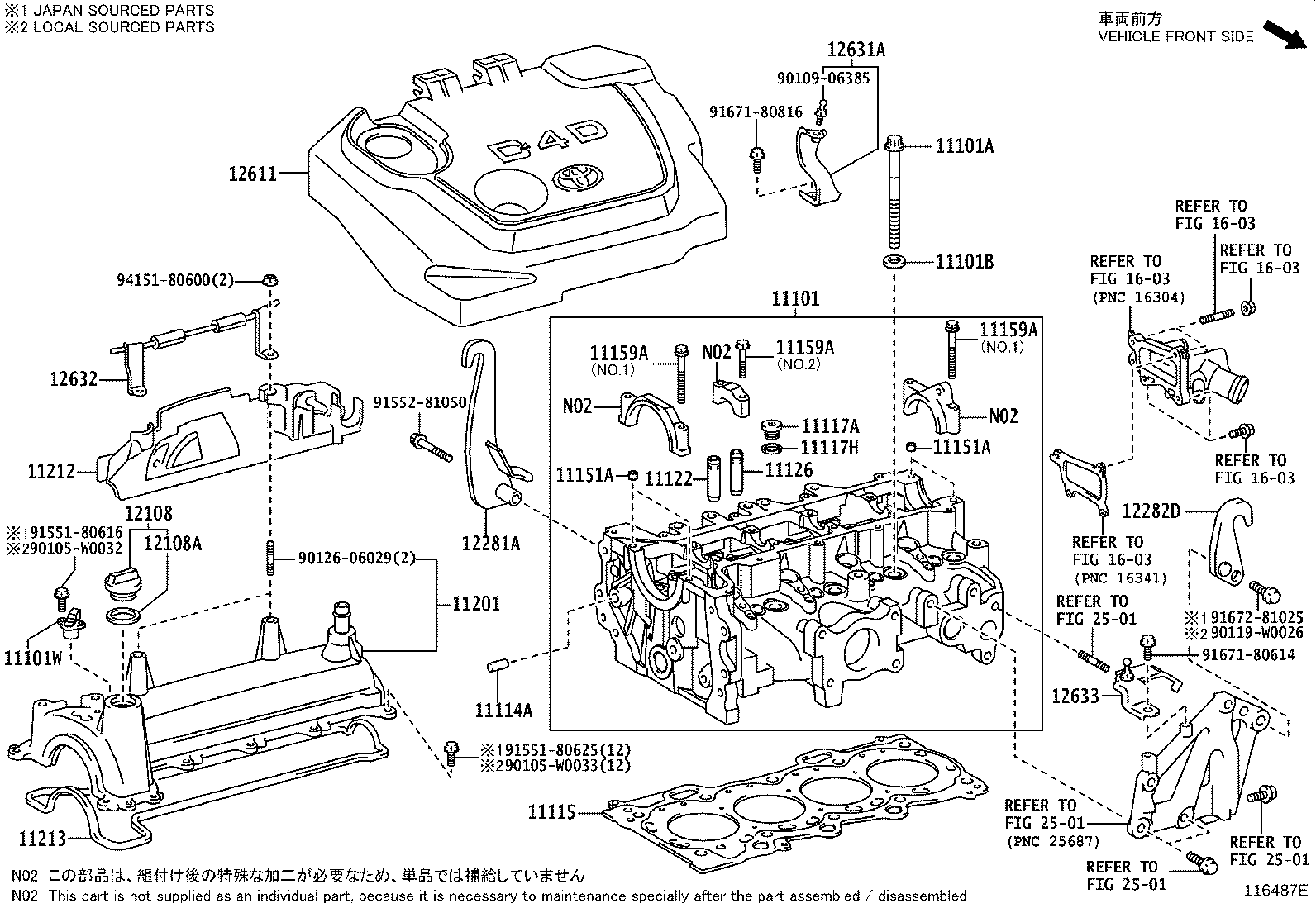

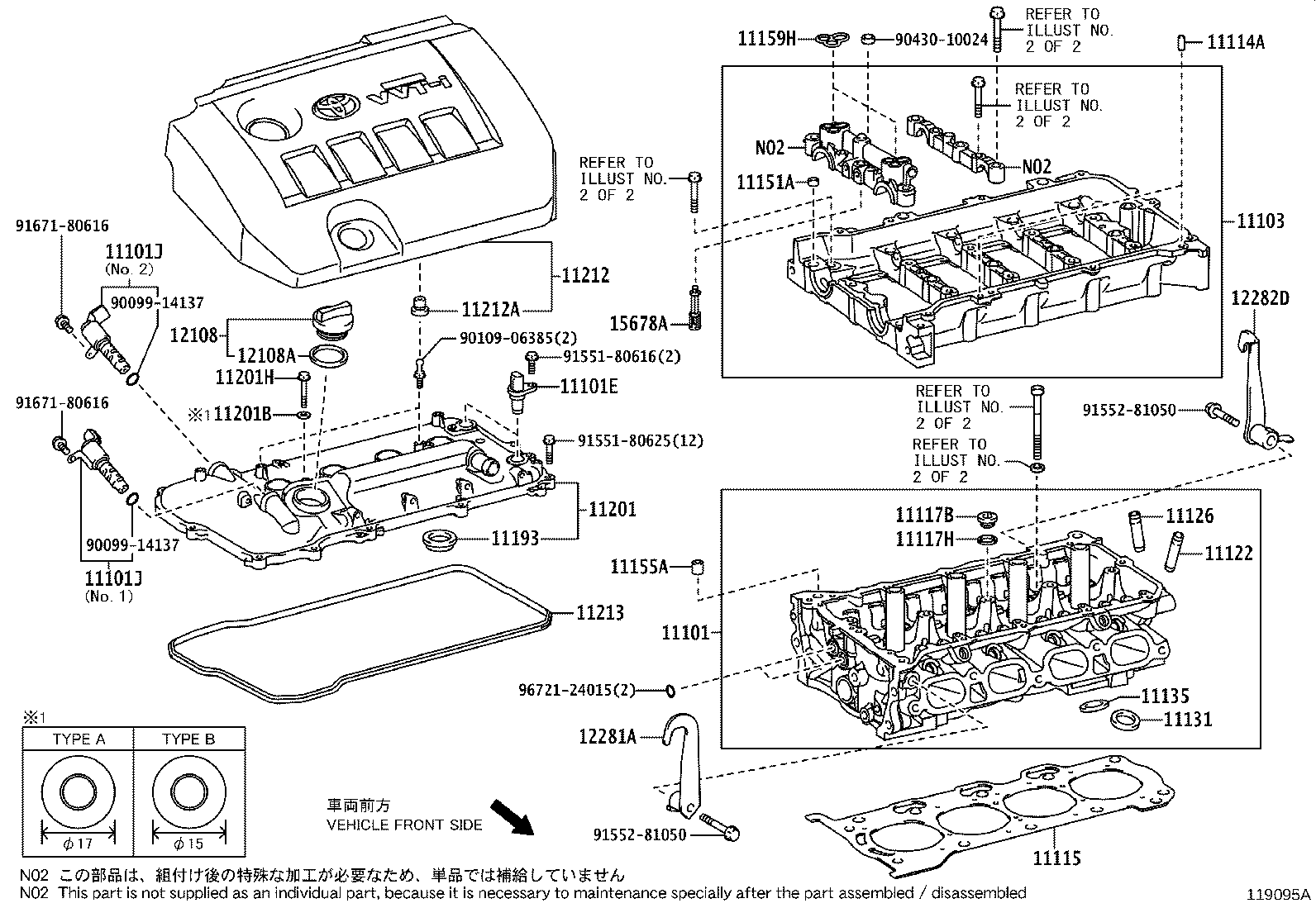

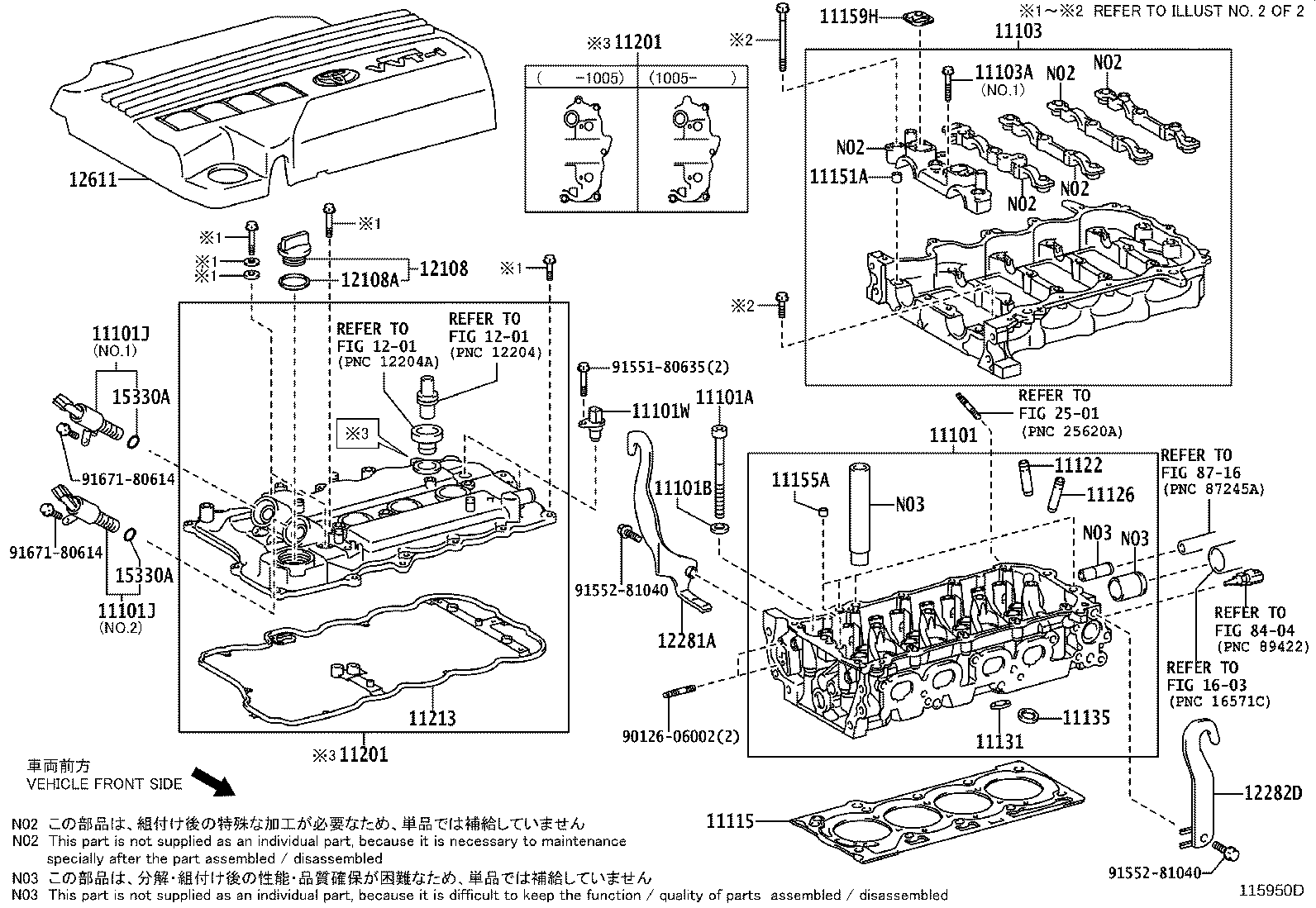

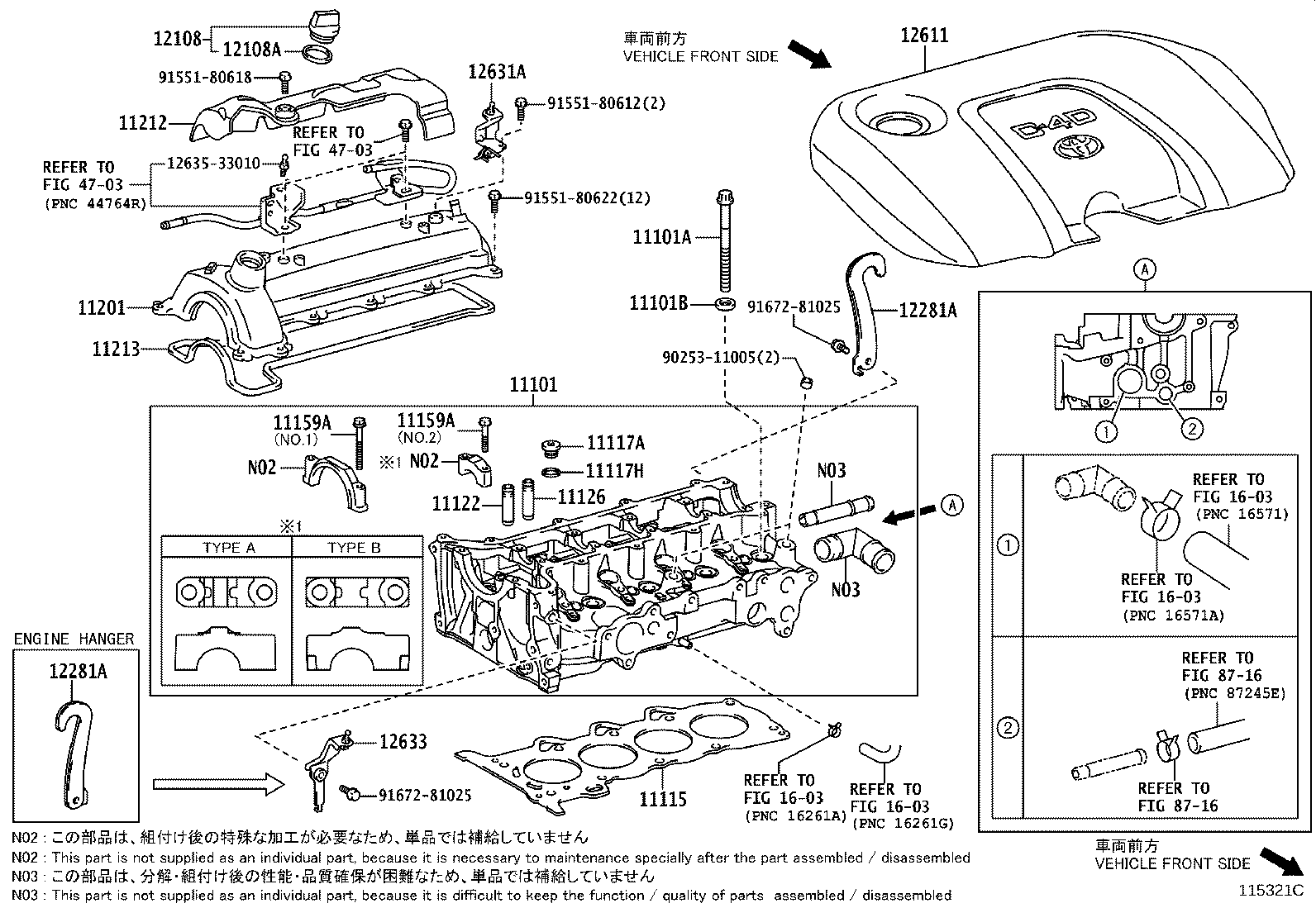

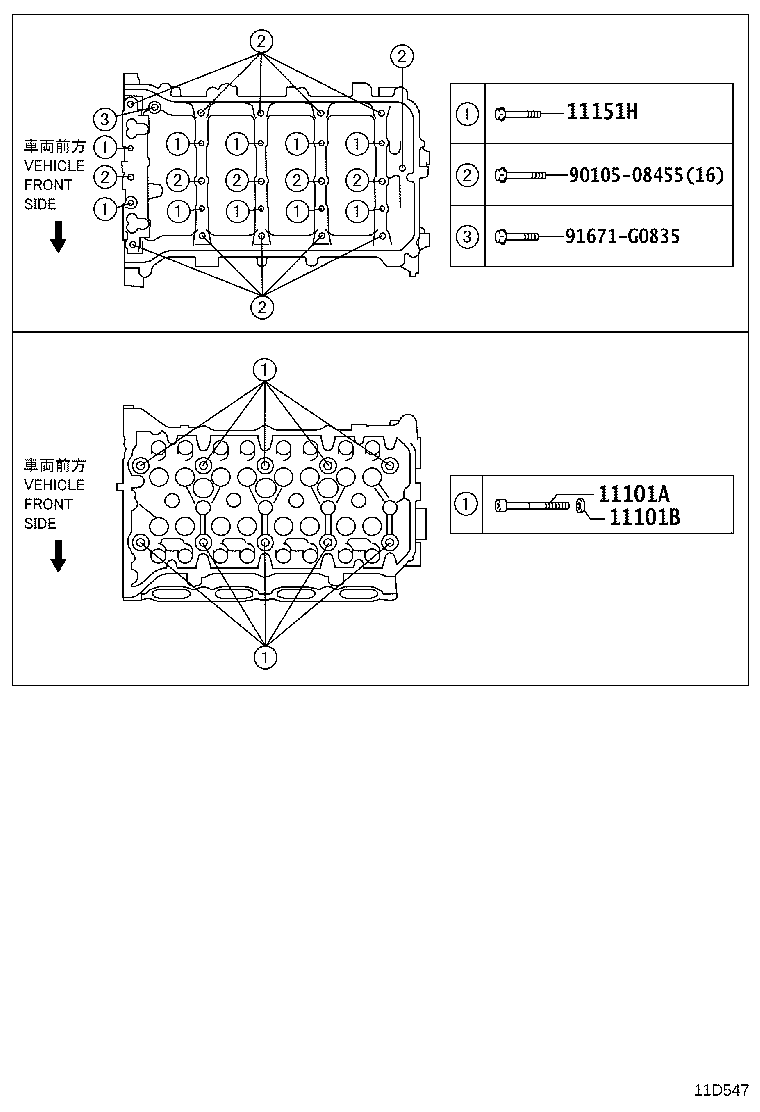

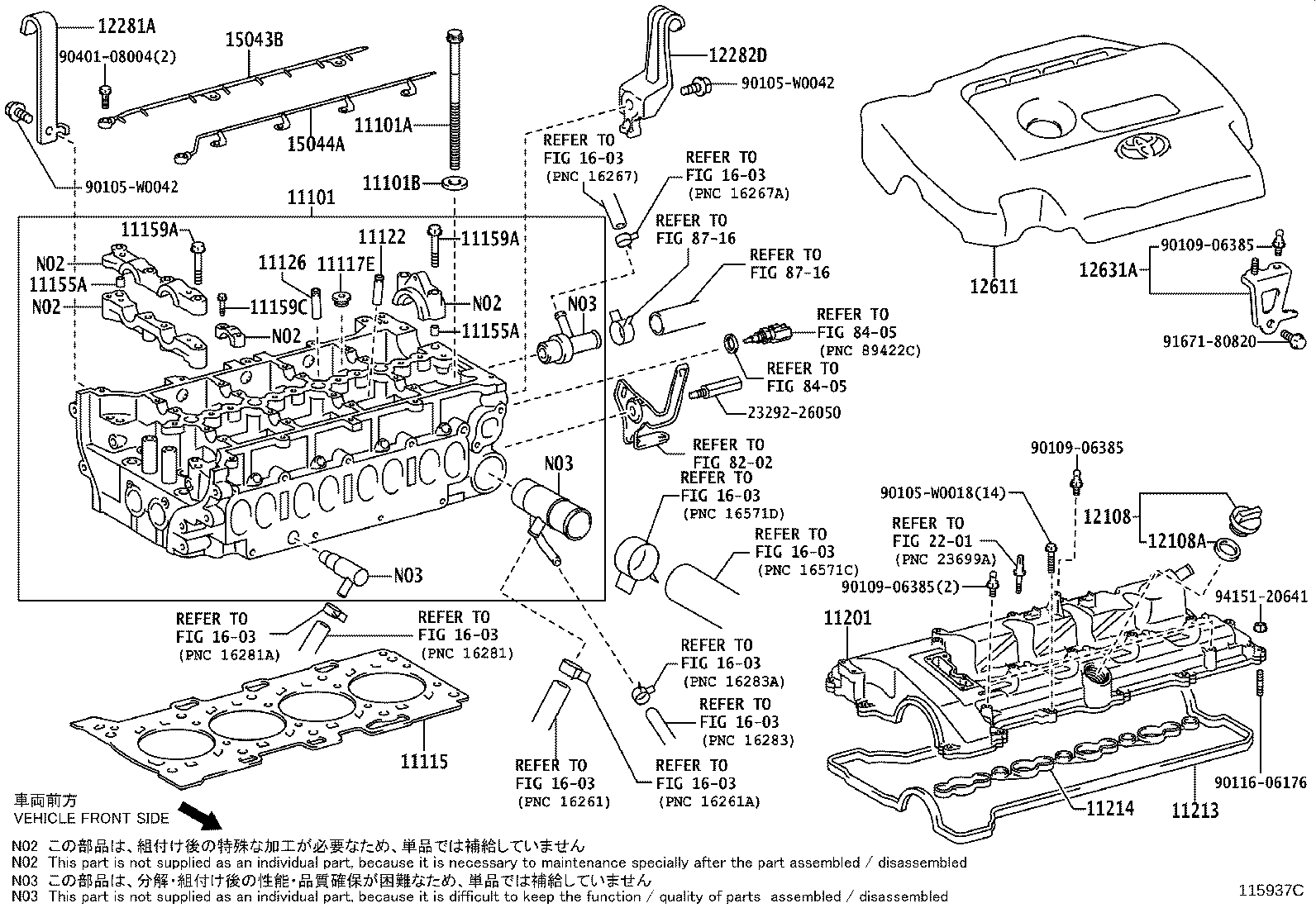

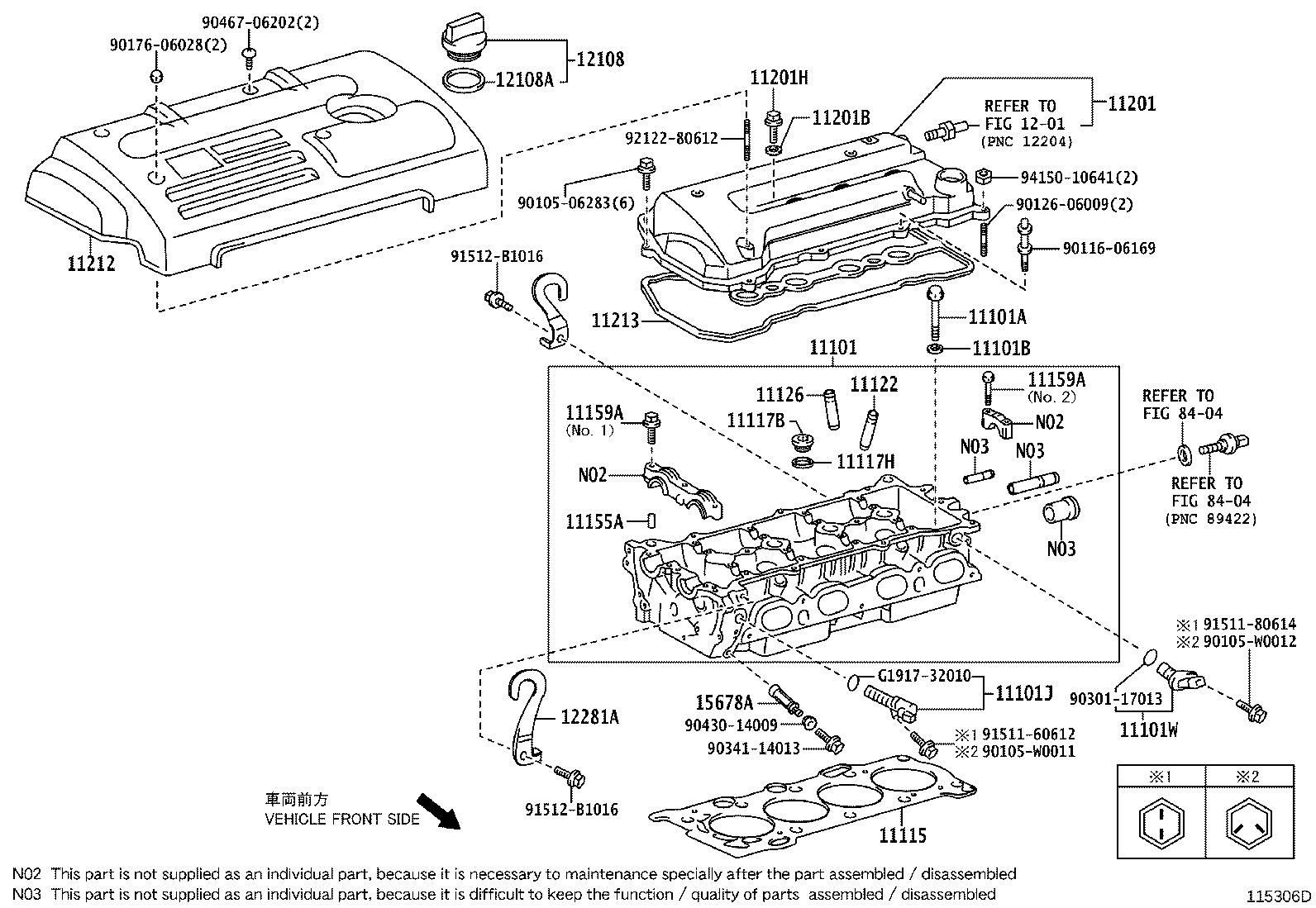

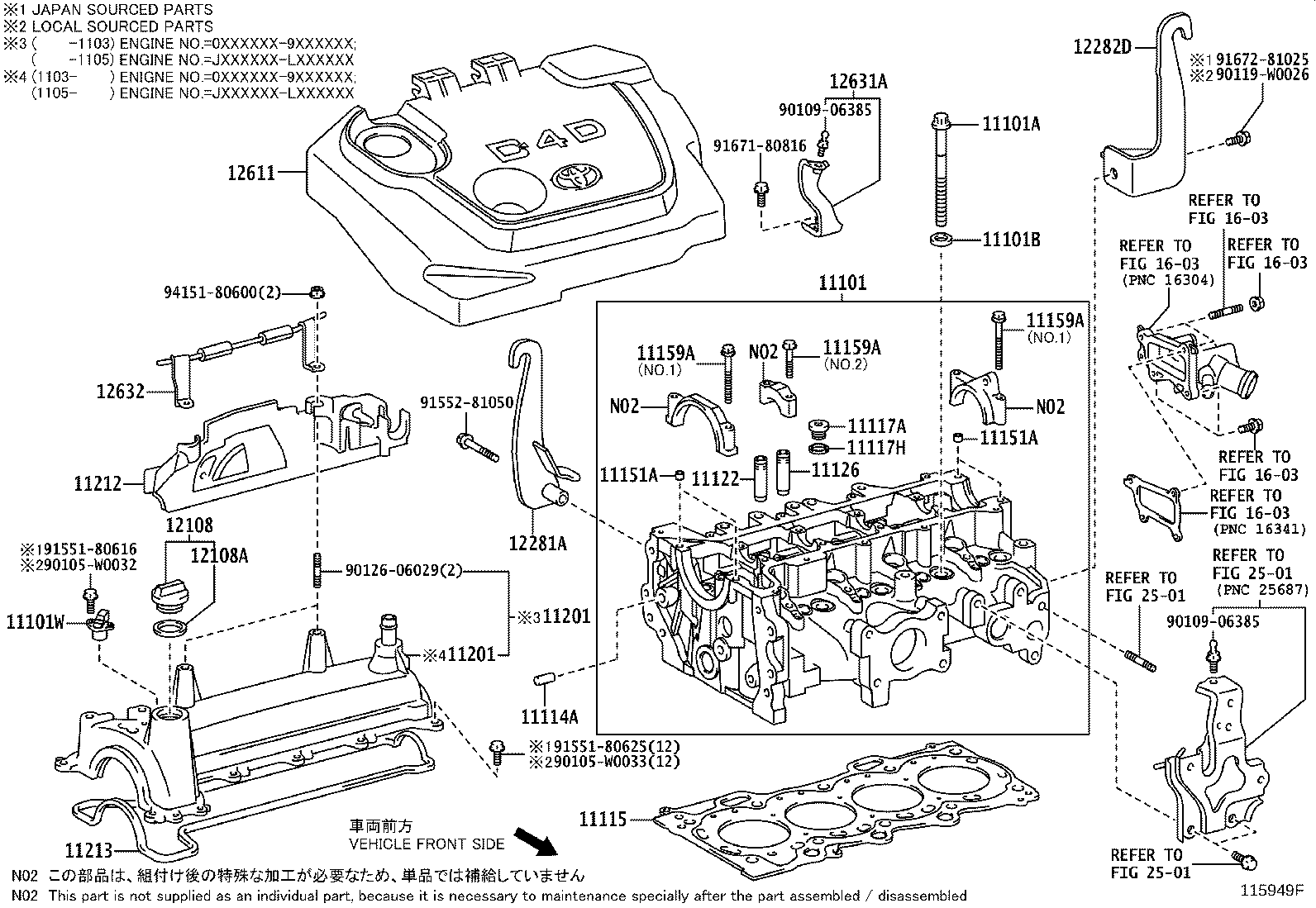

Figure 115936C 115936C 2008-02 → 2008-11 Figure 115944C 115944C 2008-11 → 2009-03 Figure 115937C 115937C 2009-03 → 2011-10 Figure 117314A 117314A 2011-10 → — Figure 115321C 115321C 2008-02 → 2009-02 Figure 115949F 115949F 2009-02 → 2010-07 Figure 115949F 115949F 2009-02 → — Figure 116487E 116487E 2010-07 → 2010-11 Figure 116776A 116776A 2010-11 → — Figure 115950D 115950D 2009-02 → — Figure 115951B 115951B 2009-02 → — Figure 119095A 119095A 2008-02 → — Figure 116488B 116488B 2009-02 → — Figure 11D547 11D547 2008-02 → — Figure 115306D 115306D 2008-02 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101E Sensor, Cam Position
11101J Valve Assy, Camshaft Timing Oil Control
11101W Sensor, Crank Position, NO.1
11103 Housing Sub-assy, Camshaft
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11114A Pin, Straight
11115 Gasket, Cylinder Head
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117E Plug, W/Head Straight Screw, NO.1
11117H Gasket(FOR WATER HOLE)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151H Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155A Pin, Ring W/Head
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159C Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159H Gasket, Camshaft Bearing Cap Oil Hole
11186B Gasket, Camshaft Housing Rear Cover
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201H Bolt(FOR CYLINDER HEAD COVER)
11212 Cover, Cylinder Head, NO.2
11212A Cushion, Cylinder Head Cover
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12551A Bracket, Vacuum Pump, NO.1
12611 Cover, Engine, NO.1
12631A Bracket, Engine Cover
12632 Bracket, Engine Cover, NO.2
12633 Bracket, Engine Cover, NO.3
15043B Pipe Sub-assy, Camshaft Oil Delivery, RH
15044A Pipe Sub-assy, Camshaft Oil Delivery, LH
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
23682 Gasket, Nozzle Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
