Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

10 part groups · 5 illustrations

Illustrations

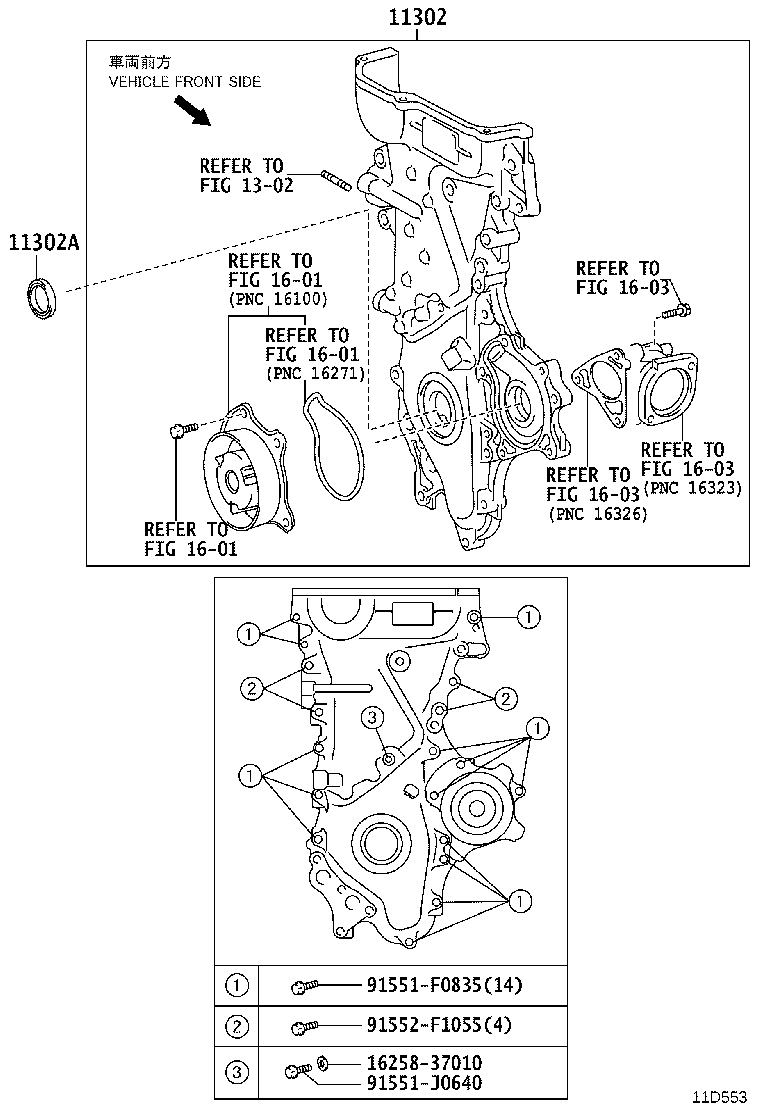

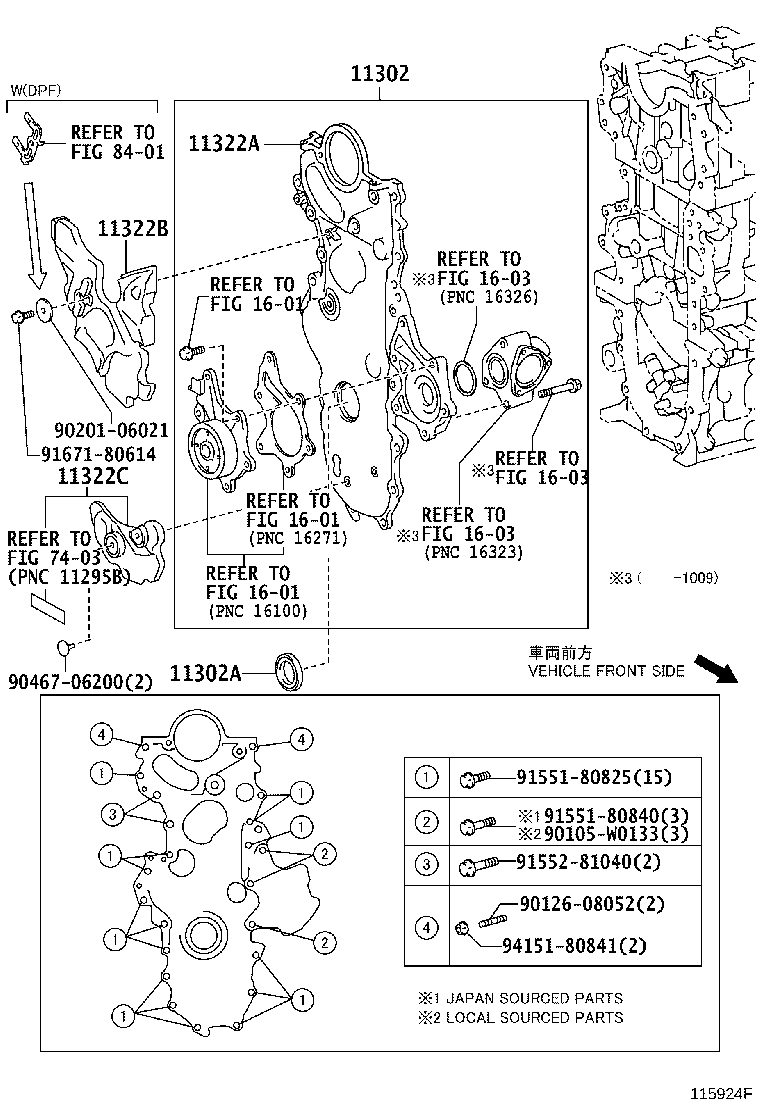

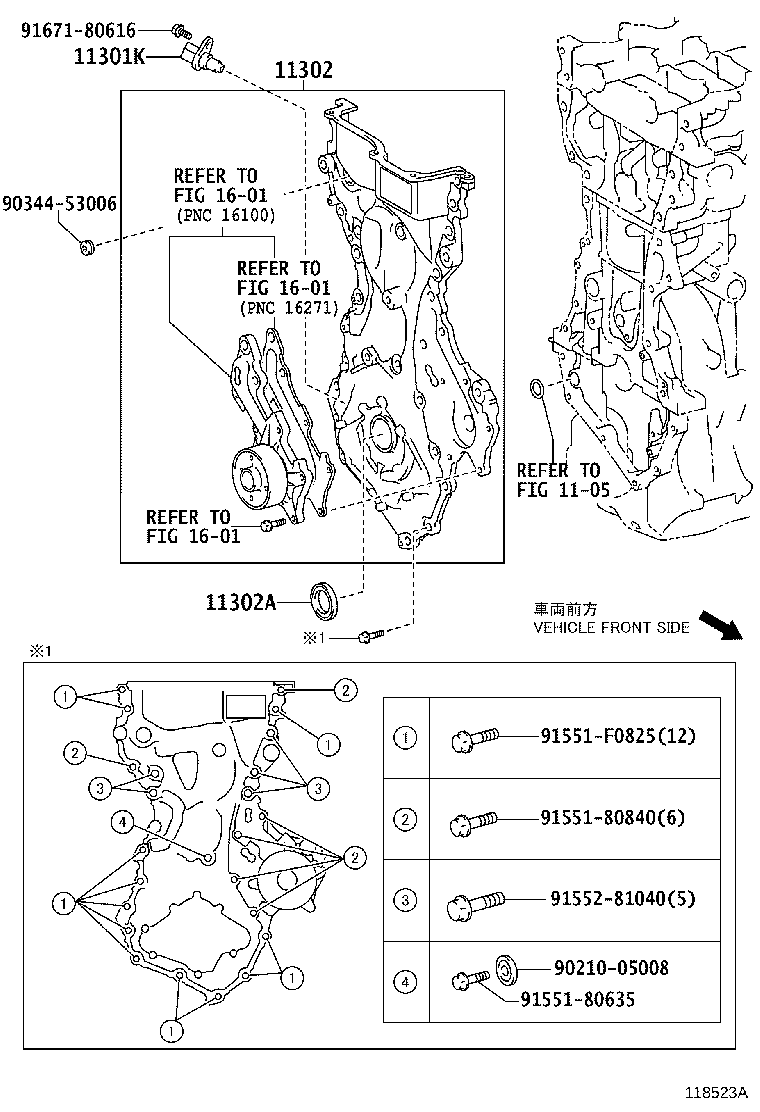

Figure 114931C 114931C 2008-02 → — Figure 118523A 118523A 2009-02 → — Figure 115924F 115924F 2009-02 → — Figure 11D553 11D553 2008-02 → — Figure 11D552 11D552 2008-02 → —

Part groups

PNCDescription
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
16272A Gasket, Water Pump NO.2
19941C Clamp, Cord(FOR CRANK POSITION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
