Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

18 part groups · 7 illustrations

Illustrations

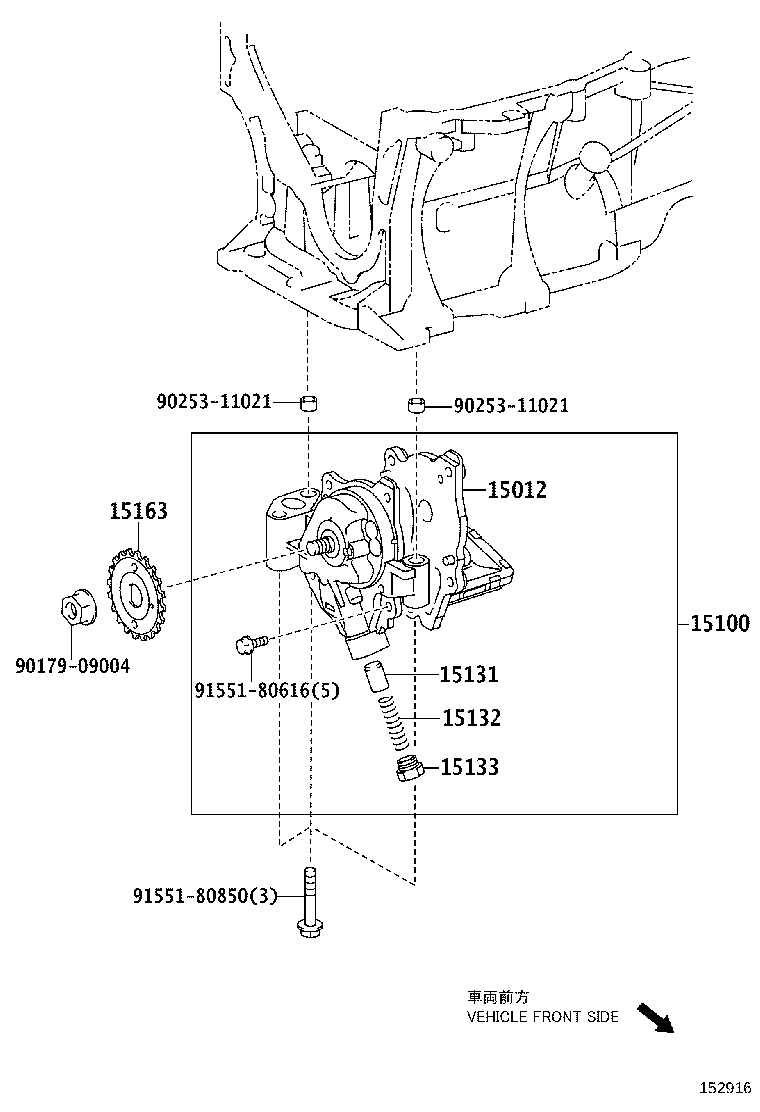

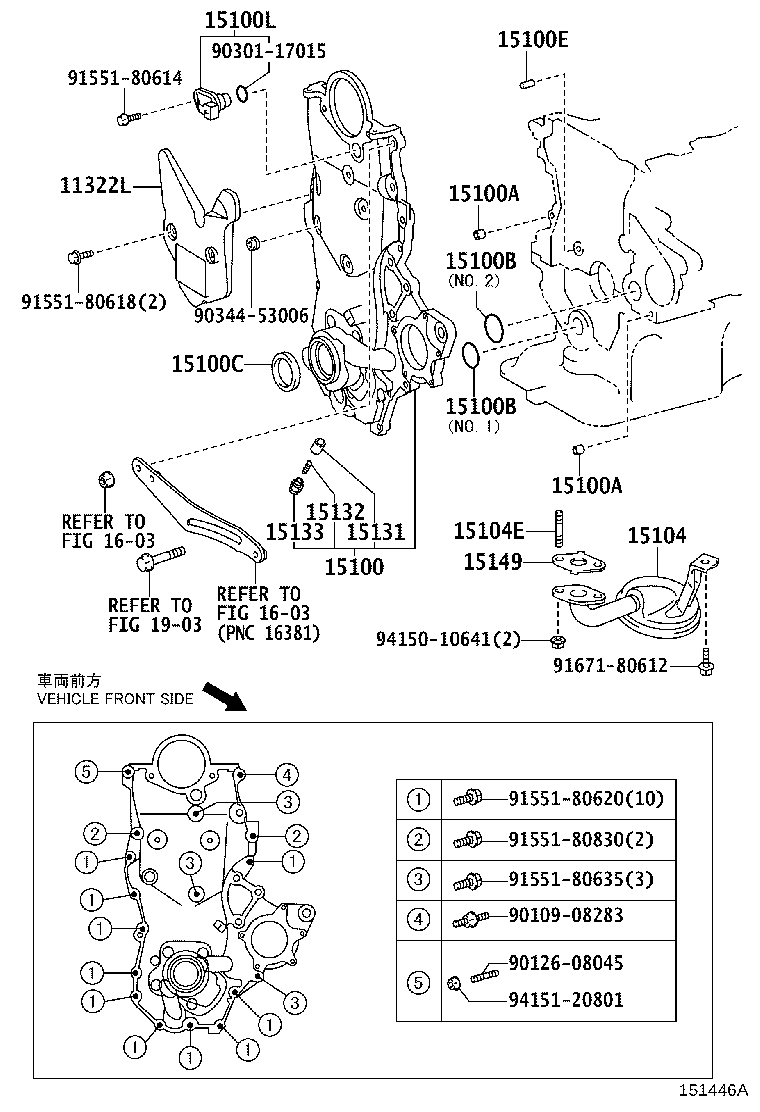

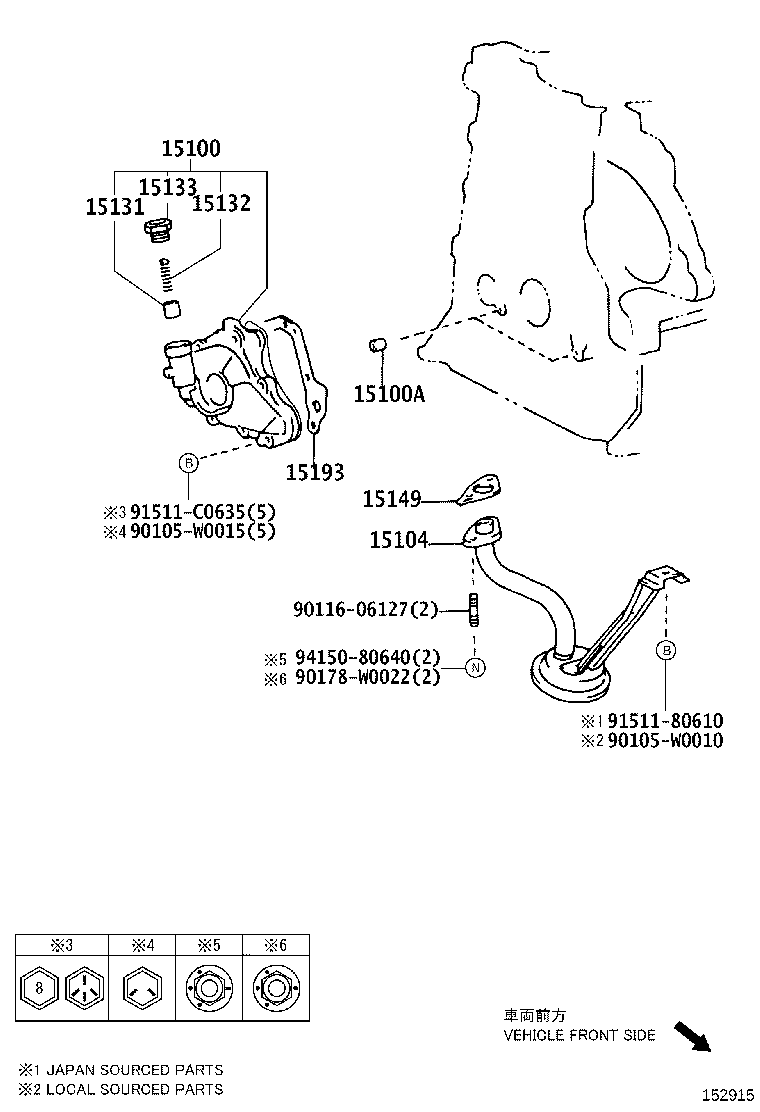

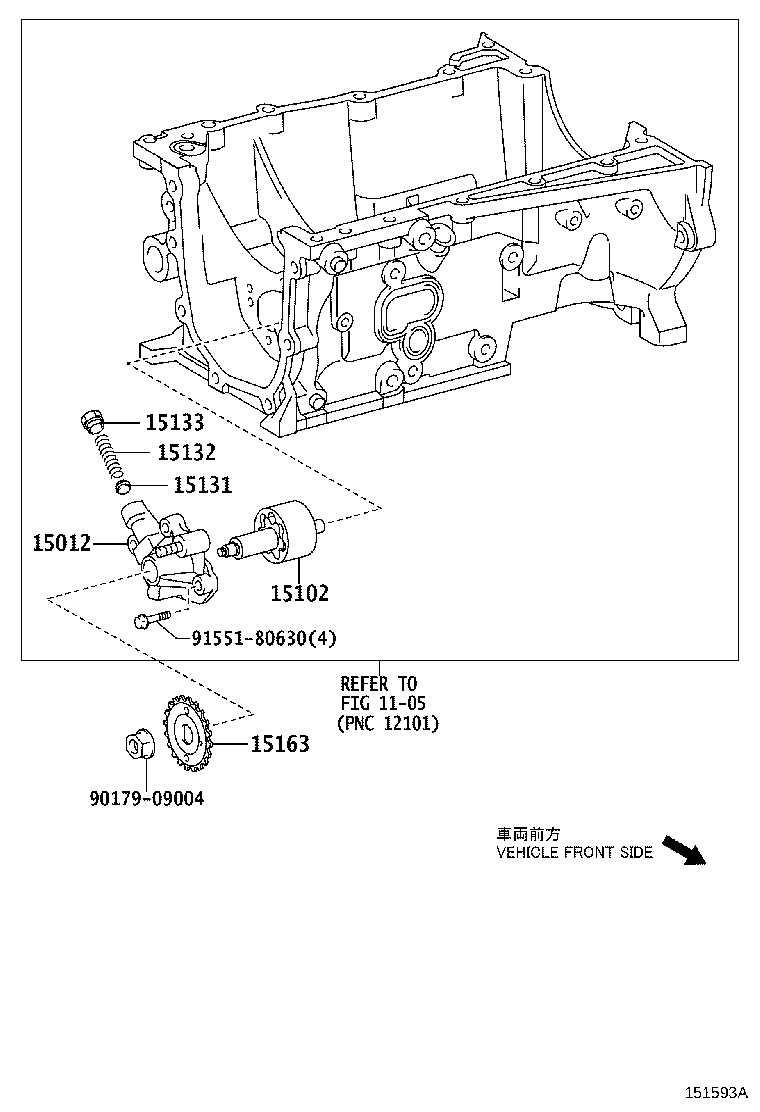

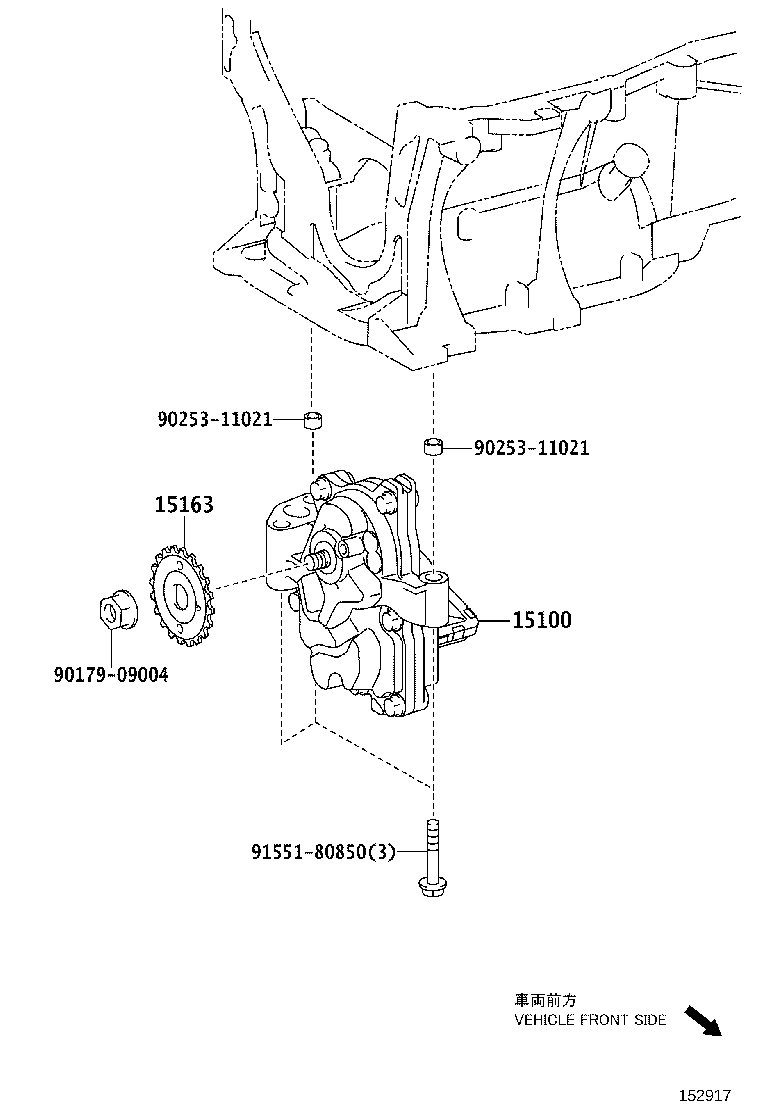

Figure 151319D 151319D 2008-02 → — Figure 151446A 151446A 2008-02 → 2009-02 Figure 151593A 151593A 2009-02 → — Figure 151594A 151594A 2009-02 → — Figure 152916 152916 2008-02 → — Figure 152915 152915 2008-02 → — Figure 152917 152917 2009-02 → —

Part groups

PNCDescription
11322L Cover, Timing Chain, NO.2
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100E Pin, Straight (FOR OIL PUMP SET)
15100L Sensor, Cam Position
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15163 Gear, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
