Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

97 part groups · 28 illustrations

Illustrations

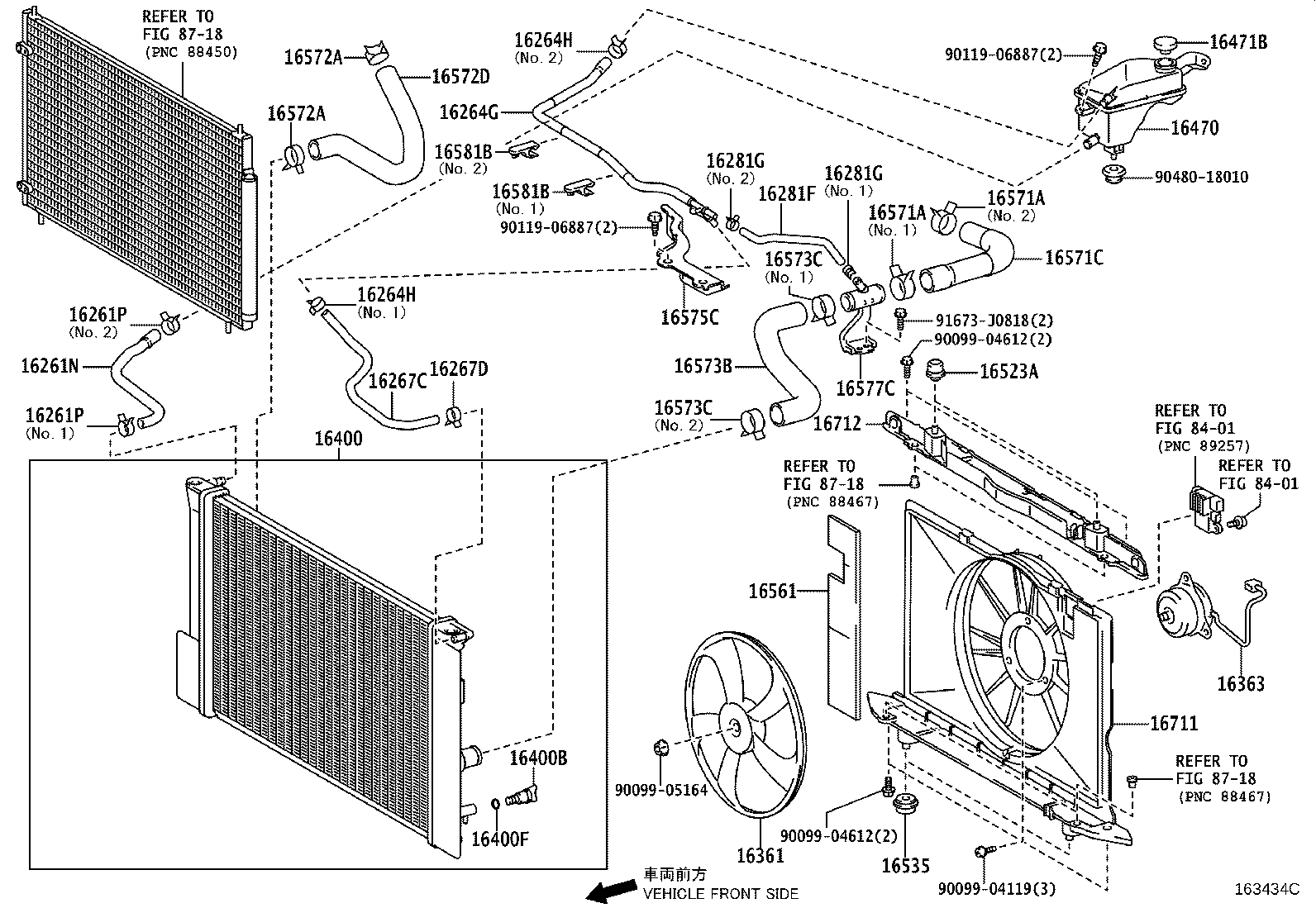

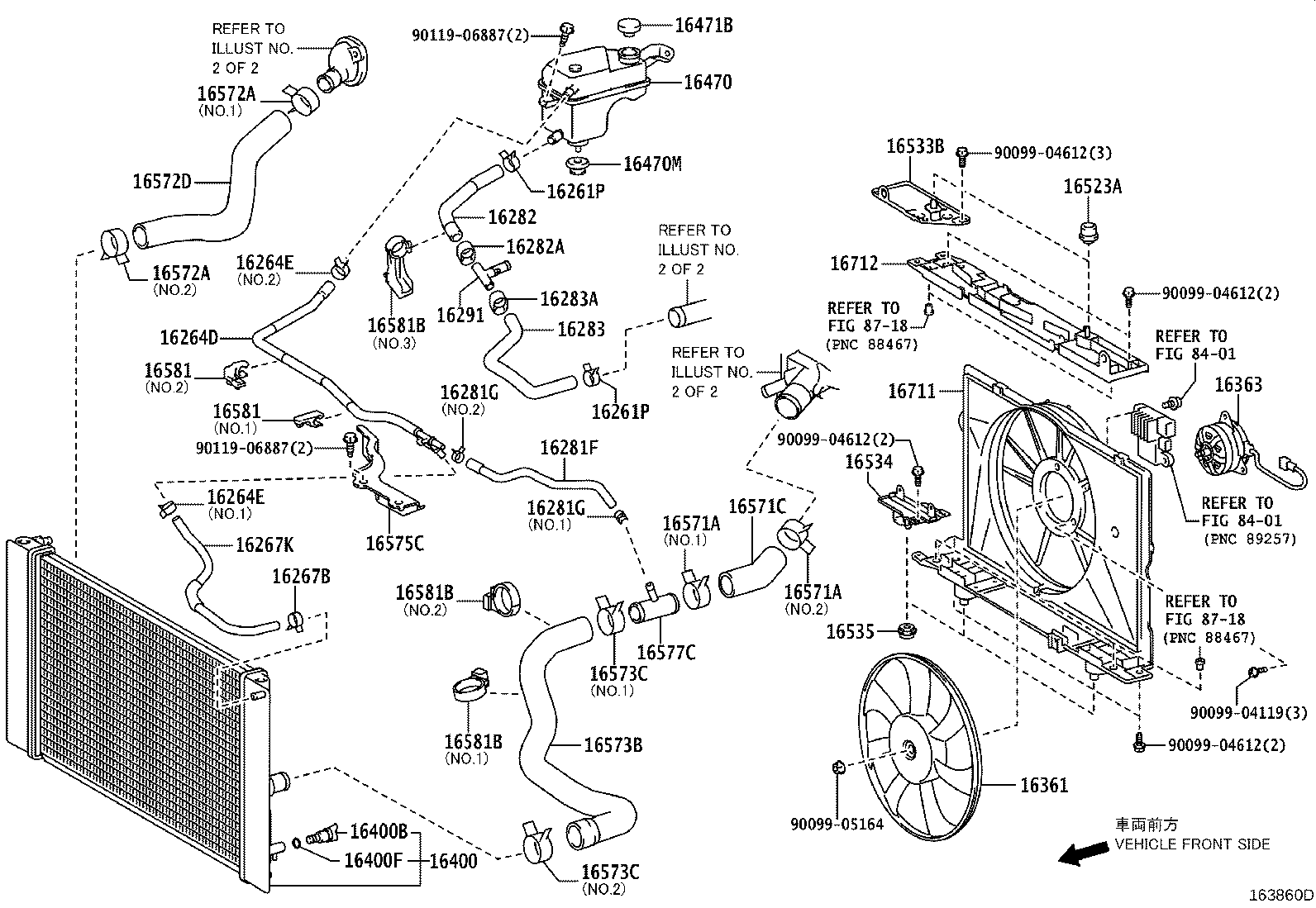

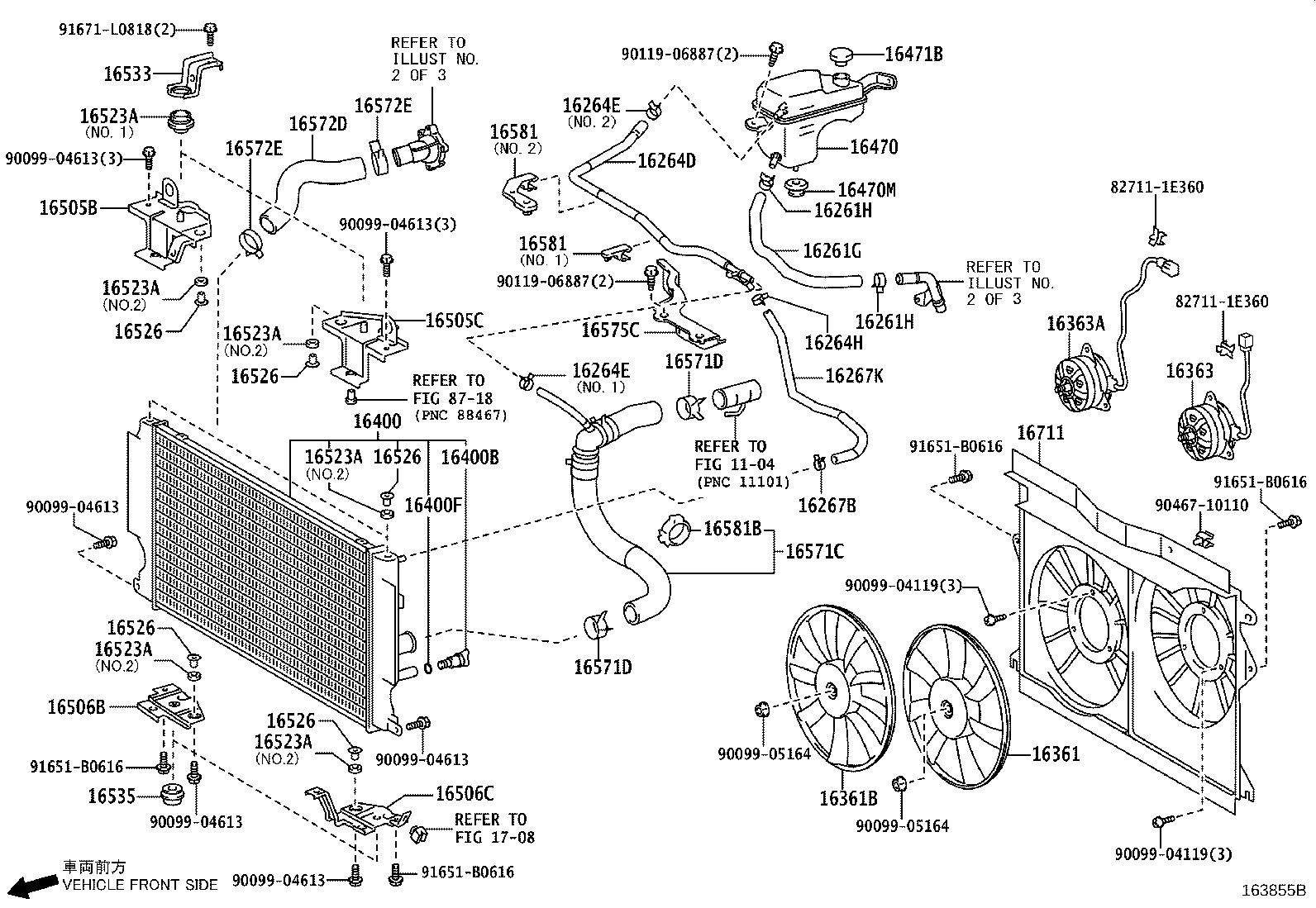

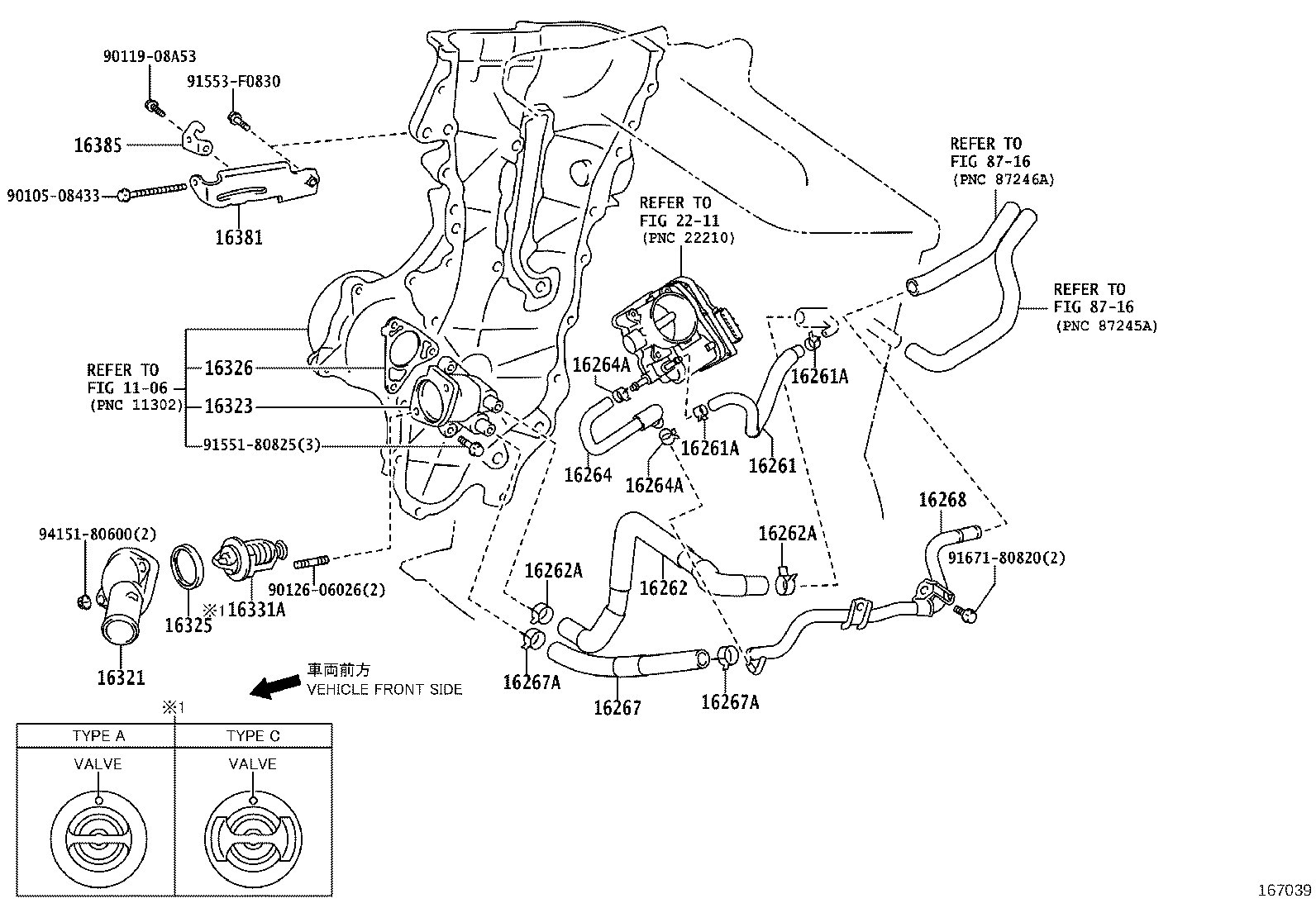

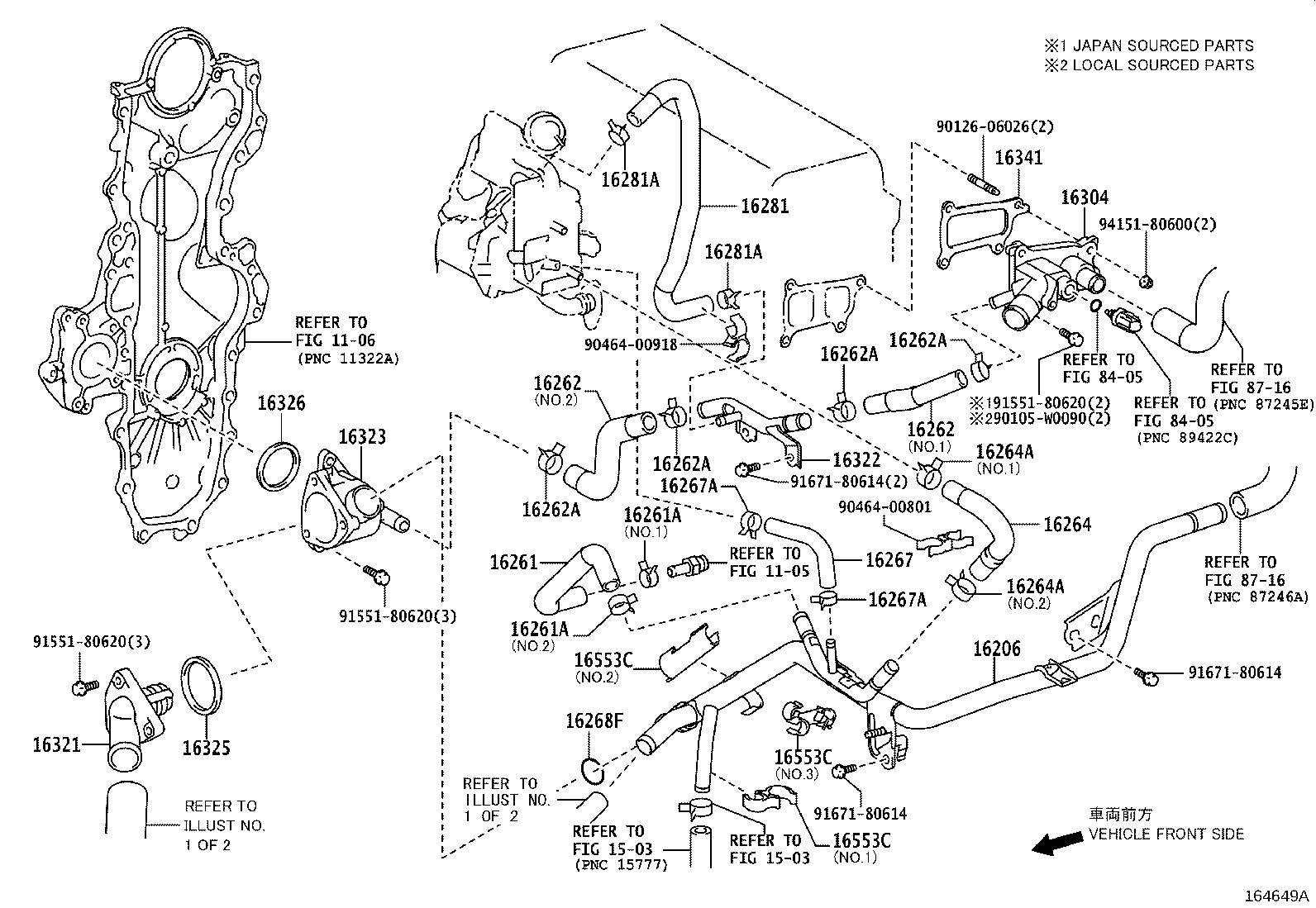

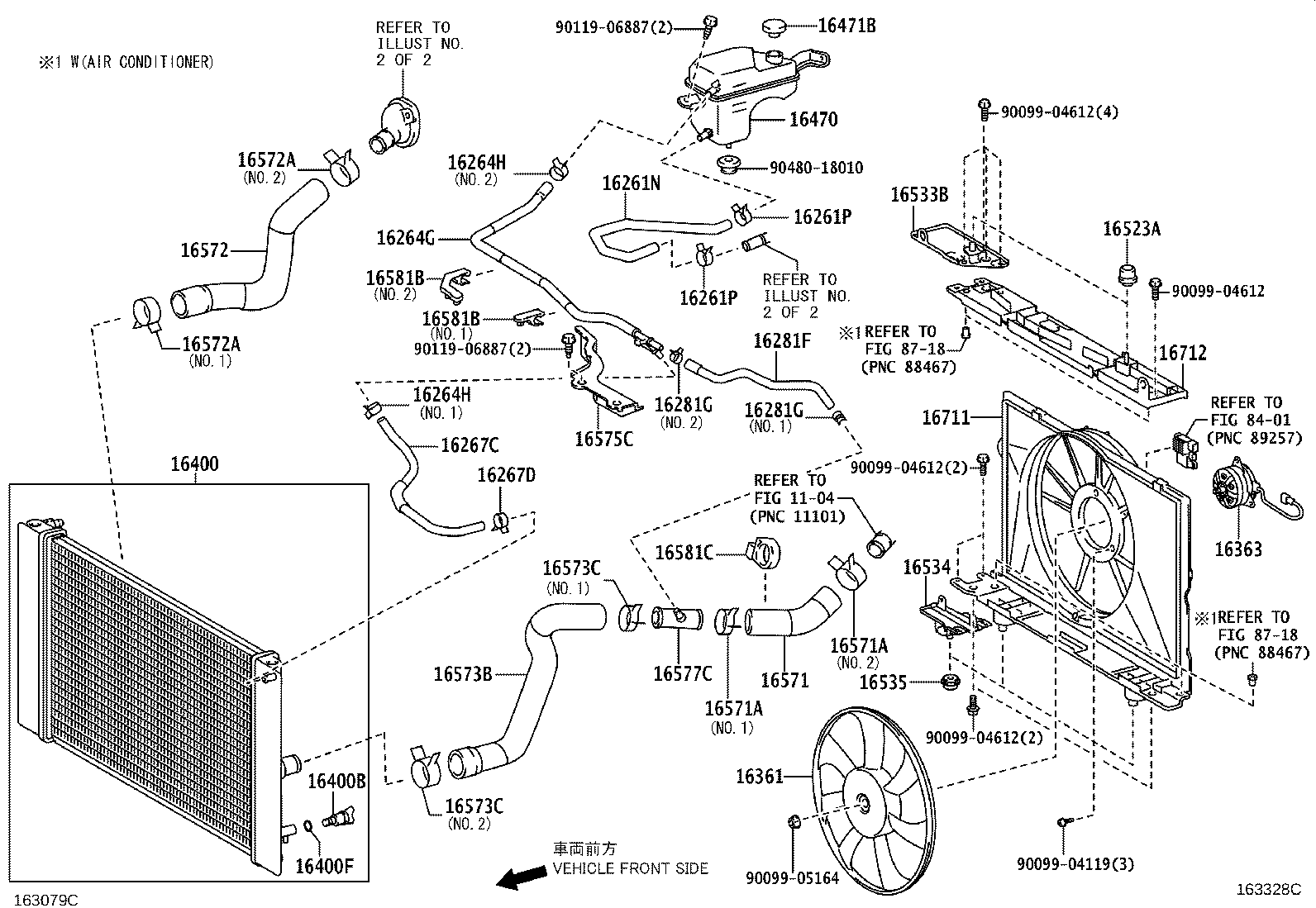

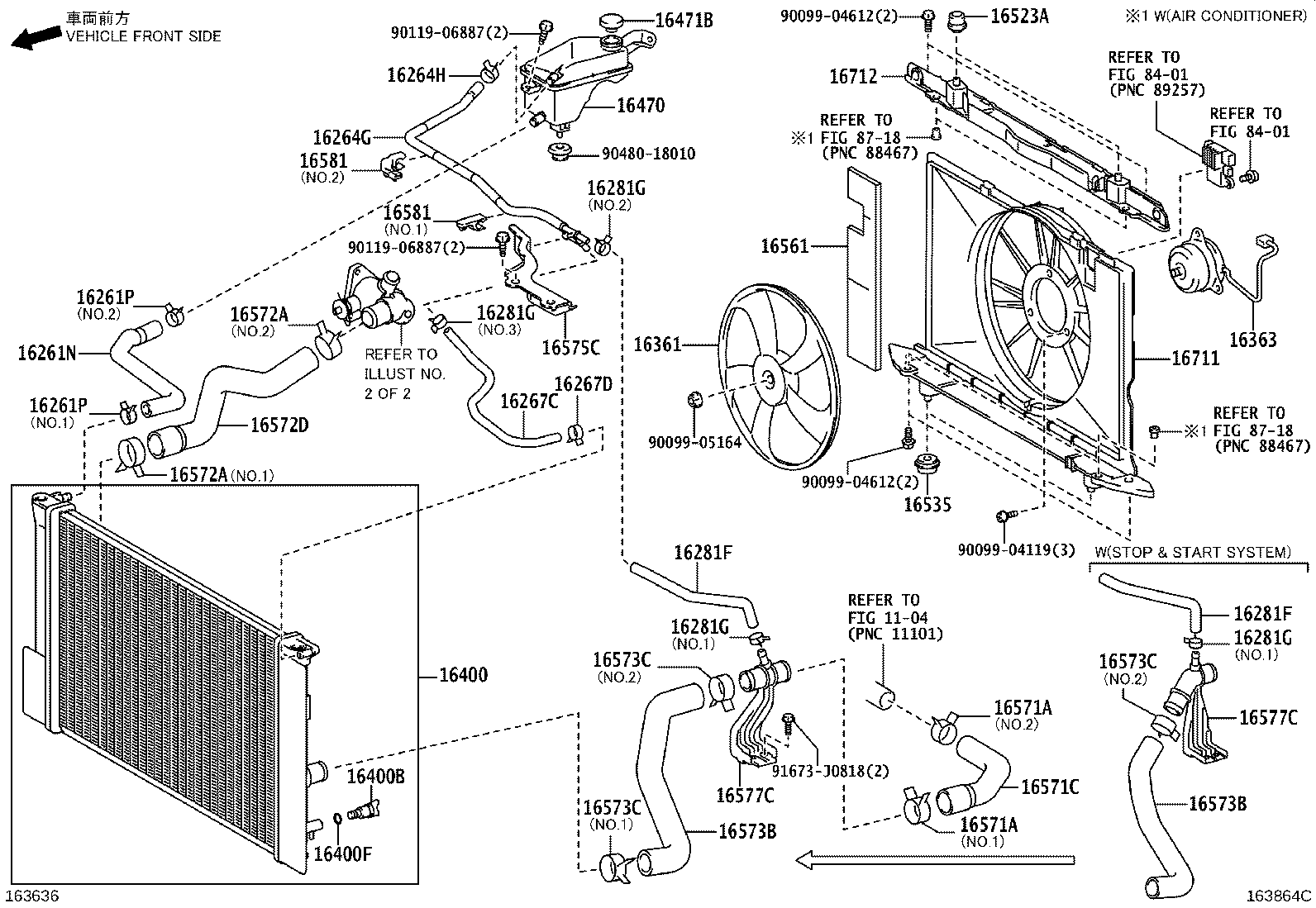

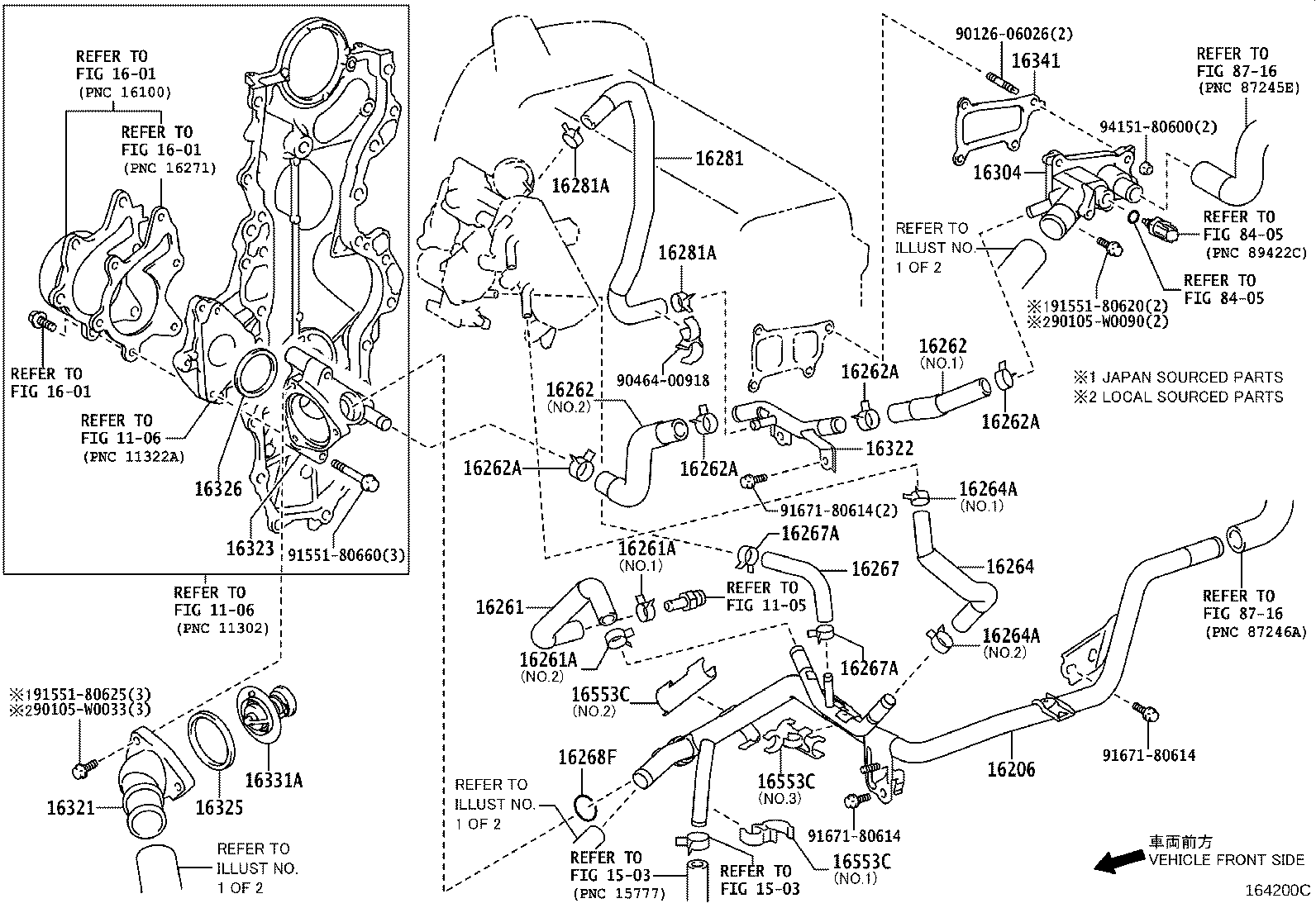

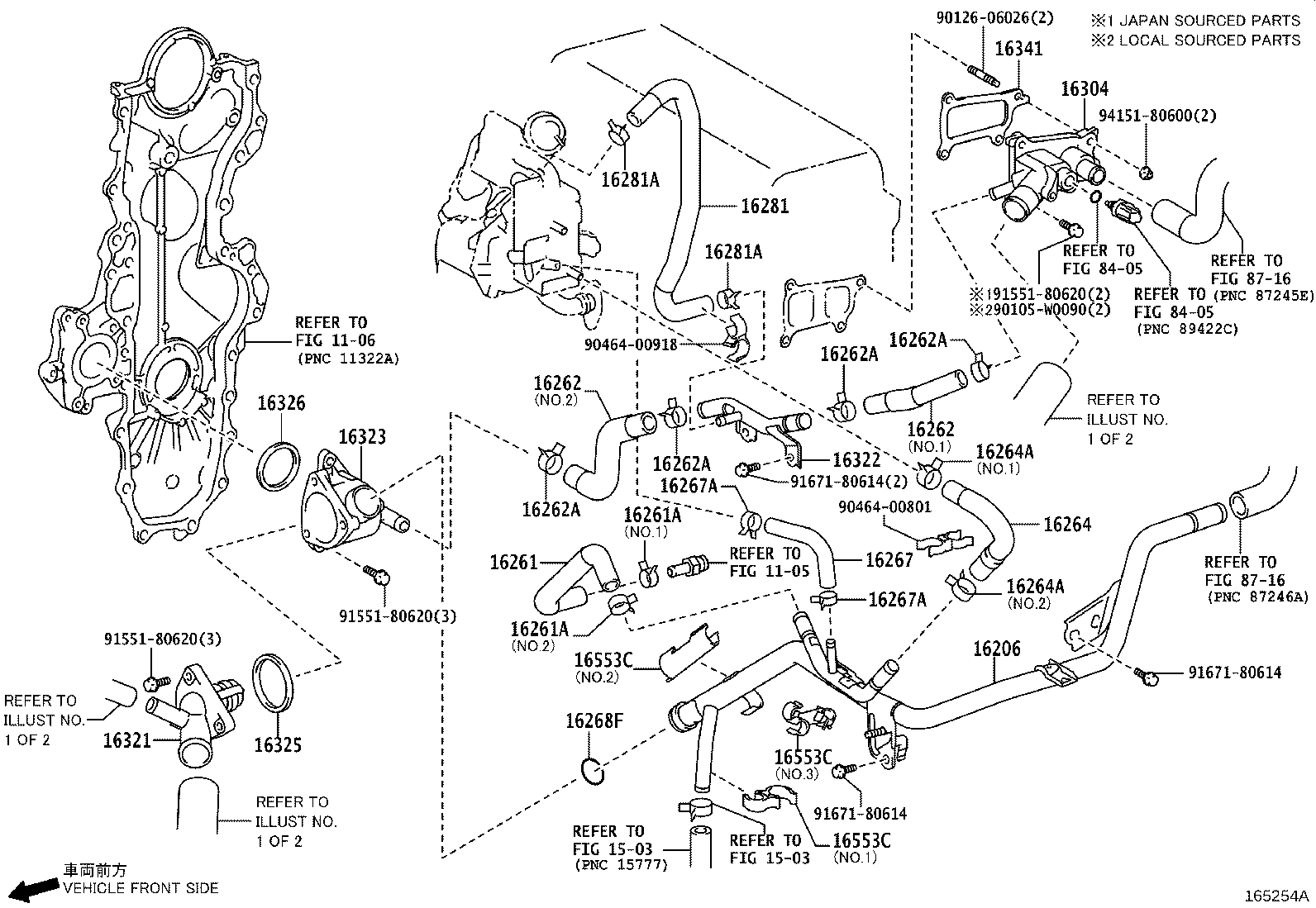

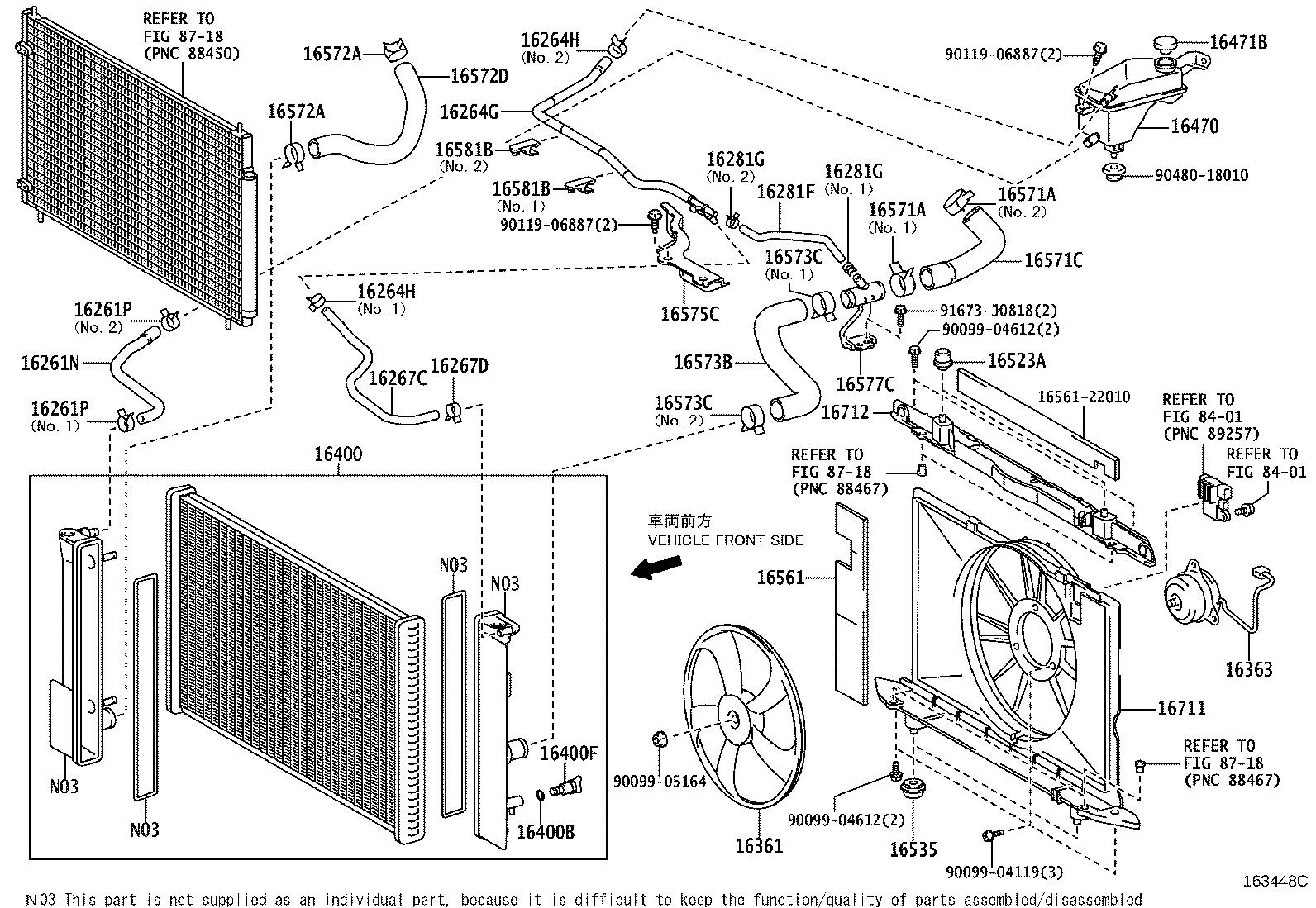

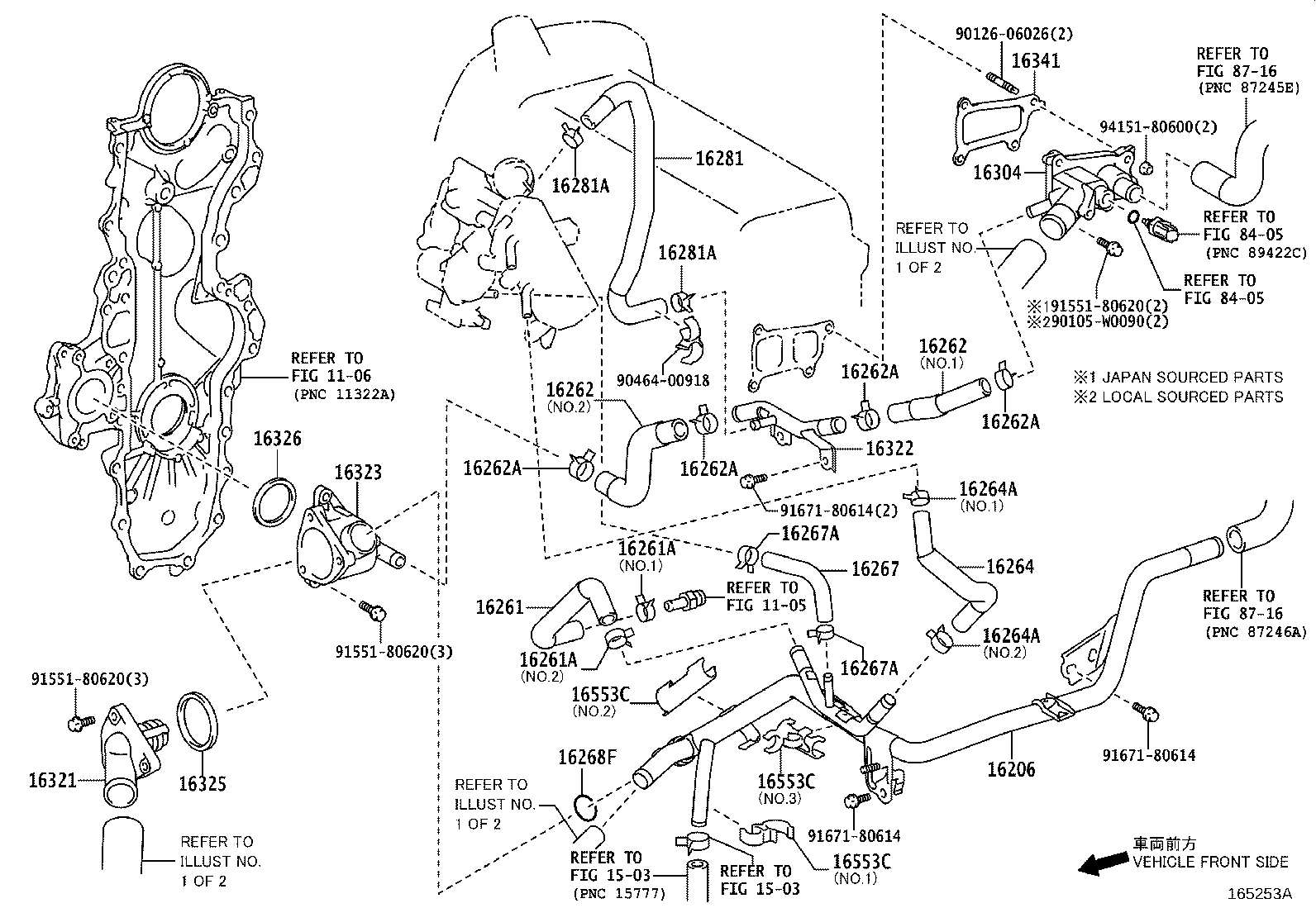

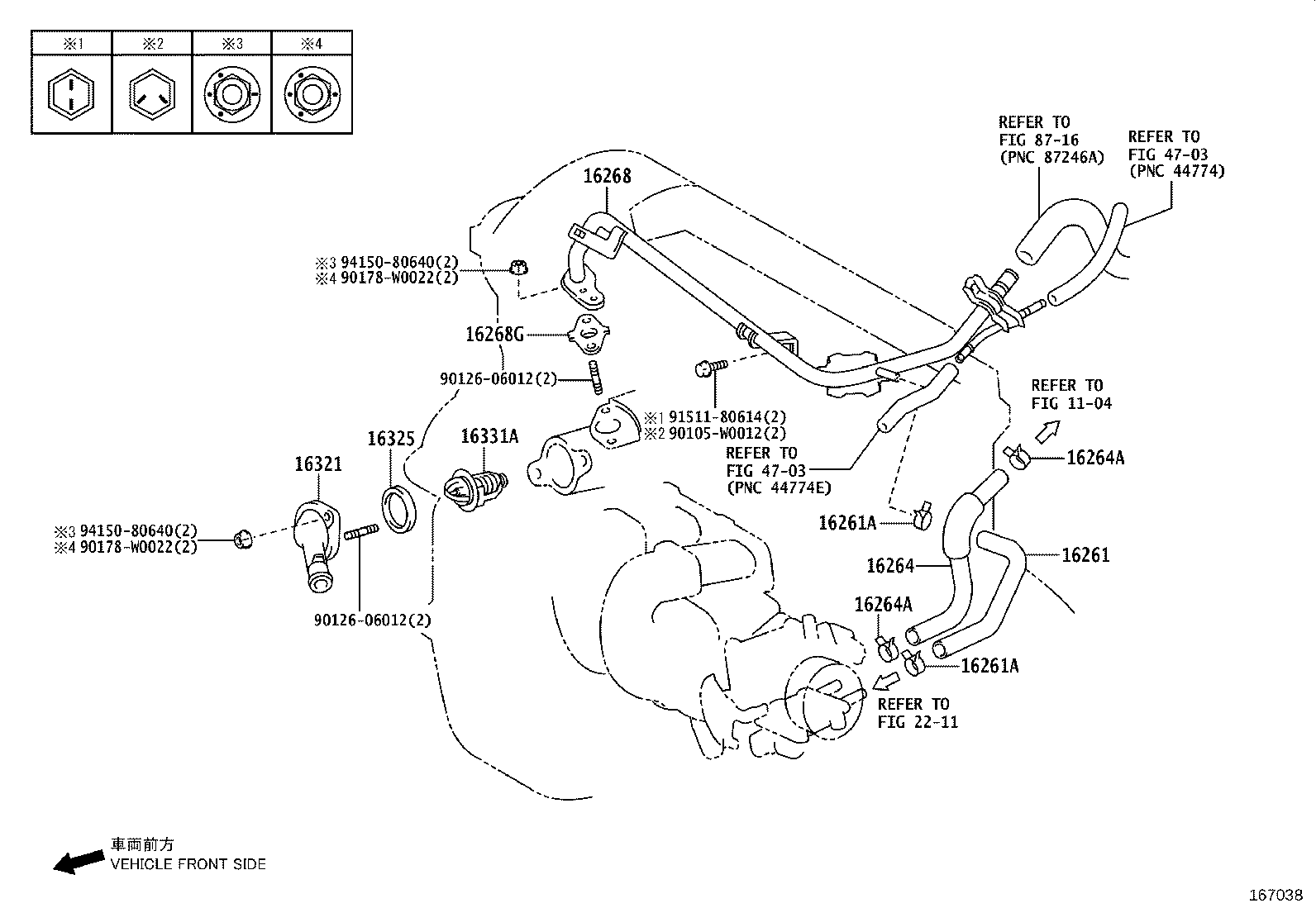

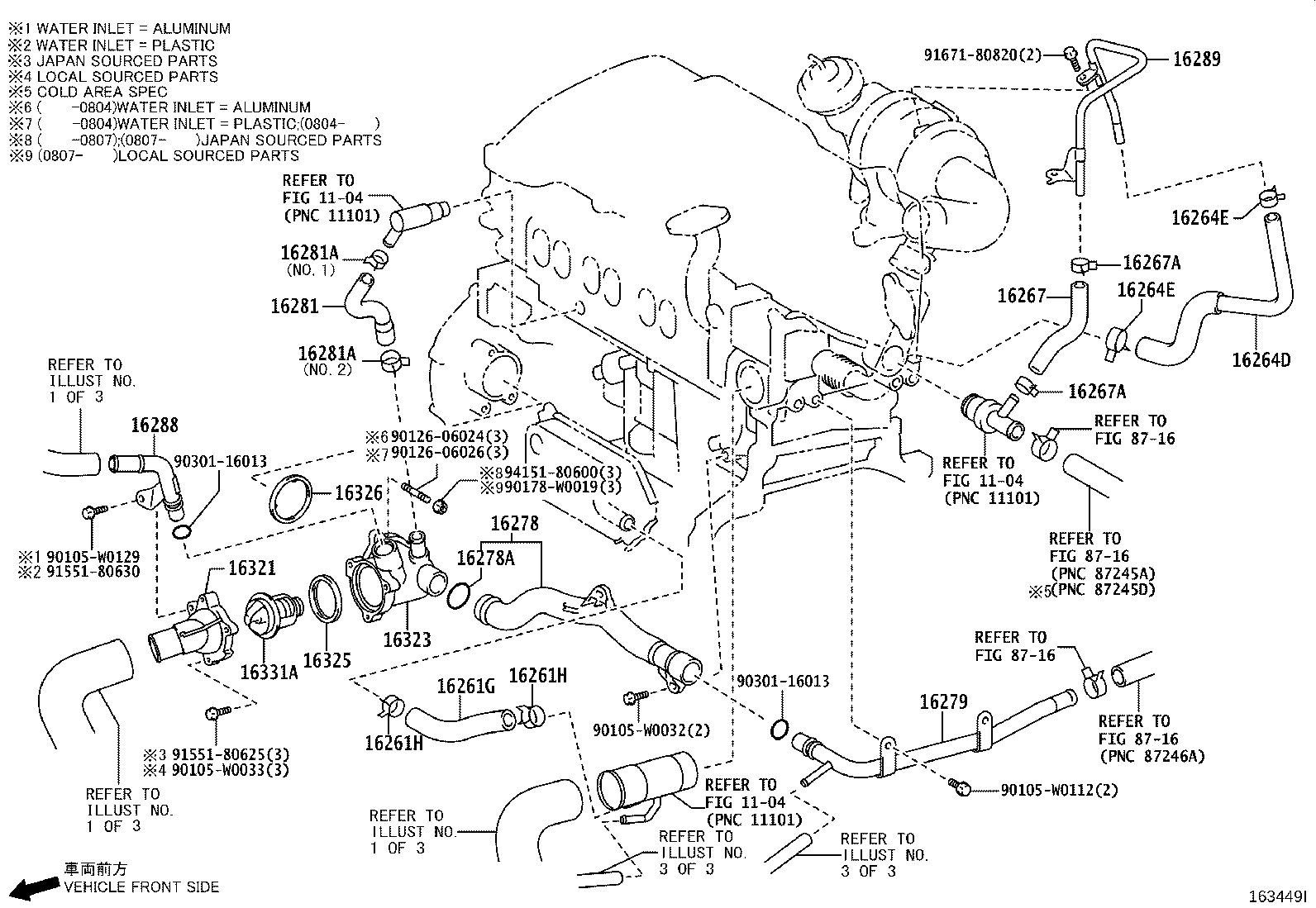

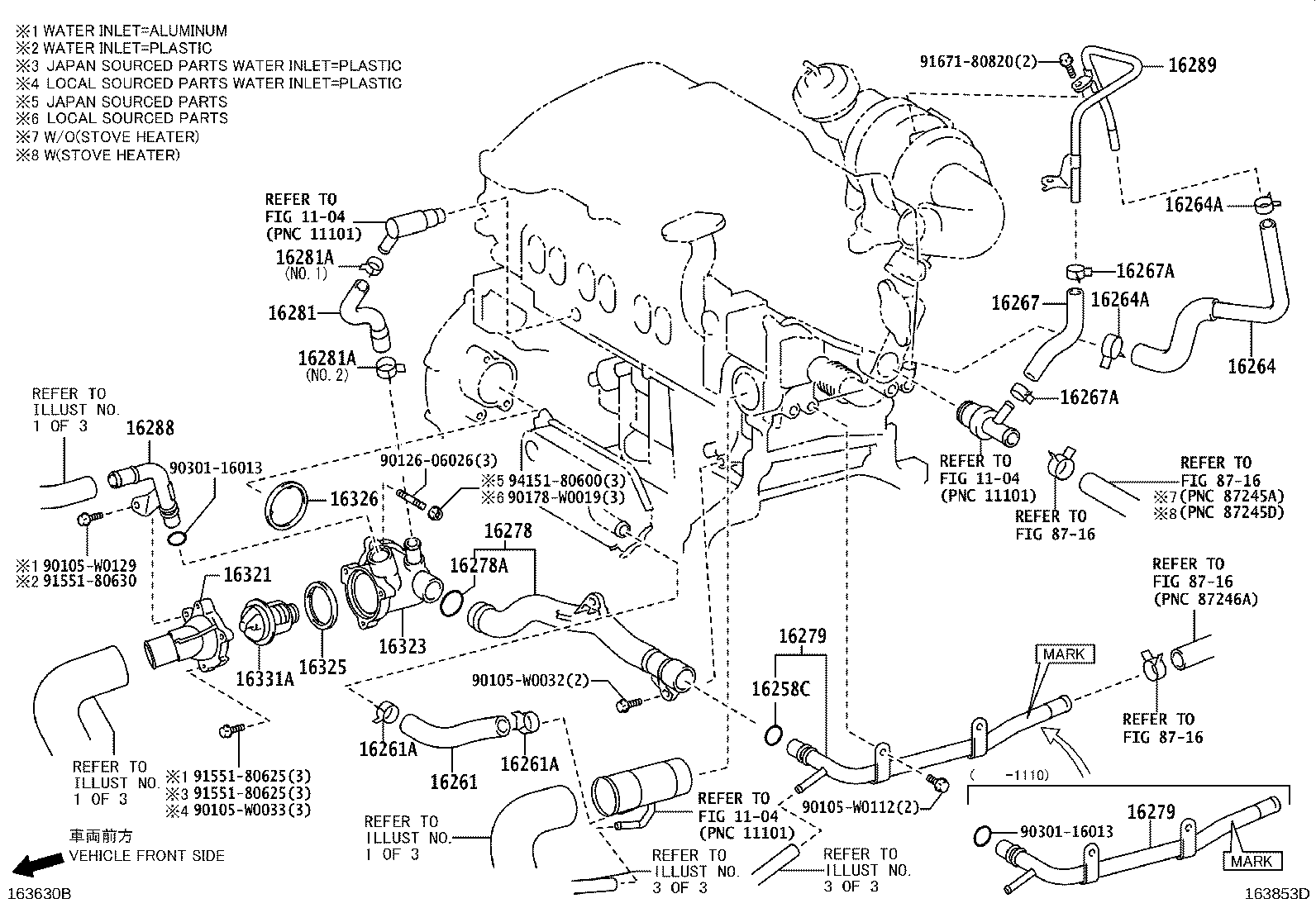

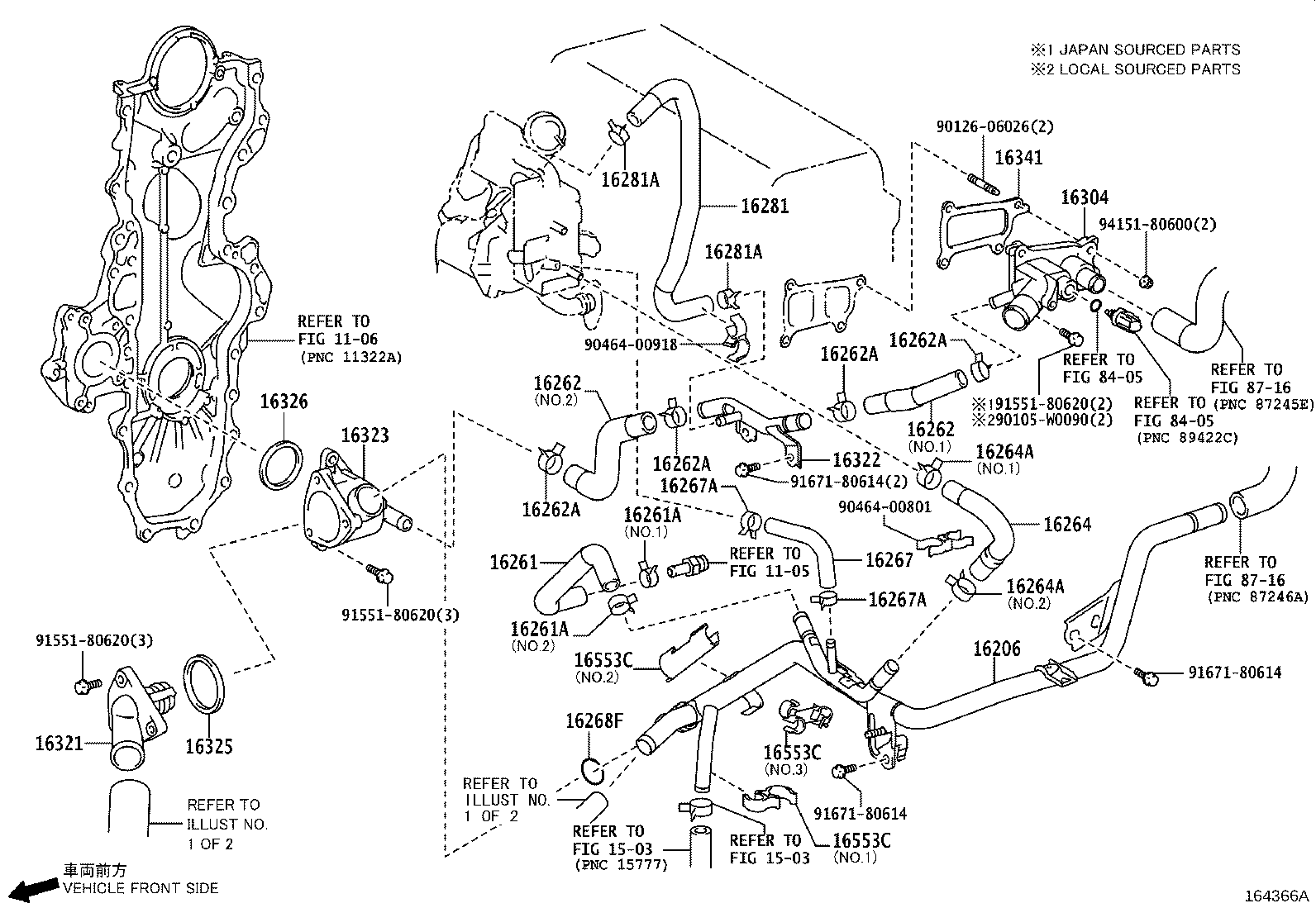

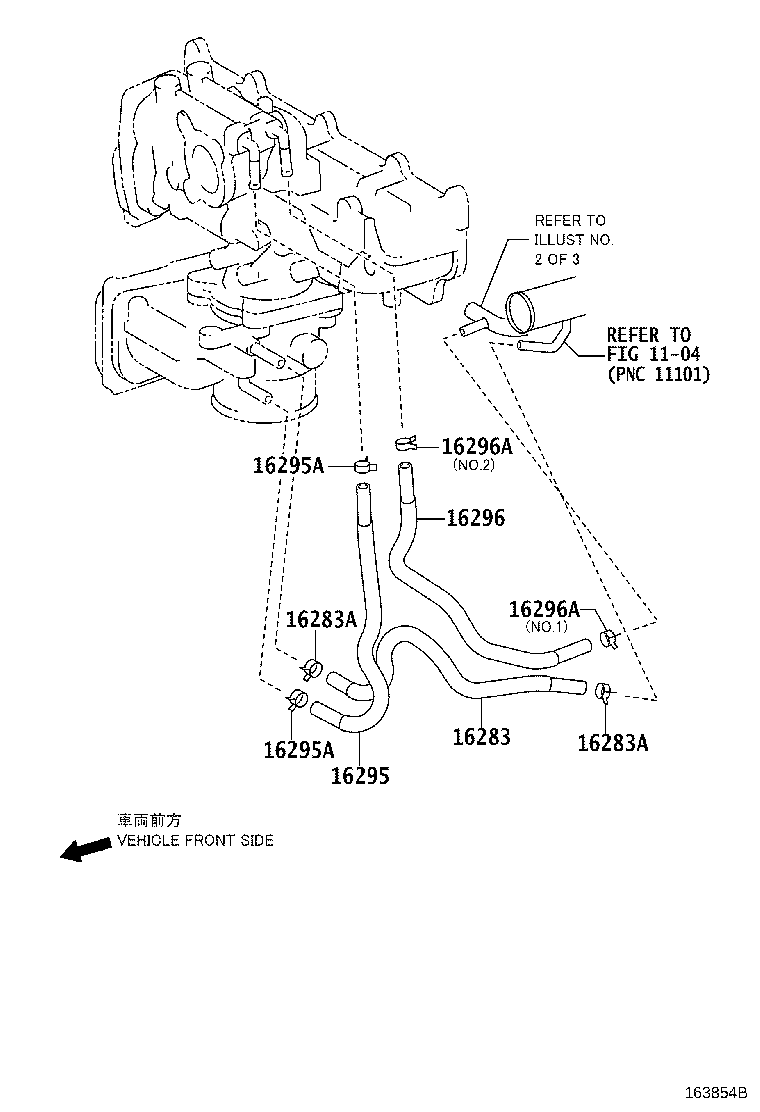

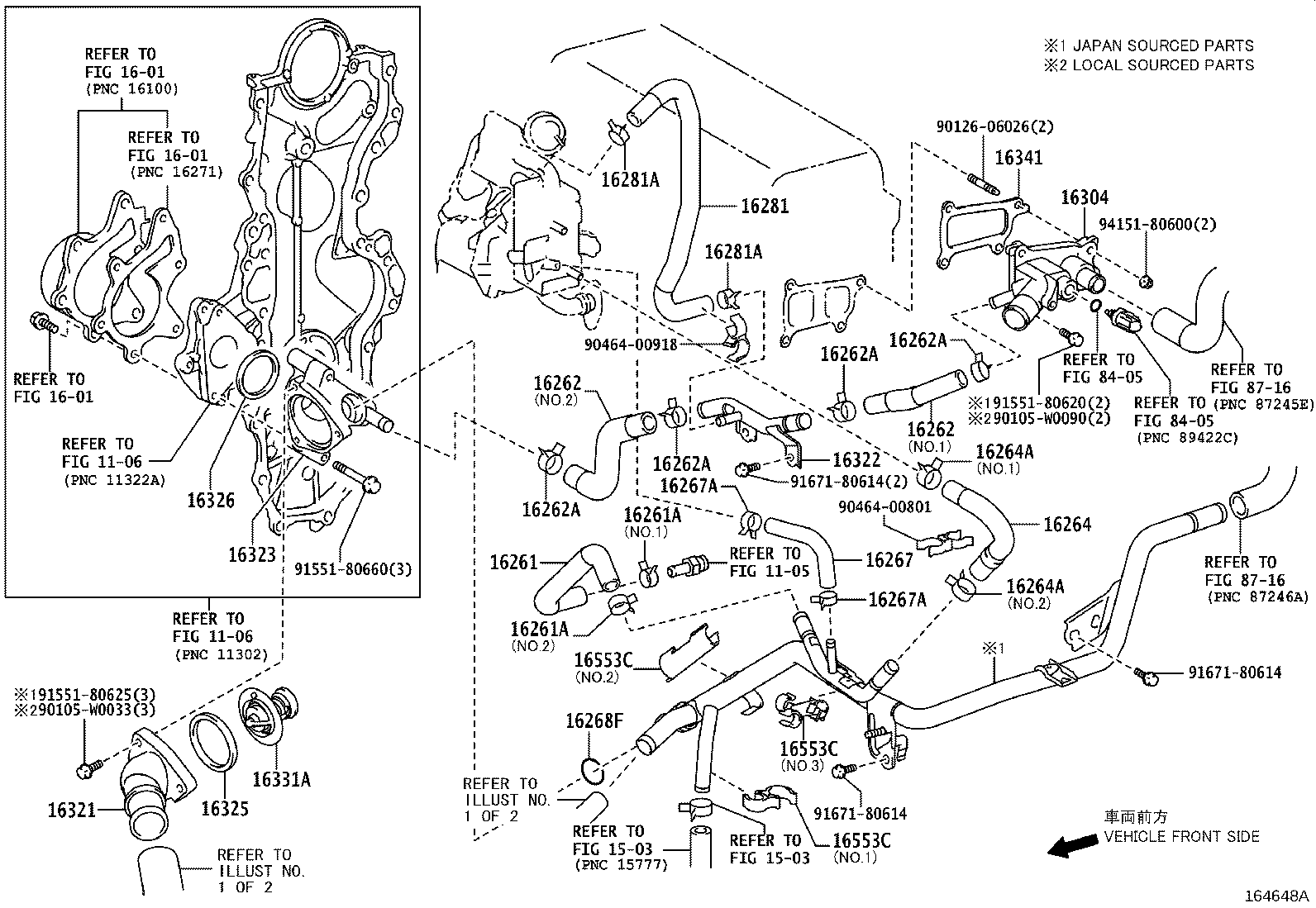

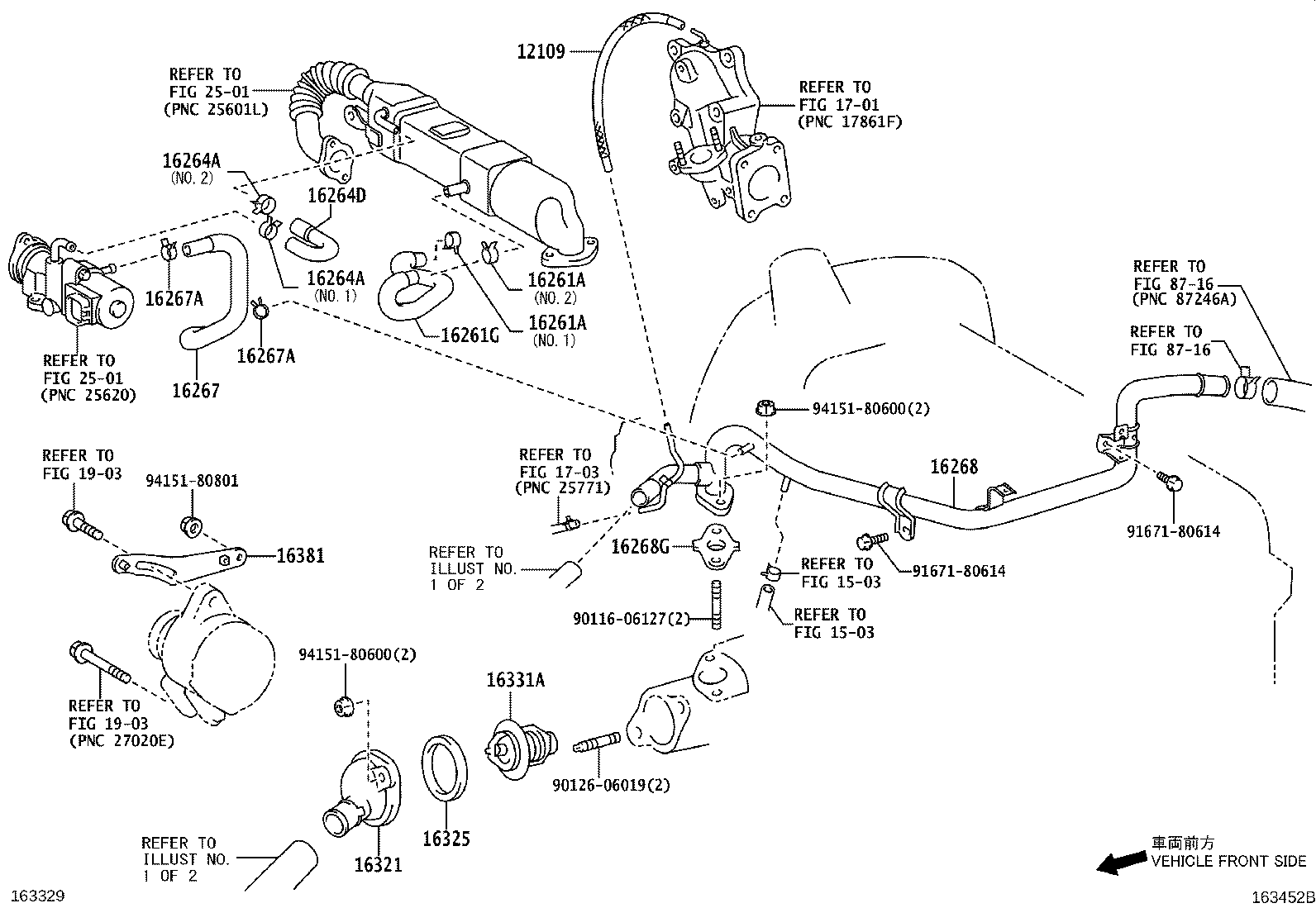

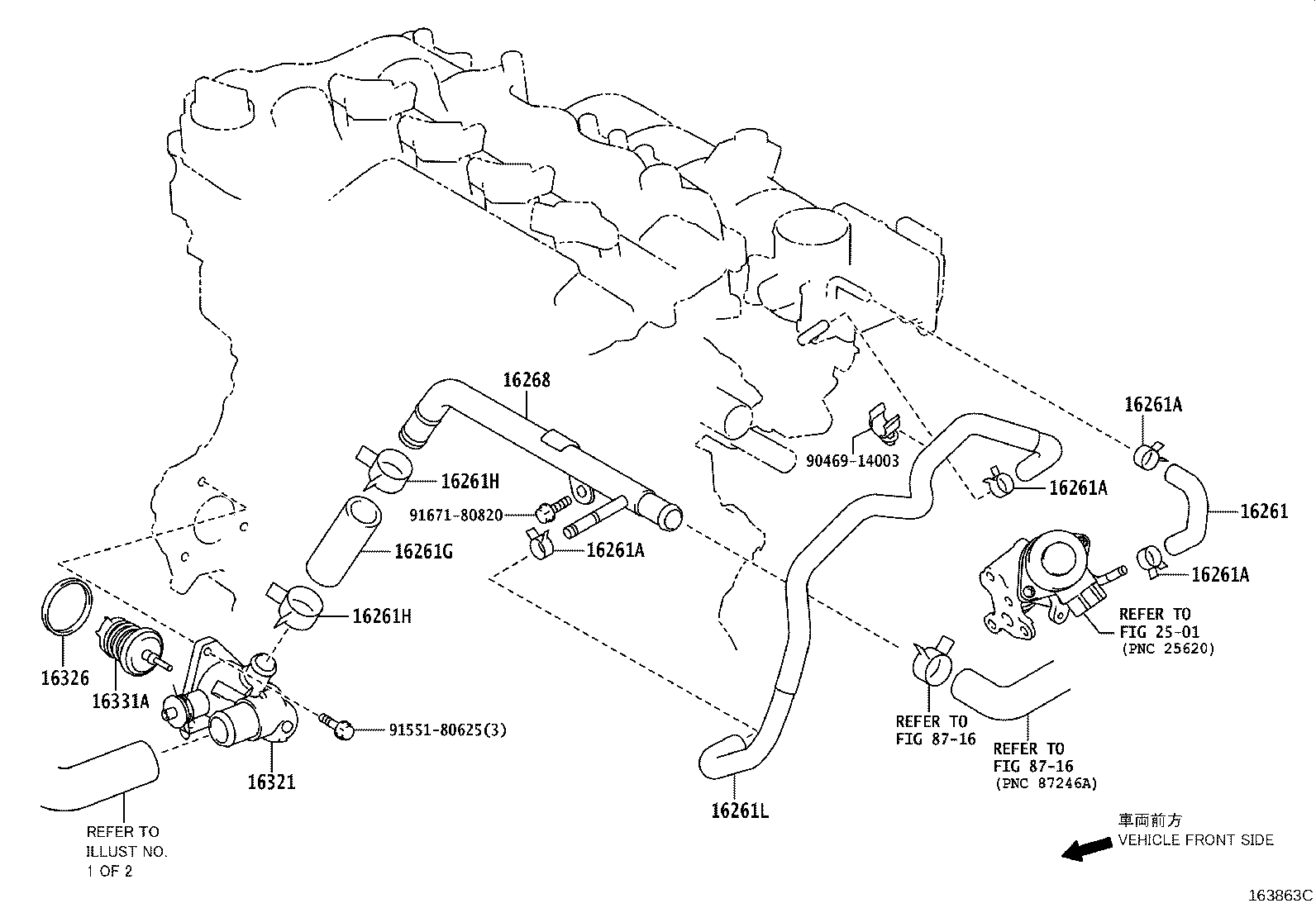

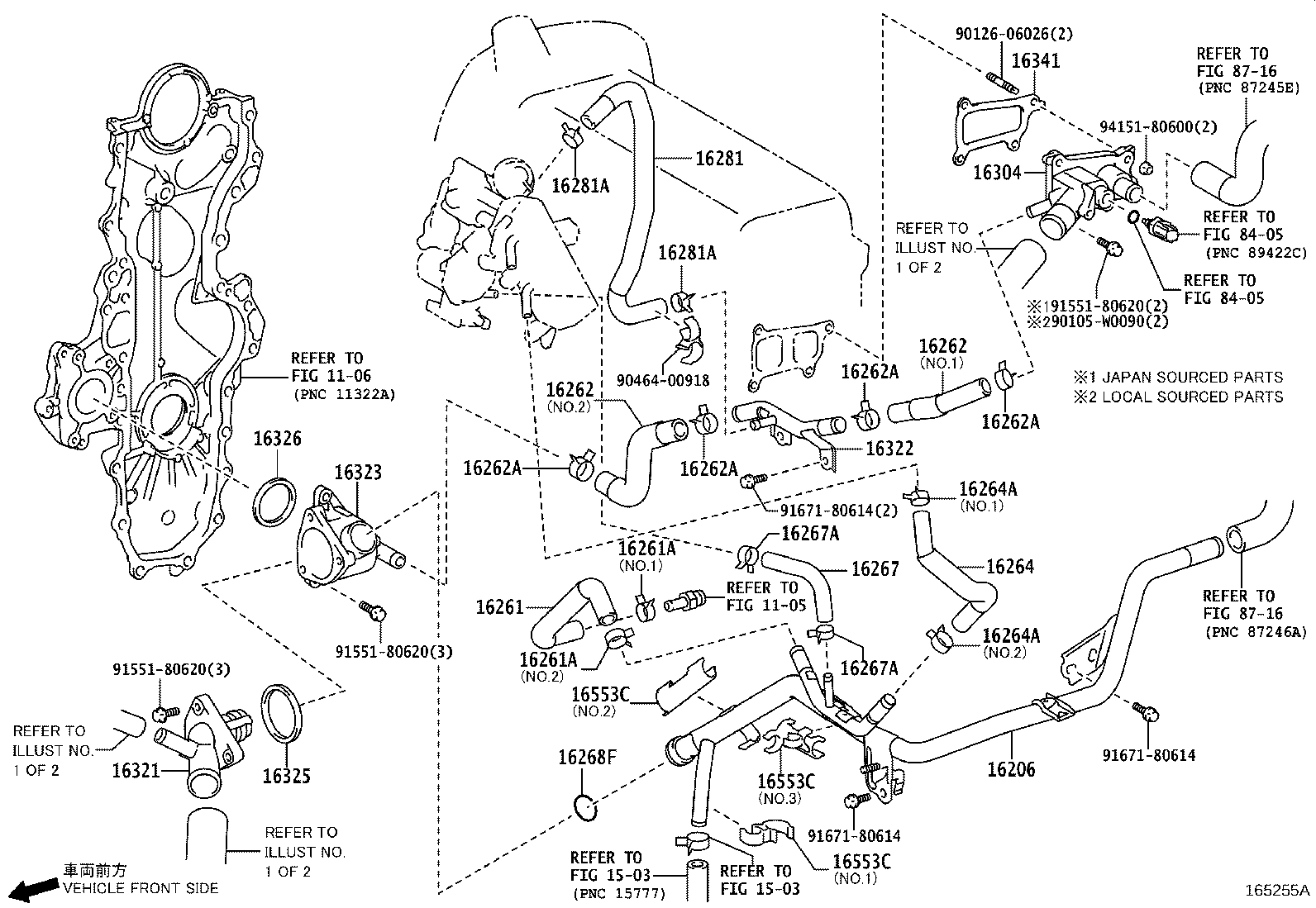

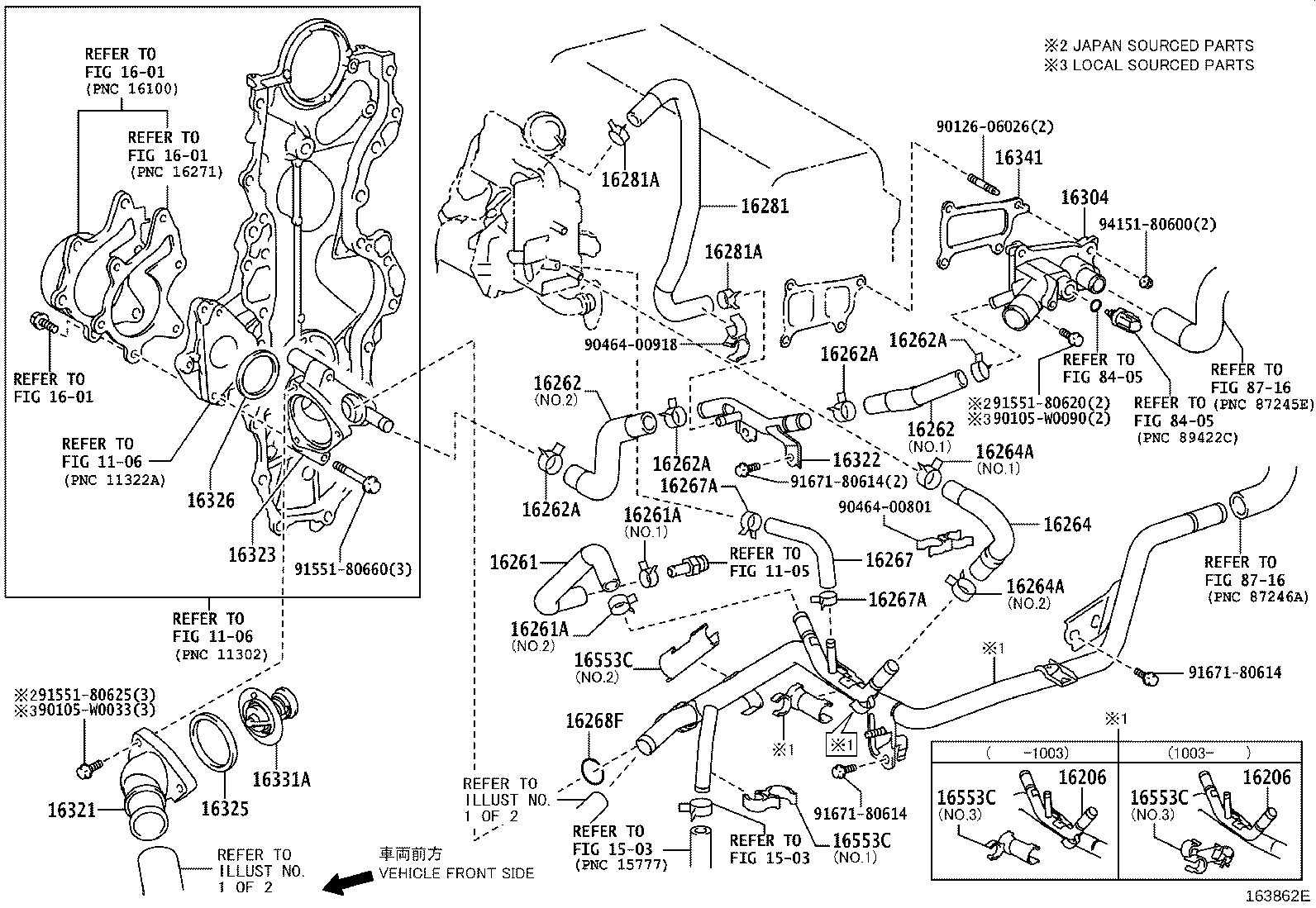

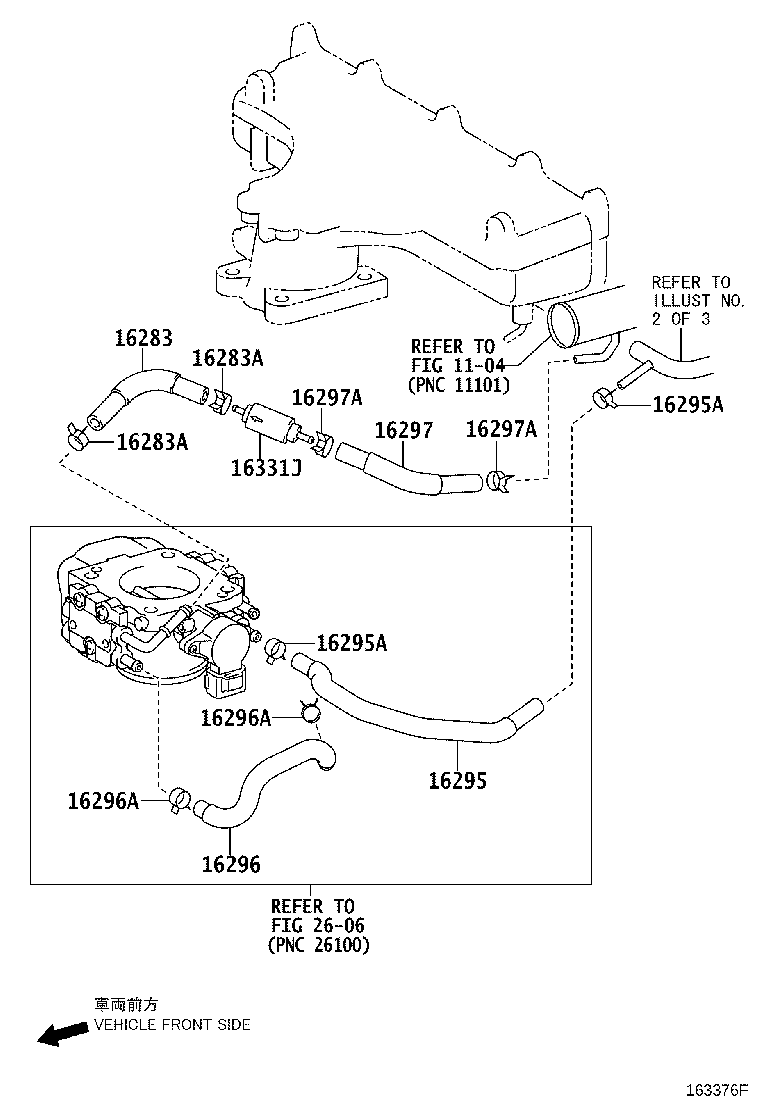

Figure 163139F 163139F 2008-02 → 2009-03 Figure 163139F 163139F 2008-02 → — Figure 163855B 163855B 2009-03 → — Figure 163449I 163449I 2008-02 → 2009-03 Figure 163449I 163449I 2008-02 → — Figure 163853D 163853D 2009-03 → — Figure 163376F 163376F 2008-02 → 2009-03 Figure 163376F 163376F 2008-02 → — Figure 163854B 163854B 2009-03 → — Figure 163328C 163328C 2008-02 → 2009-02 Figure 163860D 163860D 2009-02 → — Figure 163864C 163864C 2009-02 → — Figure 163452B 163452B 2008-02 → 2009-02 Figure 163862E 163862E 2009-02 → 2010-07 Figure 163862E 163862E 2009-02 → 2010-09 Figure 164648A 164648A 2010-09 → 2010-11 Figure 164366A 164366A 2010-09 → — Figure 164649A 164649A 2010-11 → 2012-11 Figure 164200C 164200C 2010-07 → 2010-09 Figure 164367A 164367A 2010-09 → 2012-11 Figure 165253A 165253A 2012-11 → — Figure 165254A 165254A 2012-11 → — Figure 165255A 165255A 2012-12 → — Figure 163863C 163863C 2009-02 → — Figure 163434C 163434C 2008-02 → — Figure 163448C 163448C 2008-02 → — Figure 167039 167039 2008-02 → — Figure 167038 167038 2008-02 → —

Part groups

PNCDescription
12109 Hose, Water Drain
16206 Pipe Sub-assy, Water By-pass
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261N Hose, Water By-pass, NO.2
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16264G Hose, Water By-pass, NO.3
16264H Clip(FOR WATER BY-PASS HOSE NO.3)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268F Ring, O(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16278A Gasket, Water By-pass
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F Hose, Water By-pass, NO.5
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16291 Joint, Water Hose
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16322 Pipe, Water Inlet
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331A Thermostat
16331J Thermostat, Manifold
16341 Gasket, Water Outlet
16361 Fan
16361B Fan, NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471B Cap, Reserve Tank
16505B Support Sub-assy, Radiator, Upper RH
16505C Support Sub-assy, Radiator, Upper LH
16506B Support Sub-assy, Radiator, Lower RH
16506C Support Sub-assy, Radiator, Lower LH
16523A Cushion, Radiator Support
16526 Holder, Radiator Support
16533 Support, Radiator, Upper
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16535 Support, Radiator, Lower
16553C Clamp, Hose
16561 Seal, Radiator TO Support, NO.1
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16575C Bracket, Water Hose Clamp, NO.1
16577C Pipe, Radiator
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16581C Clamp, Hose(FOR RADIATOR HOSE NO.2)
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
