Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

34 part groups · 10 illustrations

Illustrations

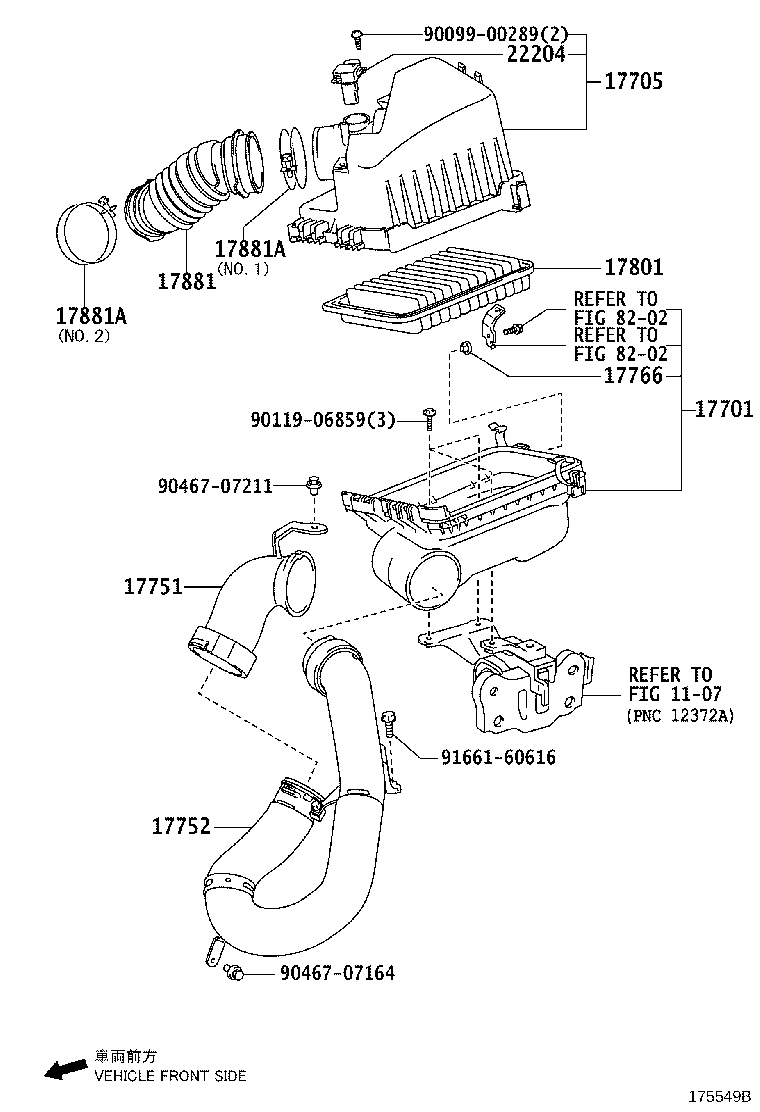

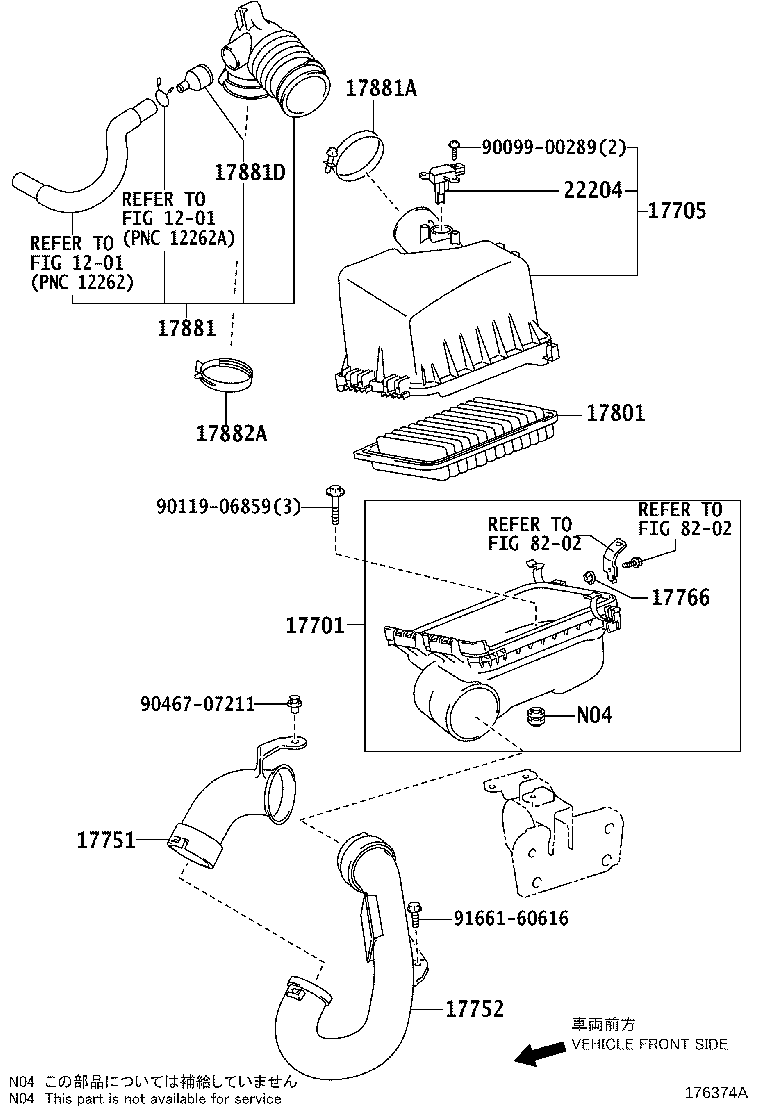

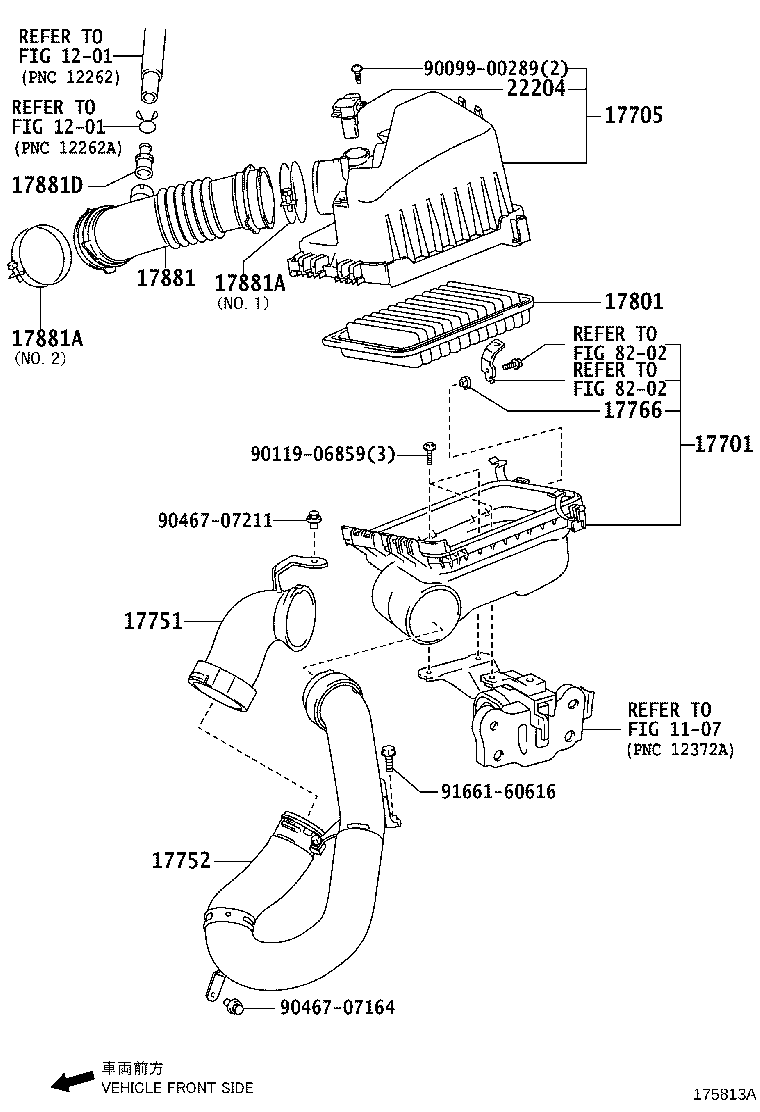

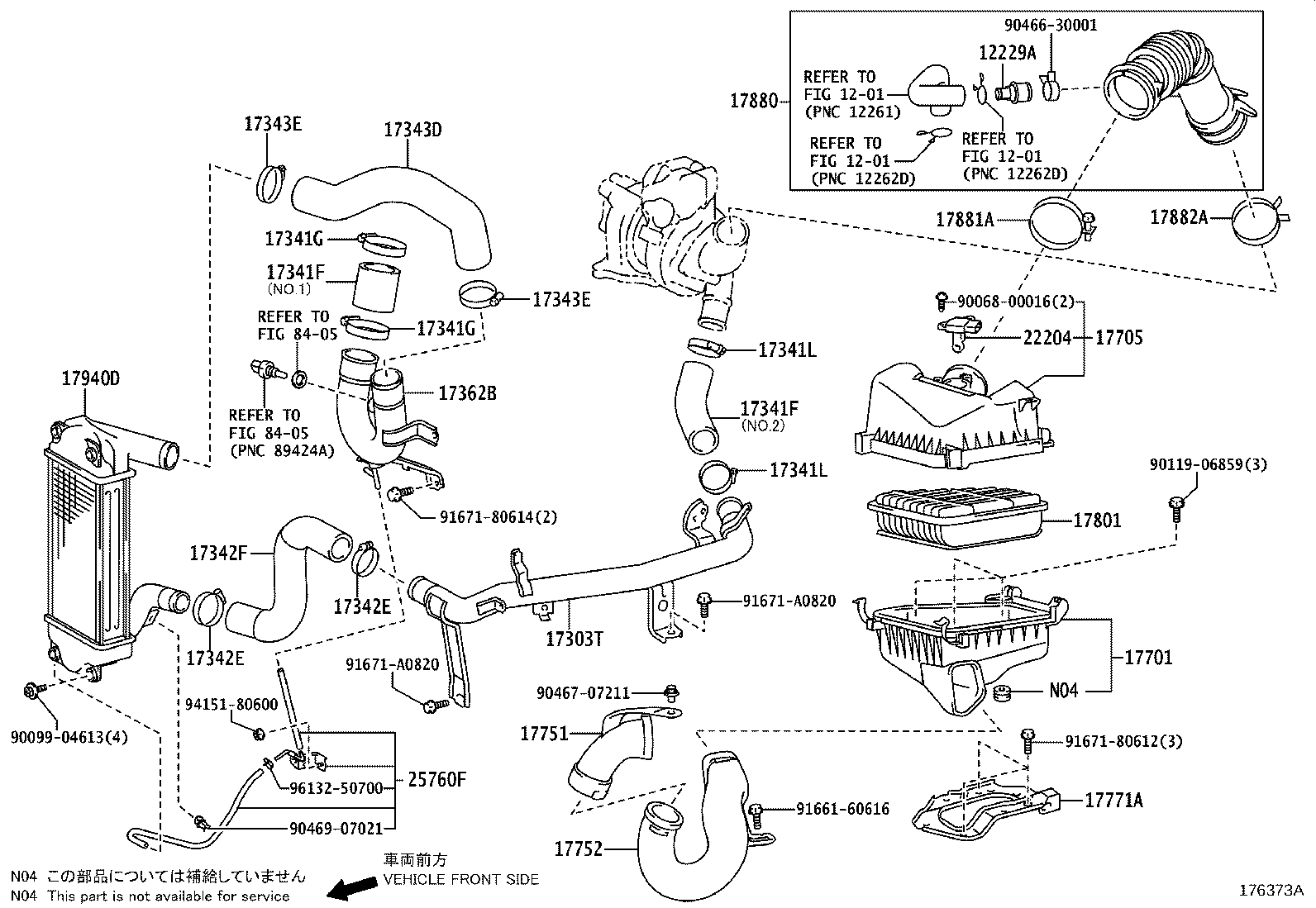

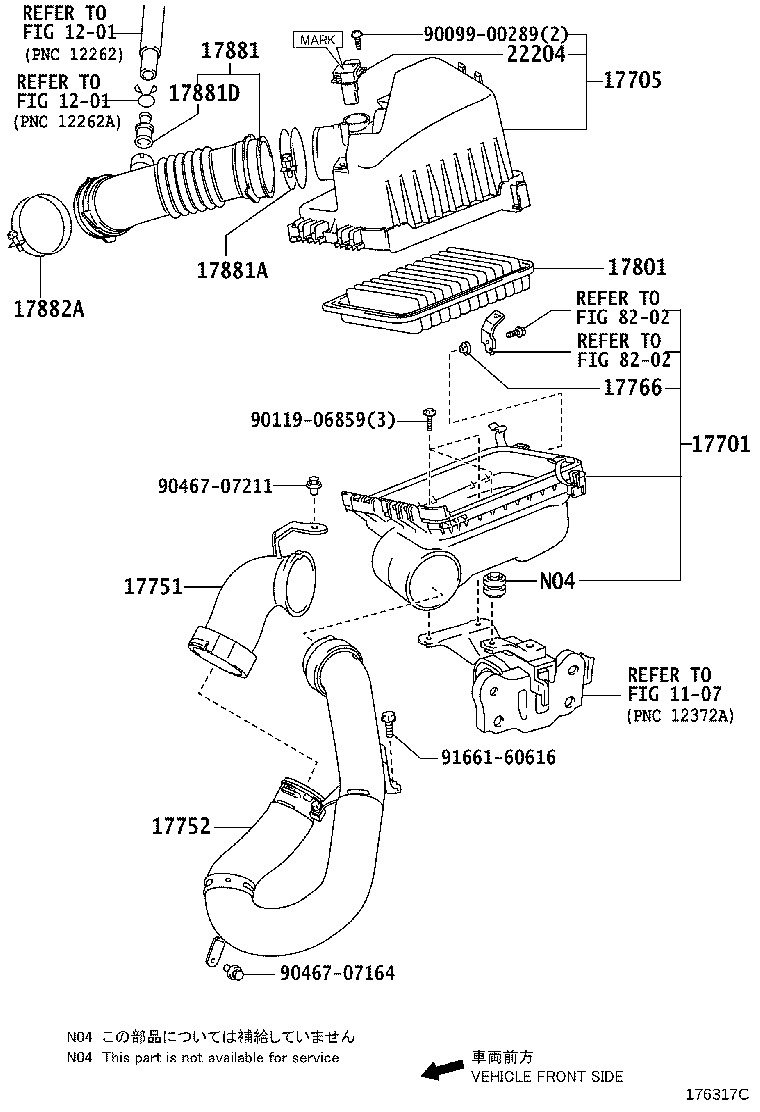

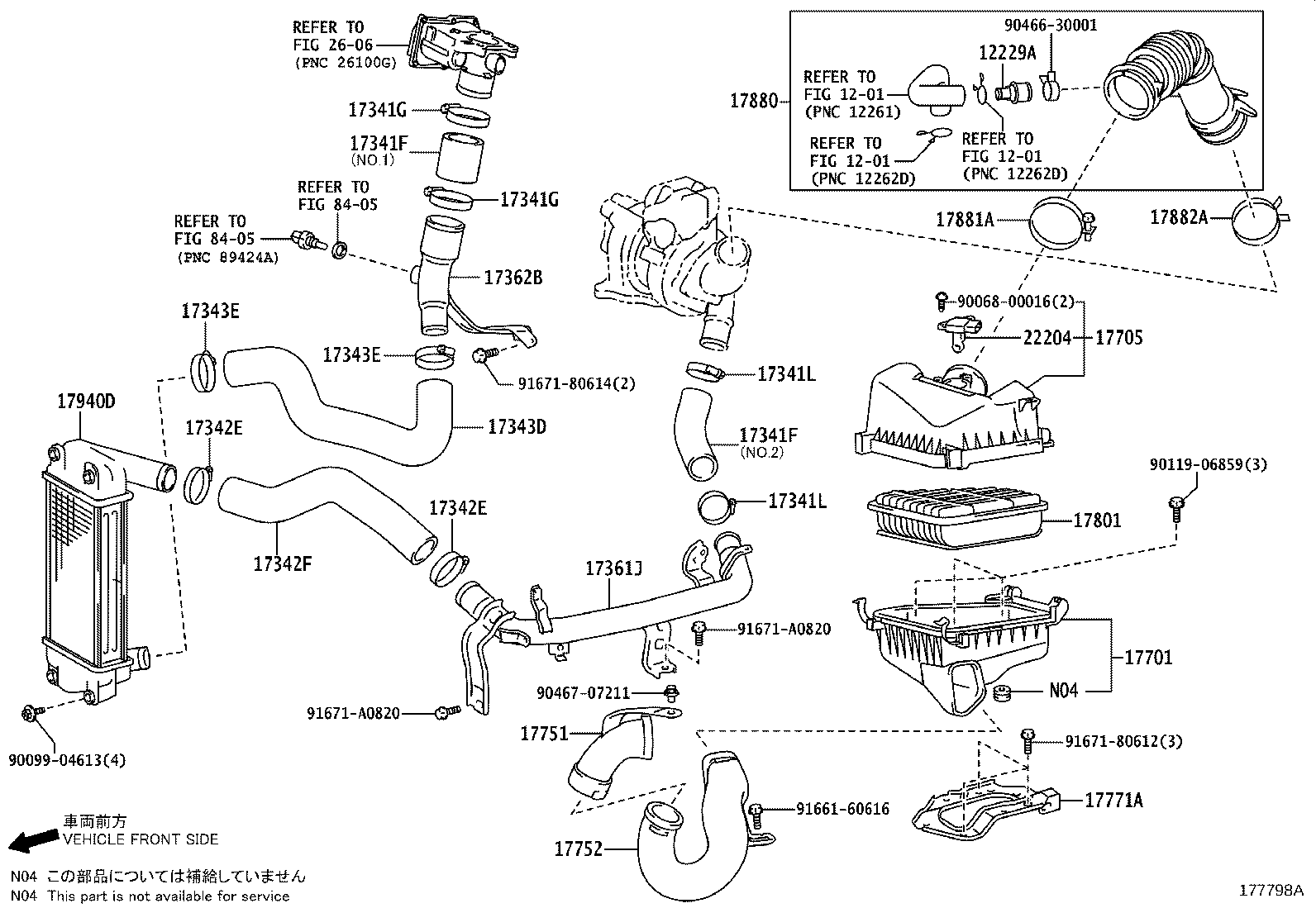

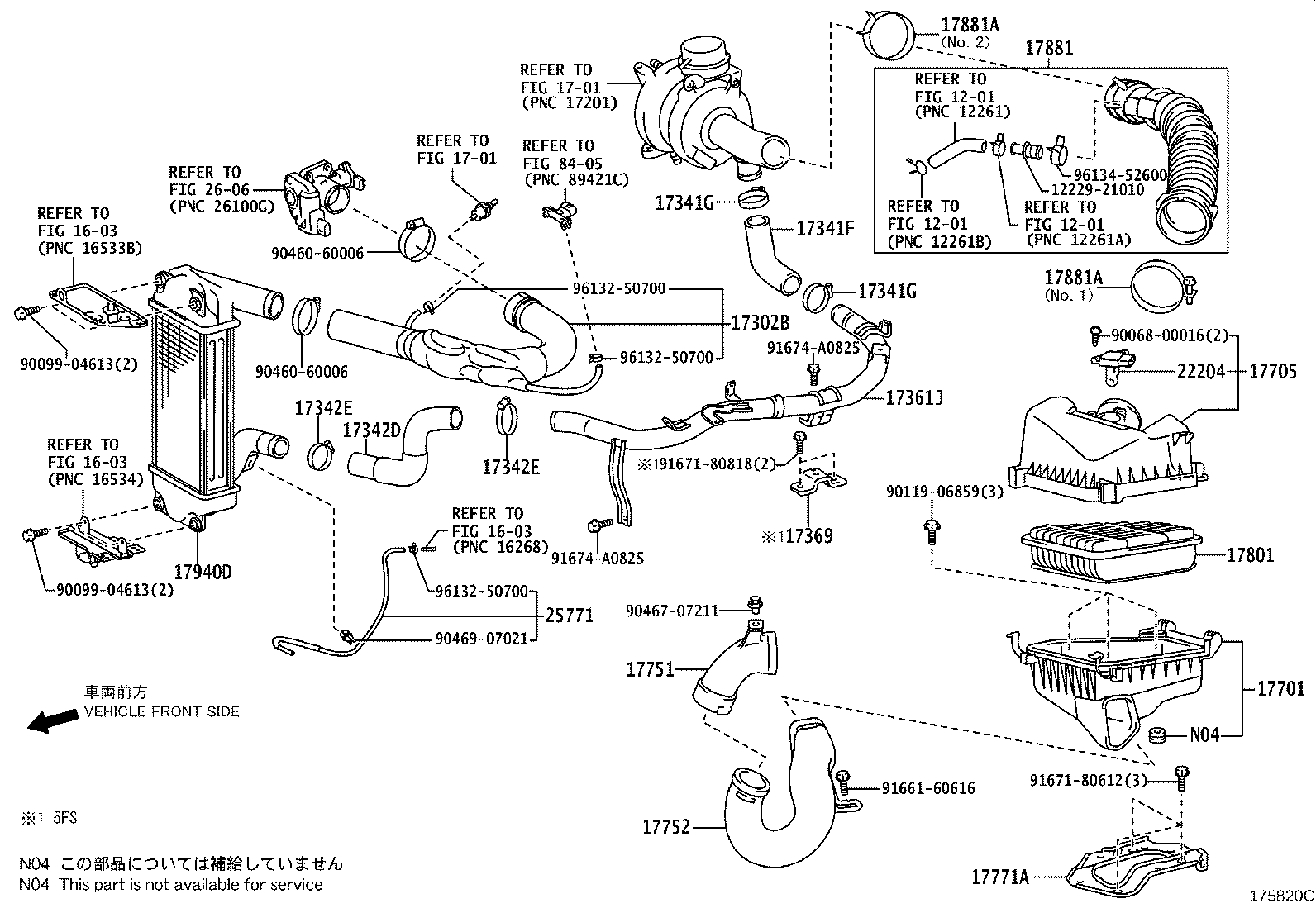

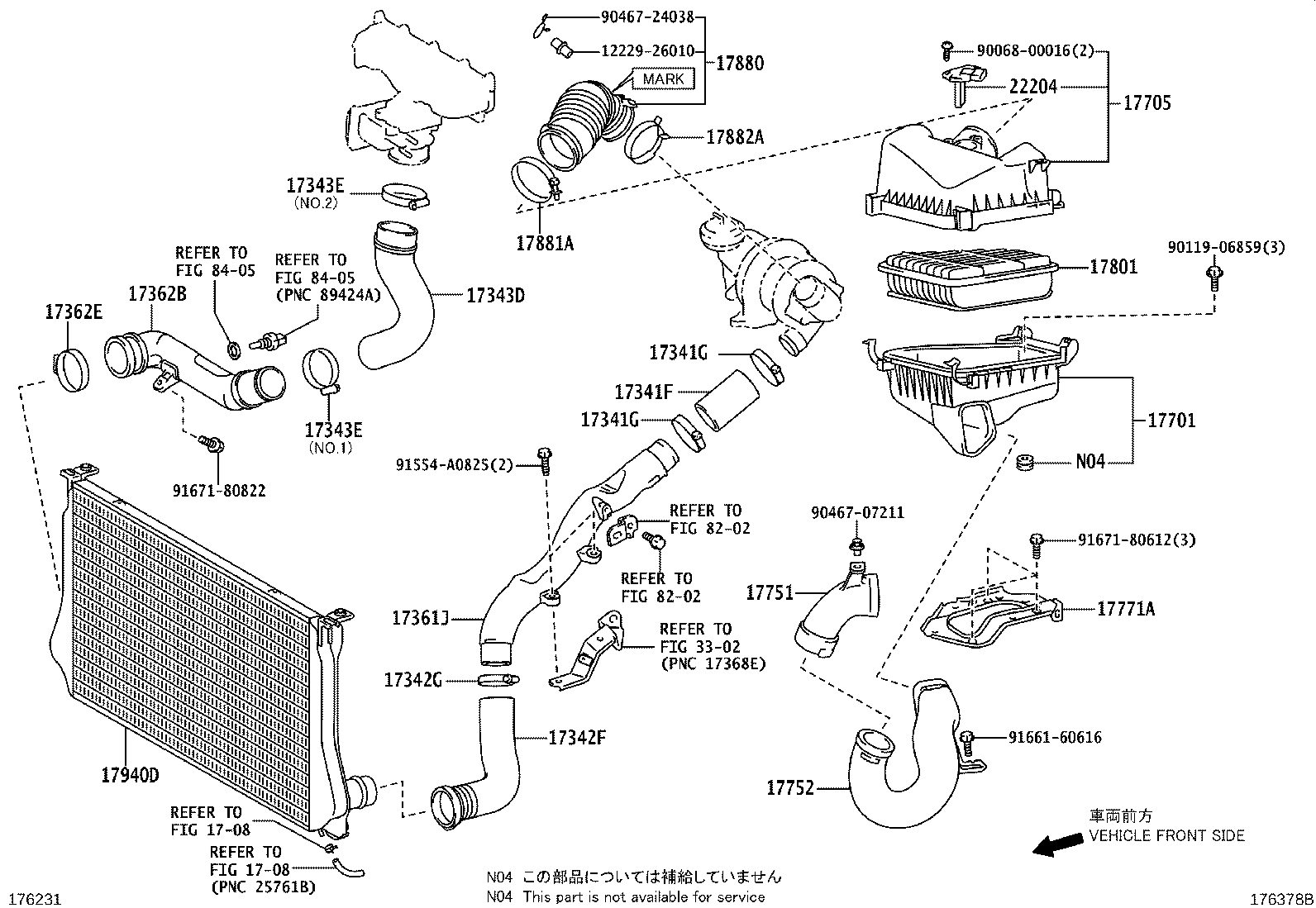

Figure 175553H 175553H 2008-02 → 2009-03 Figure 175553H 175553H 2008-02 → — Figure 176378B 176378B 2009-03 → — Figure 175820C 175820C 2008-02 → 2009-02 Figure 176373A 176373A 2009-02 → 2012-11 Figure 177798A 177798A 2012-11 → — Figure 176374A 176374A 2009-02 → — Figure 175813A 175813A 2008-02 → 2009-02 Figure 175549B 175549B 2008-02 → — Figure 176317C 176317C 2009-02 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17302B Hose Sub-assy, Air
17303T Pipe Sub-assy, Air
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17369 Bracket, Air Tube Support
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17766 Stay, Air Cleaner, NO.2
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
25760F Hose Assy, Vacuum Transmitting
25771 Hose, Vaccum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
