Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

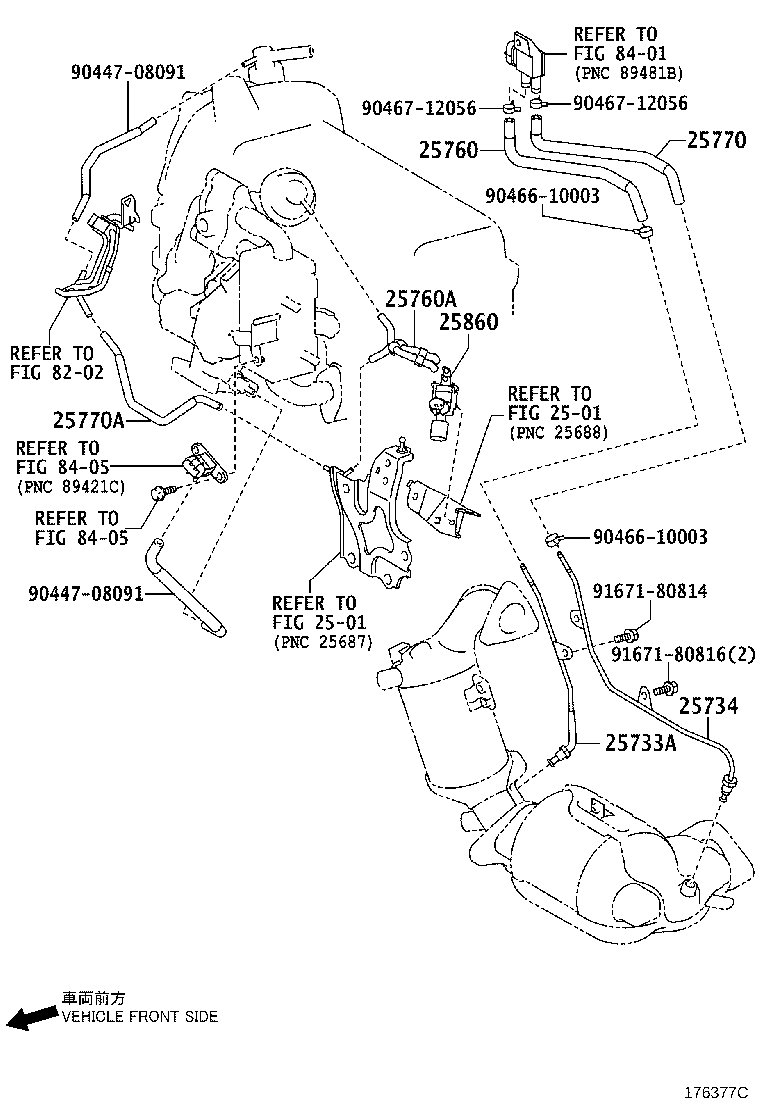

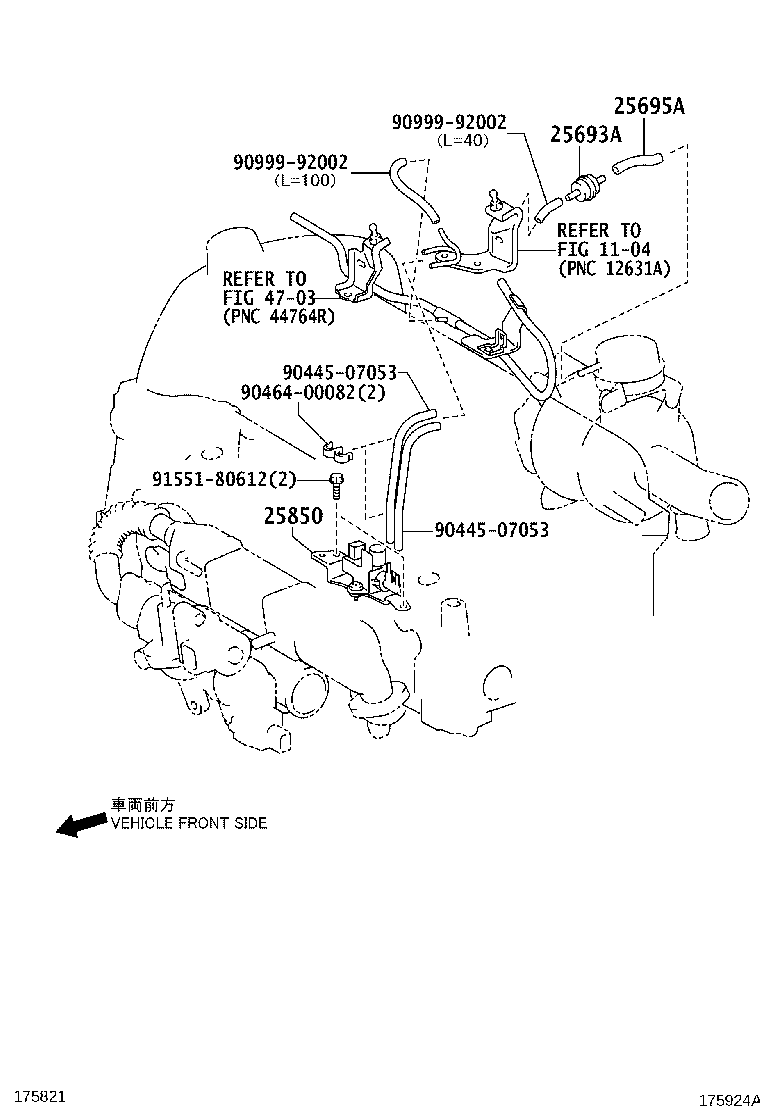

Vacuum Piping
38 part groups · 13 illustrations

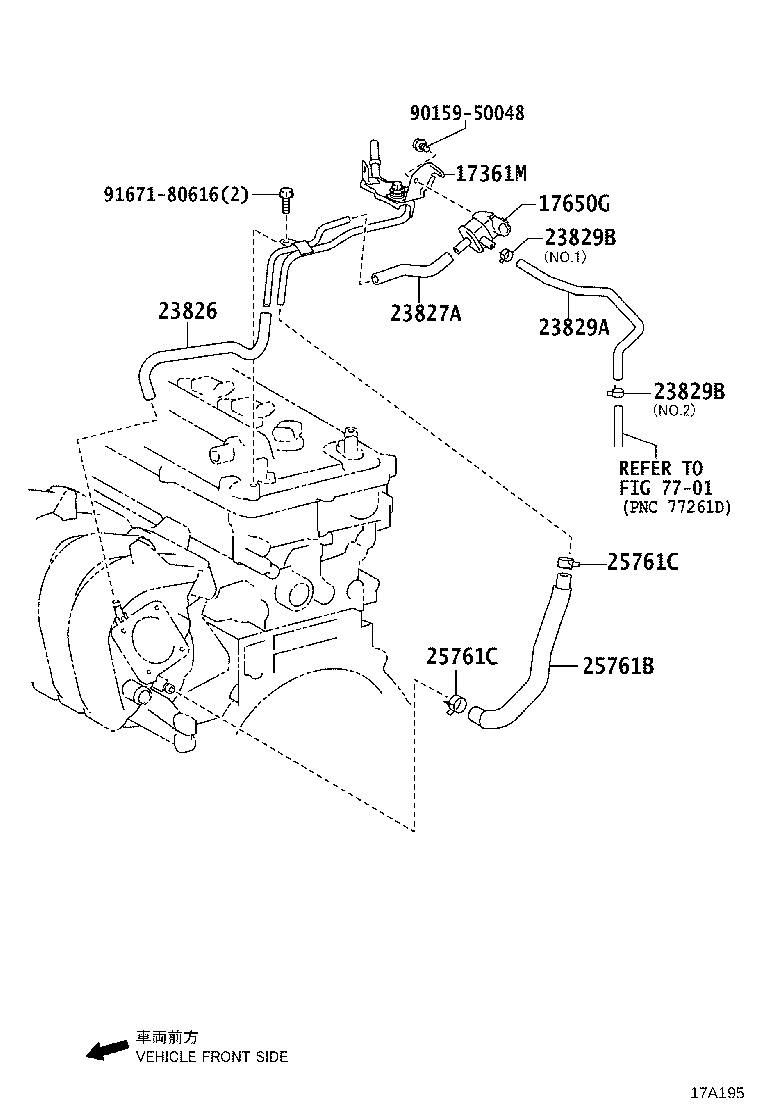

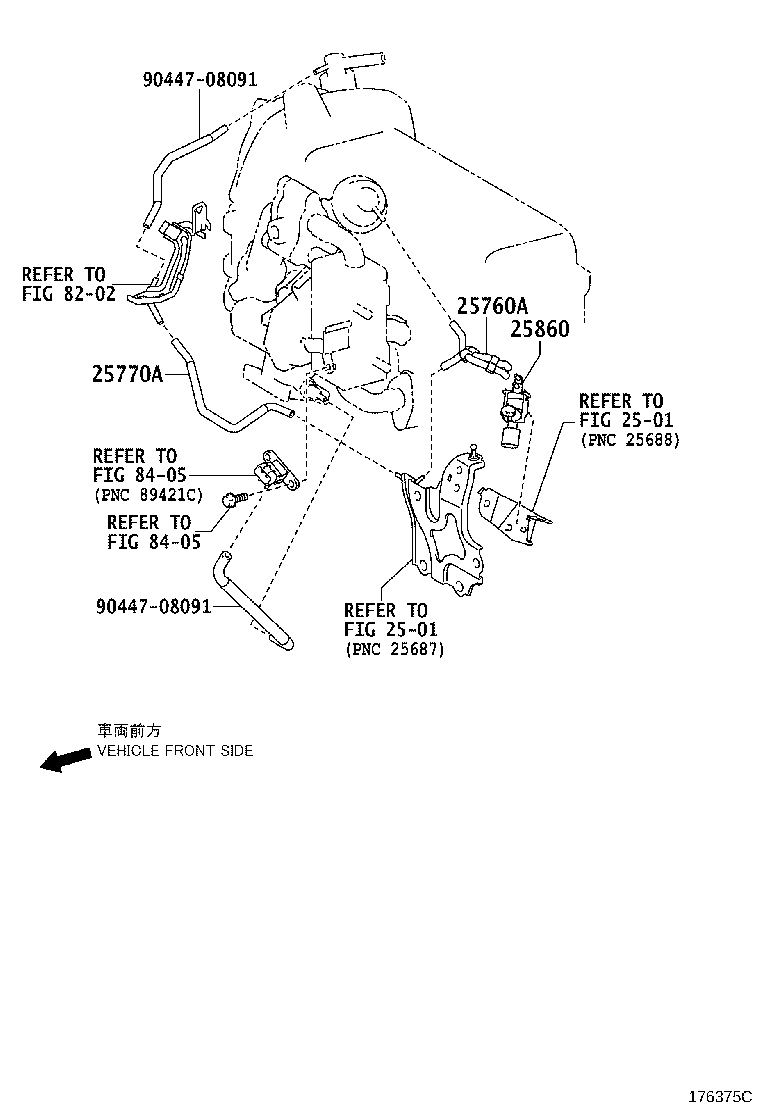

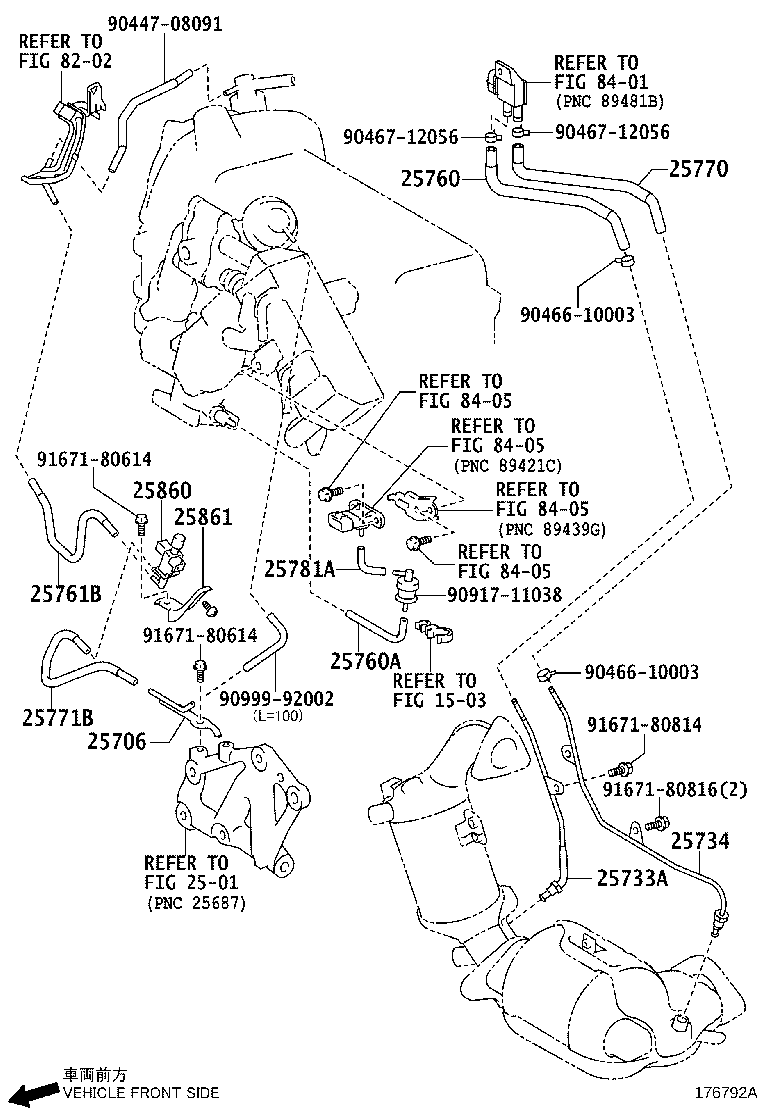

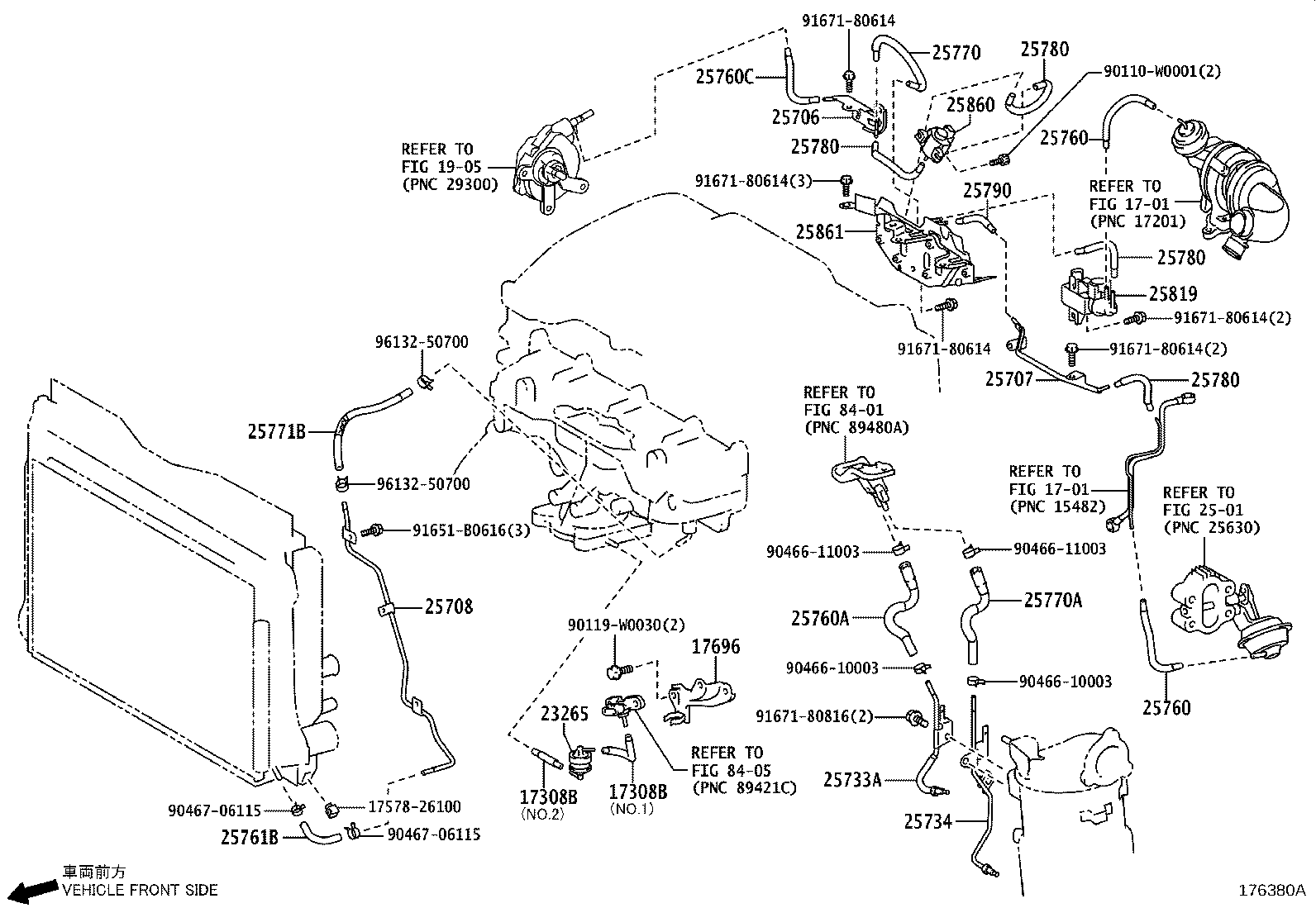

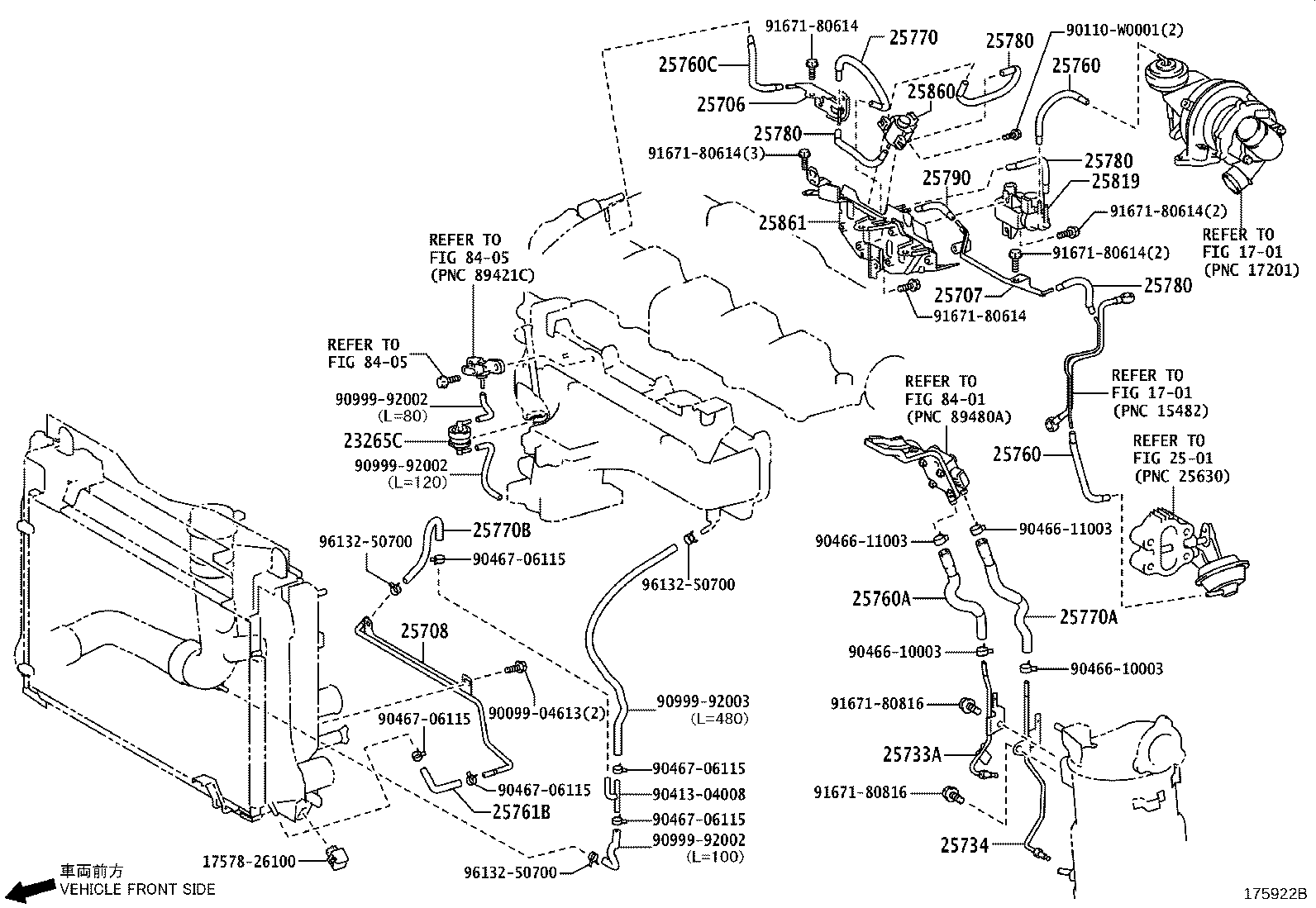

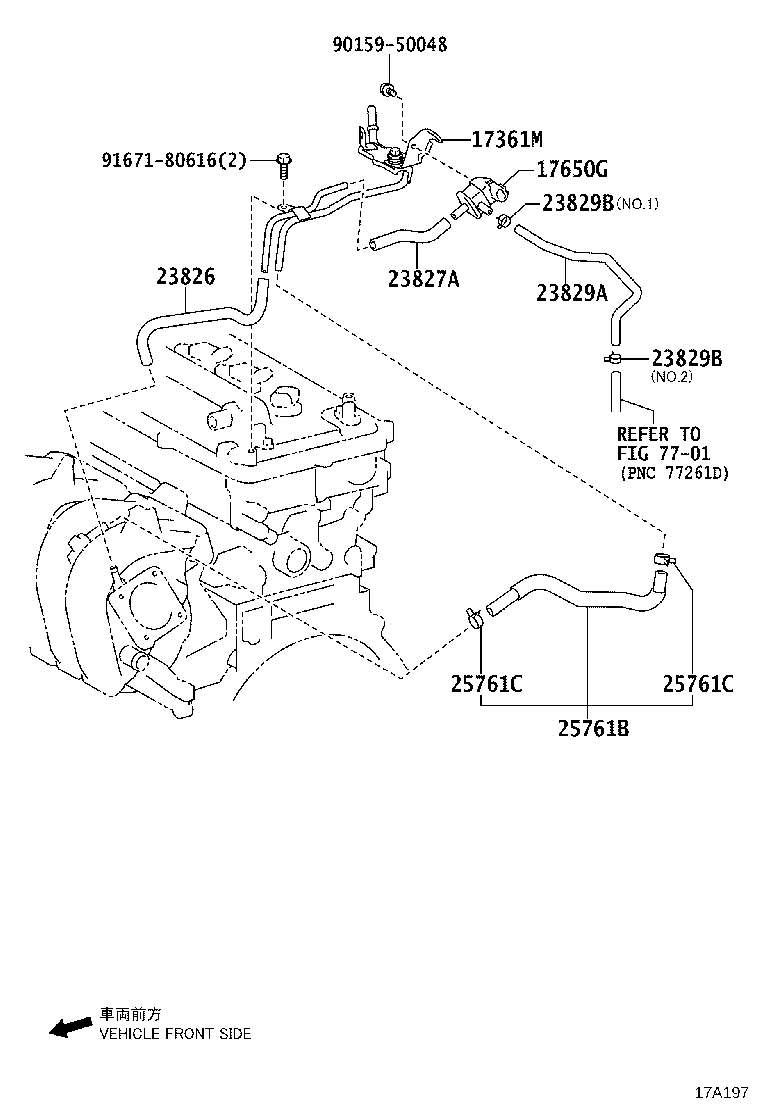

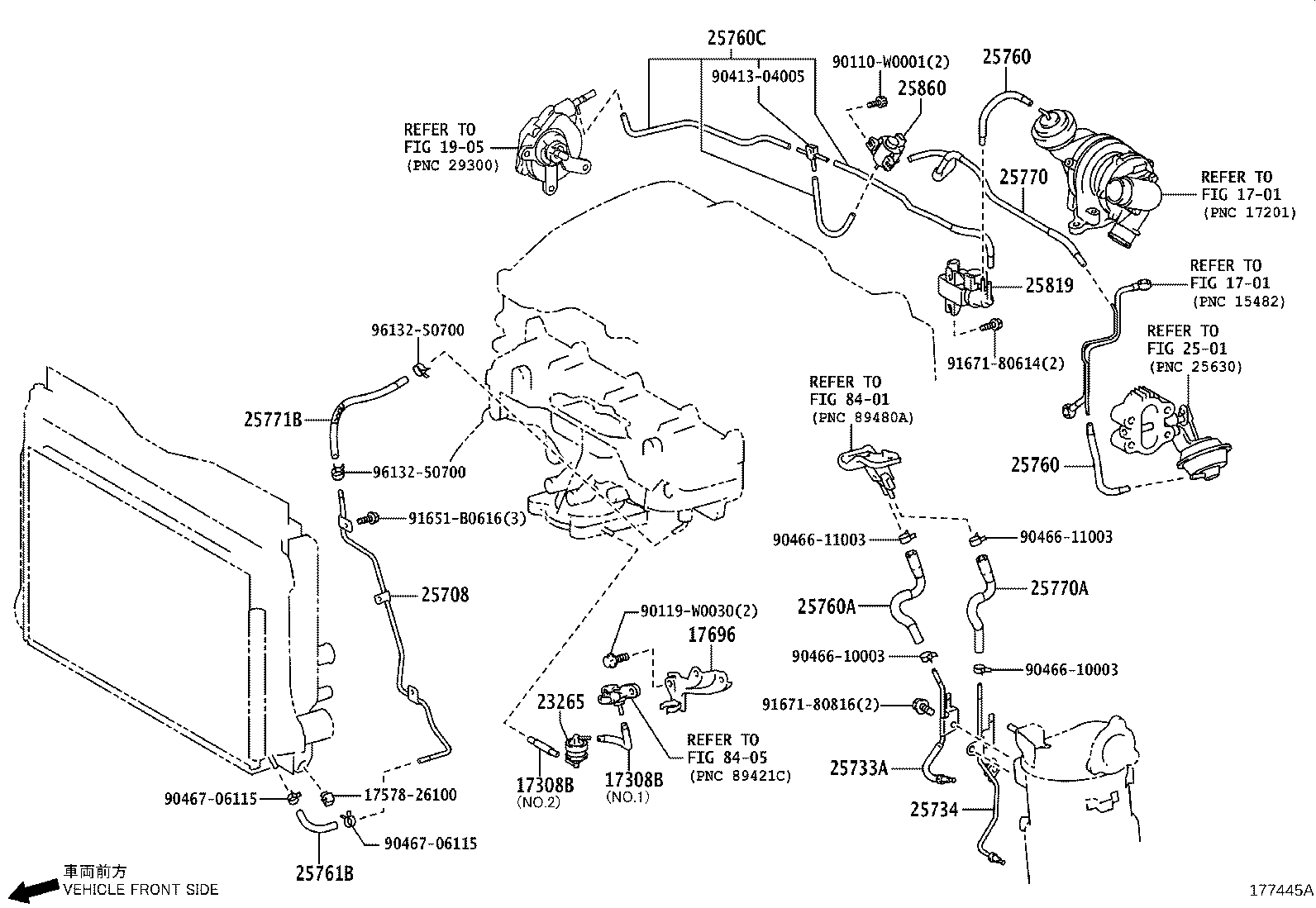

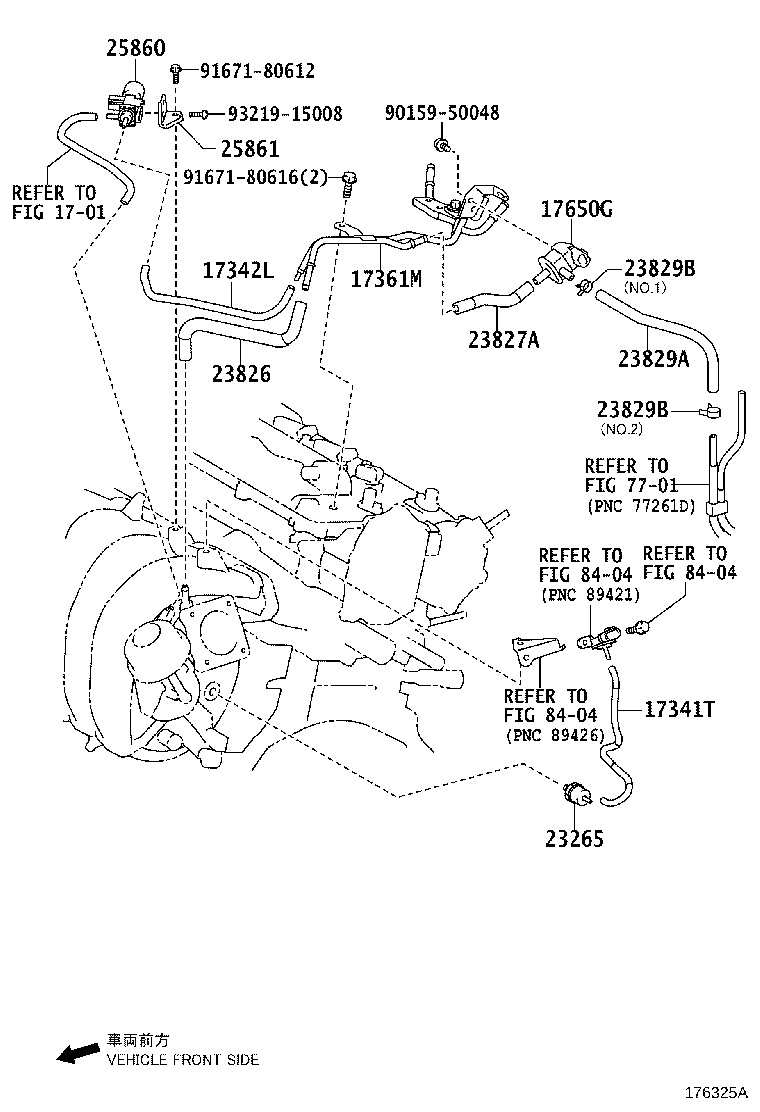

Illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17341T | Hose, Air, NO.1 |
| 17342L | Hose, Air, NO.2 |
| 17361M | Tube, Air |
| 17650G | Valve, Duty Vacuum Switching |
| 17696 | Bracket, Gas Filter |
| 23265 | Filter, Gas, NO.1 |
| 23265C | Filter, Gas |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829 | Hose, Fuel Vapor Feed, NO.3 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25693A | Damper, Egr Vacuum Modulator |
| 25695A | Hose, Egr Vacuum Modulator |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25708 | Pipe Sub-assy, Vacuum Transmitting, NO.3 |
| 25733A | Pipe, Vacuum, NO.1 |
| 25734 | Pipe, Vacuum, NO.2 |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25760A | Hose Assy, Vacuum Transmitting |
| 25760C | Hose Assy, Vacuum Transmitting, NO.3 |
| 25761B | Hose, Vaccum Transmitting, NO.1 |
| 25761C | Clip(VACCUM TRANSMITTING HOSE NO.1) |
| 25770 | Hose Assy, Vacuum Transmitting, NO.2 |
| 25770A | Hose Assy, Vacuum Transmitting, NO.2 |
| 25770B | Hose Assy, Vacuum Transmitting, NO.3 |
| 25771B | Hose, Vaccum Transmitting, NO.2 |
| 25780 | Hose Assy, Vacuum Transmitting, NO.3 |
| 25781A | Hose, Vacuum Transmitting, NO.3 |
| 25790 | Hose Assy, Vacuum Transmitting, NO.4 |
| 25819 | Valve Assy, Vacuum Regulating |
| 25850 | Valve Assy, Electric Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
