Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

12 part groups · 5 illustrations

Illustrations

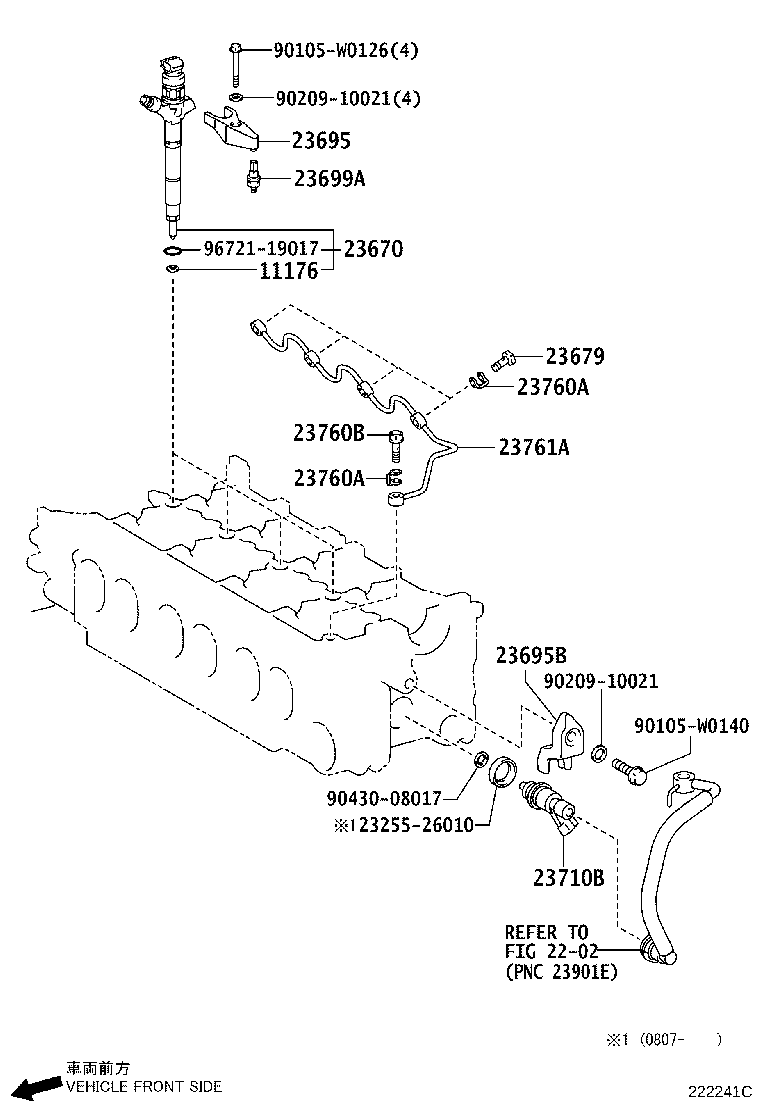

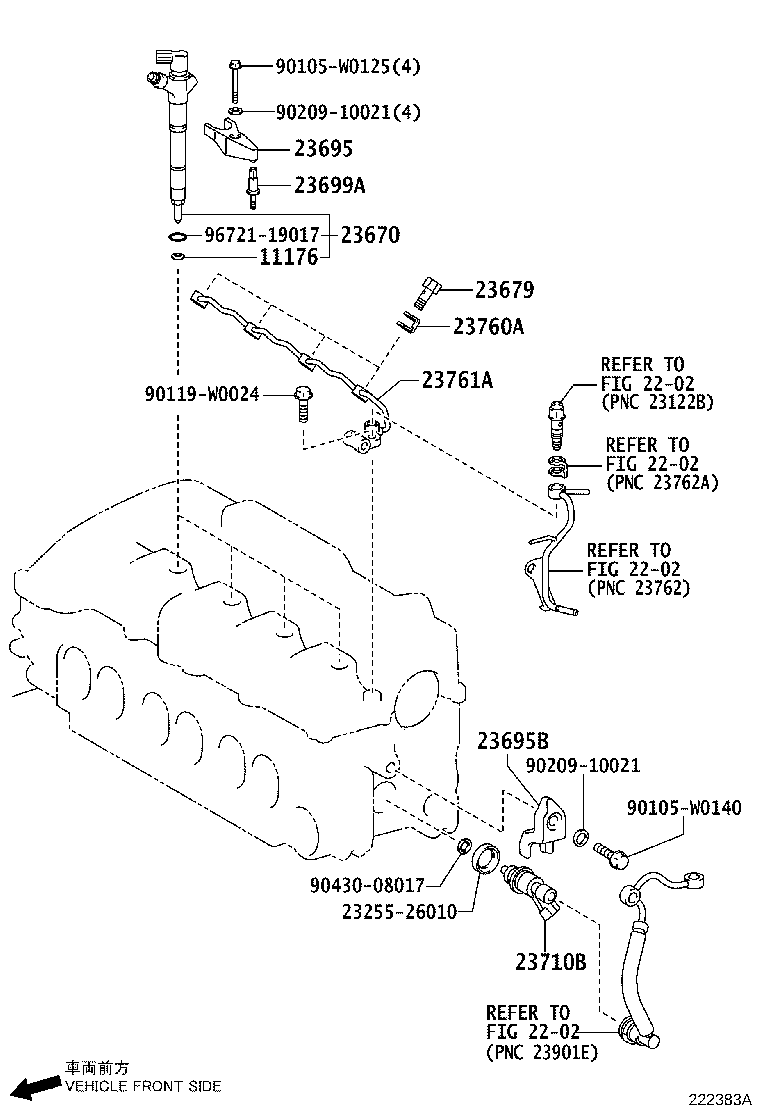

Figure 222086B 222086B 2008-02 → — Figure 222241C 222241C 2008-02 → 2009-03 Figure 222383A 222383A 2009-03 → — Figure 222215A 222215A 2008-02 → 2009-02 Figure 222387C 222387C 2009-02 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23670 Injector Assy
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23699A Seat, Nozzle Holder Clamp
23710B Injector Assy, Exhaust Fuel Addition
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23760B Bolt, Union(FOR NOZZLE LEAKAGE PIPE)
23761A Pipe, Nozzle Leakage, NO.1
23770A Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
