Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

13 part groups · 4 illustrations

Illustrations

Figure 230450C

230450C 2008-02 → 2009-03

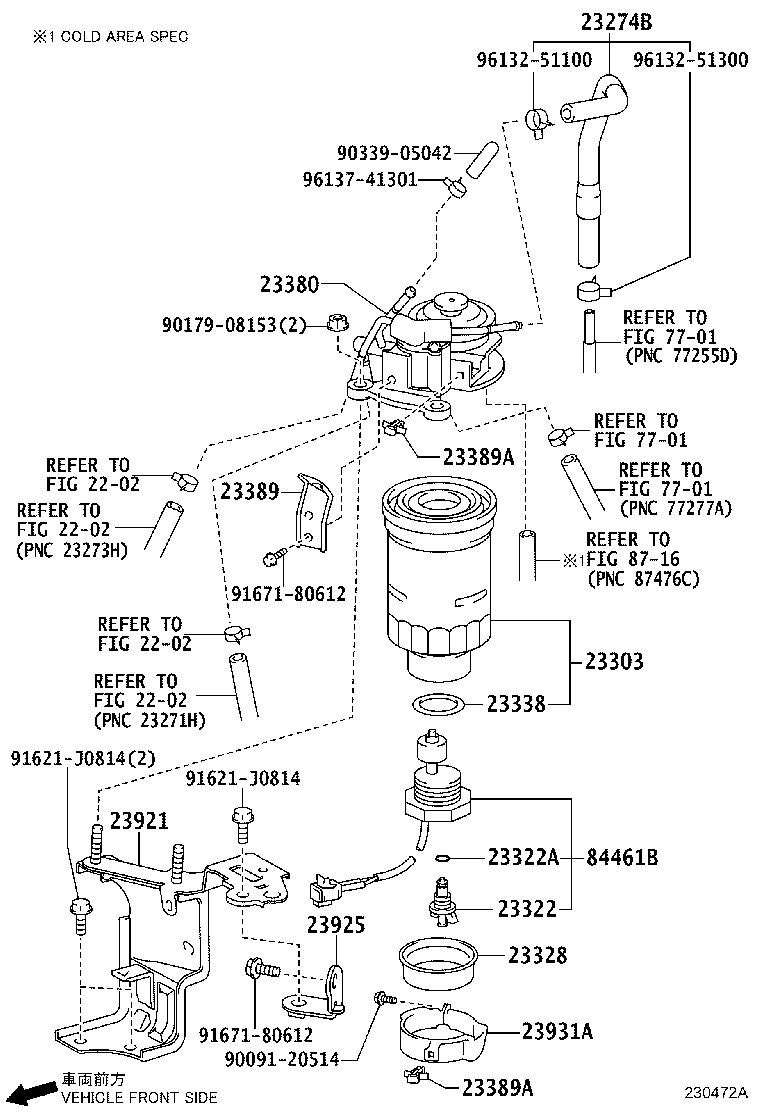

Figure 230472A

230472A 2009-03 → —

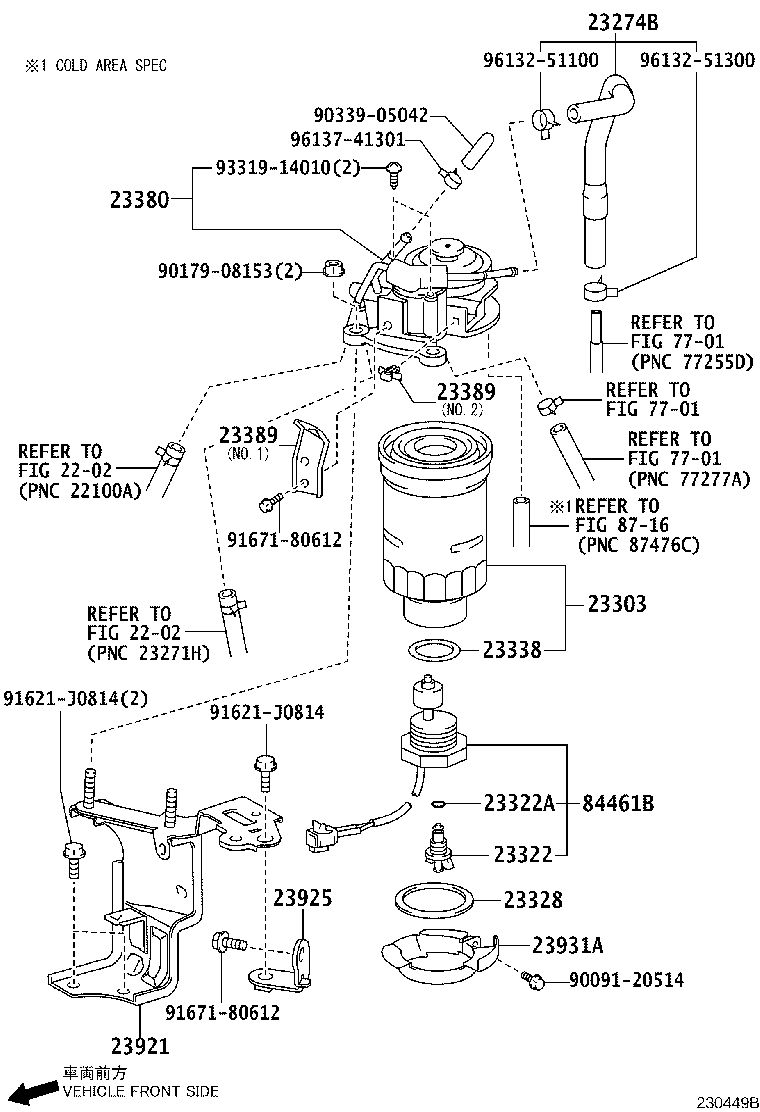

Figure 230449B

230449B 2008-02 → 2009-02

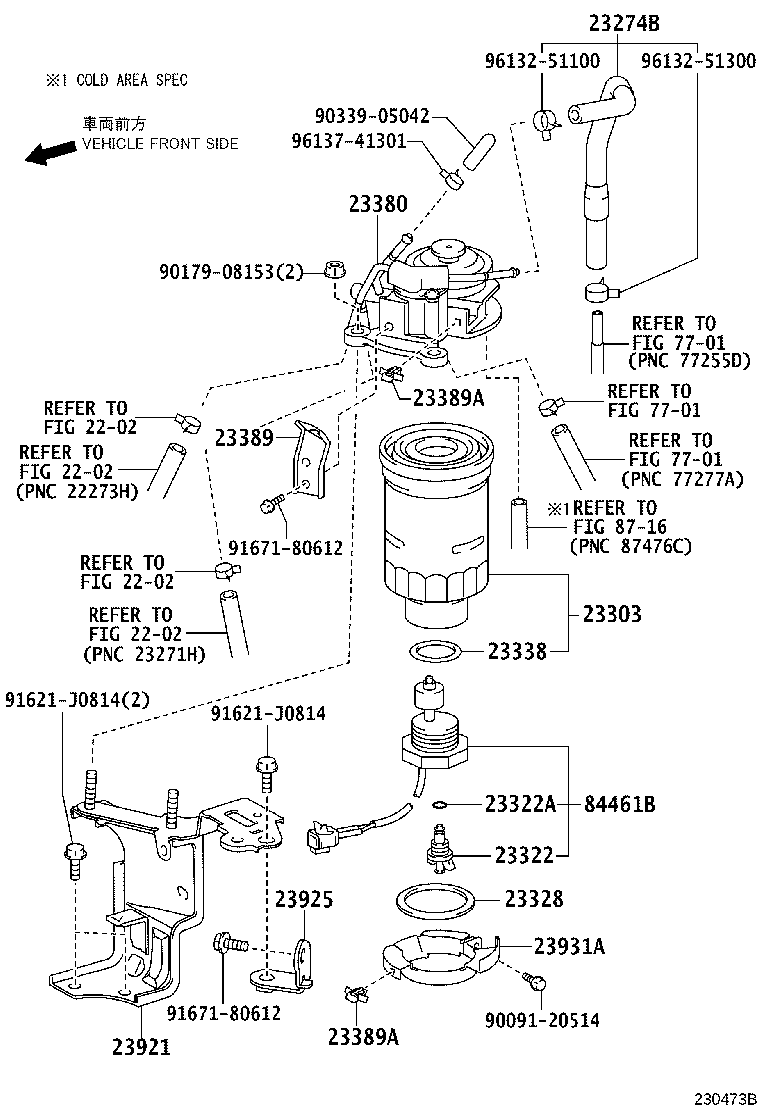

Figure 230473B

230473B 2009-02 → —

Part groups

PNC	Description
23274B	Hose, Fuel, NO.3
23303	Element Sub-assy, Fuel Filter
23322	Plug, Drain(FOR FUEL FILTER)
23322A	Ring, O(FOR DRAIN PLUG)
23328	Gasket(FOR FUEL FILTER)
23338	Gasket(FOR WARNING SWITCH)
23380	Cap Assy, Fuel Filter
23389	Clamp, Fuel Filter
23389A	Clamp, Fuel Filter
23921	Support, Fuel Filter
23925	Stay, Fuel Filter Support
23931A	Cover, Fuel Filter
84461B	Switch, Level Warning

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
