Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

10 part groups · 8 illustrations

Illustrations

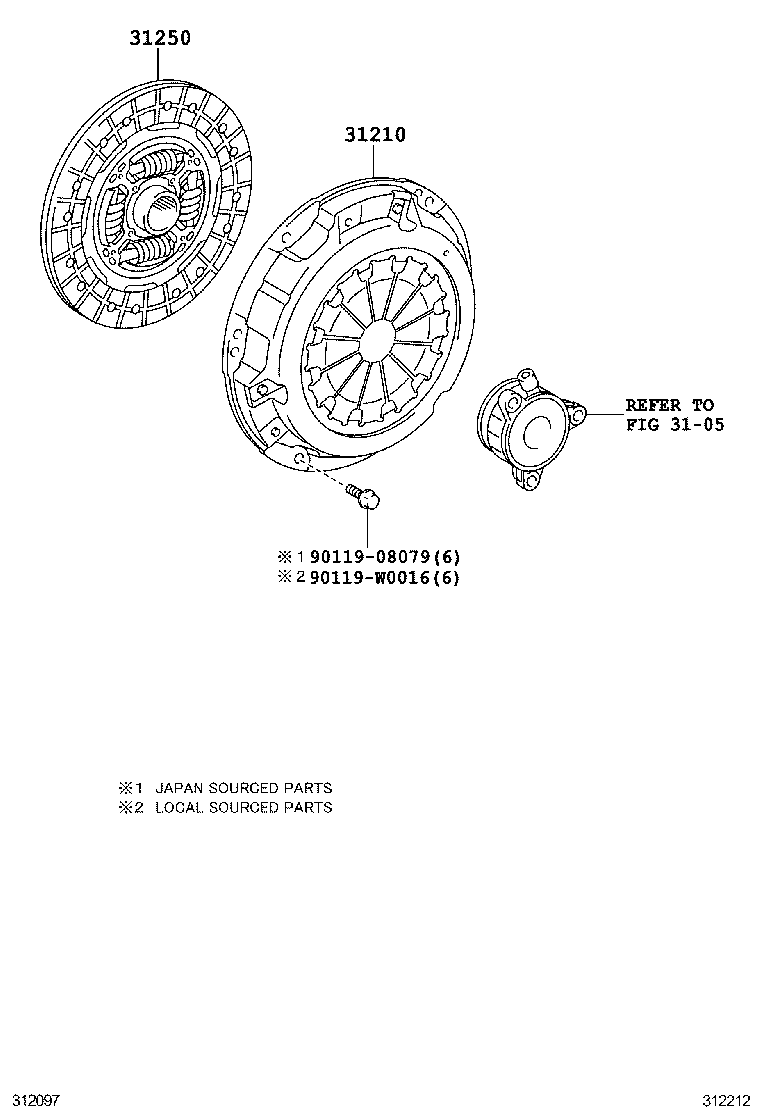

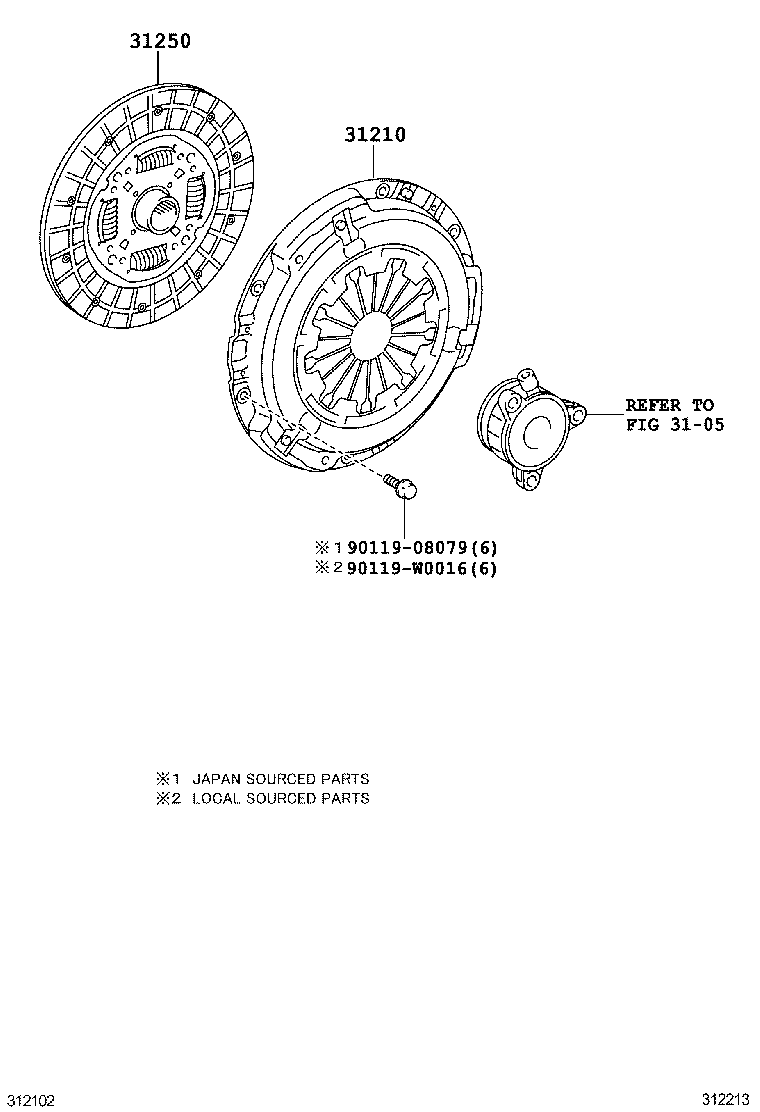

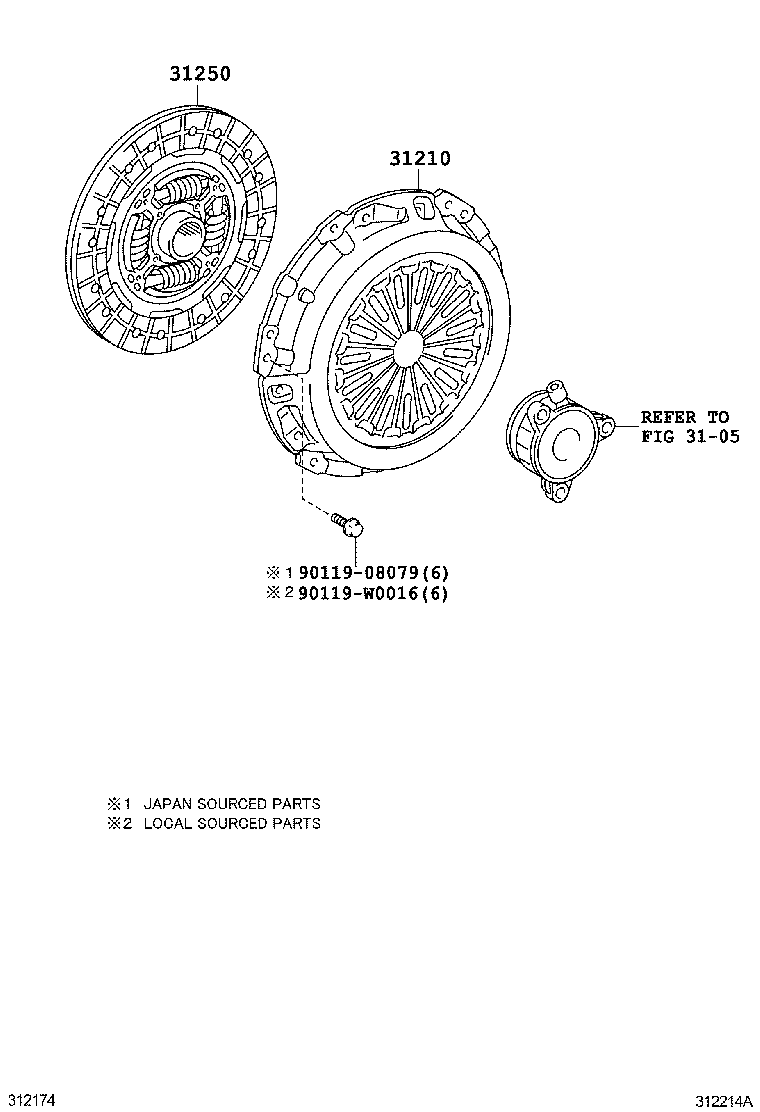

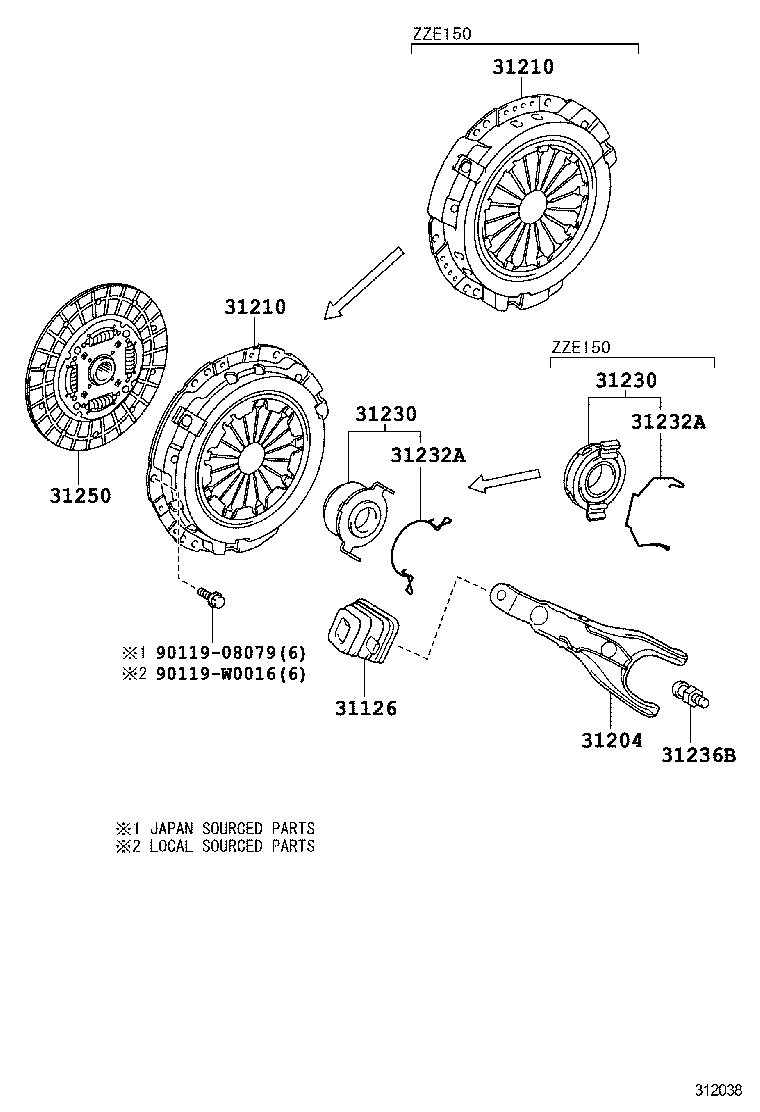

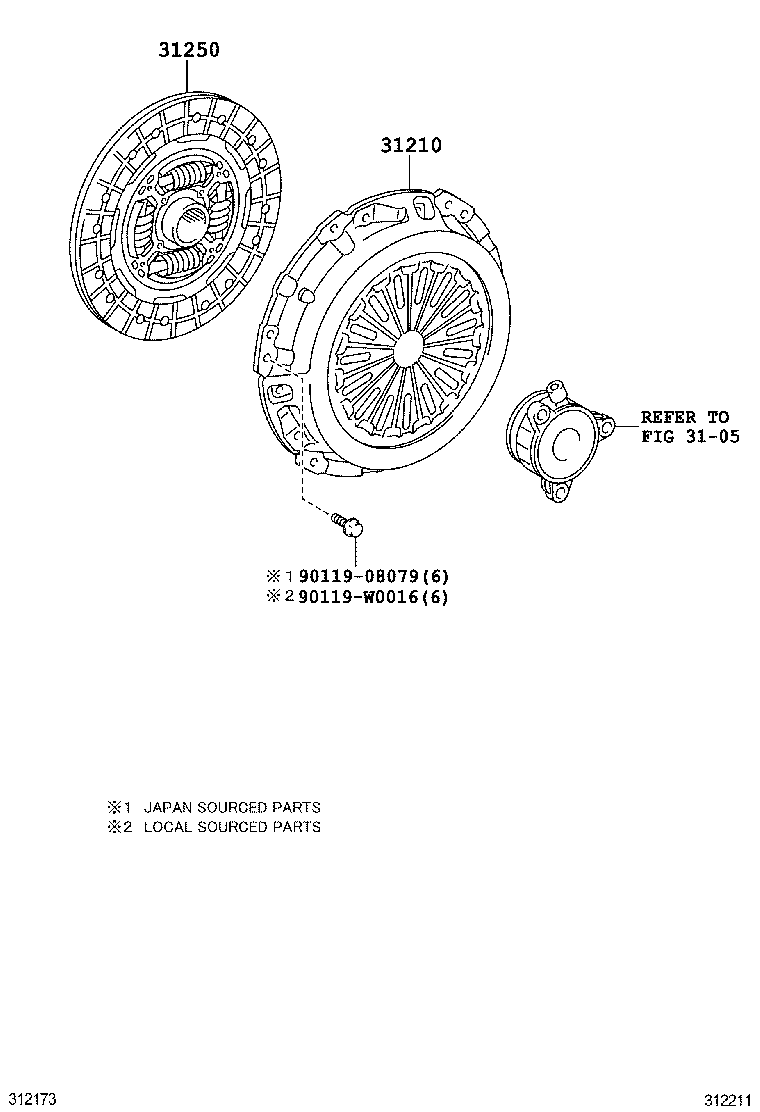

Figure 311916 311916 2008-02 → — Figure 311915 311915 2008-02 → — Figure 312038 312038 2008-02 → — Figure 312036 312036 2008-02 → — Figure 312211 312211 2009-02 → — Figure 312212 312212 2009-02 → — Figure 312213 312213 2009-02 → — Figure 312214A 312214A 2009-02 → —

Part groups

PNCDescription
31001 Clutch Set, Cover & Disc
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31250 Disc Assy, Clutch
31250B Disc Set, Adjustable Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
