Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

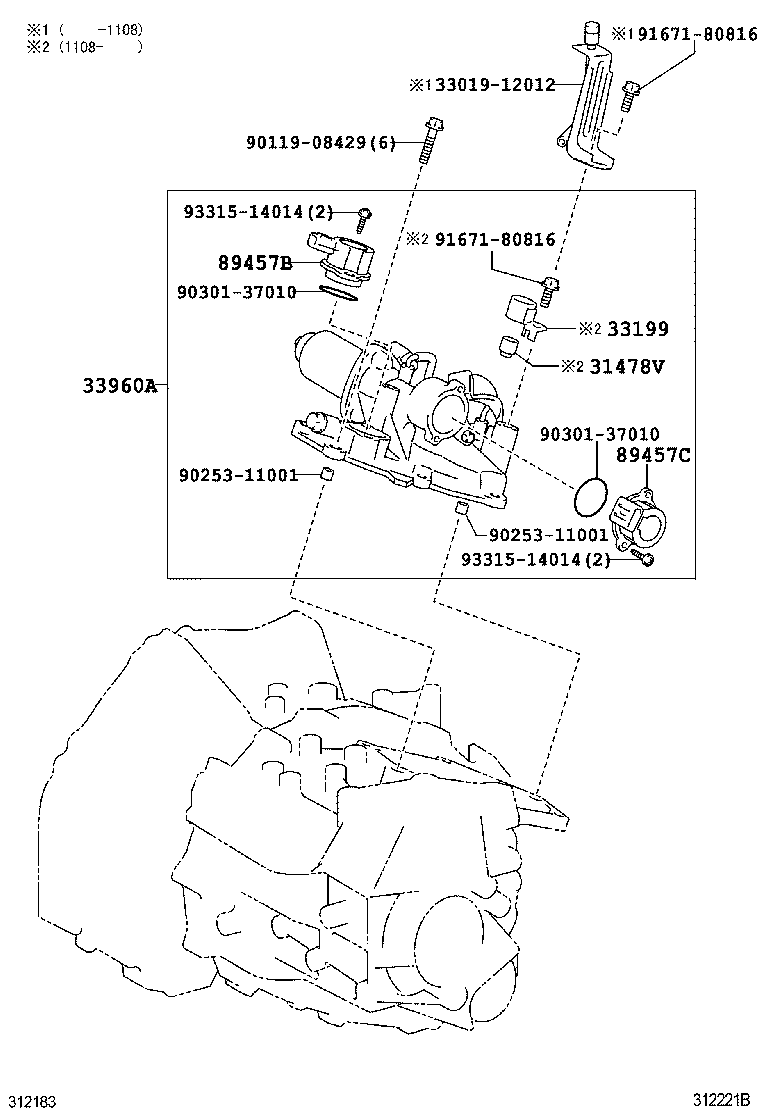

Pump & Actuator, Sequential OR Multi-mode Manual Transaxle
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31478V | Cap, Breather Plug |
| 33199 | Protector, Breather |
| 33960A | Actuator Assy, Shift & Select |
| 33960B | Breather Plug, Shift & Select Actuator |
| 89457B | Stroke Sensor, Shift |
| 89457C | Stroke Sensor, Select |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
