Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

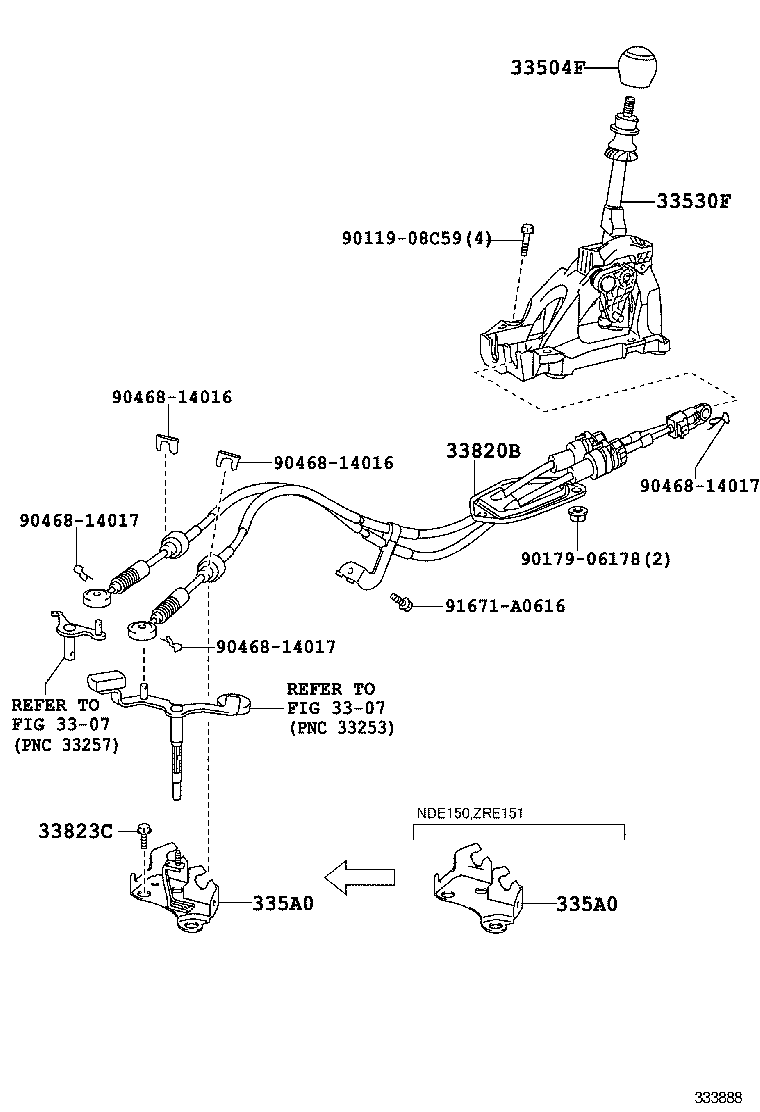

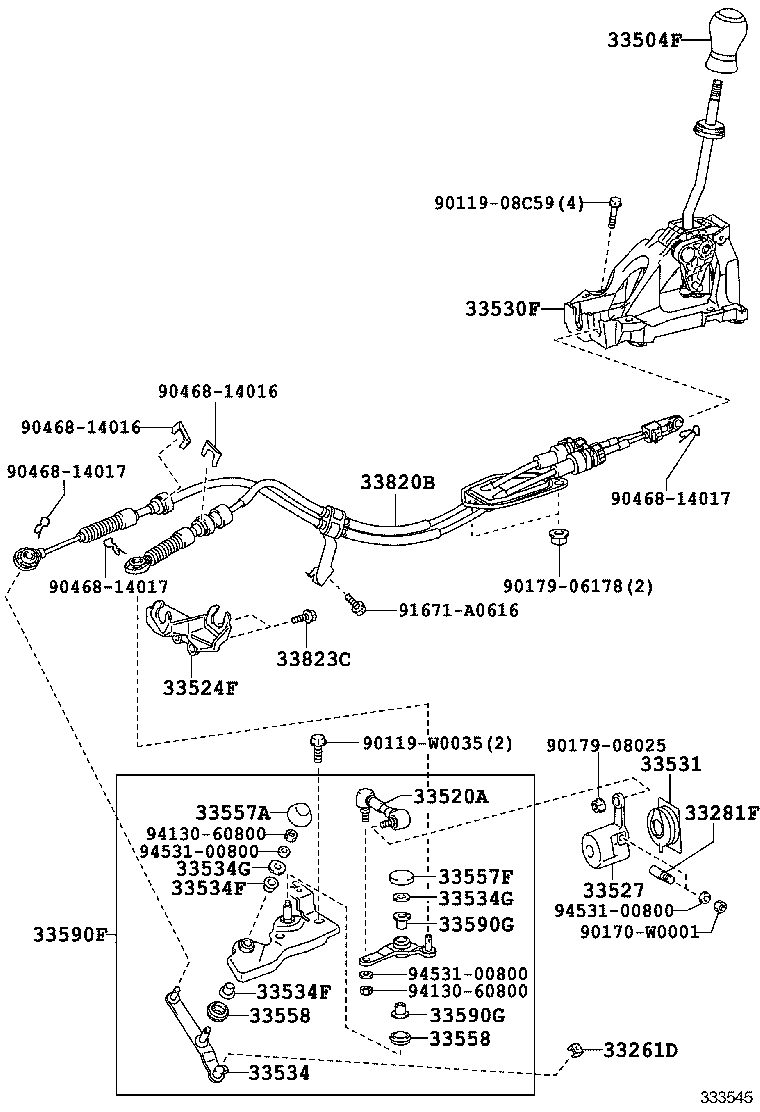

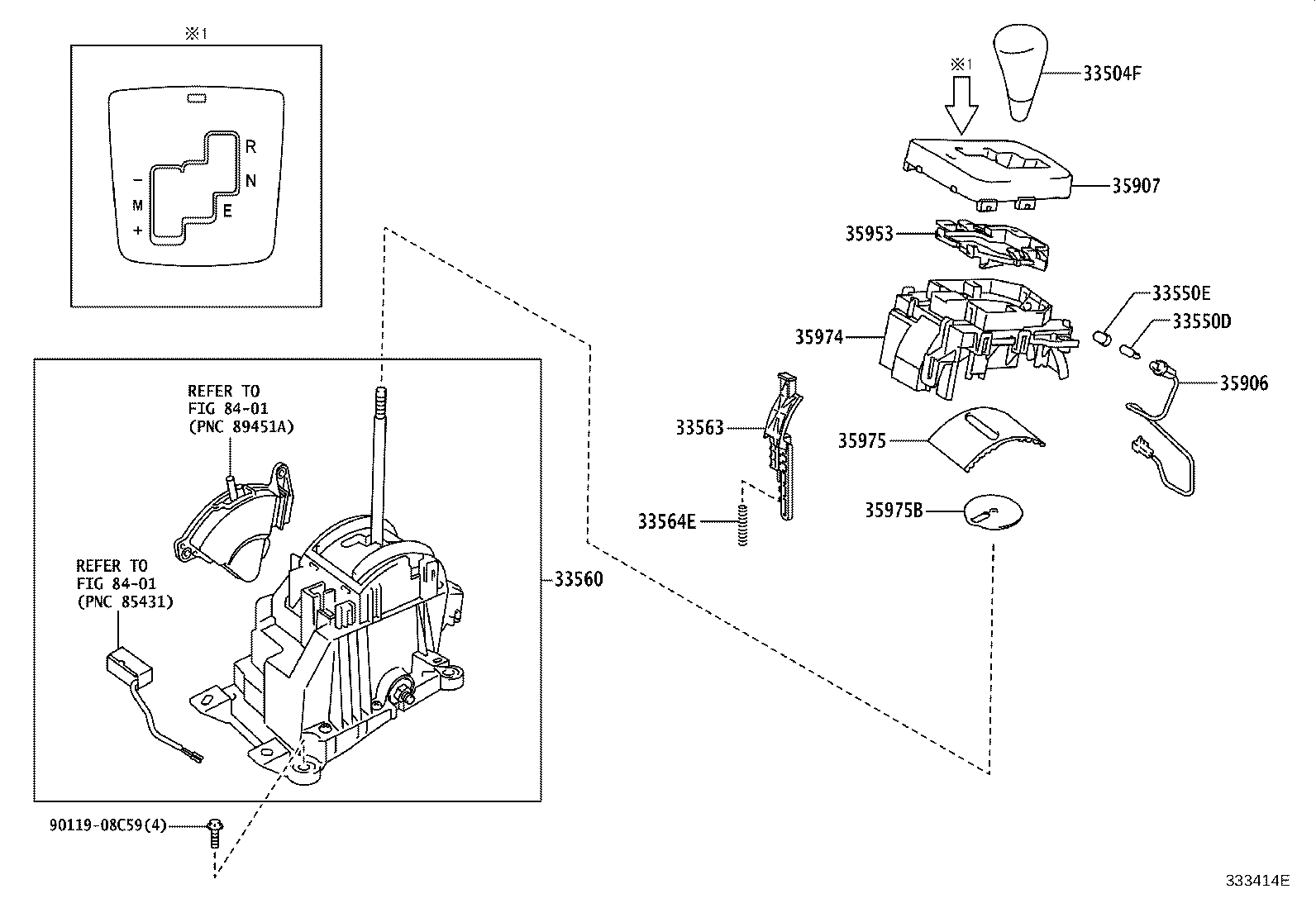

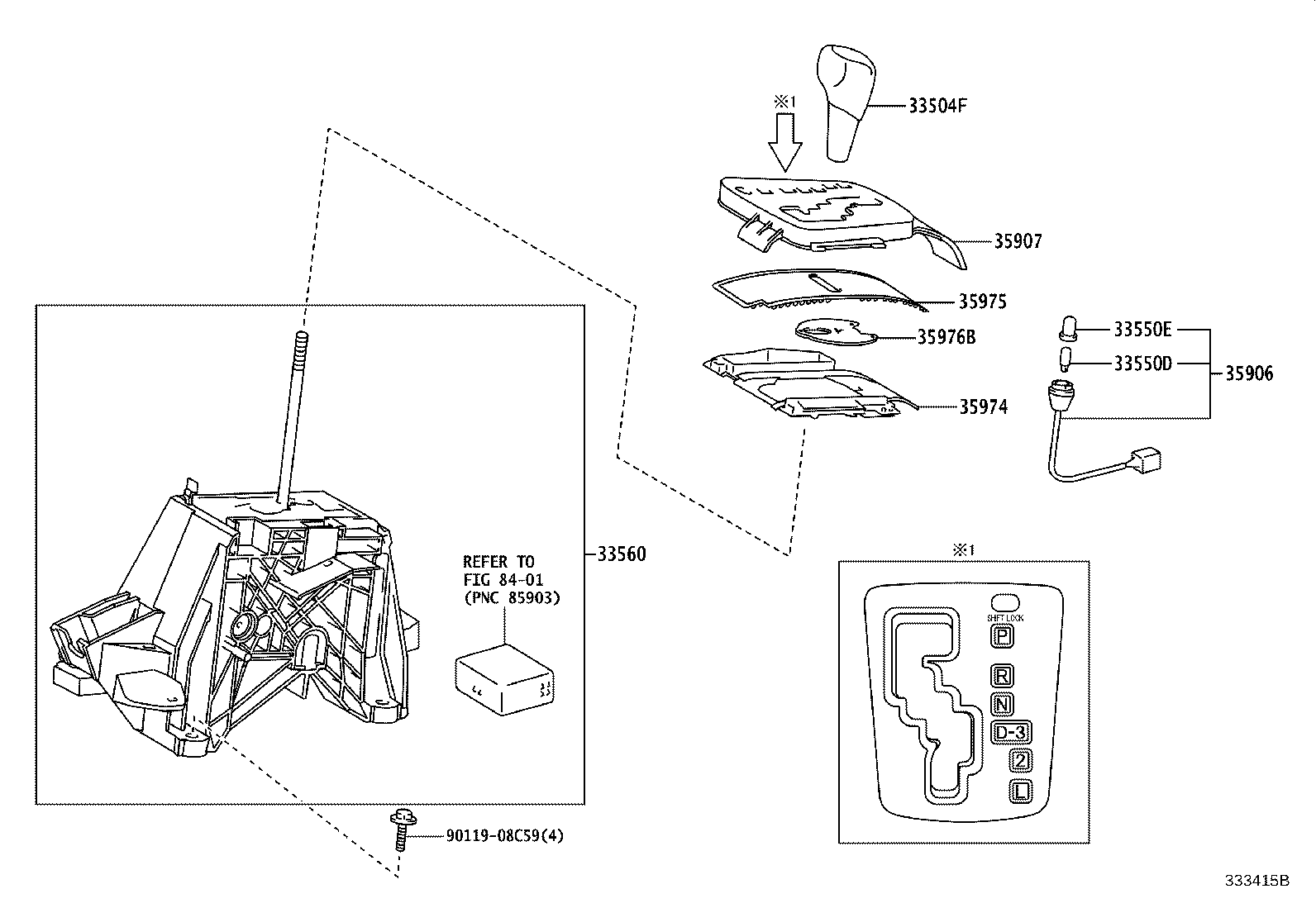

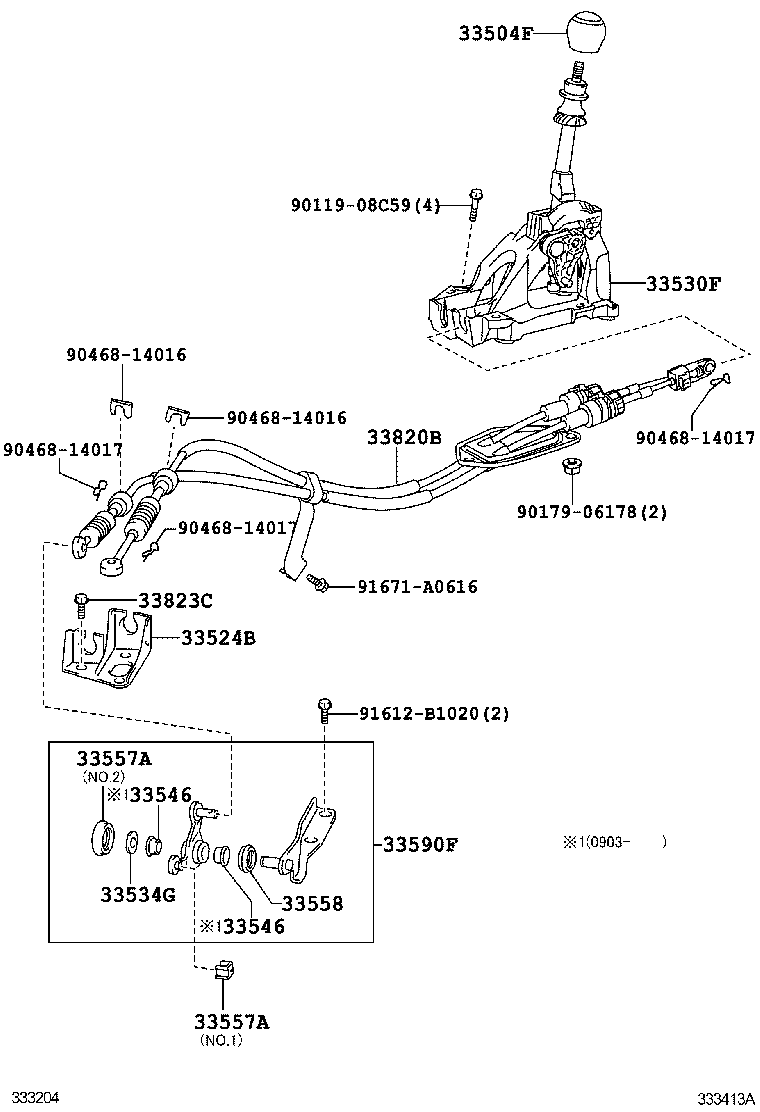

Shift Lever & Retainer
36 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 33261D | Bush (FOR SHIFT & SELECT LEVER) |
| 33281F | Pin, Lever Lock (FOR FLOOR SHIFT) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33520A | Shaft Assy, Floor Shift Control |
| 33524B | Bracket, Control Cable |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33527 | Lever, Control Shift (FOR FLOOR SHIFT) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33531 | Boot, Dust (FOR CONTROL SHIFT LEVER) |
| 33534 | Bellcrank, Selecting |
| 33534F | Bush (FOR SELECTING BELLCRANK NO.2) |
| 33534G | Washer, Plate (FOR SELECTING BELLCRANK NO.2) |
| 33546 | Bush(FOR CONTROL SHIFT LEVER RETAINER) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33557A | Cover, Selecting Bellcrank Dust, NO.1 |
| 33557F | Cover, Control Bellcrank Dust (FOR FLOOR SHIFT) |
| 33558 | Cover, Selecting Bellcrank Dust, NO.2 |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |
| 33564E | Spring, Compression (FOR SHIFT LOCK RELEASE CABLE) |
| 33590F | Crank Assy, Selecting Bell (FOR FLOOR SHIFT) |
| 33590G | Bush (FOR SELECTING BELL CRANK) |
| 335A0 | Bracket Assy, Control Cable |
| 33820B | Cable Assy, Transmission Control |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33829 | Support, Transmission Control Cable |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35953 | Guide, Position Indicator Light |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35975B | Cover, Slide, NO.2(FOR POSITION INDICATOR) |
| 35976B | Cover, Shift Lever Knob (FOR FLOOR SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
