Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 7 illustrations

Illustrations

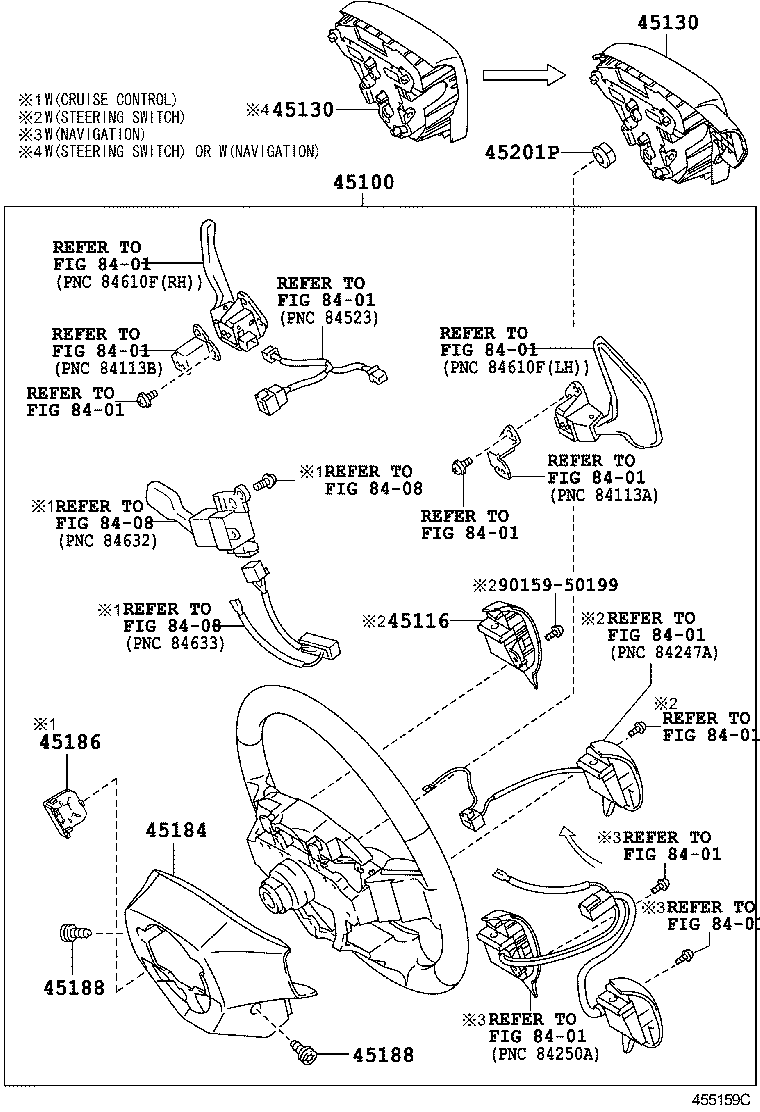

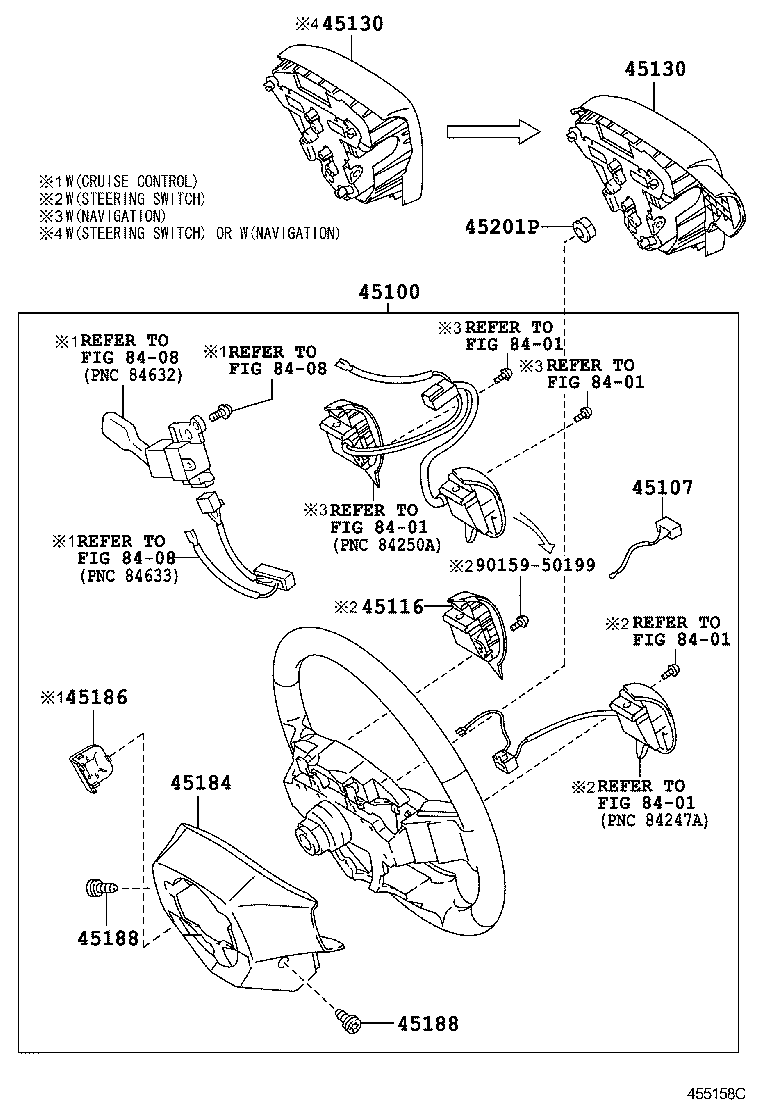

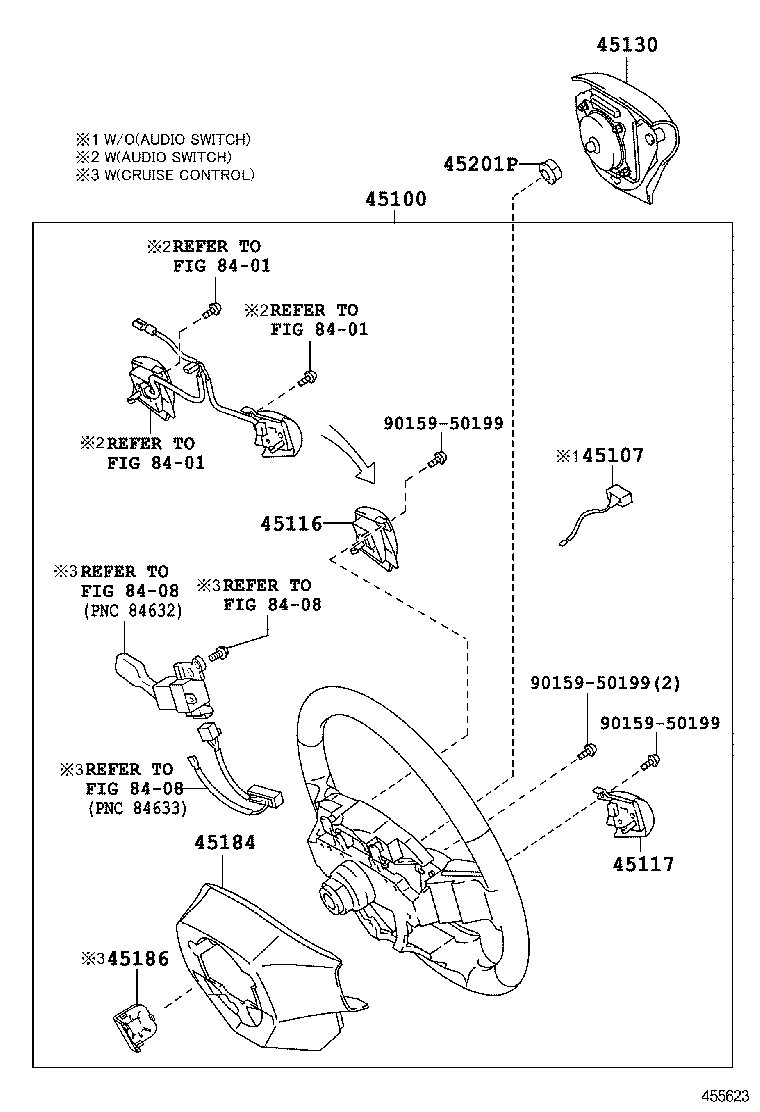

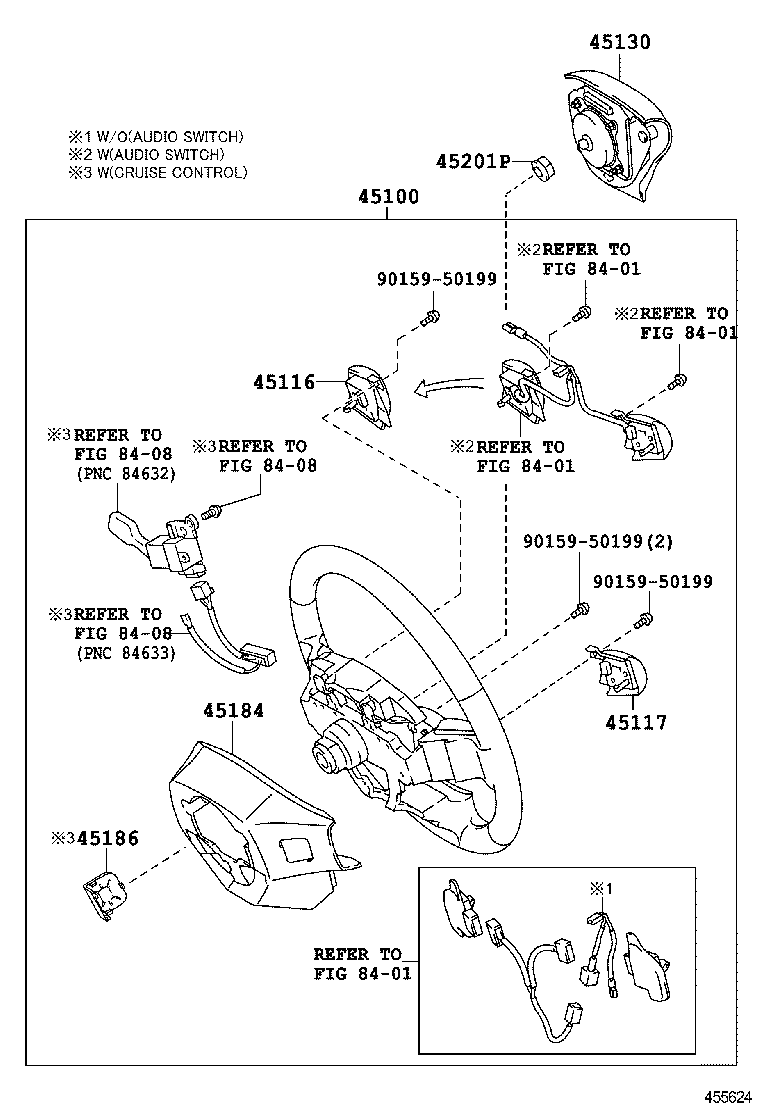

Figure 455157A 455157A 2008-02 → 2010-06 Figure 455157A 455157A 2008-02 → 2010-07 Figure 455158C 455158C 2008-02 → 2010-06 Figure 455158C 455158C 2008-02 → 2010-07 Figure 455159C 455159C 2008-02 → 2010-07 Figure 455623 455623 2010-06 → — Figure 455624 455624 2010-06 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
