Brake Booster & Vacuum Tube

17 part groups · 14 illustrations

Illustrations

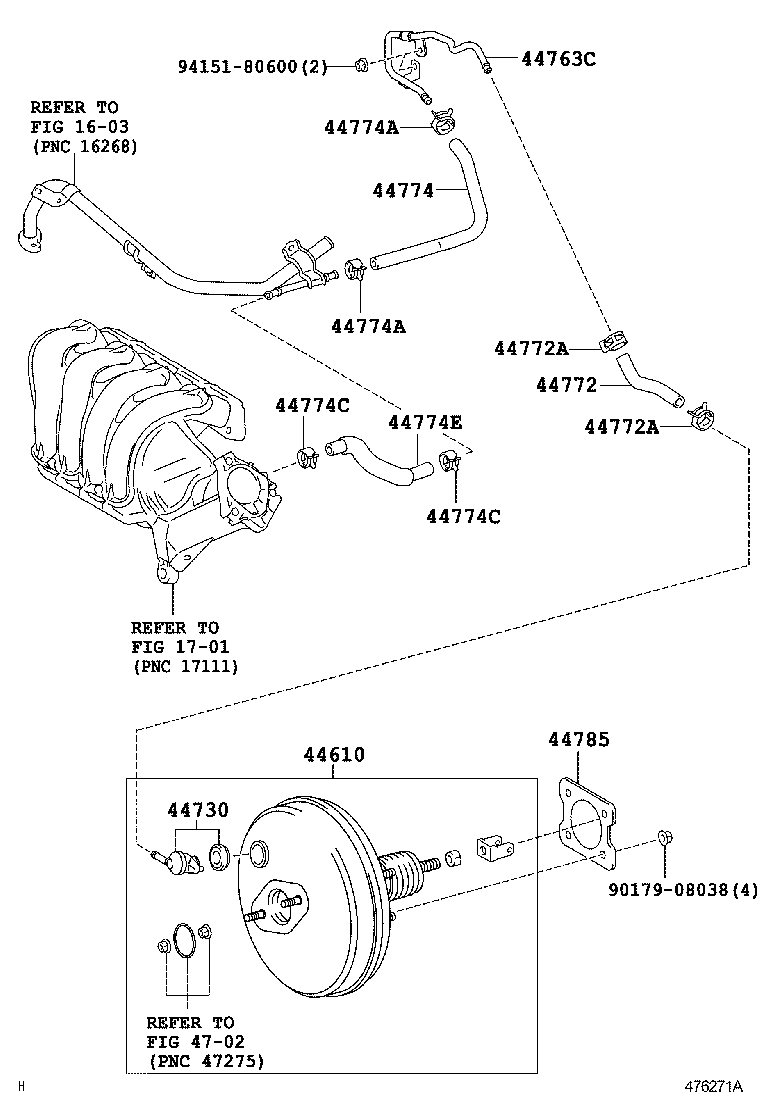

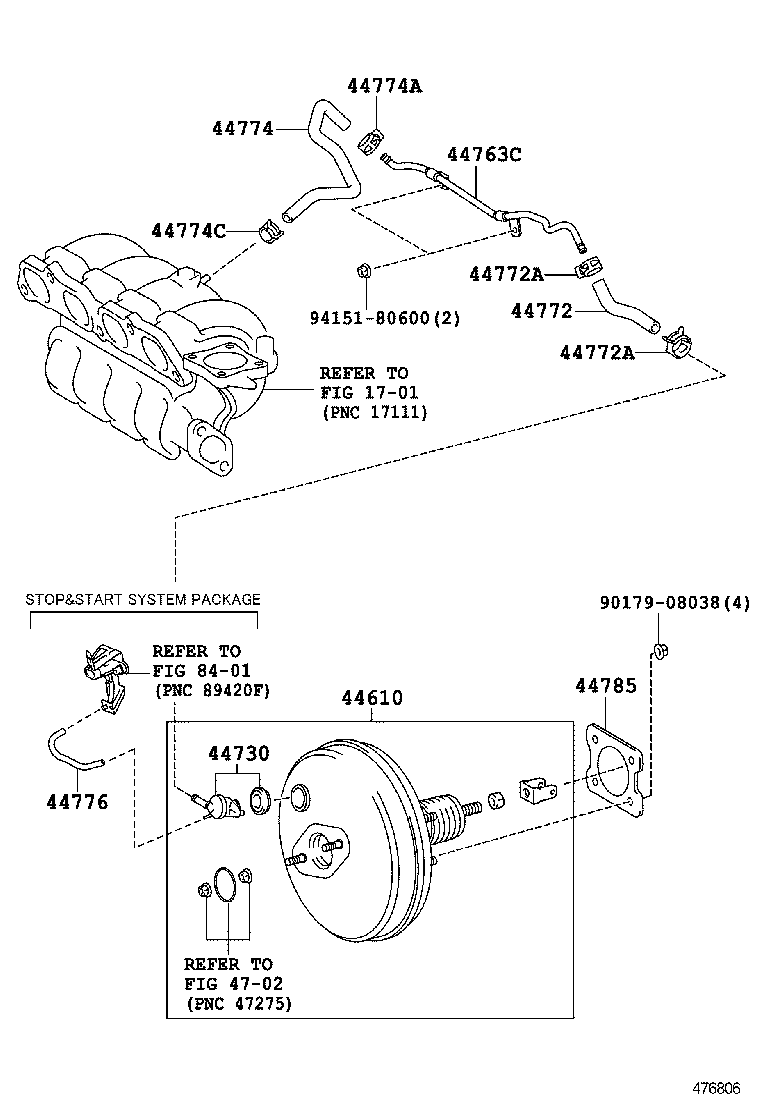

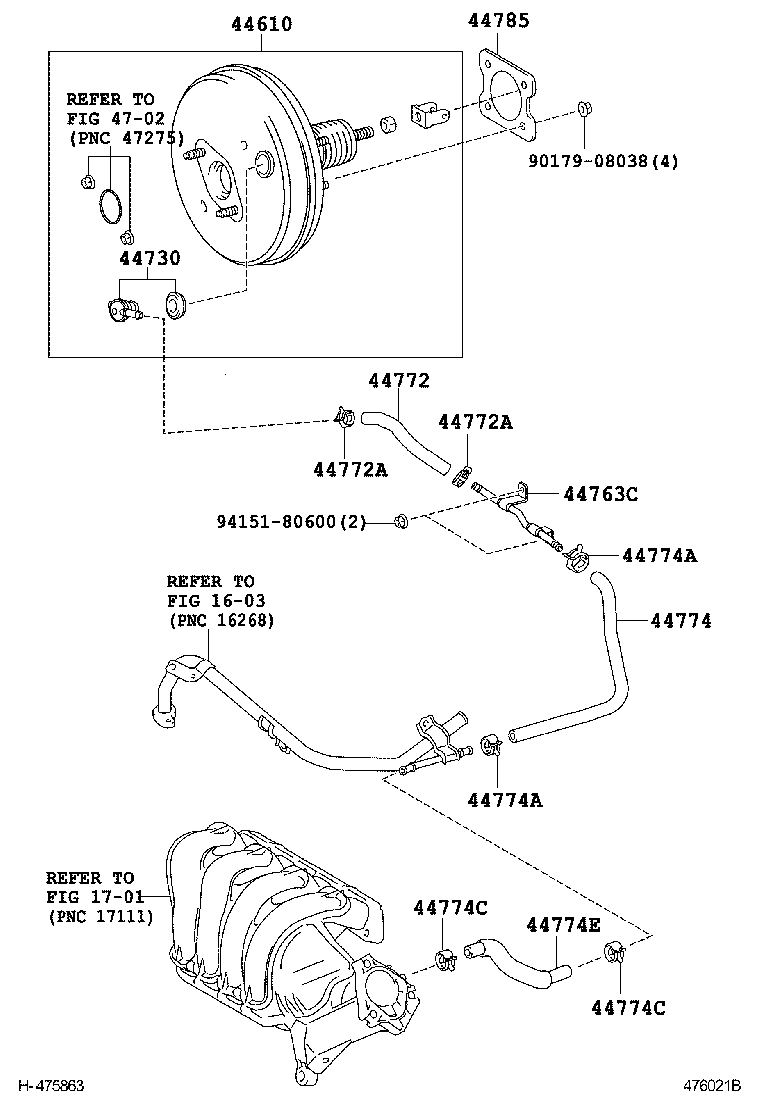

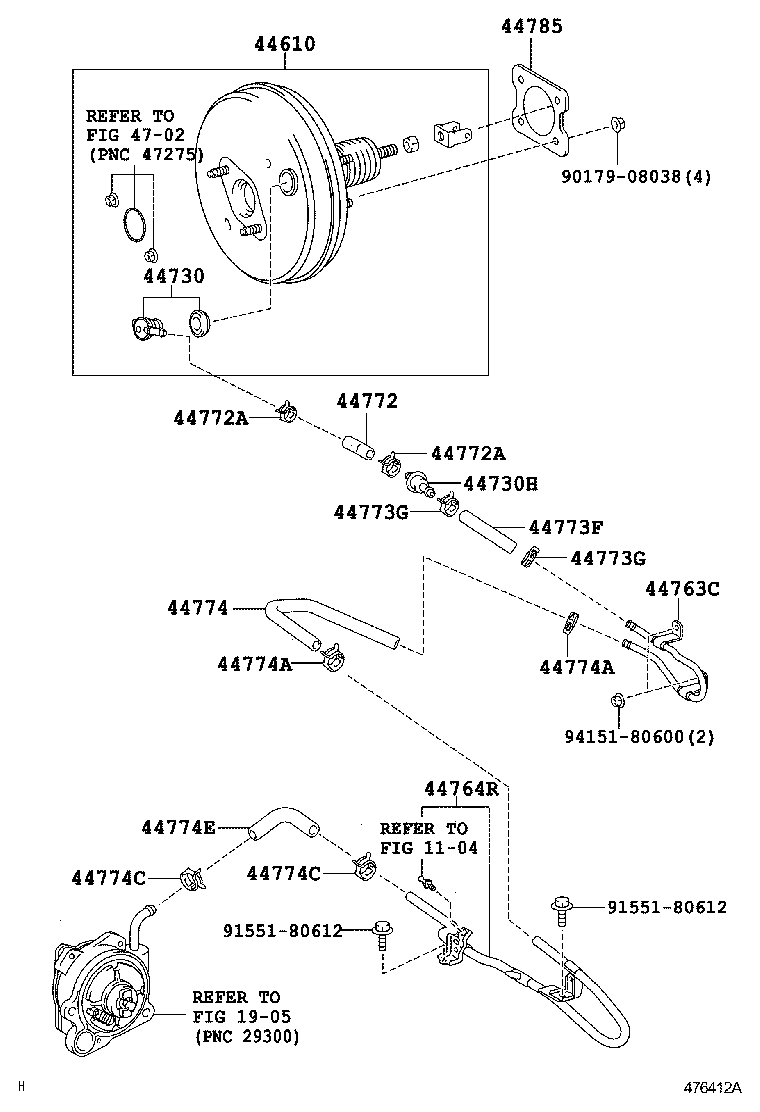

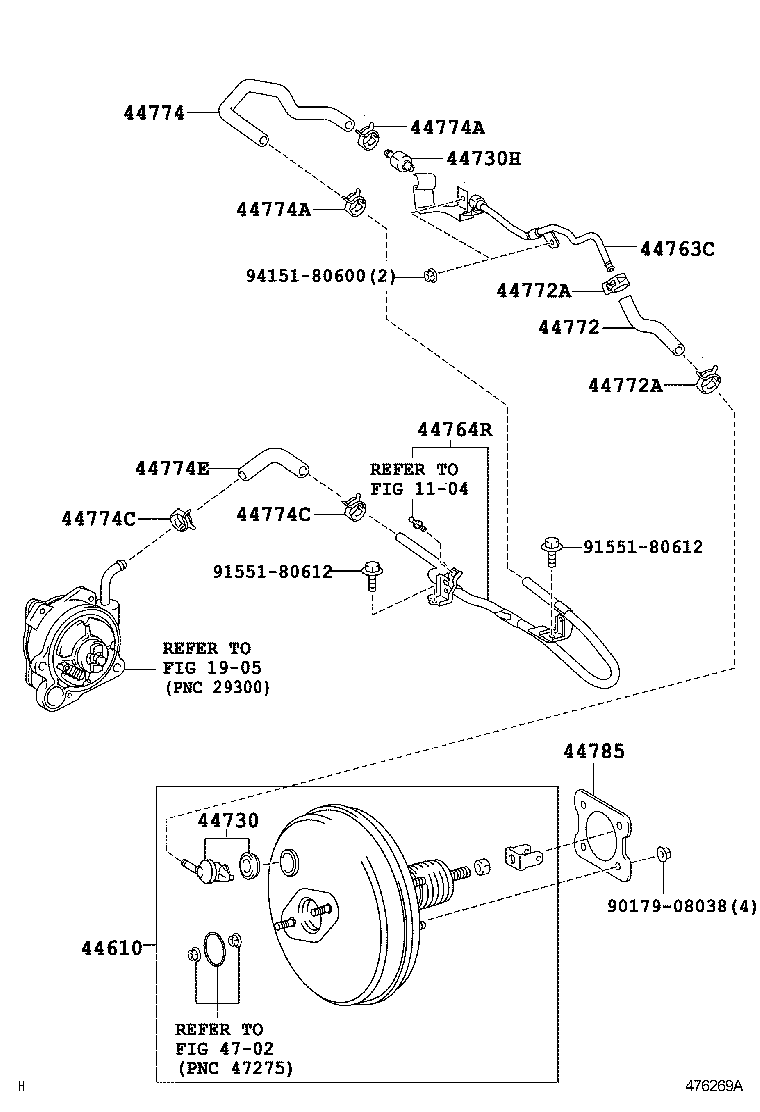

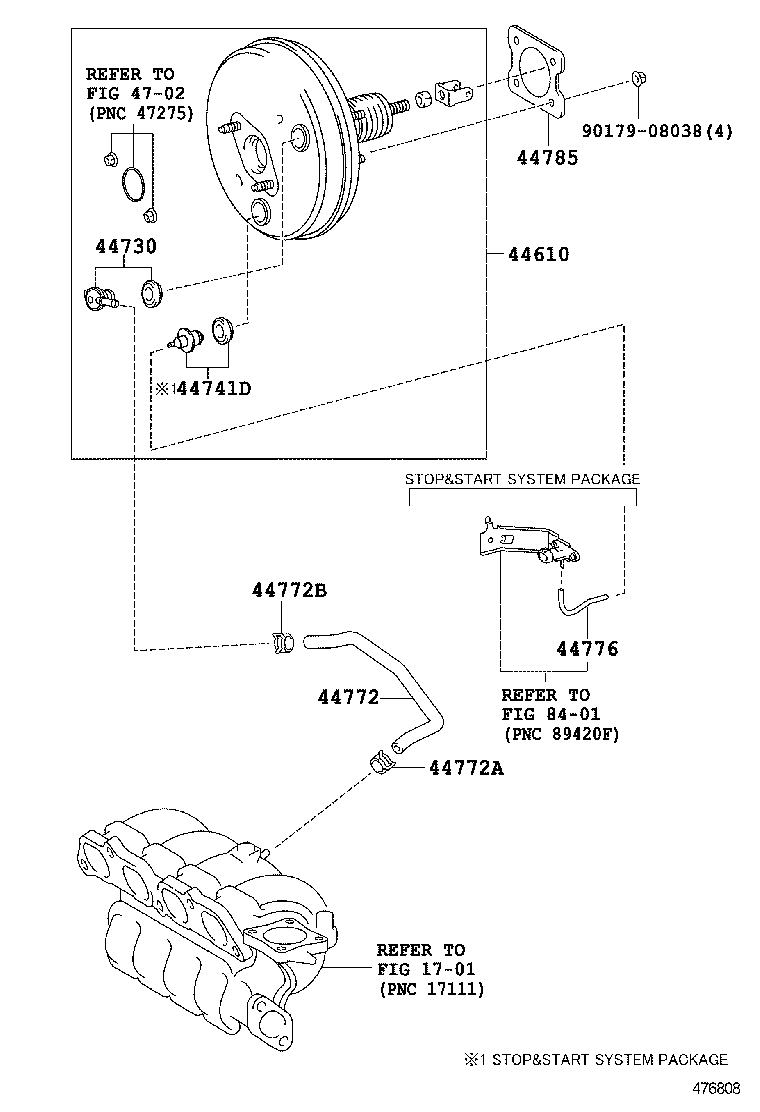

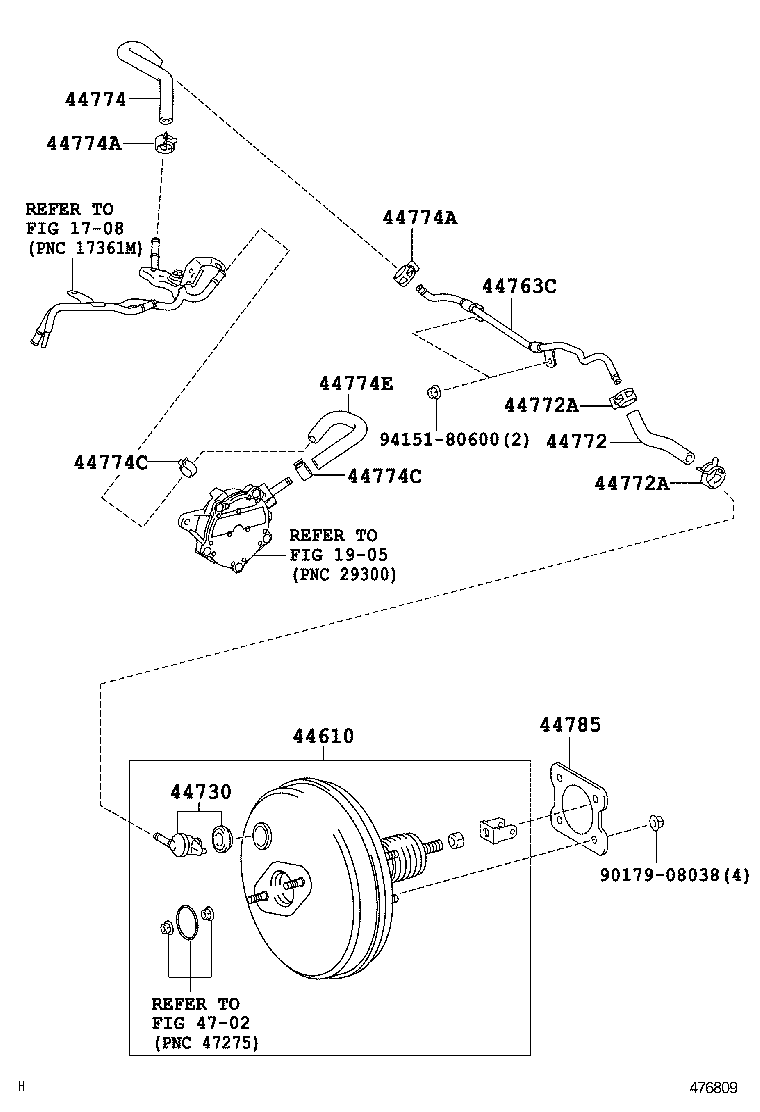

Figure 476268A 476268A 2008-02 → — Figure 476019B 476019B 2008-02 → — Figure 476269A 476269A 2008-02 → 2009-02 Figure 476805 476805 2009-02 → — Figure 476806 476806 2009-02 → — Figure 476412A 476412A 2008-02 → 2009-02 Figure 476807 476807 2009-02 → — Figure 476808 476808 2009-02 → — Figure 476270A 476270A 2008-02 → 2010-06 Figure 476809 476809 2009-02 → — Figure 476020B 476020B 2008-02 → 2010-06 Figure 476810 476810 2009-02 → — Figure 476271A 476271A 2008-02 → 2009-02 Figure 476021B 476021B 2008-02 → 2009-02

Part groups

PNCDescription
44610 Booster Assy, Brake
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44741D Body, Vacuum Check Valve
44763C Tube, Hose TO Hose, NO.2
44764R Tube, Connector TO Vacuum Reservoir
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
