Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

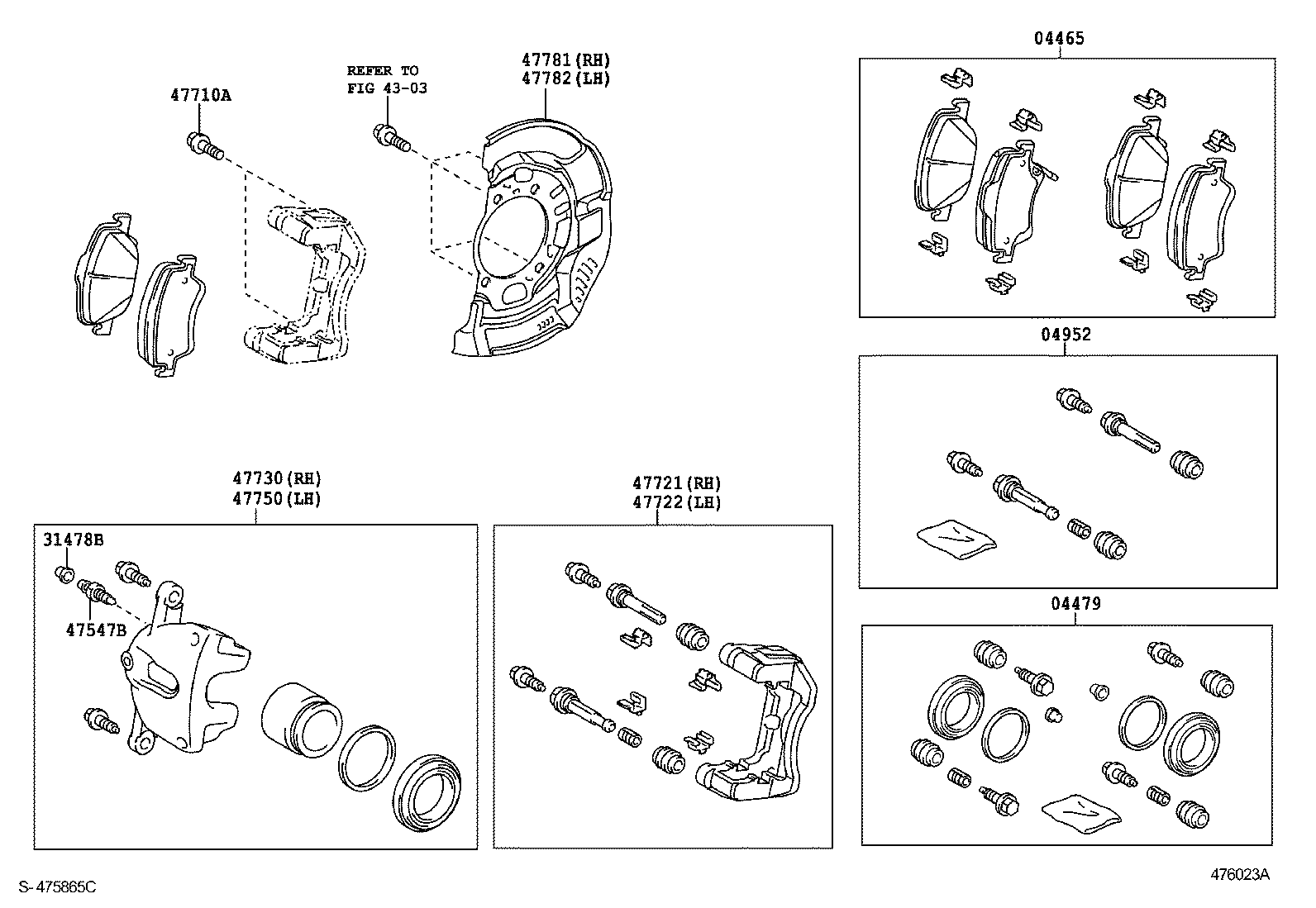

Front Disc Brake Caliper & Dust Cover
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04465 | Pad Kit, Disc Brake, Front |
| 04479 | Cylinder Kit, Disc Brake, Front |
| 04952 | Pin Kit, Front Disc Brake Cylinder Slide |
| 31478B | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47547B | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47710A | Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) |
| 47721 | Mounting, Front Disc Brake Cylinder, RH |
| 47722 | Mounting, Front Disc Brake Cylinder, LH |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47781 | Cover, Disc Brake Dust, Front RH |
| 47782 | Cover, Disc Brake Dust, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
